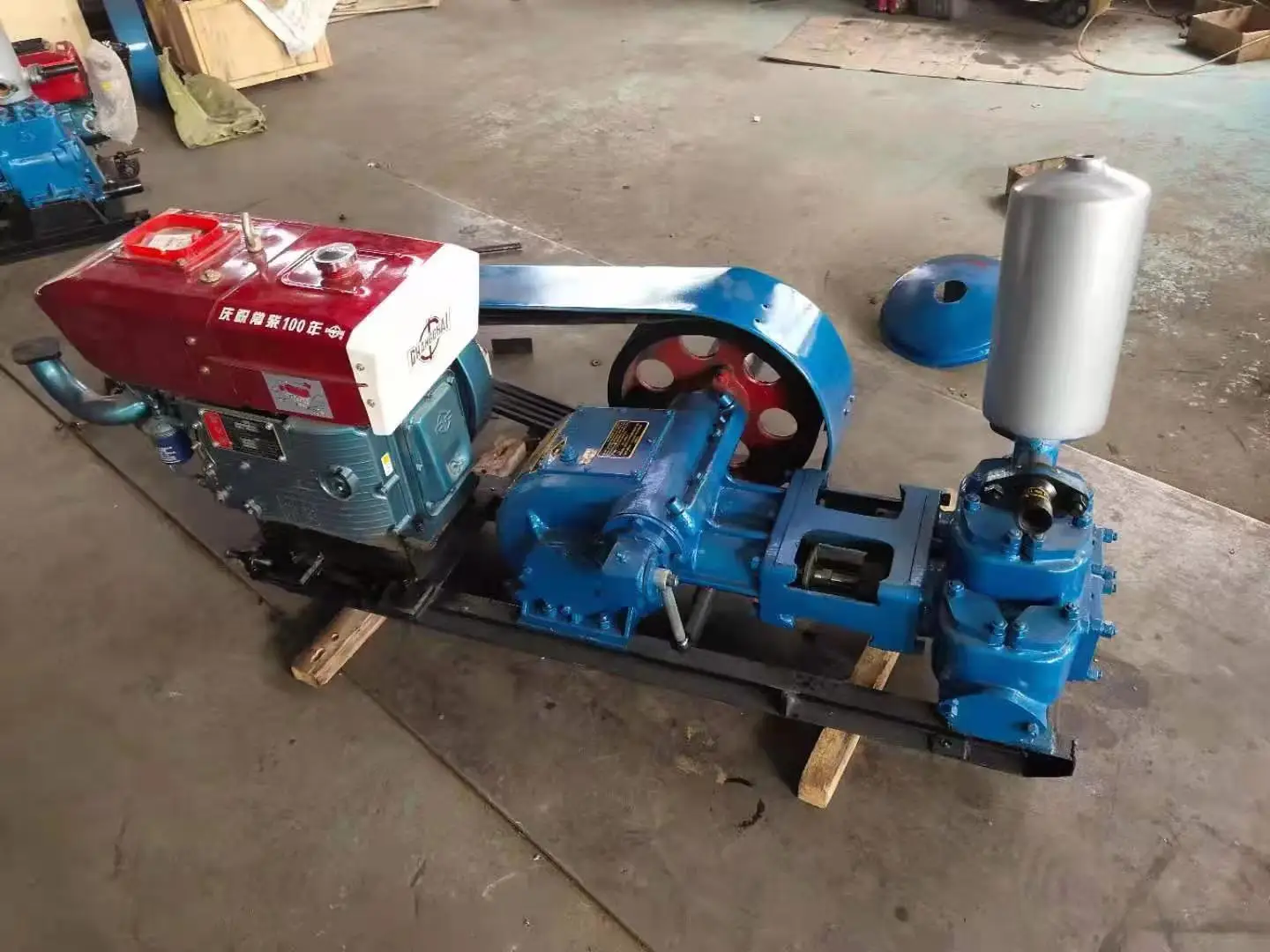

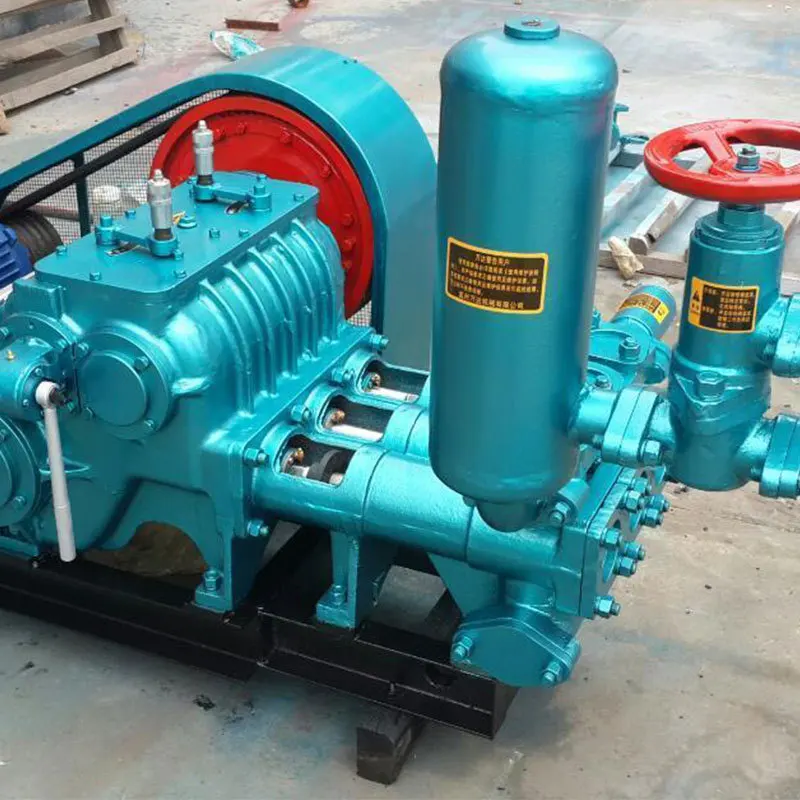

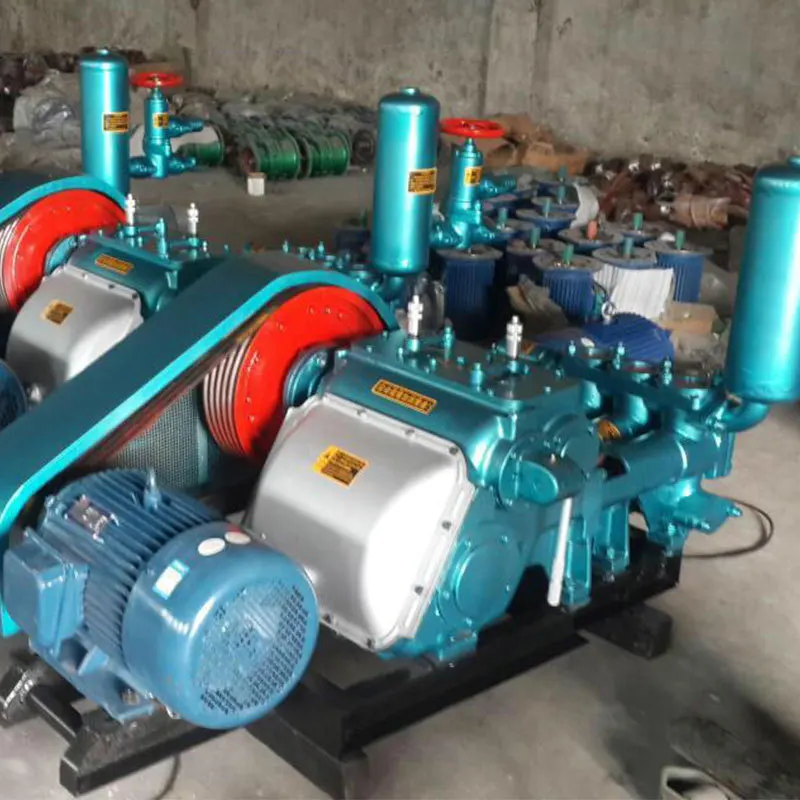

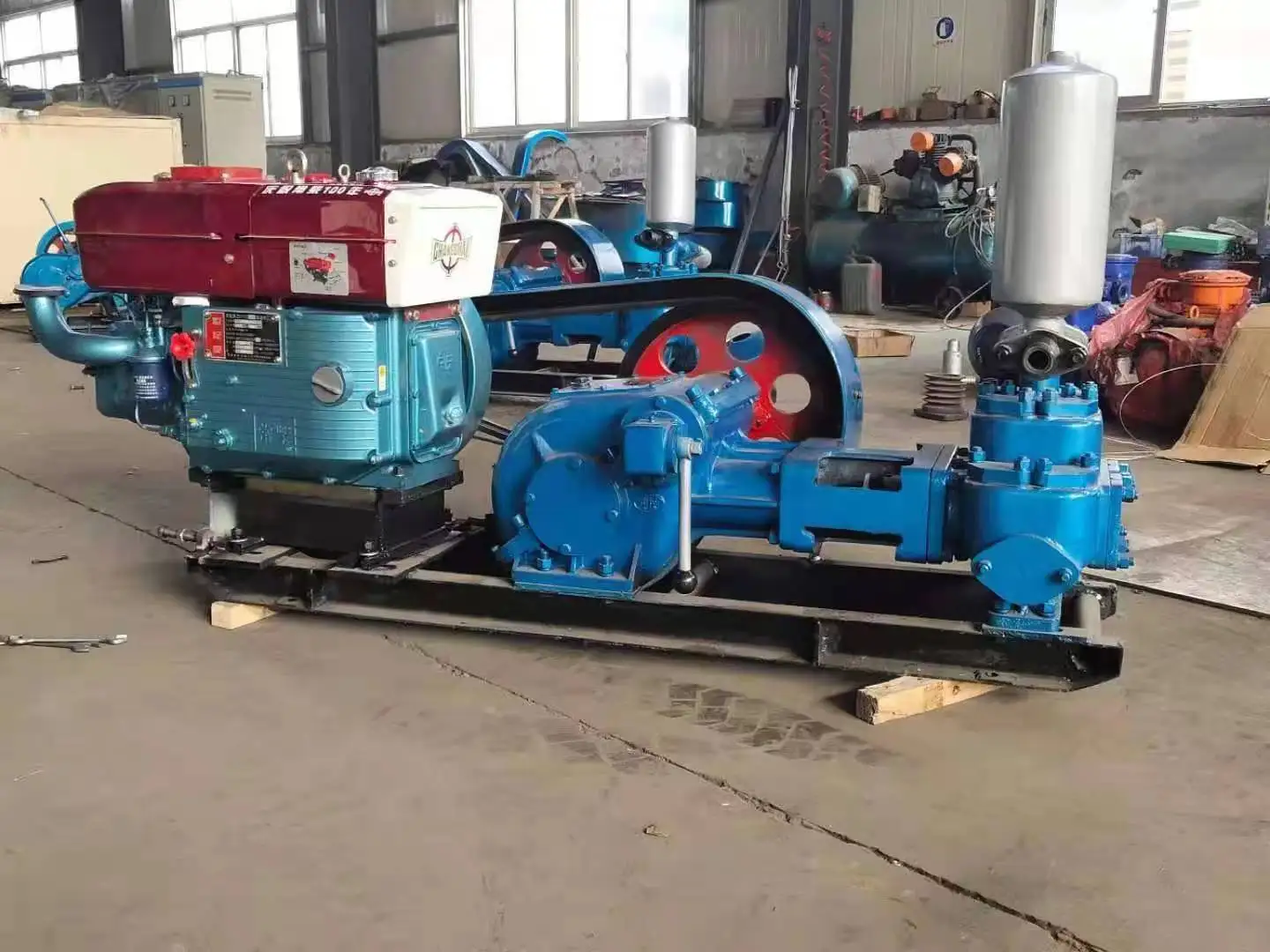

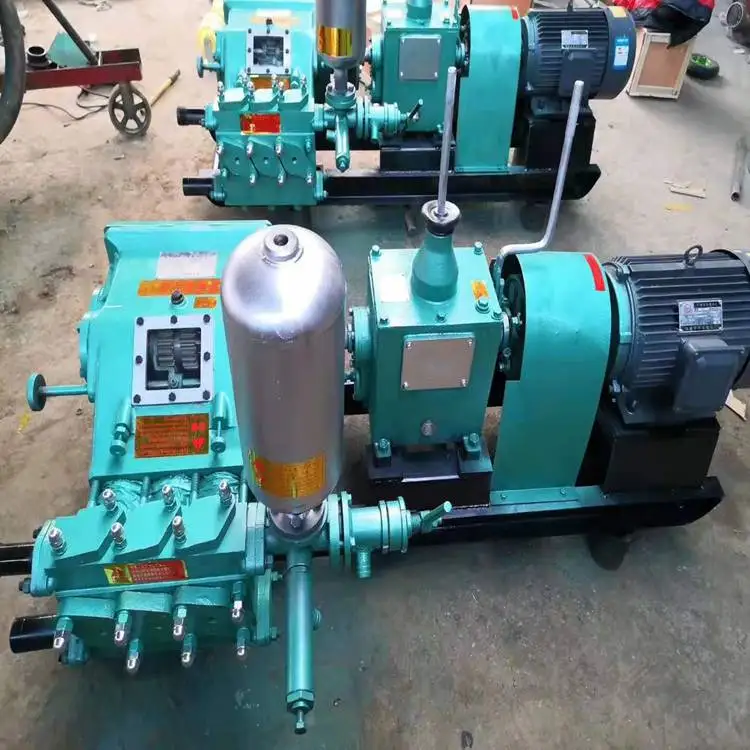

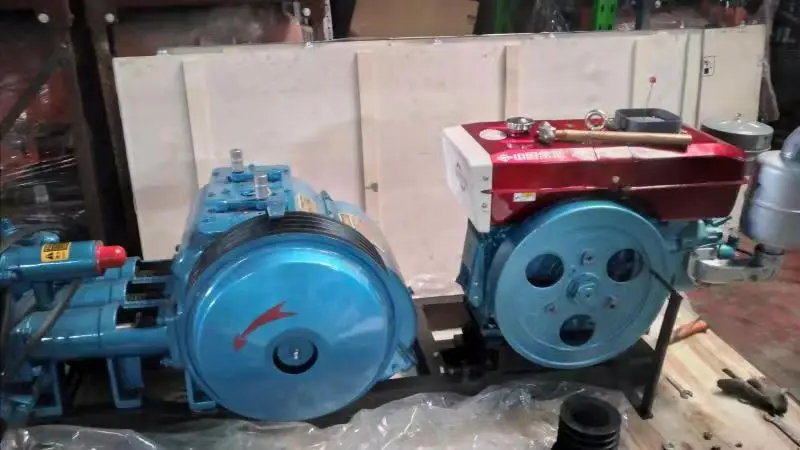

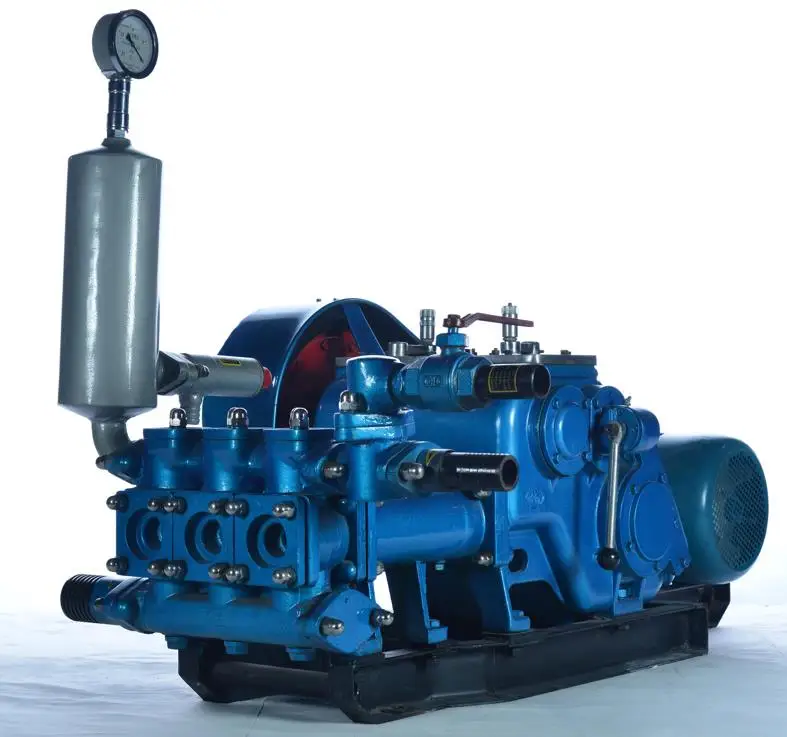

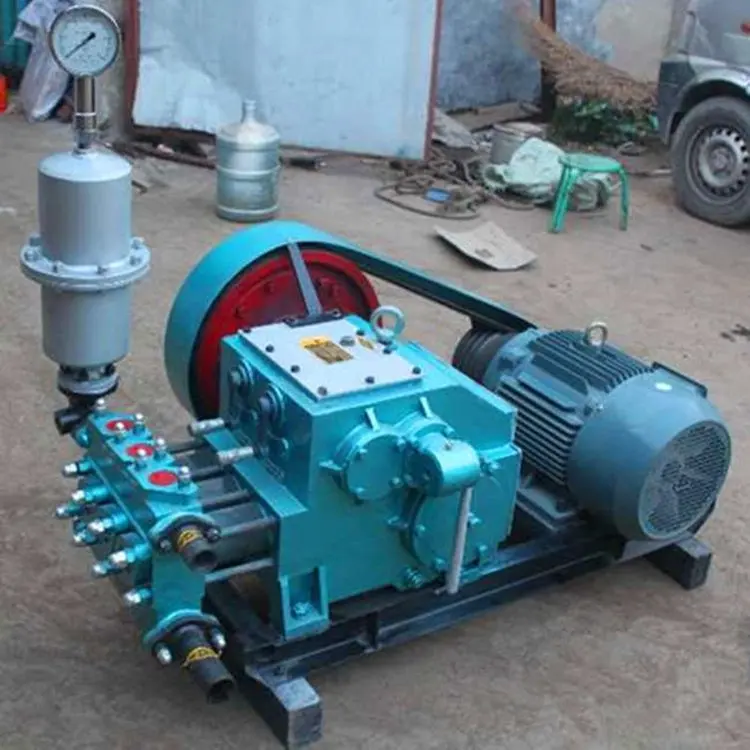

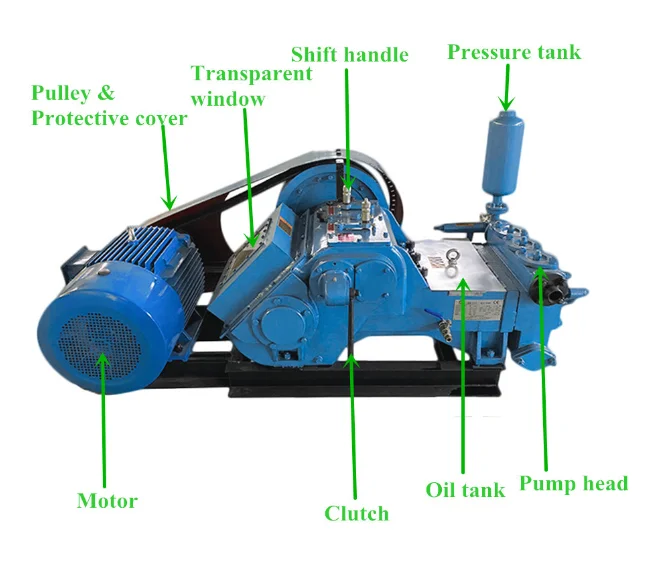

Factory Direct Mining Water Well Drilling BW250 Piston Slurry Hydraulic Mud Pump Machine prices With Diesel Engine For Sale
- Category: >>>
- Supplier: Xuchang Shengte Trade Co. Ltd.
Share on (1601124129209):
Product Overview
Description
Product Description
Application

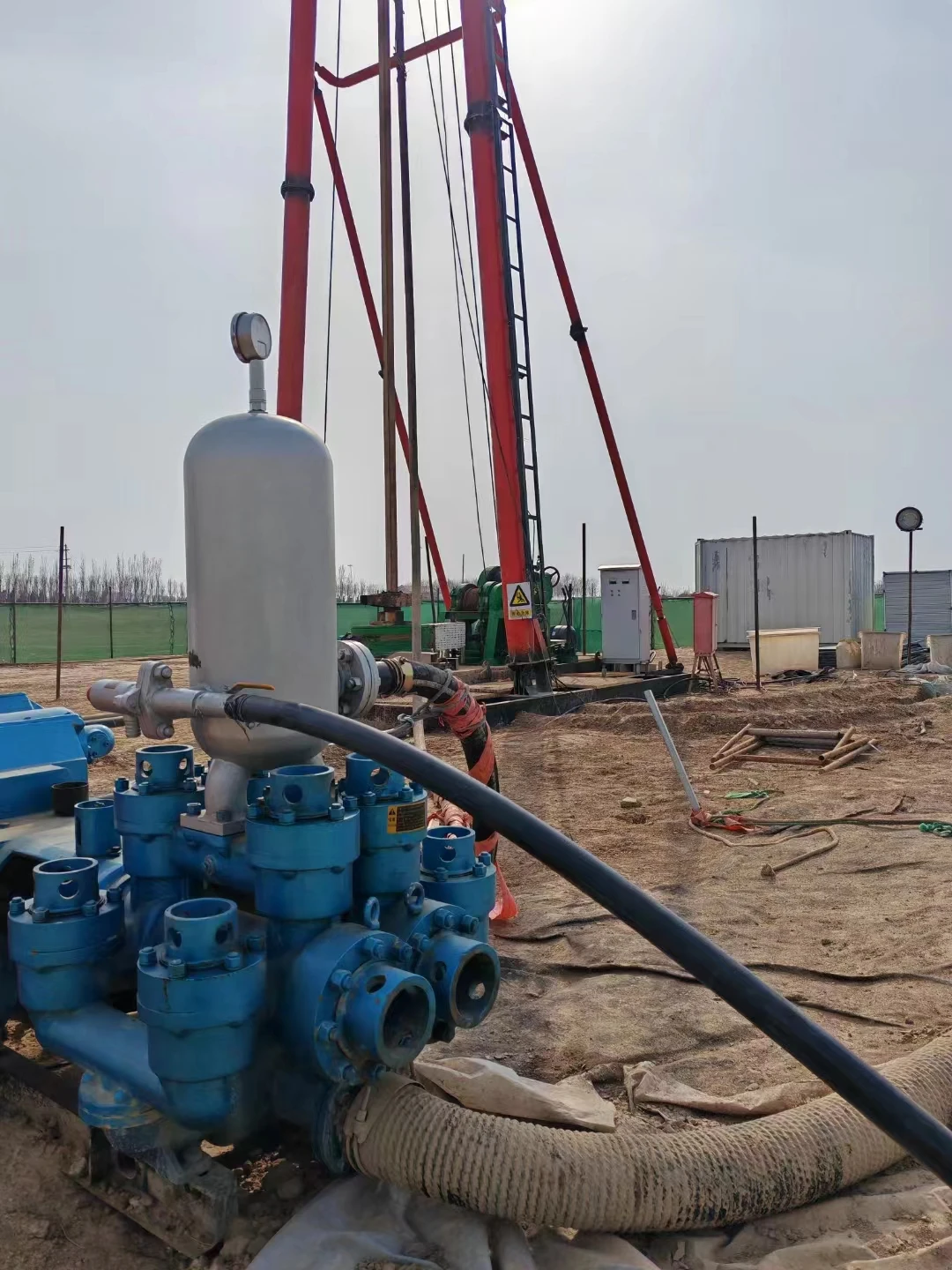

Mainly used for supplying flushing fluid in core drilling, coal mining, metallurgy, and water well engineering drilling. The flushing fluid can be divided into mud, clean water, etc., and can also be used as a conveying pump for the above media
Specification
Technical specifications of BW250 mud pump | ||||||||||||||||
Type | Horizontal three cylinder reciprocating single acting piston pump | |||||||||||||||
Stroke (mm) | 100 | |||||||||||||||
Cylinder diameter (mm) | 80 | 65 | ||||||||||||||
Pump speed（min） | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 | ||||||||
Flow （L/min） | 250 | 145 | 92 | 52 | 166 | 96 | 60 | 35 | ||||||||
Pressure （MPa） | 2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 | ||||||||
Power （kw） | 15 | |||||||||||||||
Shape size（mm） | 1000*995*650 | |||||||||||||||
Weight（kg） | 760 | |||||||||||||||
Technical specifications of BW450 mud pump | ||||||||
Type | Horizontal three cylinder reciprocating single acting piston pump | |||||||
Stroke (mm) | 80 | |||||||
Cylinder diameter (mm) | 110 | |||||||
Pump speed（min） | 235 | 157 | 126 | 90 | ||||
Flow （L/min） | 350 | 235 | 188 | 134 | ||||
Pressure （MPa） | 7 | 9 | 11 | 13 | ||||
Outlet Pipe diameter（mm） | 51 | |||||||
Inlet Pipe diameter（mm） | 76 | |||||||
Power （kw） | 45 | |||||||
Shape size（mm） | 1850*1050*1230 | |||||||
Weight（kg） | 760 | |||||||
Technical specifications of BW850/2 mud pump | ||||
Type | Horizontal three cylinder reciprocating single acting piston pump | |||
Stroke (mm) | 150 | |||
Cylinder diameter (mm) | 180 | |||
Pump speed（min） | 82 | 58 | ||
Flow （L/min） | 850 | 600 | ||
Pressure （MPa） | 2.0 | 3.0 | ||
Outlet Pipe diameter（mm） | 64 | |||
Inlet Pipe diameter（mm） | 127 | |||
Power （kw） | 37 | |||
Shape size（mm） | 2000*1030*1400 | |||
Weight（kg） | 1500 | |||
Why Choose Us
25 years professional R&D mud pump factory
Key Laboratory Support Design Customization Services
Large inventory, ready to ship

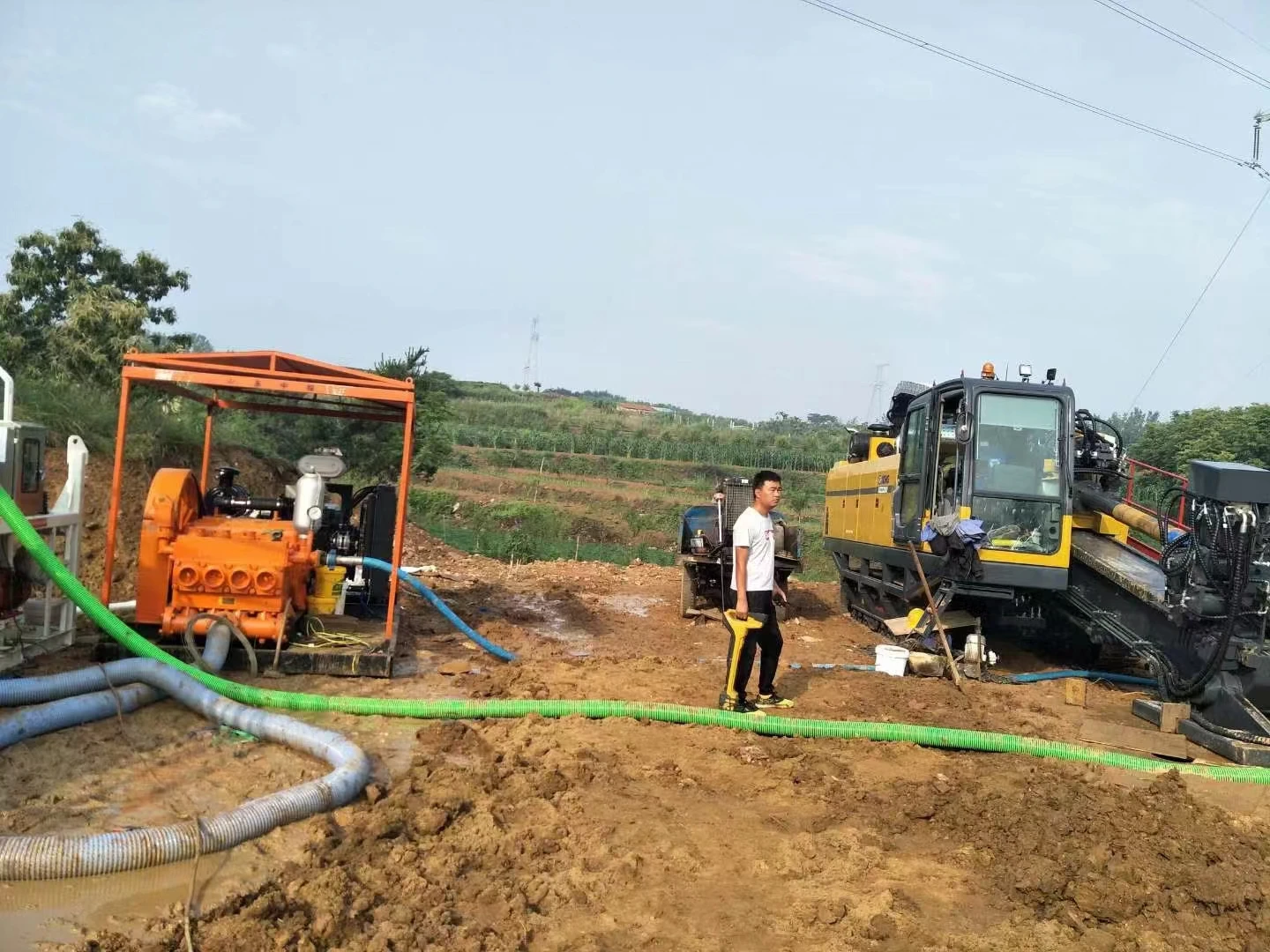

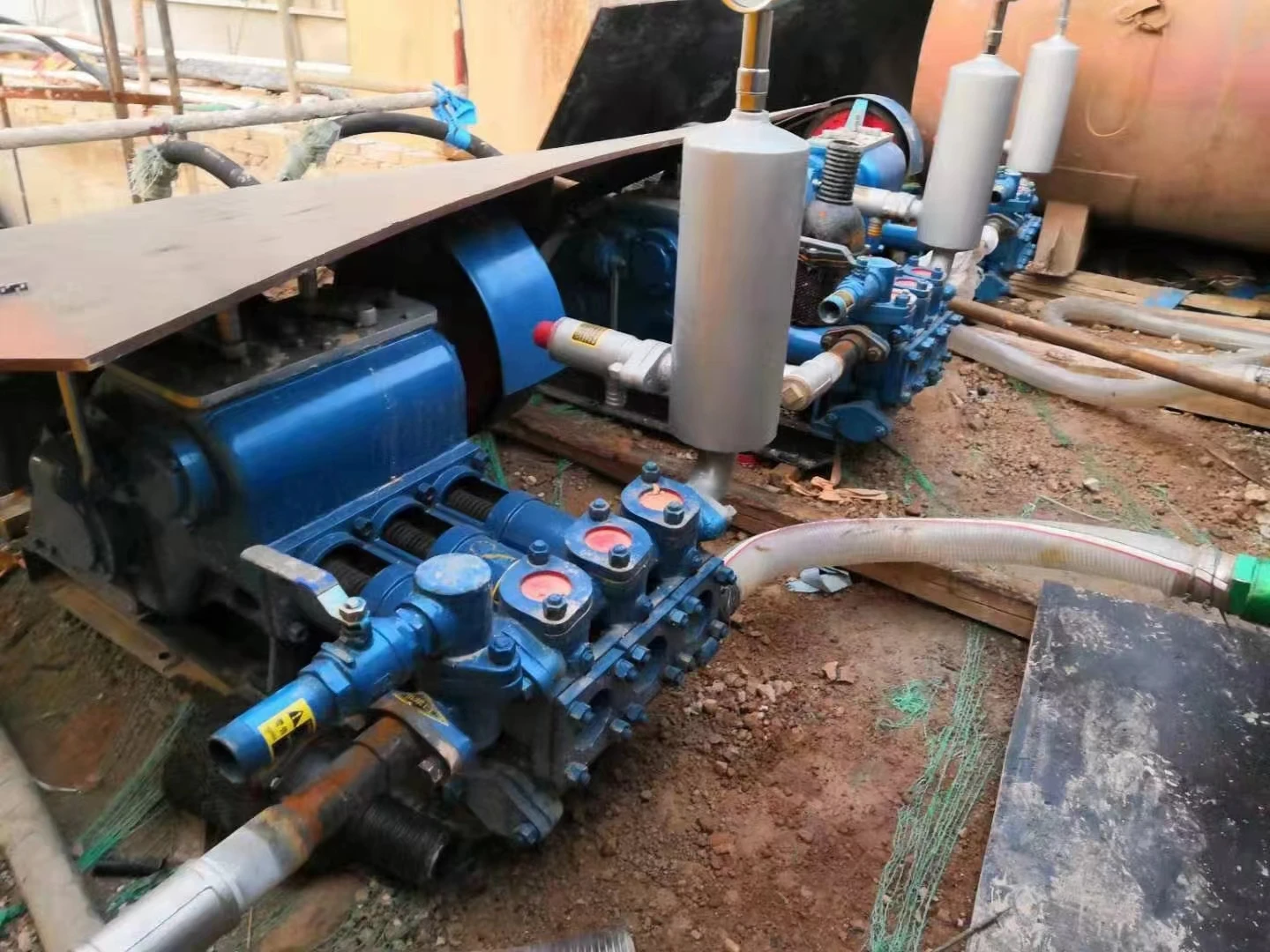

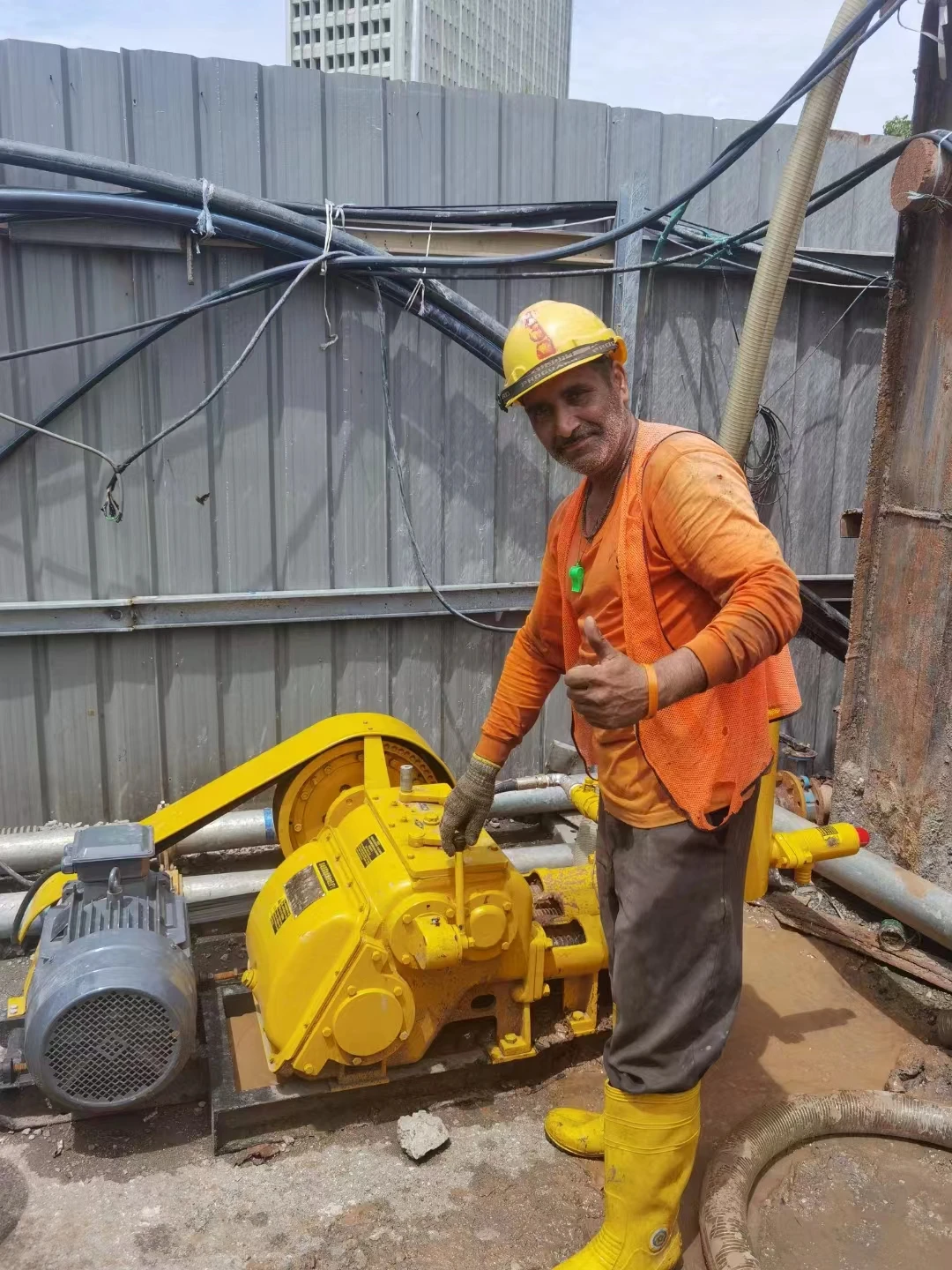

Customer Feedback

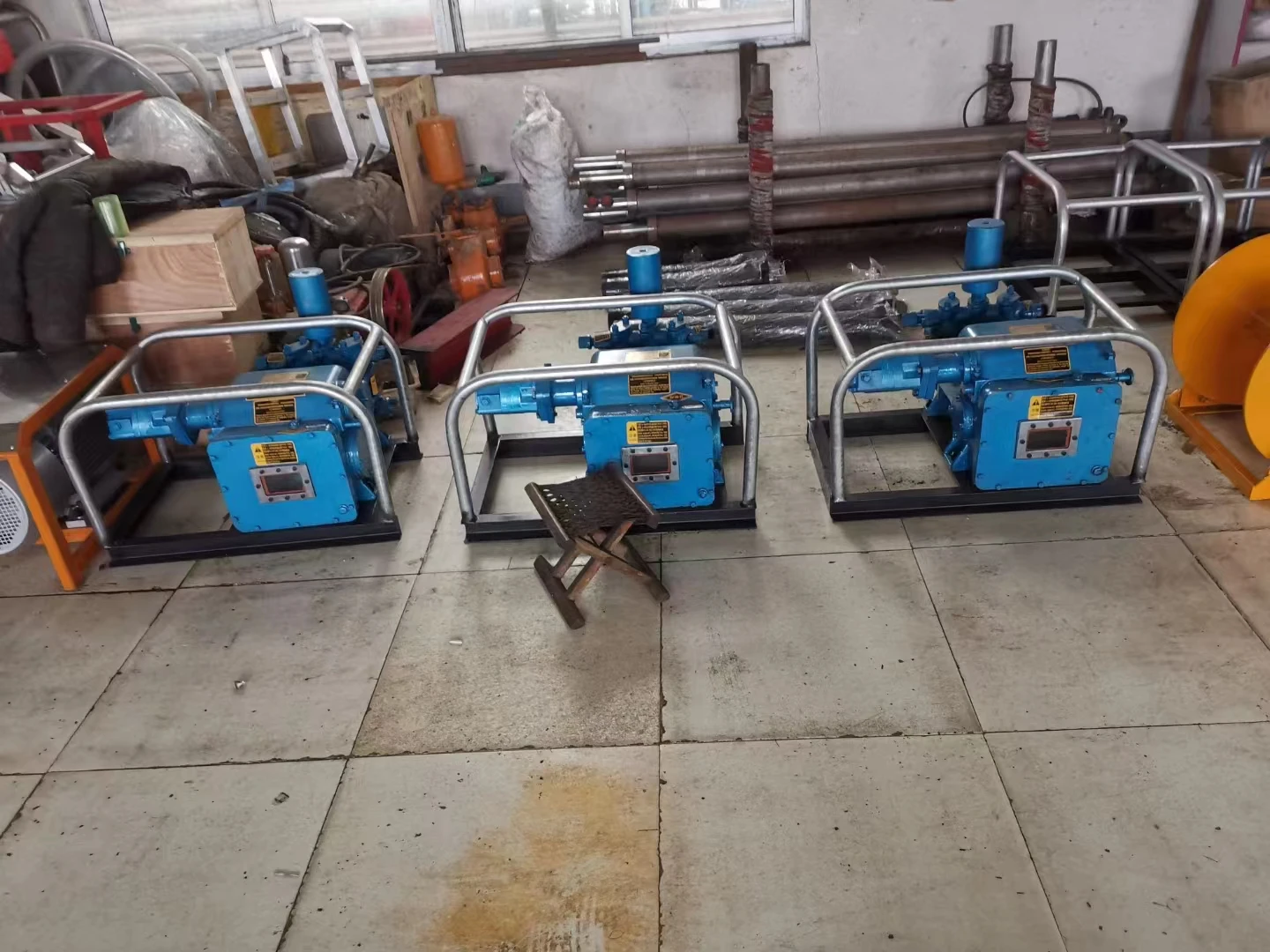

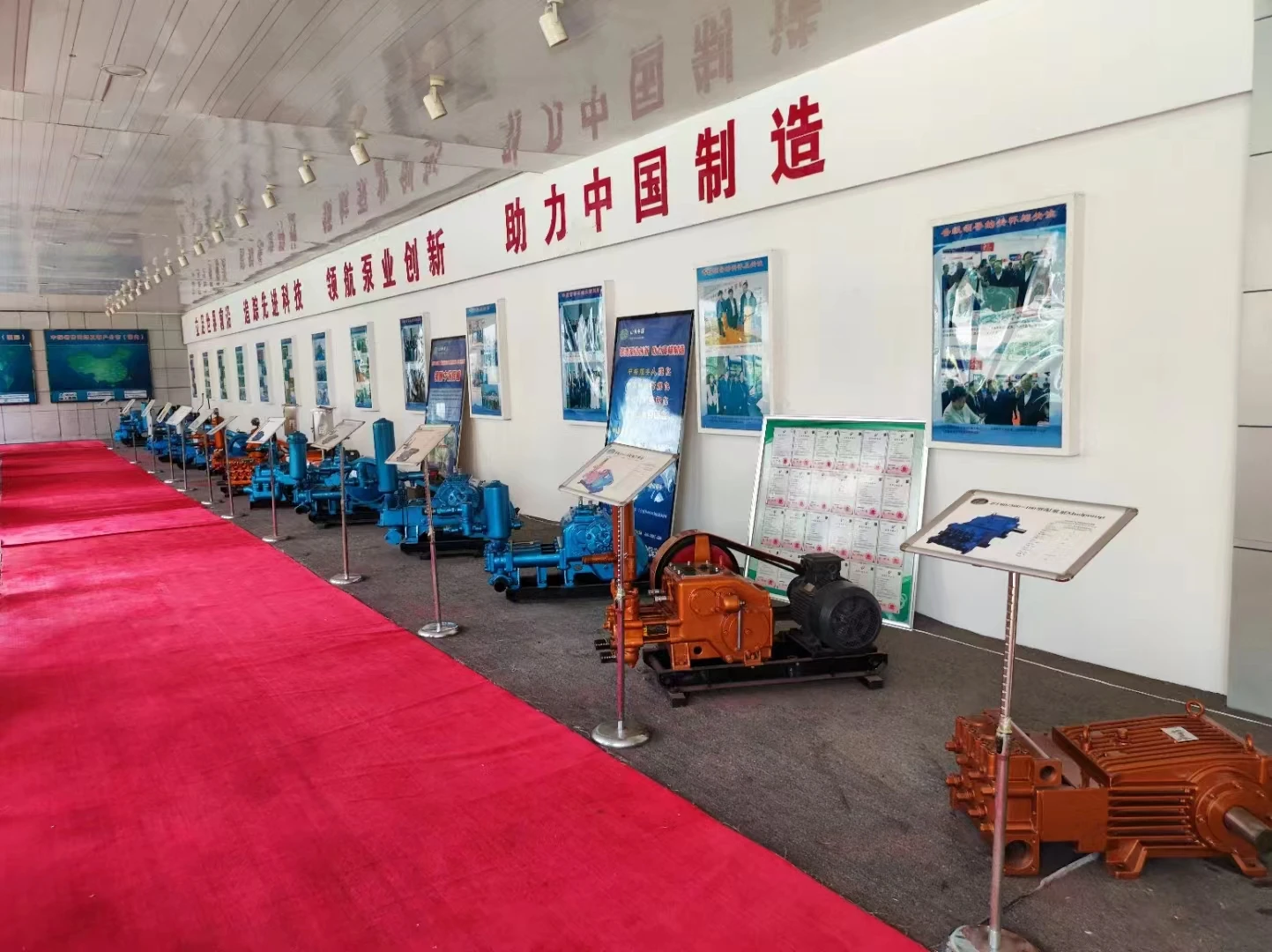

Production Workshop

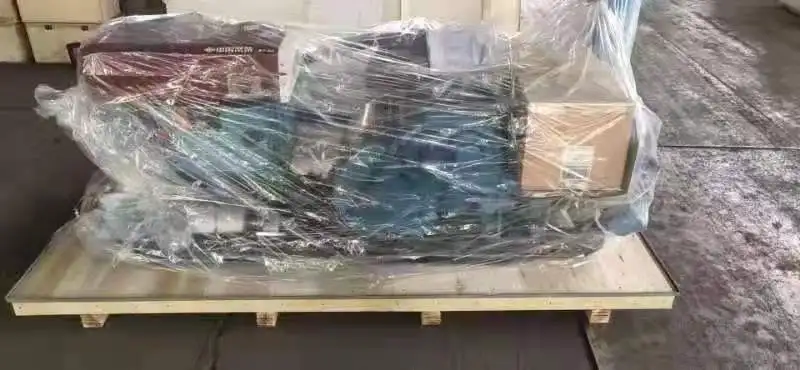

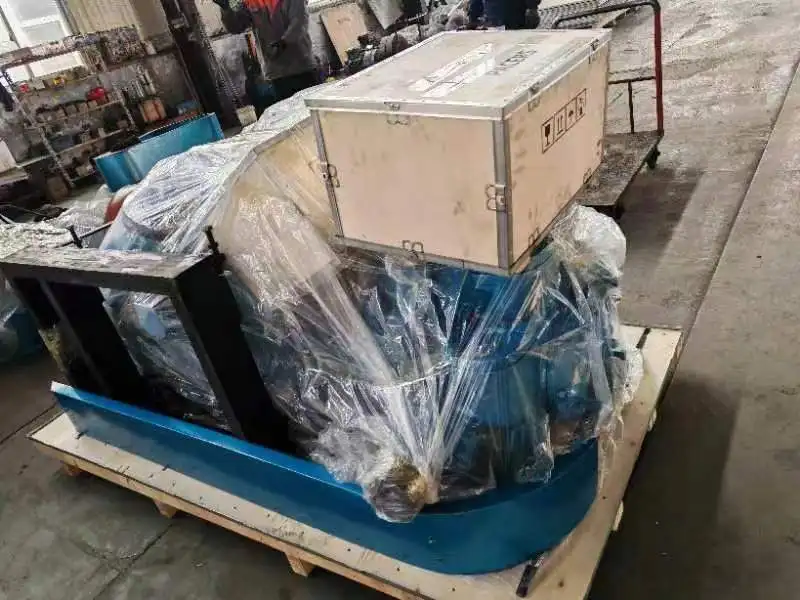

Packing & Delivery
Company Profile
Xuchang Shengte Trade Co.,Ltd as a major drilling machinery manufacturer in China, is specialized in producing all kinds of water well drilling rigs, drilling rig, and agricultural machinery for more than 30 years. Our company is located Henan province, with advantages of convenient transportation and graceful environment. , own modern office facilities and a first-class management term. Currently, our group consists of two main sub companies: Xuchang Shengte Machinery Co.,Ltd for all domestic market and Xuchang Shengte Trade Co.,Ltd. for all oversea market. Here we sincerely welcome our cooperation with you at any time.
FAQ
Q1:What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q2:Do you have any MOQ limit for pipe order?
A:Low MOQ, 1pc for sample checking is available
Q3:How to proceed an order ?
A： Firstly let us know your requirements or application,size and so on
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4:Do you offer guarantee for the products?
A：Yes, we offer 2 years warranty to our products.
Q5:How to deal with the faulty?
A：Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will makeup in the later order if any broken pipes
Q2:Do you have any MOQ limit for pipe order?
A:Low MOQ, 1pc for sample checking is available
Q3:How to proceed an order ?
A： Firstly let us know your requirements or application,size and so on
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4:Do you offer guarantee for the products?
A：Yes, we offer 2 years warranty to our products.
Q5:How to deal with the faulty?
A：Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will makeup in the later order if any broken pipes
