Price:$580.00-590.00

Quantity:


Product Overview

Description

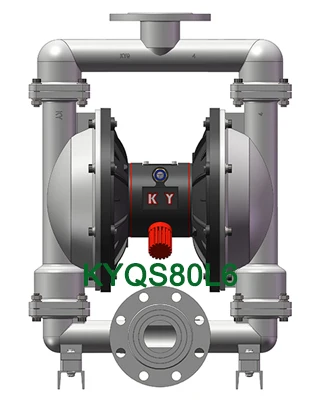

    KYQS80L6 Pump Parameters










































Pump Body Material:SS316L
Air Motor Material:Aluminum Alloy
Pump Weight:About 116.6 lbs
Air Inlet Size:1/2 in BSP(FNPT)
Fluid Inlet/Outlet Size:3 in Flange PN10
Max.Suction Height:Dry:5m  Wet:8m
Max.Flow:123GPM
Max.Working Pressure:109PSI
Max.Permitted Grain:3/8 in

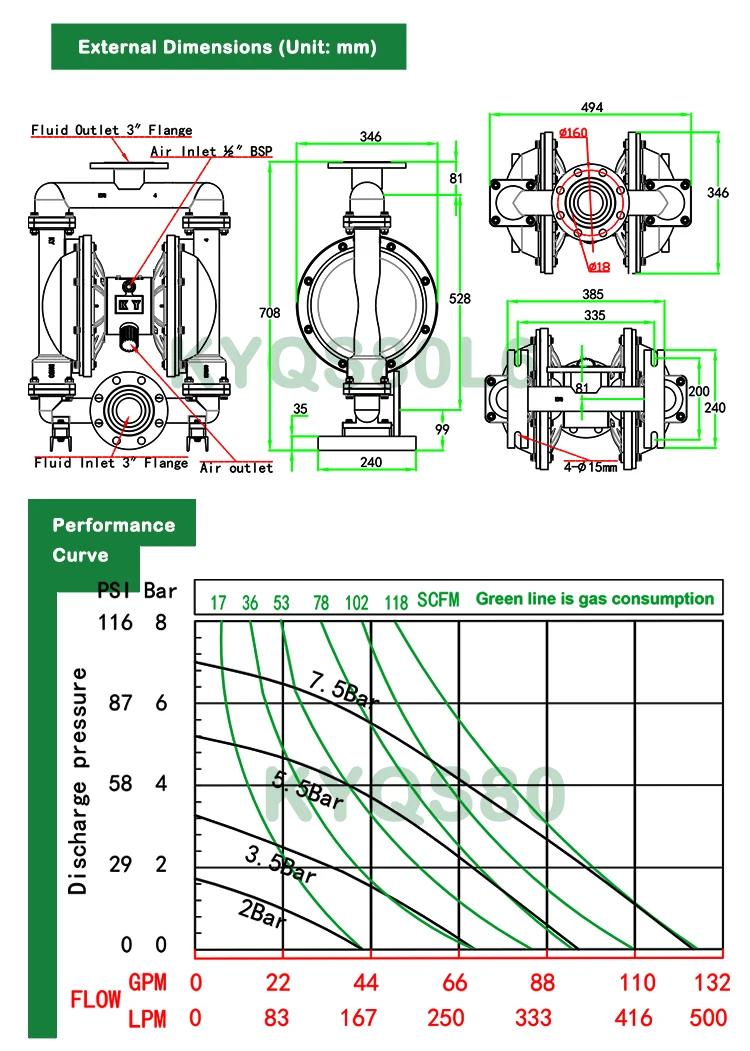

    Performance Curves And Dimensions










    The Meaning Of Pump Model

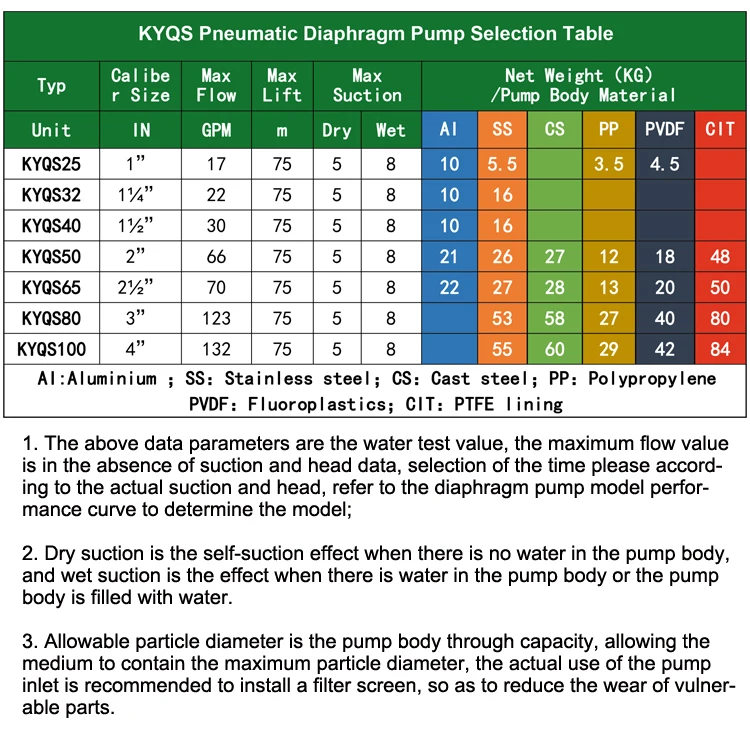

    Model Selection Table









    Installation Instruction Diagram
















3.jpg4-1.jpg4-2.jpg5-1.jpg5-2.jpg5-3.jpg6A.jpg6 B.jpg
