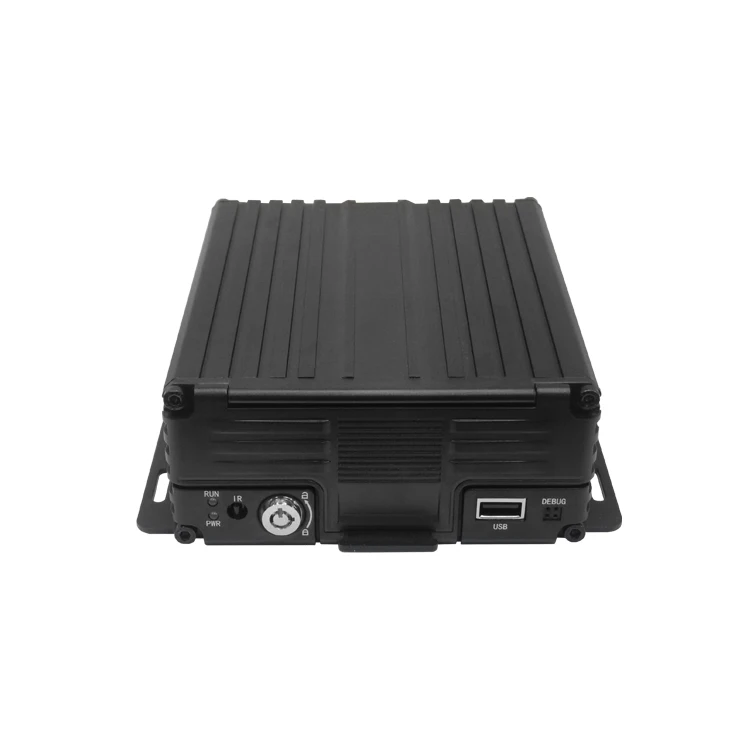

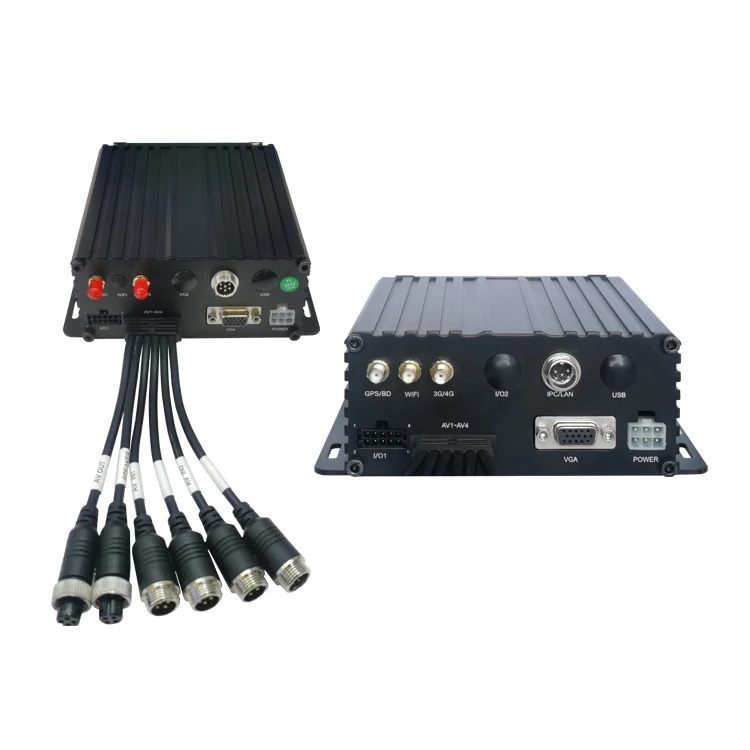

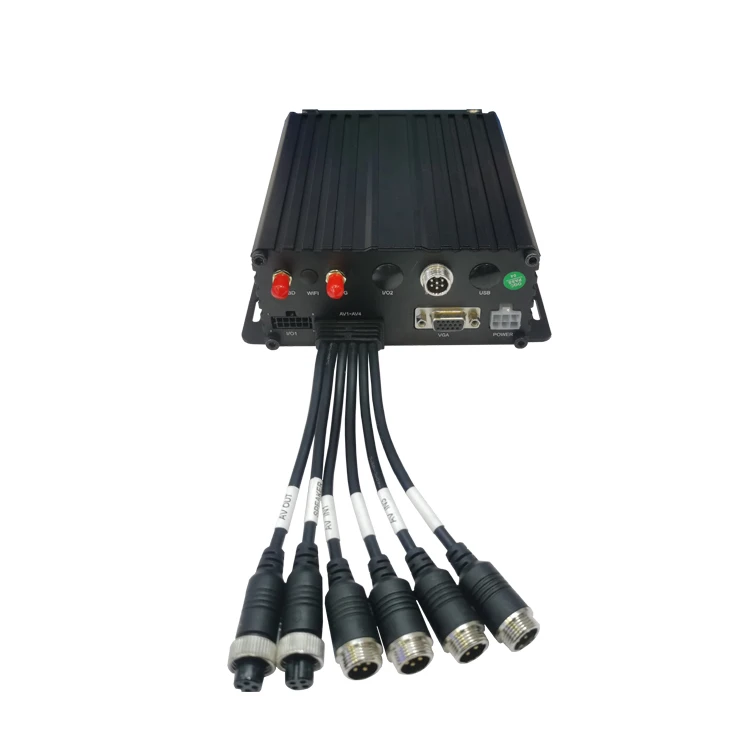

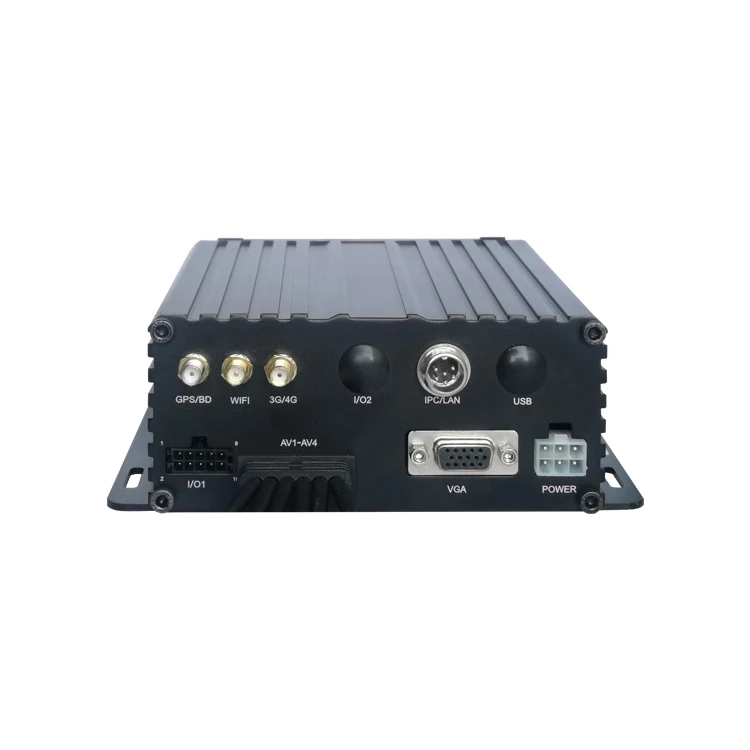

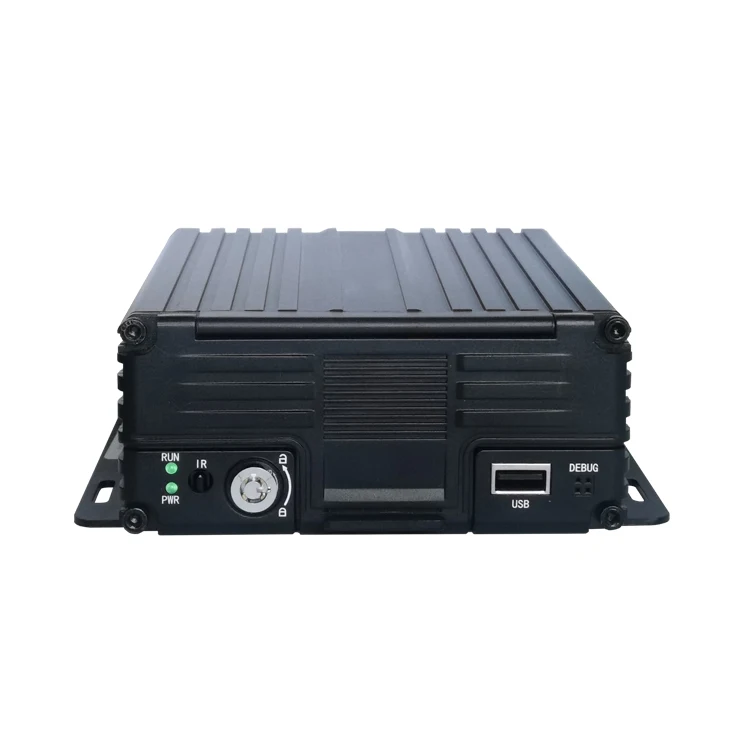

High Quality 4 Channel HD 1080P IPS Dash Cam Dual SD Card MDVR with GPS and WiFi
- Category: >>>
- Supplier: IS Technology (Anhui) Co. Ltd.
Share on (1601124274287):
Product Overview
Description
Products Description
Type | Parameters | Performance indicators |
system | System | Embedded Linux operating system |
Language | Chinese/English Etc... | |
Interface | Graphical menu operation interface, mouse operation | |
Audio and video | Video input | 4 CH 1080P AHD/TVI/CVI/CVBS |
Video output | VGA+CVBS | |
Audio input | 4 CH | |
Audio output | 2analog output | |
Video formats | PAL/NTSC | |
Video compression | H.264/H.265 | |
Video resolution | 1080P/720P/960H/D1/CIF | |
Video quality | Grades 1 to 6 | |
Audio formats | G711A G711U G726 | |
Video and playback | Storage | HDD & SD |
Video query | Search by channel, video type and alarm type | |
Video playback | Local 4 CH | |
Local backup | Supports SD cards and USB drives | |
Physical interface | Upgrade mode | Manual upgrade, automatic upgrade, remote upgrade |
Upgrade way | USB , SD card, network | |
Audio/Video output | One VGA port and one CVBS port | |
Power interface | Power/ignition signal | |
Alarm input | 4 digital input | |
Alarm output | 2 outputs | |
The speed pulse | 1 | |
RS232 | 2 | |
TTS interface | 4PIN MIC/SPK | |
TTL | NA | |
RS485 | 1 | |
Other interface | LED light | PWR/RUN |
ETH | 1*100MB ETH(optional) | |
SD card | 1* SD card interface (can be extended another SD) | |
Disk lock | 1 | |
The wireless interface | GNSS | GPS/BD/GLONASS |
Wifi | Optional WIFI module, 2.4GHz | |
3G/4G | 4G Netcom | |
Active safety interface | ADAS interface | 1 CH ADAS, 1080P/720P |
The DSM interface | 1 CH DSM, 1080P/720P | |
BSD interface | 1 CH BSD, 1080P/720P | |
other | The power input | DC: 9 v ~ 36 v |
Storage capacity | 1080P 622MB/H/CH H.265 1080P 1.2G/H/CH H.264 | |
Typical power consumption | Power consumption: AVG 4.8W (excluding peripherals) Static power consumption: 2.4mA | |
Power output | 5V@500mA | |
Length* Width* Height | 187 mm * 154.9 mm * 55.55 mm |
