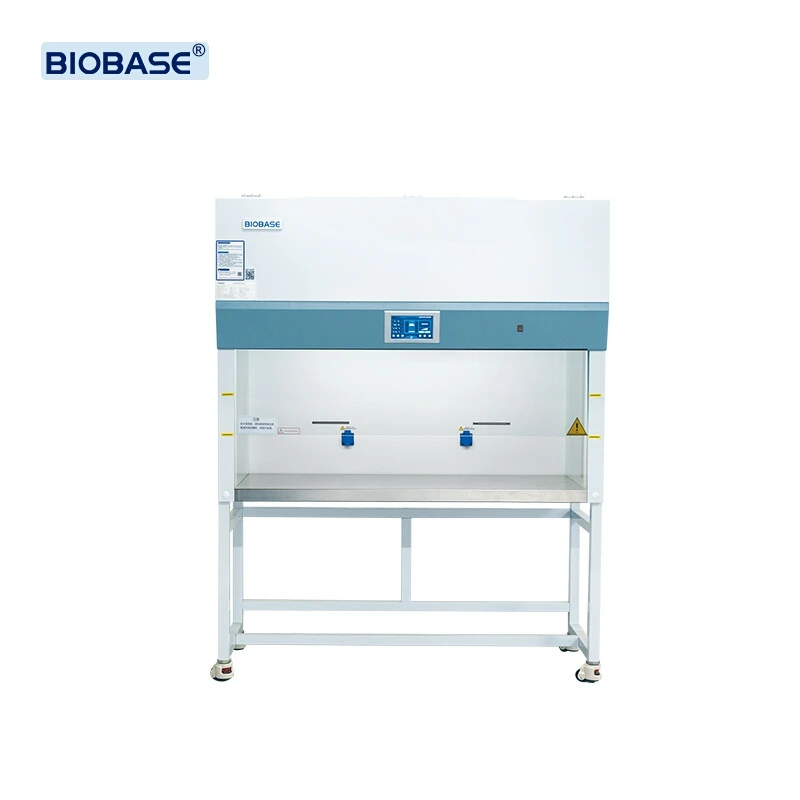

BIOBASE CHINA HEPA filter 7 inch color touch screen ultraviolet lamp Vertical Laminar Flow Cabinet for lab
- Category: >>>
- Supplier: Biobase Meihua Trading Co. Ltd.
Share on (1601124528640):
Product Overview
Description
Company Profile

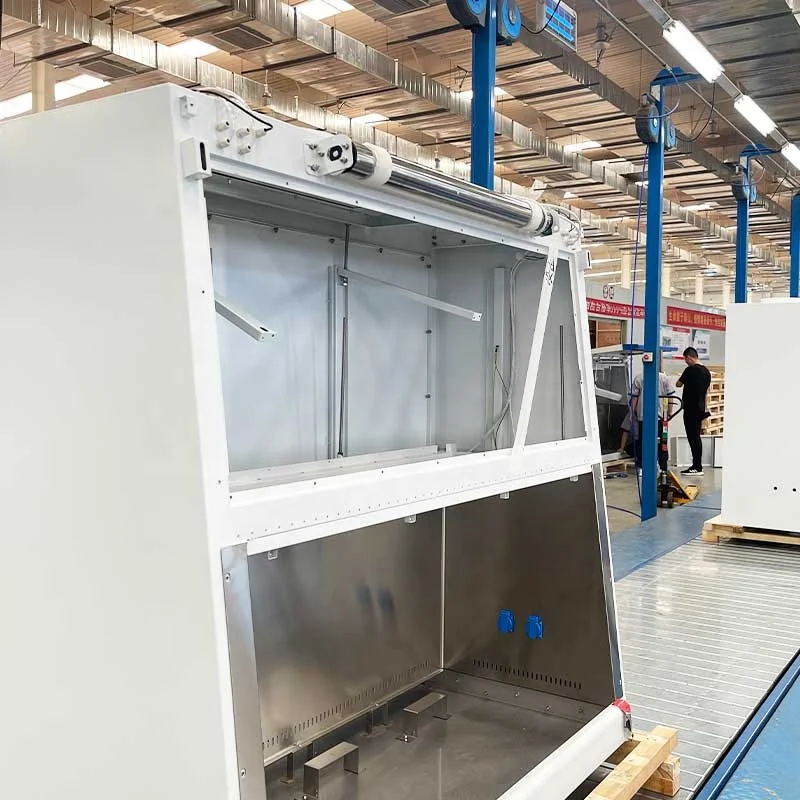

Detailed images
ADVANTAGE：
1, Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet;
2, Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter;
3, Work zone is made of SUS304 material, beautiful and corrosion resistance;
4, The front and side Windows are made of 5mm thick tempered glass;
5, The base stand and casters are integrated design, which can be moved safely through the casters and can also be fixed and leveled;

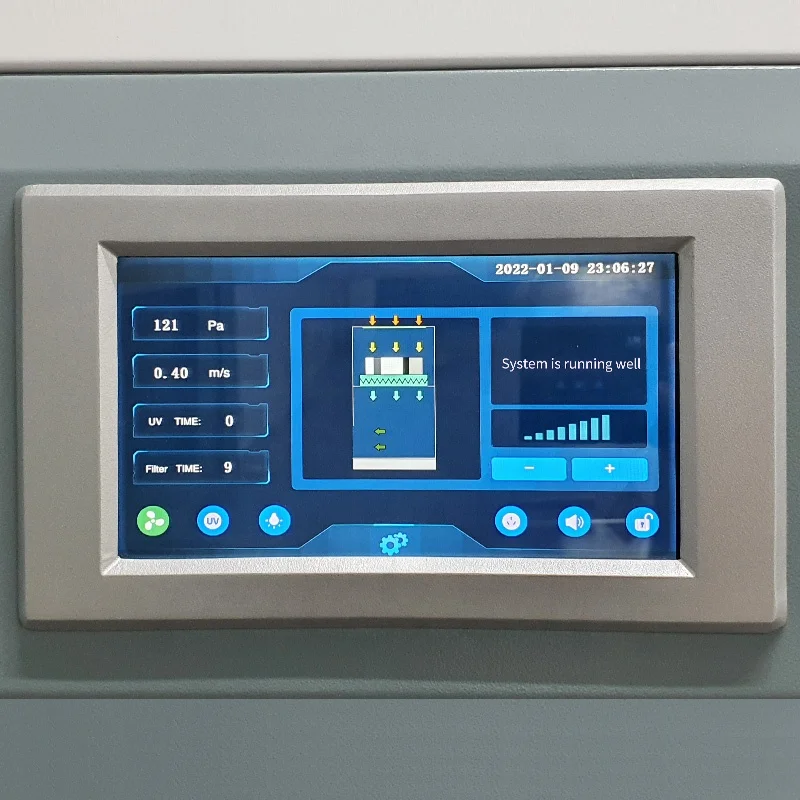

6, 7-inch color touch screen, password configurable, real-time display of running status (air velocity, pressure, timer, UV lamp time, HEPA filter running time, running state);
7, With ultraviolet lamp, fan appointment timing function;
8, Equipped with wind speed sensor, display real-time wind speed, more accurate;
9, Perfect alarm system:
(1) Ultra-high filter pressure alarm
(2) Filter failure replacement alarm
(3) Front window opening safe height alarm
(4) Low wind speed alarm
10, Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.
2, Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter;
3, Work zone is made of SUS304 material, beautiful and corrosion resistance;
4, The front and side Windows are made of 5mm thick tempered glass;
5, The base stand and casters are integrated design, which can be moved safely through the casters and can also be fixed and leveled;
6, 7-inch color touch screen, password configurable, real-time display of running status (air velocity, pressure, timer, UV lamp time, HEPA filter running time, running state);
7, With ultraviolet lamp, fan appointment timing function;
8, Equipped with wind speed sensor, display real-time wind speed, more accurate;
9, Perfect alarm system:
(1) Ultra-high filter pressure alarm
(2) Filter failure replacement alarm
(3) Front window opening safe height alarm
(4) Low wind speed alarm
10, Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.
Technical Parameters
Model | BBS-DDC-S | BBS-SDC-S | |
External Size(W*D*H) | 1060*620*1850mm | 1460*620*1850mm | |
Internal Size(W*D*H) | 935*530*650mm | 1335*530*650mm | |
Work Surface Height | 750mm | ||
Safety Height | 200~350mm | ||
Max Opening | 400mm | ||
Display | 7-inch color touch screen | ||
Airflow Velocity | 0.30~0.45m/s | ||
Material | Working area: 304 stainless steel; Main body: 1.0mm cold-rolled steel with anti-bacteria powder coating; Front window: 5mm toughened glass, anti-UV. | ||
Pre-Filter | Polyester fiber | ||
HEPA Filter | One, 99.995% efficiency at 0.3μm | ||
Front Window | Manual | ||
Noise | ≤65dB(A) | ||
Illumination | ≥300lx | ||
Vibration | ≤5μm(rms) | ||
Safety | Colonies Number ≤ 0.5CFU/30min | ||
Clean Level | ISO Level 5(Class 100) | ||
Waterproof Sockets | Two sockets, Max. Power: 1000W | ||
Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%，60Hz(Optional) | ||
Consumption | 1150W | 1250W | |
LED Lamp | 12W*1 | 16W*1 | |
UV Lamp | 20W*1 | 40W*1 | |
Standard Accessories | Base stand; LED lamp; UV lamp; Waterproof socket*2. | ||
Package Size(W*D*H) | 1240*900*1350mm | 1640*900*1350mm | |
Gross Weight | 185kg | 231kg | |
Related Products
After-sale Service
Exhibition & Evaluate
FAQ
1. who are we?
We are based in Shandong, China, start from 2012,sell to Southeast Asia(20.00%),Africa(17.00%),South America(15.00%),Western
Europe(12.00%),Mid East(9.00%),South Asia(6.00%),Central America(6.00%),North America(5.00%),Northern
Europe(3.00%),Oceania(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Eastern Asia(1.00%). There are total about 501-1000
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

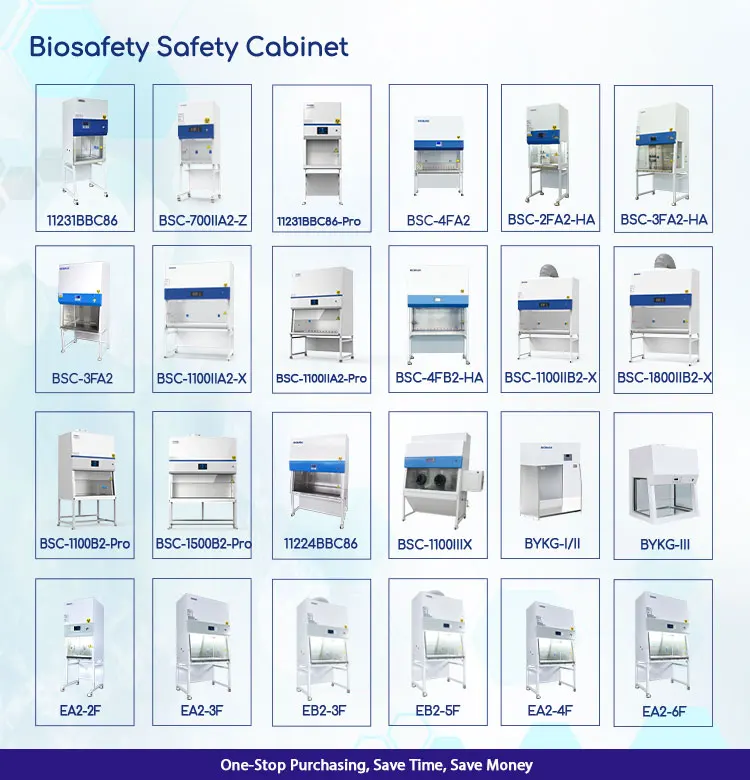

Laboratory Equipment, Biological Safety Cabinet, Fume Hood, Laminar Flow Cabinet, Autoclave, Freezer and Refrigerator, Centrifuge
