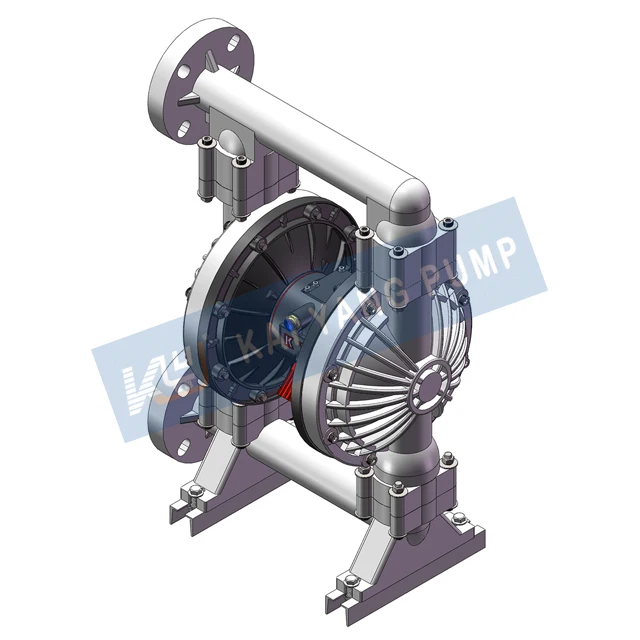

Large Diameter Flow Polypropylene Pneumatic Diaphragm Pump Wide Applicability Adapt To Different Liquid Media
Large Diameter Flow Polypropylene Pneumatic Diaphragm Pump Wide Applicability Adapt To Different Liquid Media
Large Diameter Flow Polypropylene Pneumatic Diaphragm Pump Wide Applicability Adapt To Different Liquid Media
Large Diameter Flow Polypropylene Pneumatic Diaphragm Pump Wide Applicability Adapt To Different Liquid Media
Large Diameter Flow Polypropylene Pneumatic Diaphragm Pump Wide Applicability Adapt To Different Liquid Media

Large Diameter Flow Polypropylene Pneumatic Diaphragm Pump Wide Applicability Adapt To Different Liquid Media

Share on (1601124607888):


Price:$290.00-300.00

Quantity:


Product Overview

Description

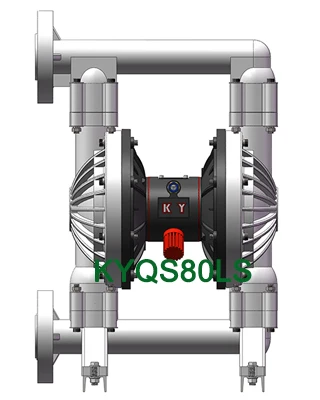

    KYQS80LS Pump Parameters










































Pump Body Material:Polypropylene
Air Motor Material:Aluminum Alloy
Pump Weight:About 59.4 lbs
Air Inlet Size:1/2 in BSP(FNPT)
Fluid Inlet/Outlet Size:3 in Flange PN10
Max.Suction Height:Dry:5m  Wet:8m
Max.Flow:123GPM
Max.Working Pressure:109PSI
Max.Permitted Grain:1/4 in

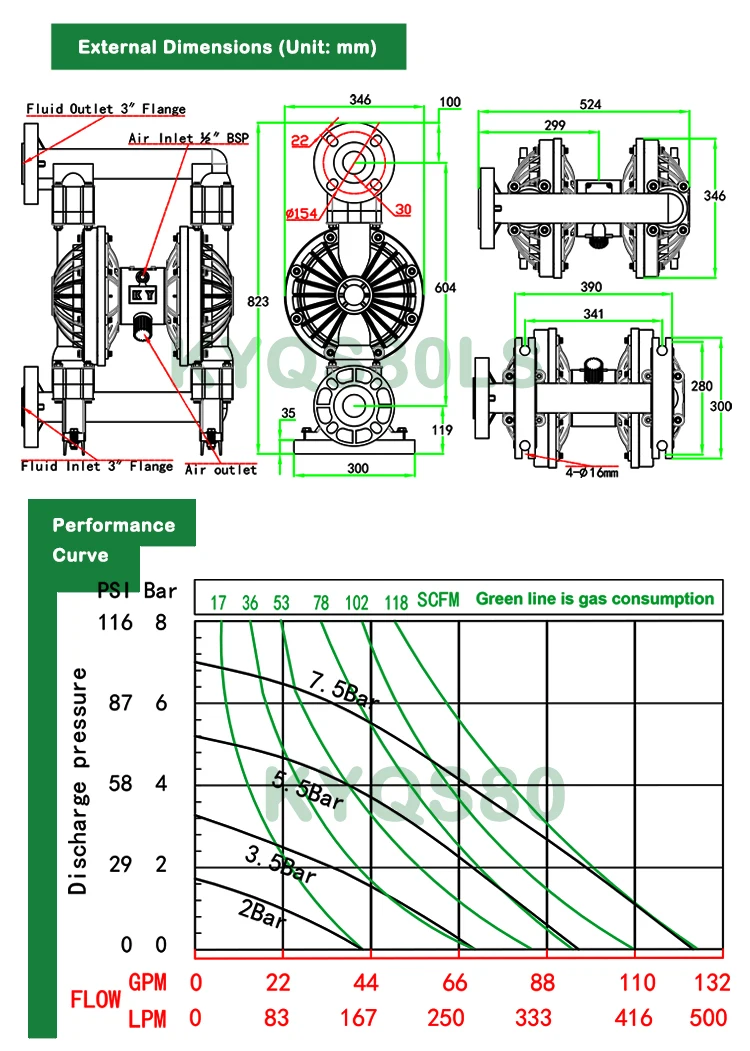

    Performance Curves And Dimensions










    The Meaning Of Pump Model










    Model Selection Table









    Installation Instruction Diagram
