Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00

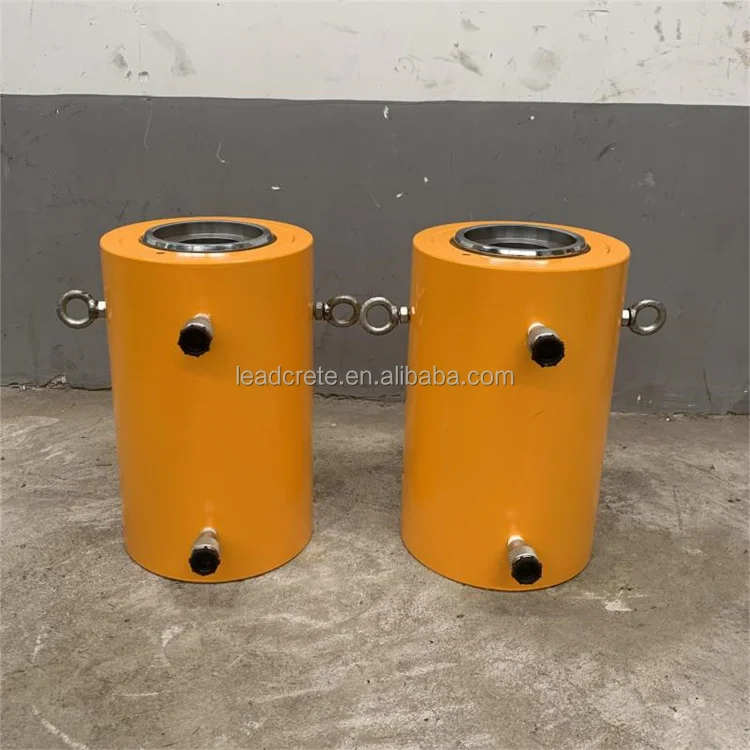

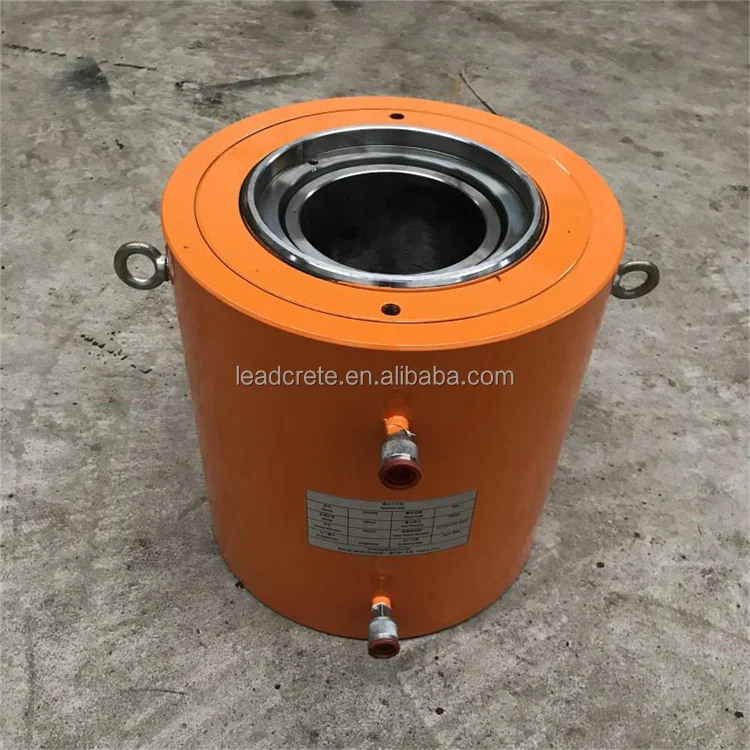

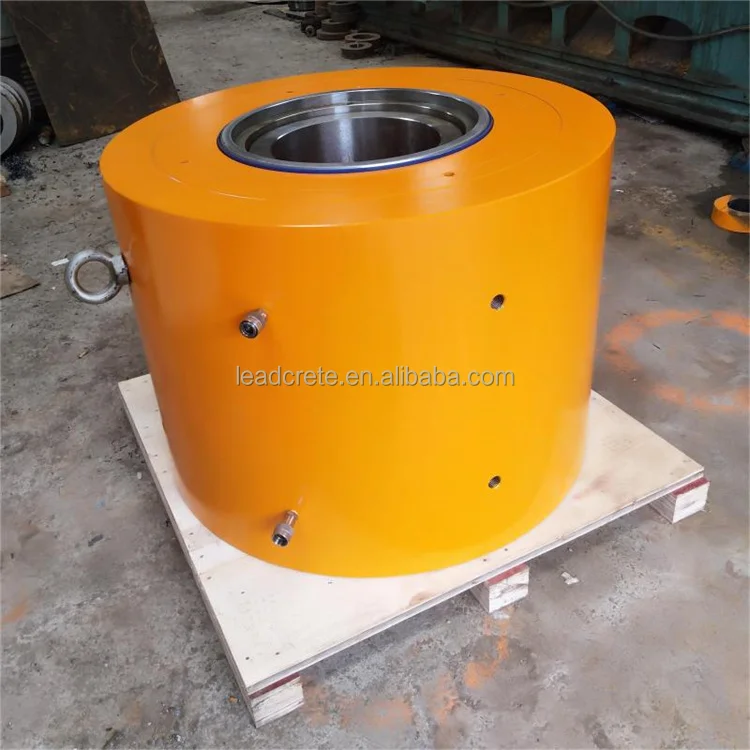

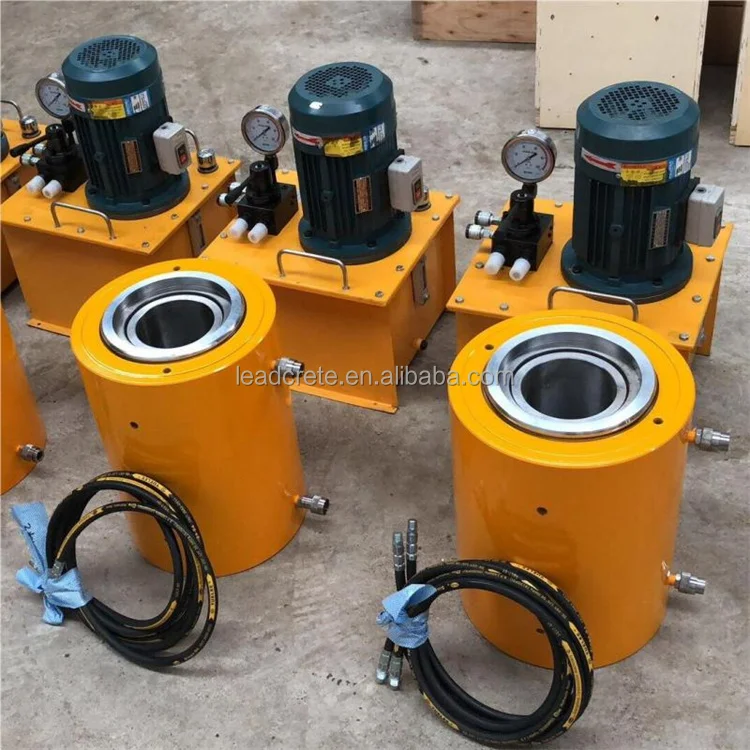

Prestressed post tension 500 200 1000 150 100 ton double acting hollow plunger hydraulic jack
- Category: >>>
- Supplier: Zhengzhou Lead Equipment Co. Ltd.
Share on (1601124648028):
Product Overview
Description
Product Description
YDC is a light weight cylinder hydraulic for prestressed tensioning equipment.

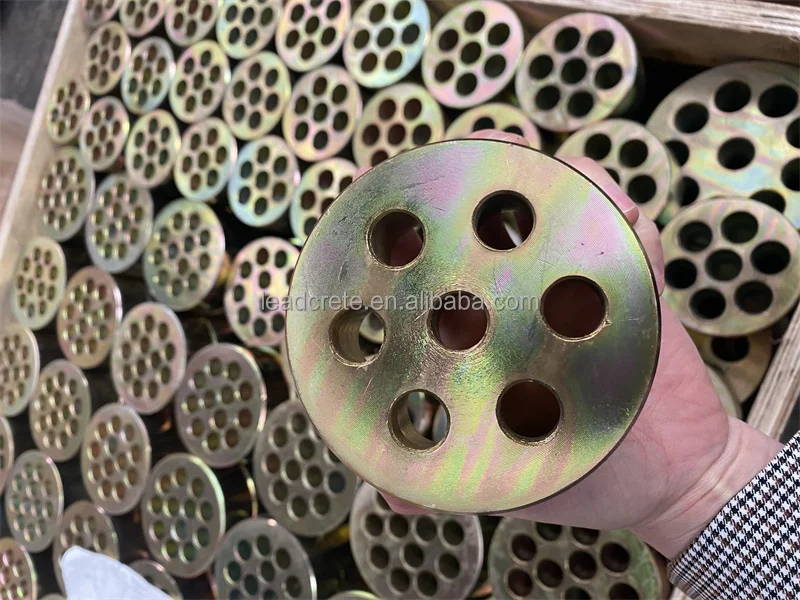

1. Used for group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
2. Matched with different accessories, it can be used for different anchors in the pre-tension or post tension prestressed project.
3. Advanced technology and qualitative advantages.
4. Designed through computer analysis and optimization grouping, repeated trials.
5. Cylinder adopt prestressed advanced processes, make it lighter.
1. Used for group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
2. Matched with different accessories, it can be used for different anchors in the pre-tension or post tension prestressed project.
3. Advanced technology and qualitative advantages.
4. Designed through computer analysis and optimization grouping, repeated trials.
5. Cylinder adopt prestressed advanced processes, make it lighter.
Technical parameters
Model | Tonnage | Tension force KN | Stroke mm | Central diameter mm | Dimension mm | Weight kgs | Tension area | Rated oil pressure | Number of max. Tension strands |
YDC650 | 65 | 650 | 200 | Φ60 | Φ190*345 | 58 | 12638mm² | 51Mpa | 3 strands |
YDC1100 | 110 | 1100 | 200 | Φ80 | Φ230*356 | 80 | 20488mm² | 54Mpa | 5 strands |
YDC1500 | 150 | 1500 | 200 | Φ90 | Φ270*356 | 120 | 30242mm² | 50Mpa | 7strands |
YDC2000 | 200 | 2000 | 200 | Φ114 | Φ296*372 | 135 | 35796mm² | 56Mpa | 9strands |
YDC2500 | 250 | 2500 | 200 | Φ128 | Φ348*373 | 180 | 48356mm² | 52Mpa | 12strands |
YDC3000 | 300 | 3000 | 200 | Φ142 | Φ375*385 | 250 | 57796mm² | 52Mpa | 14strands |
YDC3500 | 350 | 3500 | 200 | Φ158 | Φ416*385 | 290 | 70765mm² | 49Mpa | 17strands |
YDC4000 | 400 | 4000 | 200 | Φ158 | Φ424*385 | 310 | 76302mm² | 53Mpa | 19strands |
YDC4600 | 460 | 4600 | 200 | Φ190 | Φ473*390 | 400 | 87606mm² | 53Mpa | 22strands |
YDC5000 | 500 | 5000 | 200 | Φ193 | Φ480*395 | 430 | 93965mm² | 53Mpa | 24strands |

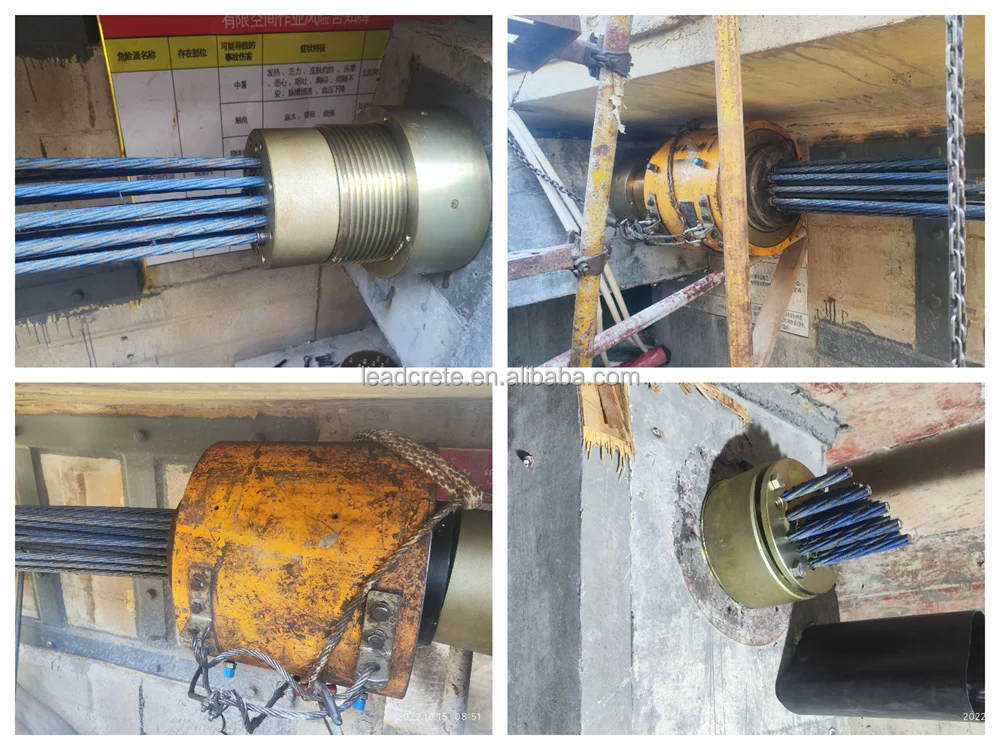

Application
Application:

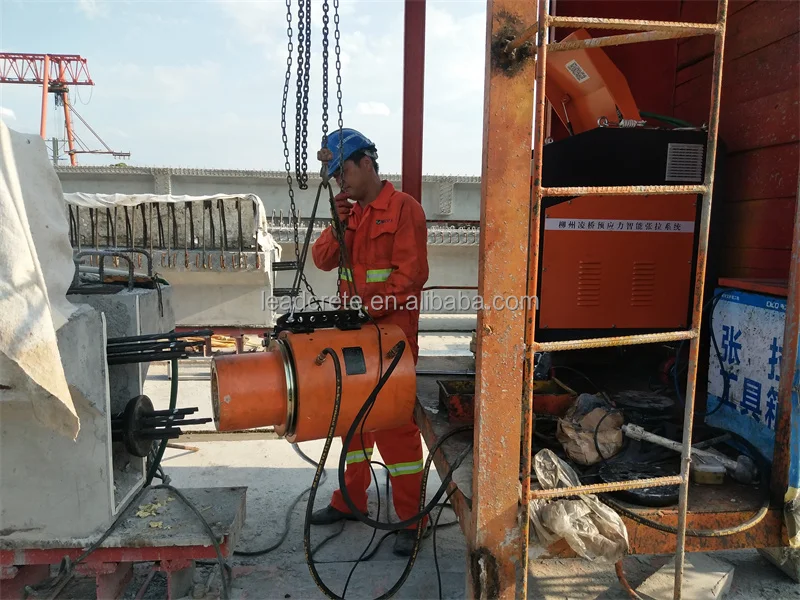

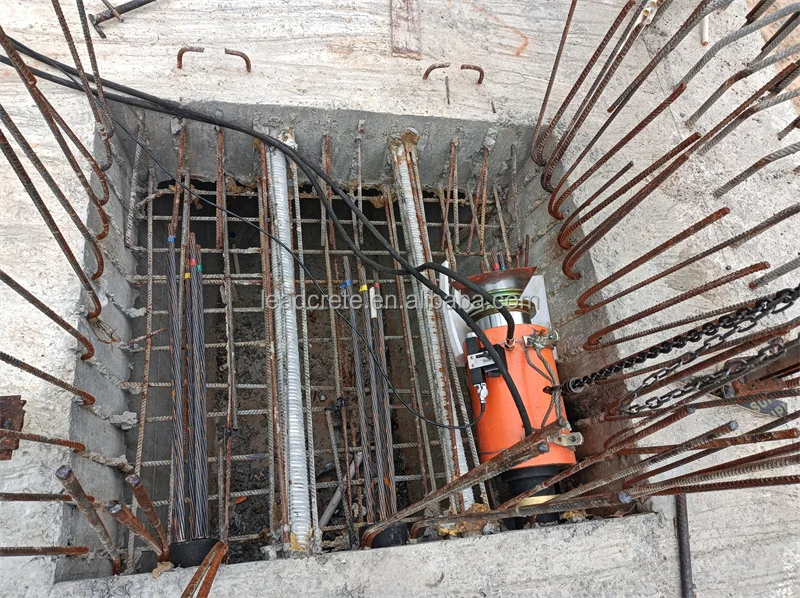

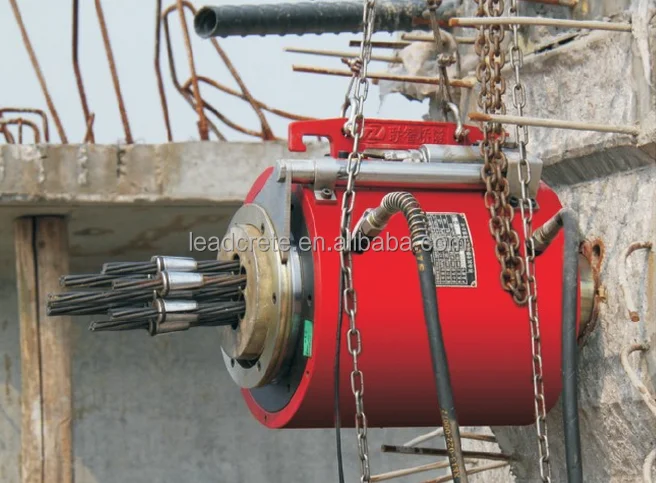

When the cylinders hydraulic matched with prestressed anchorage and strands. , it is widespread used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.

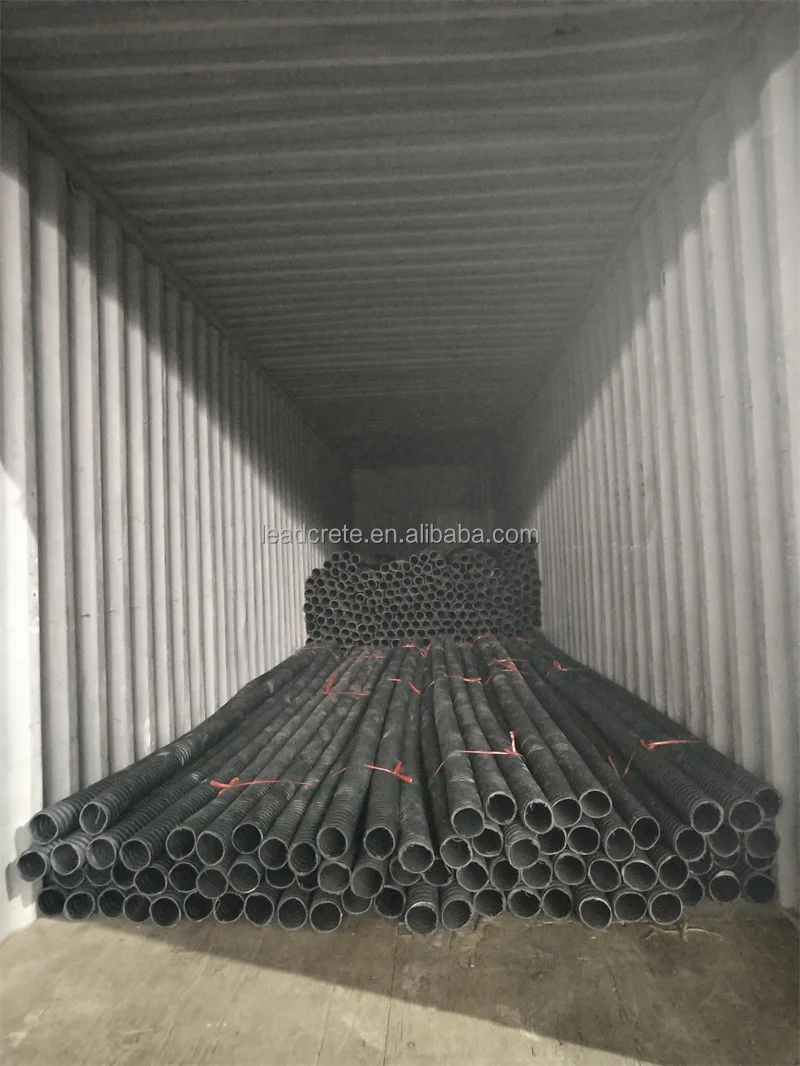

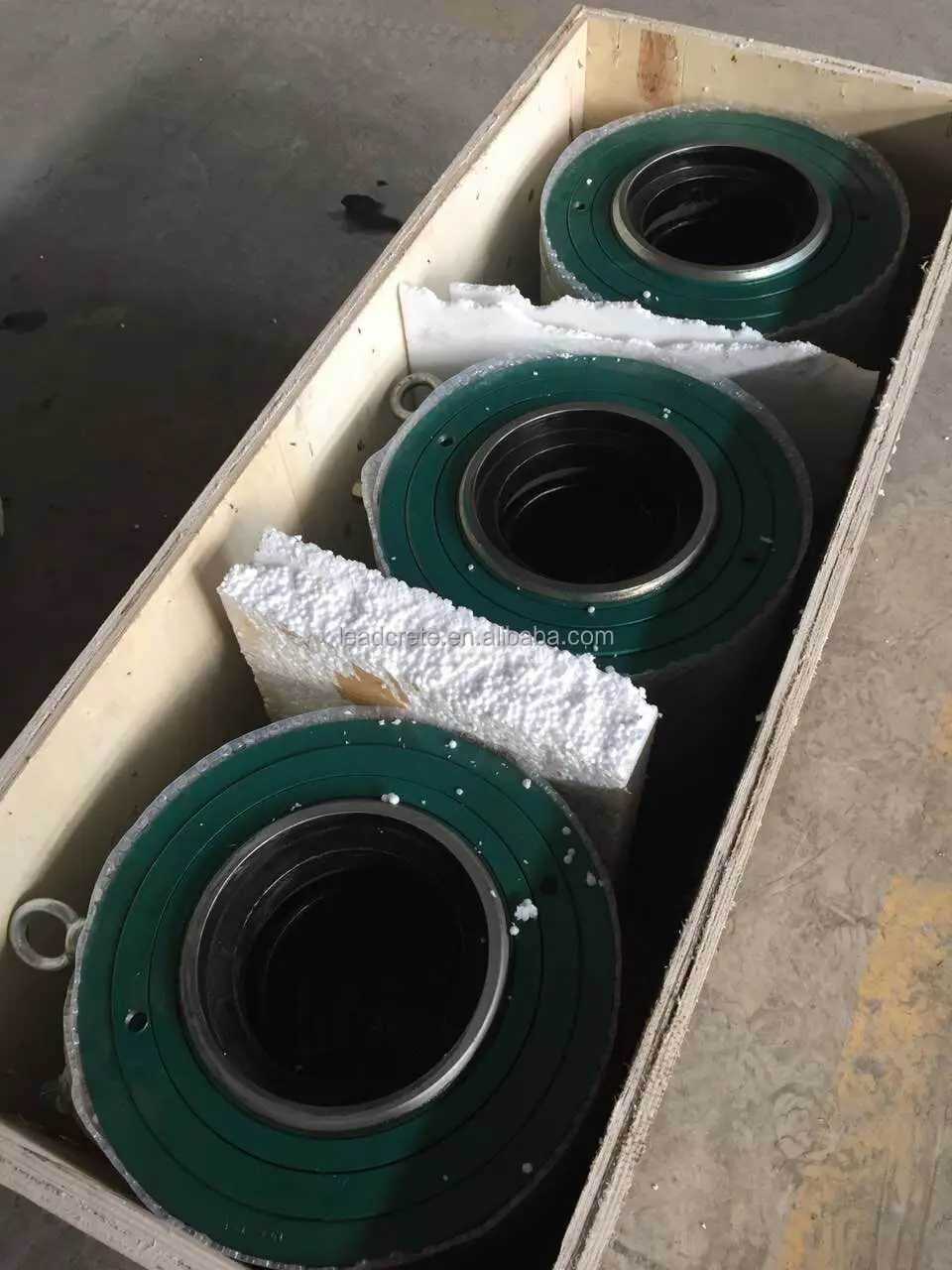

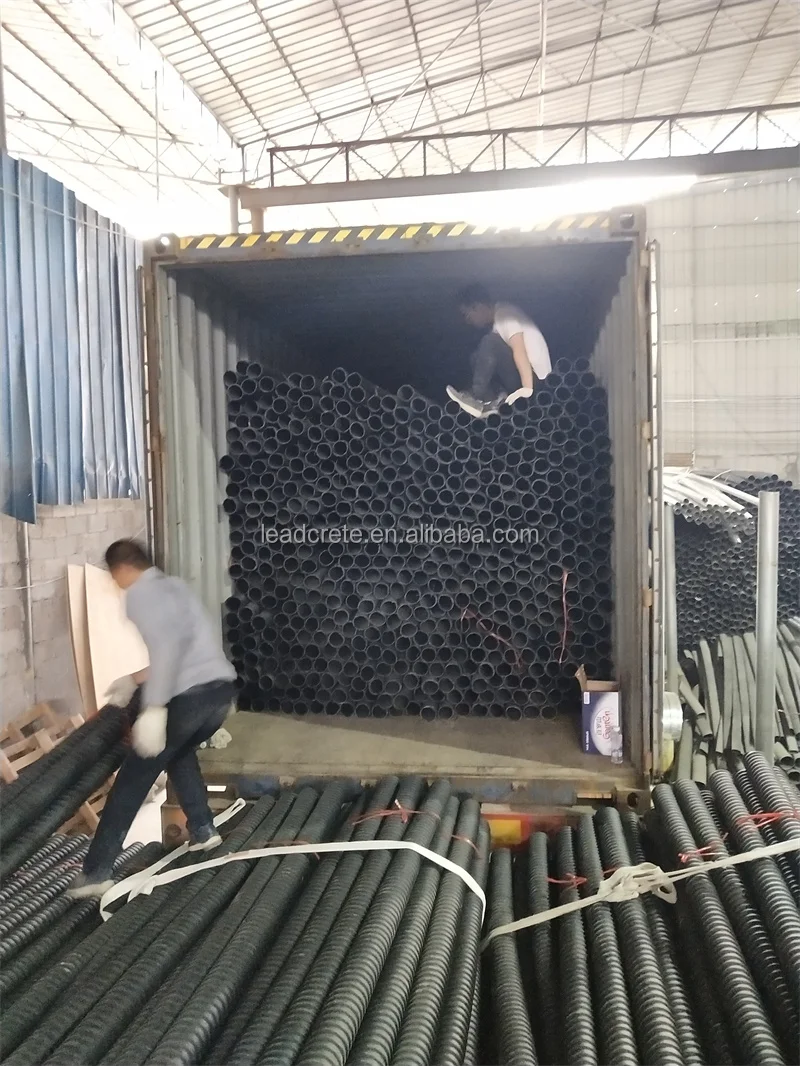

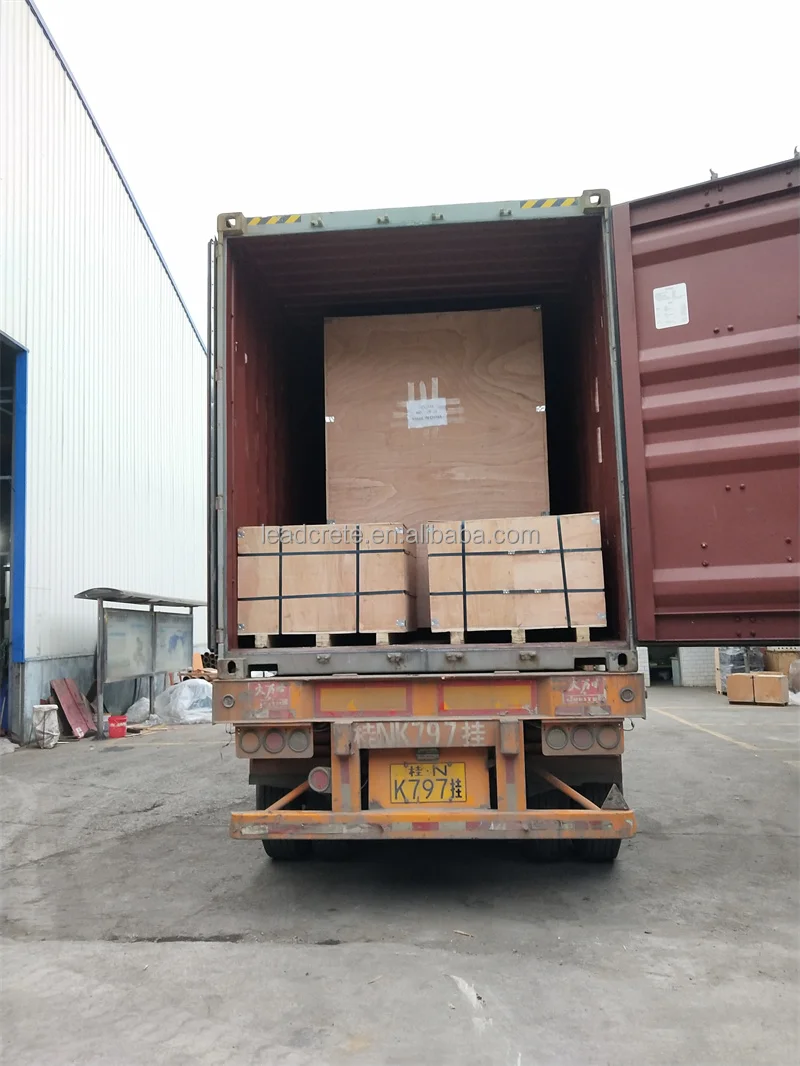

Product Packaging

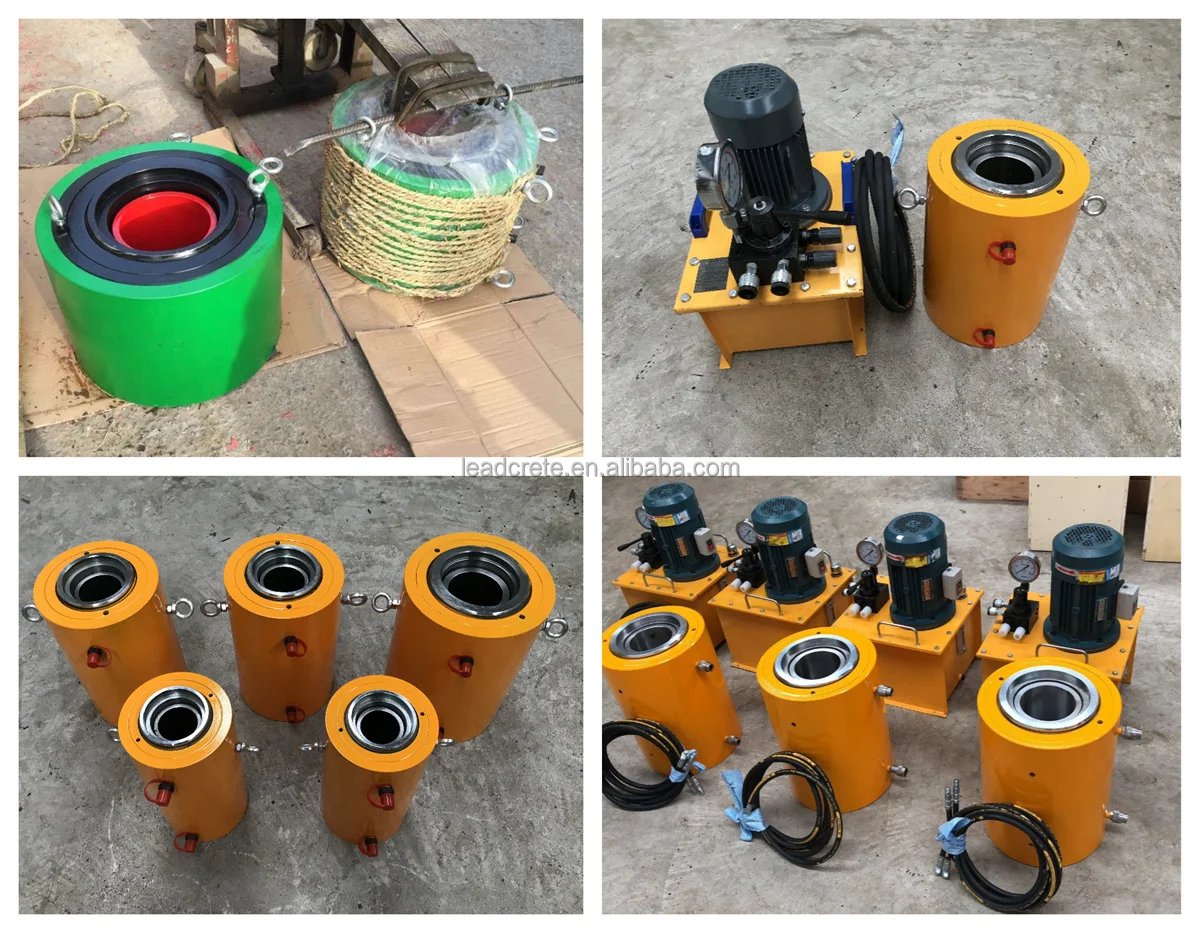

Product Details

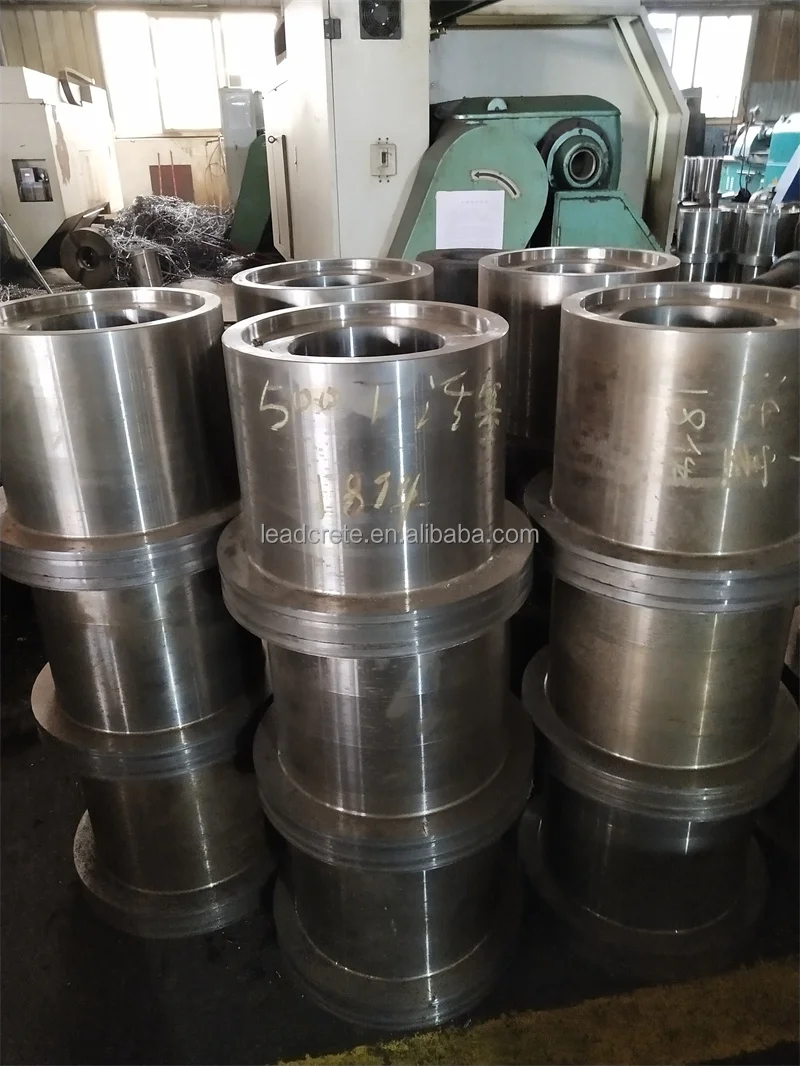

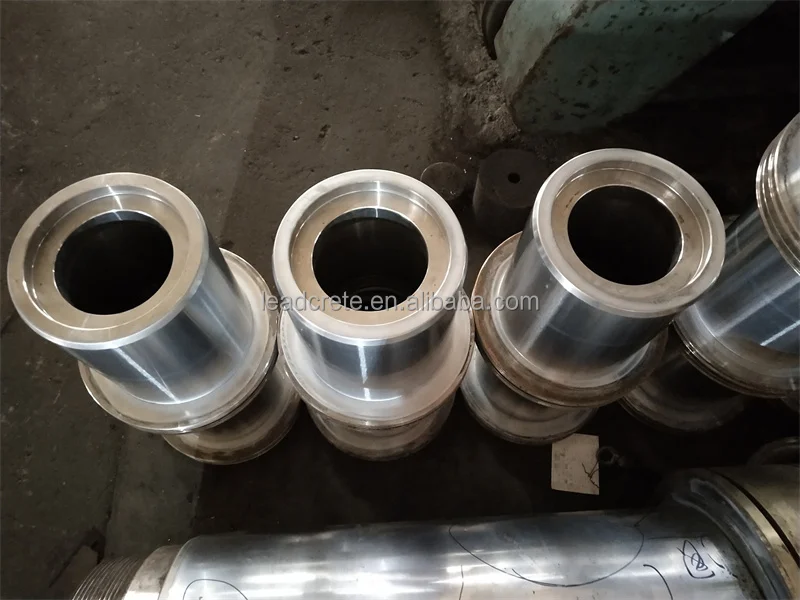

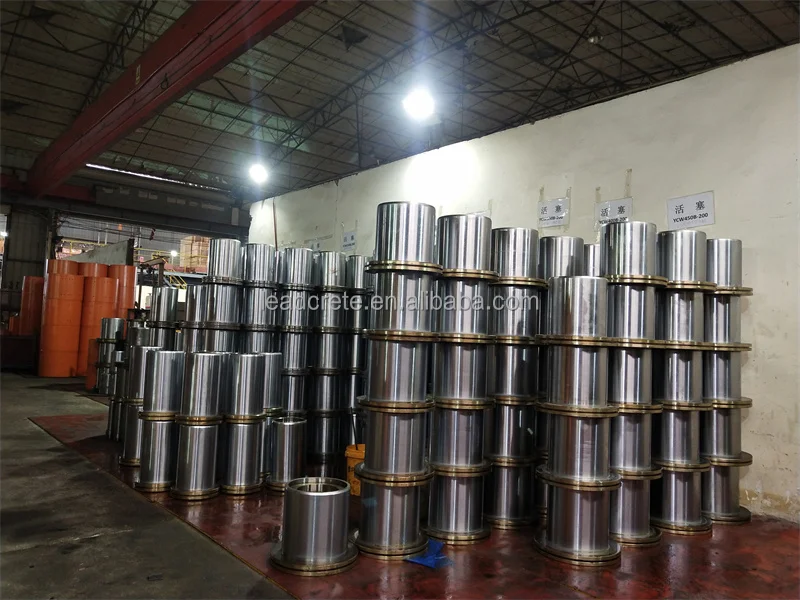

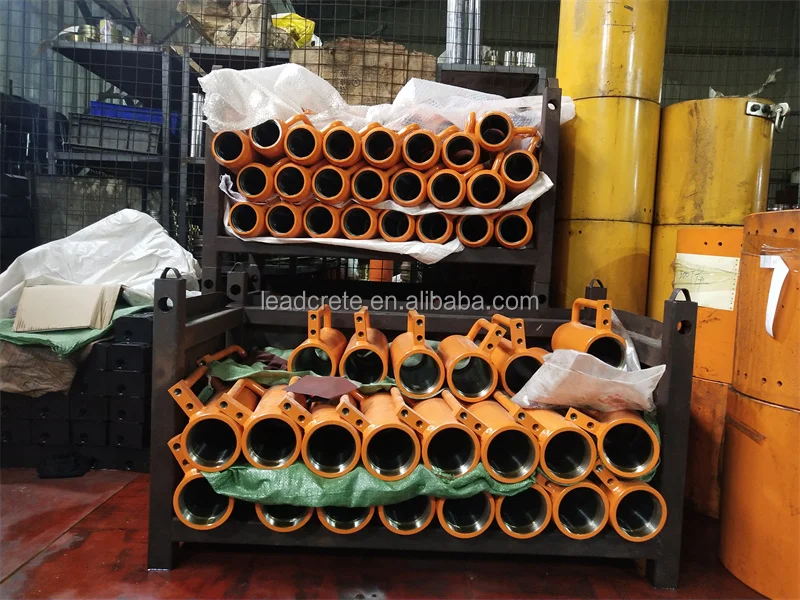

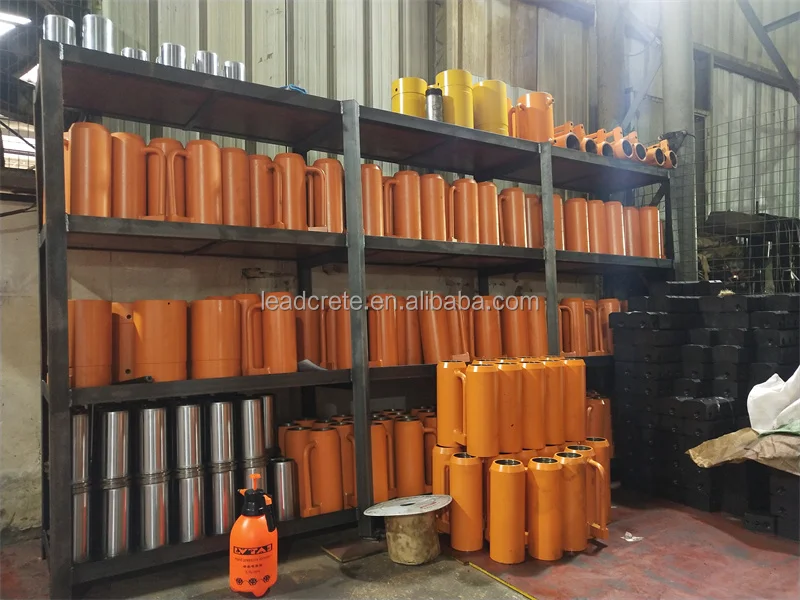

Factory
