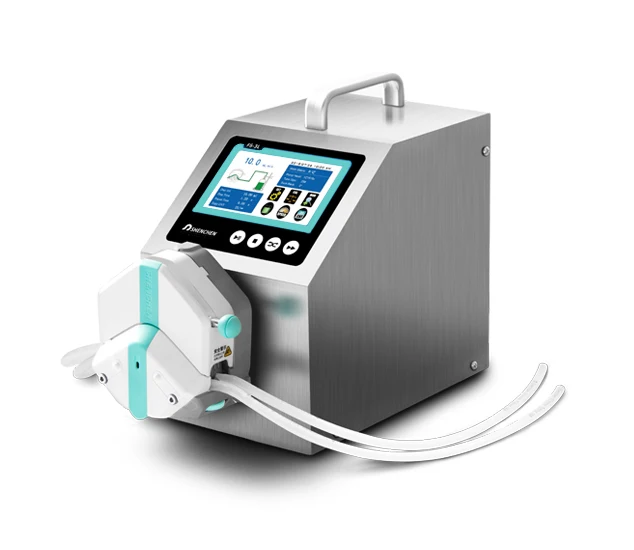

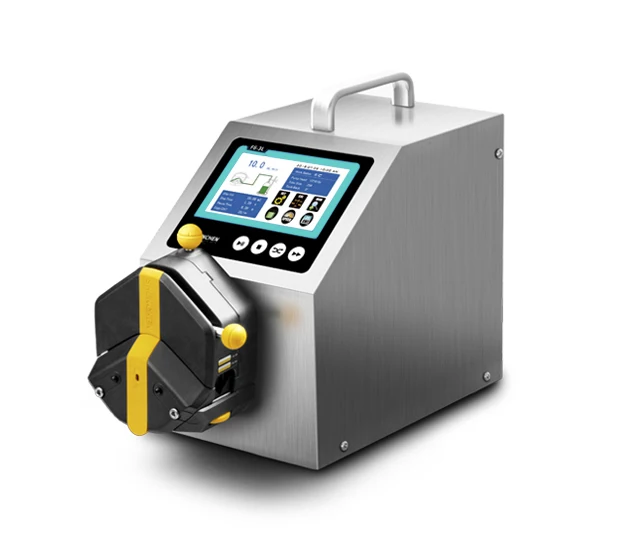

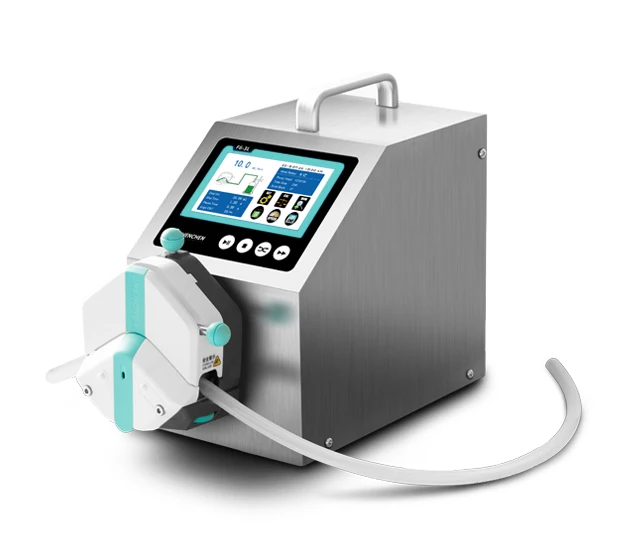

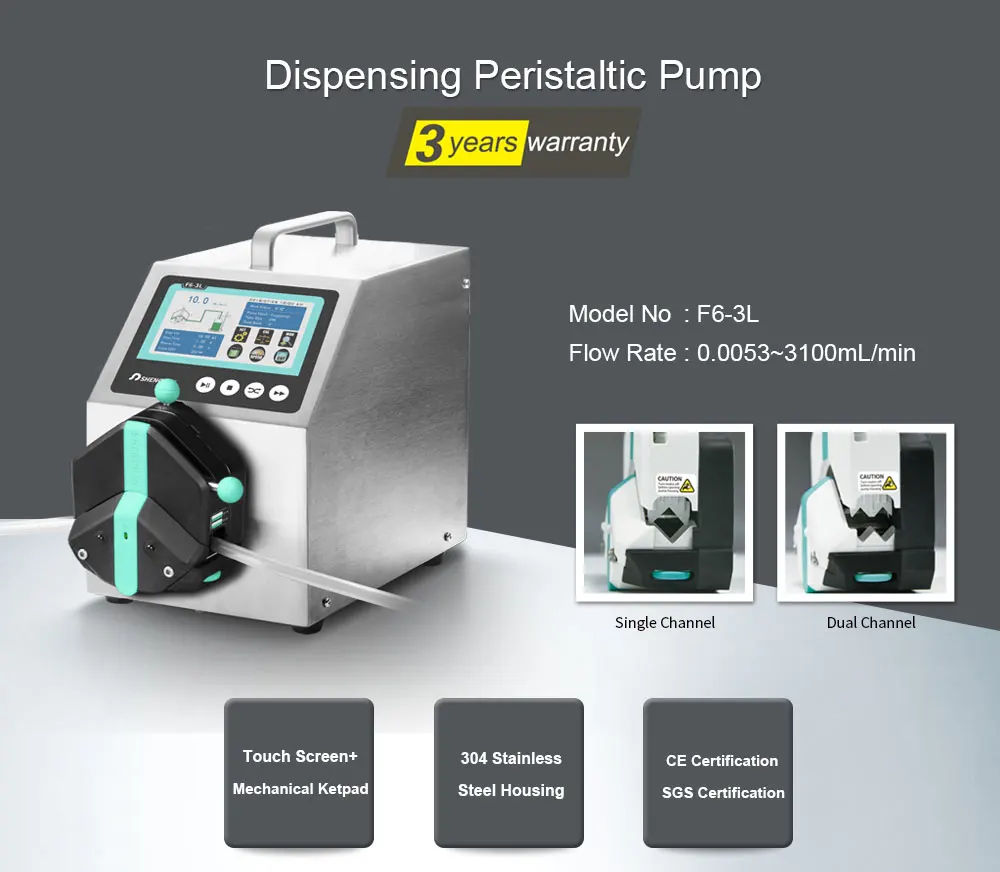

F6-3L, the type of intelligent industrial dispensing peristaltic pump, is driven by closed-loop stepper motor. It has the unique motor working status output signal that can be used for other equipment monitor the peristaltic pump current filling status.
Application: medicine, cosmetic, food and beverage filling.

Characteristics

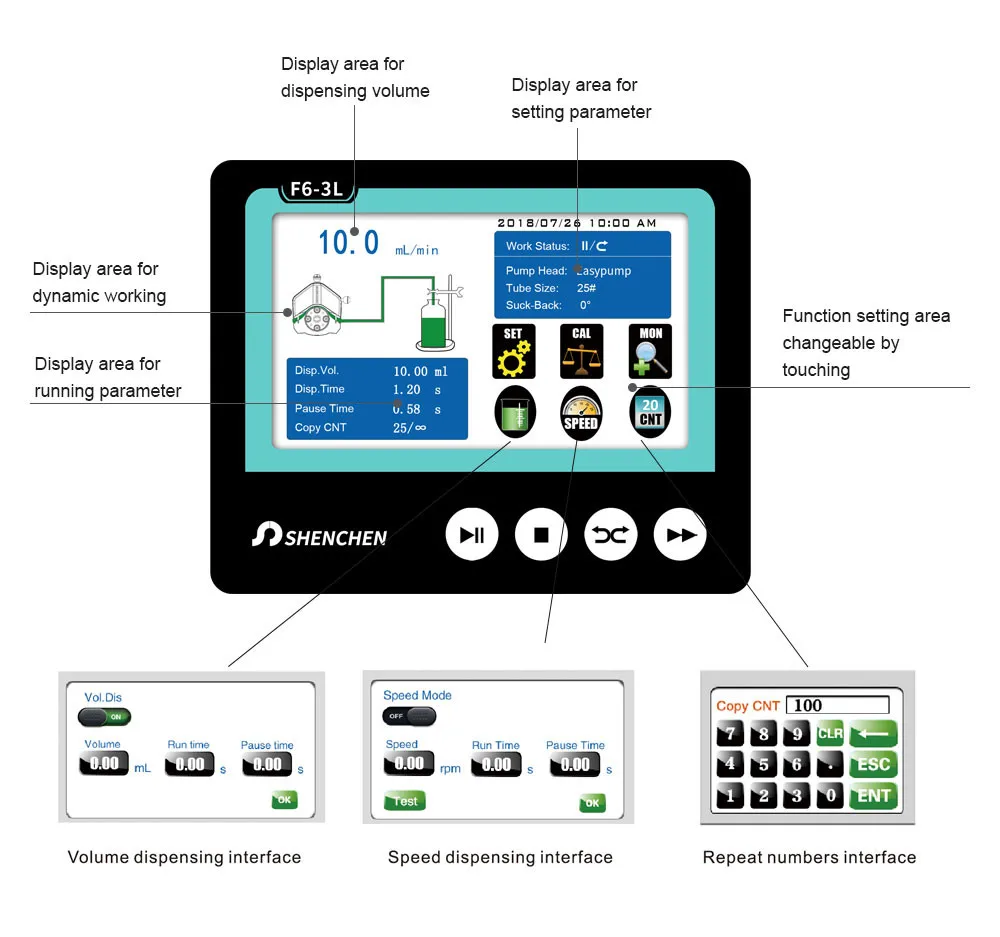

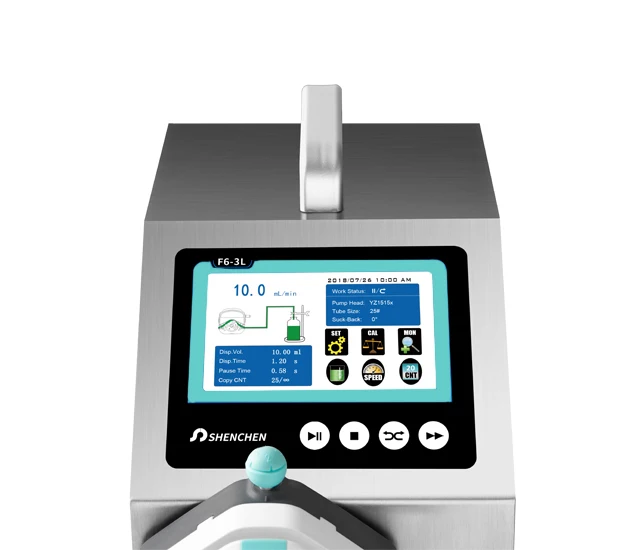

● Imported 4.3'' industrial grade color LCD screen display, with touch screen control.
● The parameters of dispensing volume, dispensing time, pause time and copy numbers can be preset.
● Intelligent calibration and online micro adjusting function can be used in the situation of pump not stopping to adjust the flow and eliminate error.
● 304 ss housing comply with pharmaceutical GMP certificate requirement.
● The pump can store 60 commonly used filling modes.
● Back suction angle setting to avoid liquid drop off when the pump stops working.
● Two dispensing modes: volume dispensing and speed dispensing is suitable for different fluid.




OSD

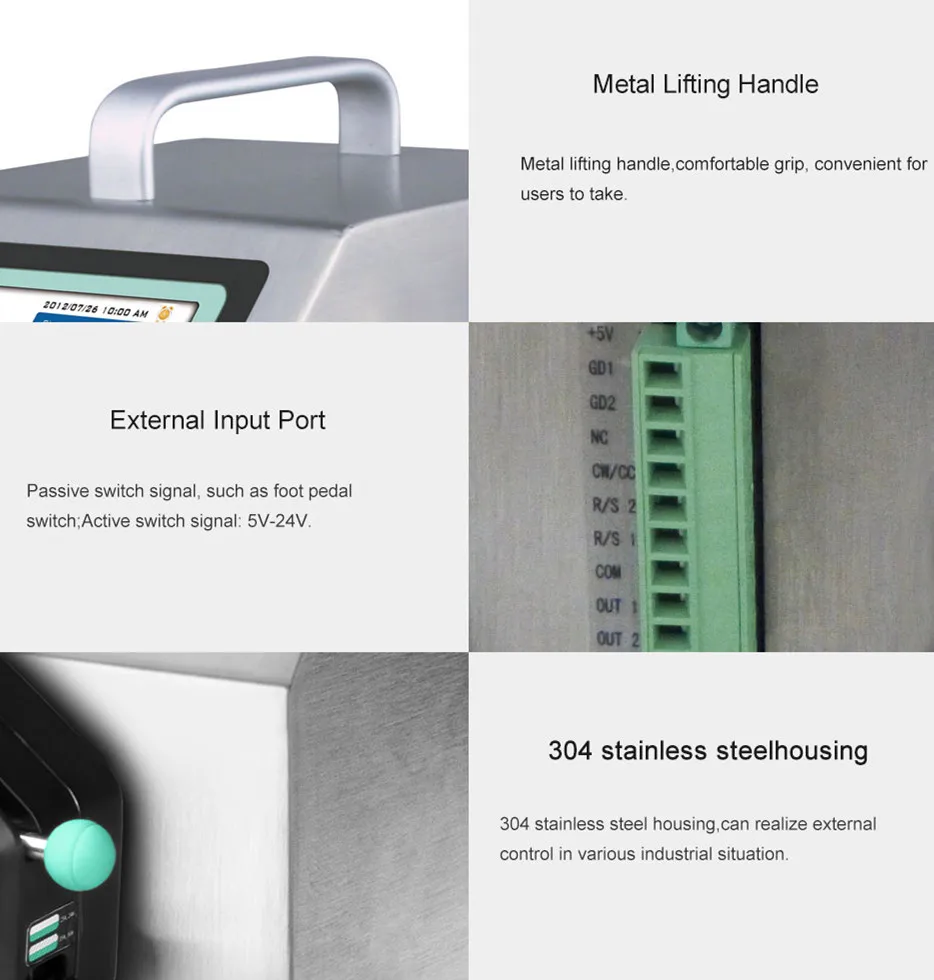

Detail

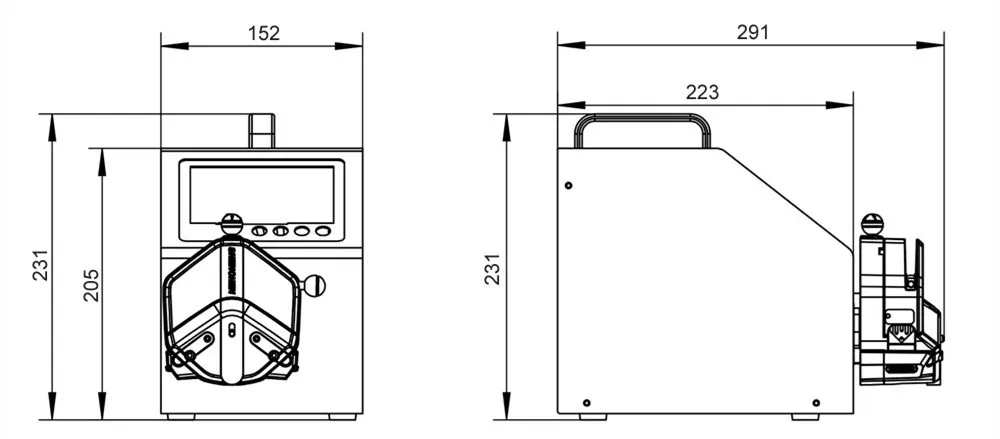

Product Dimension Drawing (unit:mm)

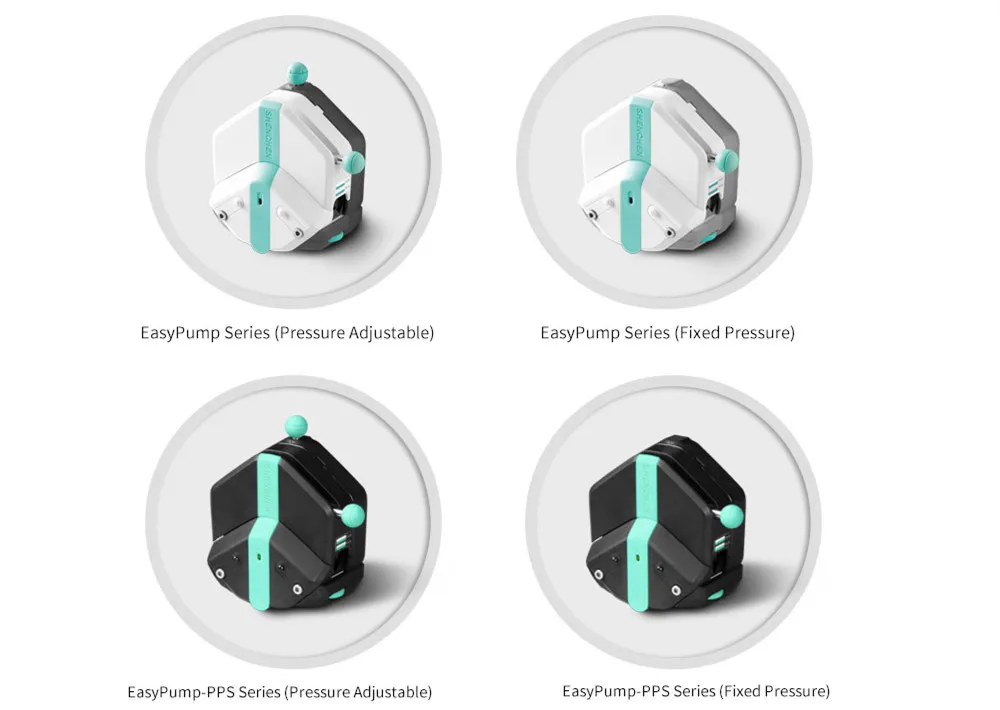

Pump Head





Product Composition and Flow Rate Range


Pump Head
Single/Dual Channel
Tubing Wall Thickness (mm)
Pressure Adjustable
EasyPumpⅢ
Single channel
1.6
Adjustable
EasyPumpⅣ
Single channel
2.4
Adjustable
EasyPumpⅥ
Dual channel
1.6
Adjustable
EasyPumpⅠ
Single channel
1.6
No
EasyPumpⅡ
Single channel
2.4
No
EasyPumpⅤ
Dual channel
1.6
No




Pump Head


Tubing


ID×Wall thickness (mm)


mL/r

Flow Rate (mL/min)
(1-600 rpm)
Tubing Max.Pressure (Mpa)


Weight (kg)
Intermittent
Continuous



Single Channel EasyPump Ⅰ/Ⅲ
13#
0.8×1.6
0.053
0.0053-32


0.27


0.17












0.6
14#
1.6×1.6
0.27
0.027-162
19#
2.4×1.6
0.55
0.055-330
16#
3.1×1.6
0.933
0.093-560
25#
4.8×1.6
1.967
0.197-1180
0.24
0.14
17#
6.4×1.6
3.333
0.333-2000
0.14
0.10
18#
7.9×1.6
4.3
0.43-2580
0.10
0.07

Single Channel EasyPump Ⅱ/Ⅳ
15#
4.8×2.4
1.8
0.18-1080

0.27

0.17
24#
6.4×2.4
2.733
0.273-1640
35#
7.9×2.4
3.833
0.383-2300

0.24
0.14
36#
9.6×2.4
5.167
0.517-3100


Dual Channel EasyPump Ⅴ/Ⅵ
13#
0.8×1.6
0.0053
0.0053-32


0.27


0.17
14#
1.6×1.6
0.27
0.027-162
19#
2.4×1.6
0.55
0.055-330
16#
3.1×1.6
0.933
0.093-560
25#
4.8×1.6
1.967
0.197-1180
0.24
0.14


Product Parameters


Flow rate range
0.0053~3100mL/min
Speed range
0.1-600 rpm
Speed resolution
0.01rpm
Dispensing volume range
0.01-9999.99mL
Dispensing volume resolution
0.01mL
Dispensing time
0.1-9999.99s
Pause time
0.1-9999.99s
Time resolution
0.01s
Copy numbers
1-9999 times, setting "0" means unlimited
Back suction angle
0-360°
Dispensing accuracy
＜±0.5%
Motor type
Closed-loop stepper motor
Diplay
Industrial grade 4.3'' color LCD display
Control method
Touch screen and mechanical keypad
Keypad lifetime
300,000 times
Start/stop, direction signal
Passive switch signal, such as foot pedal switch
Active switch signal:5V-24V
Output interface
Output motor working status (Open-collector output)
Power supply
AC 220V±10% 50Hz/60Hz (standard)
AC 110V±10% 50Hz/60Hz (optional)
Drive dimension
223mm×152mm×231mm (L×W×H)
Drive weight
5.02kg
Power consumption
＜80W
Condition temperature
0-40℃
Relative humidity
＜80%
