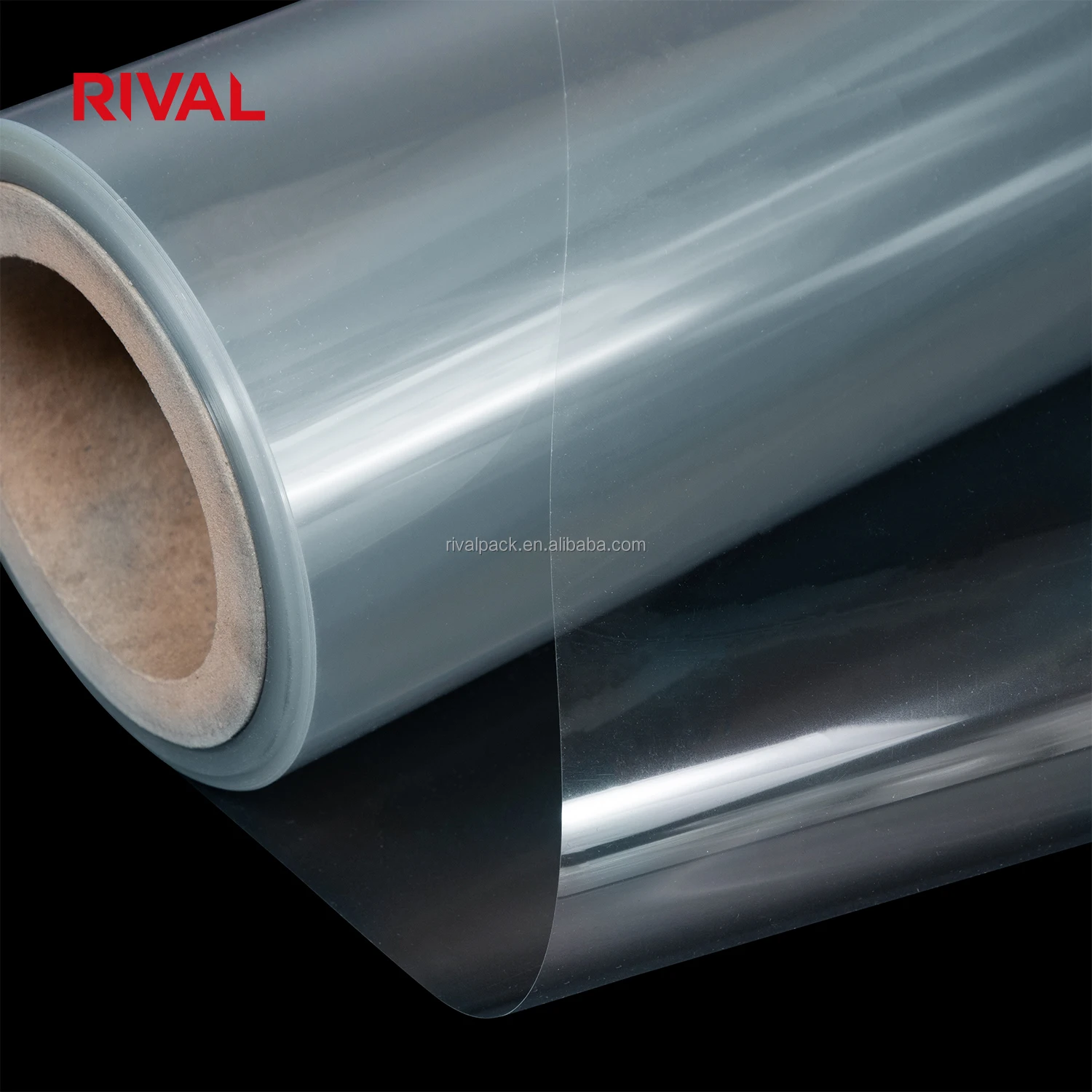

PET Film Transparent BOPET 12 Micron Film 4.5 micron BOPET Polyester Thermal Transfer Film

Share on (1601124745441):


Price:$1.95 - $3.30

Quantity:


Product Overview

Description


PET Film Transparent BOPET 12 Micron Film 4.5 micron BOPET Polyester Thermal Transfer Film


What are BOPET Films?



BOPET (biaxially-oriented polyethylene terephthalate) is a polyester film made by stretching polyethylene terephthalate (PET) in its two primary directions to make a versatile engineered film that has amongst its many benefits high tensile strength, chemical and dimensional stability, transparency, reflectivity, gas and aroma barrier properties, and electrical insulation.



BOPET films have enabled many facets of our modern life by providing critical functionality to end markets such as consumer electronics, automotive, green energy and medical devices to name but a few. However, by far the largest use of BOPET film is in flexible packaging structures where the unique set of properties have enabled it to become the backbone that high performance MLP (multi layer plastic) structures are built around. BOPET films are incredibly resource efficient and punch above their weight in the flexible packaging market, and although BOPET films only count for between 5-10% of the overall volume by weight, the percentage of packaging structures that rely on BOPET films’ unique set of properties is a far higher percentage with up to 25% of packs using BOPET as a critical component.

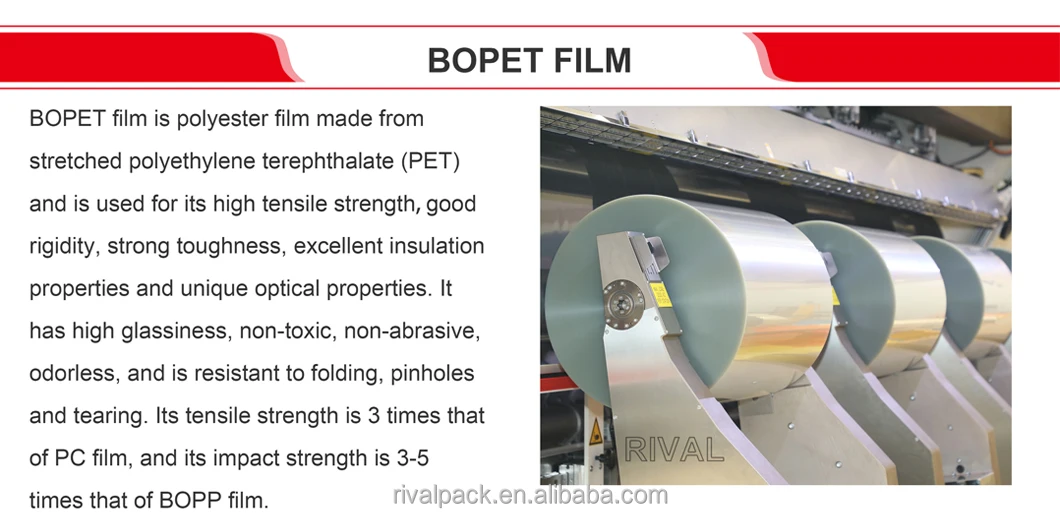

BOPET-01

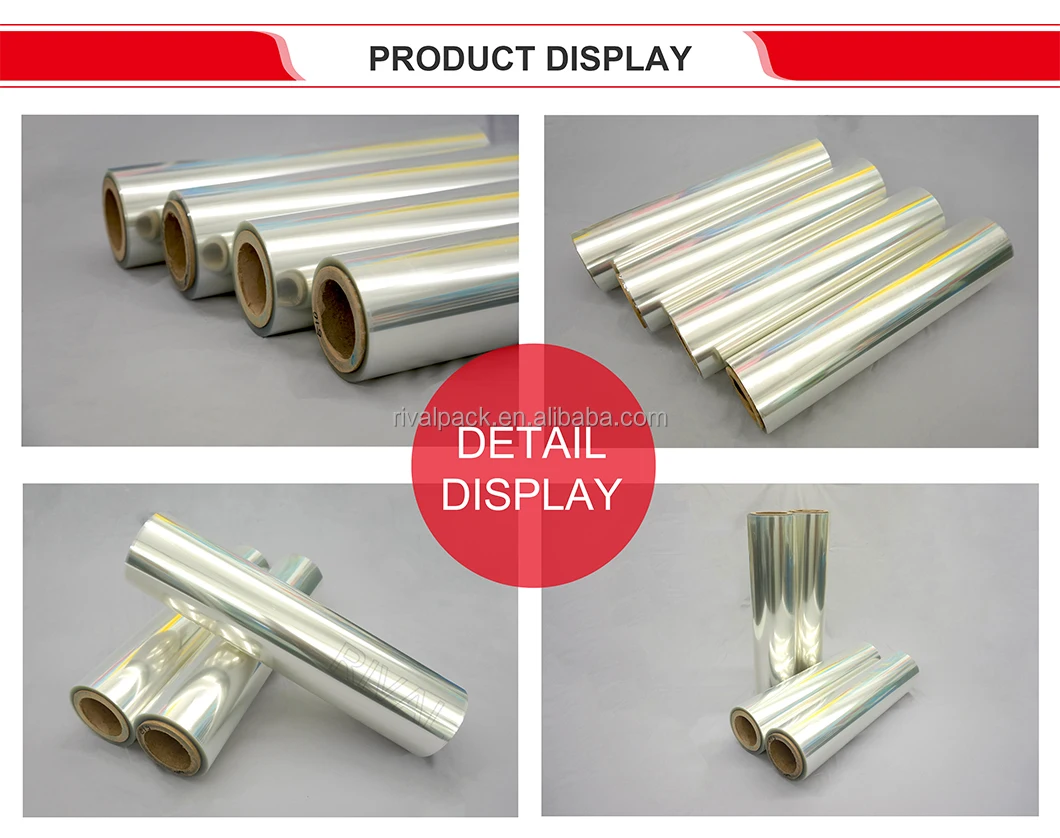

BOPET-02BOPET-03






































Name


BOPET Film


Tensile-Strength(lengthwise,crosswise),MPa


≥52.0


Impact strength(cut)(four-way)KJ/M2


≥5.0


Drop impact strenght


No fracture


Vicat softening piont,°C

Decoration plate

Industrial plate







≥75.0

≥80.0


Heating size change rate, %

Lengthwise

Crosswise




-5.0--+5.0

-3.0--+3.0


Width

Length

Diagonal line


Deviation 0-3mm

Deviation 0-8mm


Advantage


This film has excellent clarity, good stiffness, smooth surface, good chemical and abrasion resistance. BOPET films are preferred for its easy processing and to achieve good oxygen barrier.


BOPET-04





















































































































UnitTest MethodTest PositionResult
Min.Max.
Nominal ThicknessMircon RIVAL - MethodOverall7478
Tensile StrengthKg/cm2ASTM D-882MD16001700
TD14501500
Elongation%ASTM D-882MD126159
TD111132
Coefficient of Friction-ASTM D-1894STATIC0.360.42
DYNAMIC0.260.34
Gloss%ASTM D-2457Overall126127
Light Transmission%ASTM D-1003Overall89.189.9
Dart Impact TestgramASTM D-1709Overall720Pass
Haze%ASTM D-1003Overall2.32.34
Shrinkage @150ºC/30'%ASTM D-1204MD1.01.2
TD-0.0-0.2
Surface TensionDyne/cmASTM D-2578Both Side56 - 58

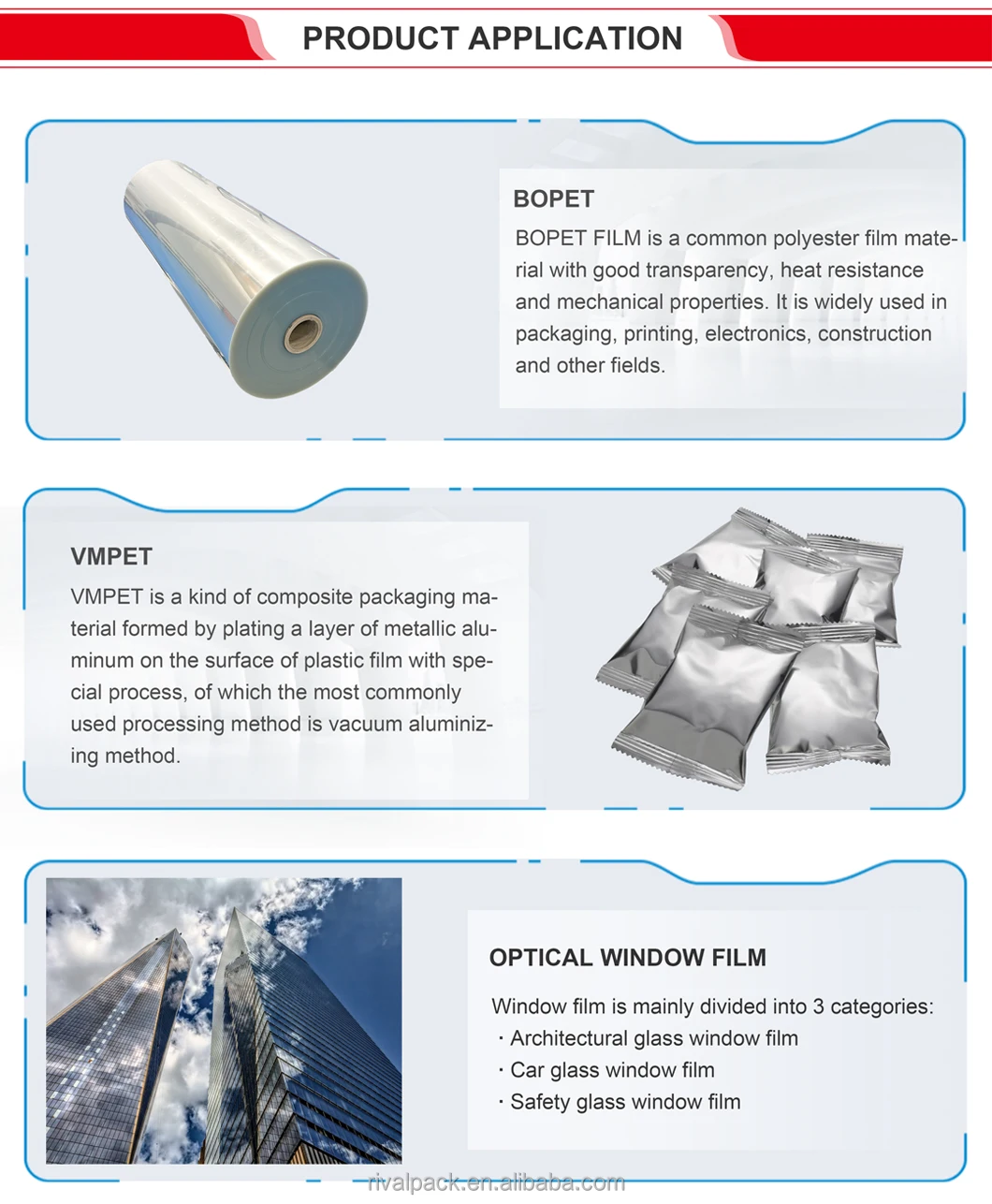

BOPET-06


175 Micron Rigid Clear Pet Plastic Sheet PET Transparent Thin Clear Polyester Film BOPET Film Roll 30-250micron


175 Micron Rigid Clear Pet Plastic Sheet PET Transparent Thin Clear Polyester Film BOPET Film Roll 30-250micron


It is versatile and can meet the needs of a variety of products. Our products are designed to make your life easier and more convenient.BOPET-07

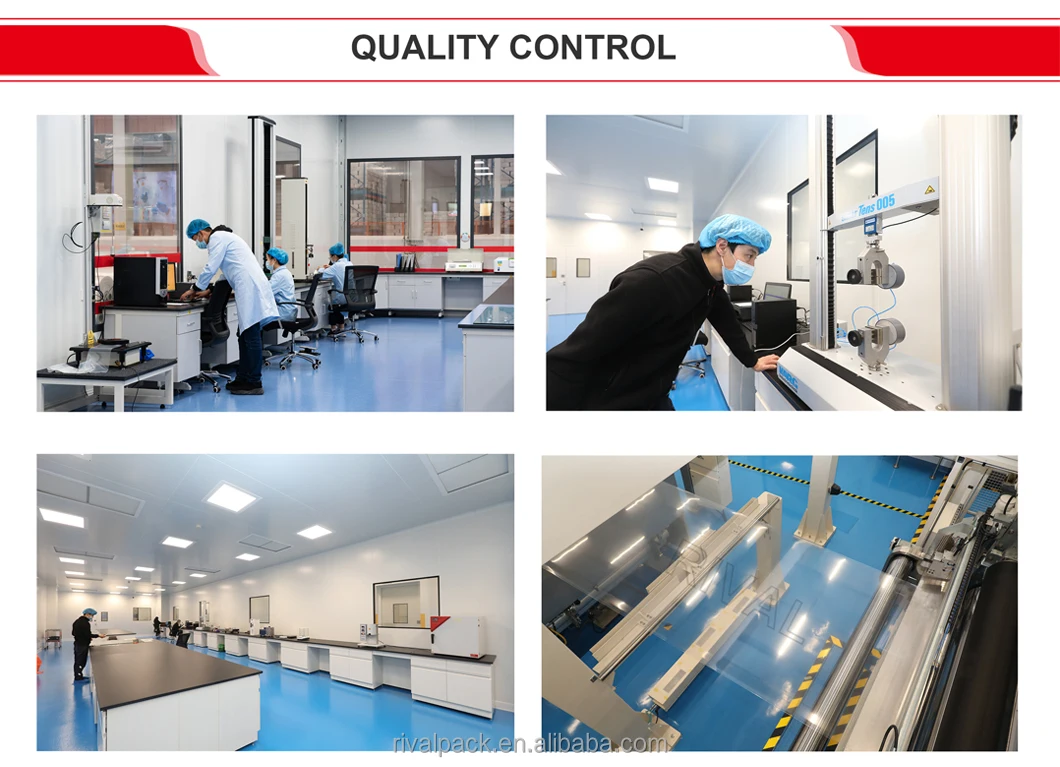

Rival Quality Control Department focuses on every production process quality control and recording so that there will be no defects in the delivery of each order. Sampling is conducted every 3 hours from production beginning, middle and end to make sure 100% meet customer requirements.


175 Micron Rigid Clear Pet Plastic Sheet PET Transparent Thin Clear Polyester Film BOPET Film Roll 30-250micron

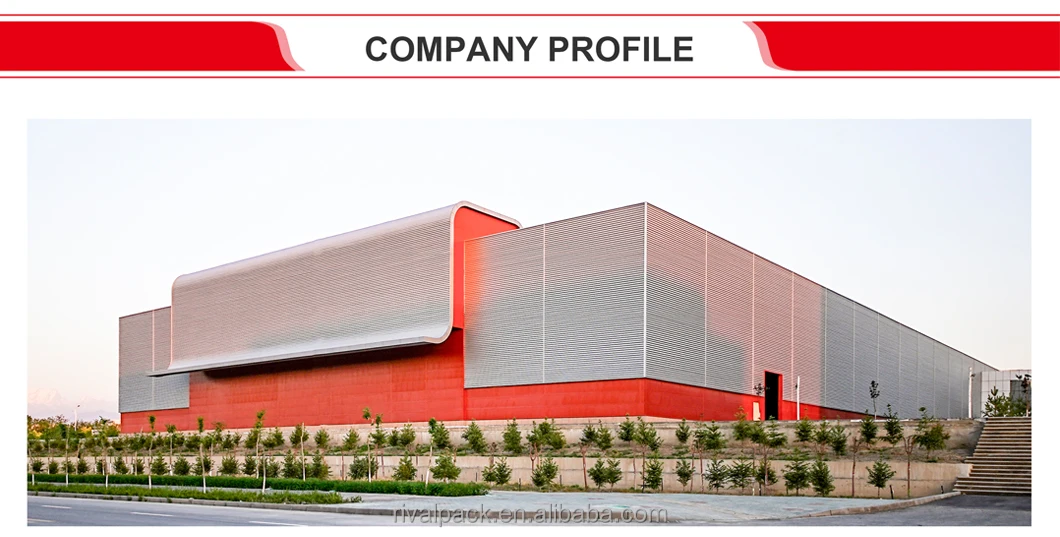

BOPET-08BOPET-09

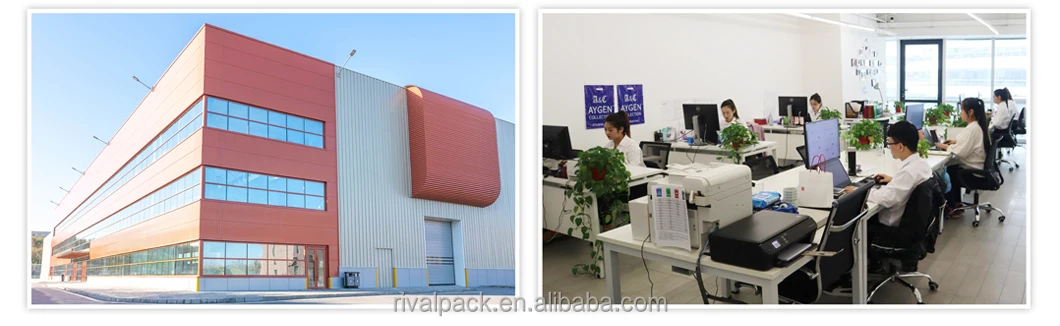

Rival Tech Group has accumulated a wealth of production and innovation experience since 1983. Advanced 5-layers co-extruded blown film line from Europe with globally leading technology, large-scale production factories, complete QC test process, and Intelligent color matching system, supply excellent and environmental flexible packaging products to the world.

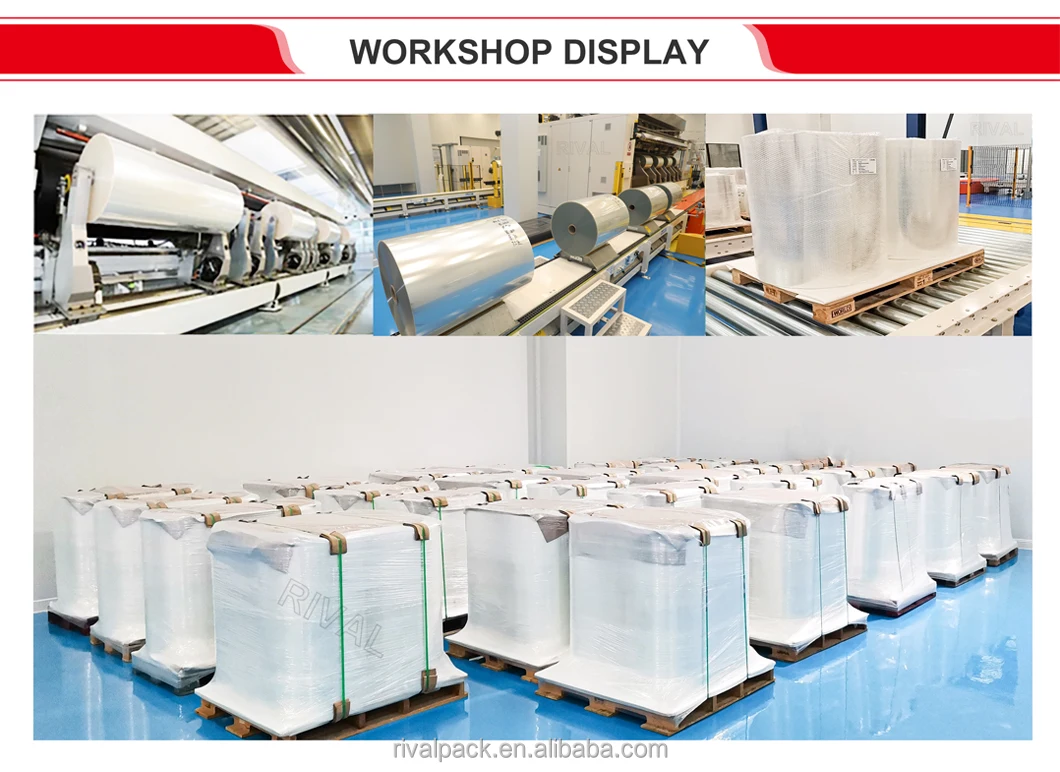

BOPET-10








FAQ:





Q: Are you trading company or manufacturer ?





A: We are professional manufacturer over 40 years experience, if you have interests welcome to visit our factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days after receiving your initial payment.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge by freight collect





Q: How do you ship the samples ?
A:  Samples Shipping: Via International Courier (DHL, Fedex, UPS, TNT or Aramex etc...)

Q: What is your terms of payment ?
A:  40% T/T in advance ,balance before shippment. we slao accept L/C at Sight .





Q: What is your standard package ?
A: Common package: PE bag+ Kraft paper and PE wrapping + protection corner + Wooden Pallets.
    Packaging size: 3'x6' or 4'x8' or according to customer's requirements.
