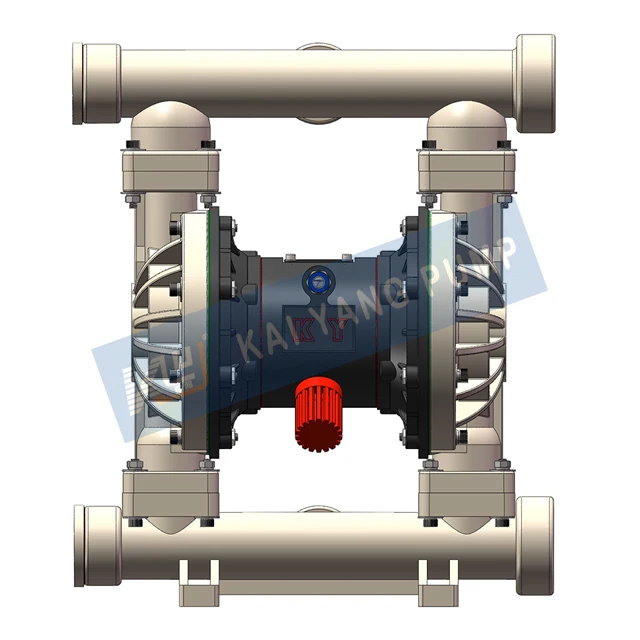

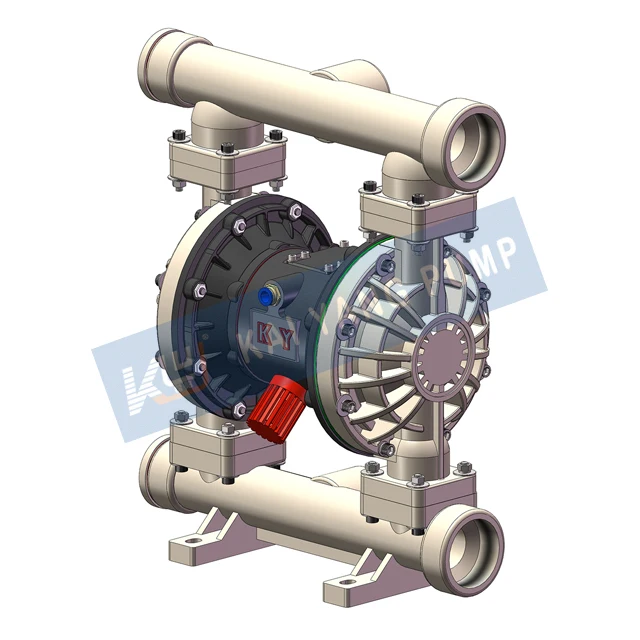

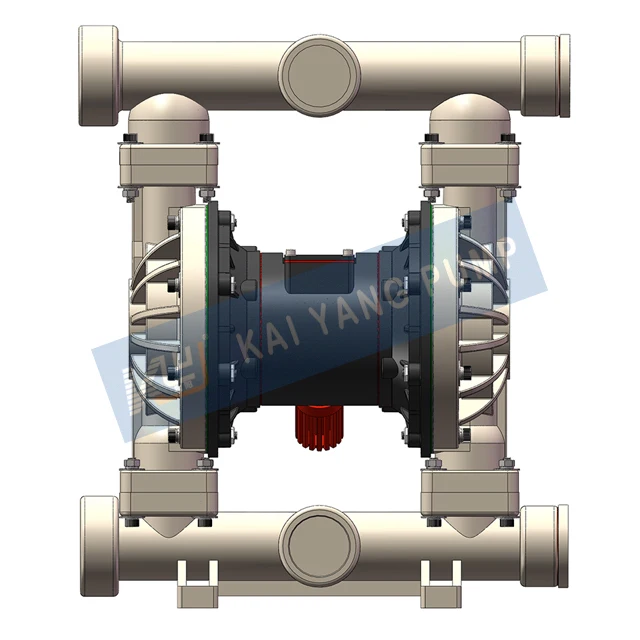

2 1/2 Inch PVDF Pneumatic Diaphragm Pump For Chemical Environmental Protection Water Treatment
2-1/2 Inch PVDF Pneumatic Diaphragm Pump For Chemical Environmental Protection Water Treatment
2-1/2 Inch PVDF Pneumatic Diaphragm Pump For Chemical Environmental Protection Water Treatment
2-1/2 Inch PVDF Pneumatic Diaphragm Pump For Chemical Environmental Protection Water Treatment
2-1/2 Inch PVDF Pneumatic Diaphragm Pump For Chemical Environmental Protection Water Treatment

2 1/2 Inch PVDF Pneumatic Diaphragm Pump For Chemical Environmental Protection Water Treatment

Share on (1601124752526):


Price:$470.00-480.00

Quantity:


Product Overview

Description

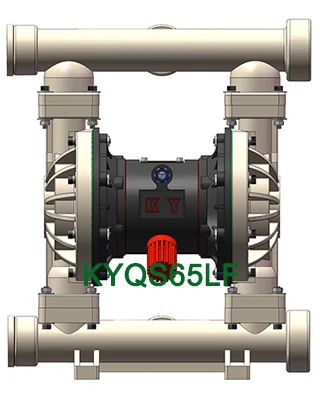

    KYQS65LF Pump Parameters










































Pump Body Material:Pvdf
Air Motor Material:Aluminum Alloy
Pump Weight:About 44 lbs
Air Inlet Size:1/2 in BSP(FNPT)
Fluid Inlet/Outlet Size:2½ in BSP(FNPT)
Max.Suction Height:Dry:5m  Wet:8m
Max.Flow:70GPM
Max.Working Pressure:109PSI
Max.Permitted Grain:3/16 in

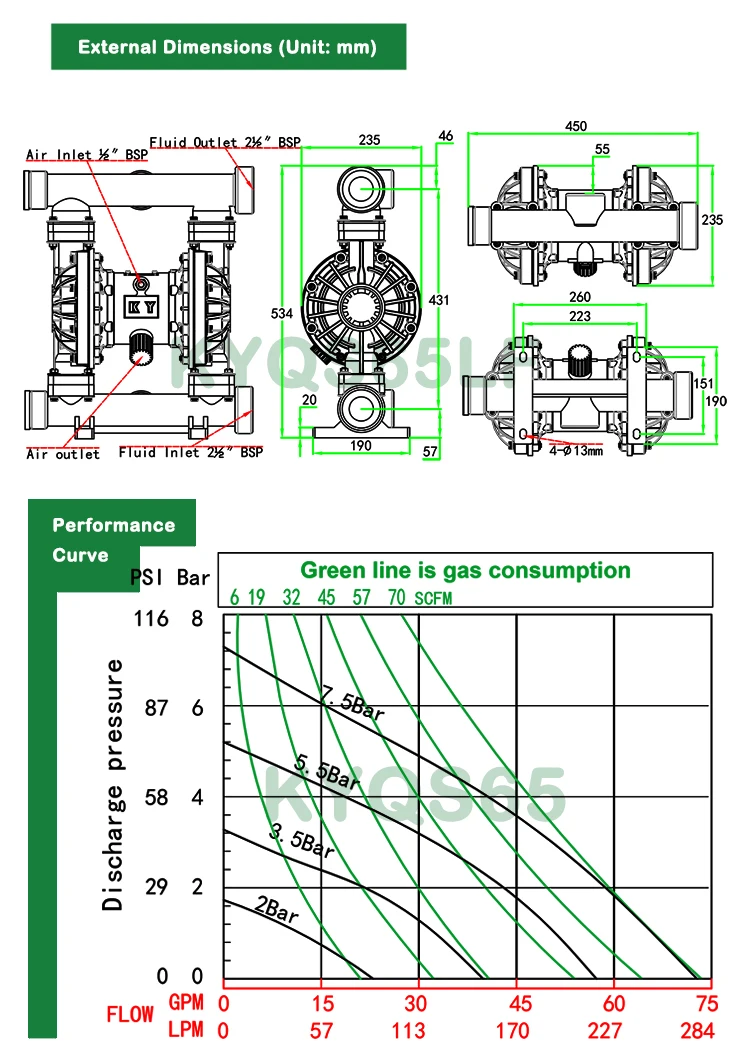

    Performance Curves And Dimensions










    The Meaning Of Pump Model










    Model Selection Table









    Installation Instruction Diagram













3.jpg4-1.jpg4-2.jpg5-1.jpg5-2.jpg5-3.jpg6A.jpg6 B.jpg
