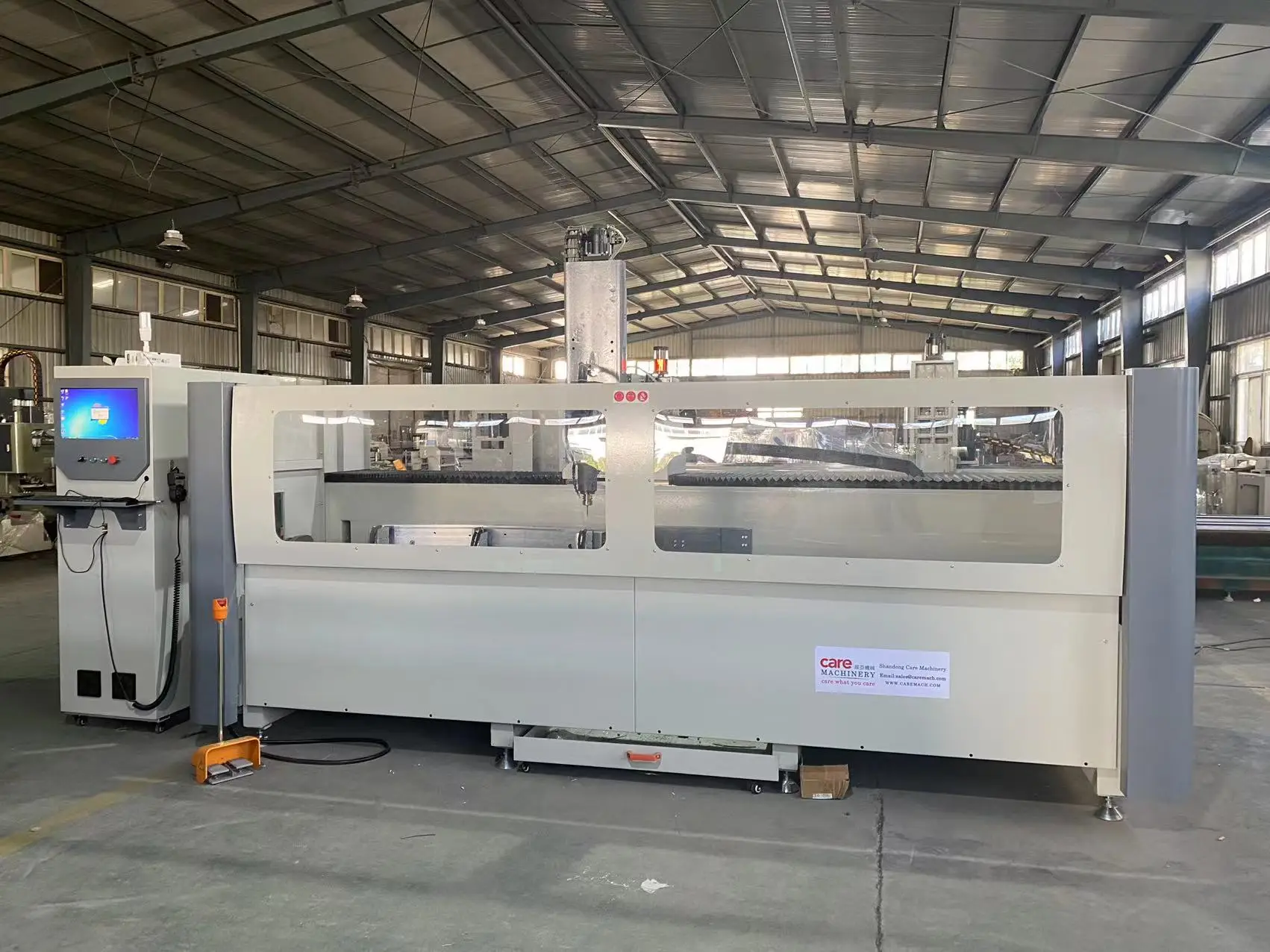

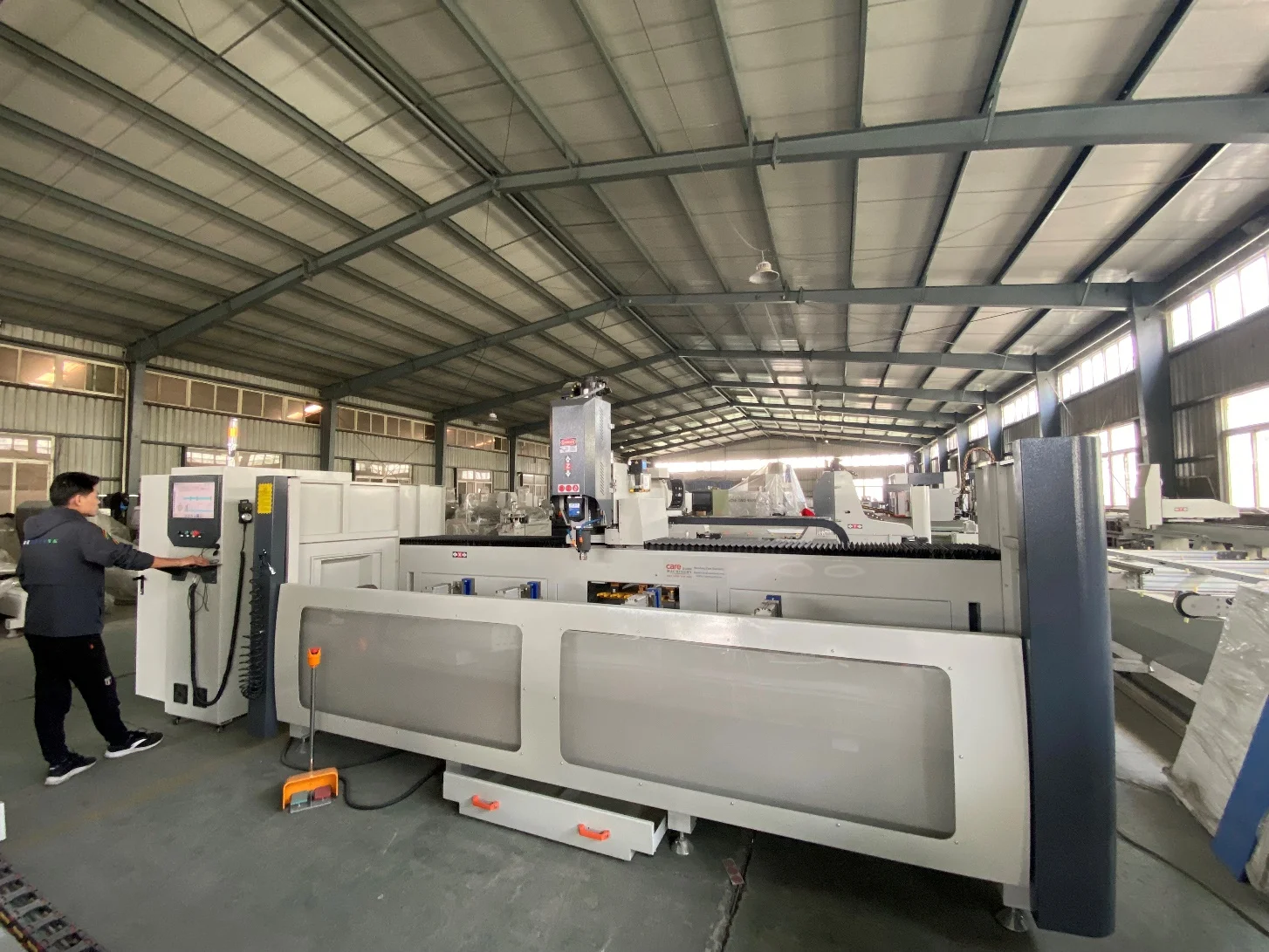

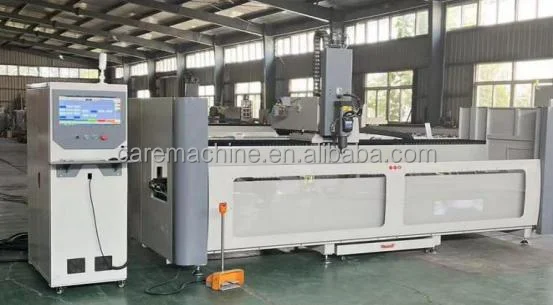

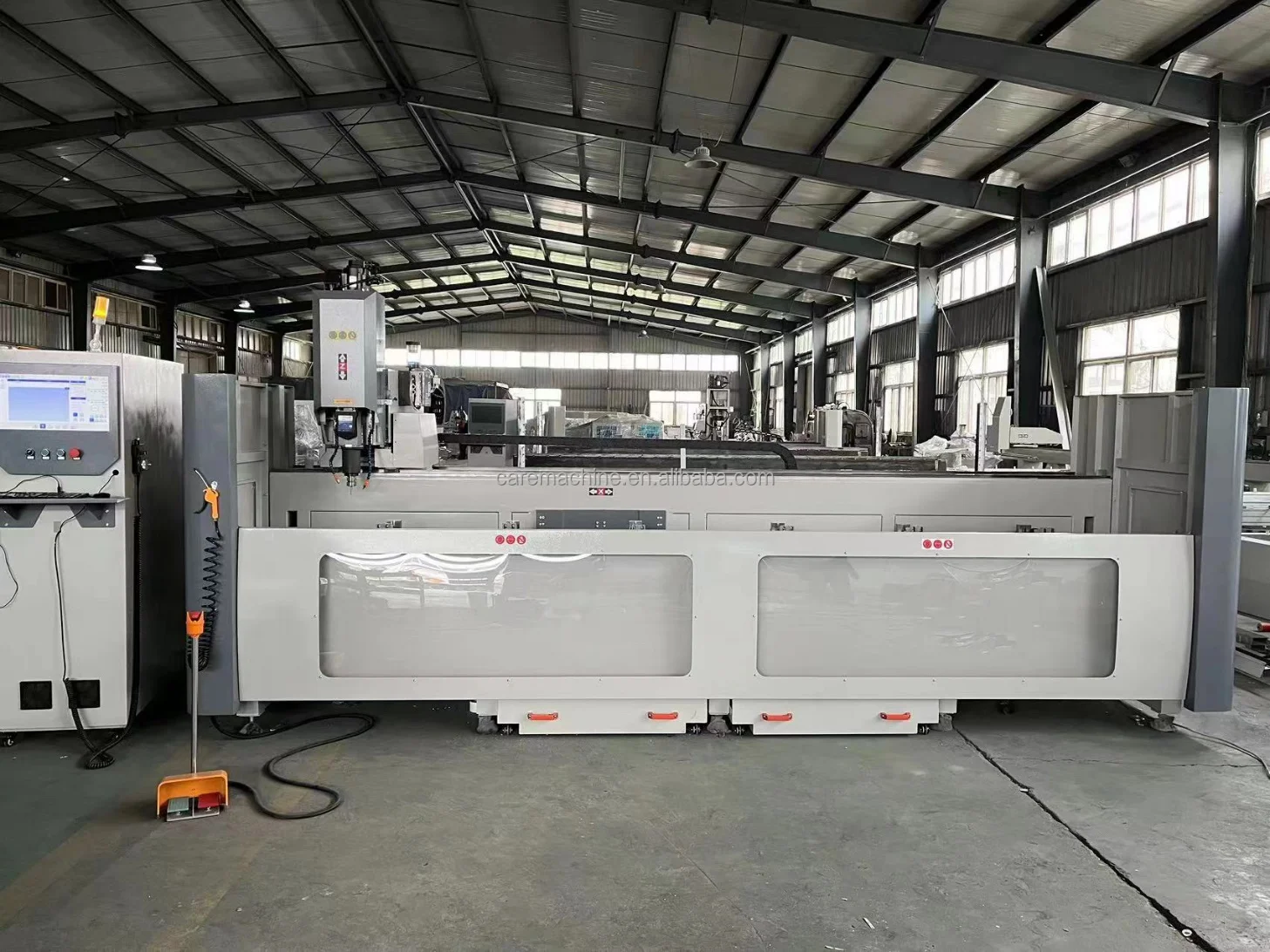

ATC Aluminum Profile CNC Milling And Drilling Machine CNC router
Product Video Show
Products Description
Product Introduction：
CNC automatic tool change milling and drilling machine is designed for the processing of aluminum profile in industry, automobile and high-speed railway. And it is applied to the working of window and door, also of round, slot, key and irregular hole of curtain wall. It is good for milling and flat engraving the profile.
Parameters：
X-axis travel | 3000mm | X-axis positioning accuracy | ±0.05mm | ||
Y-axis travel | 350mm | Y-axis positioning accuracy | ±0.05mm | ||
Z-axis travel | 300mm | Z-axis positioning accuracy | ±0.02mm | ||
X-axis feed speed | 0~50m/min | Repeatable positioning | ±0.05mm | ||
Y-axis feed speed | 0~40m/min | Processing surface roughness | Ra 6.3 um | ||
Z-axis feed speed | 0~30m/min | Spindle speed | 0~24000rpm | ||
Spindle power | 9.5kw | Total power | 12.5kw | ||
Machine size | 4500× 1700× 2500mm | ||||

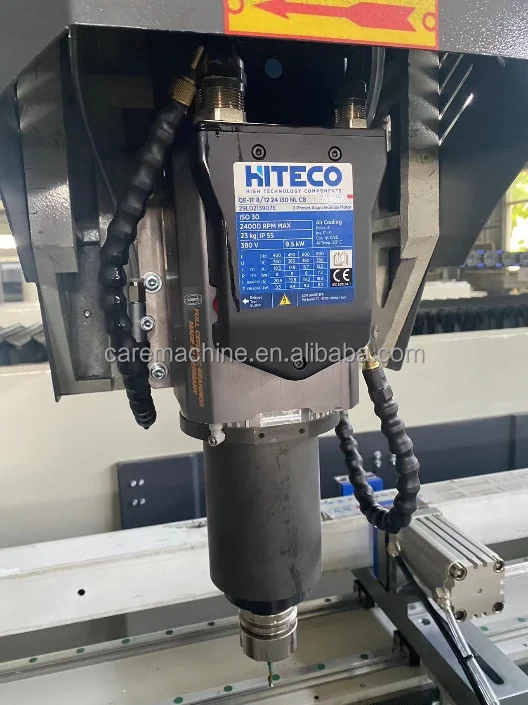

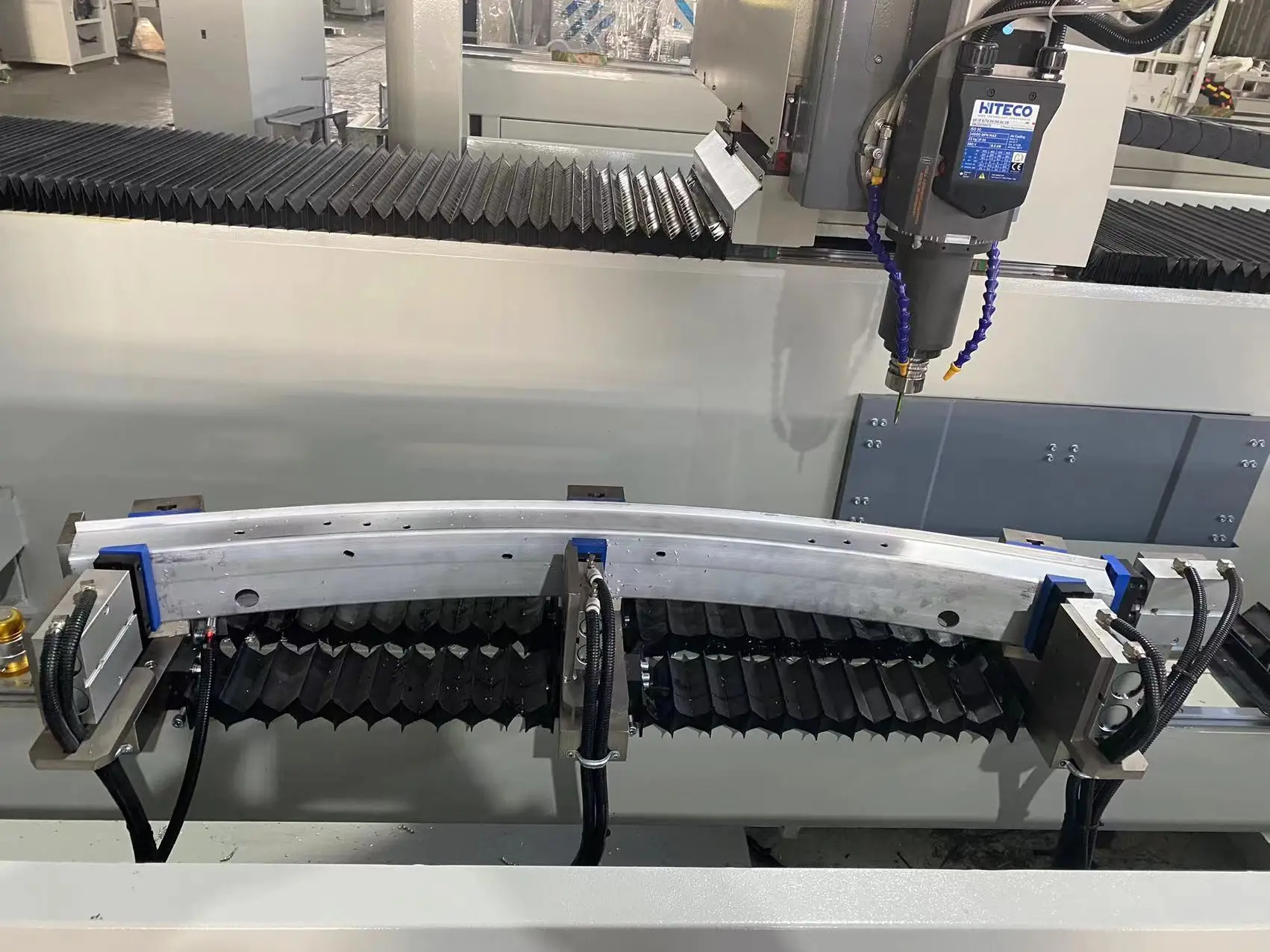

ATC Spindle
Italy HITECO ATC spindle. It’s big power and high speed, with longer service life and more accuracy.

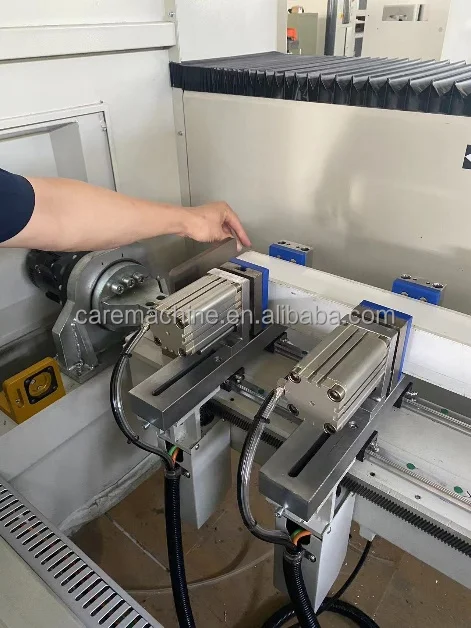

Servo Automatic Clamp
Servo Automatic clamp positioning(optional). Clamps moved by servo motors automatically, prevent knife collision.

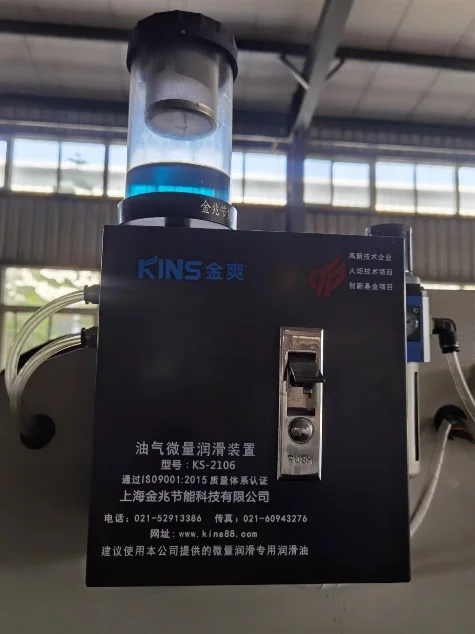

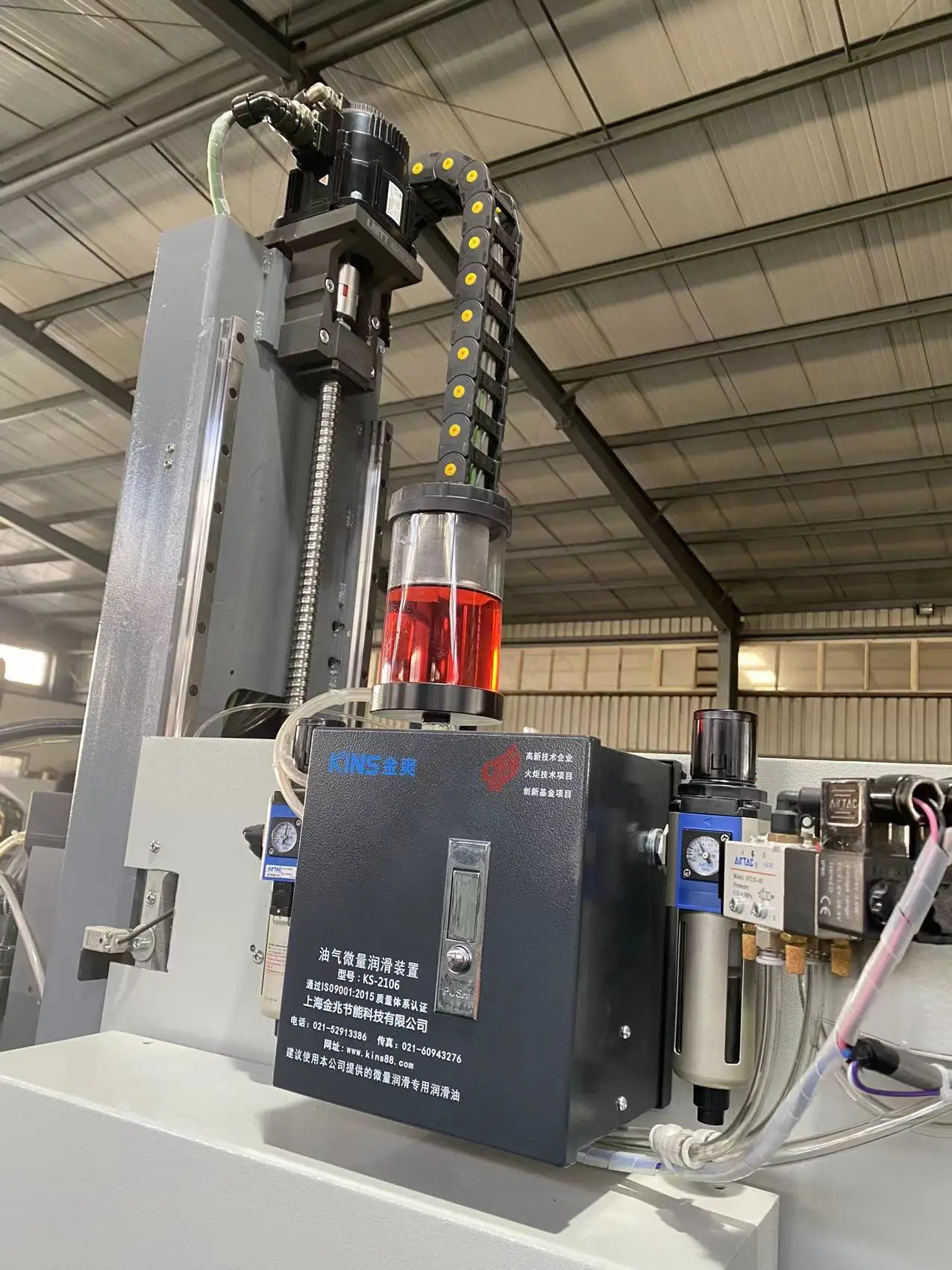

Spindle Oil Spraying System
Advanced spindle oil spraying system. The spray is more uniform and the lubrication effect is better.

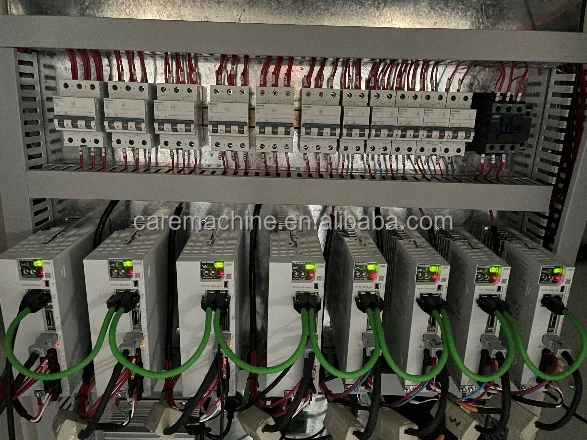

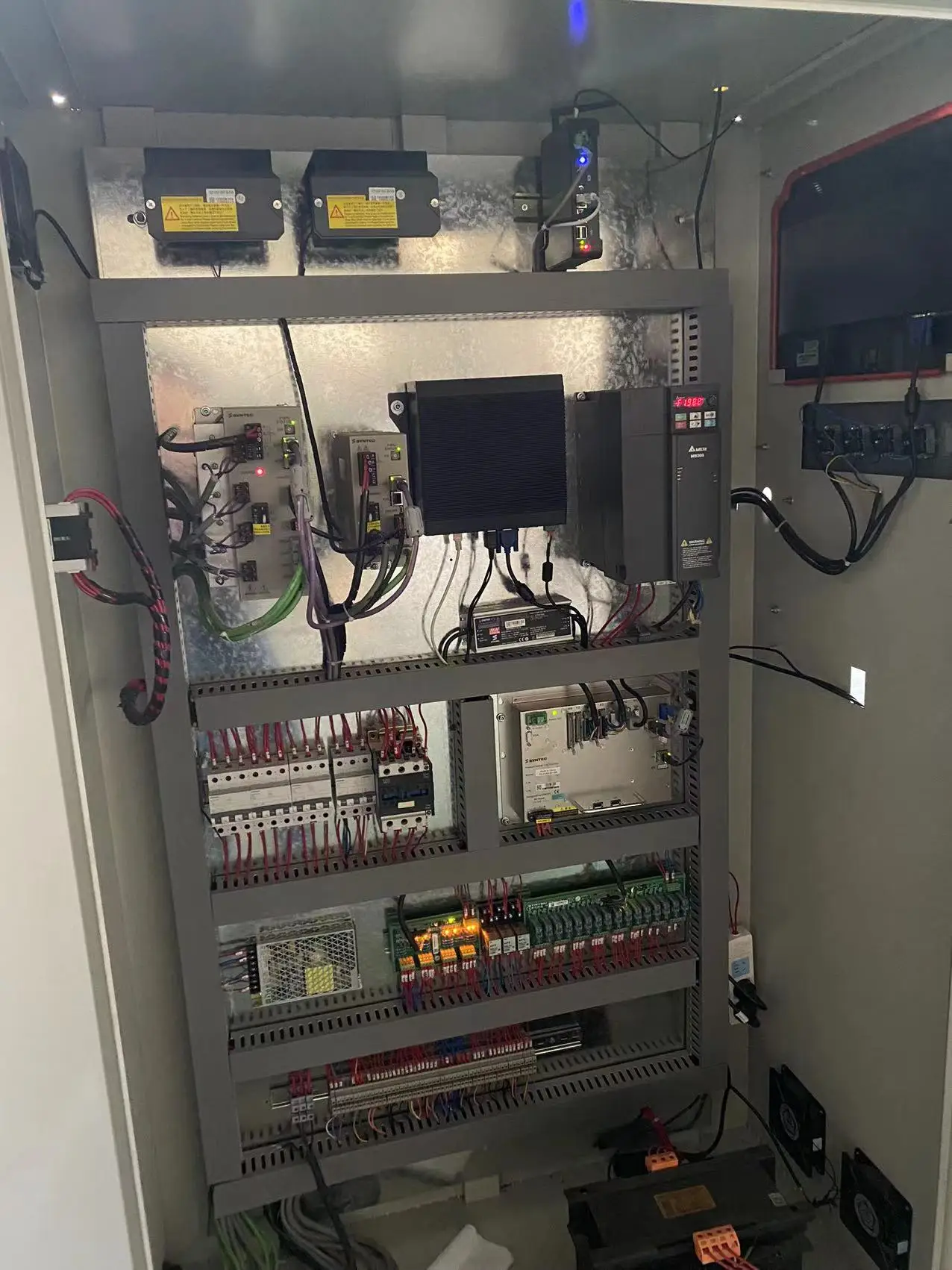

Electrics and Sensors
Schneider electrics and Autonics sensors. Longer service life and brand after-sales guarantee.

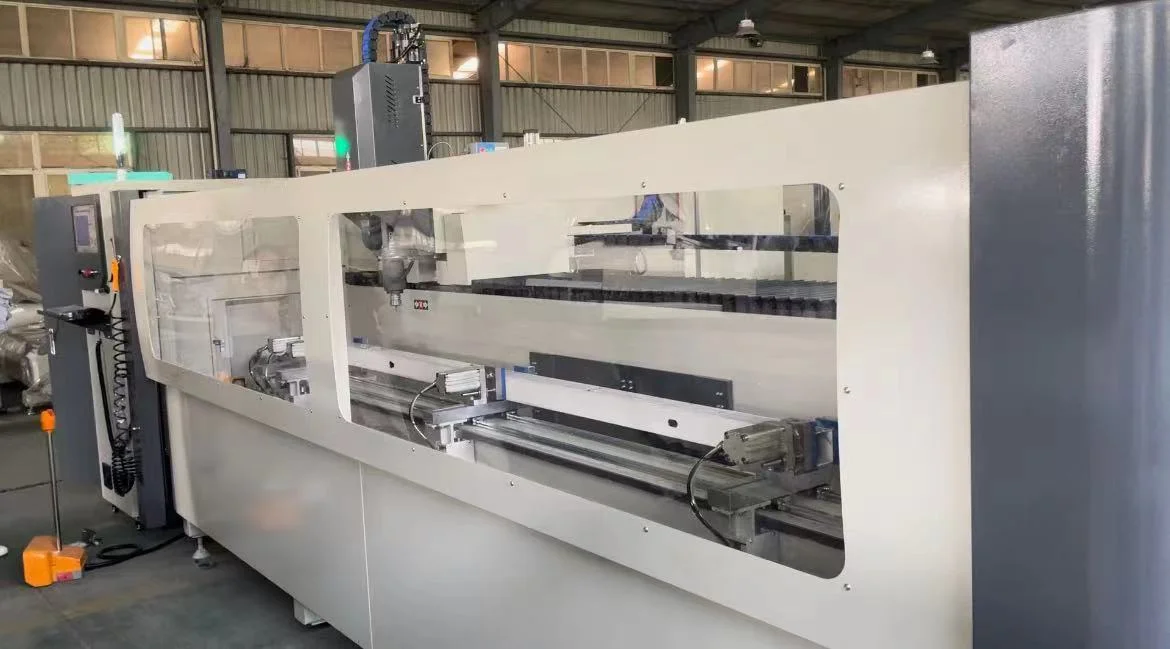

Automatic lifting protection cover
Automatic lifting protection cover ensures operator safety.
Product Features:
1, Adopts imported spindle motor with a power of 9.5KW and a speed of 24000rpm, which is highly
precise, safe and reliable.

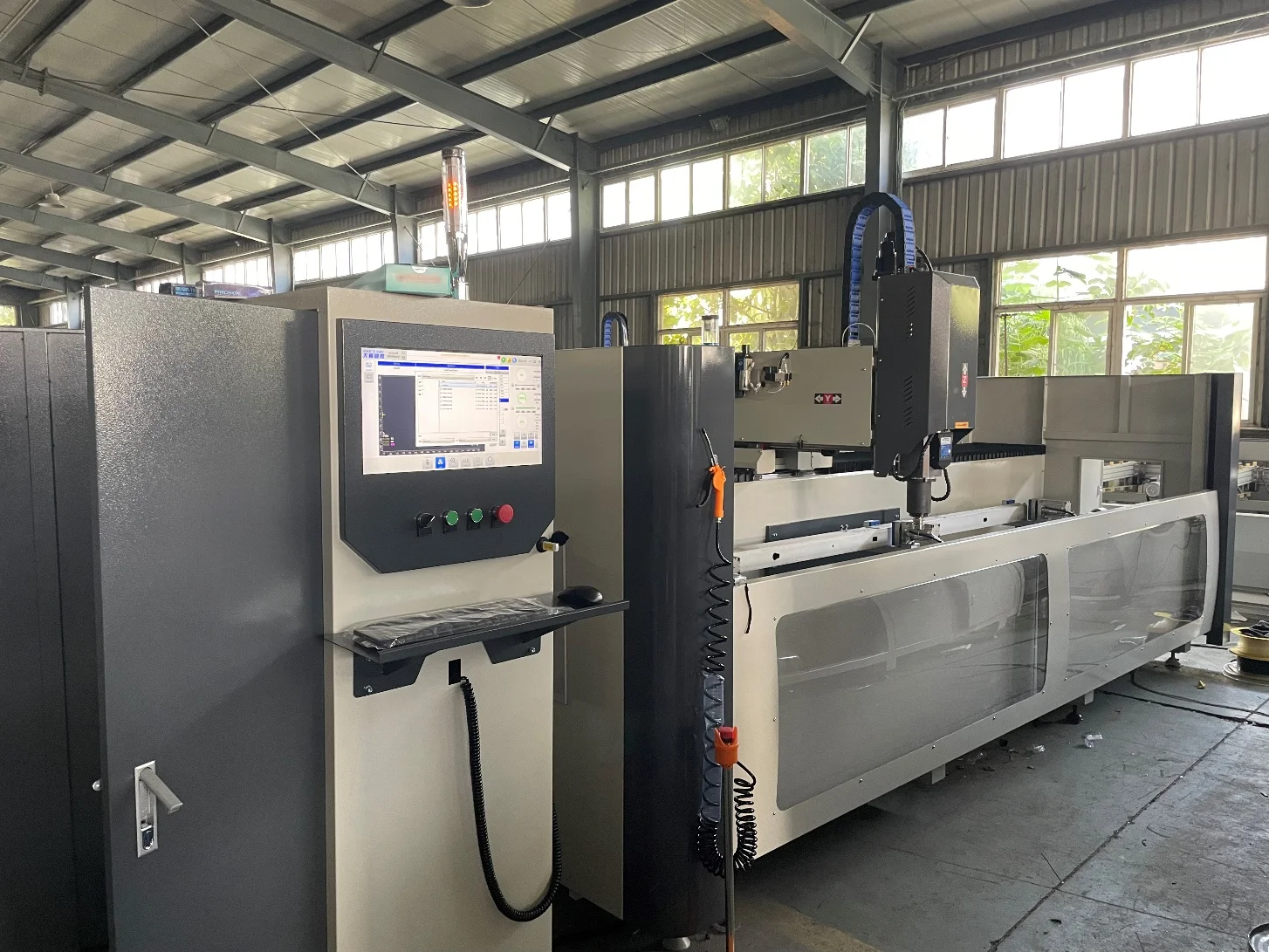

2, Equipped with Taiwan SYNTEC CNC control system, which can be processed by G code with simple operation, high efficiency and low labor intensity.
3, The worktable can realize 90 degree, 0 degree, -90 degree.

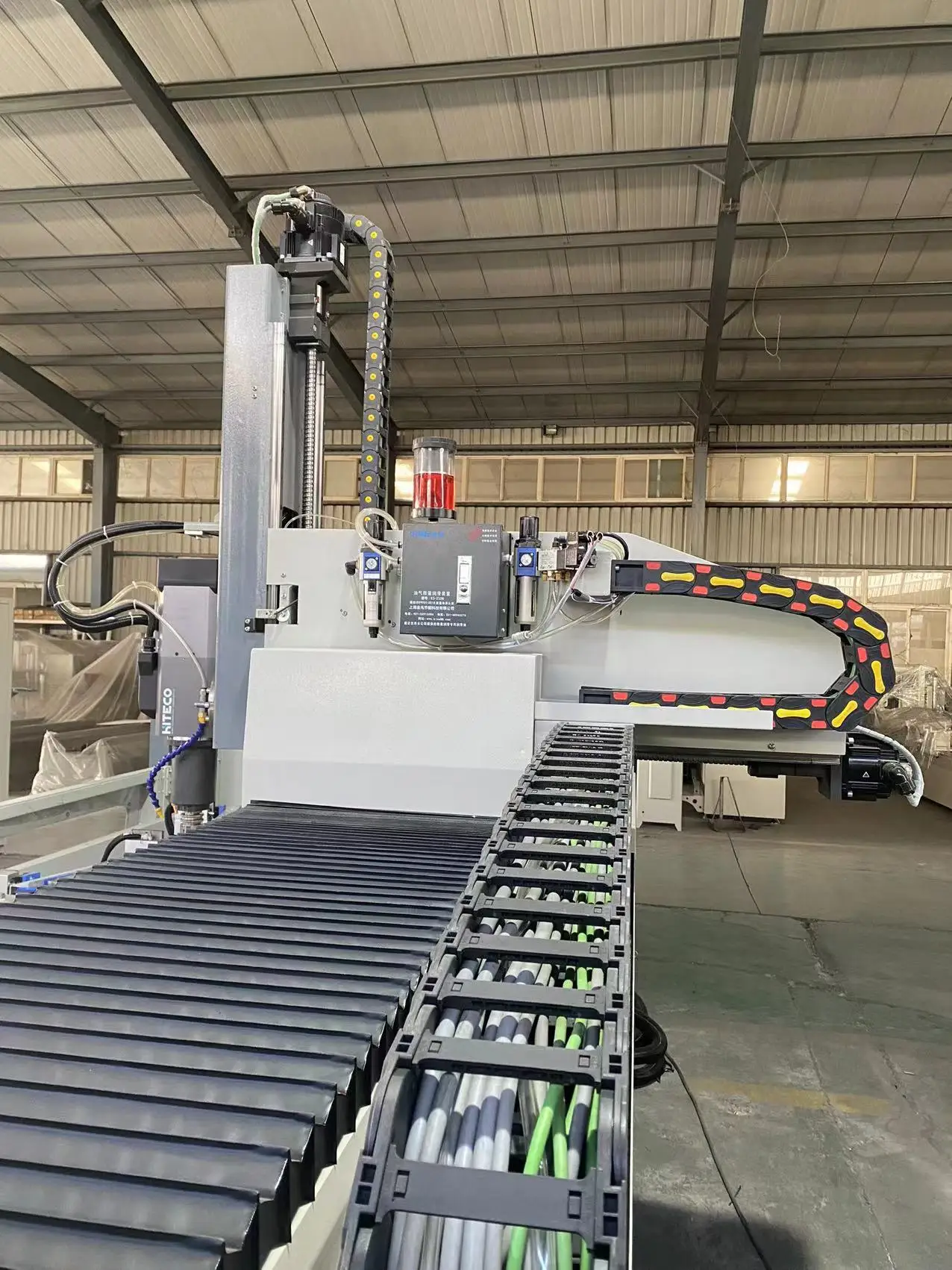

4, The linear motion pair adopts imported guide rails and sliders. X axis is driven by highly accurate helical gears and racks. Y axis and Z axis are driven by highly precise ball wires. The transmission is stable and improves the precision of the whole machine effectively .
5, The main electrical component, circuit breaker and AC contactor are all made by French Schneider. And the magnetic valve is made by Taiwan AirTAC.
precise, safe and reliable.
2, Equipped with Taiwan SYNTEC CNC control system, which can be processed by G code with simple operation, high efficiency and low labor intensity.
3, The worktable can realize 90 degree, 0 degree, -90 degree.
4, The linear motion pair adopts imported guide rails and sliders. X axis is driven by highly accurate helical gears and racks. Y axis and Z axis are driven by highly precise ball wires. The transmission is stable and improves the precision of the whole machine effectively .
5, The main electrical component, circuit breaker and AC contactor are all made by French Schneider. And the magnetic valve is made by Taiwan AirTAC.
