10 Tons Unwinder Unit Hydraulic Decoiler Automatic Uncoiler With Loading Car
- Category: >>>
- Supplier: Cangzhou City Tianyu Machinery Manufacture Co. Ltd.
Share on (1601124804170):
Product Overview
Description
Products Description

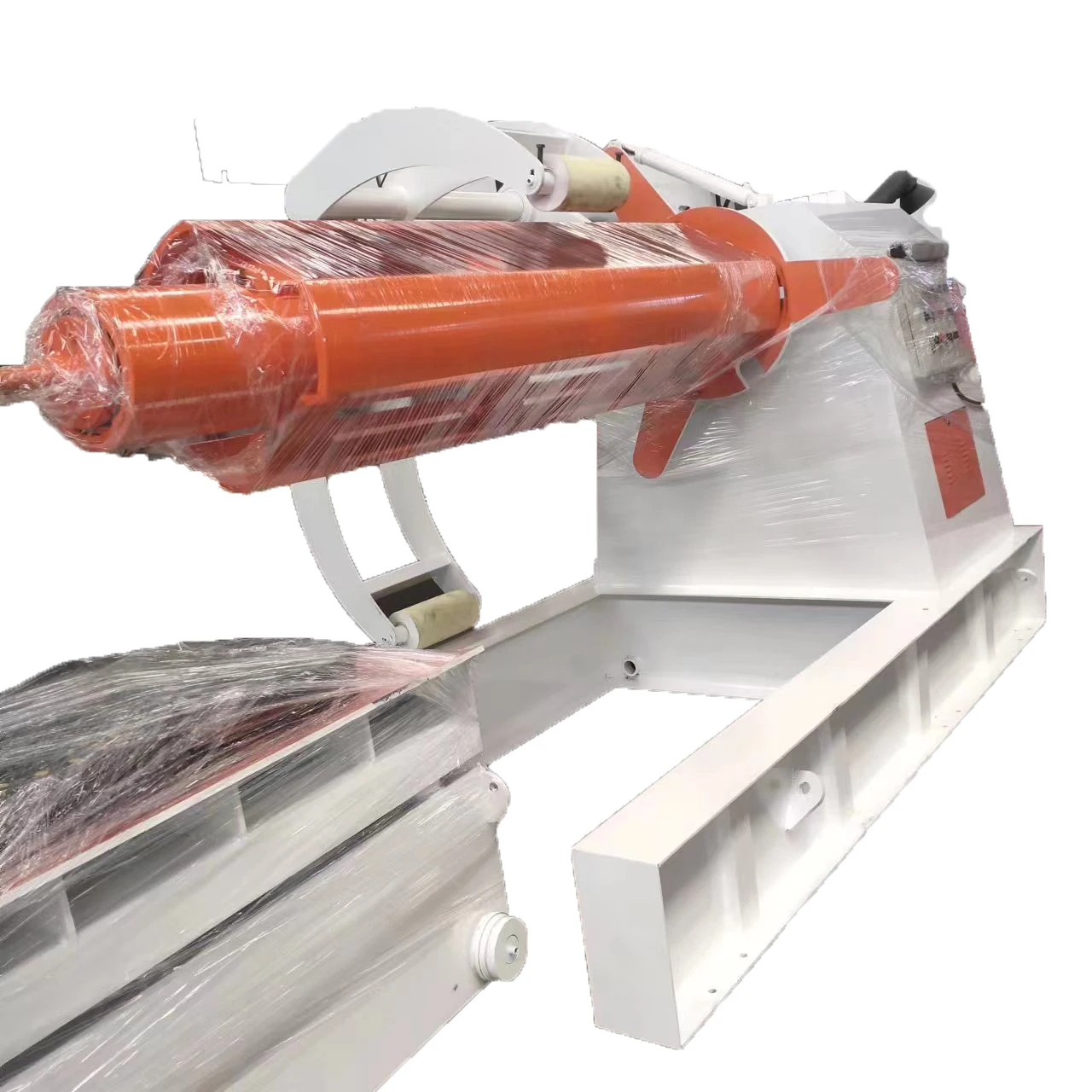

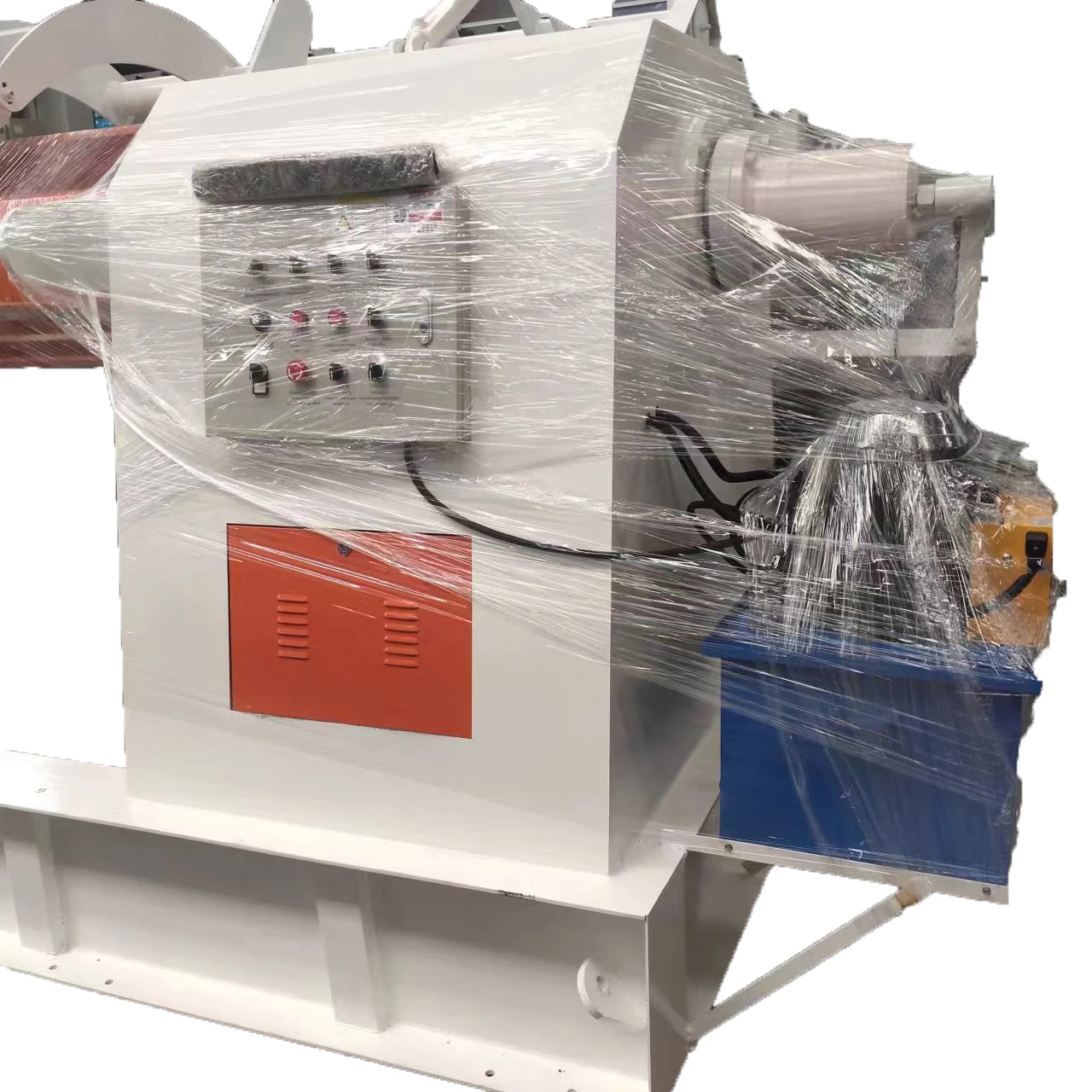

TYRFM Hydraulic Uncoiler
A. Supporting the coils and doing uncoiling. The capacity is 10Tons(max).
B. It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped
with the cantilever.
C. Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
D. The core can ensure the expand range φ450 of the coils inner diameter. It will provide the rubber band to ensure the 550 mm
diameter.
Carrying capacity: 10 tons
Max coil width: 1300 mm
Feeding speed: 0-25 m/min (adjustable)
Driving motor power: 3 kw (5.5 kw 10 tons)
Hydraulic motor power: 3 kw
E. Structure: welding by the steel plates and profiled bar.
Remark:
The speed sensor of the decoiler enables the decoiler to adjust the speed to match up the production of the roll forming machine
automatically.
B. It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped
with the cantilever.
C. Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
D. The core can ensure the expand range φ450 of the coils inner diameter. It will provide the rubber band to ensure the 550 mm
diameter.
Carrying capacity: 10 tons
Max coil width: 1300 mm
Feeding speed: 0-25 m/min (adjustable)
Driving motor power: 3 kw (5.5 kw 10 tons)
Hydraulic motor power: 3 kw
E. Structure: welding by the steel plates and profiled bar.
Remark:
The speed sensor of the decoiler enables the decoiler to adjust the speed to match up the production of the roll forming machine
automatically.
Machine parameters
Item | Parameters |
oading capacity | 10ton |
Uncoiling width | 1350mm |
Coil inner diameter | 450-550mm |
Work speed | 20m/min |
Work type | hydraulic type |
Hydraulic motor power | 4KW |
Self weight | 5ton |

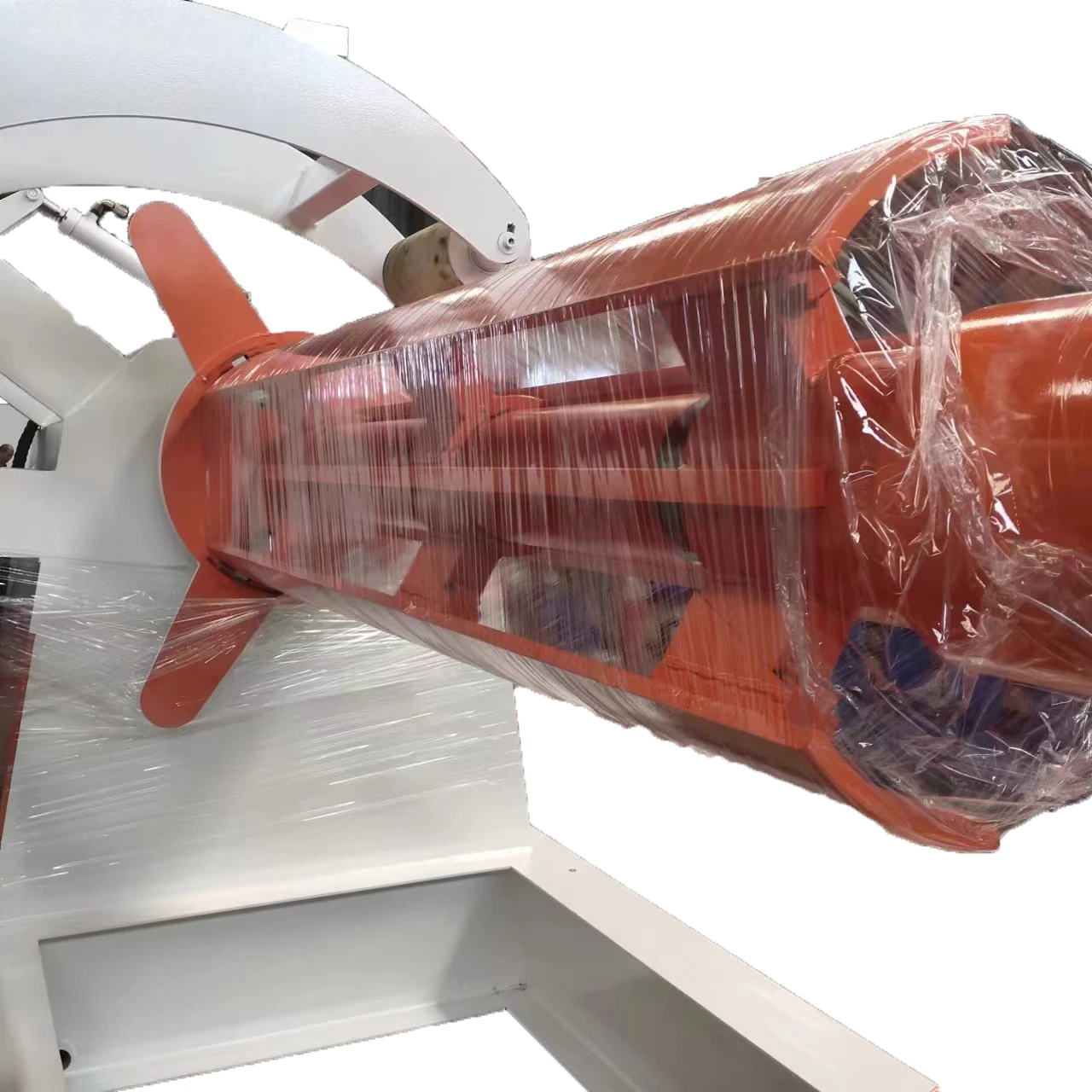

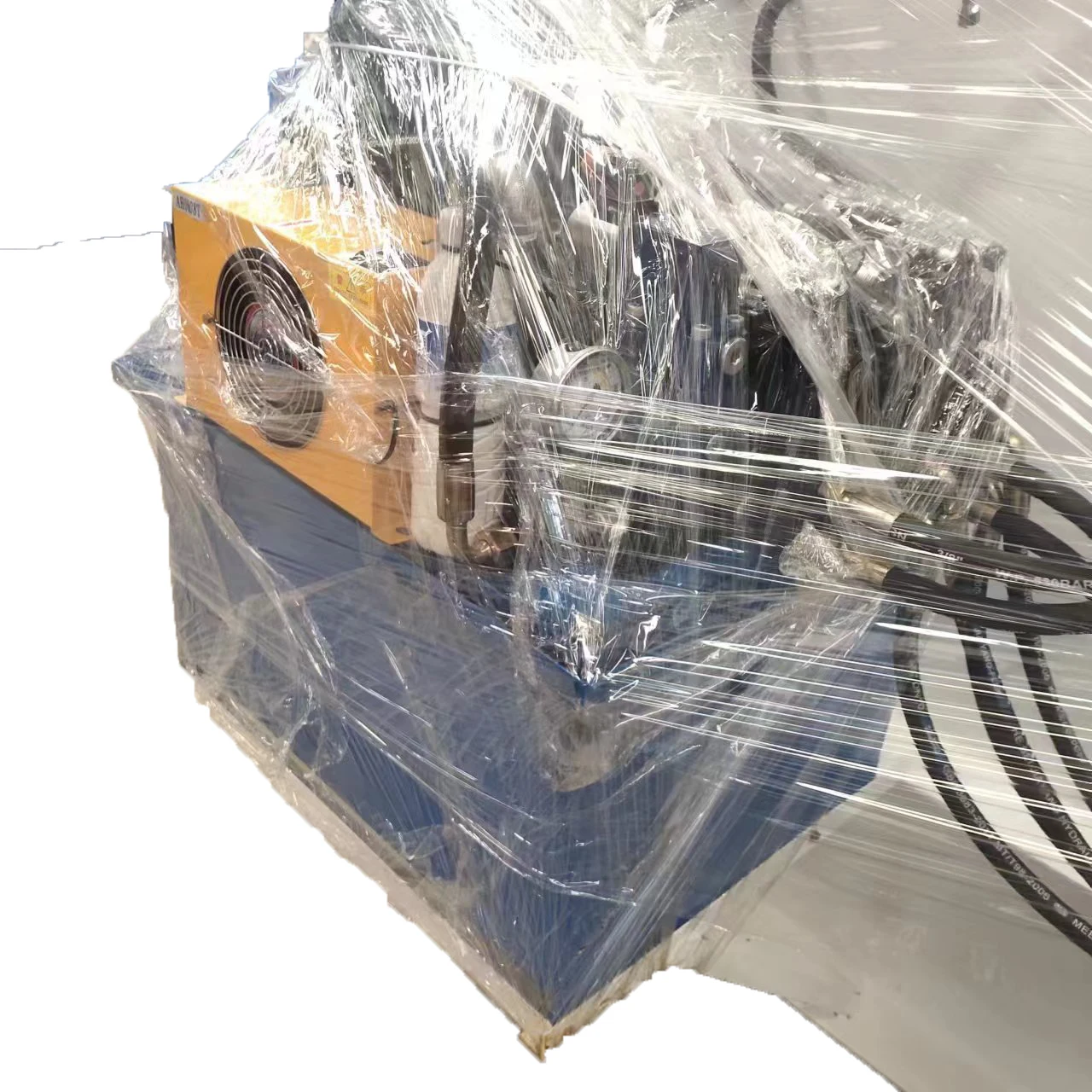

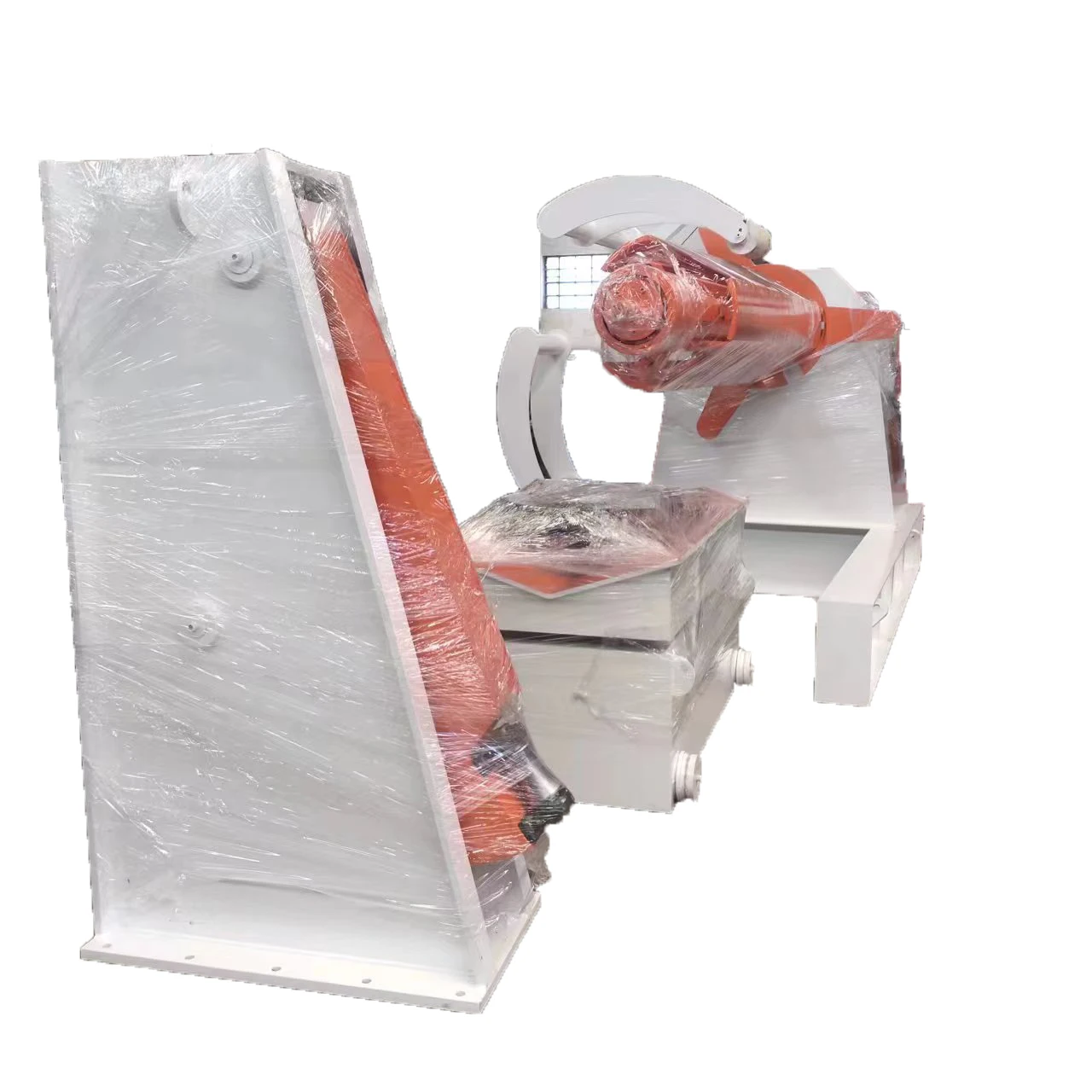

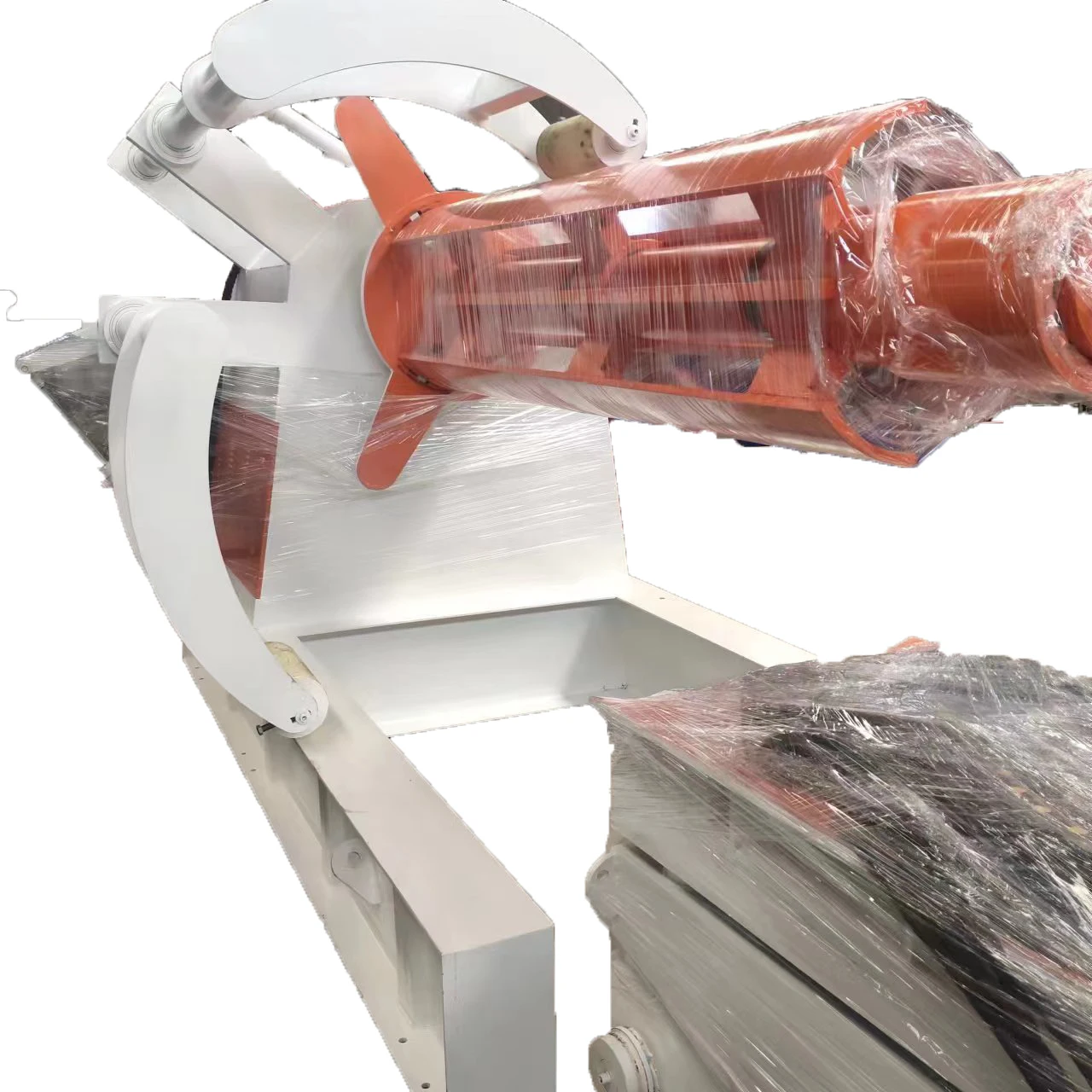

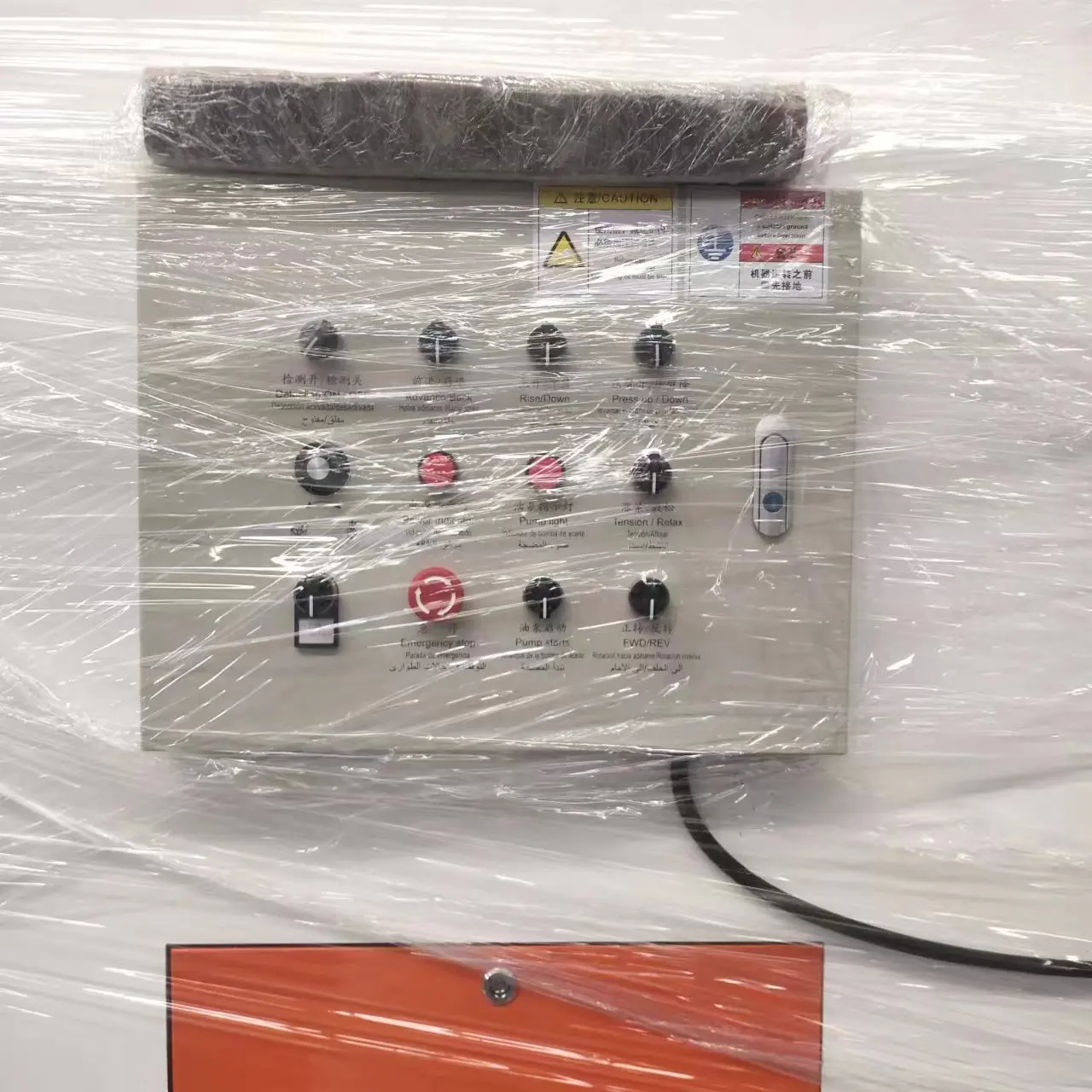

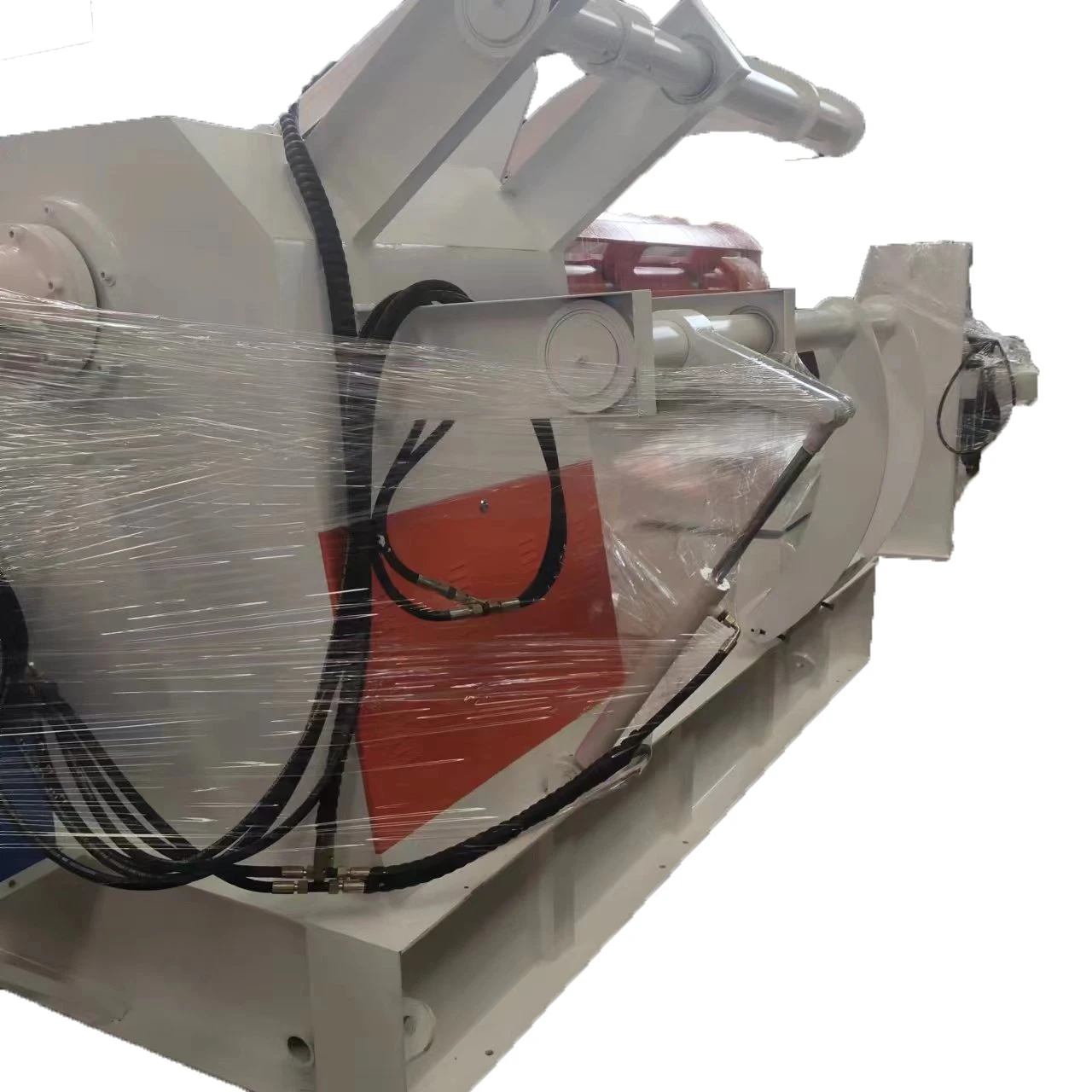

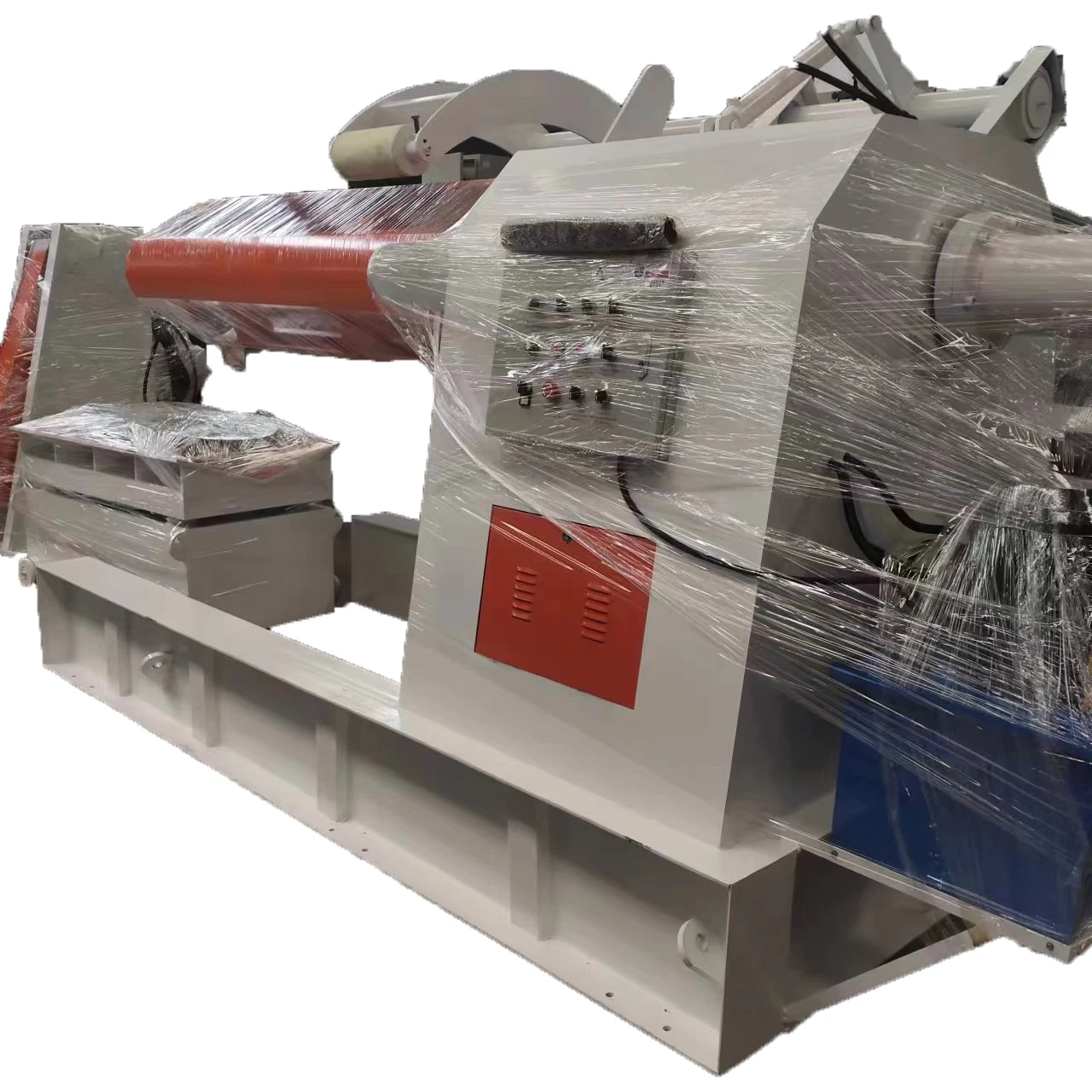

Details Images
Company Profile
Our Partners
Packaging and Shipping
FAQ
Q: Are you a factory or a trading company?
We are a traditional factory transformed to foreign trade, so you can get the most favorable machine prices
We are a traditional factory transformed to foreign trade, so you can get the most favorable machine prices
12 months, during which all parts damaged because of quality problem will be changed for free.
Q: What's your delivery Time ？
Within 35-50 days after receiving prepaid. Some machines in stock, can be delivered at any time.
Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q:What's your Install and Training ？
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
Q: What's you after-sale service ？
We provide 24-hour online service for our customers.
A.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller. When technique men go to the buyer's place to debug the machines, the buyer should pay the expense of accommodation, and traffic for the buyer’s men.
B. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
Q: How to place order ？
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit ---then OK
