Sunpal Solar Lifepo4 Lithium Ion Batteries 12 V 200Ah 12V 200Ah Lithium Solar Battery
- Category: >>>
- Supplier: Sunpal Solar Energy Co. Ltd.Sunpal Ltd.
Share on (1601124869383):
Product Overview
Description
Products Description
LP12200 12.8V 200Ah LiFePO4 Battery Lead-acid Replacement Lithium Battery
LP12200 LiFePO4 Battery
Capacity: 12.8V 200Ah
Lifespan: 3000cycles@25°C@80% DOD
Weight: 22.9kg
Size: 520*270*220mm
Certificate: CE, UN38.3, MSDS
Battery Cell Features:
1. High energy density: Lithium batteries have a high energy density, which means they can store a large amount of energy in a small size and weight.
2. Long cycle life: Lithium batteries have a longer cycle life compared to other batteries, which means they can be charged and discharged more times before they need to be replaced.
3. Low self-discharge rate: Lithium batteries have a low self-discharge rate, which means they can retain their charge for a longer period of time without being used.
4. High power output: Lithium batteries can deliver high power output, making them suitable for use in high-drain applications such as electric vehicles, power tools, and drones.
5. Fast charging: Lithium batteries can be charged quickly, reducing the amount of time required for charging and increasing their usability.
2. Long cycle life: Lithium batteries have a longer cycle life compared to other batteries, which means they can be charged and discharged more times before they need to be replaced.
3. Low self-discharge rate: Lithium batteries have a low self-discharge rate, which means they can retain their charge for a longer period of time without being used.
4. High power output: Lithium batteries can deliver high power output, making them suitable for use in high-drain applications such as electric vehicles, power tools, and drones.
5. Fast charging: Lithium batteries can be charged quickly, reducing the amount of time required for charging and increasing their usability.
Battery Advantages:
Maintenace free: no more cost
Safe and reliable: the safest LFP battery cell
High energy density: more energy but more protable
More house of power: quick charge, always stand by
Low internal resistance: excellent discharge performance
Electrical | ||
Nominal Voltage/V | 12.8 | |
Nominal Capacity/Ah | 200 | |
Rated Energy/Wh | 2560 | |
BMS Function | Overcharge, overdischarge, overcurrent and temperature protection | |
Charge Cut-off Voltage/V | 14.4 | |
Discharge Cut-off Voltage/V | 10.8 | |
Standard Charge Current/A | 50 | |
Max. Continuous Charge Current/A | 200 | |
Max. Continuous Discharge Current/A | 200 | |
Maximum Discharge Current/A@10S | 300 | |
Mechanical | ||
Dimensions/mm | L520*W270*H220 | |
Weight/kg | 22.9 | |
Terminal | M8 | |
Casing material | ABS | |
Environment | ||
Working Temperature Range/℃ | Charge : 0~55 Discharge: -20~60 | |
Humidity Range/RH | ＜95% | |
Storage temperature/℃ | 15~35 | |

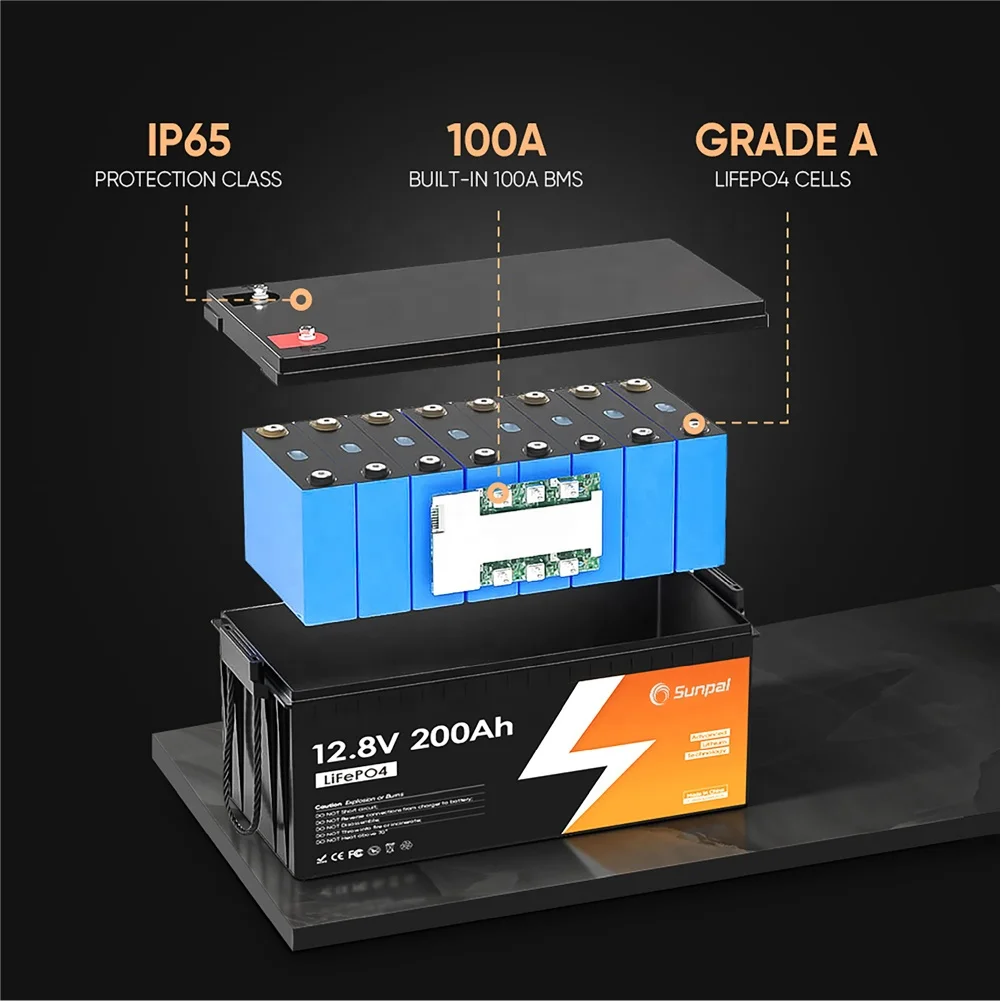

IP protection level | IP65 | |

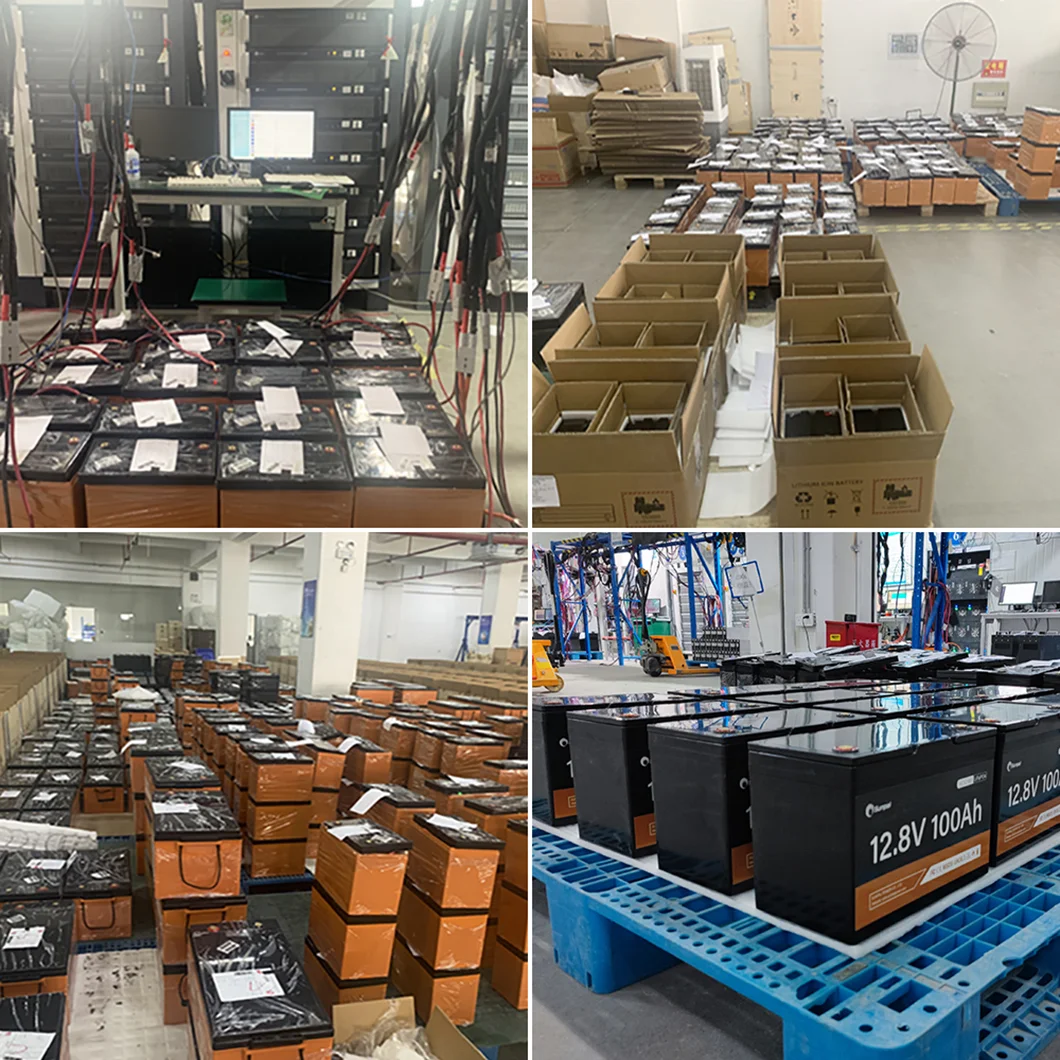

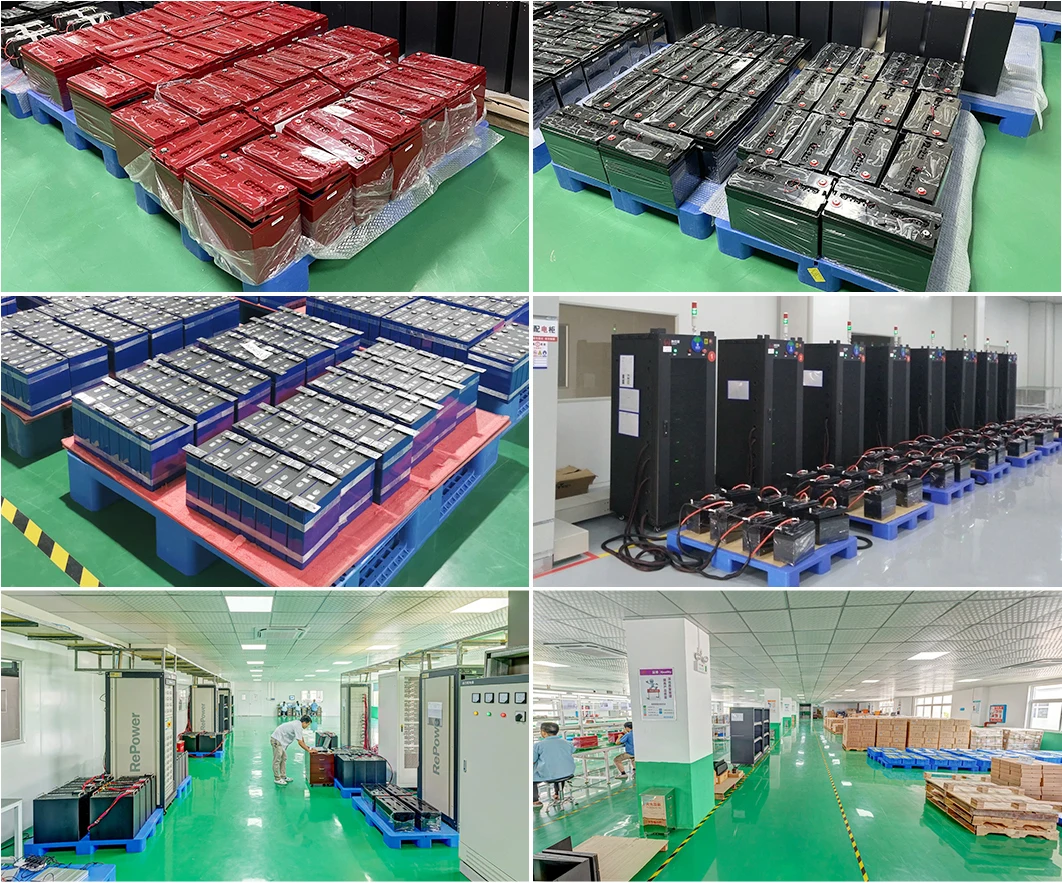

Production Line
12.8V Lithium Battery Production Porcedures
The production process of a 12V lithium battery typically involves several procedures to ensure the battery's quality and performance. Here are some of the procedures involved in the production process:
First, the raw materials such as lithium-ion cells, anodes, cathodes, and electrolyte are sourced from reliable suppliers. Second, the cells are inspected and tested to ensure they meet the required specifications. Third, the cells are assembled into the battery pack, and the battery management system (BMS) is installed. Fourth, the battery pack undergoes a series of tests to ensure it meets the required safety and performance standards. Fifth, the battery is charged and discharged several times to calibrate the BMS and to test its performance under different conditions. Sixth, the battery undergoes a final inspection before it is packaged and shipped to customers.
Throughout the production process, quality control measures are implemented to ensure that the battery meets the required specifications and performance standards.
First, the raw materials such as lithium-ion cells, anodes, cathodes, and electrolyte are sourced from reliable suppliers. Second, the cells are inspected and tested to ensure they meet the required specifications. Third, the cells are assembled into the battery pack, and the battery management system (BMS) is installed. Fourth, the battery pack undergoes a series of tests to ensure it meets the required safety and performance standards. Fifth, the battery is charged and discharged several times to calibrate the BMS and to test its performance under different conditions. Sixth, the battery undergoes a final inspection before it is packaged and shipped to customers.
Throughout the production process, quality control measures are implemented to ensure that the battery meets the required specifications and performance standards.

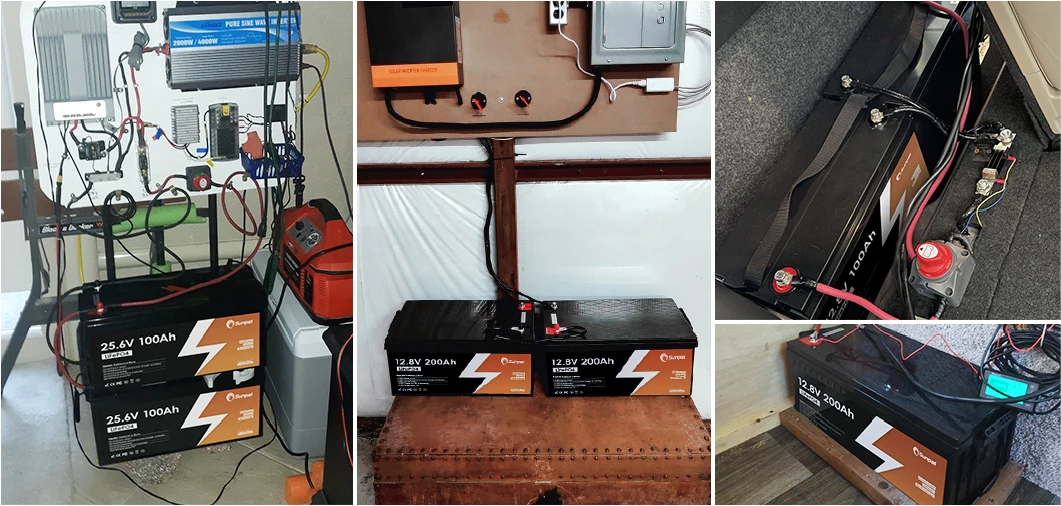

Applications

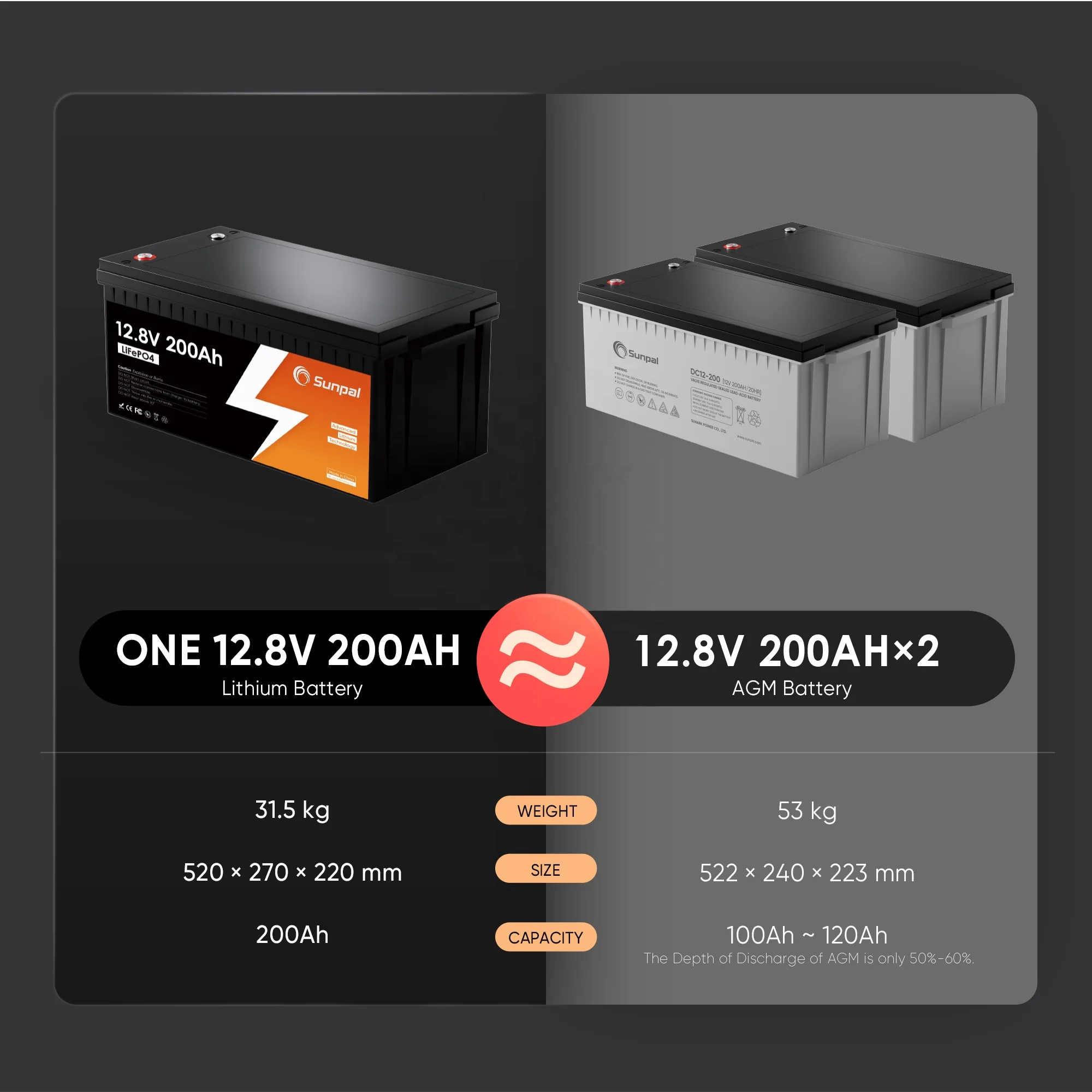

Sunpal 12.8V lithium battery is a versatile power solution that is in high demand for various applications such as RV power supply systems, motor thrusters, residential solar power systems, UPS, golf carts, electric tools, camping, and more. This battery outperforms traditional lead-acid batteries with its longer service life and wider temperature range, making it a reliable choice for harsh outdoor environments. Additionally, the battery is equipped with a battery management system (BMS) that ensures stable performance and extends the battery's life. With its excellent features and performance, Sunpal 12.8V lithium battery is an ideal choice for various power needs.

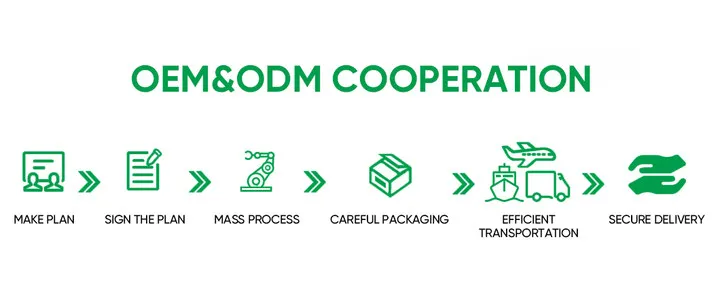

OEM & ODM Services
Supporting OEM battery service:
We are pleased to offer a range of OEM battery services that are designed to cater to your specific requirements and ensure that you receive top-quality products. Our services include custom battery nameplates, carton box imprints, and laser logos, as well as customized LCD screens, Bluetooth monitoring, and USB options. Our team of experts has the knowledge, skills, and resources to provide you with the best possible solutions, whether you are using our batteries for personal or commercial purposes. We are committed to exceeding your expectations and delivering outstanding service every time.
Professional team available for battery after-sales service:
Client only need to describe battery faulty issues, supply damage battery picture and battery code. As long as it is non-human causes issuse, within warranty period, our team will supply online support first and then provide solutions accordingly, such as battery upgrading, replacing battery damaged part, refunding, etc, it’s always depends on specific after-sales issues.
