Hand Flattop new tower Crane Used TC6015A 10 New Product 2024 Provided Yellow Prices of Tower Cranes 10 Ton
- Category: >>>
- Supplier: Guobin Import And Export (guangzhou) Co. Ltd.
Share on (1601124873135):
Product Overview
Description
Product Overview
TC6015A-10
a. Maximum jib length 60m; jib length combination decreases every 5 meters, minimum jib length 30m.
b、Maximum lifting capacity 10t; c、Maximum lifting capacity at the tip of the boom 1.5t; d、Rated lifting torque 1250kNm.
d. Rated lifting moment 1250kNm.
e. The tower body adopts the whole standard section of 2m×2m×2.8m.
f. Maximum independent height is 60m, and maximum attachment height is 220m.
g. Lifting mechanism: QE1080D, power 37 kW, rope capacity 540m; and
h. Slewing mechanism: HPW55B.130, power 5.5×2 kW.
i. Luffing mechanism: BP55B, power 5.5 kW.
j. Tower type: outrigger fixed type, pre-embedded bolt fixed type, undercarriage fixed type, traveling type.
- Electrical control system
Adopting the electrical components produced by professional electrical factory introducing foreign advanced technology, with long service life, fewer faults, simple maintenance and reliable work.
- Technical highlights
a. Rigid double-tie rod suspension large lifting arm, good stiffness of the lifting arm, light weight, small cross-section, small wind resistance, beautiful appearance, several changes in length to meet different construction needs.

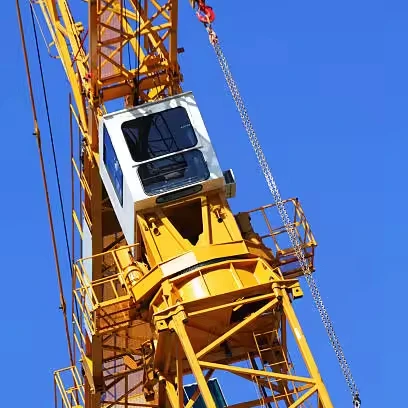

b. The driver's cab is independent and external, with good vision and large internal space, creating a good working environment for the operator.
c. Adopting slewing limiter, it is convenient for the driver to pass up and down from the middle of the tower crane.
d、Advanced linkage table is adopted to manipulate each mechanism, which is easy to operate and simple to maintain.
e. All kinds of safety devices are available, and they are mechanical or electromechanical integration products, adapted to the harsh construction environment, which can ensure the reliable work of the tower crane.
f. Trolley anti-breakage device (anti-skidding) and anti-breakage axle device, rope discharge system of hoisting mechanism, traction rope tensioning system, etc. are all adopting mature and reliable advanced technology at home and abroad.
b、Maximum lifting capacity 10t; c、Maximum lifting capacity at the tip of the boom 1.5t; d、Rated lifting torque 1250kNm.
d. Rated lifting moment 1250kNm.
e. The tower body adopts the whole standard section of 2m×2m×2.8m.
f. Maximum independent height is 60m, and maximum attachment height is 220m.
g. Lifting mechanism: QE1080D, power 37 kW, rope capacity 540m; and
h. Slewing mechanism: HPW55B.130, power 5.5×2 kW.
i. Luffing mechanism: BP55B, power 5.5 kW.
j. Tower type: outrigger fixed type, pre-embedded bolt fixed type, undercarriage fixed type, traveling type.
- Electrical control system
Adopting the electrical components produced by professional electrical factory introducing foreign advanced technology, with long service life, fewer faults, simple maintenance and reliable work.
- Technical highlights
a. Rigid double-tie rod suspension large lifting arm, good stiffness of the lifting arm, light weight, small cross-section, small wind resistance, beautiful appearance, several changes in length to meet different construction needs.
b. The driver's cab is independent and external, with good vision and large internal space, creating a good working environment for the operator.
c. Adopting slewing limiter, it is convenient for the driver to pass up and down from the middle of the tower crane.
d、Advanced linkage table is adopted to manipulate each mechanism, which is easy to operate and simple to maintain.
e. All kinds of safety devices are available, and they are mechanical or electromechanical integration products, adapted to the harsh construction environment, which can ensure the reliable work of the tower crane.
f. Trolley anti-breakage device (anti-skidding) and anti-breakage axle device, rope discharge system of hoisting mechanism, traction rope tensioning system, etc. are all adopting mature and reliable advanced technology at home and abroad.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | TC6015A-10Parameters |
1 | Product Model | TC6015A-10 |
2 | Product Type | tower crane |
3 | Maximum lifting capacity | 10 |
4 | Calibrated lifting moment kN.m | 1250 |
5 | Maximum lifting weight | 10t |
6 | Jib tip weight | 1.5t |
7 | Jib length | 60m |
8 | Maximum working range | 60m |
9 | Minimum working range | 2.5m |
10 | Independent height | 40m |
11 | Traction mechanism Speed m/min | 0-55 |
12 | Traction mechanism Power kW | 5.5 |
13 | Slewing mechanism Speed r/min | 0～0.8 |
14 | Slewing mechanism Power kW | 5.5×2 |
15 | Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, |

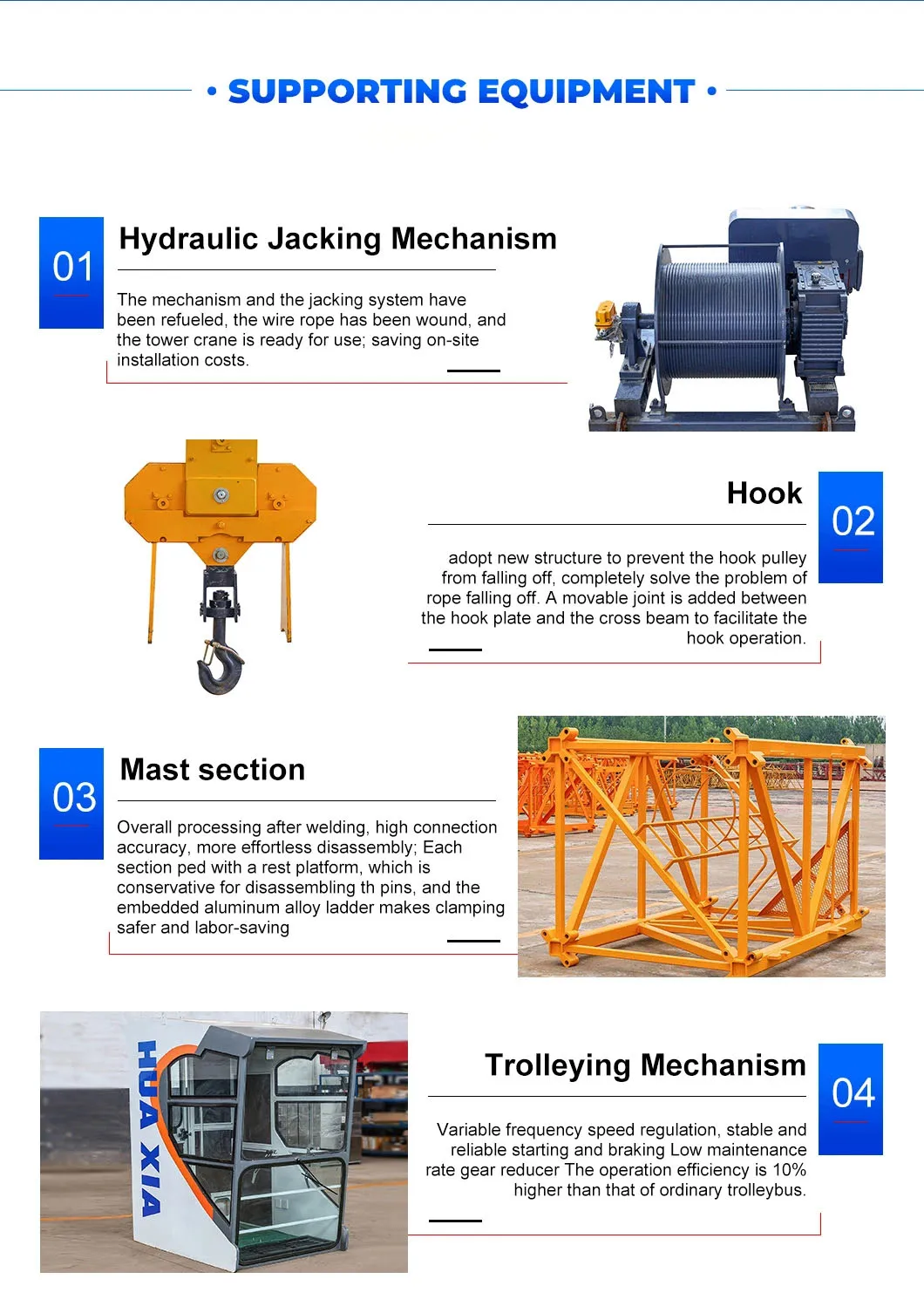

PRODUCT CONFIGURATION
Tower Crane Chip
Tower crane arm
Tower crane booms
Company Profile
____________________________________________________________________________________________________________________
Guangzhou GuO-BIN Import & Export Co., Ltd. is located in Guangzhou High-tech Development Zone, Guangdong Province, China,focusing on the construction lift machine manufacturing business, with its own brand "XYJJ"SC200/20construction lifts and jackup tower crane series, committed todeveloping new products to meet the needs of different customers. Our own cooperative factory (Guangdong HengshuMing Machinery Manufacturing Co., LTD.) to strictly control the quality of products, We are the largest construction machinery manufacturer and supplier in Guangzhou, China We have our own source factory Our technicians have more than 20 years of manufacturing experience to ensure good quality Source factory first hand supply more competitive price with first-class technical equipment and rich experience team, with excellent product quality to win the recognition of the market. We provide professional service, high quality products and competitive prices to win the trust of customers. Warmly welcome global partners to carry out cooperation and win-win future.
Our company sells tower crane design novel, reasonable structure, reliable operation. It has a variety of practical devices and safety devices such as horizontal arm support, arm trolley diameter changing mechanism,hydraulic self-moving mechanism, etc. The construction equipment has excellent performance in speed control, work efficiency andoperation stability. Tower crane is used tolift all kinds of building materials, widely used in hotels, residential, industrial buildings, tower buildings and other high-rise building construction.
Guobing Machinery specializes in supplying construction machinery such as tower cranes, construction elevators, and other products to the world. Our company always adheres to the concept of "exchanging high-quality service for good reputation, and selling high-quality products to win the favor of customers". We have formed a professional team consisting of multiple technical experts from the construction machinery industry and foreign trade elites from countries such as the Africa, Russia, the Arab region,Portugal etc.
Our company sells tower crane design novel, reasonable structure, reliable operation. It has a variety of practical devices and safety devices such as horizontal arm support, arm trolley diameter changing mechanism,hydraulic self-moving mechanism, etc. The construction equipment has excellent performance in speed control, work efficiency andoperation stability. Tower crane is used tolift all kinds of building materials, widely used in hotels, residential, industrial buildings, tower buildings and other high-rise building construction.
Guobing Machinery specializes in supplying construction machinery such as tower cranes, construction elevators, and other products to the world. Our company always adheres to the concept of "exchanging high-quality service for good reputation, and selling high-quality products to win the favor of customers". We have formed a professional team consisting of multiple technical experts from the construction machinery industry and foreign trade elites from countries such as the Africa, Russia, the Arab region,Portugal etc.
SALES AND SERVICE NETWORK

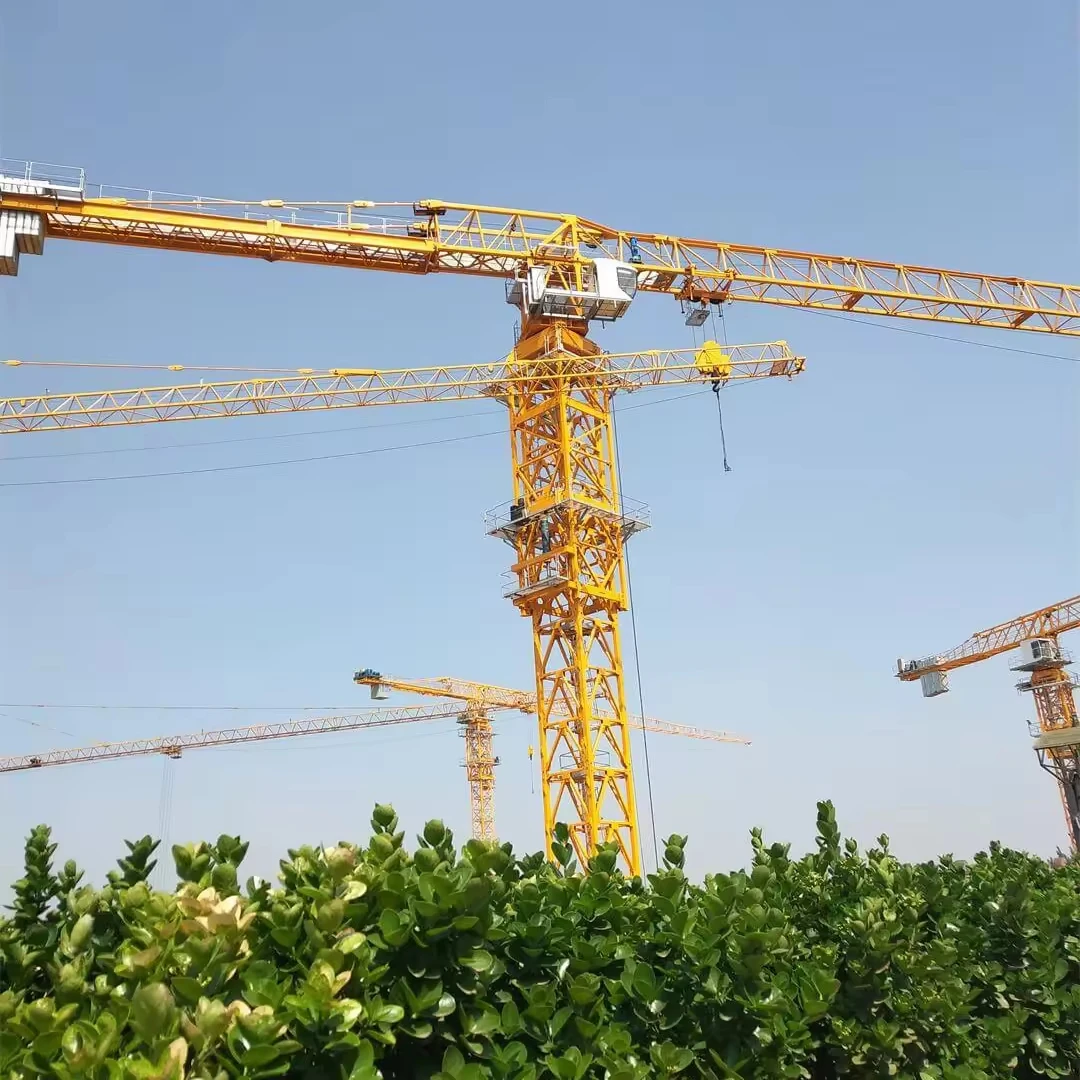

Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
Packing & Delivery

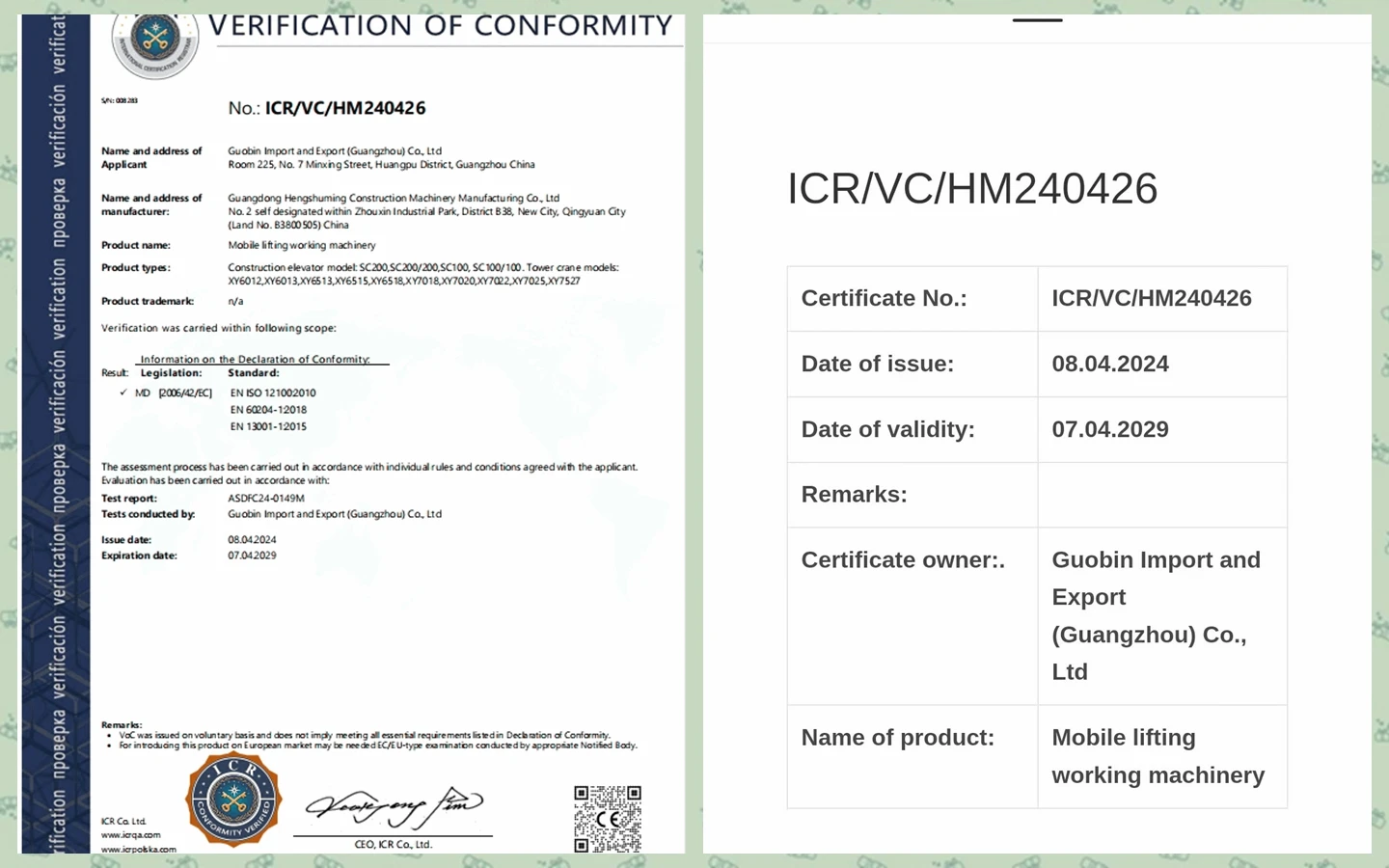

Certifications
