1KW 2KW 3KW 5KW Windmill Power Plant Vertical Axis Wind Generator Wind Turbine With Solar Panel 1200W
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.Nantong Ltd.
Share on (1601125006206):
Product Overview
Description
1200w 3kw 5kw Vertical Wind Turbine Low RPM Noiseless Vertical Axial Wind Turbine 10kw
Product introduction
1). Rich colors: white, orange, yellow, blue, green, mixed, customizable.
2). One-piece Blade design ensures higher rotational stability.
3). Coreless PMG provides lower start torque/wind speed and longer service life.
4). Maximum RPM protection. No higher than 300RPM, regardless of the wind speed.
5). Easy installation, Screw & Play.
6). 48V could be customized.
7). Design service life 10~15 years.
2). One-piece Blade design ensures higher rotational stability.
3). Coreless PMG provides lower start torque/wind speed and longer service life.
4). Maximum RPM protection. No higher than 300RPM, regardless of the wind speed.
5). Easy installation, Screw & Play.
6). 48V could be customized.
7). Design service life 10~15 years.
Technical Datasheet
Model | RX-SV600 | RX-SV1000 | RX-SV1500 | RX-SV2000 | RX-SV2500 | ||||||||||||
Rated Power | 600W | 1KW | 1500W | 2000W | 2500W | ||||||||||||
Max Power | 650W | 1100W | 1600W | 2100W | 2600W | ||||||||||||
Blades Length | 1.05M | 1.3M | 1.5M | 1.5M | 1.7M | ||||||||||||
Wheel Diameter | 0.52M | 0.52M | 0.6M | 0.67M | 0.6M | ||||||||||||
Rated Voltage | 12V~24V | 12V~48V | 12V~48V | 12V~96V | 48V~220V | ||||||||||||
Start Up Speed | 1.2m/s | 1.5m/s | 2.0m/s | 2.0m/s | 2.0m/s | ||||||||||||
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | ||||||||||||
Cut-in Speed | 3.5m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | ||||||||||||
Survival Speed | 40m/s | 45m/s | 45m/s | 45m/s | 45m/s | ||||||||||||
Blades Quantity | 10 | 2 | 2 | 2 | 2 | ||||||||||||
Blades Material | Fiber glass | ||||||||||||||||
Generator Type | Coreless Disc Type Maglev Levitation Permanent Magnet Generator | ||||||||||||||||
Working Temperature | -40℃~+40℃ | ||||||||||||||||
Protection Level | IP54 | ||||||||||||||||
Working environment humidness | ≤90% | ||||||||||||||||
Altitude | ≤4500m | ||||||||||||||||
Install Height | 6~12m | ||||||||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||||||||
Model | RX-SV3000 | RX-SV5000 | RX-SV8000 | RX-SV10K | |||
Rated Power | 3KW | 5KW | 8KW | 10KW | |||
Max Power | 3500W | 5500W | 8500W | 10500W | |||
Blades Length | 2.0M | 3.0M | 3.5M | 4.0M | |||
Wheel Diameter | 0.8M | 1.2M | 1.2M | 1.2M | |||
Rated Voltage | 48V~220V | 48V~220V | 48~220V | 48V~220V | |||
Start Up Speed | 1.2m/s | 1.5m/s | 2.0m/s | 2.5m/s | |||
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | |||
Cut-in Speed | 3.5m/s | 4.0m/s | 4.0m/s | 4.0m/s | |||
Survival Speed | 40m/s | 45m/s | 45m/s | 45m/s | |||
Blades Quantity | 2 | 2 | 2 | 2 | |||
Blades Material | Fiber glass | Fiber glass | Fiber glass | Fiber glass | |||
Generator Type | Maglev coreless permanent magnet generator | Iron-Core permanent magnet Generator | Iron-Core permanent magnet Generator | Iron-Core permanent magnet Generator | |||
Working Temperature | -40ºC~+40ºC | ||||||
Protection Level | IP54 | ||||||
Working environment humidness | ≤90% | ||||||
Altitude | ≤4500m | ||||||
Install Height | 6~12m | ||||||
Overload Protection | Electromagnetic Brake | ||||||

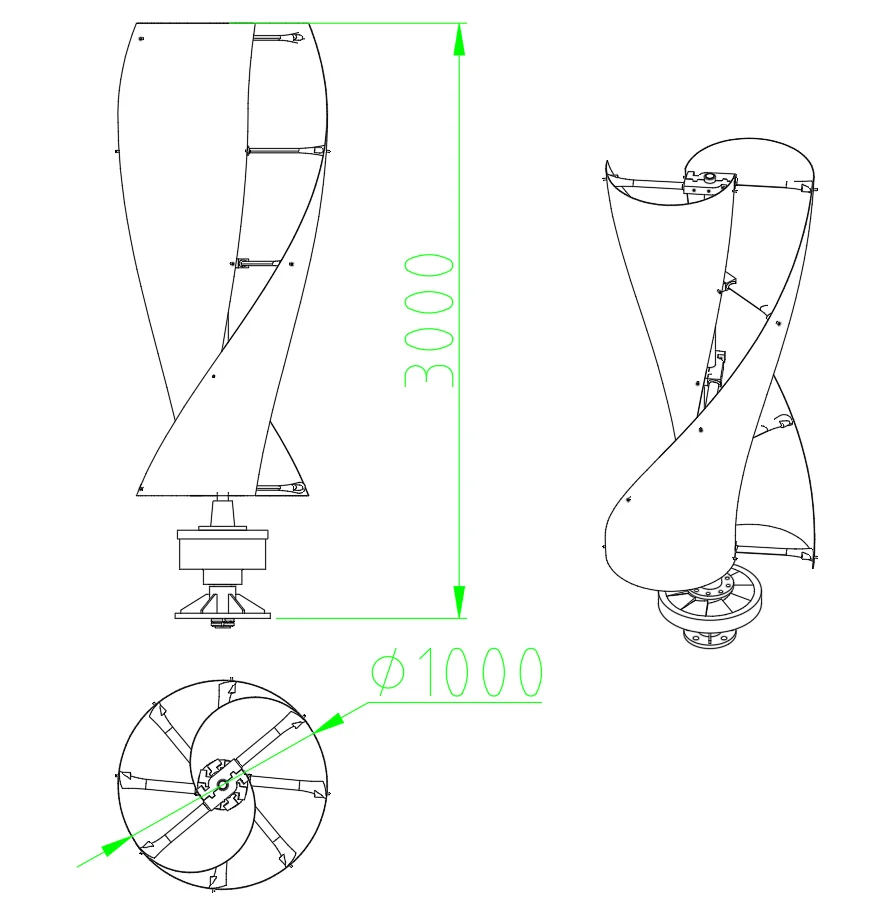

Drawing

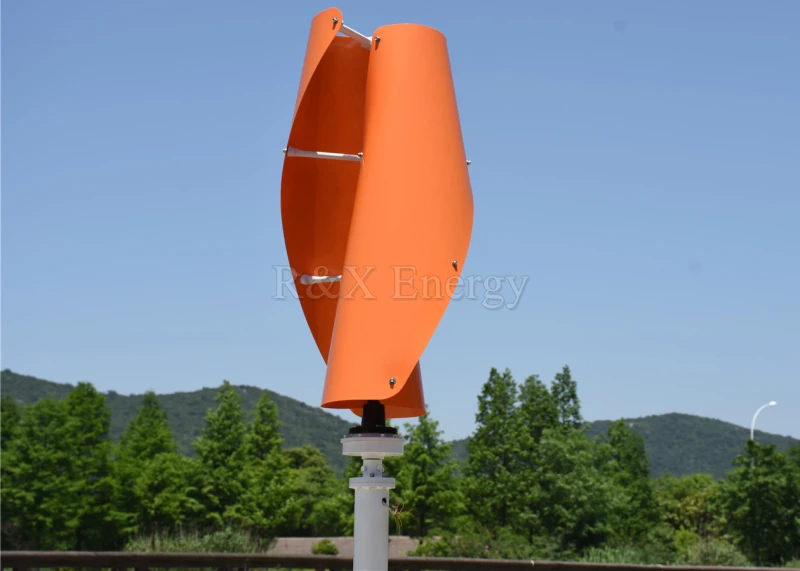

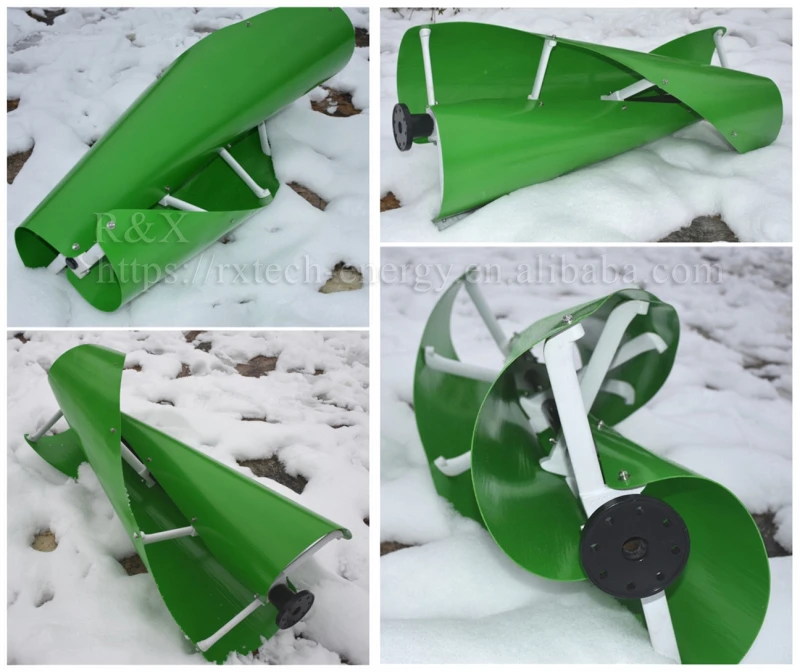

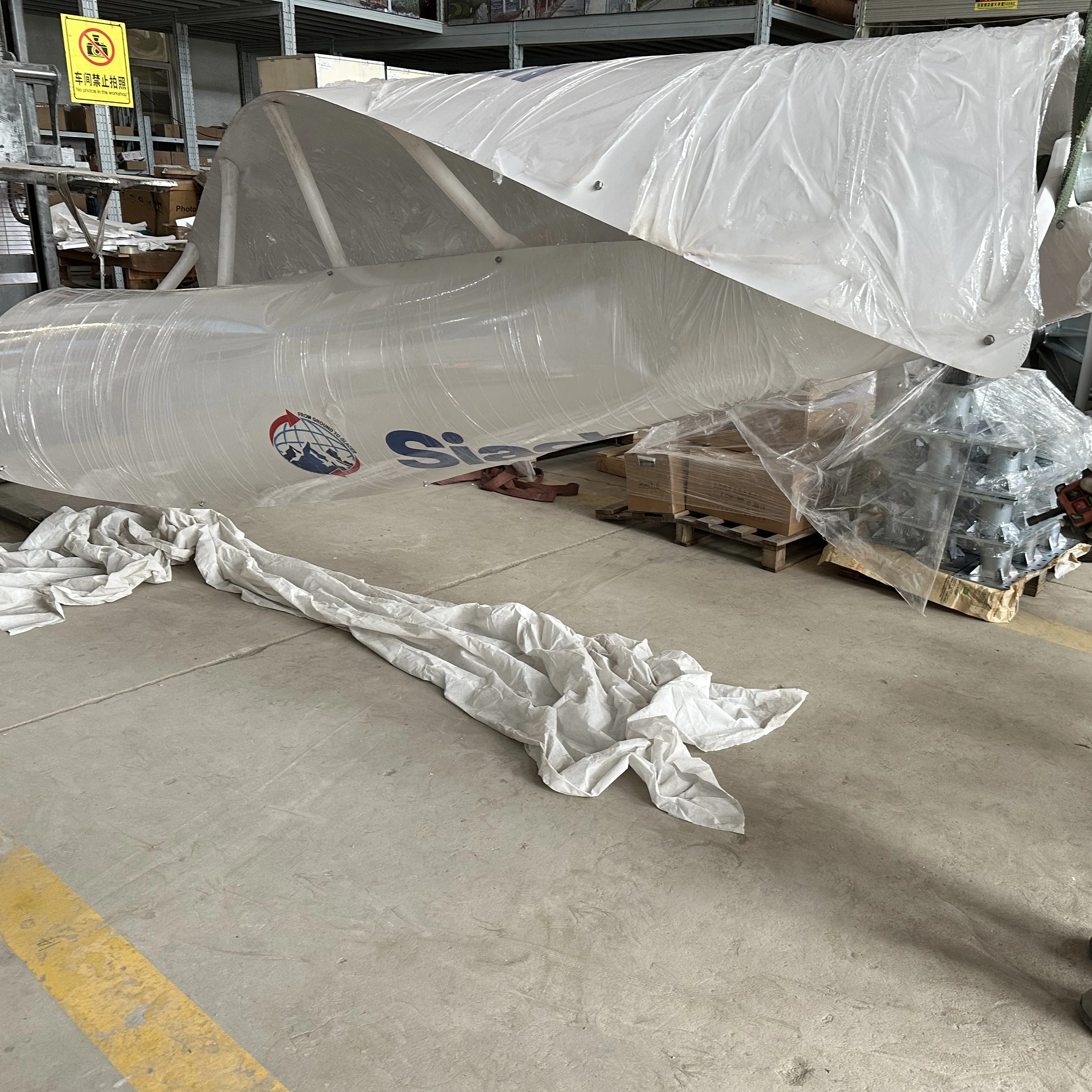

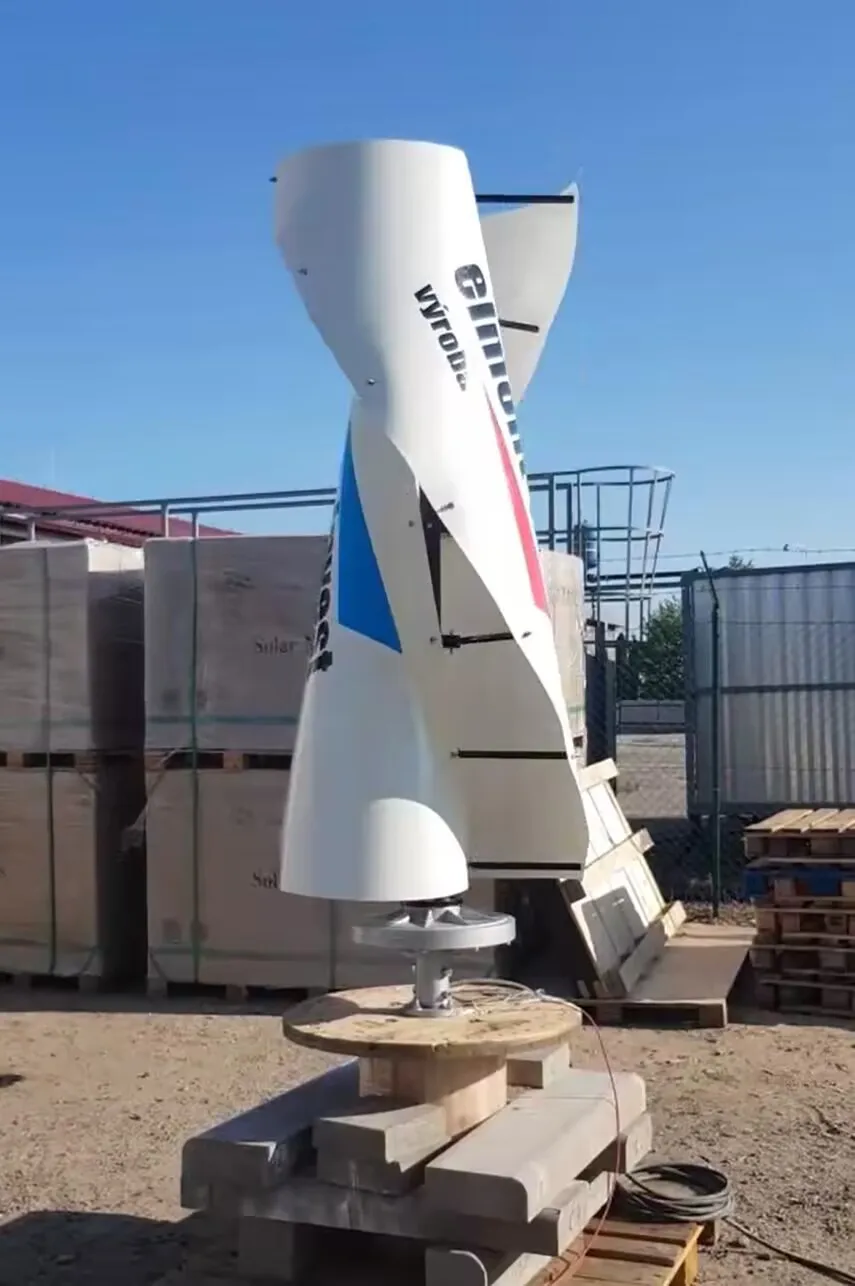

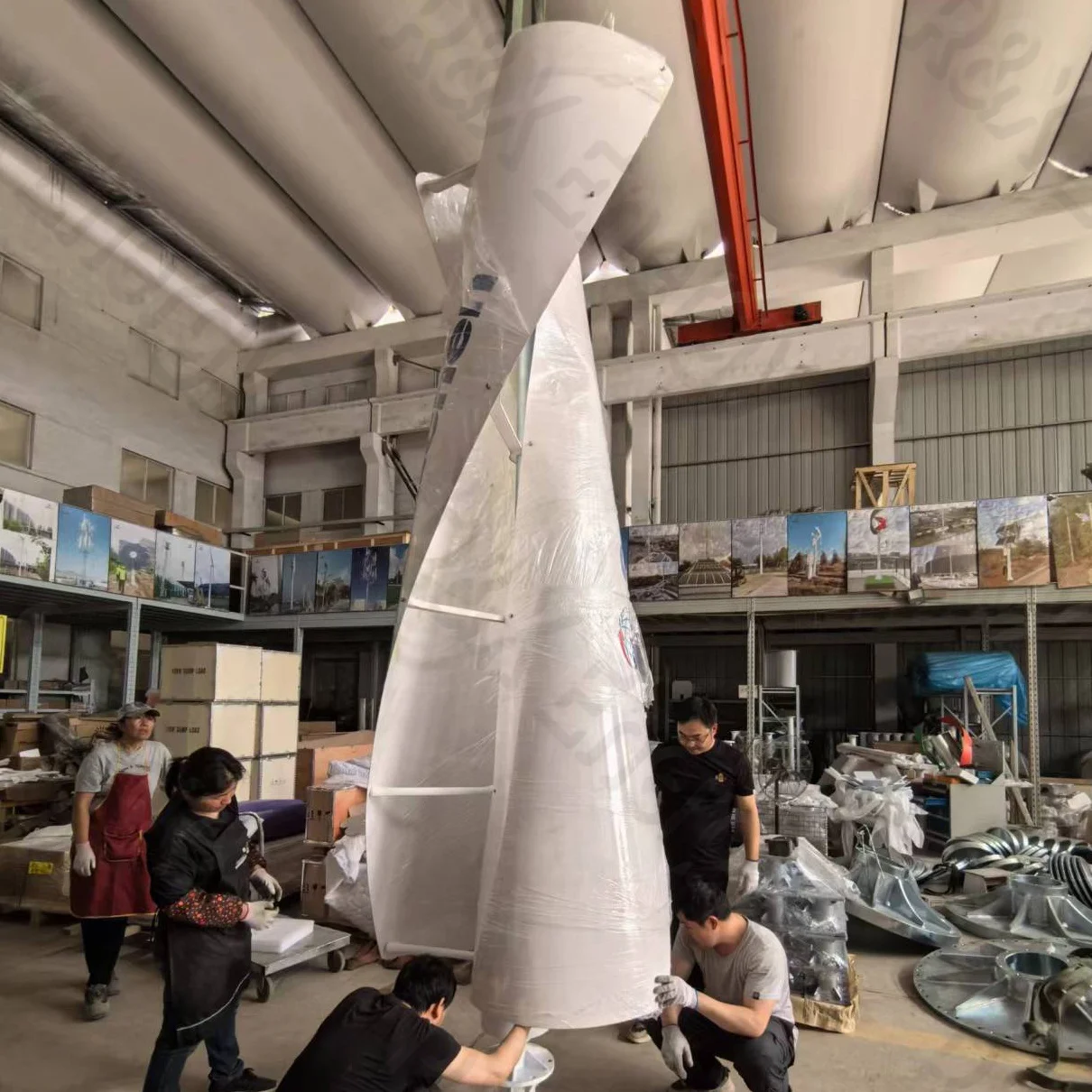

Real Pictures Show

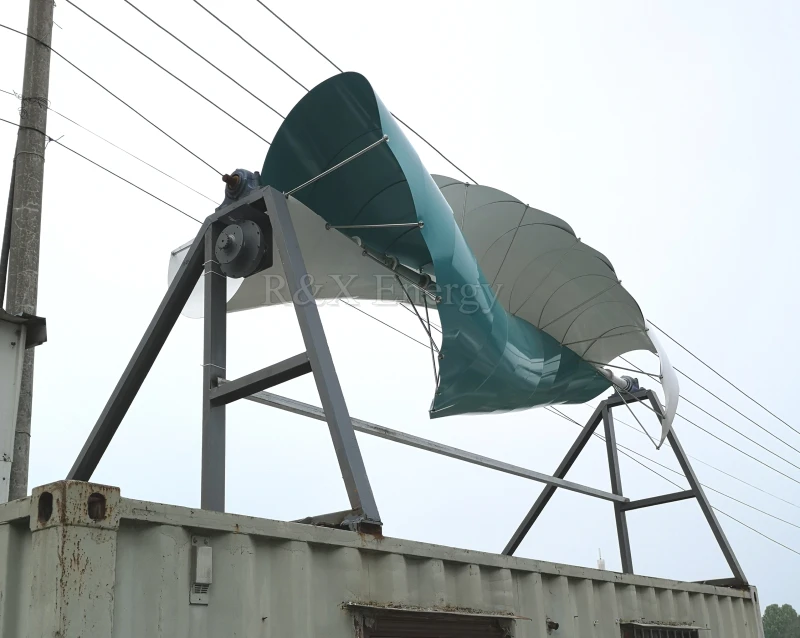

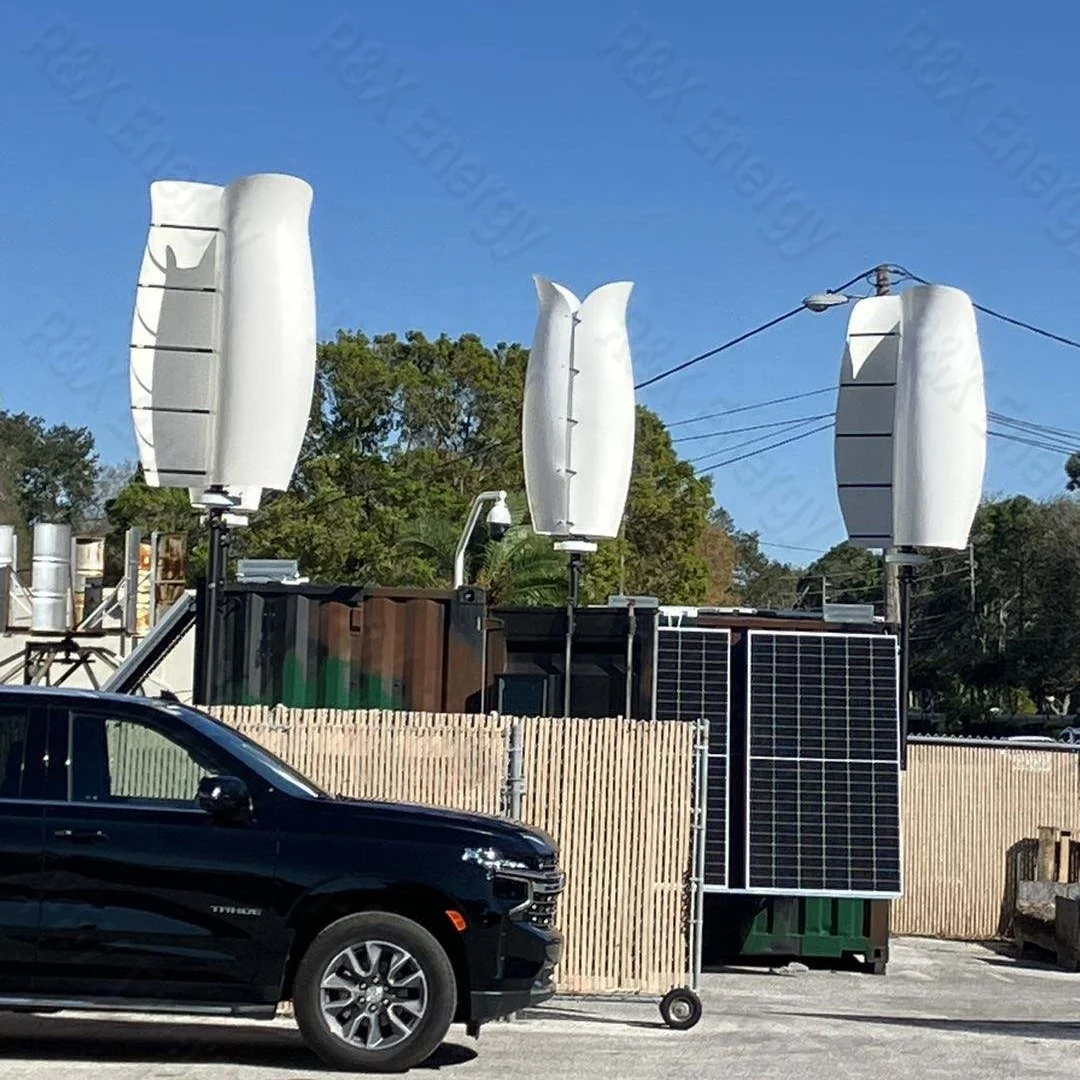

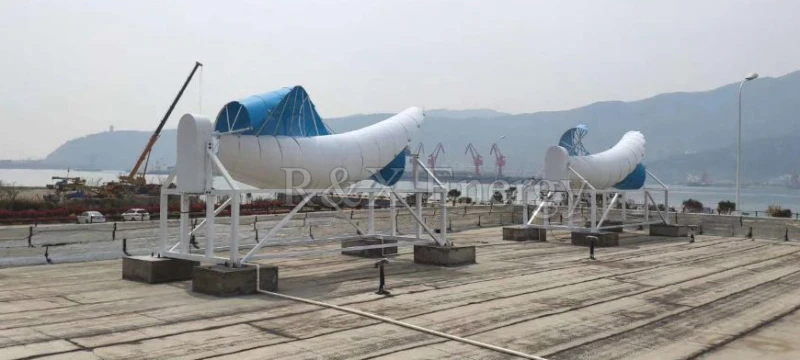

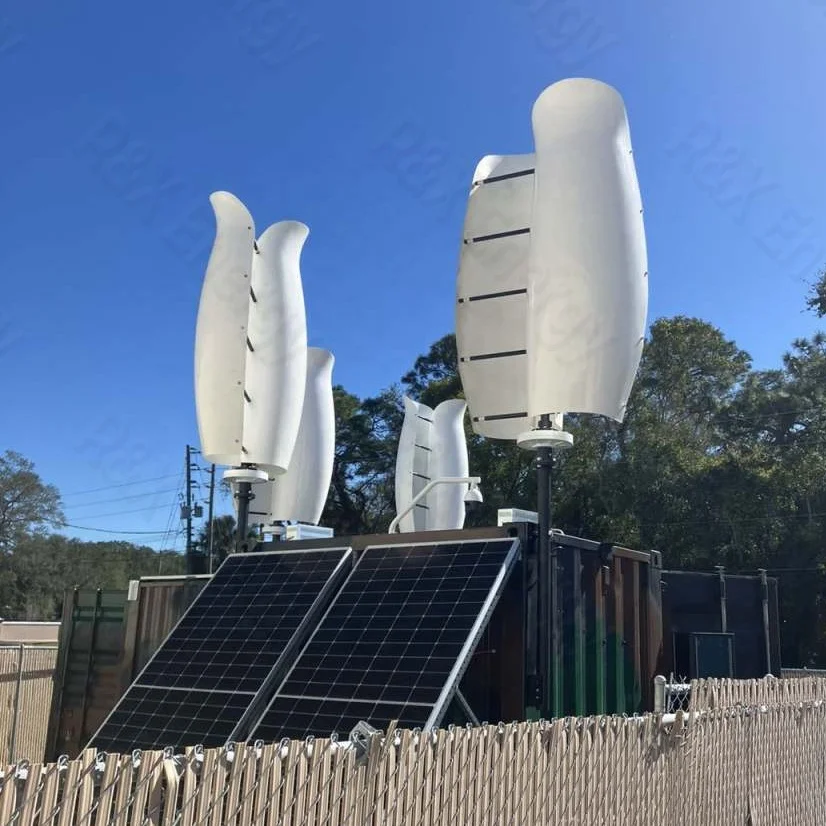

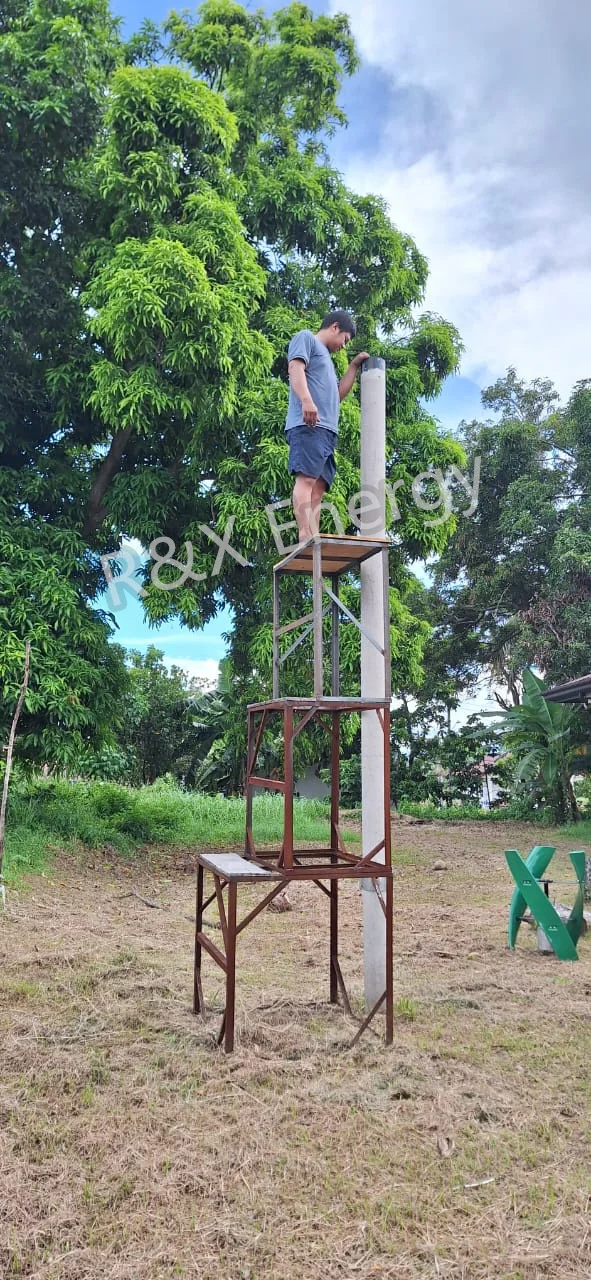

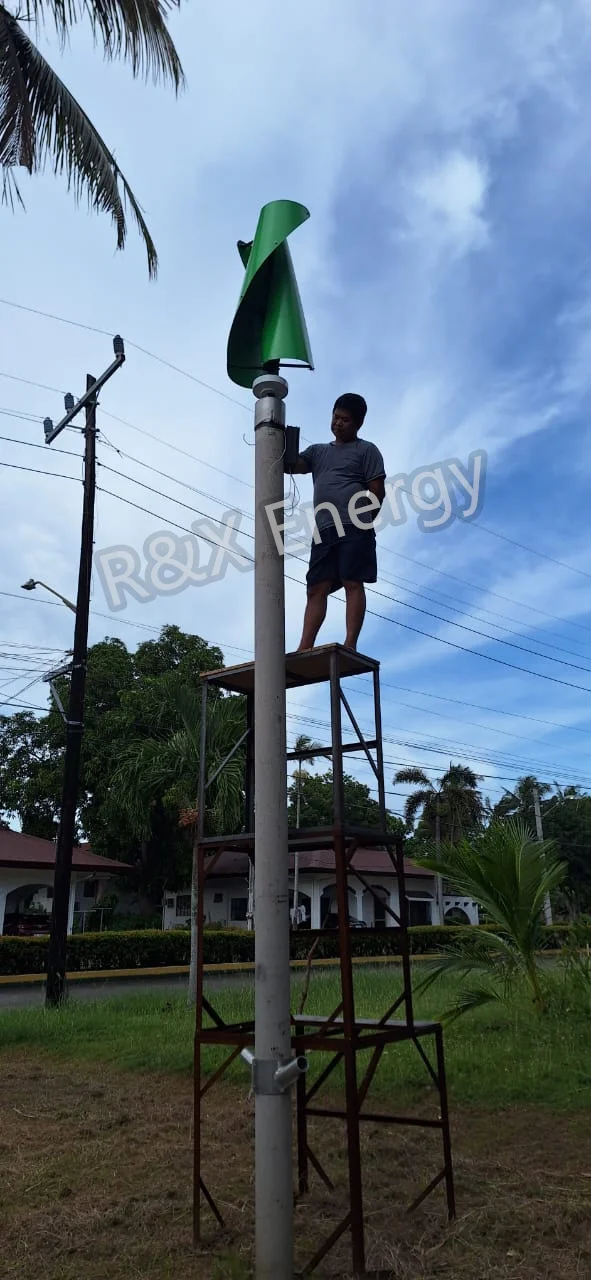

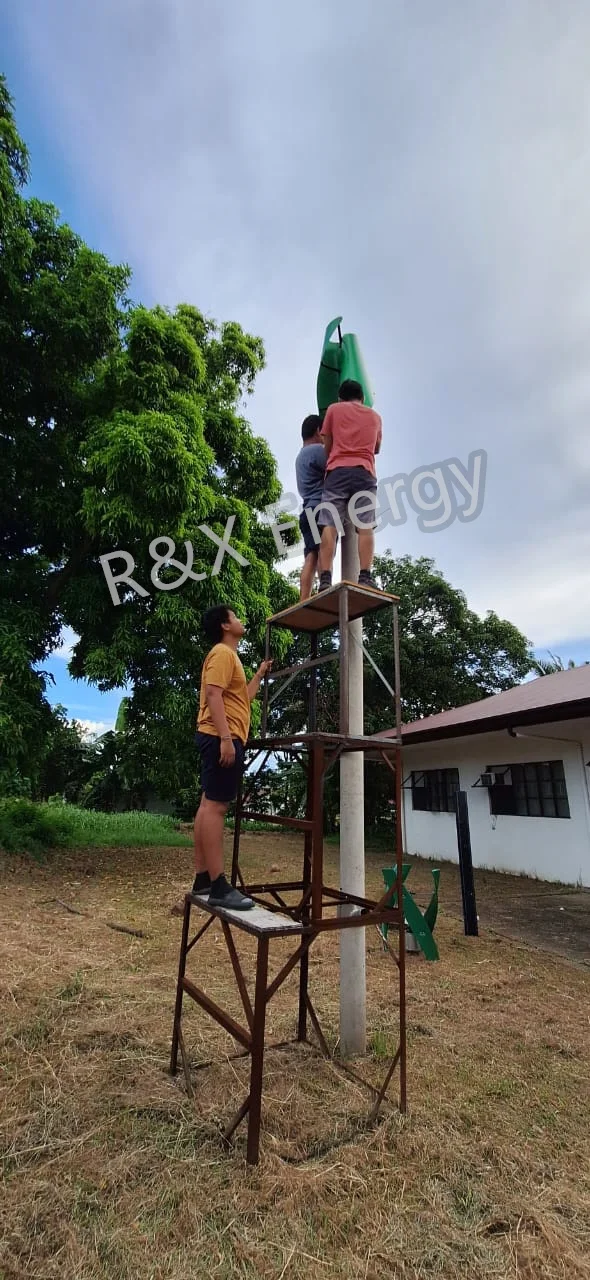

Our Project Case

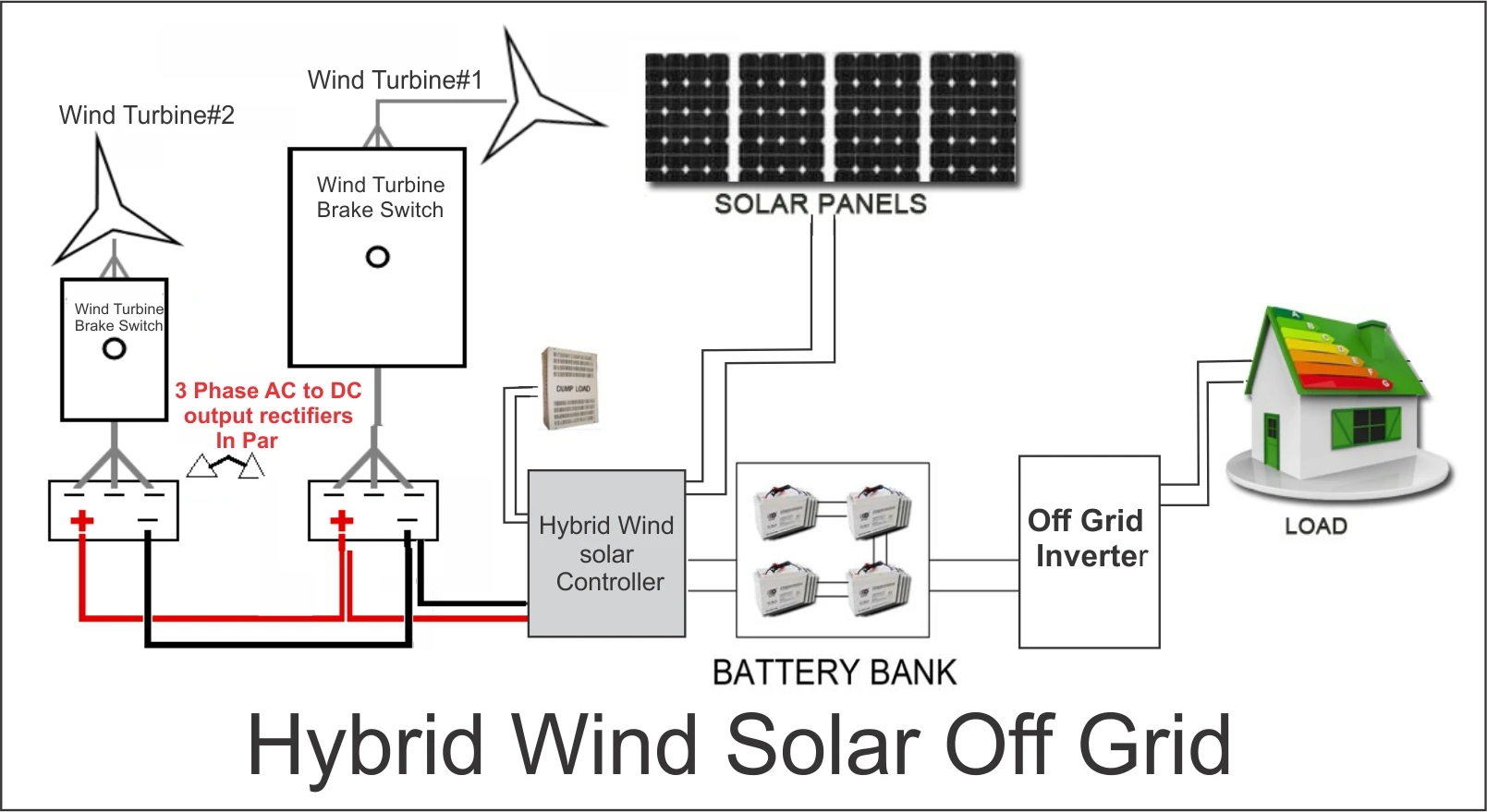

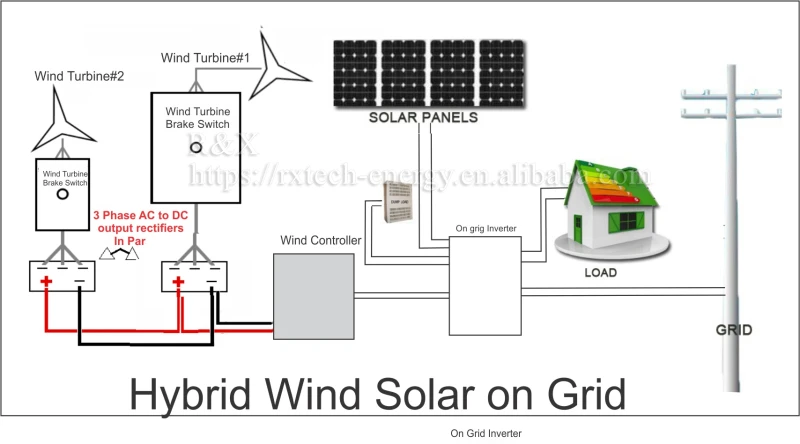

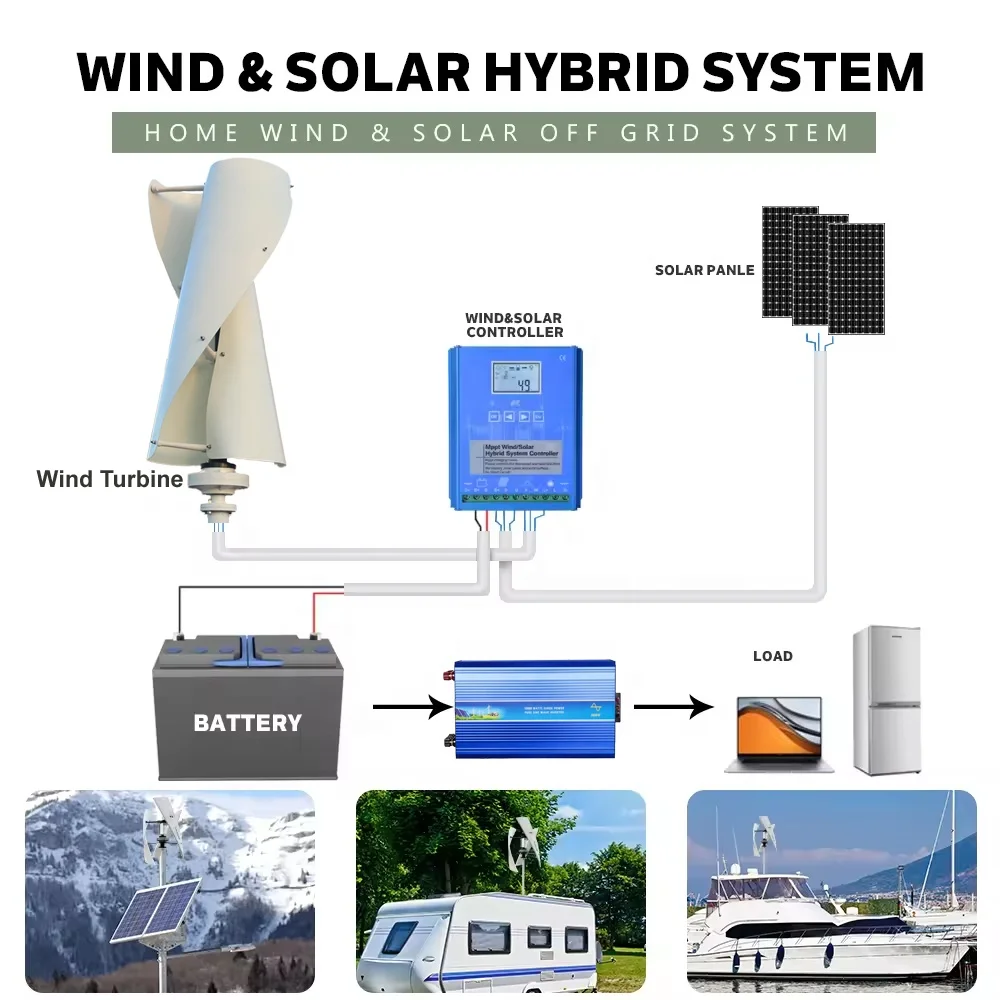

Application
