Product Overview
Description

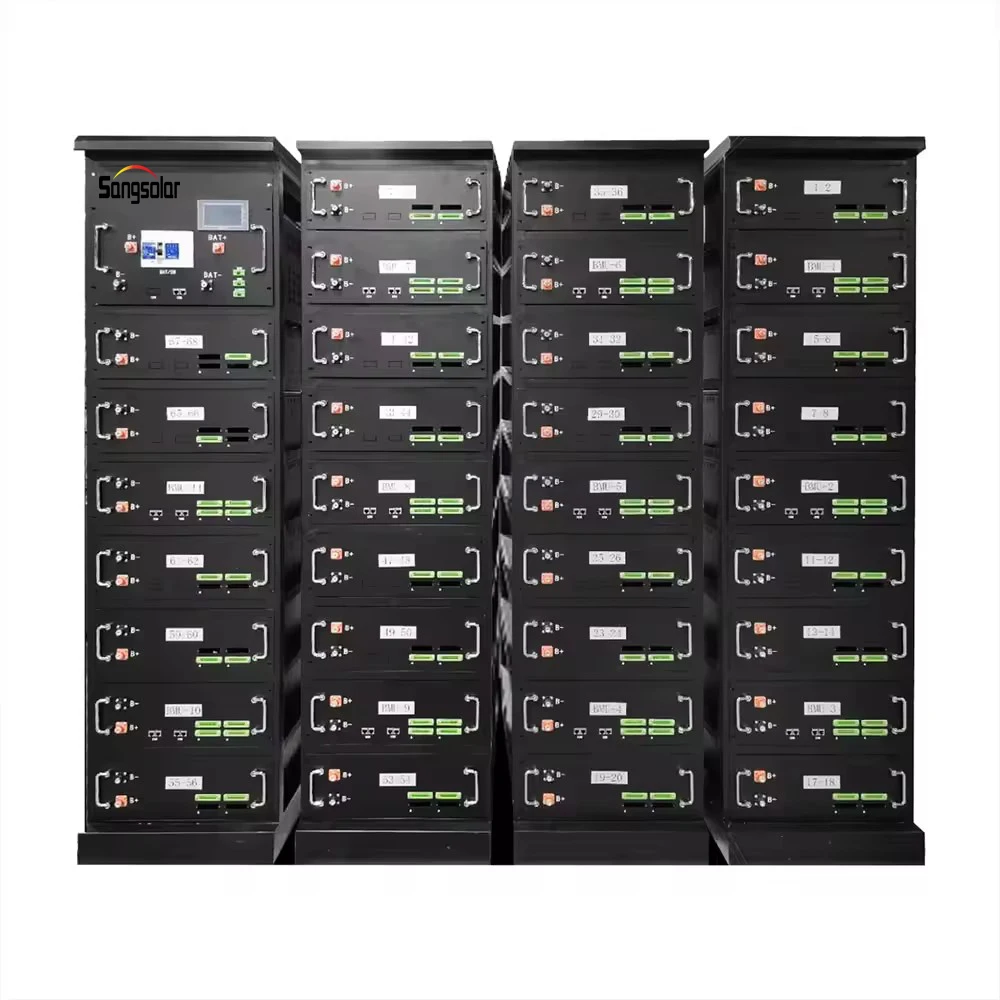

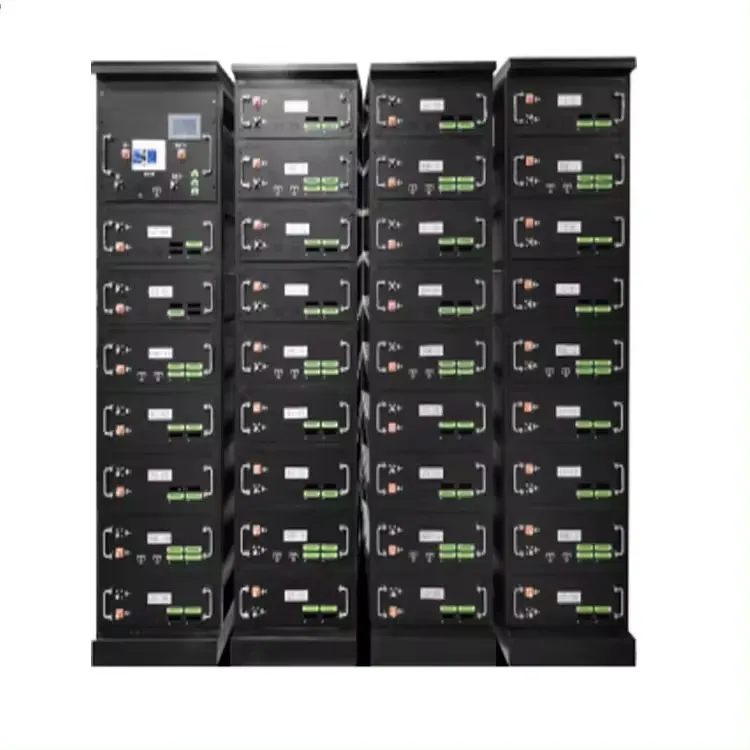

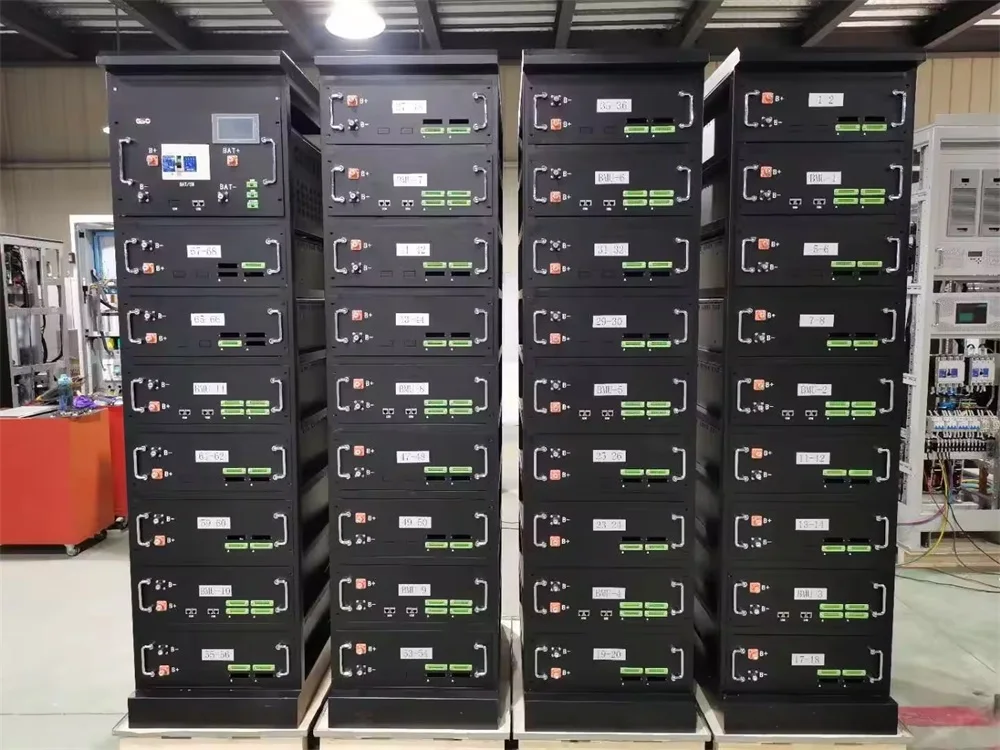

384V 100AH 38.4KWH 40kwh energy storage battery
with solar panel lithium battery solar storage pack
Products Description
Model | SAN 220100 | SAN 220200 | SAN 384100 | SAN 384200 | SAN 384300 | SAN 384500 | SAN 3841000 | ||||||
Type of core | Lithium iron phosphate | ||||||||||||
Rated energy(KWH) | 22 | 44 | 40 | 80 | 120 | 200 | 400 | ||||||
Nominal capacity (AH) | 100 | 200 | 100 | 200 | 300 | 500 | 1000 | ||||||
Nominal voltage(VDC) | 220.8 | 384 | 384 | ||||||||||
Operating voltage range(VDC) | 179~259 | 312~450 | 312~450 | ||||||||||
Recommended Charge Voltage(VDC) | 242 | 420 | 420 | ||||||||||
Recommended discharge cutoff voltage(VDC) | 210 | 366 | 366 | ||||||||||
Standard charging current (A) | 50 | 100 | 50 | 100 | 150 | 250 | 500 | ||||||
Maximum continuous charge current(A) | 100 | 200 | 100 | 200 | 300 | 500 | 1000 | ||||||
Standard discharge current (A) | 50 | 100 | 50 | 100 | 150 | 250 | 500 | ||||||
Maximum continuous discharge current(A) | 100 | 200 | 100 | 200 | 300 | 500 | 1000 | ||||||
Working temperature | -20~65℃ | ||||||||||||
Protection level | IP20 | ||||||||||||
Communication interface | RS485/CAN two choose one | ||||||||||||
Reference Weight (Kg) | 300 | 600 | 470 | 940 | 1410 | 500 | 1000 | ||||||
Reference size(D*W*Hmm) | 530*650*1180 | 625*550*1810 | 530*550*1810 | (625*550*2040)*2 | 530*550*2020*3 | 530*550*2020*5 | (625*550*1600)*10 | ||||||
