Price:$76,453.50 - $109,219.29

Quantity:


Product Overview

Description





Products Description

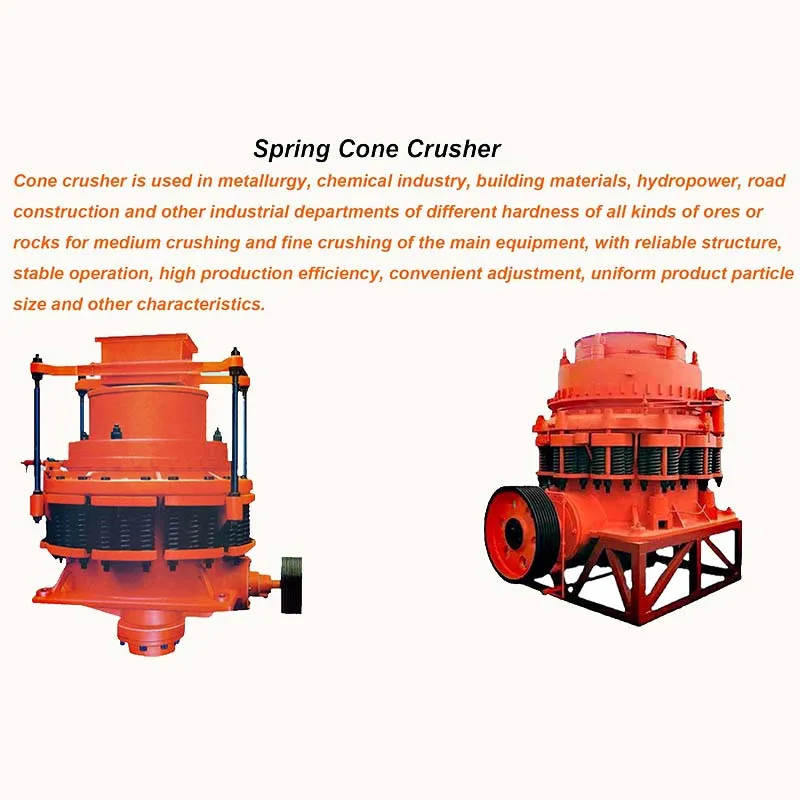

Cone crusher
Cone crusher is used in metallurgy, chemical industry, building materials, hydropower, road construction and other industrial sectors for different hardness of various ores or rocks in the crushing and fine crushing equipment.


The cone crusher designed by our company has three model series, each series has five specifications, and each specification has three kinds of crushing chamber types, such as standard type, medium type and short head type, which can meet the needs of different users, different crushing processes and fine crushing operations.

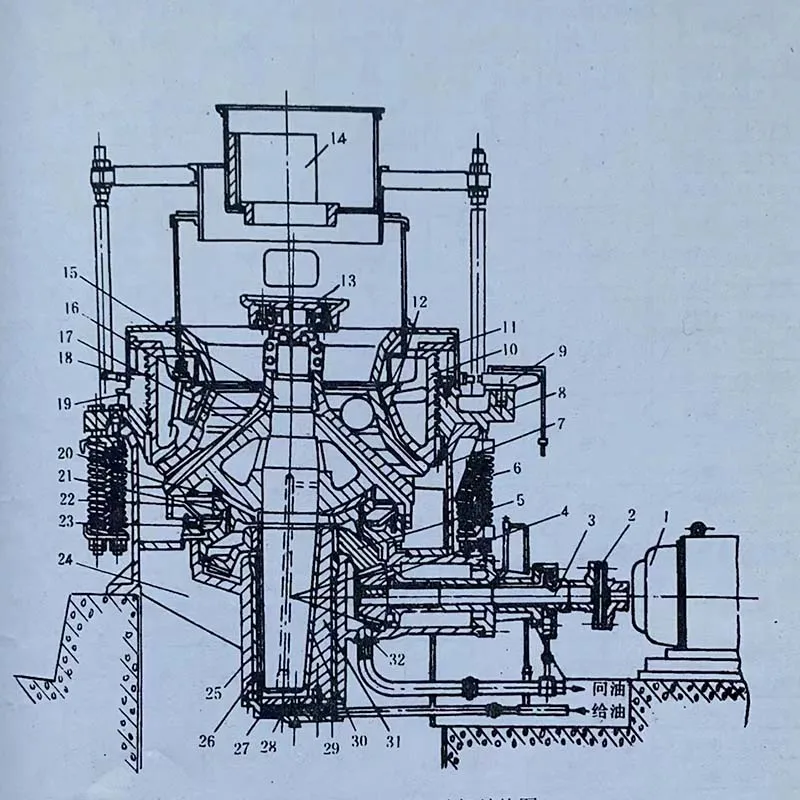

Spring cone crusher
1. Motor 2. Courier
3. Transmission shaft 4. Small gear
5. Big gear 6. Spring
7. Rack 8. Support cover
9. Push the cylinder 10. Adjust the set
11. Dust cover 12. The mortar wall
13. Filling plate 14. Feed the feed funnel
15. Spindle 16.Broken wall
17. The body 18. Lock the nut
19. The piston 20. Bowl tiles
21. Bowl-type bearing holder 22. Seal ring
23. The sink 24. Fricket board
25. Host frame 26. Rack liner
27. Push the bearing 28. Lower frame cover
29. Enter the oil mouth 30. Spindle bushing
31. Eccentricity 32. Discharge the oil hole




Compared with the standard type, the parallel band of the broken cavity of the short head type is longer, which is suitable for the places with small broken feed particle size and more fine product particle size.


Product Paramenters


Spring Cone Crusher Parameters


TS
Bottom diameter of
the broken cone
mm
The size of the
mineral outlet
mm
Maximum
Feeding size
mm
Eccentricity
set speed
r/min
Adjustment of the
Drainage outlet range
mm
output
t/h
main motor
power
kw
speed
r/min
voltage
v
PYT-B0607
600
75
65
355
12-25
40
30
730
380
PYT-D0604
40
36
3-13
12--23
PYT-B0913
900
135
115
333
15-50
50_90
55/ 80 horse
power
720/ 1500
380/
PYT-Z0907
70
60
5-20
20--65
PYT-D0905
50
40
3-13
15--50
PYT-B1217
1200
170
145
300
20-50
110--168
110
735
220/ 380
PYT-Z1211
115
100
8-25
42- 135
PYT-D1206
60
50
3-15
18 -105
PYT-B1725
1750
250
215
245
25-60
280--430
155
735
220/ 380
PYT-Z1721
215
185
10-30
115--320
PYT-D1710
100
85
5-15
75--230
PYT-B2235
220
350
300
220
30-60
590-1000
280/ 260
490/ 485
6000/ 3000
PYTZ2227
275
230
10-30
200-580
PYT-D2213
130
100
5-15
120--340
600
Ultrafine spinning
disk crusher
600
20~30
<20~30
355
3~13
10~20
40
600~ 1200
220

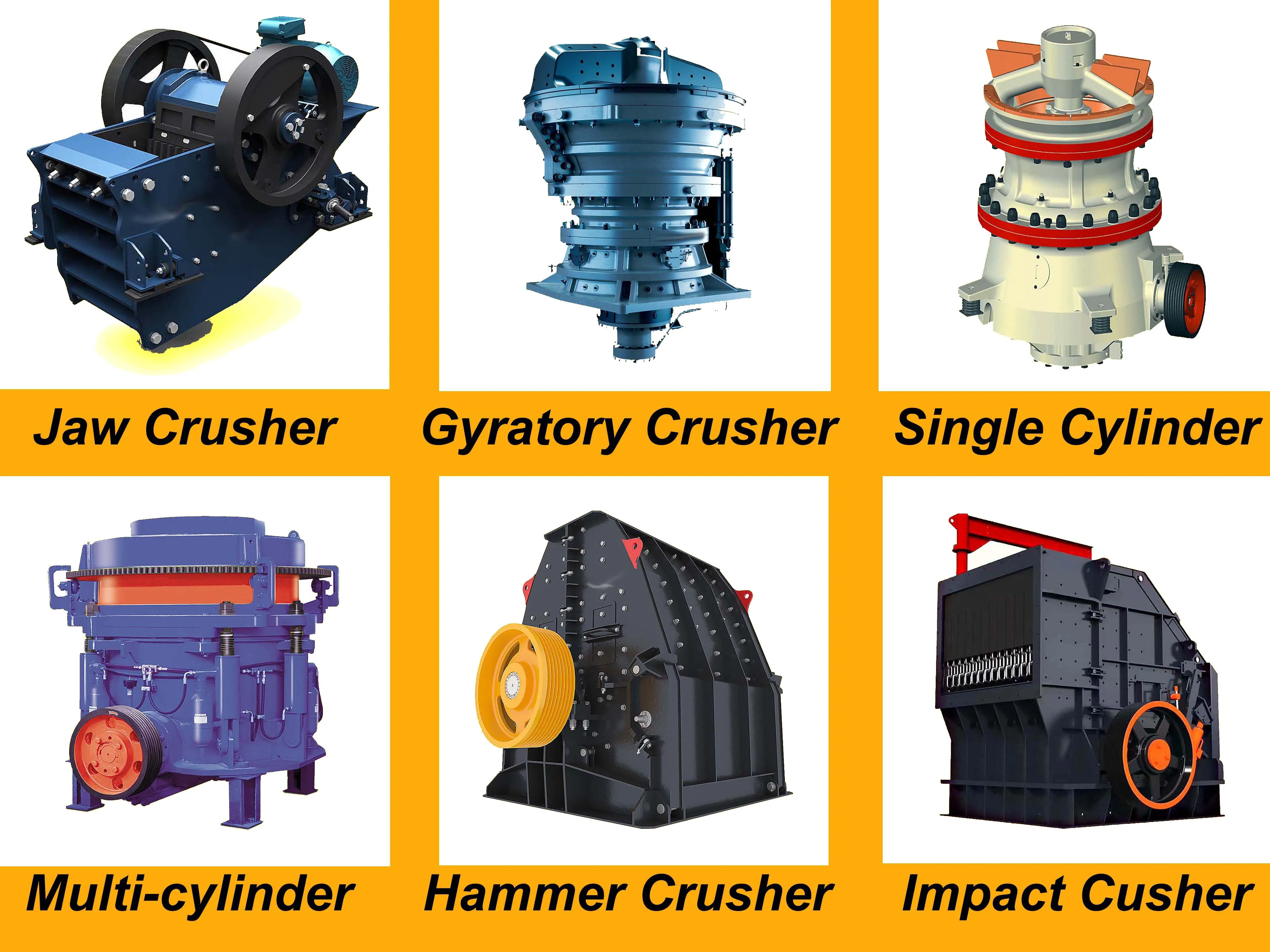

Recommend Products


Solution 1
Solution 2


Jaw crusher
Single sylinder hydraulic cone crusher
Multi-sylinder hydraulic cone crusher


Symons cone crusher
Ball mill
Coal mill


heavy plate feeder
oscillating screen

Spring cone crusher


Company Profile




Shenyang Heavy Machinery Group has produced China's first crusher since 1951 for 40 years, 40 years for the development of China's national economy, and foreign aid, export has provided various forms, specifications of the crusher more than 4000 sets. Our company is the leading factory of crusher design and manufacture, in the past 40 years from small to large, from single variety to foreign advanced technology; has become the design, manufacture, varieties and specifications and most advanced technology in China; is also one of the manufacturers with the most complete varieties and specifications in the world; is a hundred garden of crusher.
In this hundred garden:
After several updates and won the national silver medal award of 12 specifications of complex, simple pendulum E type crusher series.
After years of test, research and development, advanced and reliable and won the national Science and Technology Progress Award of 14 specifications of light and heavy hydraulic rotary crusher series.
There is the introduction of the United States FULLER world famous brand "TRAYLOR" the world's largest 72-90,60-110 and other five specifications of hydraulic rotary crusher series.
After many improvements, the production of the largest batch of spring insurance, hydraulic adjustment of the 15 specifications of the cone crusher series.
There are 12 specifications single cylinder hydraulic cone crusher series developed by itself, imitating the United States A-C and won the National Science and Technology Conference award.
There are the introduction of American Nordberg global reputation "Symons" 25 specifications of spring insurance, hydraulic adjustment cone crusher series.
There is the introduction of the United States Nordberg newly developed 12 specifications of rotary disk crusher series.
There are self-developed high efficiency of 5 specifications counterattack crusher series.
There are continuously improved, structurally advanced spring or hydraulic adjustment of the five gauge roller crusher series.
There are years of continuous improvement of advanced and reliable crushing coal, limestone and other 20 specifications of hammer crusher series.
There are imitation beauty PC advanced, efficient 10 specifications of the ring coal crusher series.
In addition to providing the above various types and specifications of the crusher, the company can also timely design andmanufacture a variety of non-standard crusher for users with special needs.Our company has nearly 50 years of manufacturing cone crusher history, is the leading enterprise in the production of cone crusher in China. In the past 40 years, our company has provided more than 1500 cone crushers for domestic and foreign users.

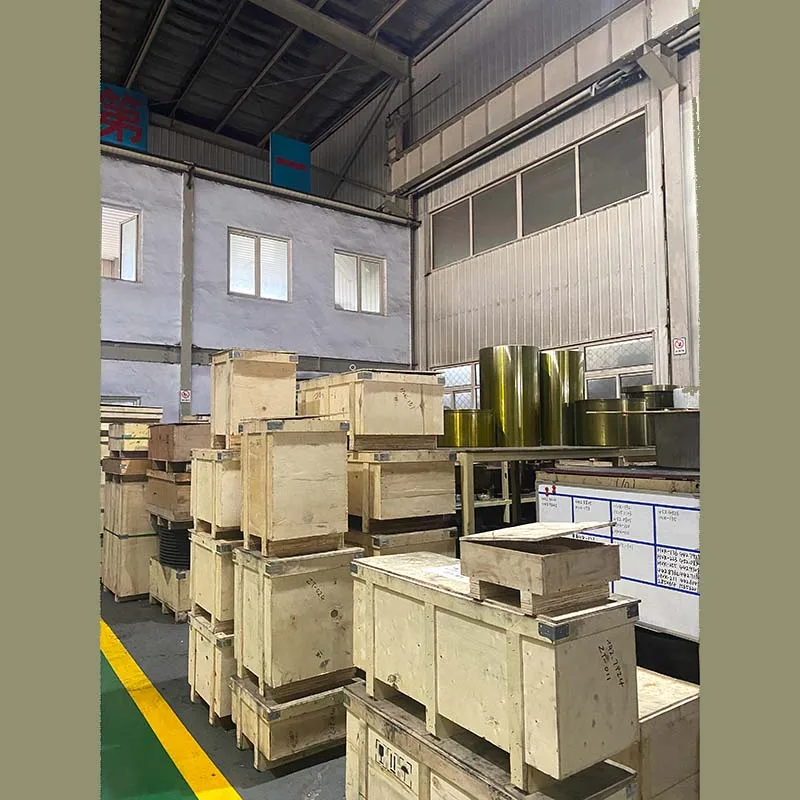

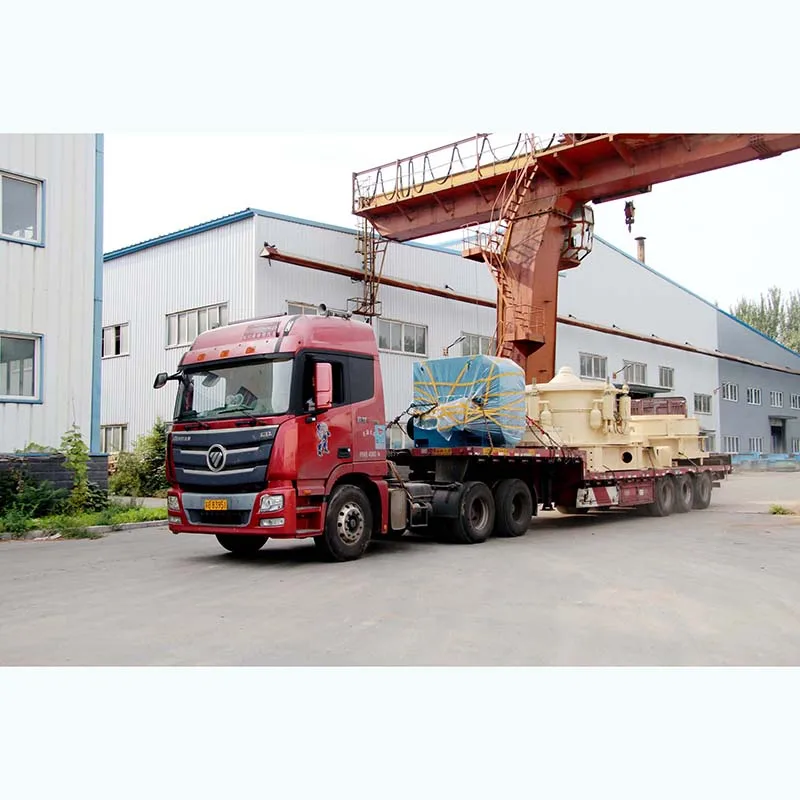

Product packaging




Exhibition




Certifications




FAQ


Is there credit protection and availability?

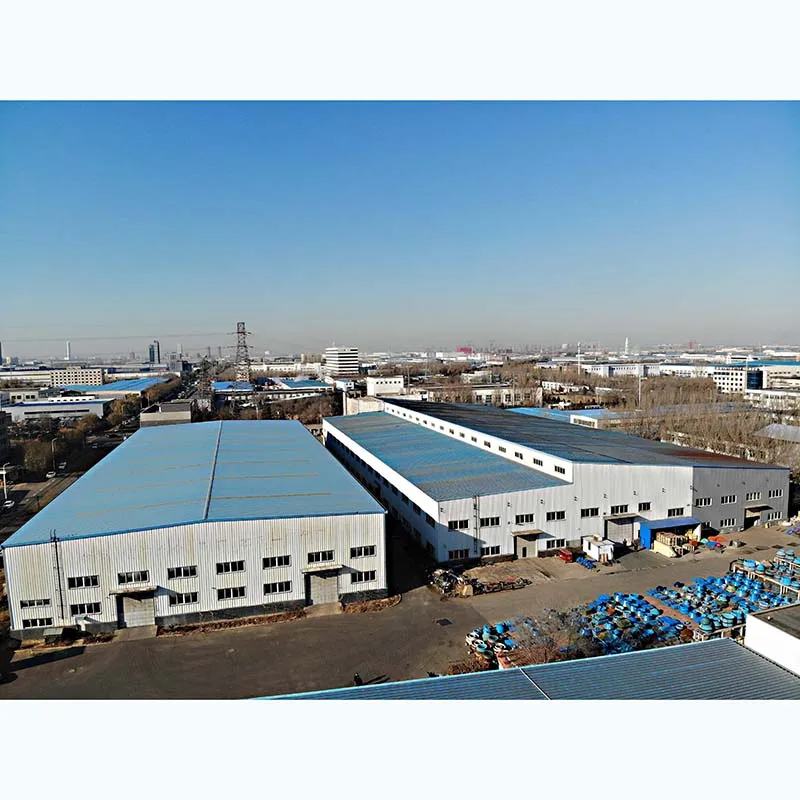

We have two large factories. Welcome to visit


How to install?
We will provide a detailed installation process diagram, or feel free to ask our service personnel


If you would like us to recommend products to you, please provide the following information:
Broken material
Maximum material size (mm)
Desired output size


Warranty period, whether to provide relevant accessories?
The warranty period of the machine is one year, and we will provide the relevant accessories at the best price
