High quality Stainless SERIES 12 spped VISCOMETER MODEL HTD13285 from Qingdao Haitongda
- Category: >>>
- Supplier: Qingdao Haitongda Special Instrument Co. Ltd.
Share on (1601125469710):
Product Overview
Description

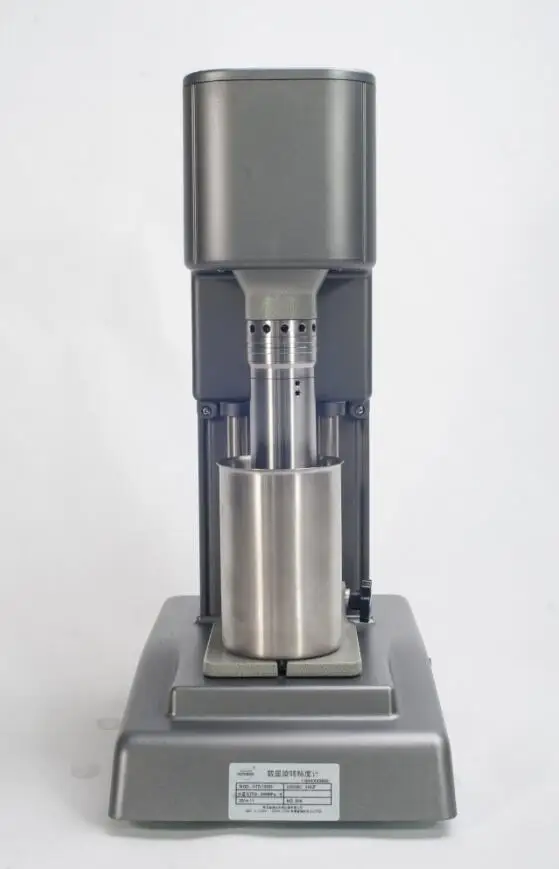

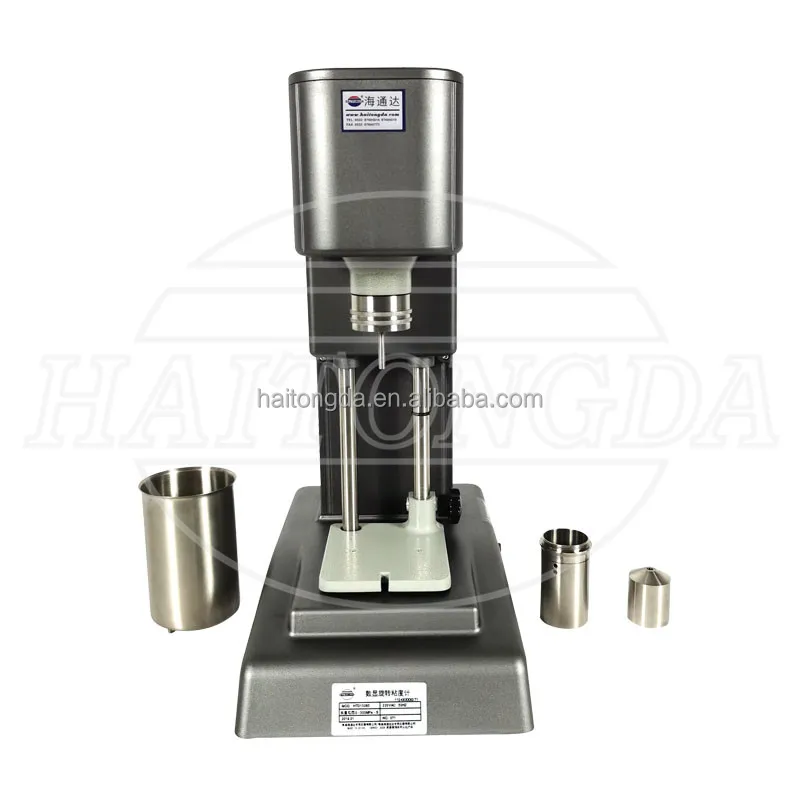

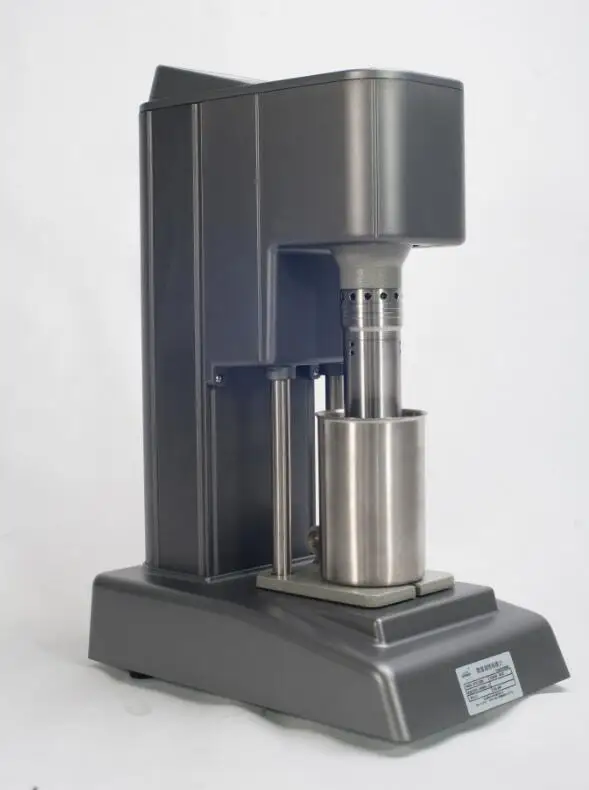

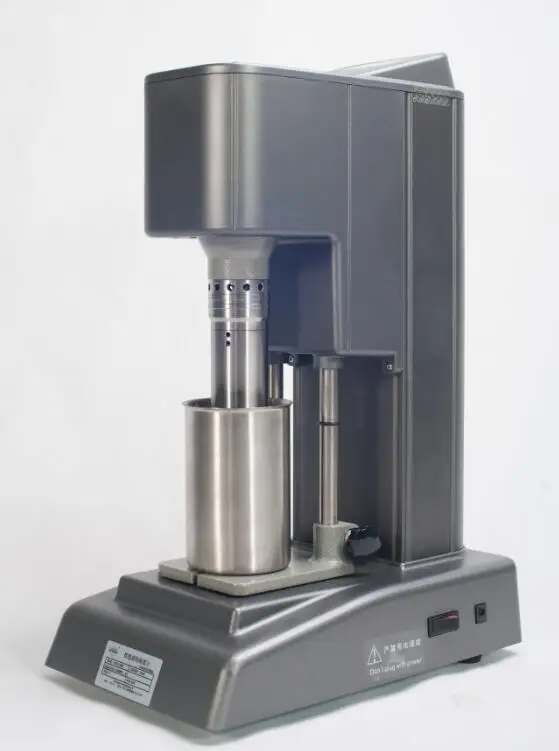

Model HTD13285 12-SPEED Viscometer
Instruction Manual
Instruction Manual
Product Description

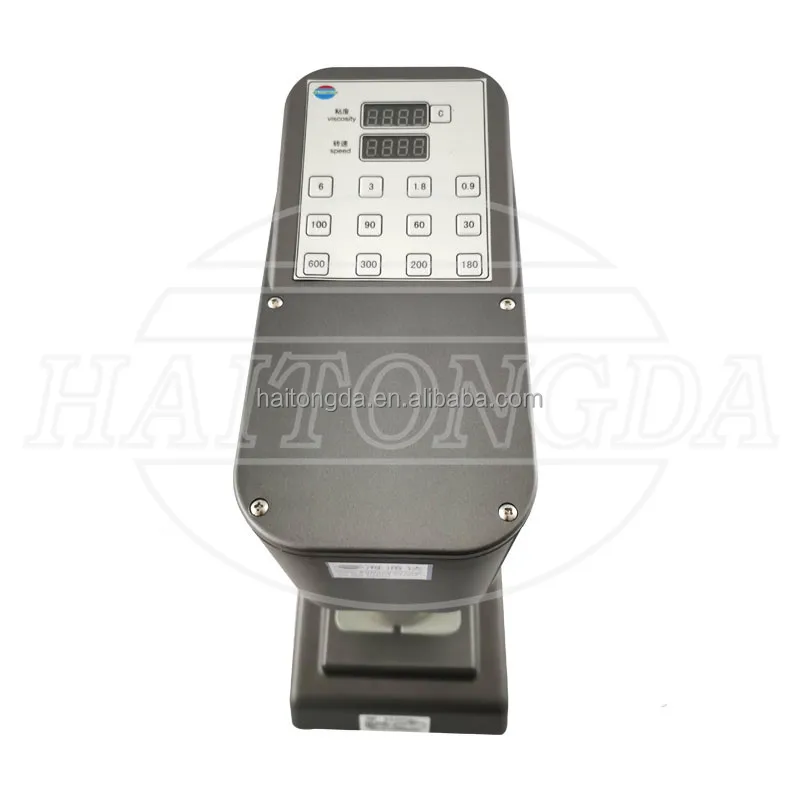

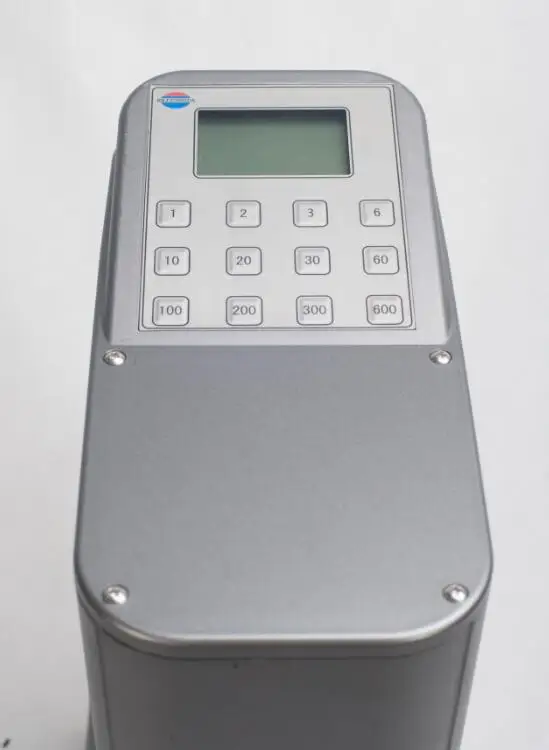

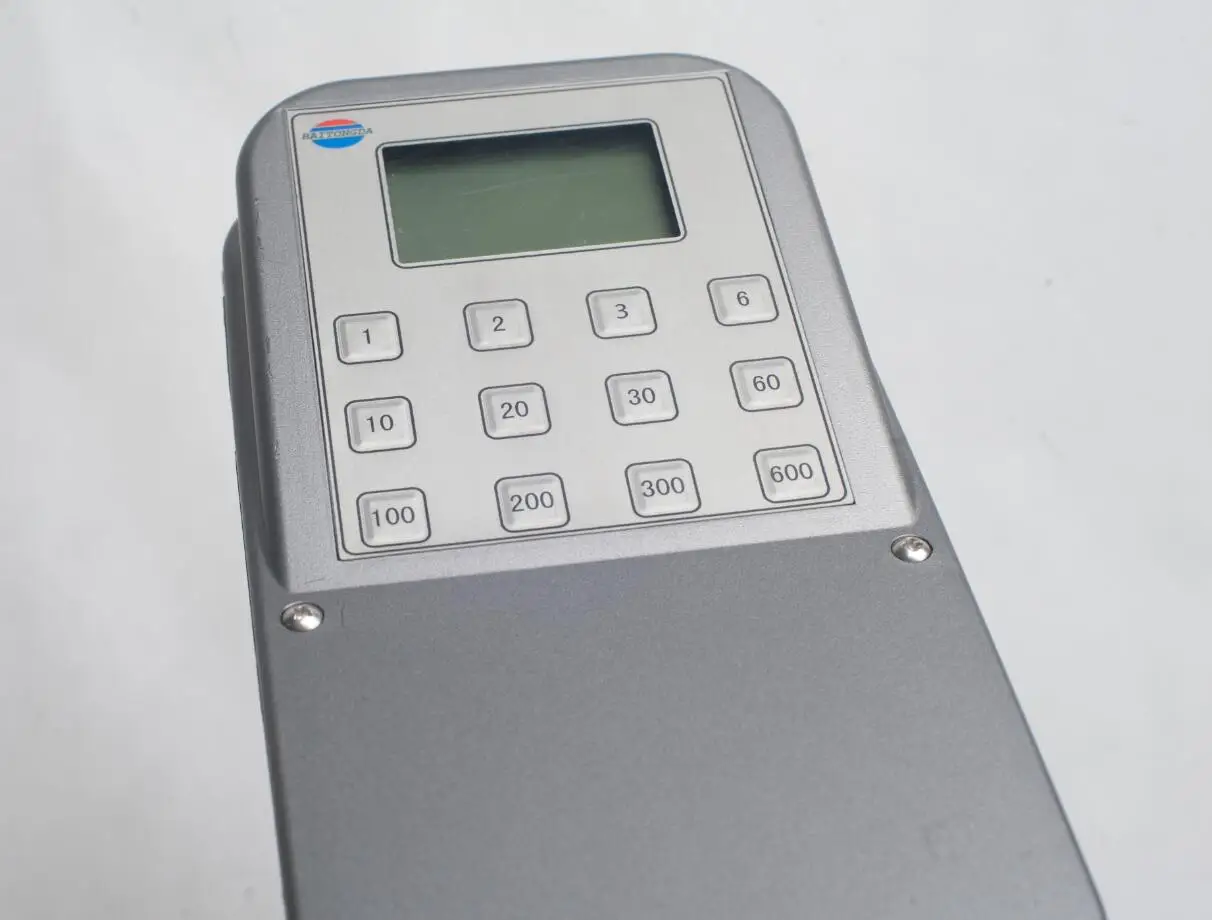

Haitongda Model HTD13285 viscometers adopts the embedded structure design, the built-in high precision angle sensor, the stepper motor drive, the speed is more stable and accurate; The buttons on the panel are clearly marked and easy to operate. The high-resolution LCD screen can display the rotating Angle of the inner cylinder and the stirring speed in real time. Haitongda Model HTD13185 viscometers which are available in twelve-speed design for use on 220 volts 50 Hz electrical power. Haitongda Model HTD13285 viscometers are used in research and production. These viscometers are recommended for evaluating the rheological properties of fluids, Newtonian and non-Newtonian. The design includes a R1 Rotor Sleeve, B1 Bob, F1 Torsion Spring, and a stainless steel sample cup for testing.
Product Paramenters
Technical Specification | ||||||||
No . | Model | Power | Torsion spring & Viscosity measurement range | Speeds | Working Environmental Temperature | Dimensions | Weight | |
1 | HTD 13285 | AC(220± 11)V 50Hz 120 W | F1:Newtonian Fluid:0.5~100000mPas Non-Newtonian Fluid:0~150mPa.s ShearStress:0~153.3Pa | 0.9、1.8、3、 6、30、60、 90 、 100 、 180 、 200 、 300 、 600 （r/min） | 5℉~113℉ (-15℃~45℃) | 310*200*470 (mm) | 7.2kg | |
Detailed Images
Related Products
Packing&Shipping
Export Carton Packing or Export Wooden packing
Packing size: 310*200*470mm
After Sales Service
1 Year Warranty
▶Spare parts for one year operation (Free for more than 50 sets.)
▶Field maintenance and repair service(Only limited to large scale equipment.)
Company Introduction
Qingdao haitongda special instrument co., LTD, PRODUCTION OF DRILLING FLUID ANALYSIS INSTRUMENT AND CEMENT TESTING INSTRUMENT FOR OIL WELL AND RELATED EMS MANAGEMENT ACTIVITIES.
Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Our Services & Strength
From 1987 to 1999, products of the company were widely used in oil drilling, geological survey, chemical engineering units and scientific research institutes, which won a high reputation among users.
In 2000, China national natural gas corporation specified the company as the only supplier, to supply the instruments for their international drilling fields. In February of the same year, the first EP Lubricity Tester in China was successfully developed and put into mass production, and became a substitute for imported products in China.
In 2003, it passed ISO9000 quality management system certification of national quality management center. The DLA-II Drilling Fluid Lubricity Analyzer was developed successfully. In September of the same year, in the product appraisal meeting,the product passed the identification at one time and put into mass production. In the same year, the project won the award of "Qingdao science and technology achievement".
In 2004, the oil well cement tester was put into mass production.It has been awarded as one of the top ten enterprises in shinan district.In 2006, it was rated as AA level enterprise.
In 2008, it attended the product standard documents' drafting and compiling together with North China Oilfield and Shengli Oilfield.
In 2009, it was appraised as a clean producing enterprise.In 2010, the HPHT Swell Meter apply for national patent and be accepted.
In 2000, China national natural gas corporation specified the company as the only supplier, to supply the instruments for their international drilling fields. In February of the same year, the first EP Lubricity Tester in China was successfully developed and put into mass production, and became a substitute for imported products in China.
In 2003, it passed ISO9000 quality management system certification of national quality management center. The DLA-II Drilling Fluid Lubricity Analyzer was developed successfully. In September of the same year, in the product appraisal meeting,the product passed the identification at one time and put into mass production. In the same year, the project won the award of "Qingdao science and technology achievement".
In 2004, the oil well cement tester was put into mass production.It has been awarded as one of the top ten enterprises in shinan district.In 2006, it was rated as AA level enterprise.
In 2008, it attended the product standard documents' drafting and compiling together with North China Oilfield and Shengli Oilfield.
In 2009, it was appraised as a clean producing enterprise.In 2010, the HPHT Swell Meter apply for national patent and be accepted.
FAQ
Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
