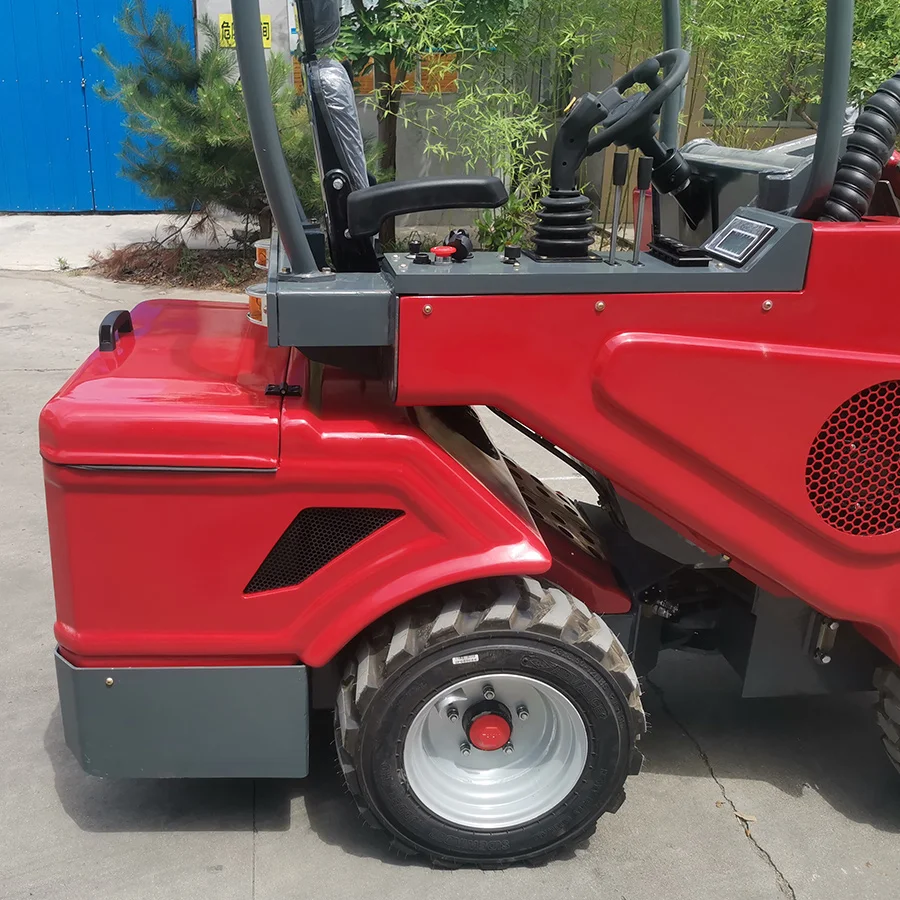

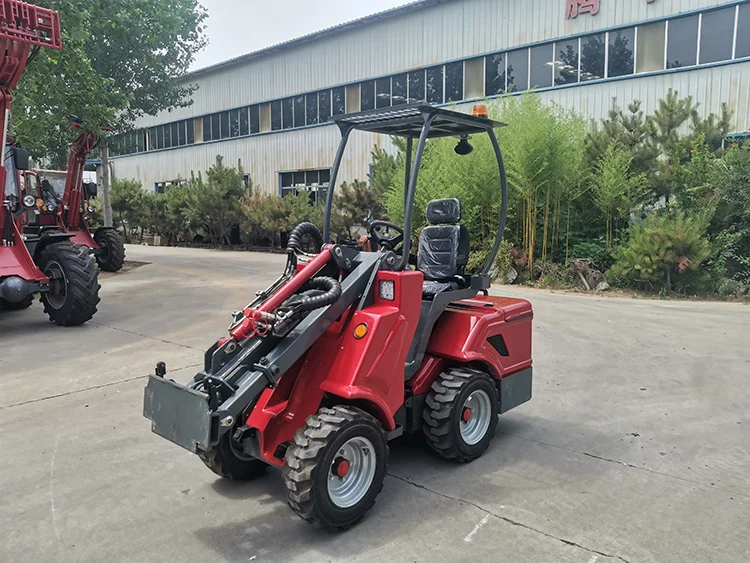

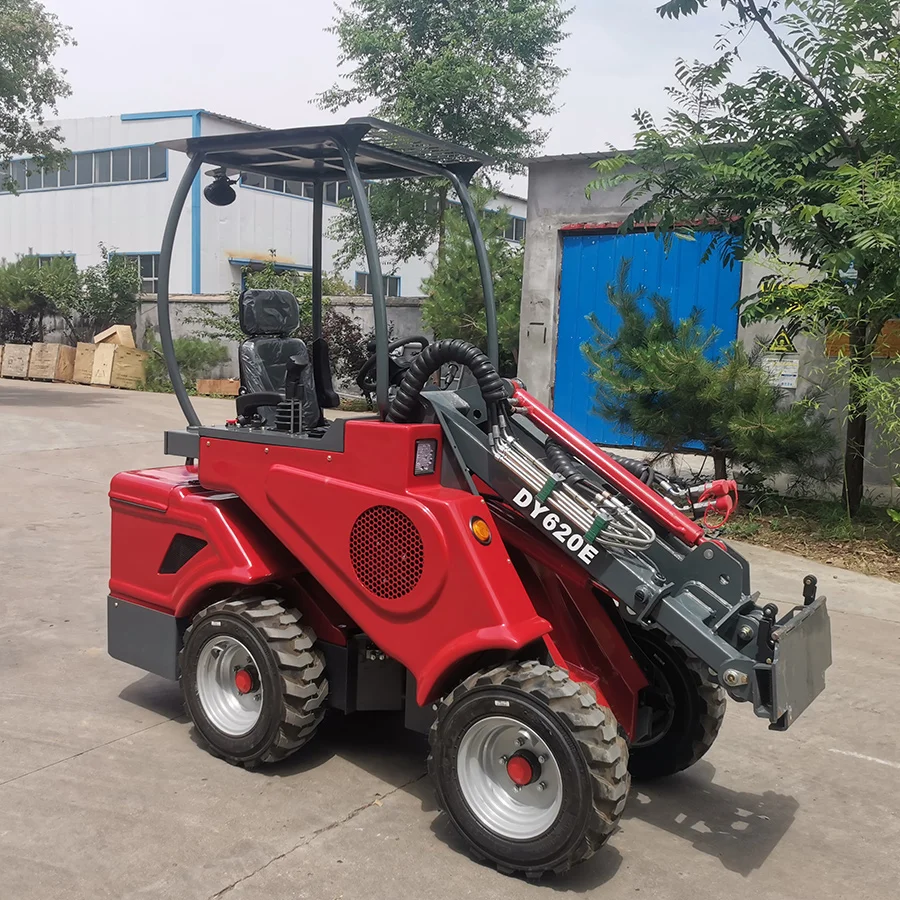

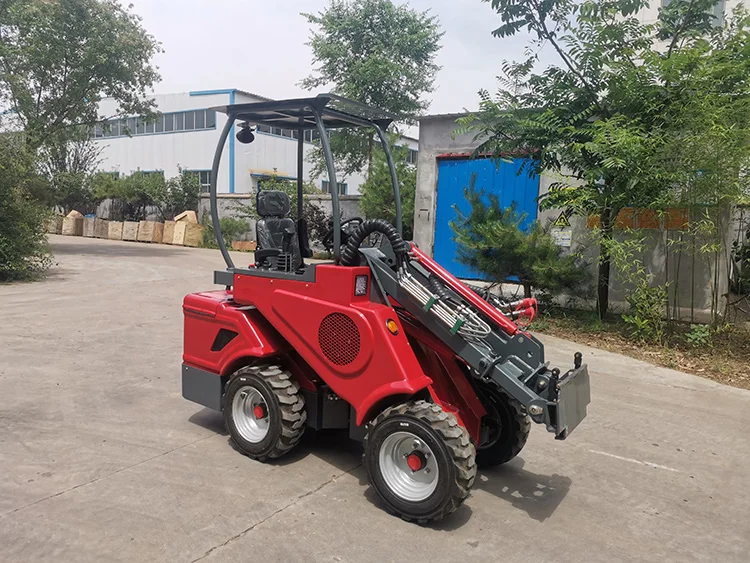

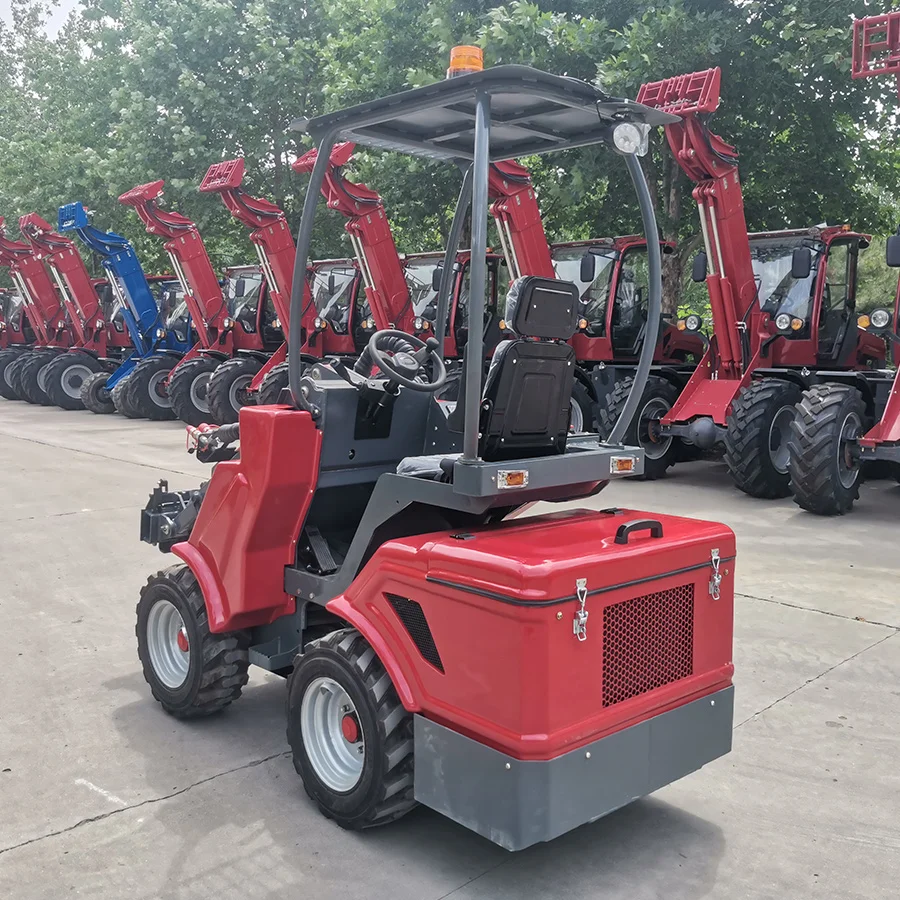

DY620E electric mini loader:
TAIAN electric power mini loader, the DY620E, is a zero emission, low noise and hydrostatic telescopic wheel loader, it’s full-electric drive, battery-powered compact loader, which can perfect to replace fuel machine in multiple working area.
Model | DY620E |
Overall Dimensions (L*W*H) | 2390*980*1965mm |
Max. Reach (Boom Extended) | 2750mm |
Max. Reach (Boom Retracted) | 2220mm |
Rated Loading Capacity | 500kg-800kg |
Min. Turning Radius | 1980mm |
Turning Angle | 400 |
Transmission | 4WD / Hydrostatic |
Speed | 8km/h |
Weight | 1500 kg |

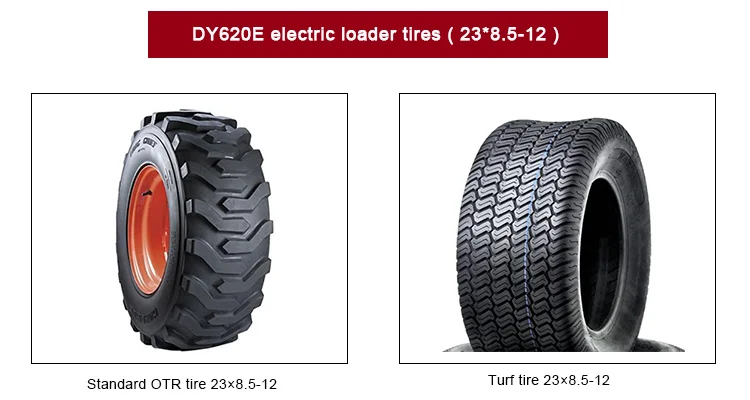

Standard Tire | 23X8.5-12 |
Tire Pressure | 2.8 bar |
Oil Tank Capacity | 35L |
Working Pressure | 180bar |
Working Oil Flow | 30L/min |
Tracking pressure | 230Bar |
Oil Model(mineral oil) | L-HL46 |
Battery | Lead-acid Battery capacity |
Battery Capacity | 12 kWh/300Ah |
Power | Electric |
Angle of Departure | 25° |


------For all our loaders, we offer one year or 1000 working hours warranty whichever comes first.
DY620E electric mini loader feature:
Ø Battery driven, 100% full electric;

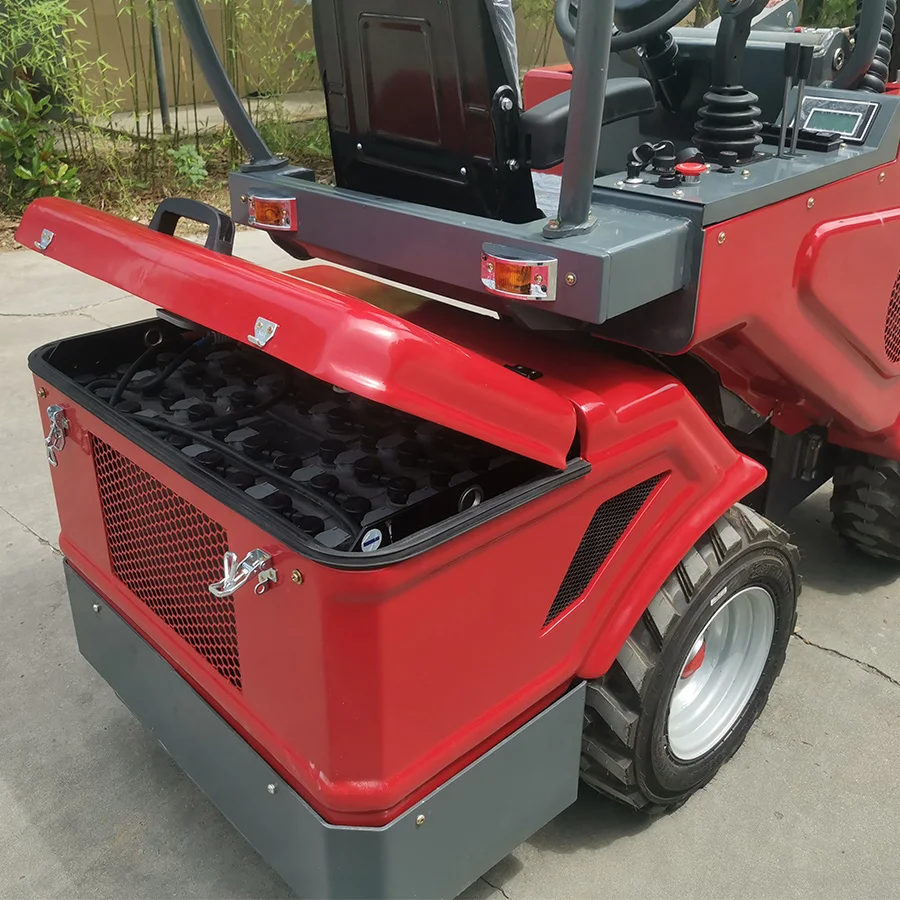

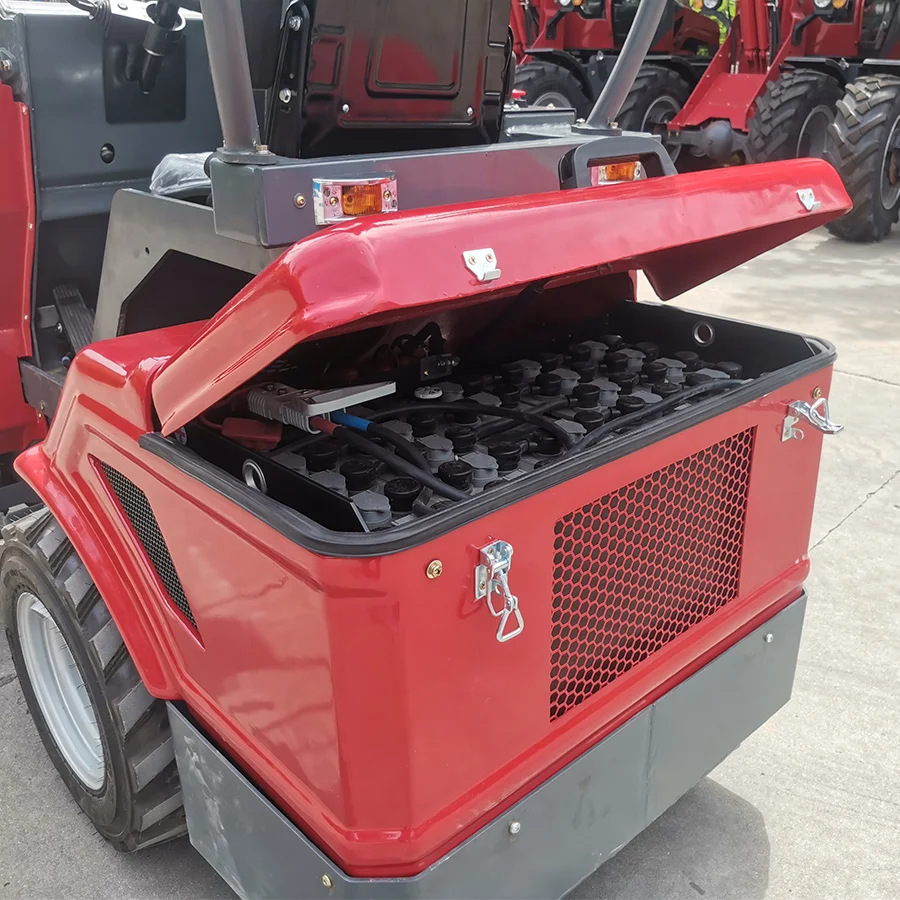

Ø Lead-acid batteries;

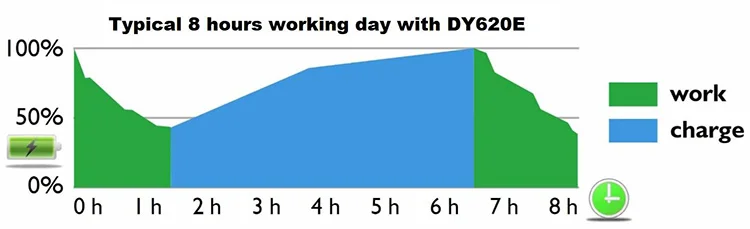

Ø 300 Ah/12kWh battery capacity;
Ø External battery charger;
Ø No exhaust emissions;
Ø Low noise;
Ø Hydrostatic 4WD;
Ø Italian PWG brand drive motor;
Ø Auxiliary hydraulics oil flow max. 30L/min;
Ø 1 way hydraulic output with 1 electric output on the front;
Ø Hydraulic oil cooler;
Ø Telescopic boom;
Ø Handbrake parking brake;
Ø ROPS + FOPS canopy;
2 front &1 rear LED work lights;

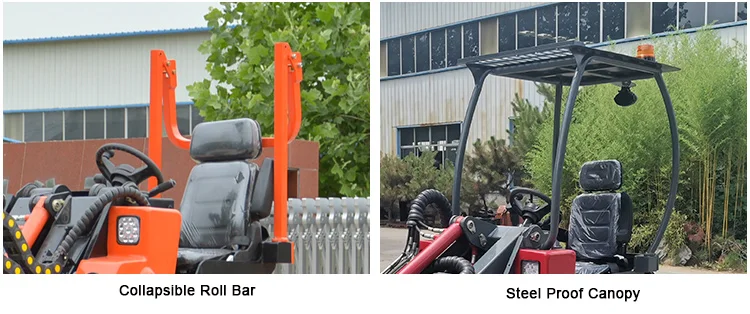

DY620 mini wheel loaders are equipped with a certified ROPS/FOPS safety frame with Collapsible Roll Bar or Proof canopy as standard.

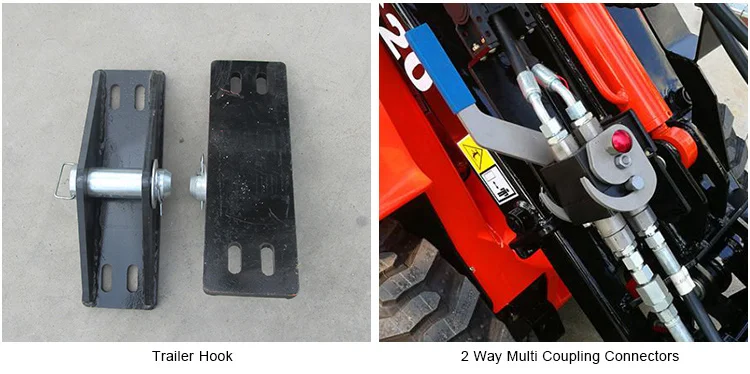

DY620E electric mini loader options:

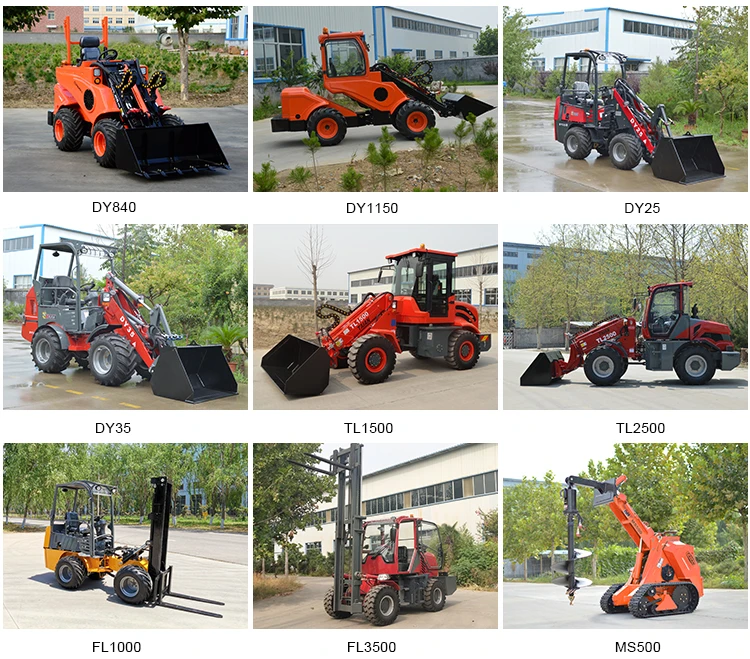

Related Products:

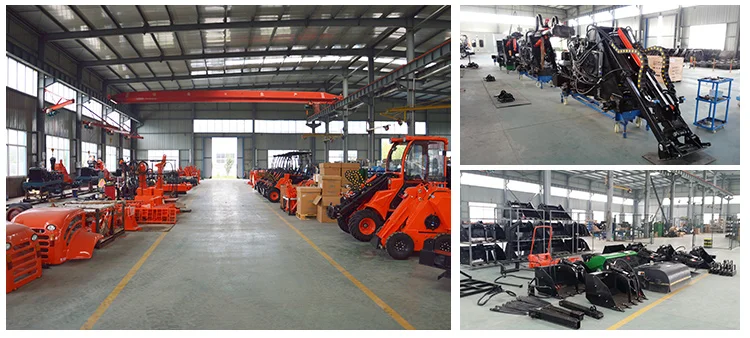

About Dongyue Carrying:


Customer visits the factory:

Our products are exported to many countries and regions overseas, Can meet the different needs of customers

Participate In The Exhibition:

1.Q:Why choose us?
A:First of all, we are the first one in China who start to produce telescopic loaders, thus we have rich experiences with such kind of loaders.
Second, we are real manufacturer, compared with other trading companies, the quality, delivery time and after service can be well guaranteed. We warmly welcome you to visit our factory to check everything.
Third, professional sales, engineering and service team makes your purchasing pleasant and convenient.
2.Q:What’s the warranty of the products?
A:For all our loaders, we offer one year or 1000 working hours warranty whichever comes first. And most important, within warranty, we’ll offer relative parts for free by airway or express post, customers can receive the parts within 4~6 days.
