Small Output Plastic Bottle Making Machine
Small Output Plastic Bottle Making Machine
Small Output Plastic Bottle Making Machine
Small Output Plastic Bottle Making Machine
Small Output Plastic Bottle Making Machine
Small Output Plastic Bottle Making Machine
Small Output Plastic Bottle Making Machine

Small Output Plastic Bottle Making Machine

Share on (1601125902302):


Price:$22,000.00

Quantity:


Product Overview

Description



Product Description



Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


ITEM
单位
OGM-3
瓶型规格
PRODUCT
理论产量
Theoretical output
pcs/h
2200
PRODUCT
容积
Volume
L
2.0
最大高度
Max.height
mm
360
最大直径
Max. diameter
mm
100
成型组规格
MOULD
模穴数
Number of cavities
/
3
模板尺寸
Mould plate dimension(LxH)
mm
600x360
模厚
Mould thickness
mm
188
开模行程
Mould opening stroke
mm
110
电力规格
ELECTRICAL
电源
Power
/
220-380v/50-60hz
总功率
Total power
kw
33
加热功率
Heating power
kw
32
机器规格
MACHINE
吹瓶机主机尺寸
Main body dimension(LxWxH)
m
2.3x1.5x2.2
吹瓶机主机重量
Main body weight
kg
1650
瓶胚输送机尺寸
Pre-heater dimension
m
1.9x1.0x2.2
瓶胚输送机重量
Pre-heater weight
kg
200

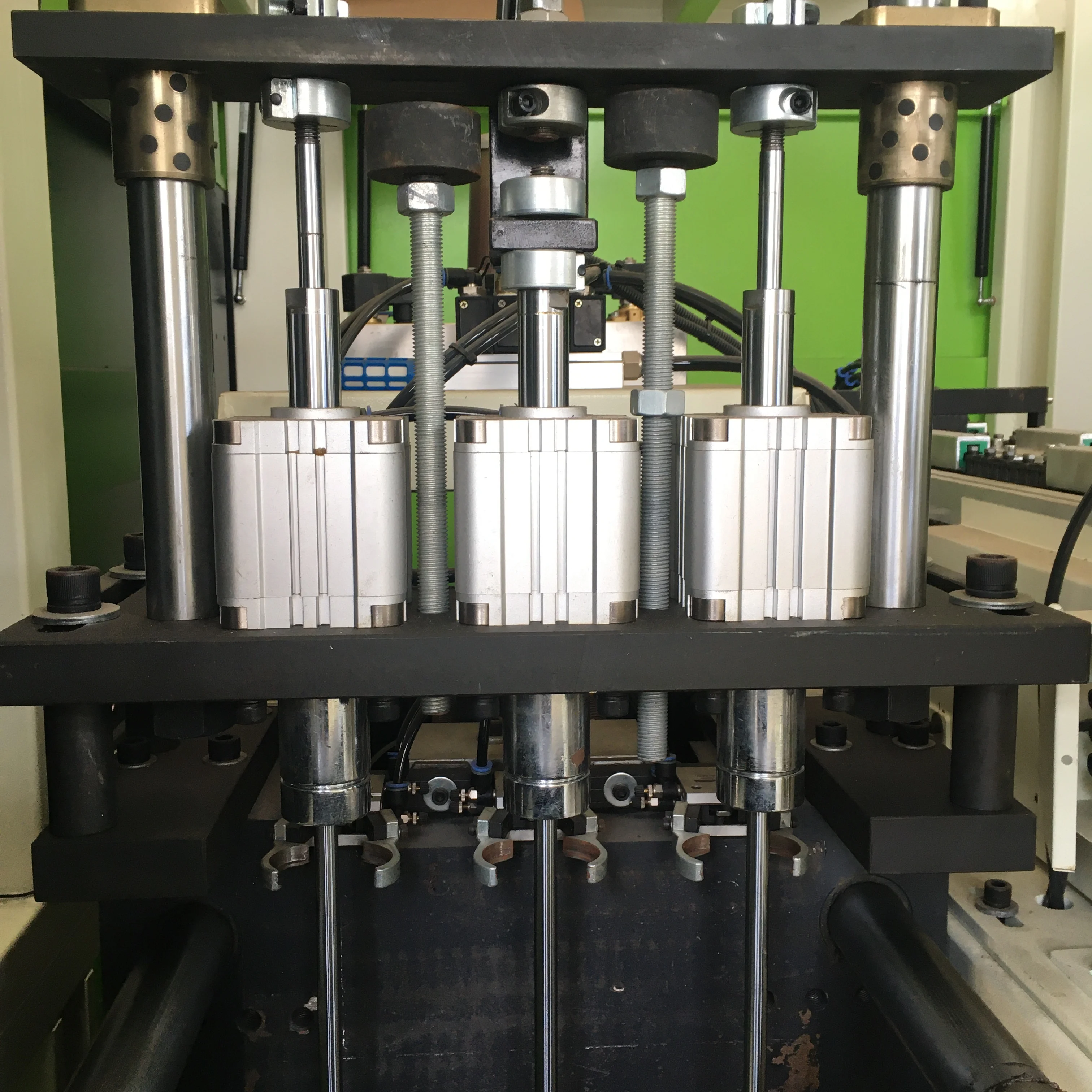

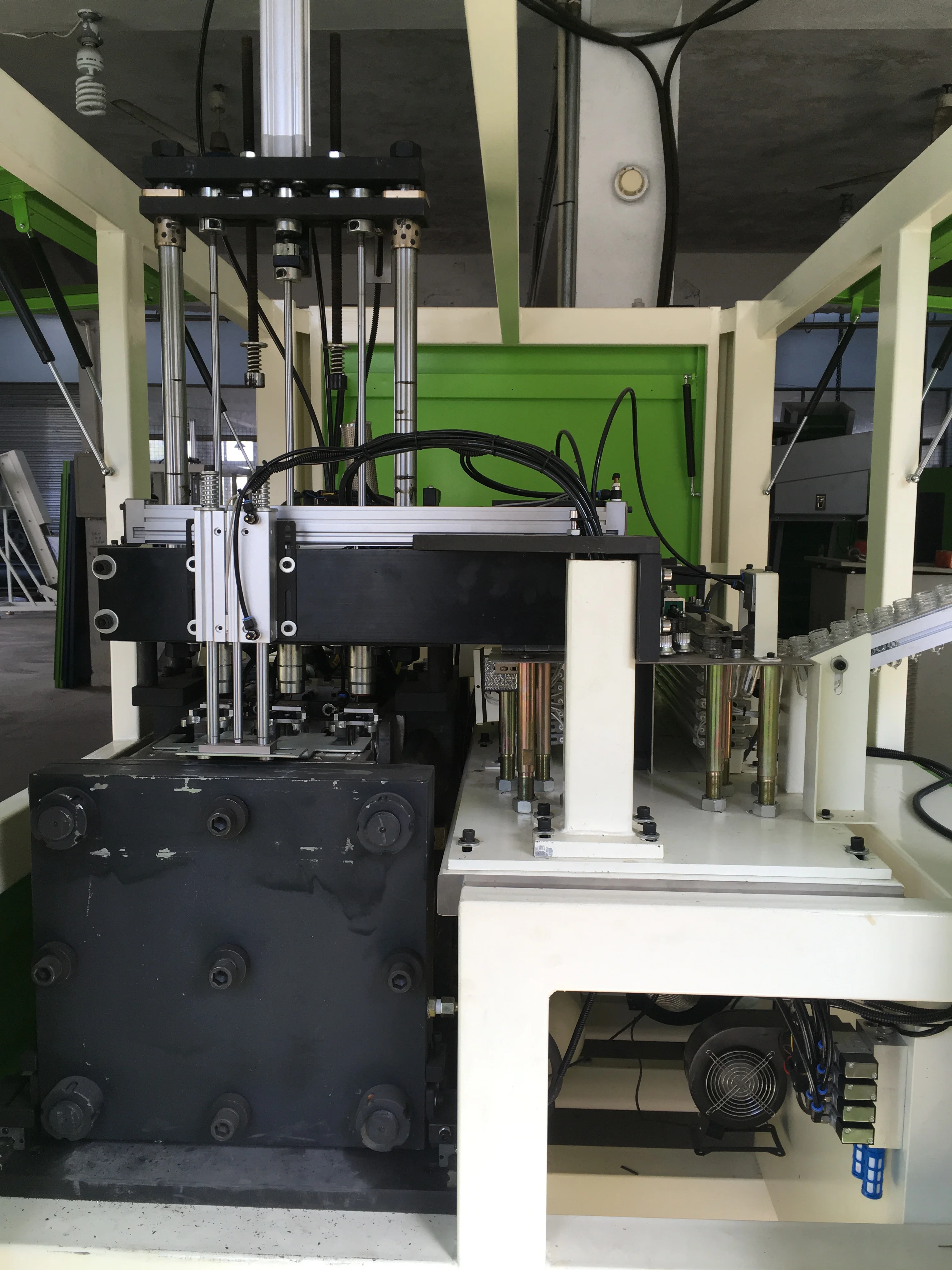

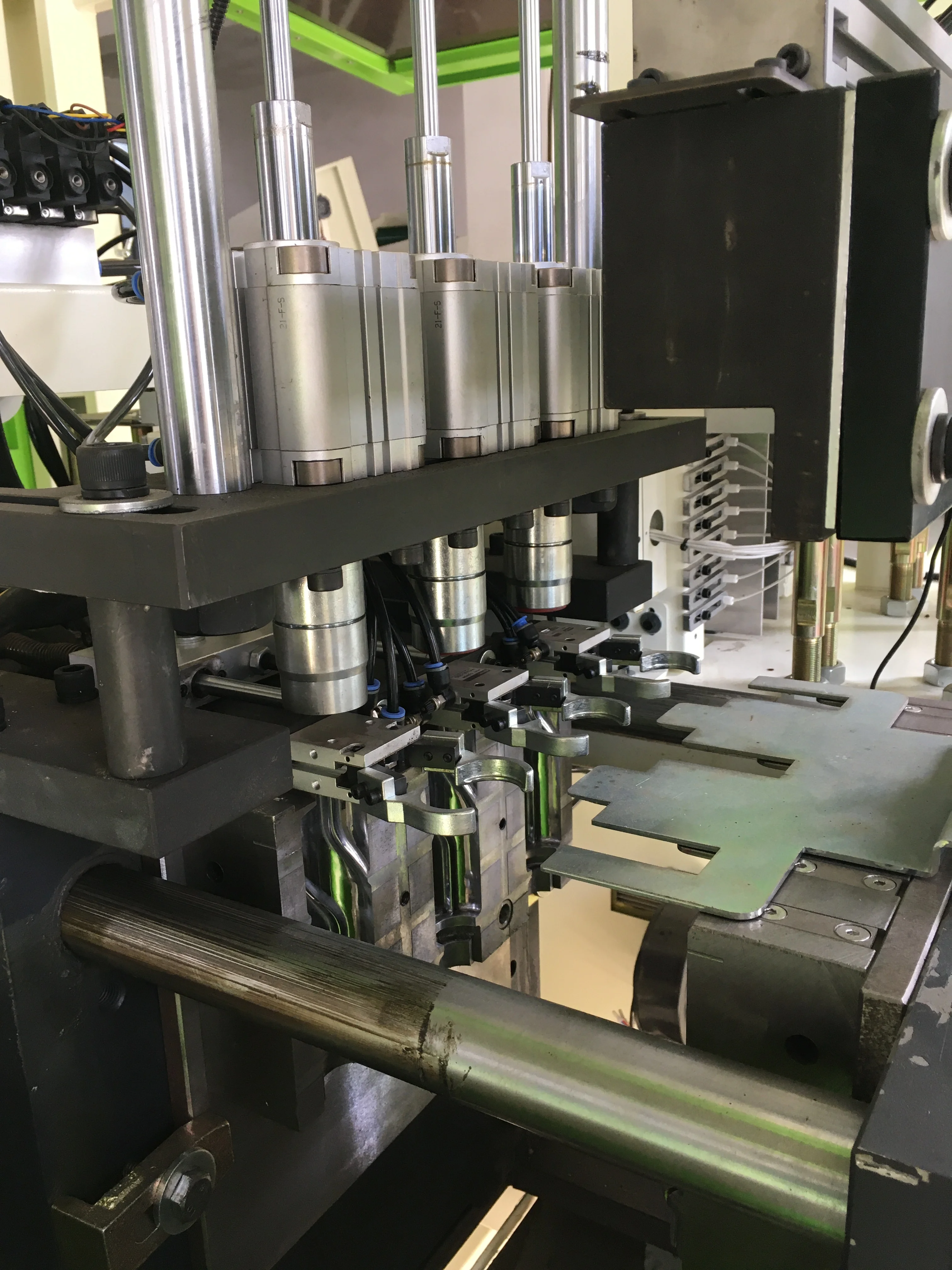

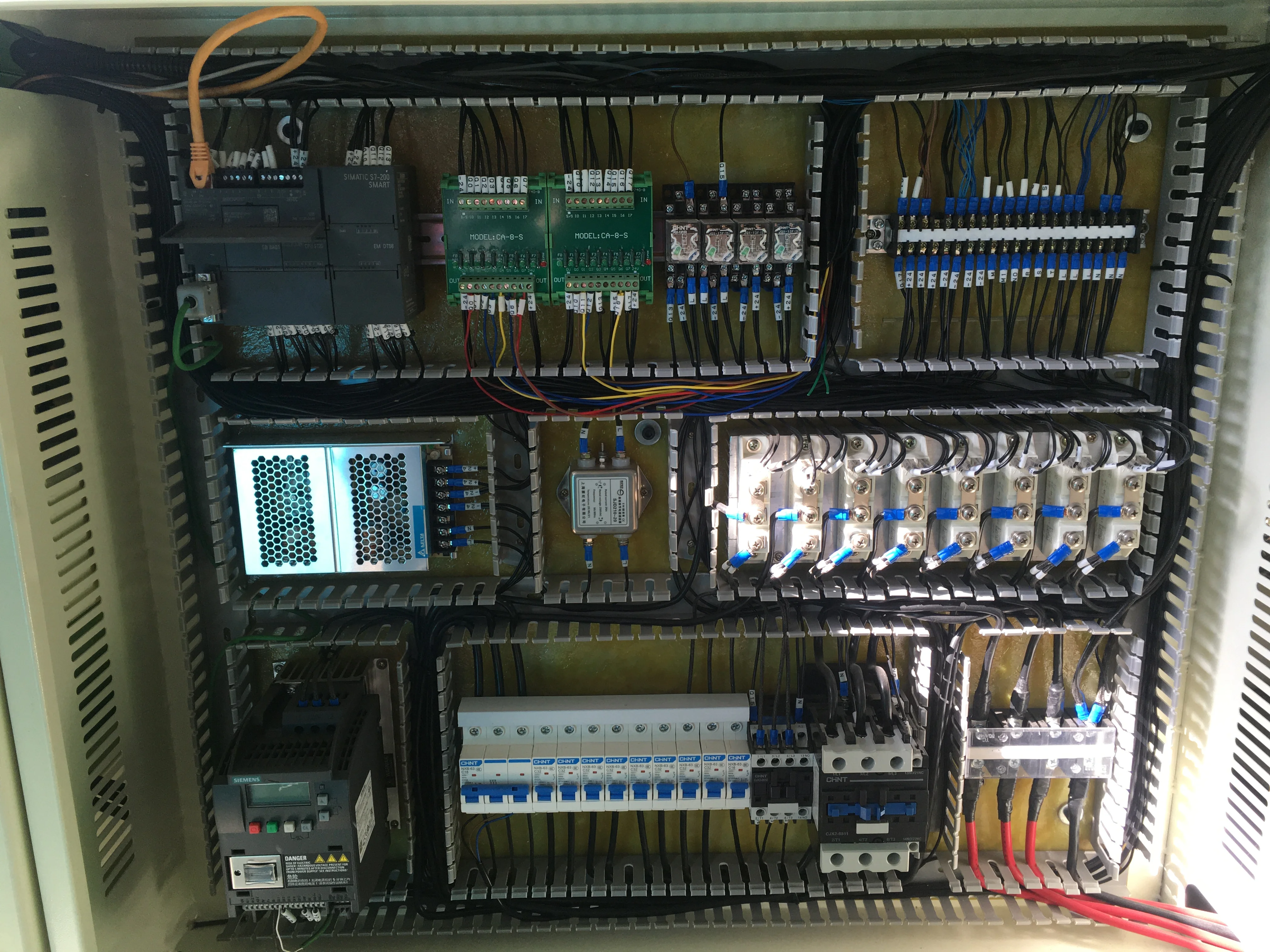

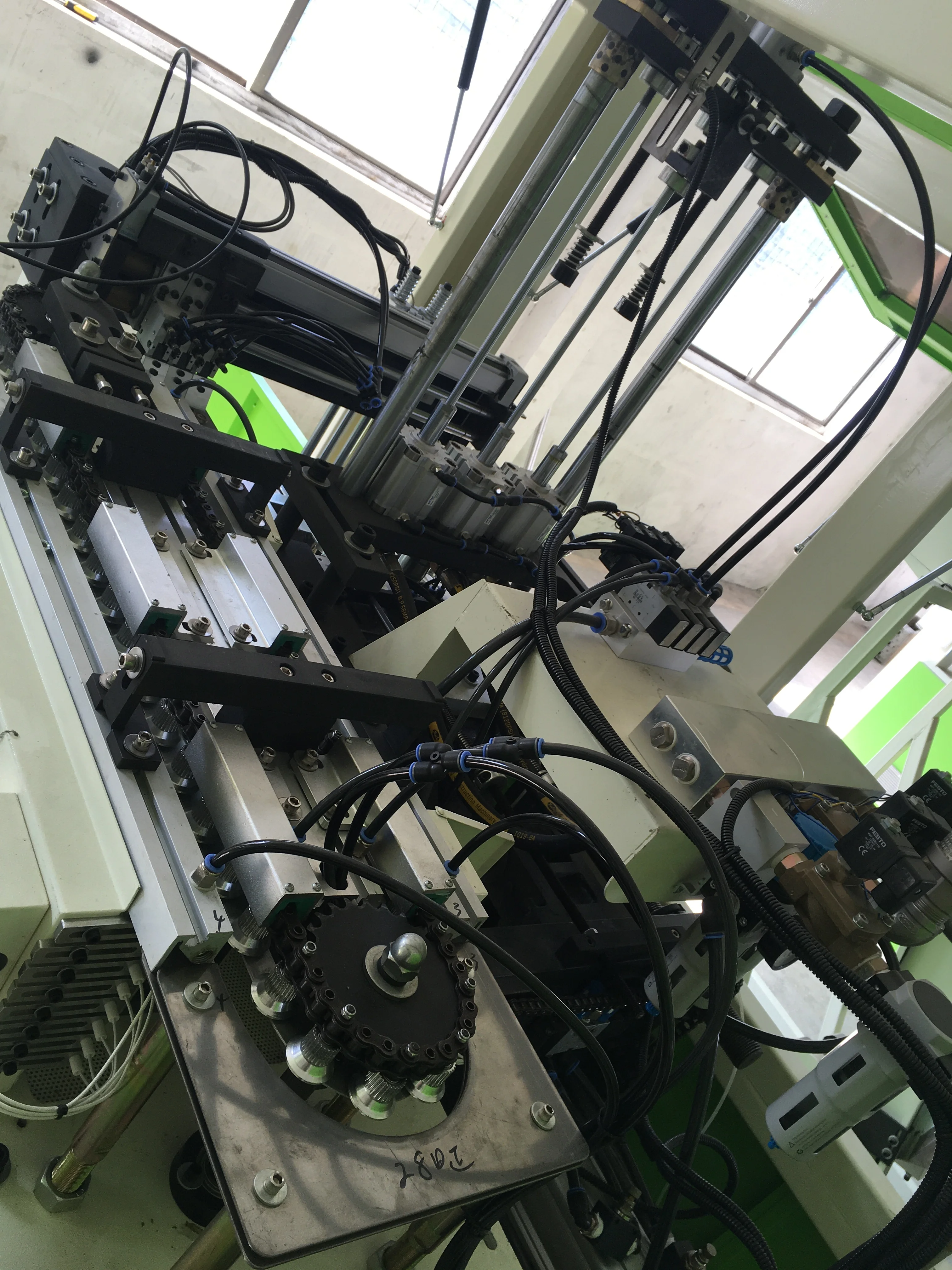

Product show








Company Profile


About us
Ouge company is located in the East China Sea coast, the famous "mould hometown"---- Huangyan Taizhou,Zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. It consists of many professional engineers with rich experience in the PET industry and high-quality staff. The main products include: PET automatic and semi-automatic blowing machines, all kinds of moulds for carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles, etc. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all
customer needs.




Packing & Delivery


Packing Details : wooden case &plastic packaging
Delivery Details : 45 days after receive the deposit
