20KW 15kw 10kw 5kw 3kw Wind Turbines Generator with High Efficiency Inverter Hybrid
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.
Share on (1601125926449):
Product Overview
Description
Product Description
Off Grid Vertical Axial Wind Turbine System For 48V 51.2V Battery Bank 220V Output
2. Being installed by human design and easy for installation, maintenance and repair.
3. Being molded through precise injection with new process, together with the optimized design of aerodynamic contour and
structure, our wind turbine blades have such advantages:high utilization of wind energy which contributes to the annual energy
output.
4. Our generators, adopting patented permanent magnet rotor alternator, with a special kind of stator design. efficiently decrease
resistance torque of the generators
Product Paramenters
Model | RX-HV1K | RX-HV2K | RX-HV3K | RX-HV3K-2 | RX-HV5K | ||||||||
Rated Power | 1000W | 2000W | 3000W | 3000W | 5000W | ||||||||
Max Power | 1200W | 2300W | 3300W | 3500W | 6000W | ||||||||
Blades Length | 1.6M | 1.8M | 2.0M | 2.0M | 2.8M | ||||||||
Wheel Diameter | 1.2M | 1.2M | 1.4M | 1.4M | 1.8M | ||||||||
Generator Type | Maglev coreless | Maglev coreless | Iron-core | Iron-core | Maglev coreless | ||||||||
Rated Voltage | 24V~220V | 24V~220V | 48V~220V | 48V~220V | 48V~380V | ||||||||
Start Up Speed | 1.3m/s | 1.3m/s | 1.3m/s | 1.3m/s | 1.5m/s | ||||||||
Rated Wind Speed | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s | ||||||||
Cut in wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | ||||||||
Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s | 40m/s | ||||||||
Blades Quantity | 3 pcs | 3 pcs | 3 pcs | 3 pcs Include boost drum | 3 pcs | ||||||||
Blades Material | Aluminium alloy | ||||||||||||
Working Temperature | -40℃~+40℃ | ||||||||||||
Protection Level | IP54 | ||||||||||||
Working environment humidness | ≤90% | ||||||||||||
Altitude | ≤4500m | ||||||||||||
Install Height | 3~12m | ||||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||||
Model | RX-HV6K | RX-HV7K | RX-HV8K-1 | RX-HV8K-2 | RX-HV8K-3 | RX-HV10K | |||||
Rated Power | 6000W | 7000W | 8KW | 8KW | 8KW | 10KW | |||||
Max Power | 6200W | 7200W | 10KW | 9KW | 10KW | 12KW | |||||
Blades Length | 3.2M | 3.2M | 3.2M | 3.6M | 3.6M | 3.6M | |||||
Wheel Diameter | 2.0M | 2.0M | 2.0M | 2.4M | 2.4M | 2.4M | |||||
Generator Type | Iron-core | Iron-core | Maglev coreless | Iron-core | Iron-core | Maglev coreless | |||||
Rated Voltage | 48V~380V | 96V~380V | 48V~380V | 96V~380V | 48V~380V | 48~380V | |||||
Start Up Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s | |||||
Rated Wind Speed | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | |||||
Cut in wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | |||||
Survival Wind Speed | 50m/s | 50m/s | 50m/s | 50m/s | 50m/s | 50m/s | |||||
Blades Quantity | 3 pcs | 3 pcs Include double boost drum | 3 pcs Include double boost drum | 3 pcs | 3 pcs Include double boost drum | 3 pcs Include double boost drum | |||||
Blades Material | Aluminium alloy | ||||||||||
Working Temperature | -40℃~+40℃ | ||||||||||
Protection Level | IP54 | ||||||||||
Working environment humidness | ≤90% | ||||||||||
Altitude | ≤4500m | ||||||||||
Install Height | 2~12m | ||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||
Gross Weight | 219kg | 259kg | 280kg | 290kg | 300kg | 320kg | |||||

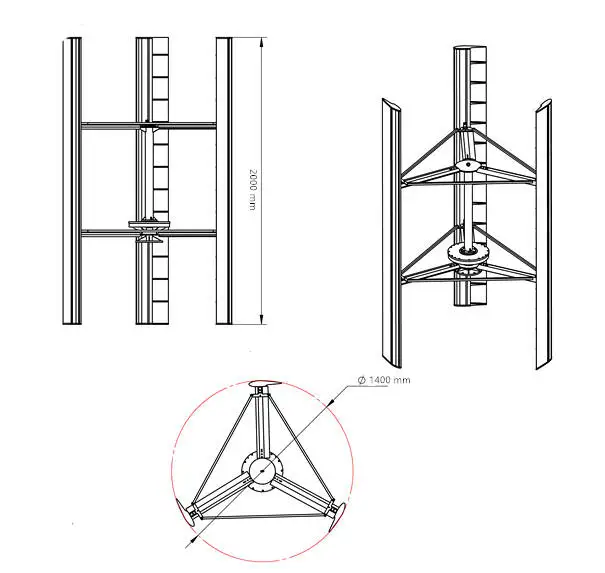

Drawing
Advantages
1. Smaller footprint: Vertical wind turbines require a smaller area to generate the same amount of power as horizontal turbines.
2. They can operate in lower wind speeds: Vertical turbines can operate efficiently in lower wind speeds, making them ideal for urban and suburban areas where the wind is often turbulent and unpredictable.
3. Easier maintenance: Their design makes it easier to access the components of the wind turbine, facilitating maintenance and repairs.
4. Wildlife-friendly: Vertical wind turbines operate at lower blade speeds and are less likely to harm birds and bats.
5. Aesthetically pleasing: Vertical turbines are often considered more aesthetically pleasing and less obtrusive than traditional horizontal turbines.
2. They can operate in lower wind speeds: Vertical turbines can operate efficiently in lower wind speeds, making them ideal for urban and suburban areas where the wind is often turbulent and unpredictable.
3. Easier maintenance: Their design makes it easier to access the components of the wind turbine, facilitating maintenance and repairs.
4. Wildlife-friendly: Vertical wind turbines operate at lower blade speeds and are less likely to harm birds and bats.
5. Aesthetically pleasing: Vertical turbines are often considered more aesthetically pleasing and less obtrusive than traditional horizontal turbines.

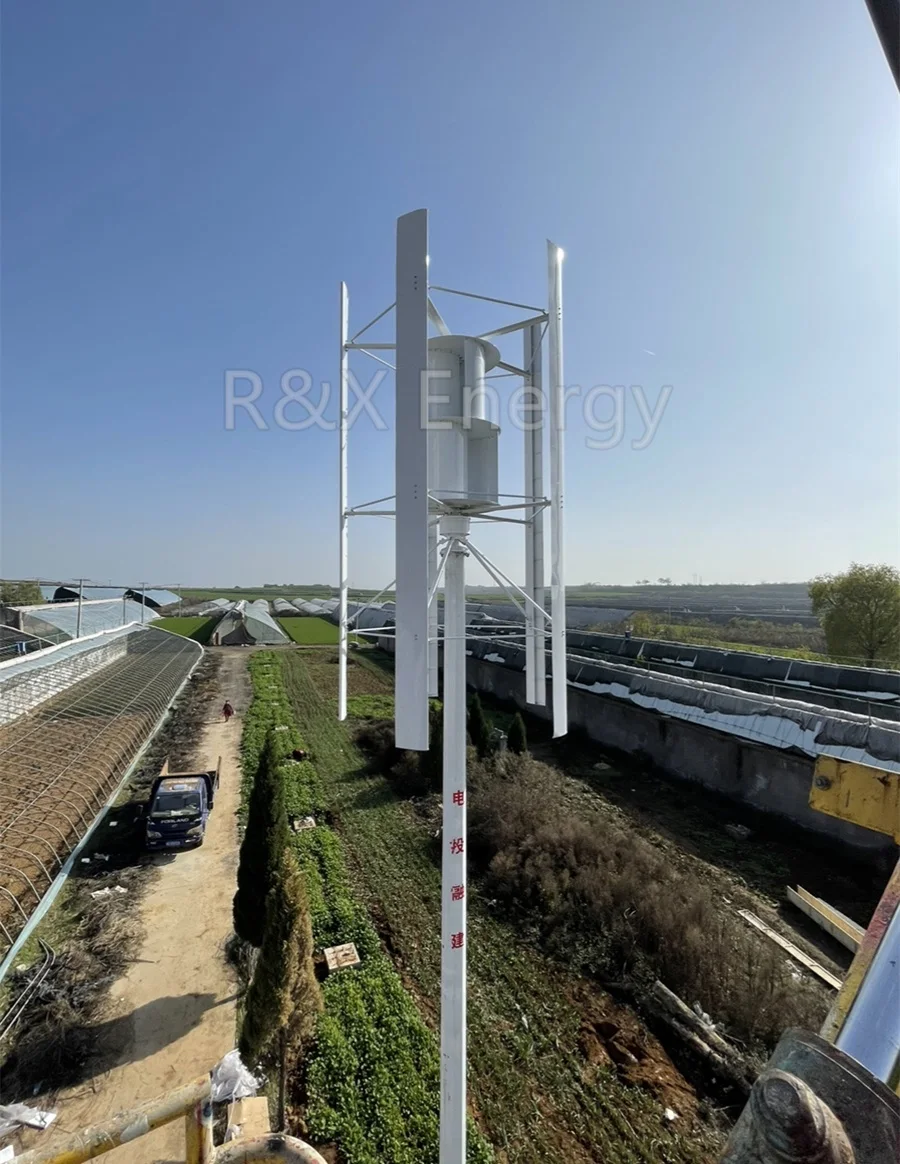

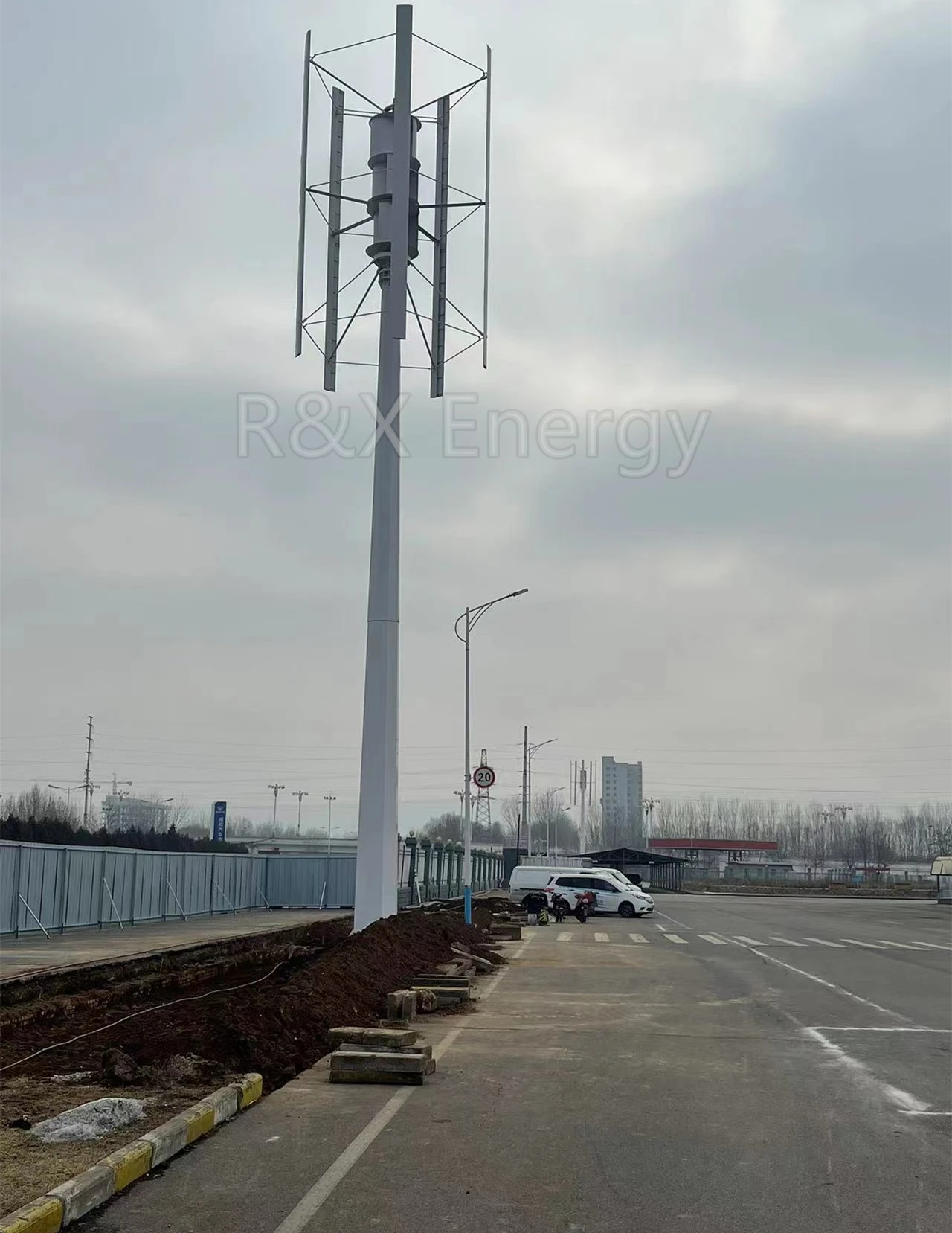

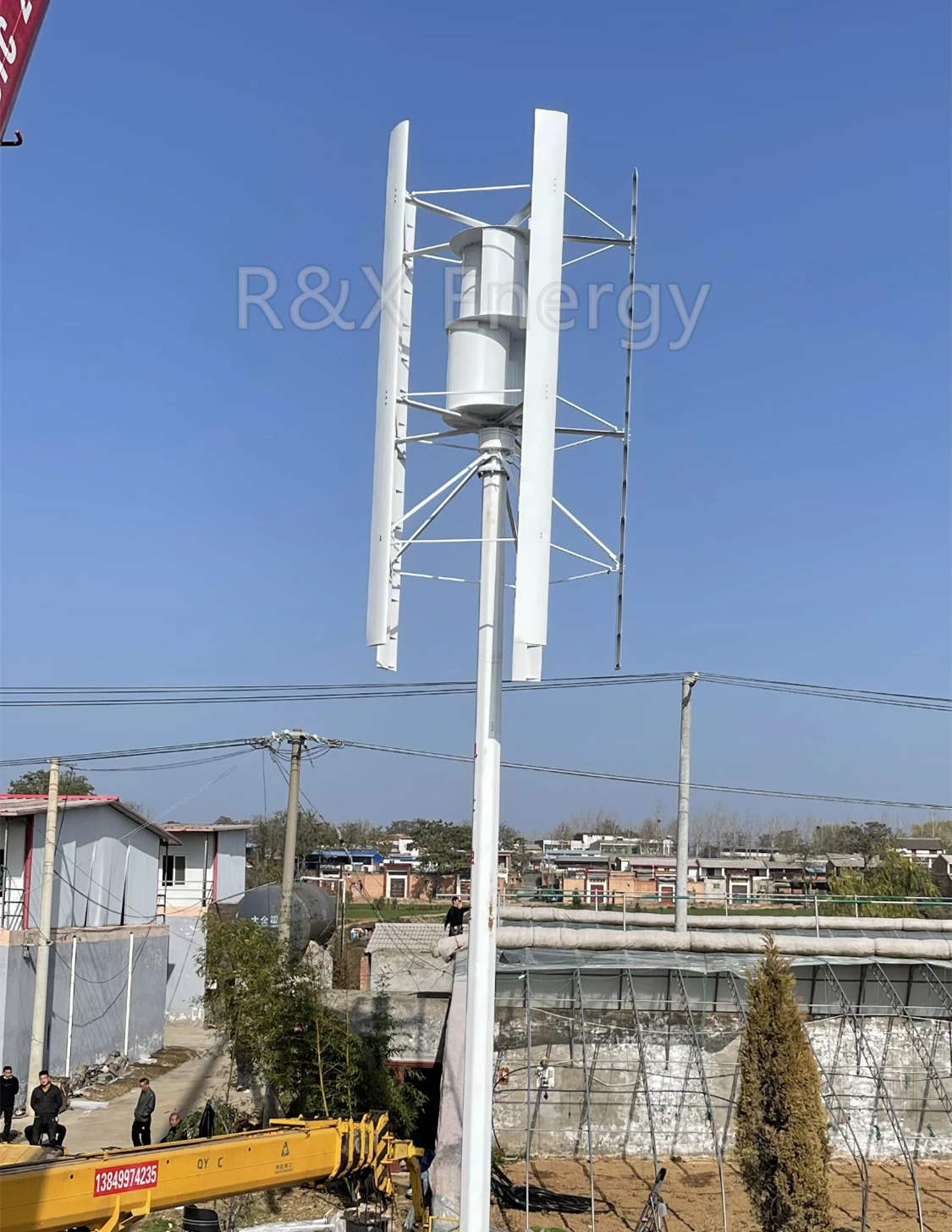

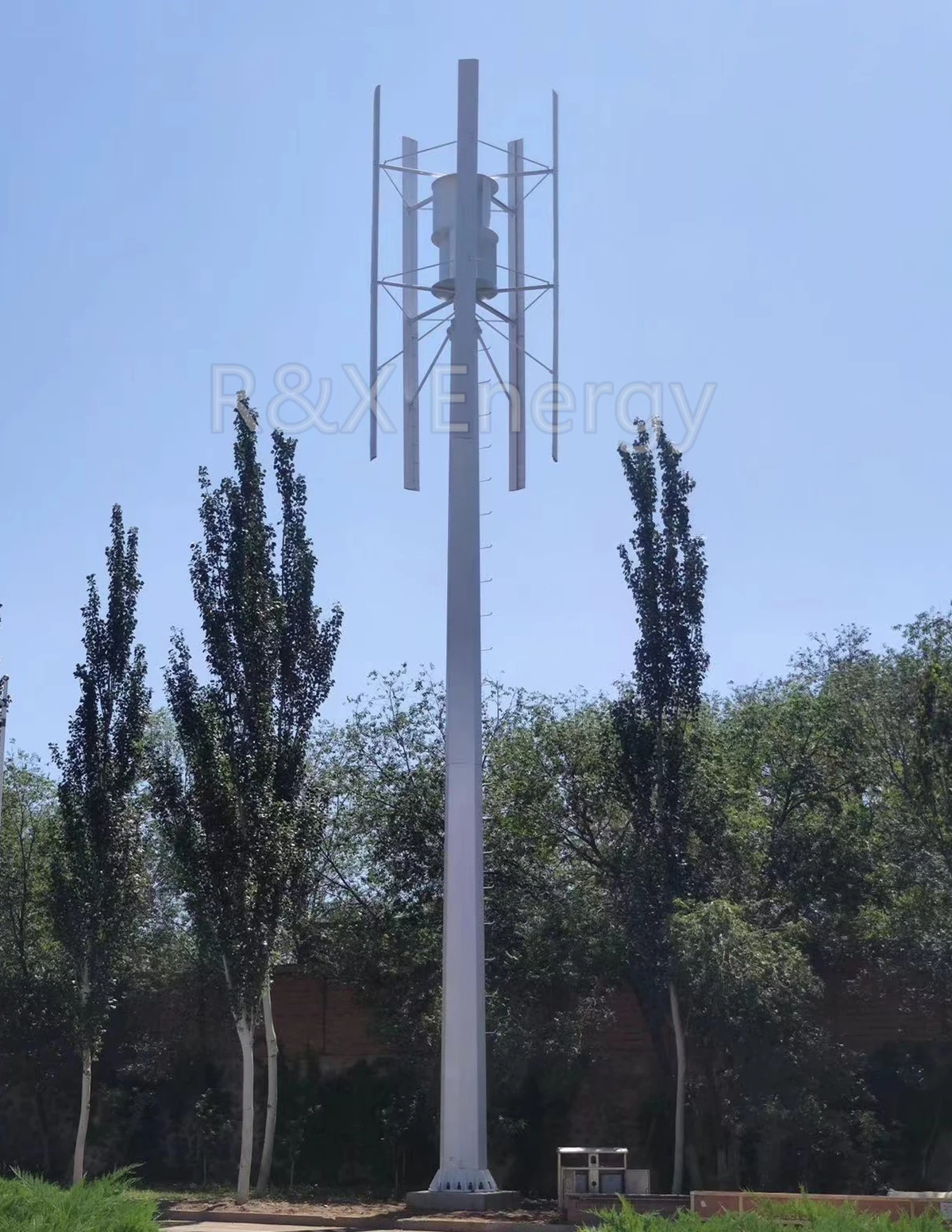

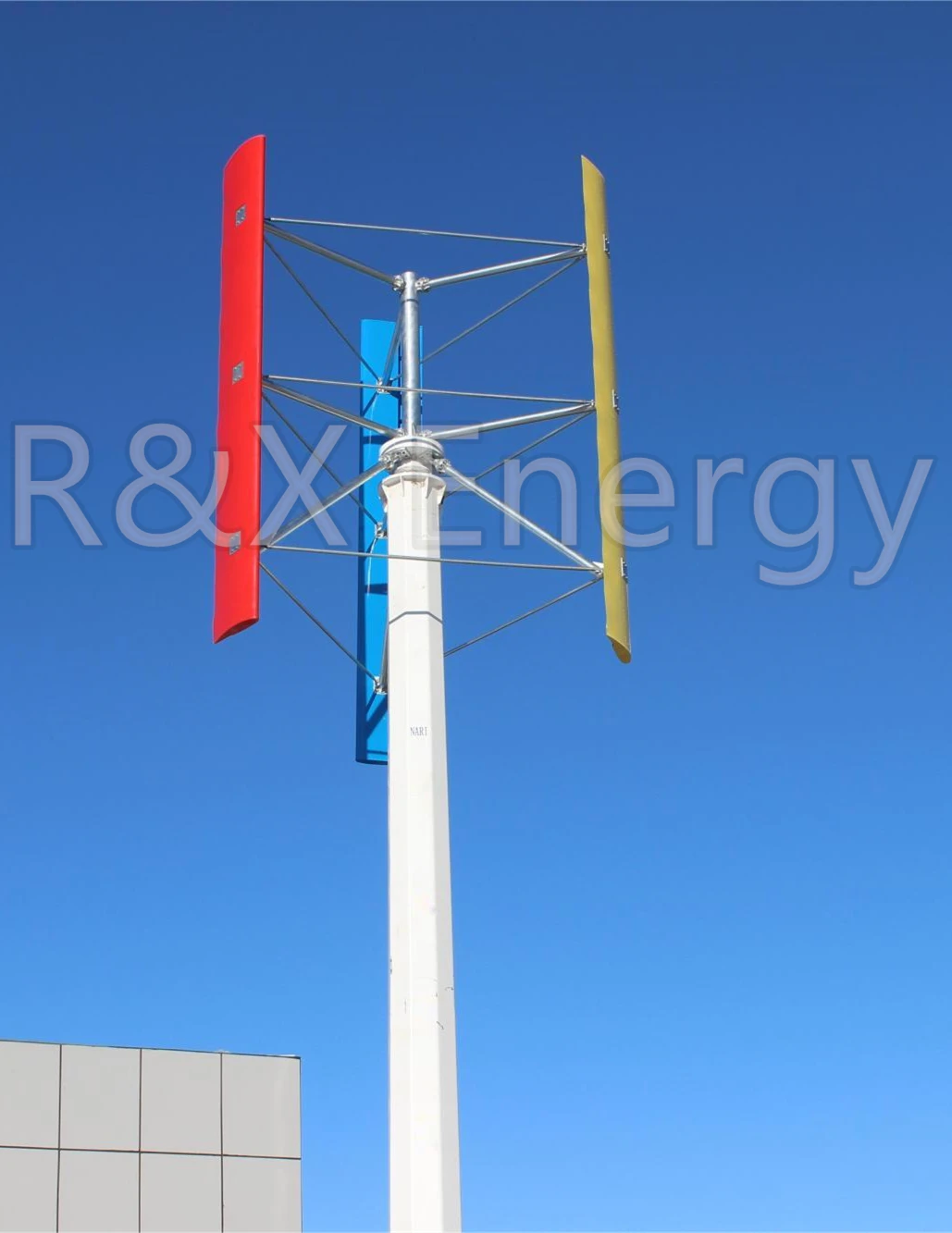

Details Images

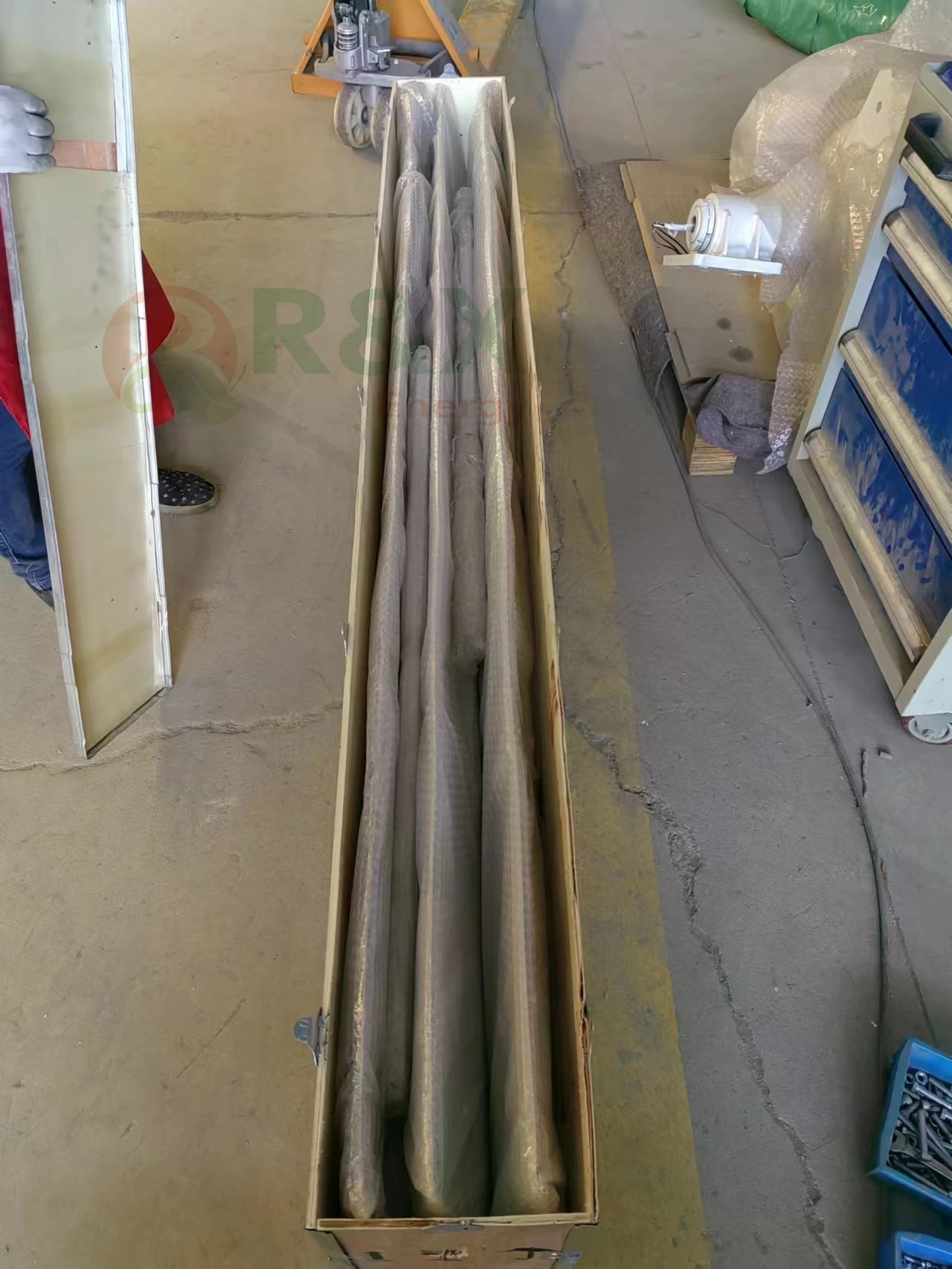

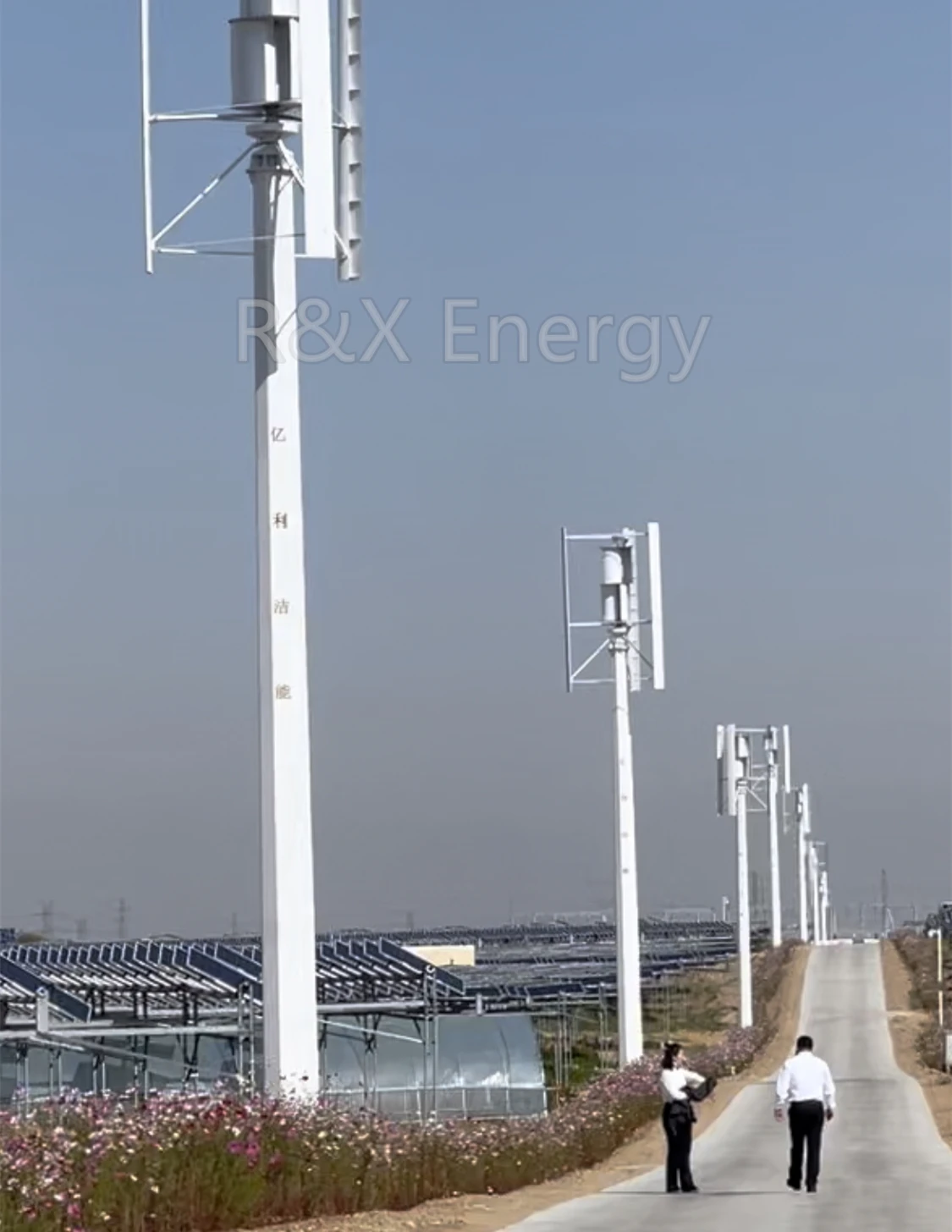

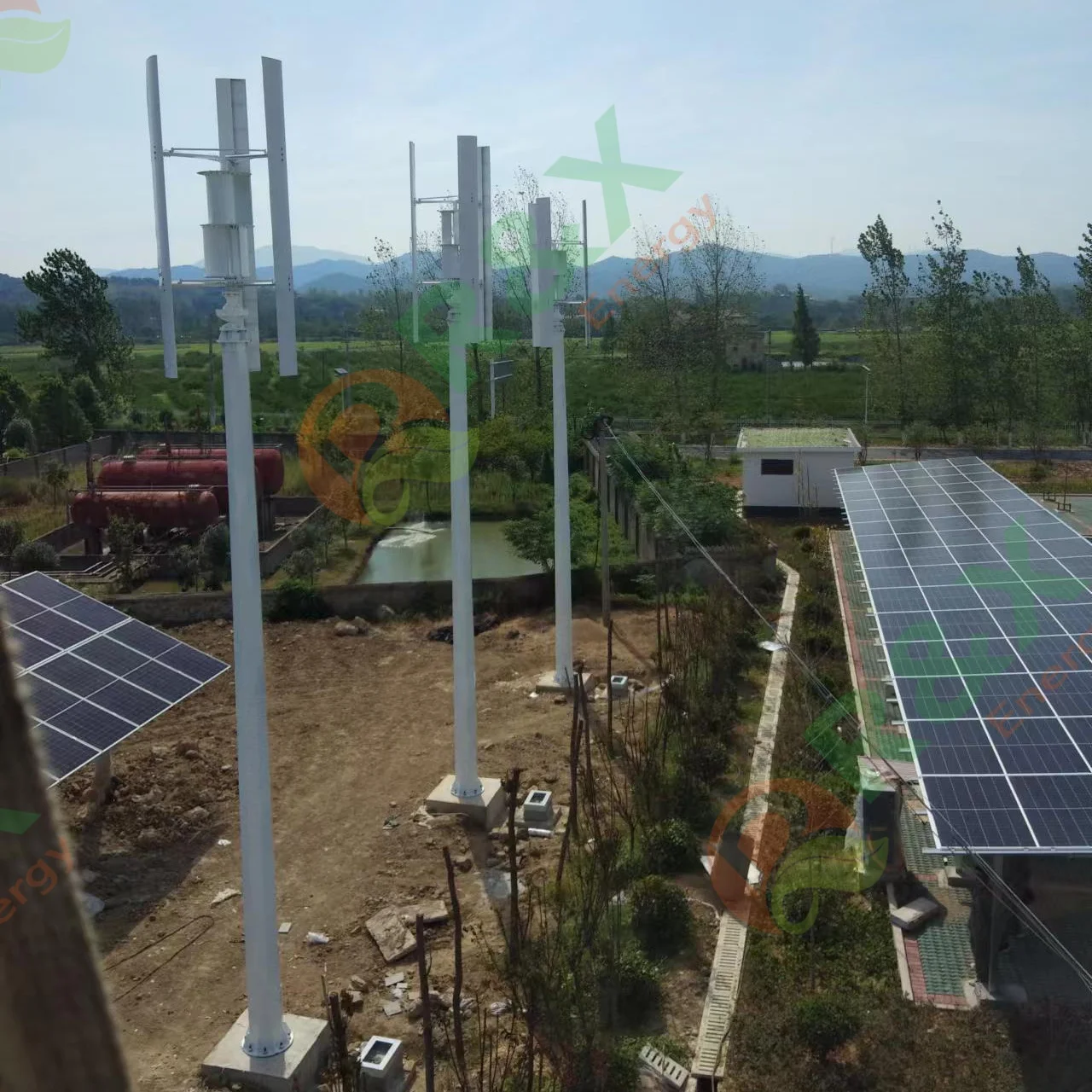

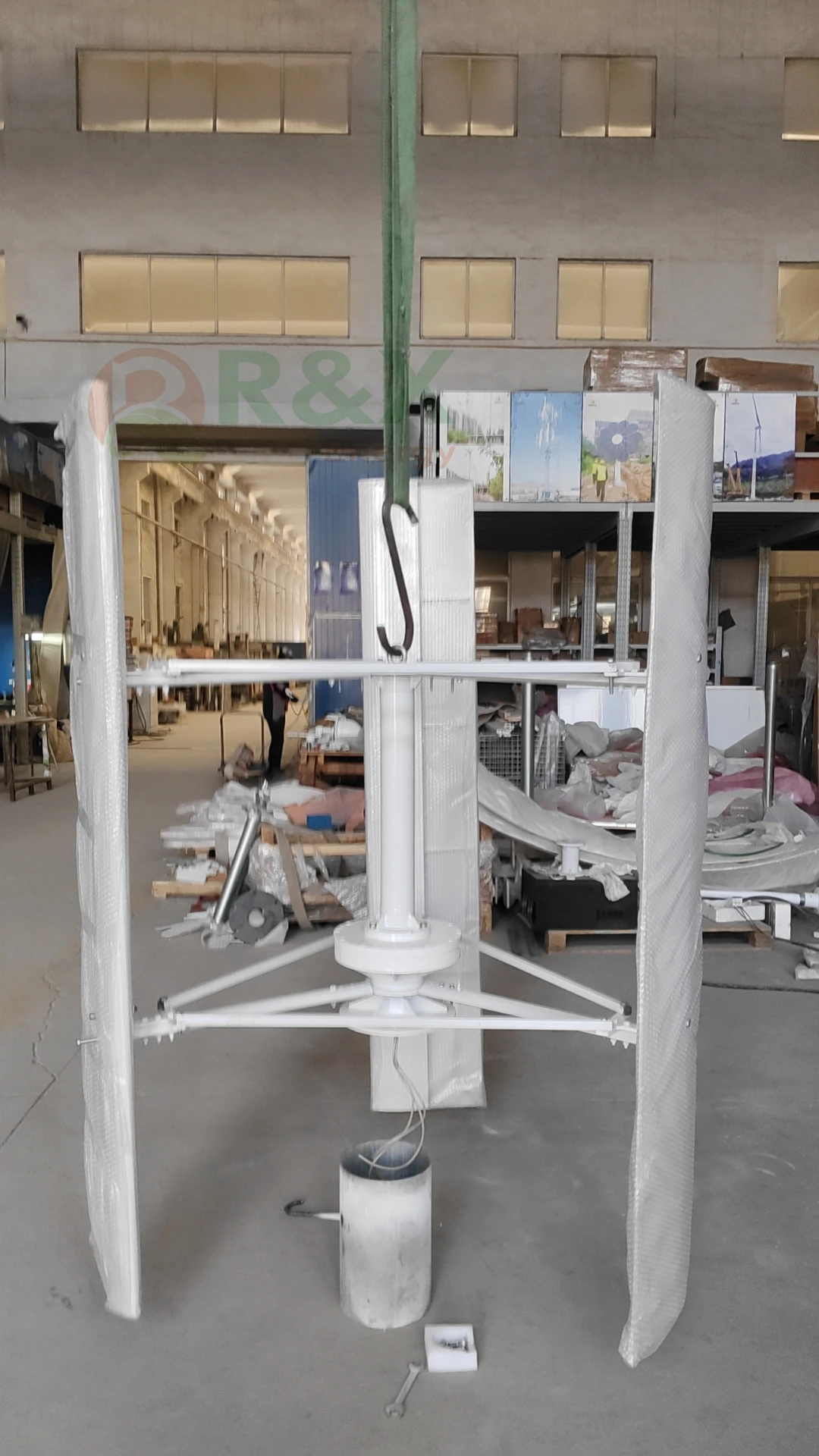

Workshop Photos

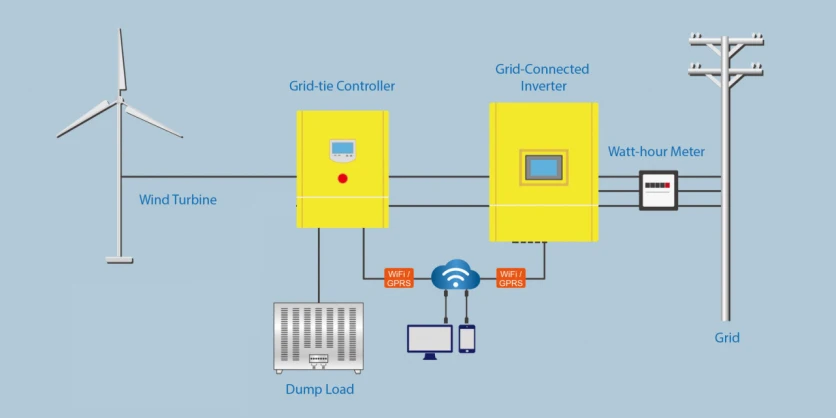

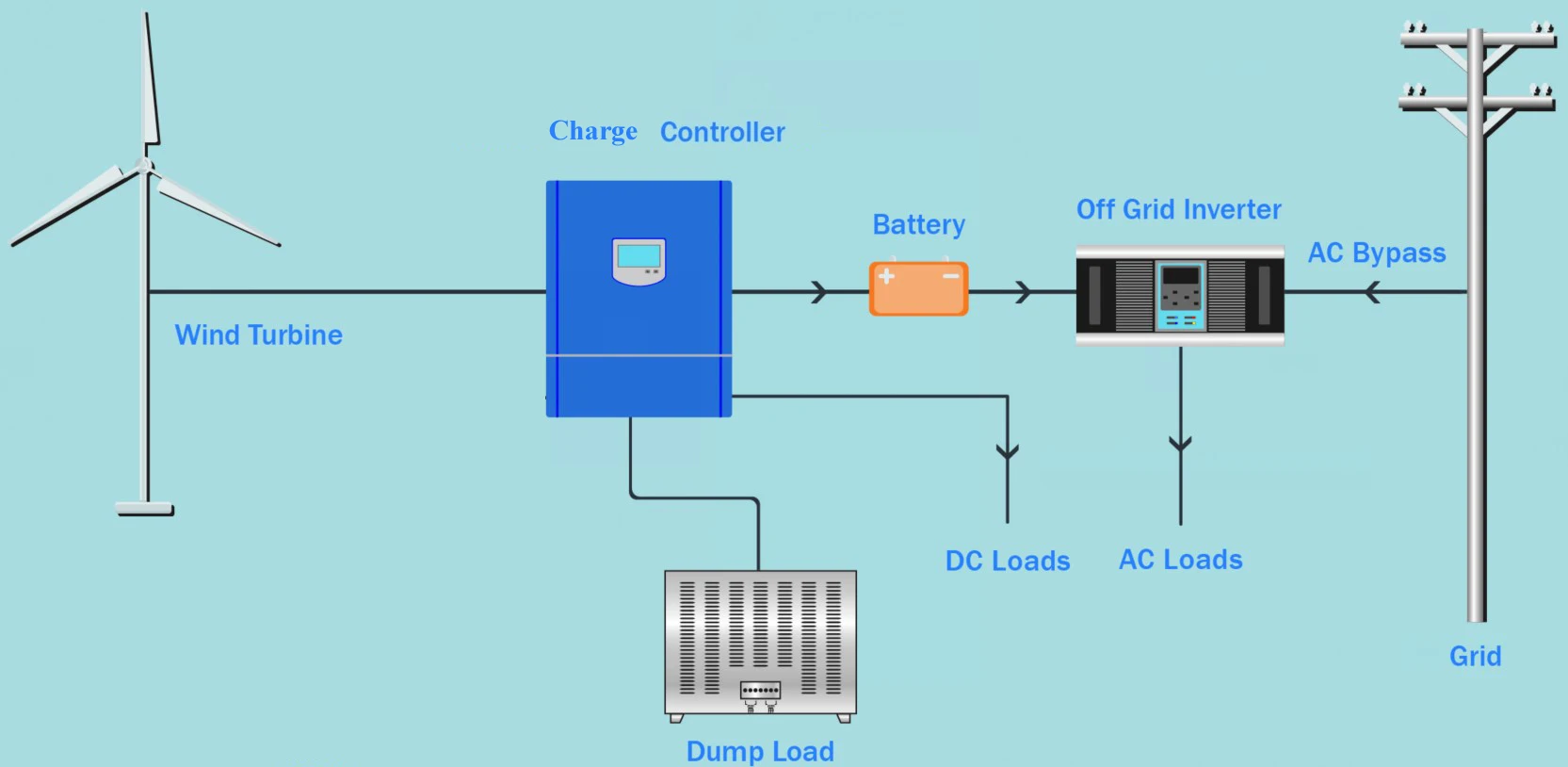

Wiring Diagram
