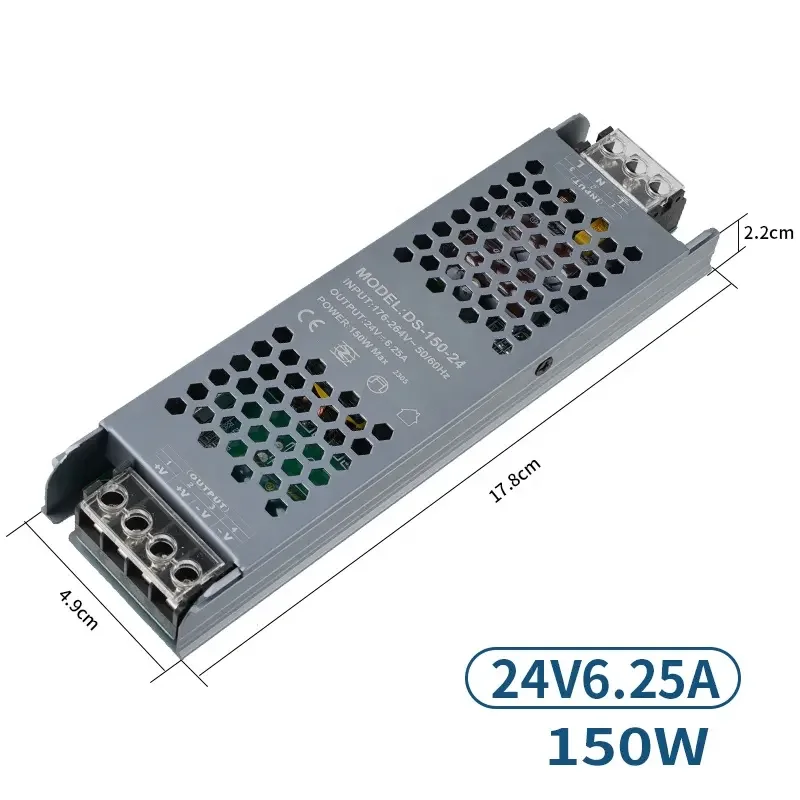

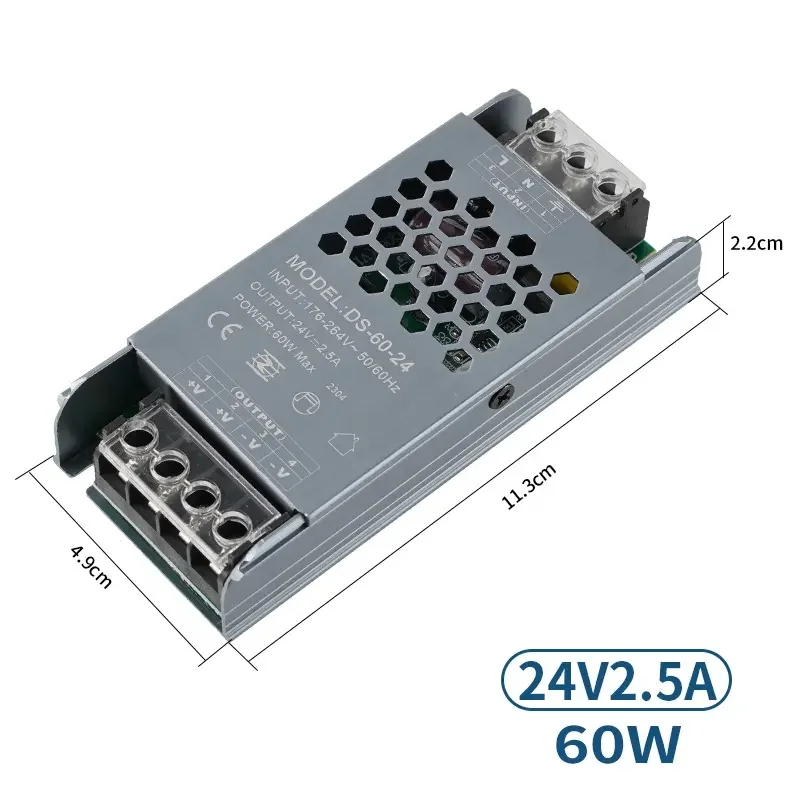

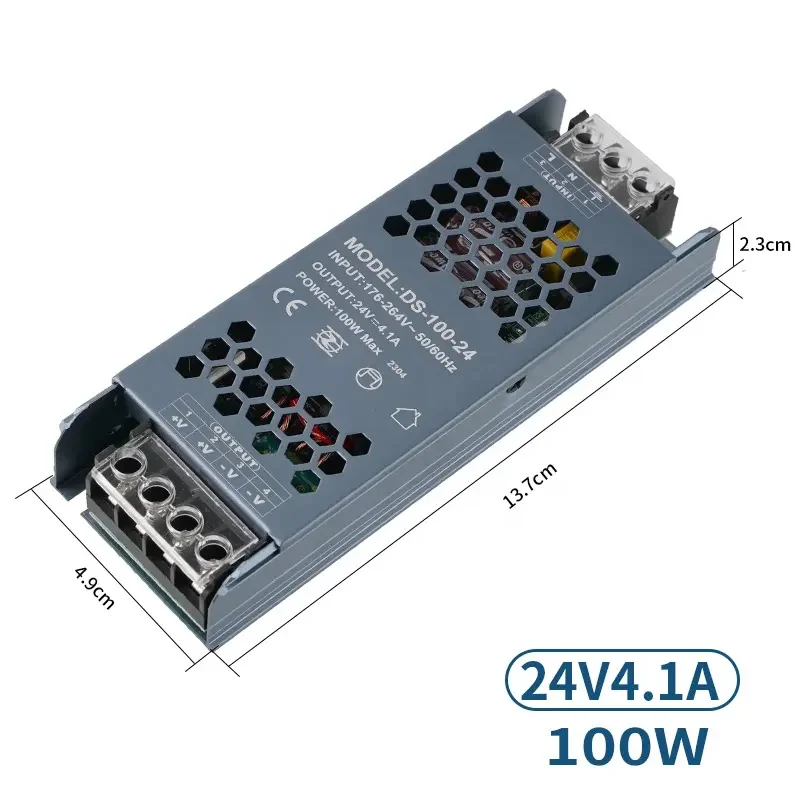

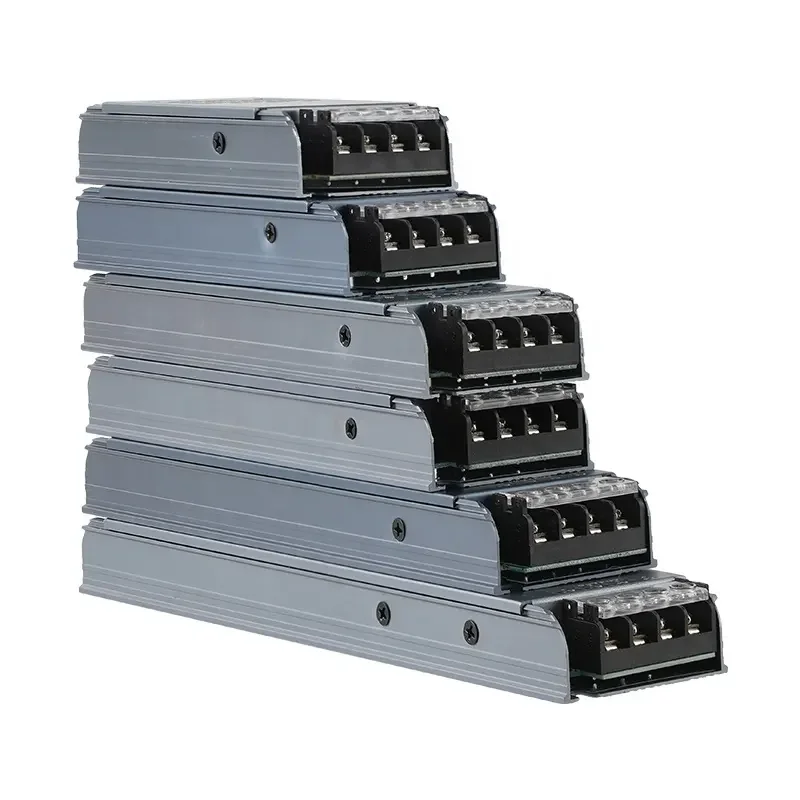

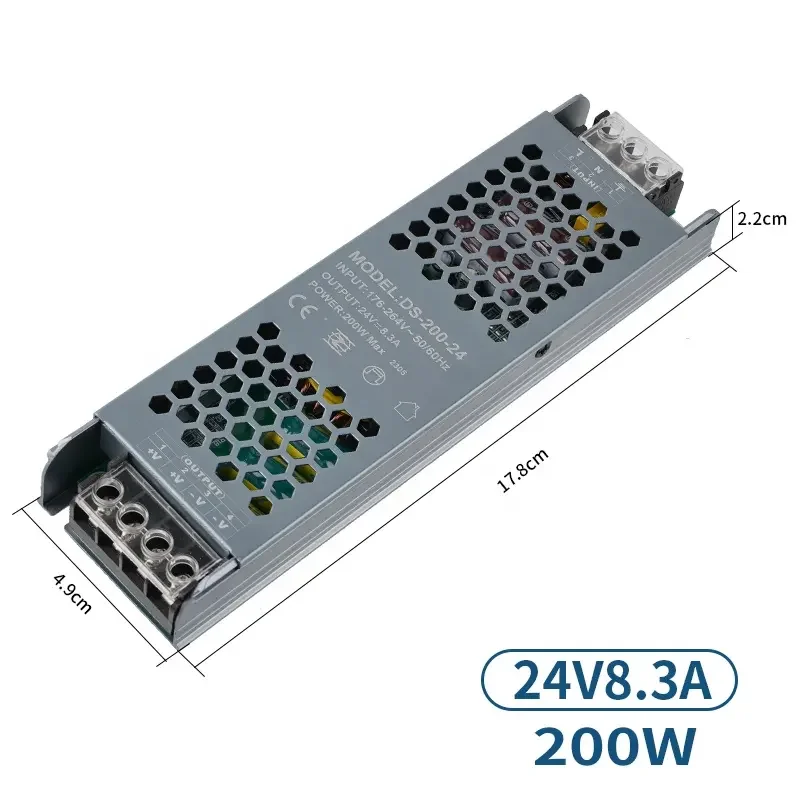

Ultra Thin Shell AC DC SMPS 12V 24V 60W 100W 150W 200W 250W 300W 400W Constant Voltage Power LED Switching Power Supply Driver
- Category: >>>
- Supplier: Shenzhen Hopeful Technology Co. Limited
Share on (1601126563805):
Product Overview
Description
Product Description
Product Name | Ultra Thin Power Supply |
Input Voltage: | AC190-240V or AC110-240V |
Output Voltage: | DC12V/DC24V |
IP Rate | IP20 Indoor Use |
Wattage | 60W / 100W / 150W / 200W / 300W / 400W |
1. Universal switching mode power supply. Input: AC 110V~ 220V, 50 / 60Hz ; Output: DC 12V, Max 5A 60W. Two output ports. Each
port outputs 0~5A automatically, 5A max in total for 2 ports. The default output voltage is 12V, but it can be regulated by 10%,
from 10.8V to 13.2V.2. It can supply with all currents less than 5A, such as 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 4.5A, 5A. For example, if your device
draws 3.8A, then 3.8A will be supplied. If draws more than 5A, only 5A will be supplied and power supply will be damaged soon.
NEVER OVERLOAD !
3. Certified by FCC CE . We focus on producing high quality power transformers. Automatically over-current cut-off, over-voltage
cut-off, over -temperature cut-off, short circuit protection. Low noise, no spontaneous combustion, no explosion, no fire hazard,
stable output, safe to use.
4. It is widely use to driving 12V LED strip light, flood light, commercial lighting project, wireless router, ADSL cats, HUB,
home security cameras, audio/ video devices, 3D printer, CCTV DVR NVR Surveillance System, LCD/LED monitor screen, webcam router,
speaker or other 12V devices less than 60W.
Parameter:Input: AC 110V/220V,50/60Hz Output Voltage: DC 12V ( Regulated by 10% ) Output Current: Max 5A Output Wattage:Max 60W
Size: 11cm/4.3in x 7.8cm/3.1in x 3.6cm/1.4in Material:aluminum, electronic components Safety Compliance: FCC / CE Fix Screw Hole
Diameter: 2.5mm (0.1inch) Working temperature: -10°C to 60 °C Environmental humidity: 10%-95% Weight: 0.44 lb / 200gPackage
included:1x 12V 5A power supply (power cord is not included)Kindly note:It comes without installation instruction, power cord, on/off switch and screws. Professional installation of licensed
electrician is highly recommended. High voltage inside, NEVER remove the cover. Not waterproof, indoor use only. Make sure your
device match the 12V voltage and wattage less than 60W. Please don’t run it overload. We recommend you to use this 12V 5A 60W
power supply to power devices less than 48W. Connection instruction L : AC Live Wire N : AC Neutral wire 〨: Ground +V:DC 12V+ -V:
DC 12V- +V ADJ: Adjust output voltage by 10%
port outputs 0~5A automatically, 5A max in total for 2 ports. The default output voltage is 12V, but it can be regulated by 10%,
from 10.8V to 13.2V.2. It can supply with all currents less than 5A, such as 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 4.5A, 5A. For example, if your device
draws 3.8A, then 3.8A will be supplied. If draws more than 5A, only 5A will be supplied and power supply will be damaged soon.
NEVER OVERLOAD !
3. Certified by FCC CE . We focus on producing high quality power transformers. Automatically over-current cut-off, over-voltage
cut-off, over -temperature cut-off, short circuit protection. Low noise, no spontaneous combustion, no explosion, no fire hazard,
stable output, safe to use.
4. It is widely use to driving 12V LED strip light, flood light, commercial lighting project, wireless router, ADSL cats, HUB,
home security cameras, audio/ video devices, 3D printer, CCTV DVR NVR Surveillance System, LCD/LED monitor screen, webcam router,
speaker or other 12V devices less than 60W.
Parameter:Input: AC 110V/220V,50/60Hz Output Voltage: DC 12V ( Regulated by 10% ) Output Current: Max 5A Output Wattage:Max 60W
Size: 11cm/4.3in x 7.8cm/3.1in x 3.6cm/1.4in Material:aluminum, electronic components Safety Compliance: FCC / CE Fix Screw Hole
Diameter: 2.5mm (0.1inch) Working temperature: -10°C to 60 °C Environmental humidity: 10%-95% Weight: 0.44 lb / 200gPackage
included:1x 12V 5A power supply (power cord is not included)Kindly note:It comes without installation instruction, power cord, on/off switch and screws. Professional installation of licensed
electrician is highly recommended. High voltage inside, NEVER remove the cover. Not waterproof, indoor use only. Make sure your
device match the 12V voltage and wattage less than 60W. Please don’t run it overload. We recommend you to use this 12V 5A 60W
power supply to power devices less than 48W. Connection instruction L : AC Live Wire N : AC Neutral wire 〨: Ground +V:DC 12V+ -V:
DC 12V- +V ADJ: Adjust output voltage by 10%
Details Images
Packing&Shipping
Customized packing Box.
Strong packing carton.
Different shipping way for option: By Express, By air, By sear, By Train, By Truck...
Company Introduction
Shenzhen Hopeful Technology Co., Ltd is a manufacturer of Consumer electronics,such as Smart watches, Earphone&Headphone, USB Flash Drive, Video brochure cards and LED Strip light with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Retail and Wholesales.
We can provide ODM & OEM services.Our manufacturing strictly follows ISO 9001 quality management system standards, equipped with semi-automatic production lines. Certified with CE, RoHS, FCC, ISO, and other certificates issued by the SGS organization, our products are sold to more than 30 countries and regions around the world. Our export percentage is over 90%. They are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
1.What is the MOQ?
A: Just 10pcs only if without logo.
2..How long for shipping?
A: The fastest shipping can be 4-6days.
2..How long for shipping?
A: The fastest shipping can be 4-6days.
3.Do you accept OEM?
A: Yes, we accept OEM for customized logo on product and packing box.
A: Yes, we accept OEM for customized logo on product and packing box.
4.What is the lead time?
A: We have enough stock to ship out within 48hours, We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your esignated forwarder.
A: We have enough stock to ship out within 48hours, We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your esignated forwarder.
5.What is the delivery way?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your agent.
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your agent.
6.What payment do you support?
A: We support T/T Bank transfter, Western union, Trade Assurance.
