Hot Selling LPLT Filter Press for Measuring Filtration/Model SD4B
- Category: >>>
- Supplier: Qingdao Haitongda Special Instrument Co. Ltd.
Share on (1601126646901):
Product Overview
Description
Detailed Images

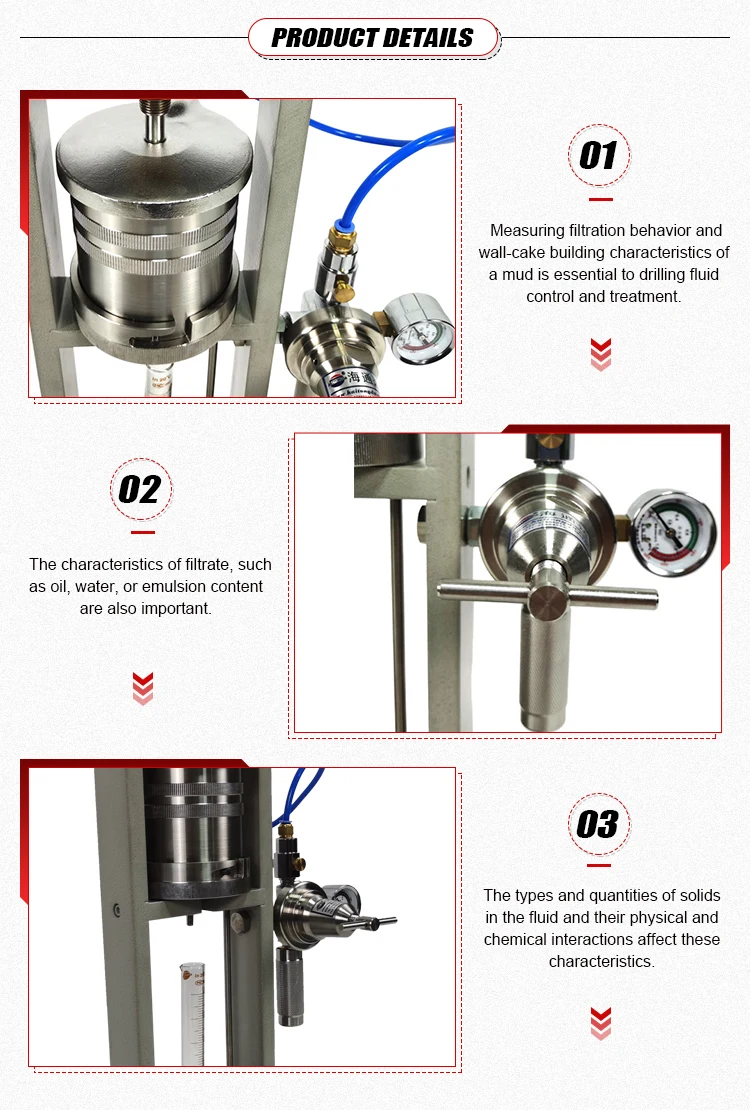

Technical Specification:Measuring filtration behavior and wall-cake building characteristics of a mud is essential to drilling fluid control and treatment. The characteristics of filtrate, such as oil, water, or
emulsion content are also important. The types and quantities of
solids in the fluid and their physical and chemical interactions
affect these characteristics. Temperature and pressure affect the
physical and chemical interactions. Performing tests at both low
pressure/low temperature and high pressure/high temperature is
necessary, and these testing conditions require different

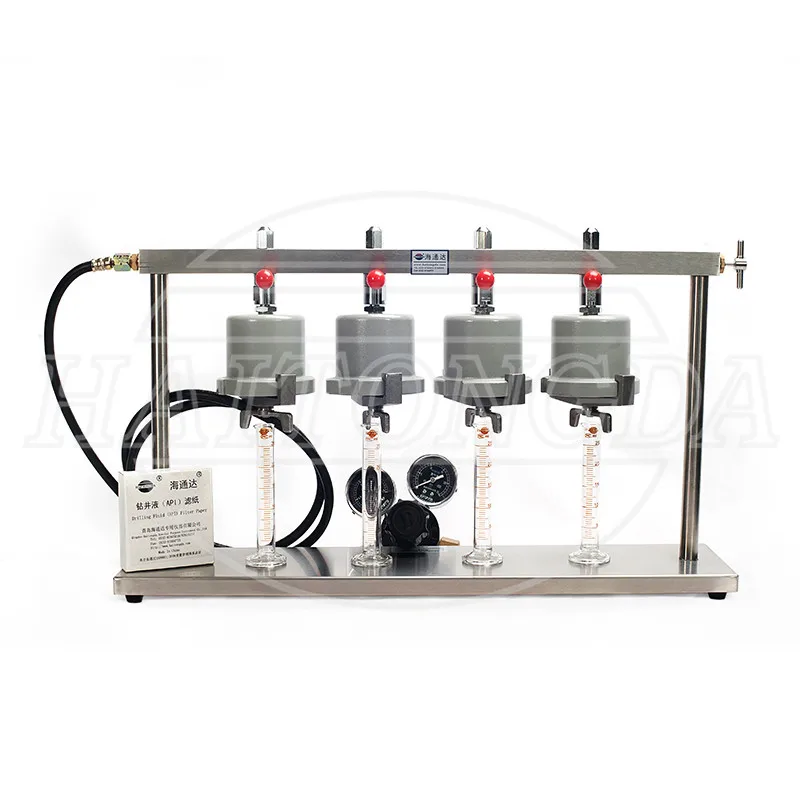

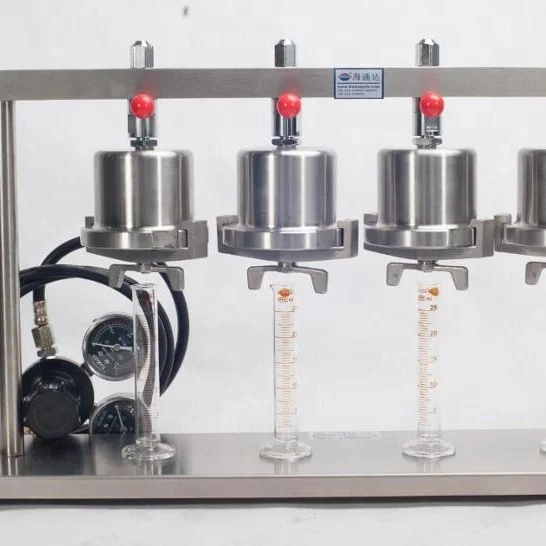

equipment and techniques. Model SD4B Multilink Low Pressure Filter Press is the most effective means of determining filtration properties of drilling fluids and cement slurries. All Filter Press assemblies consist of these items:
* Mud reservoir mounted in a frame
* Pressure assembly and regulator
* Filter paper
* 25 ml graduated cylinder
The filter press sample cell is constructed of stainless steel. The
filtering medium is filter paper that has been especially hardened
for filtrate testing.
Pressure sources deliver the required pressure, 100 ± 5 psi (690 ±
35 kPa) and can be any of the following:
emulsion content are also important. The types and quantities of
solids in the fluid and their physical and chemical interactions
affect these characteristics. Temperature and pressure affect the
physical and chemical interactions. Performing tests at both low
pressure/low temperature and high pressure/high temperature is
necessary, and these testing conditions require different
equipment and techniques. Model SD4B Multilink Low Pressure Filter Press is the most effective means of determining filtration properties of drilling fluids and cement slurries. All Filter Press assemblies consist of these items:
* Mud reservoir mounted in a frame
* Pressure assembly and regulator
* Filter paper
* 25 ml graduated cylinder
The filter press sample cell is constructed of stainless steel. The
filtering medium is filter paper that has been especially hardened
for filtrate testing.
Pressure sources deliver the required pressure, 100 ± 5 psi (690 ±
35 kPa) and can be any of the following:
No. | Project | Model |
SD4B | ||
1 | Work stress | 0.69MPa |
2 | Maximum cup pressure | 1MPa |
3 | Maximum drilling fluid injection | 330ml |
4 | Effective filtration loss area | 45.6cm2 |
5 | Net weight / Gross weight | 13.76kg/24.98kg |
6 | Overall dimensions | 677×420×270mm |
7 | Packing size | 720×445×345mm |
Product Description
Model | Name | Configuration |
SD4B | Low pressure filter press | A set of stainless steel drilling fluid cups |
Type Specification
