Automatic Gate Opener Electric Lock
US $110.00-$156.00
Jielong Electric sliding door opener Automatic garage opener smart wifi smart garage door opener door motor openerdoor
- Category: >>>
- Supplier: Jielong Shutter Motors Ltd.
Share on (1601126687139):
Product Overview
Description
Best selling sliding gate motor
Product Description
Widely used in openning and closing the rolling shutter door of supermarket,
storehouse, garages,cinema, hotel, factory,docks, airports, etc..
Performance Characteristics:
1. High capacities of 800kg, 1000Kg, 1500KG, 2000KG and 3000KG, 4500KG,6500KG and a rapid model of
1000KG available
2. DC motor with extremely low noise and heat emission, highly adapted to frequent
use scenarios, a better choice over oil-immersed motors
3. 24V voltage ensures high safety
4. Available for on-grid and off-grid use and mixed use
5. With internal housing for 5Ah 24V Li-ion Battery (Battery optional)
6. Optional external battery case for capacity expansion for both Li battery and lead
acid battery

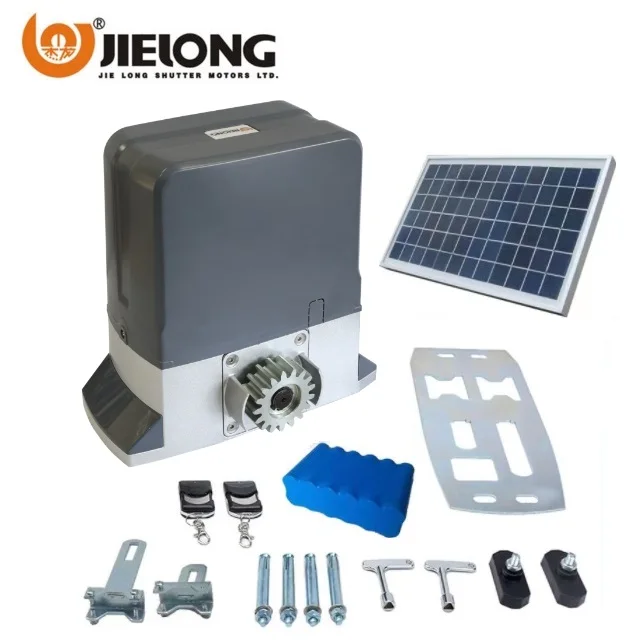

7. Capable of solar panel connection, can work with AC power input synchronously
8. Complete function settings including resistance rebound, soft start&stop,
pedestrian passage, master-slave mode, etc.
9. Integral interfaces for external devices such as photocell sensor, loop, manual
button, alram lamp,etc.
10. With onboard socket for standalone bluetooth module

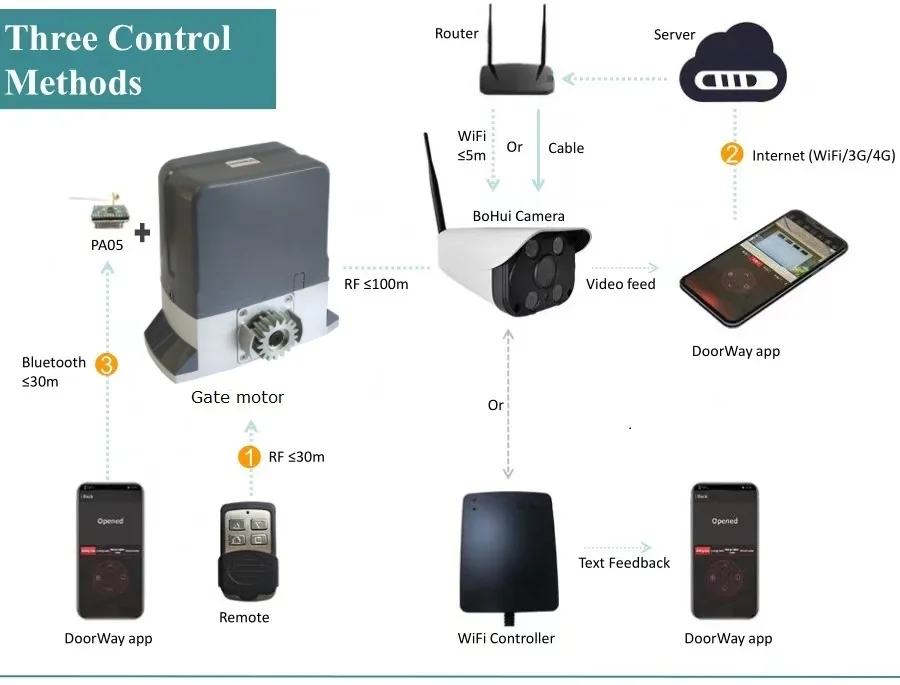

11. Fully compatible with smartphone door controlsystem
JL sliding gate opener motor specifications and technical parameters:
| Model No. | JL-SD800 | JL-SD1000 | JL-SD1500 | JL-SDH-18M | JL-SD2000 | JL-SD3000 | JL-SD3500 | JL-SD4500 | JL-SD6500 |
| Capacity | 800KG | 1000KG | 1500KG | 800KG | 2000KG | 3000KG | 3500KG | 4500KG | 6500KG |
| Input Voltage | AC 220/110V | AC 220/110V | AC 220/110V | AC 220/110V | AC 220/110V | AC 220/110V | AC 220/110V | AC 220/110V | AC 220/110V |
| Output Voltage | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V |
| Rated Power | 110W | 130W | 180W | 250W | 280W | 330W | 600W | 800W | 1200W |
| Output Torque | 19N.m | 21N.m | 29N.m | 30N.m | 47N.m | 68N.m | 72N.m | 95N.m | 148N.m |
| Rotation Speed | 1500rpm | 1500rpm | 1500rpm | 2500rpm | 1500rpm | 1500rpm | 1500rpm | 1500rpm | 1500rpm |
| Gate Speed | 12m/min | 12m/min | 12m/min | 18m/min | 12m/min | 12m/min | 12m/min | 12m/min | 12m/min |
| Limit Switch | Spring/Magnetic | Spring/Magnetic | Spring/Magnetic | Spring/Magnetic | Spring/Magnetic | Spring/Magnetic | Spring/Magnetic | Spring/Magnetic | Spring/Magnetic |
| (NC/NO) | (NC/NO) | (NC/NO) | (NC/NO) | (NC/NO) | (NC/NO) | (NC/NO) | (NC/NO) | (NC/NO) | |
| Noise | ≤55dB | ≤55dB | ≤55dB | ≤55dB | ≤55dB | ≤55dB | ≤55dB | ≤55dB | ≤55dB |
| Temperature | -45℃~+75℃ | -45℃~+75℃ | -45℃~+75℃ | -45℃~+75℃ | -45℃~+75℃ | -45℃~+75℃ | -45℃~+75℃ | -45℃~+75℃ | -45℃~+75℃ |
JIELONG--the chief editor of Chinese Electric Roller Door Motor industrial standard.
JIELONG--the leading manufacturer in Electric Roller Door Motor industry, with more than 25 years' history.
We have made lots of OEM & ODM items for customers all around the world.
We believe that you will satisfied with our products and ourservice.
Welcome to visit our company! ^_^
| OPTIONAL DEVICES: |
