10 inch HD monitor quad view motion detect alarm car truck bus cars reversing image display dash camera system
- Category: >>>
- Supplier: Dongguan Forescene Information Technology Co. Ltd
Share on (1601126764032):
Product Overview
Description
Product Description
YDV05L10E-4701+4741 set include

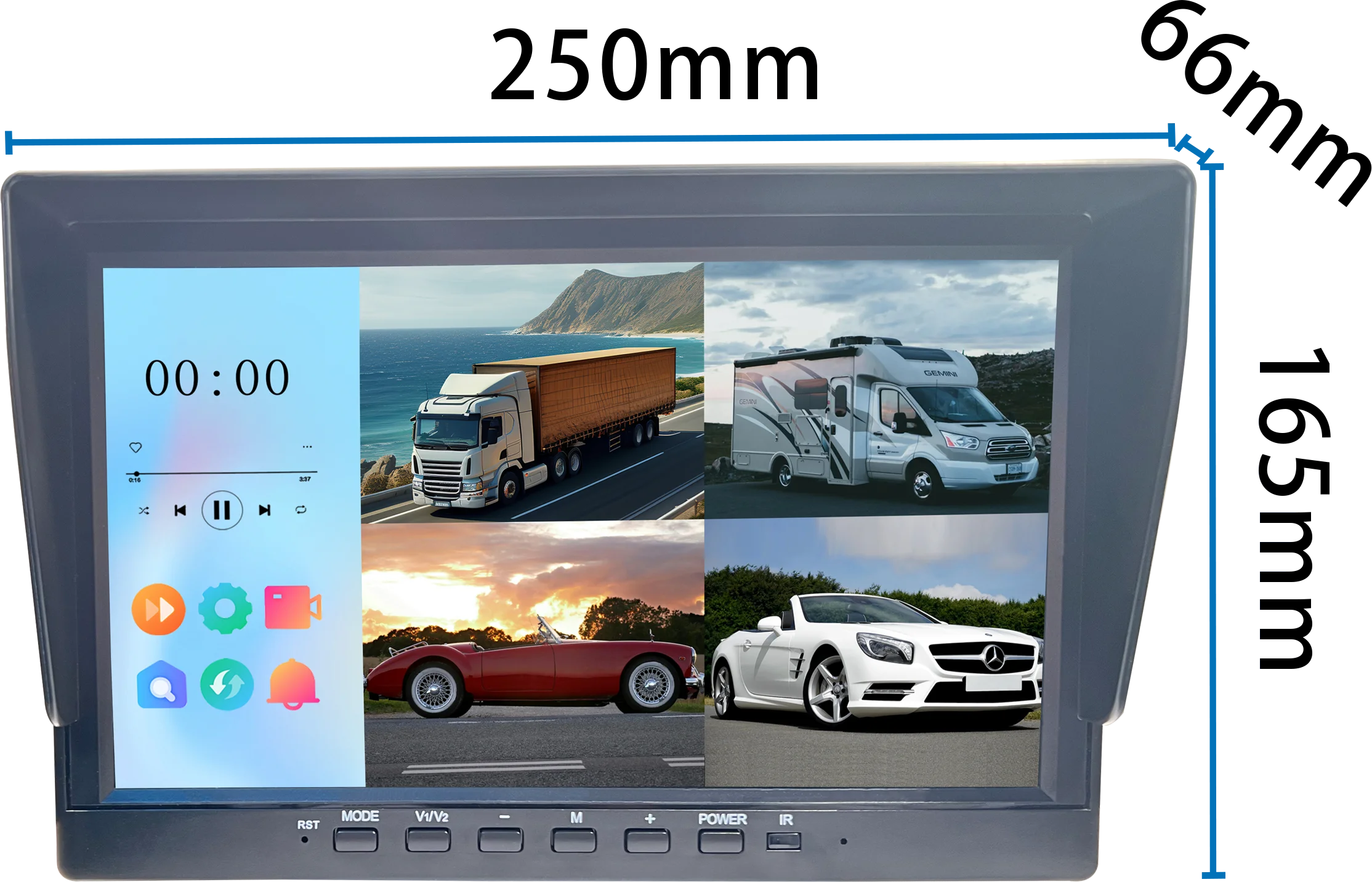

1)YDV05L10E monitor*1
2)YJ-4701 camera*2
3)YJ-4741 camera*2
4)5m cable*2
5)10 cable*2
6)Remote controller*1
7)64G TF card*1

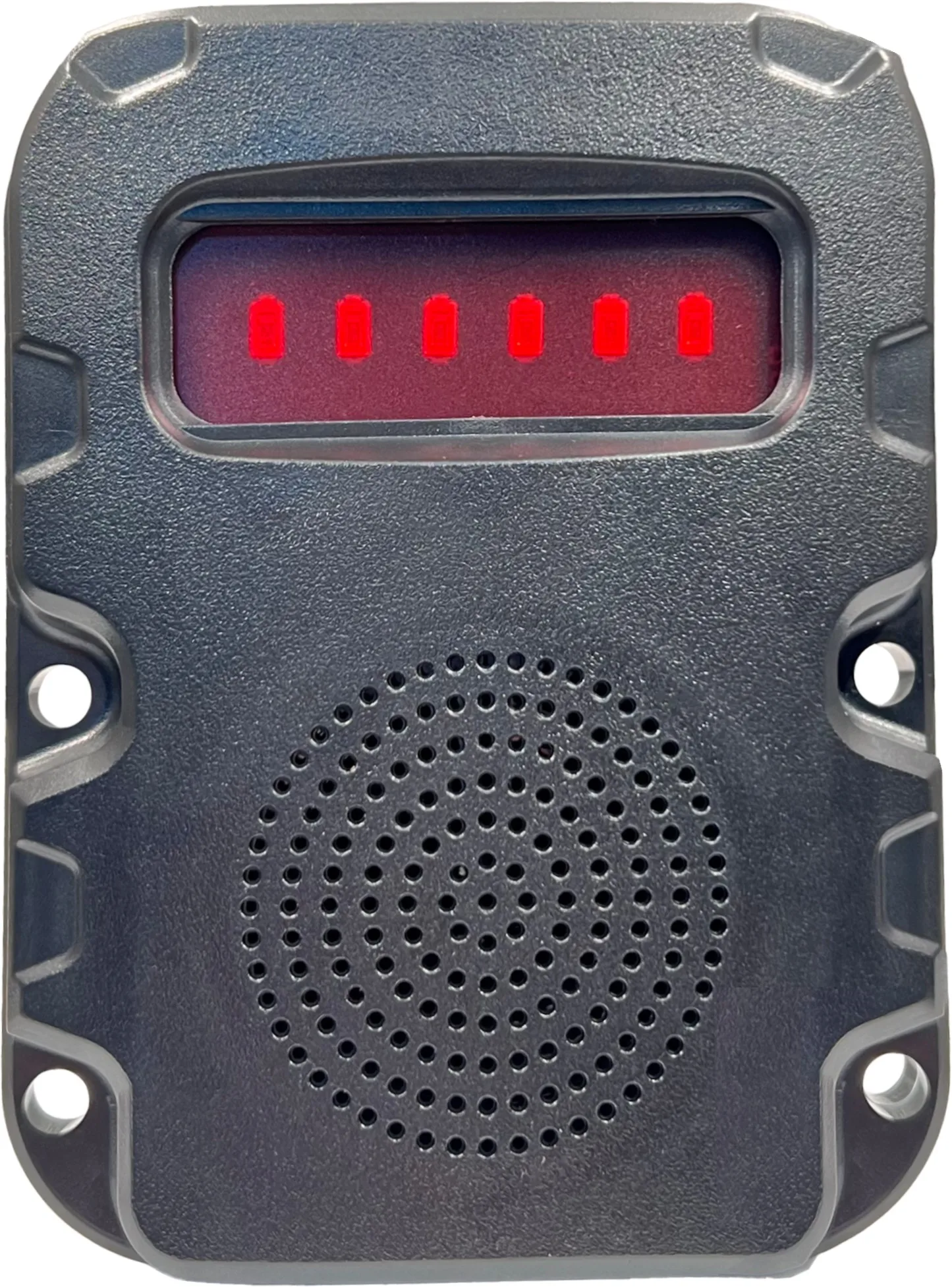

8)Sound and light alarm*1
Camera specifications

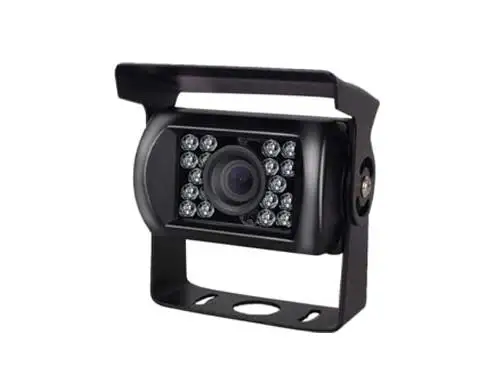

YJ4701
| item | part | specification |
| camera | cover material | aluminum alloy surface matte black |
| waterproof | over IP67 | |
| weight | 220g | |
| box size | 10*10*9cm | |
| PCB board | sensor/DSP | sensor:1/2.7 ISP:2MP |
| resolution | AHD720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F2.0(IR ON) | |
| signal to noise rate | more than 48DB | |
| wide dynamic | wide dynamic 82db | |
| synchronization method | inner synchronization | |
| video output | line by line AHD-720P | |
| gain control | Auto | |
| Power consumption | less than 120mA@DC12V (Infrared off) less than 300mA@DC12V (Infrared on) | |
| Environmental humidity | 30%-85% | |
| working temperature | -20℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| Lens | Focal length | 2.8mm |
| material | 4G glass | |
| aperture | F2.0 | |
| pixel | 2MP | |
| light board | LED | 18 pcs 850 IR,scattering 85° |
| Power consumption | 190ma(12V) |

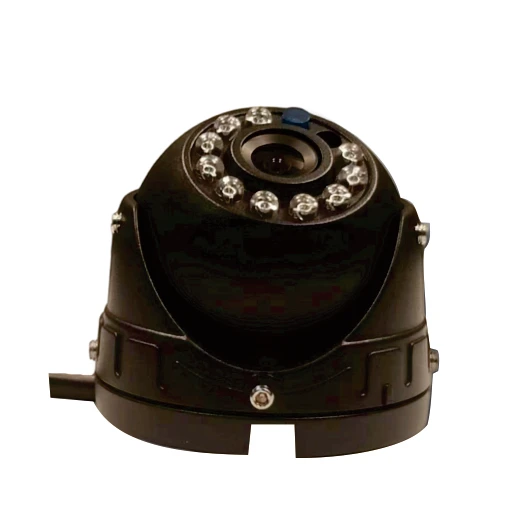

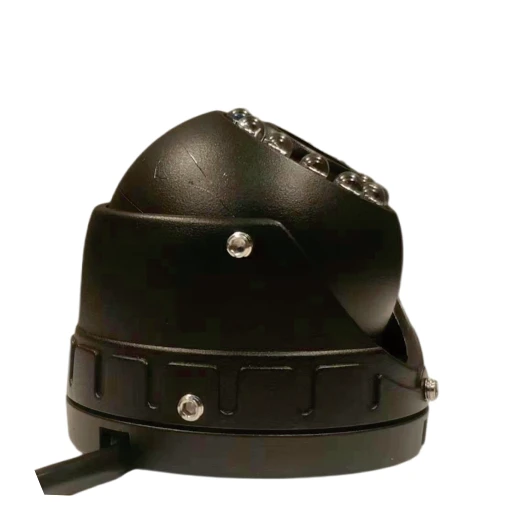

YJ4741
| item | part | specification |
| camera | cover | aluminum alloy surface matte black,Φ60*56mm |
| waterproof | N/A | |
| weight | 220g | |
| box size | 10*10*9cm | |
| power supply | DC12V±0.5V | |
| Horizontal angle | 103°±5% | |
| Vertical angle | 59°±5% | |
| PCB board | sensor/DSP | 1/2.9 ISP:2MP |
| resolution | AHD 720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F1.2AGC ON,0LUX with IR | |
| audio | support | |
| day and night mode | High ambient illumination and 6Lux (± 2Lux) color mode, entering black and white mode below 6Lux (± 2Lux) | |
| synchronization method | inner synchronization | |
| video output | line by line AHD-720P | |
| gain control | auto | |
| consumption | less than 160mA | |
| working temperature | -30℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| lens | Focal length | 2.8mm |
| matrial | 4G glass | |
| aperture | F2.0 | |
| pixel | 2MP | |
| light board | LED | 10 pcs 850 IR,scattering 100° |
| Power consumption | 60mA(12V) |
