CE ETL FCC 12V 24V 48V 15W 30W 60W 100W 200W 360W 600W 1000W Constant Current led driver LED Strip Lighting dimmer power supply
- Category: >>>
- Supplier: Shenzhen Starwell Technology Co. Ltd.
Share on (1601126789420):
Product Overview
Description
CE ETL FCC 12V 24V 48V 15W 30W 60W 100W 200W 300W 600W 1000W Constant Current led driver LED Strip Lighting dimmer power supply:
As for TUYA Zigbee CCT Dimmable LED Driver, we have Zigbee and TUYA dimmable and color temperature tunable led driver for your choose. It is a lighting device that supports wireless communication through the Zigbee protocol and is compatible with the TUYA smart home system. It allows for remote control of both brightness and color temperature of the connected light fixtures. Users can adjust the lighting intensity and color according to their preferences through a smartphone app or voice commands. This power supply offers convenient and flexible control options, making it suitable for smart lighting applications in homes, offices, and other settings.
Our company sub brand: "AiDimming Electronics" offers the below series models for your selectioin:
PE-L12ZCA (12W), PE-L20ZCA (20W), PE-L30ZCA (30W), PE-L40ZCA (40W)
Features:
. Controlled by Tuya mobile app
.Built in Tuya Zigbee (Tuya Bluetooth) wireless control module
. Mixing is used to control deep dimming without stroboscopic
. AC input 200-250V range
. Natural air cooling,moisture-proof,heat conduction,silica gel heat dissipation progress
. Multiple protection functions
. Ultra small volume design
. 5 year warranty
. The design of crimping cover is convenient and fast
. 4 gear current selection
Application:
1.Led two-color light source
2.Villa intelligent lighting
3.Wireless intelligent lighting system can be accessed
4.Museum lighting
5.High end commercial lighting
MODEL LIST
TUYA ZIGBEE DIMMABLE CCT TUNABLE LED DRIVER | ||||||||
Series | Dimming Method | MODEL | Input | POWER | PF | OUTPUT | CURRENT | Dimension |
3-11.2W flicker free | TUYA Zigbee | PE-L12ZCA4028 | AC200-250V | 11.2W | 0.96 | 25-40V | 200/230/250/280mA | 116*30*21 |
PE-L12ZCA4018 | AC200-250V | 7.2W | 0.96 | 25-40V | 100/130/150/180mA | |||
12-20W flicker free | TUYA Zigbee | PE-L20ZCA4050 | AC200-250V | 20W | 0.96 | 25-40V | 350/400/450/500mA | 130*37*22.5 |
PE-L20ZCA4040 | 16W | 250/300/350/400mA | ||||||
flicker free | TUYA Zigbee | PE-L30ZCA4270 | AC200-250V | 29.4W | 0.96 | 25-42V | 550/600/650/700mA | 154.5X40.5X25.5 |
30-40W | TUYA Zigbee | PE-L40ZCA42100 | AC200-250V | 42W | 0.96 | 25-42V | 850/900/950/1000mA | 175X40.5X25.5 |
PE-L40ZCA4290 | AC200-250V | 37.8W | 0.96 | 25-42V | 750/800/850/900mA | |||
PE-S30ZCA 12-30W | TUYA Zigbee | PE-S30ZCA4270 | 48V | 30W | 0.96 | 25-42V | 550/600/650/700mA | 125*14.5*11 |
PE-L30ZCA4235 | 14.7W | 200/250/300/350mA | ||||||
PE-L30ZCA4230 | 12.6W | 150/200/250/300mA | ||||||

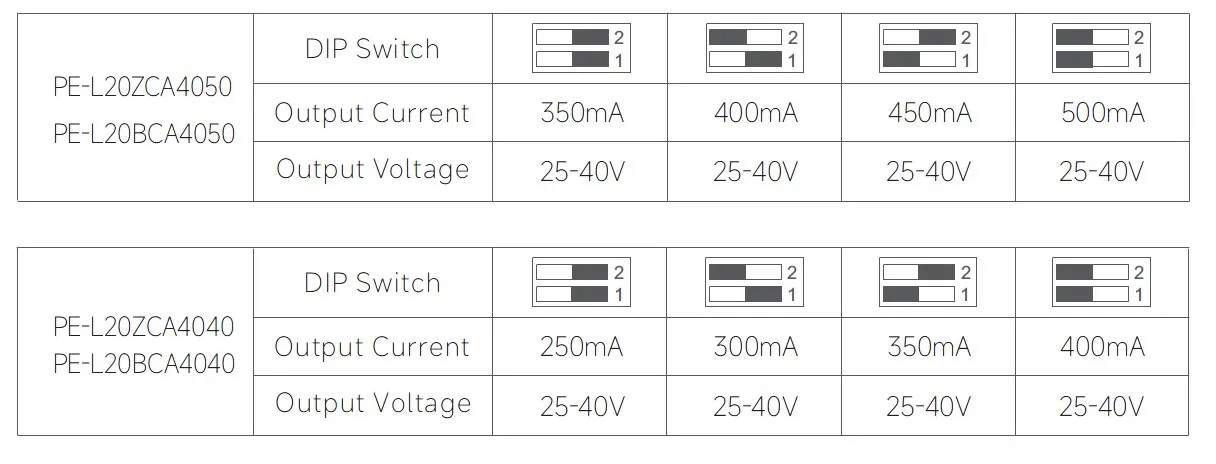

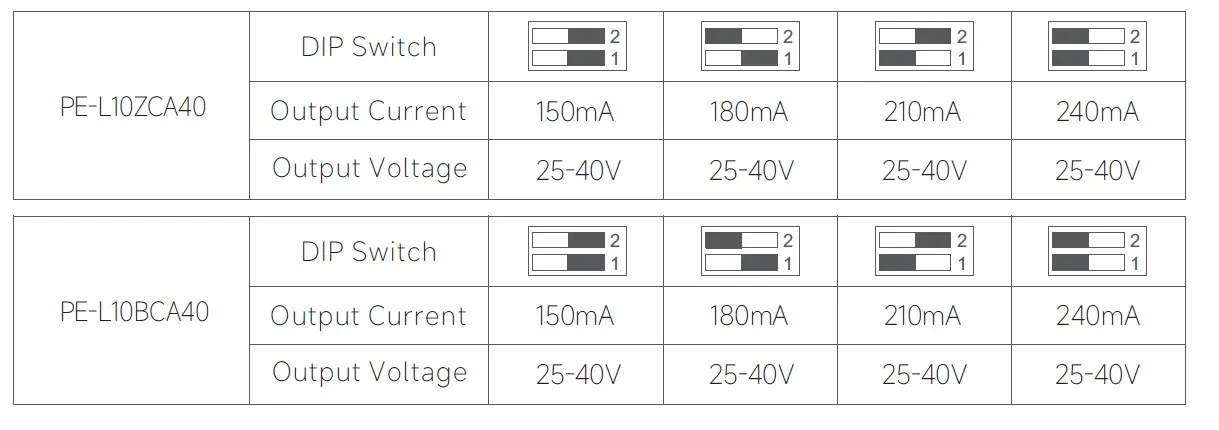

Led current selection:

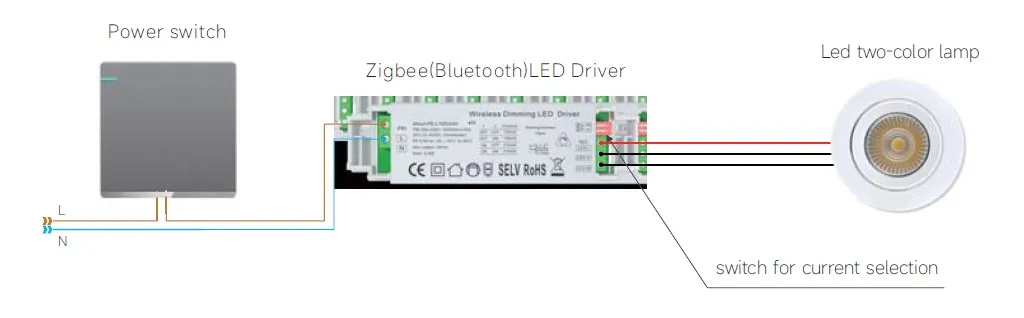

Wiring diagram:

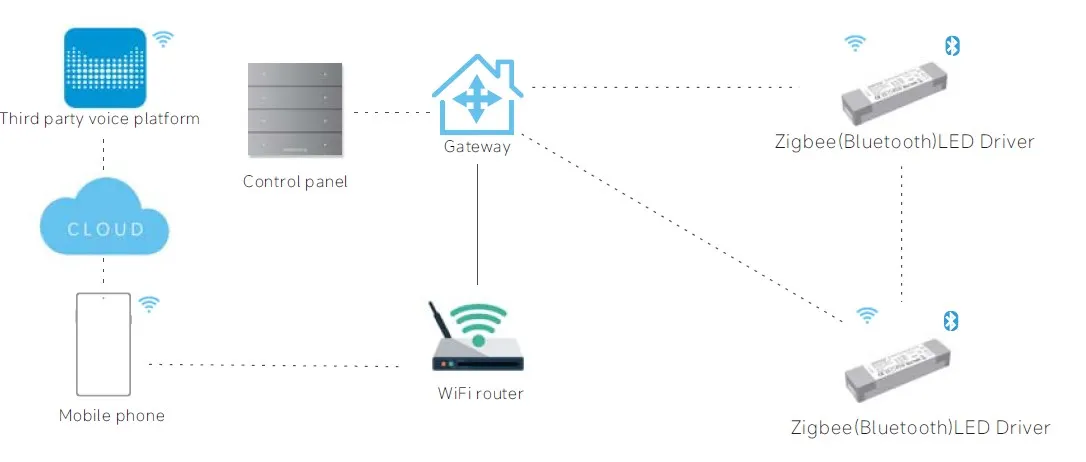

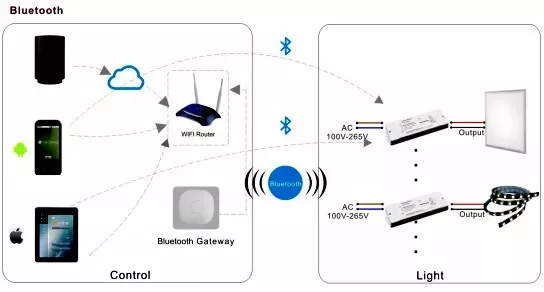

1. ZigBee is different from bluetooth gateway, so diffferent power supply should be selected according to different gateway
2. Please download Tuya app, The spedific operation is described in the app
3. Before the power supply powered on, please connect the network and connect the router.
4. The signal is greatly affected by environmental factors, please select a router bandwidth.
3.Our company
FAQ
1. How about your goods’ quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Shenzhen port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
