10.36 inch HD Quad View system 4CH of car truck vehicle backup side motion detect alarm parking reverse camera monitor
- Category: >>>
- Supplier: Dongguan Forescene Information Technology Co. Ltd
Share on (1601126851622):
Product Overview
Description
Product Description
YDV05L10.36E-4701+4745 set include

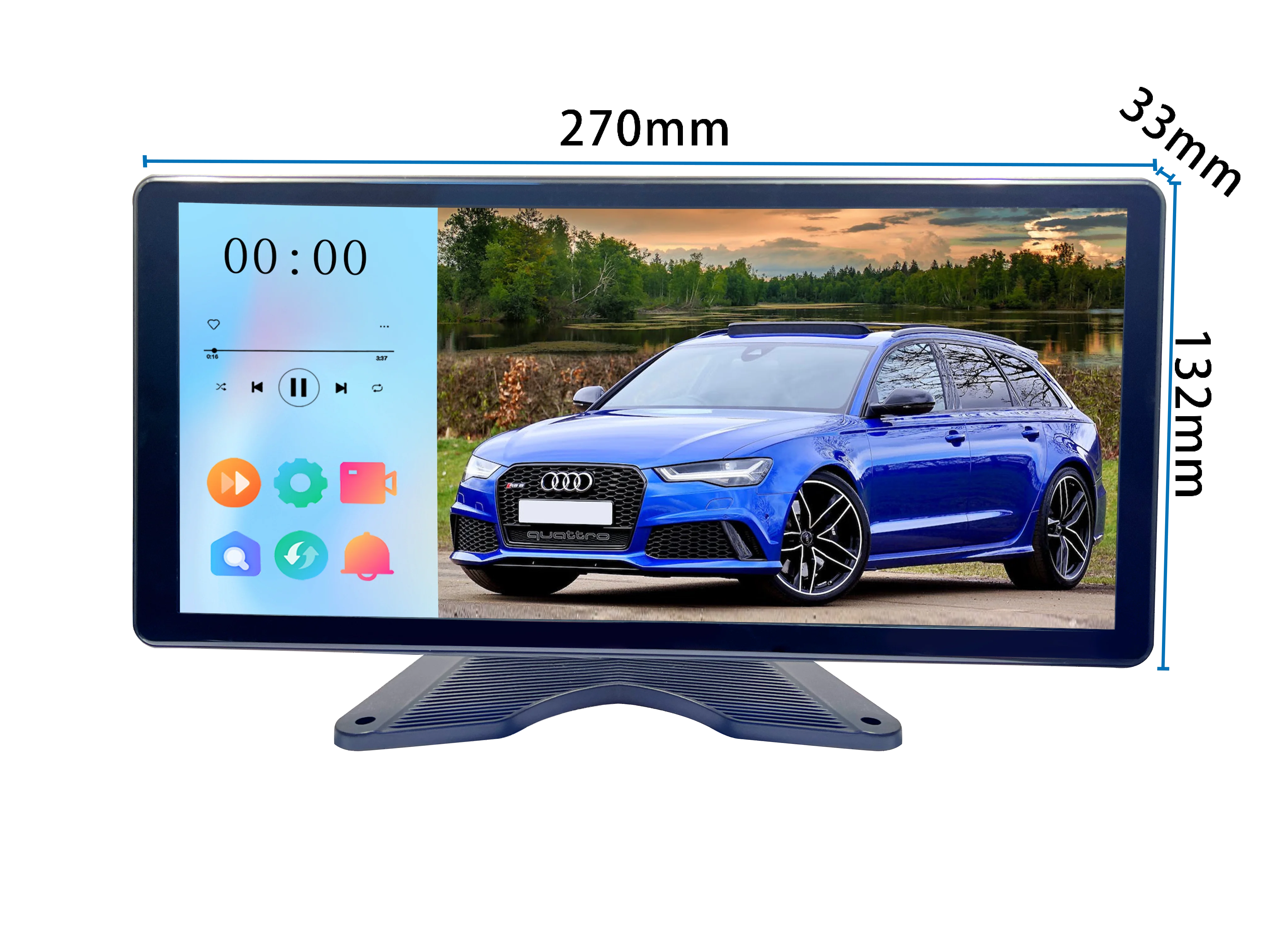

1) YDV05L10.36E monitor*1
2) YJ-4701 camera*2
3) YJ4745 camera*1
4) 5m cable*1
5) 10 cable*2
6) 64G TF card*1

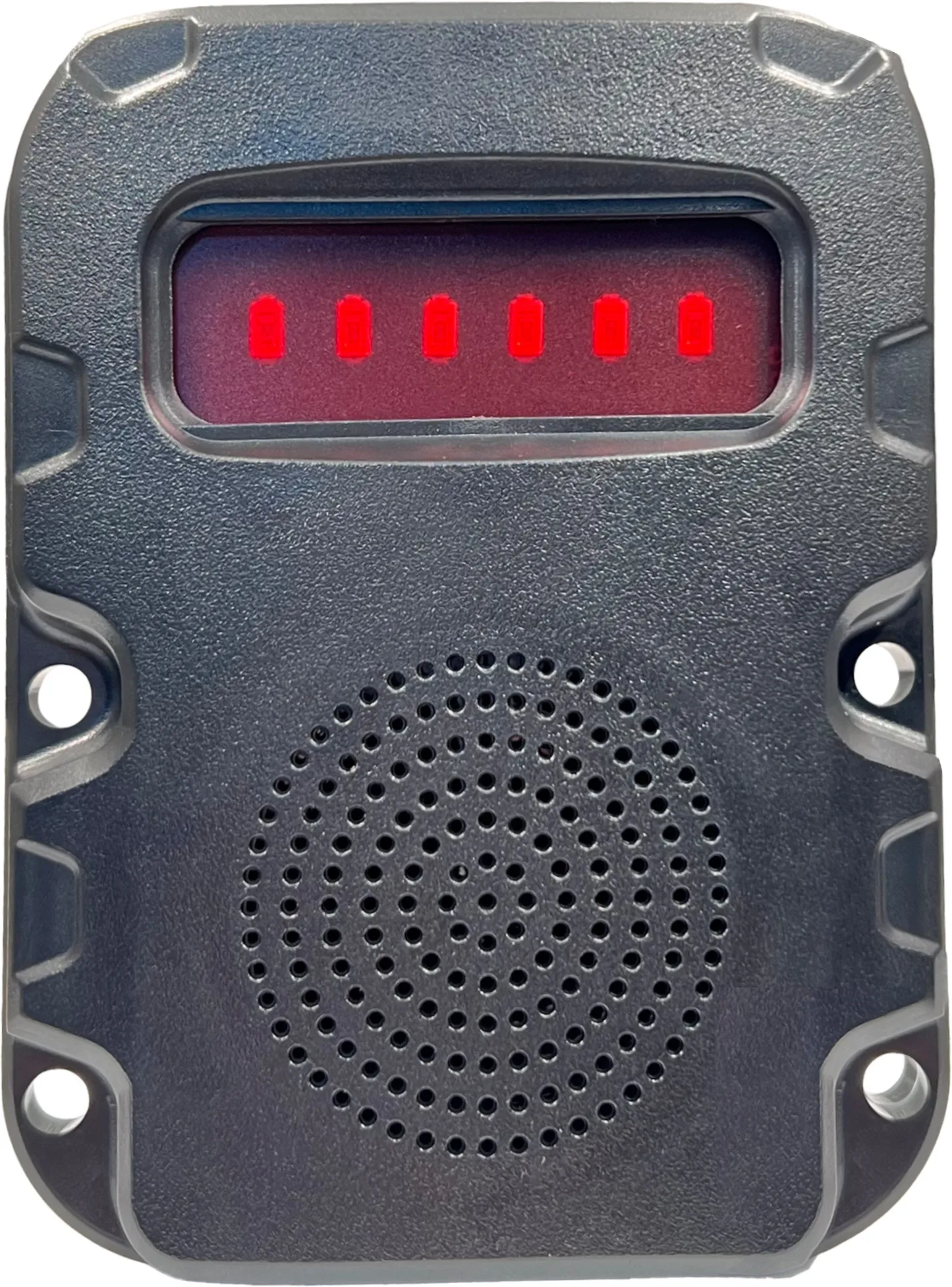

7) Sound and light alarm*1
Camera specifications

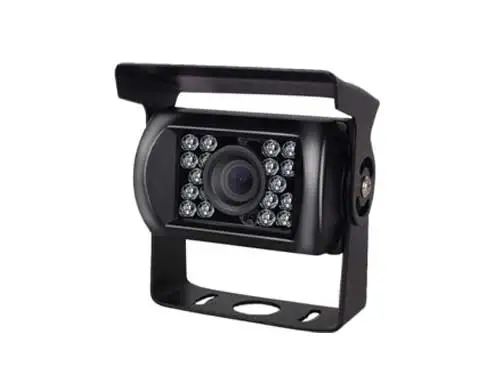

YJ4701
| item | part | specification |
| camera | cover material | aluminum alloy surface matte black |
| waterproof | over IP67 | |
| weight | 220g | |
| box size | 10*10*9cm | |
| PCB board | sensor/DSP | sensor:1/2.7 ISP:2MP |
| resolution | AHD720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F2.0(IR ON) | |
| signal to noise rate | more than 48DB | |
| wide dynamic | wide dynamic 82db | |
| synchronization method | inner synchronization | |
| video output | line by line AHD-720P | |
| gain control | Auto | |
| Power consumption | less than 120mA@DC12V (Infrared off) less than 300mA@DC12V (Infrared on) | |
| Environmental humidity | 30%-85% | |
| working temperature | -20℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| Lens | Focal length | 2.8mm |
| material | 4G glass | |
| aperture | F2.0 | |
| pixel | 2MP | |
| light board | LED | 18 pcs 850 IR,scattering 85° |
| Power consumption | 190ma(12V) |

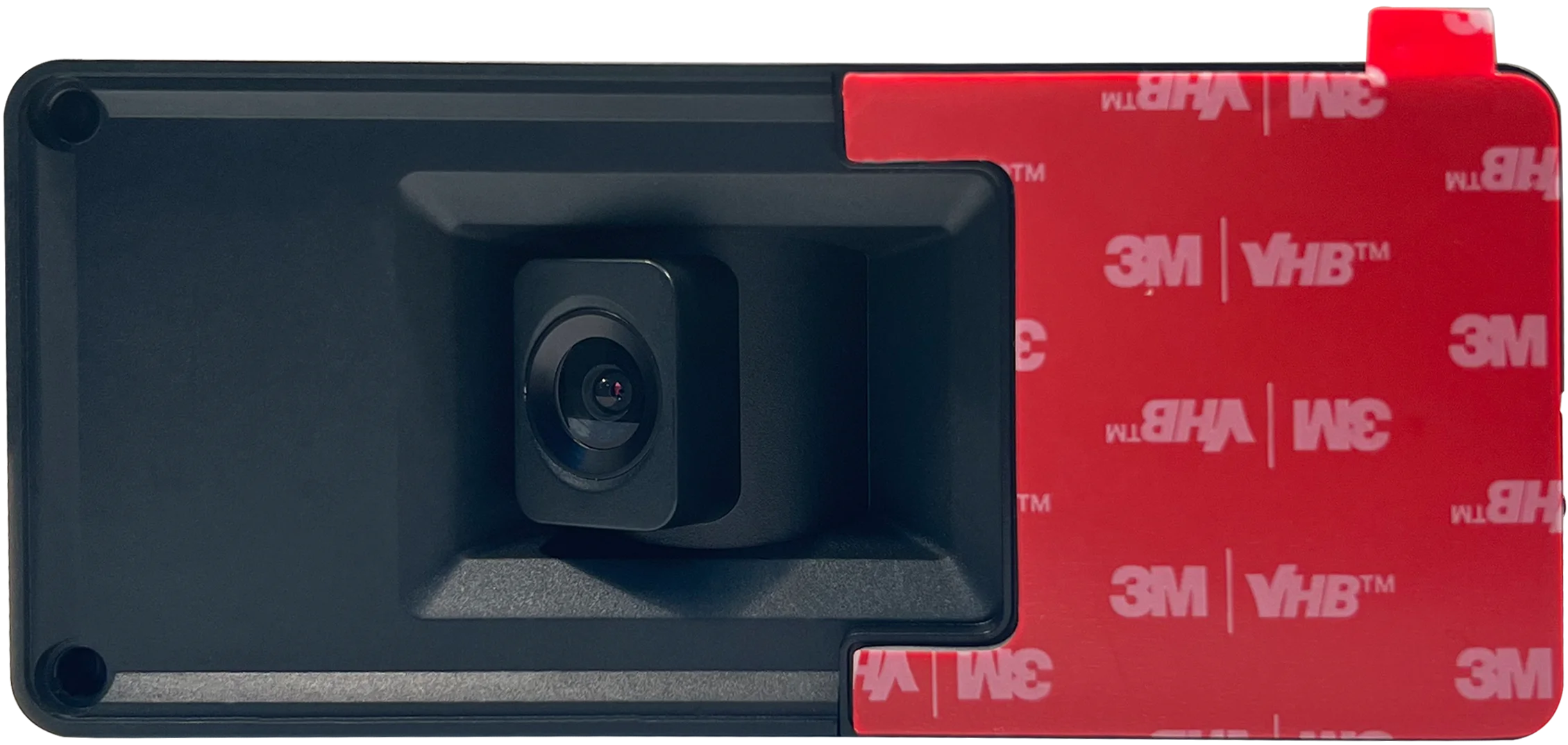

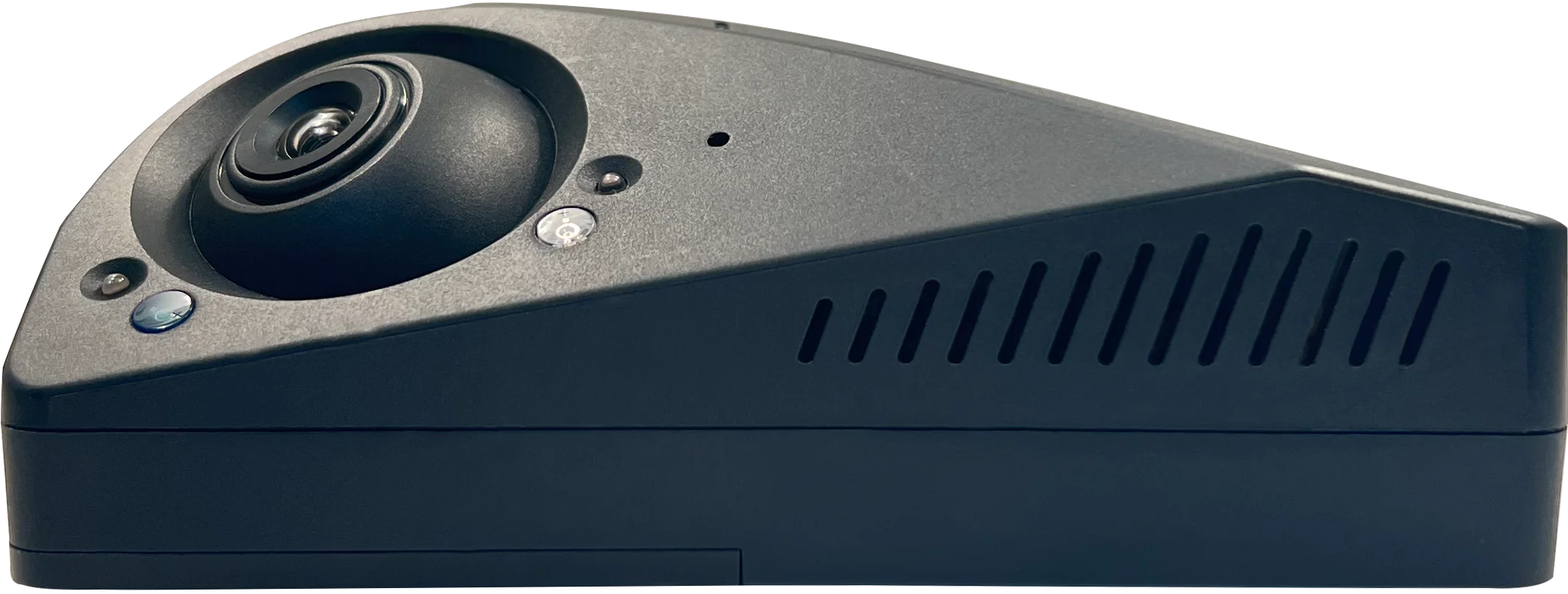

YJ4745
| item | specification |
| working voltage | DC12V±0.5V |
| working current | IR close:less than 130ma@12V |
| IR on:less than 220ma@12V | |
| weight | 175g |
| resolution | front view:1280*720 |
| rear view:1280*720 | |
| signal system | PAL |
| signal to noise rate | more than 37.2db |
| dynamic range | more than 82db |
| illumination range | 0.001Lux~100000Lux |
| Horizontal resolution | more than 680 TV line |
| vertical resolution | more than 500TV line |
| Optical axis accuracy | ±0.2 degree |
| Lens | Horizontal angle: Front view H=102 ° ± 5°/ Rear view H=47 ° ± 5 ° |
| Vertical angle: Front view V=56 ° ± 5 °/ Rear view V=23 ° ± 5 ° | |
| working temperature | -40℃~+85℃ |
| storage temperature | -40℃~+95℃ |
| waterproof | N/A |
| working mode | day:front view full color,rear view full color |
| night:front view full color,rear view B/W(The fill light is automatically controlled by photosensitivity) | |
| audio function | Unipolar omnidirectional |
| ISP | FH8536H |
| Sensor | GC2053 |
