Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00

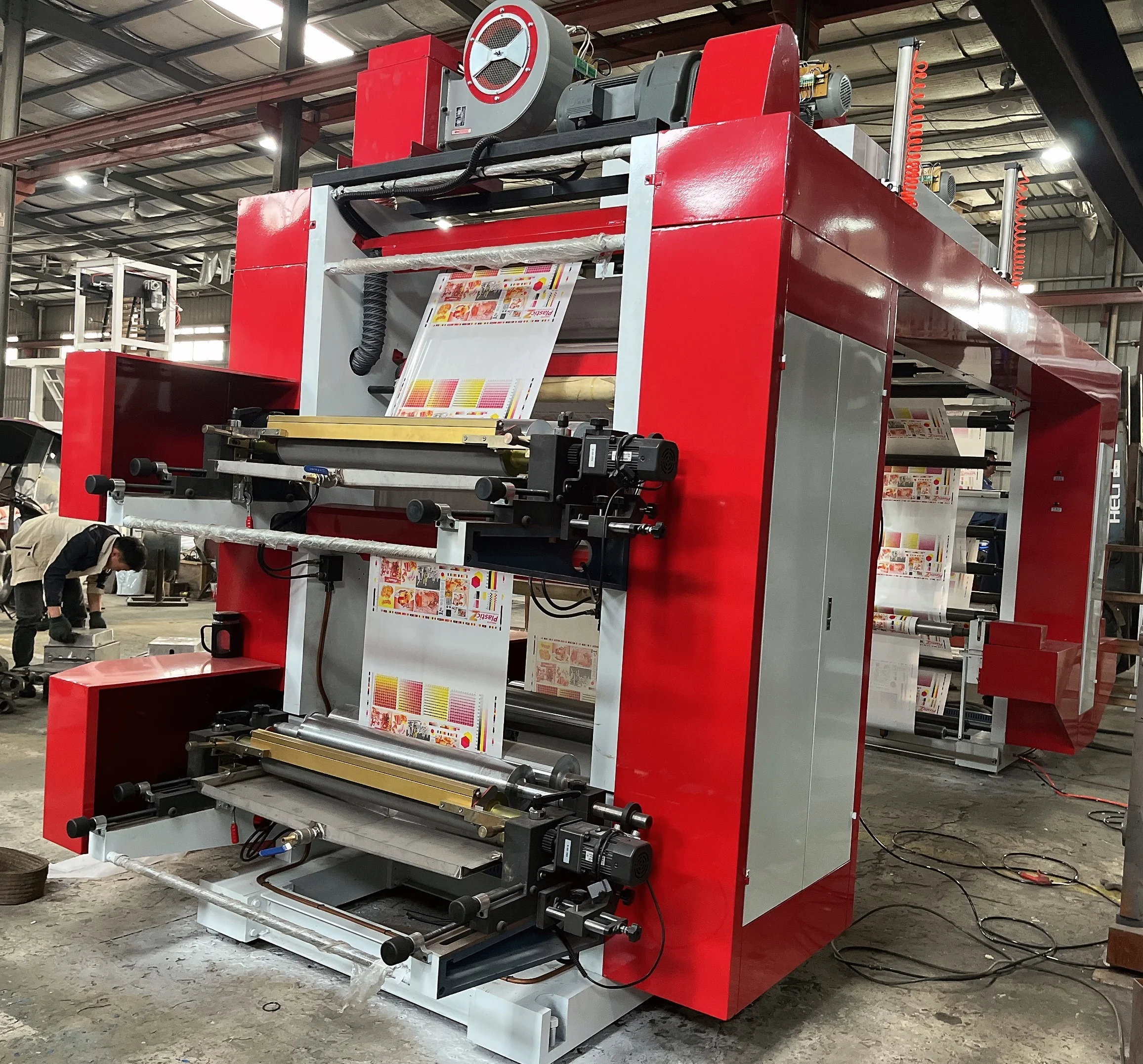

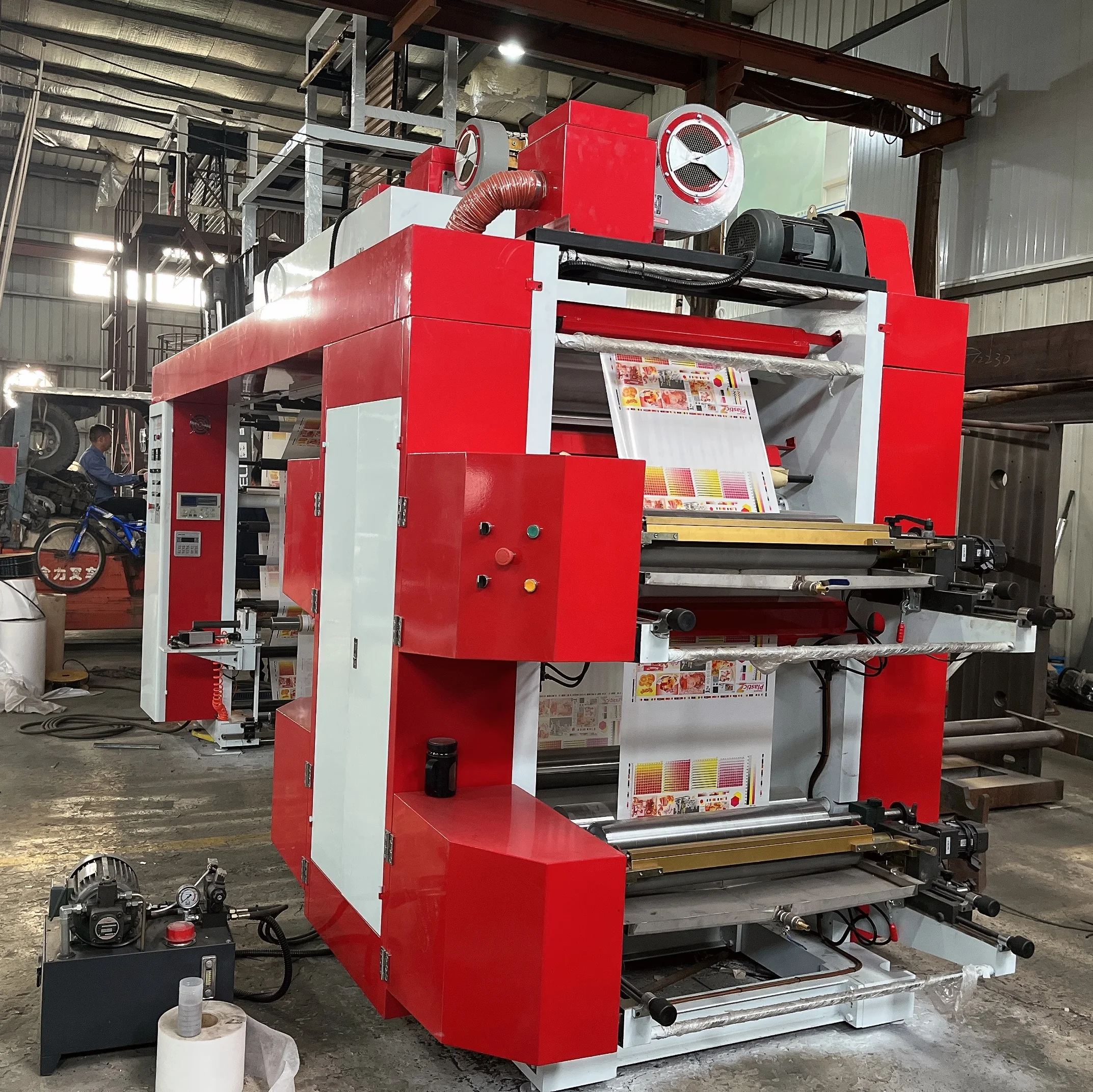

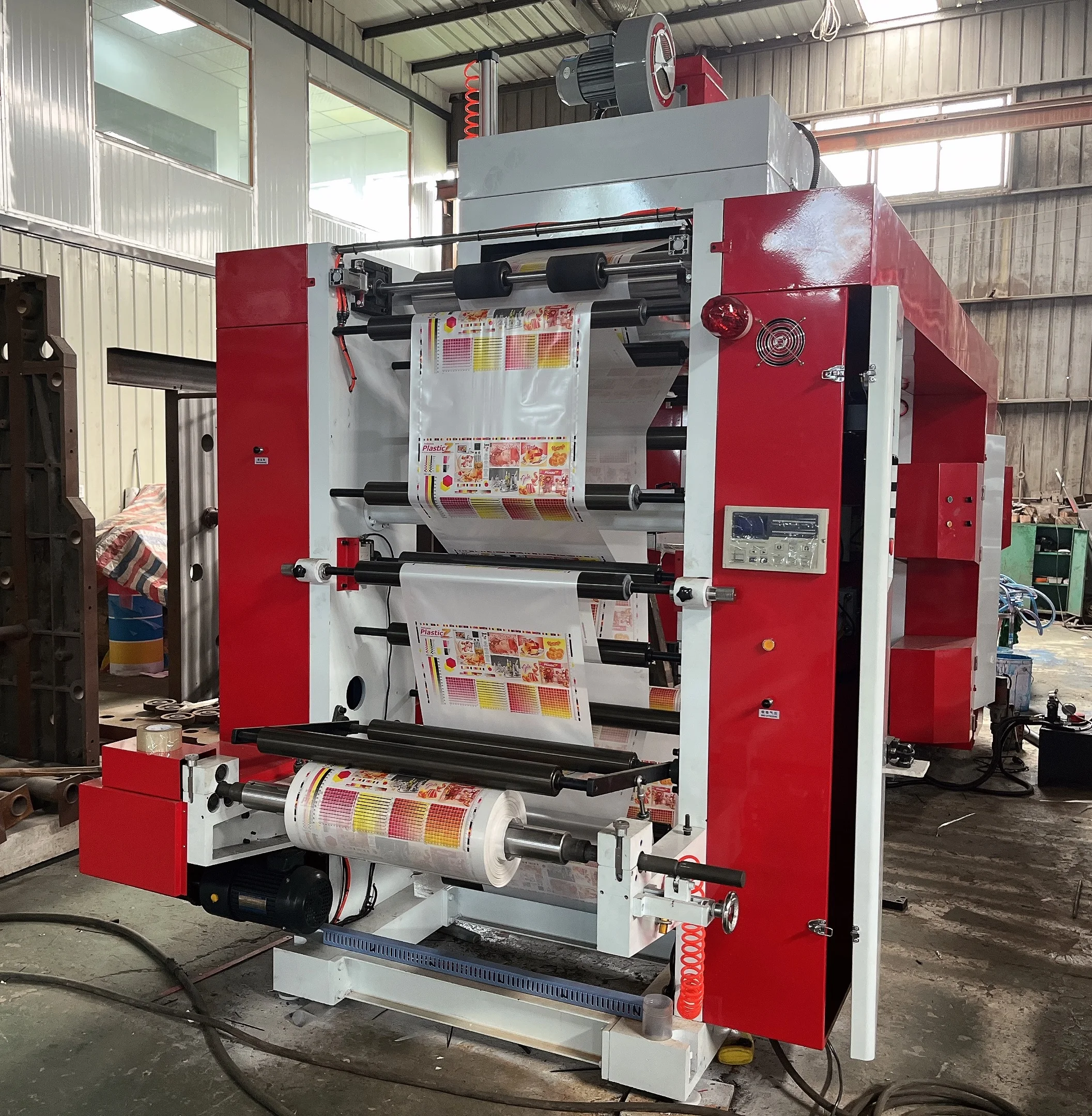

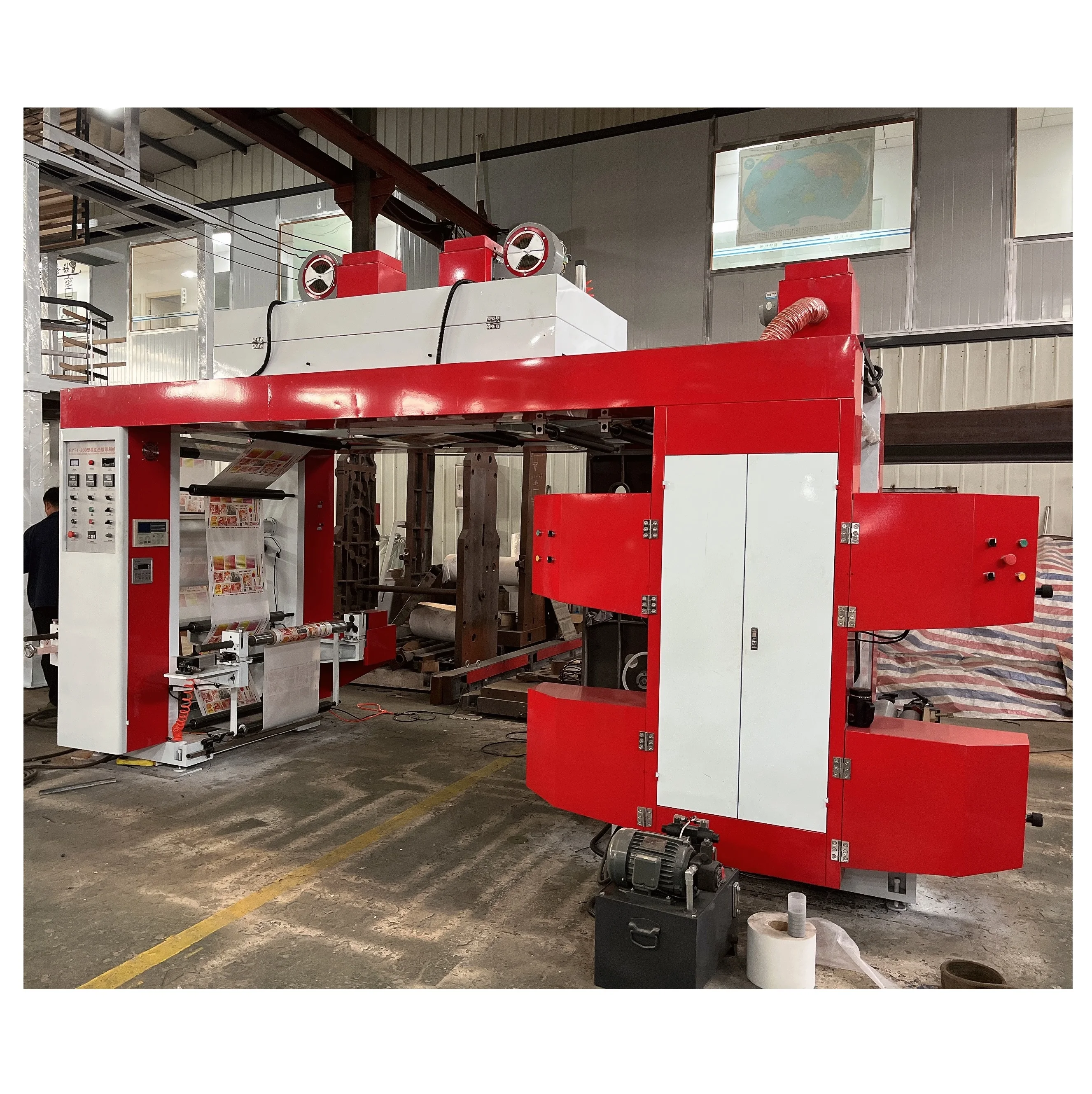

High Speed 90m/Min 4 Color Flexo Plastic Bag Printing Machine Multi purpose PE PP OPP BOPP Film Shirt Printer
- Category: >>>
- Supplier: Ruian Ruihua Printing Packing Machinery Co. Ltd.
Share on (1601126887124):
Product Overview
Description
Professional Manufacturer
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment
Specifications
Thermal Paper Roll Printing Machine is suitable for various materials roll to roll printing, like paper, film(BOPP,PET,PE,OPP),Non woven fabric, woven bags,etc.
Main
1. Thermal Paper Roll Printing Machine is with PLC control and HMI, all working parameters can be preset and displayed on the control panel.
2. Thermal Paper Roll Printing Machine is with automatic hydraulic lift up loading system for heavy material roll loading.
3. Thermal Paper Roll Printing Machine is with 2 sets automatic tension controller to provide constant tension control. One for unwinding and one for rewinding part.
4. Thermal Paper Roll Printing Machine is with 1 set 10kg/2 magnetic brake to help tension control in unwinding part.
5. Thermal Paper Roll Printing Machine is with photocell tracking system to keep accurate roll edge.
6. Machine is with 3’’ air expanding shaft for roll material loading. Also can provide as your request.
7. Thermal Paper Roll Printing Machine is with automatic meter counter, which can count the working length. When reached the preset length, machine can stop automatically.
8. Low speed and full load startup; stable running by tension control when speed up or down, low noise.
Thermal Paper Roll Printing Machine is suitable for various materials roll to roll printing, like paper, film(BOPP,PET,PE,OPP),Non woven fabric, woven bags,etc.
Main
1. Thermal Paper Roll Printing Machine is with PLC control and HMI, all working parameters can be preset and displayed on the control panel.
2. Thermal Paper Roll Printing Machine is with automatic hydraulic lift up loading system for heavy material roll loading.
3. Thermal Paper Roll Printing Machine is with 2 sets automatic tension controller to provide constant tension control. One for unwinding and one for rewinding part.
4. Thermal Paper Roll Printing Machine is with 1 set 10kg/2 magnetic brake to help tension control in unwinding part.
5. Thermal Paper Roll Printing Machine is with photocell tracking system to keep accurate roll edge.
6. Machine is with 3’’ air expanding shaft for roll material loading. Also can provide as your request.
7. Thermal Paper Roll Printing Machine is with automatic meter counter, which can count the working length. When reached the preset length, machine can stop automatically.
8. Low speed and full load startup; stable running by tension control when speed up or down, low noise.
Main Technical Parameter | ||
Max. Roll Width | 800mm | |
Max. Printing Width | 760mm | |
Printing Length | 191-1000mm | |
Printing Colors | 4 colors | |
Printing Plate Lifting System | Hydraulic press control | |
Max. Mechanical Speed | 80m/min | |
Max. Printing Speed | 70m/min | |
Anilox Roller | Ceramic Roller | |
Dimension | 4200m×1800×2400mm | |
