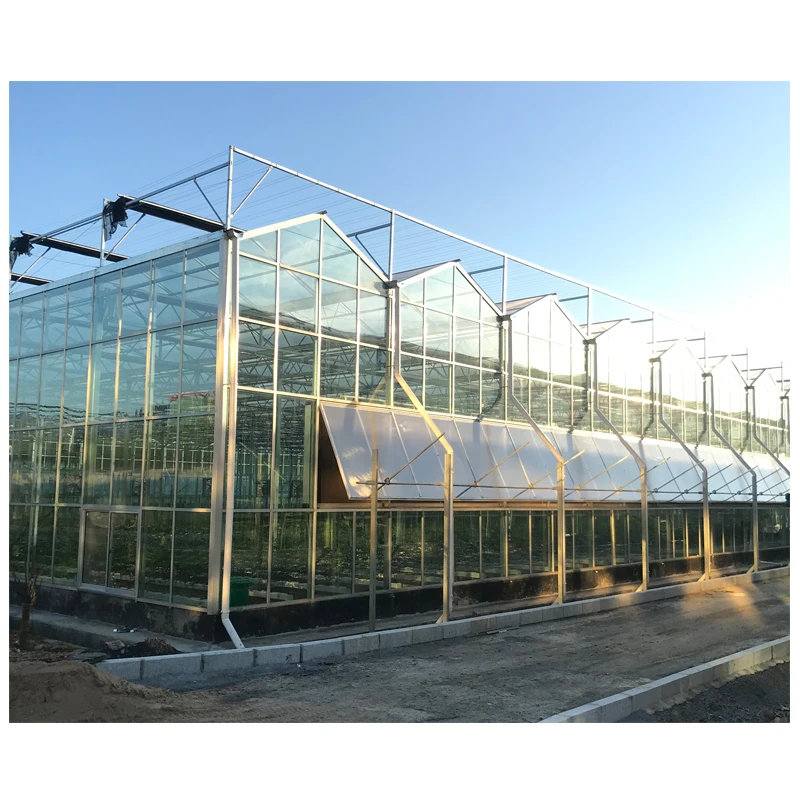

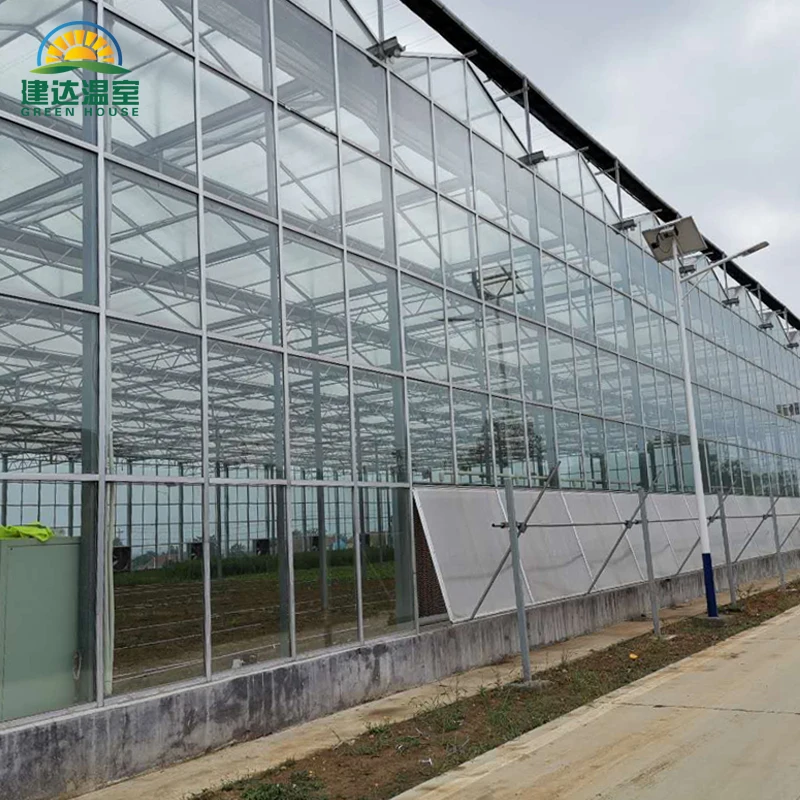

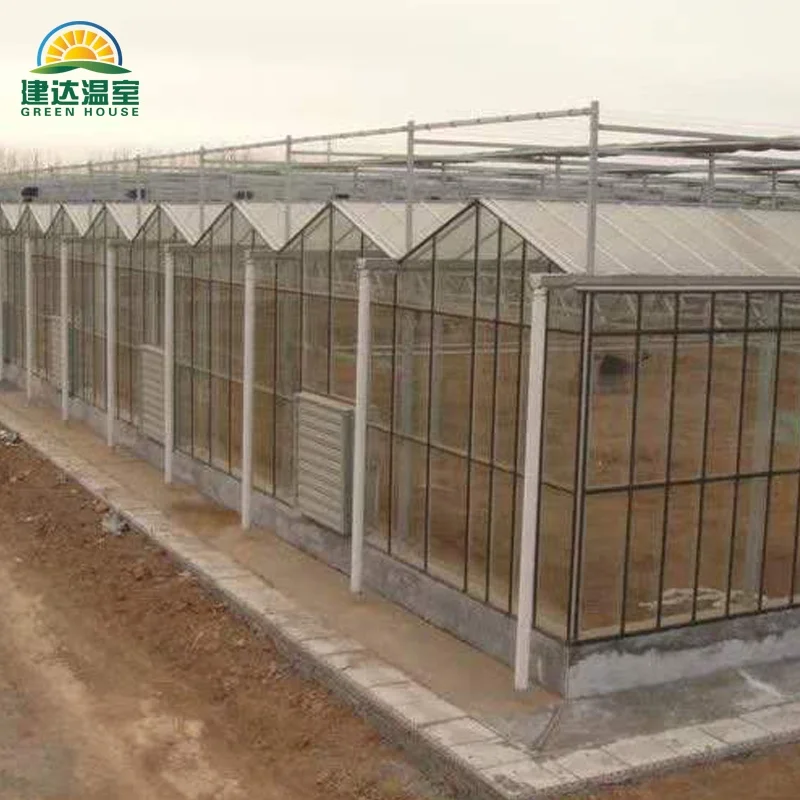

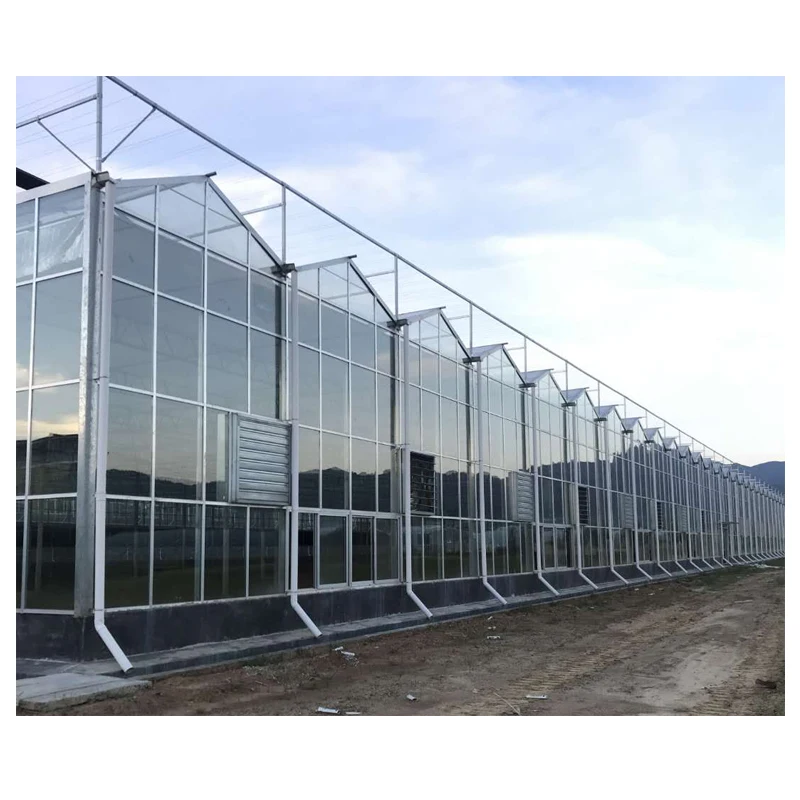

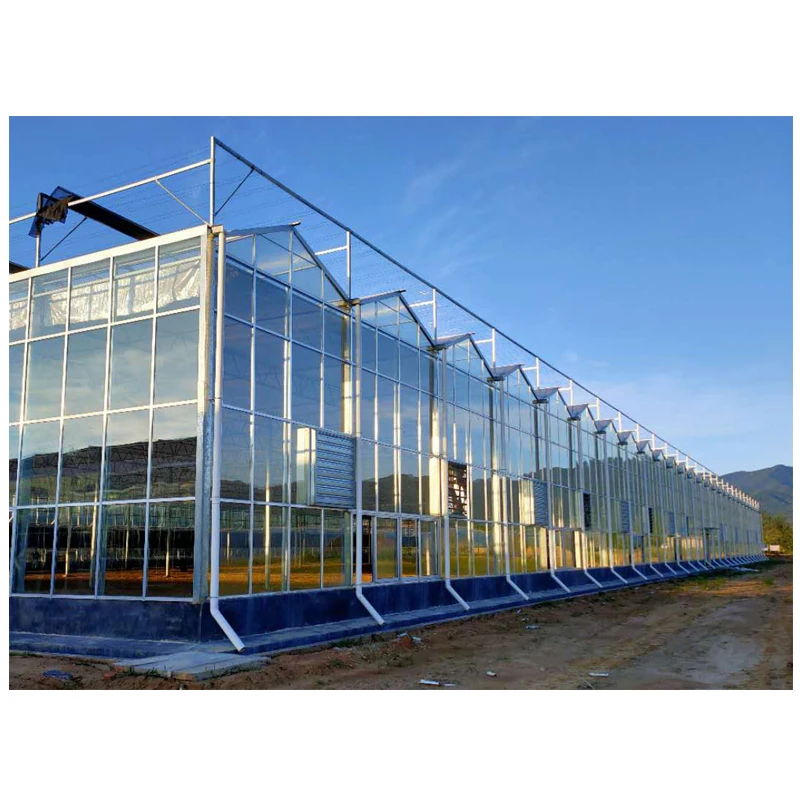

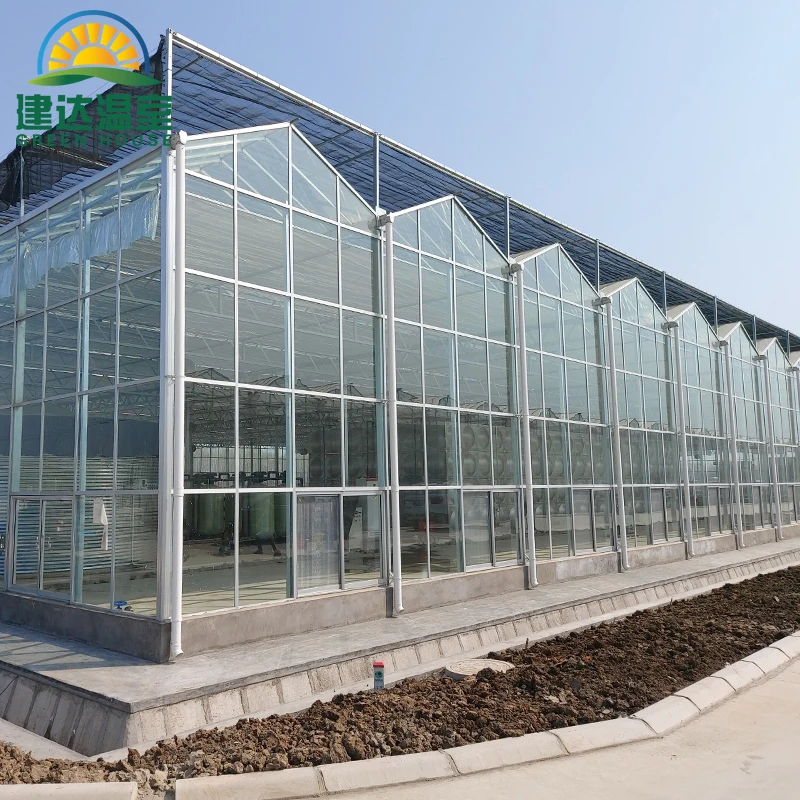

multi span class Greenhouse restaurant green house frame with Heating and insulation system
- Category: >>>
- Supplier: Weifang Jianda Greenhouse Material Co. Ltd.
Share on (1601127734740):
Product Overview
Description
Products Description

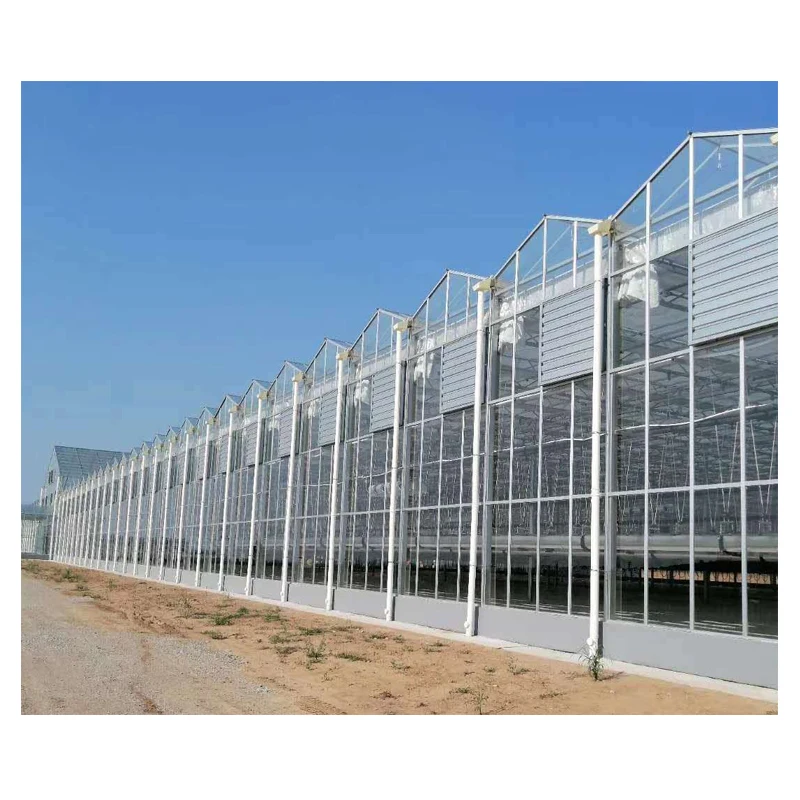

multi-span agricultural greenhouse frame vegetables glasshouse serre agricole greenhouse with hydroponic
Item name | Specifications | ||||
Span width | 8m/9.6m/12m | ||||
Main column | 120mm*120mm*3mm/ 150mm*150mm*3.75mm | ||||
Side column | 120mm*60mm*3.0mm/ 100mm*150mm*3.75mm | ||||
Wind resistance column | 50mm*50mm*2.5mm/ 50mm*70mm*2.5mm | ||||
Truss | 50mm*50mm*2.5mm | ||||
Gutter | thickness:2.0mm/ 2.75mm/3.0mm | ||||
Cover material | Polycarbonate sheet /glass or customized | ||||
Equipped system | Heating, ventilation, cooling, shading, lighting and drip irrigation systems, seedling bench, NFT system, hydroponics system and hemp grow system, etc. | ||||
1.Agricultural Hydroponic Glass Greenhouse provides ideal environment for plants growth. As no need for soil, the plants can behealthier than cultivated in soil.
2.The light transmittance is more than 90%.
3.Greenhouse is with modern and novel apperance, stable structure.
4.It can resist heavy and strong snow/wind, and very easy to clean and maintain.
5.The life time of the greenhouse main body is more than 20 years.
6.It can be equipped with inside and outside shading system, top and side window ventilation system, wet curtain and fan cooling system and so on.
7.Other equipments can be applied according to the user's planting needs.
3.Greenhouse is with modern and novel apperance, stable structure.
4.It can resist heavy and strong snow/wind, and very easy to clean and maintain.
5.The life time of the greenhouse main body is more than 20 years.
6.It can be equipped with inside and outside shading system, top and side window ventilation system, wet curtain and fan cooling system and so on.
7.Other equipments can be applied according to the user's planting needs.
item | value |
Product name | Turnkey Project greenhouse with Quick Construction for Ecuador Complete Glass Agriculture Irrigation Green house |
Material | Hot Dipped Galvanized Steel |
Advantage | High and even light transmission Long lifetime and high intensity Strong corrosion resistance and fire resistance Good thermal insulation performance. Modern and elegant design |
wind load | 0.3KN/m2 |
snow load | 0.4KN/m2 |
max.discharge water ability | 120mm/h(5 minutes per time) |
greenhouse in usual load ability | greenhouse in usual load ability |
greenhouse covering | 4+9+4mm,5+6+5mm hollow glass, float glass,tempered glass |
greenhouse use span length | 9.6m/10.8m/12m |
greenhouse use eaves height | 2.5m-7m |
commercial greenhouse use irrigation system | for irrigation and fertilizer |
commercial greenhouse inside use loop fan | for inside have good ventilation environmental |
commercial greenhouse use soilless cultivation system | The system mainly use water and fertilizer machine provice crops nutrient solution,then corp by absorb nutrient solution then finish its livespan. |
selectable system
galvanized steel materials
Resists corrosion;
Stable structure and high quality;
Factory made, the lowest price;
Lifespan over 15 years
Stable structure and high quality;
Factory made, the lowest price;
Lifespan over 15 years

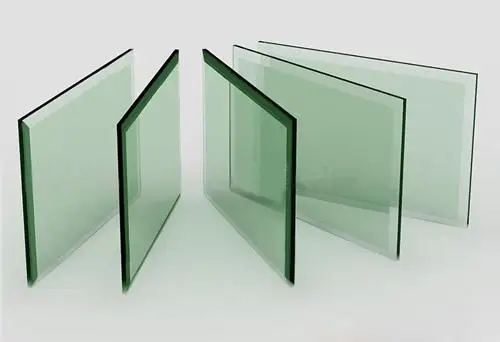

Glass
Single-layer tempered glass or hollow
glass, beautiful appearance,good light
transmittance performance, long
service life, reasonable maintenance
and practical service life of more than
30 years.
glass, beautiful appearance,good light
transmittance performance, long
service life, reasonable maintenance
and practical service life of more than
30 years.

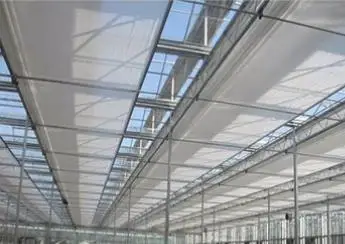

Shading System
The Shading system can keep out redundant sunshine, preventing the plants from being burned in the greenhouse. And it can regulate the heat or reduce the cost for the operations.
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.

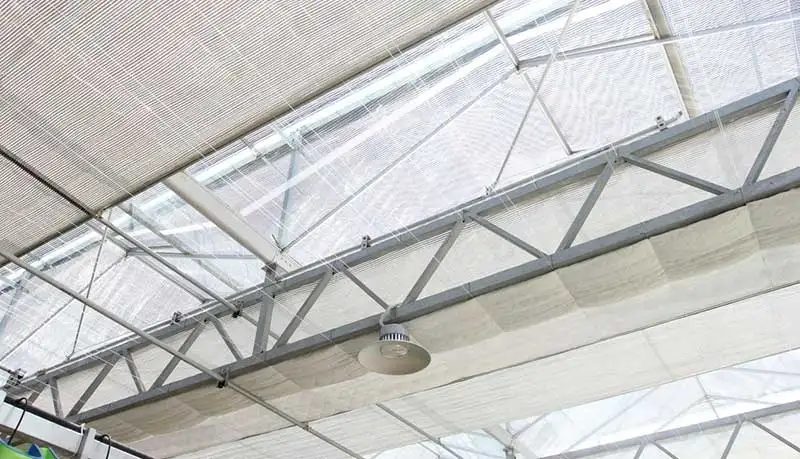

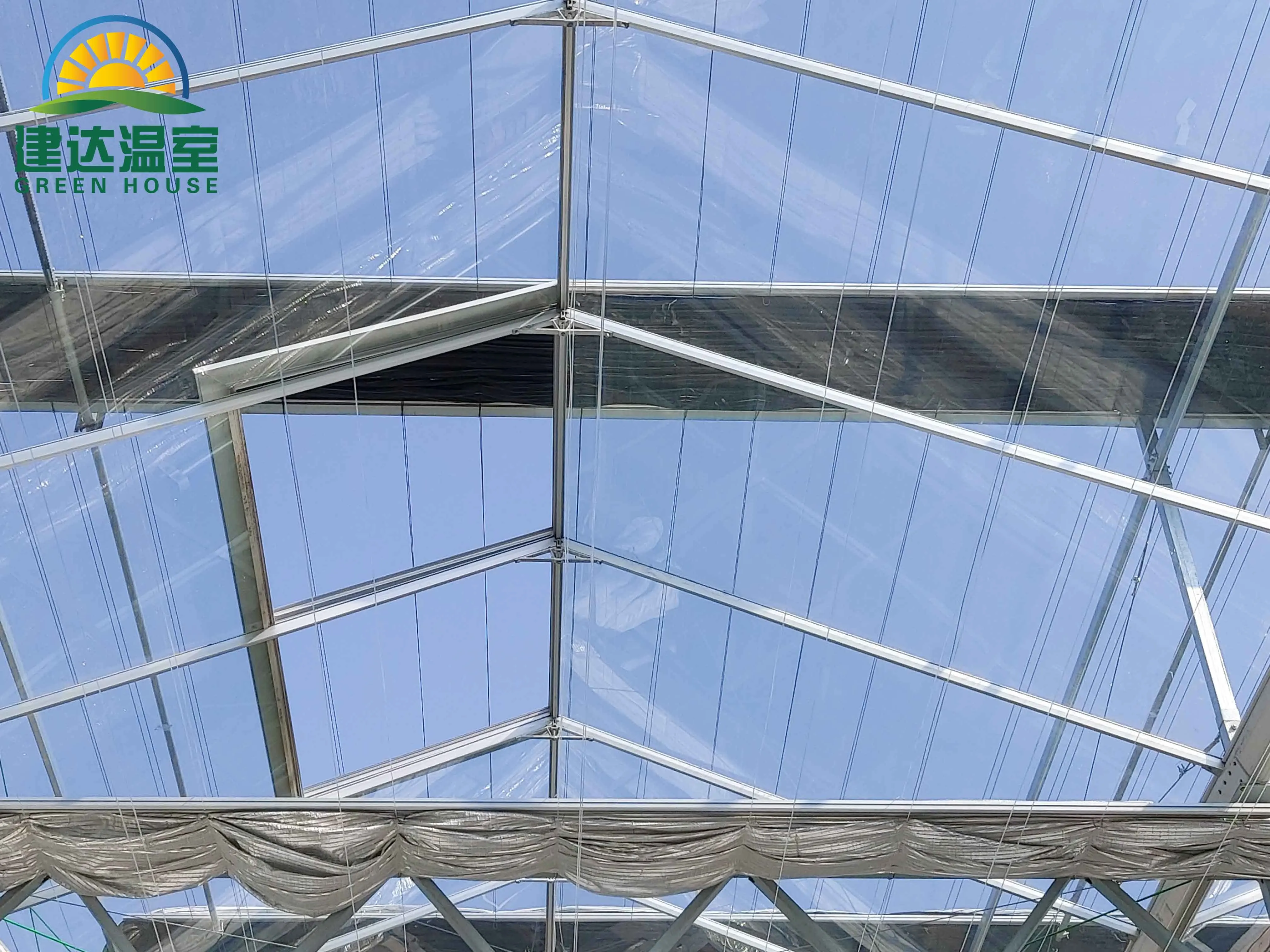

Internal insulation system
Internal insulation system is installed in the greenhouse, fixed on the truss and with the frame of greenhouse. Internal
insulation quilt is made by white cloth and cotton core materials, fastened by white polyester strings.
insulation quilt is made by white cloth and cotton core materials, fastened by white polyester strings.
Ventilation System
Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor Side
ventilation: Both side have two electric roll up motors.
ventilation: Both side have two electric roll up motors.

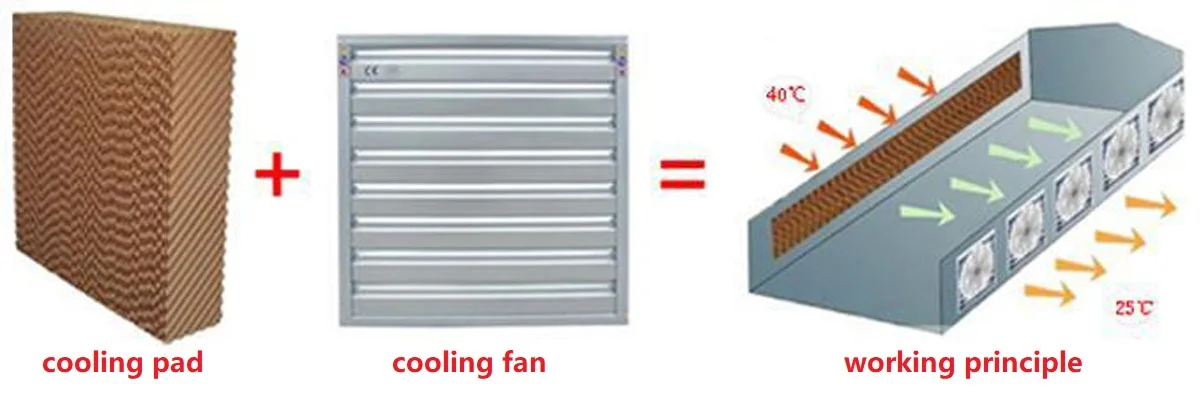

cooling system
Our company is specialized at the products of cooling pads and fans, usually used cooperatively. The cooling pads are installed on one side of the greenhouse, the exhaust fans, the other. (The air-circulating fans are installed in the greenhouse.) The exhaust fans eject the air from the greenhouse (The air-circulating fans promote the circulation of the air in the greenhouse), negative pressure formed in the greenhouse. The air enters the greenhouse through the cooling pads, resulting in the effects of cooling,moistening and air-dedusting.

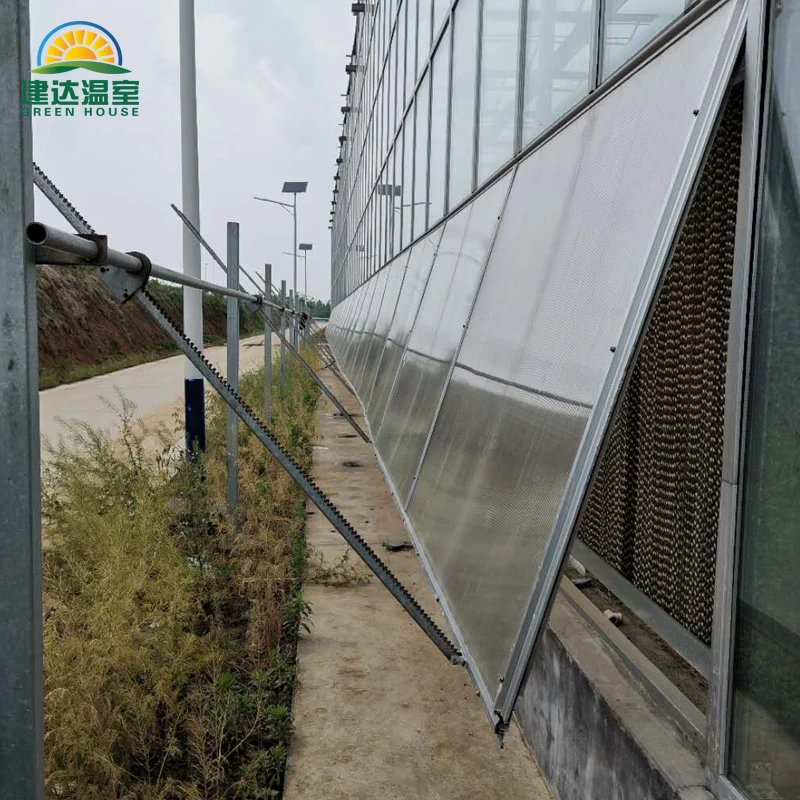

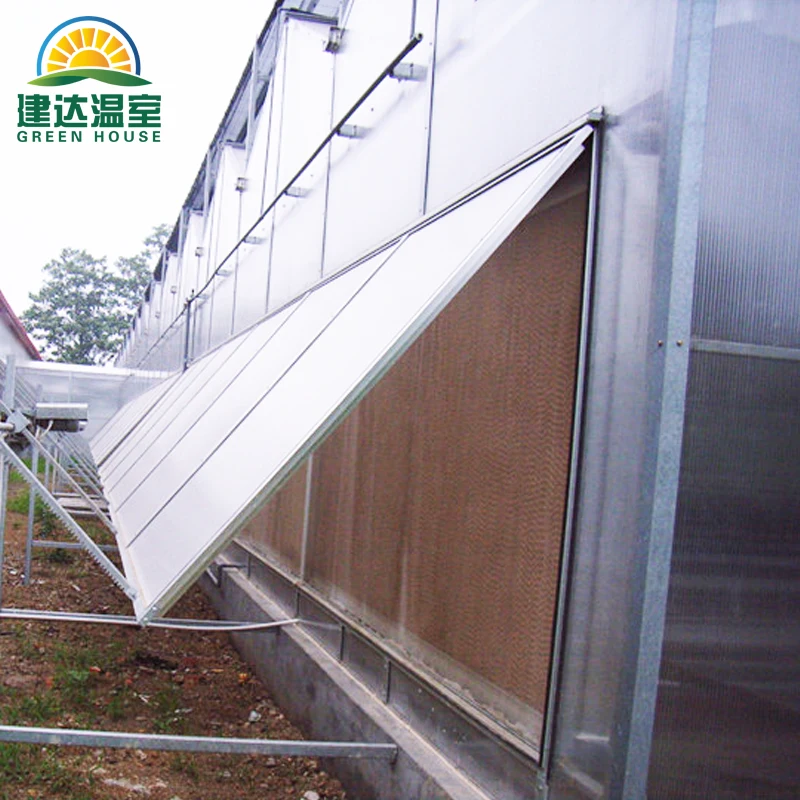

Cooling pads
1.Use new materials and advanced spatialcross-connection technology
2.The raw material is imported kraft paper, which has high absorption rate, water resistance, mildew resistance and long service life
3.All use aluminum alloy frame, beautiful appearance
2.The raw material is imported kraft paper, which has high absorption rate, water resistance, mildew resistance and long service life
3.All use aluminum alloy frame, beautiful appearance

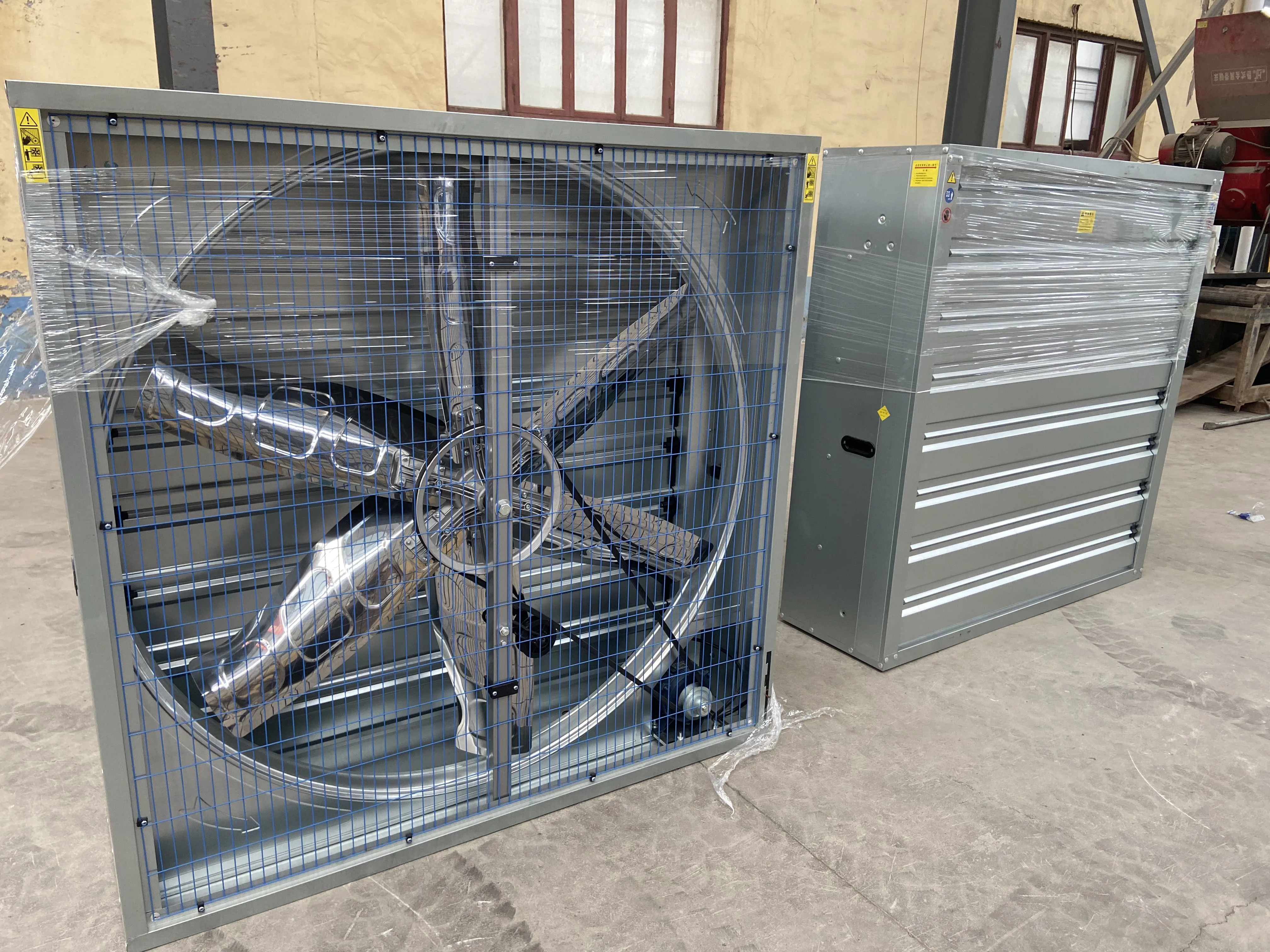

Cooling fans
1.Hot Galvanized sheet frame with coat thickness 0.17mm.
2.Special designed for the biggest efficiency, made of stainless steel by punch forming.
2.Special designed for the biggest efficiency, made of stainless steel by punch forming.

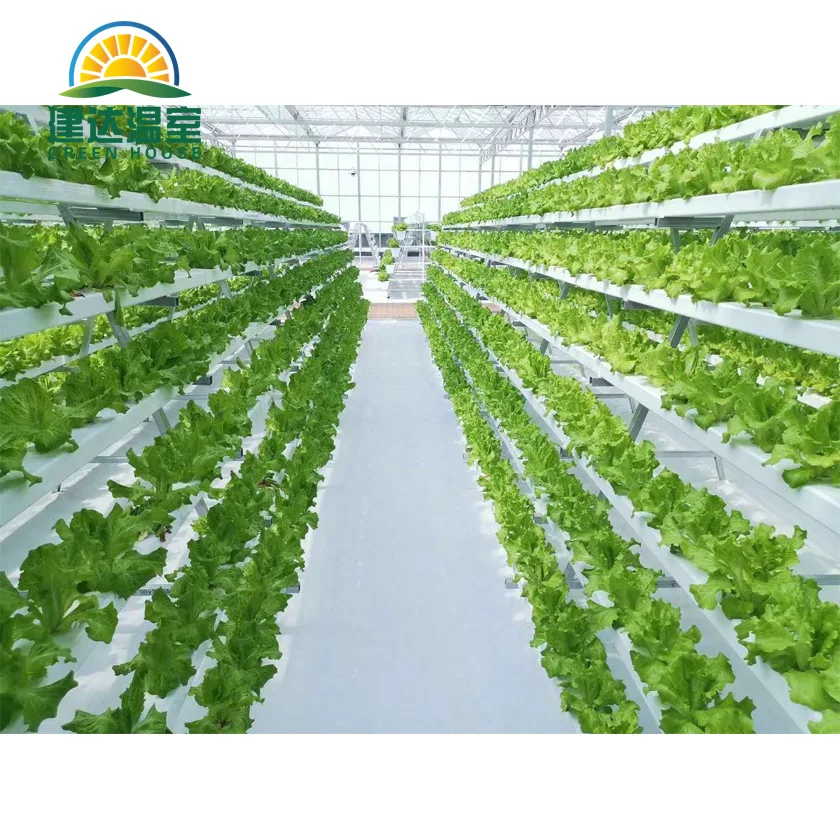

NFT Hydroponics system
Hydroponic System of greenhouse applies the hydroponics, which refers to the means of cultivation that is equipped with the base materials,and meeting the needs of plants with minerals, water, air and other conditions. The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.
No. | Items | Description | Include or Not |
1 | Steel Structure | Hot-galvanized steel pipe | Yes |
2 | Greenhouse covering | glass ,pc sheet ,PO film | According to customer’s requirements |
3 | Insect proof net system | High quality polyrthylene as raw material | According to customer’s requirements |
4 | Shading system | Summer shade,block rain,moisture,cooling,winter spring heat preservation | According to customer’s requirements |
5 | Cooling system | It consists of cooling fans and wet curtain | According to customer’s requirements |
6 | Heating system | Hot water heating,hot air heating,electric heating | According to customer’s requirements |
7 | Ventilation system | Side windows and cooling fans | According to customer’s requirements |
8 | Irrigation system | It can be customized according the greenhouse length and width | According to customer’s requirements |
9 | Control system | It can control shading system, fan and wet curtain | According to customer’s requirements |
10 | Seedling bed | Movable seeding bed | According to customer’s requirements |
11 | Dew collection groove system | The aluminum alloy U-shaped set dew gutter is selected; the surface is anodized. | According to customer’s requirements |
12 | Hydroponics system | It can be reused, no need to add nutrients, convenient and affordable | According to customer’s requirements |
13 | Film-rolling system | Electrodynamic type,chain type,manual type | According to customer’s requirements |
14 | Drainage system | Include: (a) Rain gutter (b) PVC pipe | According to customer’s requirements |
Product packaging
Company Profile
JianDa greenhouse factory focusing on providing customers with nice quality professional services. There have 7 years of greenhouse export experience and 23 years of manufacturing experience can give you the better experience.
It mainly promotes five products: glass greenhouse, PC greenhouse, film greenhouse, light deprivation greenhouse, and hydroponic greenhouse. It has comprehensive planting equipment, mature foreign trade team, and professional design team, which supports customization and provides customers with the most suitable products.
Your request is our standard.
It mainly promotes five products: glass greenhouse, PC greenhouse, film greenhouse, light deprivation greenhouse, and hydroponic greenhouse. It has comprehensive planting equipment, mature foreign trade team, and professional design team, which supports customization and provides customers with the most suitable products.
Your request is our standard.
FAQ
1. How long is the delivery time?
The delivery time is from 10days to 60 days after getting deposit. It depends on the size of greenhouse.
2. How long is the warranty period?
We will supply free spare parts if any problem occurred in 12 months after installations.
3. Is your company foreign trade company or manufacturer?
We are manufacturer.
4. Can you supply sample?
Small parts can be supplied, but clients should pay the express fee.
5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plant after getting deposit. And we can give simple drawing
before signing contract.

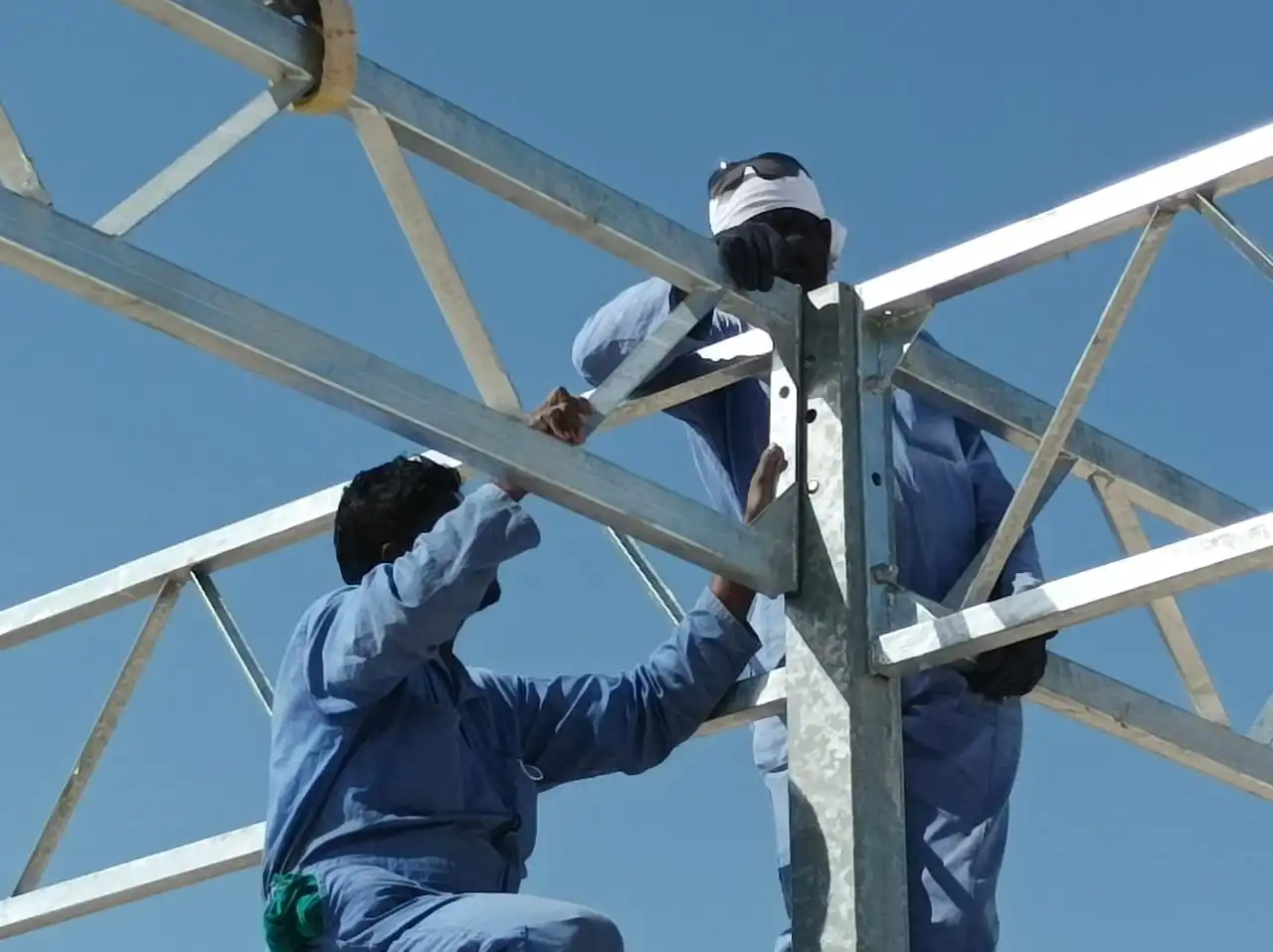

6. How to install greenhouse?
We will send our engineers to clients's site for guiding the installations.
Client should hire enough local workers for doing the installation work.
7. When installing, what cost should we pay?
Our engineers' airline tickets, local accommodations, visa fees, etc are taken by the clients.
Our engineers' salary is $100 /day per person.
8. What is the payment terms?
Generally, our payment way is 30%-50% TT deposit, the balance by TT before loading.
Or you can give your own payment term, then we can negotiate it.
The delivery time is from 10days to 60 days after getting deposit. It depends on the size of greenhouse.
2. How long is the warranty period?
We will supply free spare parts if any problem occurred in 12 months after installations.
3. Is your company foreign trade company or manufacturer?
We are manufacturer.
4. Can you supply sample?
Small parts can be supplied, but clients should pay the express fee.
5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plant after getting deposit. And we can give simple drawing
before signing contract.
6. How to install greenhouse?
We will send our engineers to clients's site for guiding the installations.
Client should hire enough local workers for doing the installation work.
7. When installing, what cost should we pay?
Our engineers' airline tickets, local accommodations, visa fees, etc are taken by the clients.
Our engineers' salary is $100 /day per person.
8. What is the payment terms?
Generally, our payment way is 30%-50% TT deposit, the balance by TT before loading.
Or you can give your own payment term, then we can negotiate it.
