Large Scale Commercial Solar Panel Power Plant Ground Mounting Bracket Racking Structure Aluminum Ground Mounting System
- Category: >>>
- Supplier: Xiamen Megan Solar Co. Ltd.
Share on (1601127765623):
Product Overview
Description
Product Overview

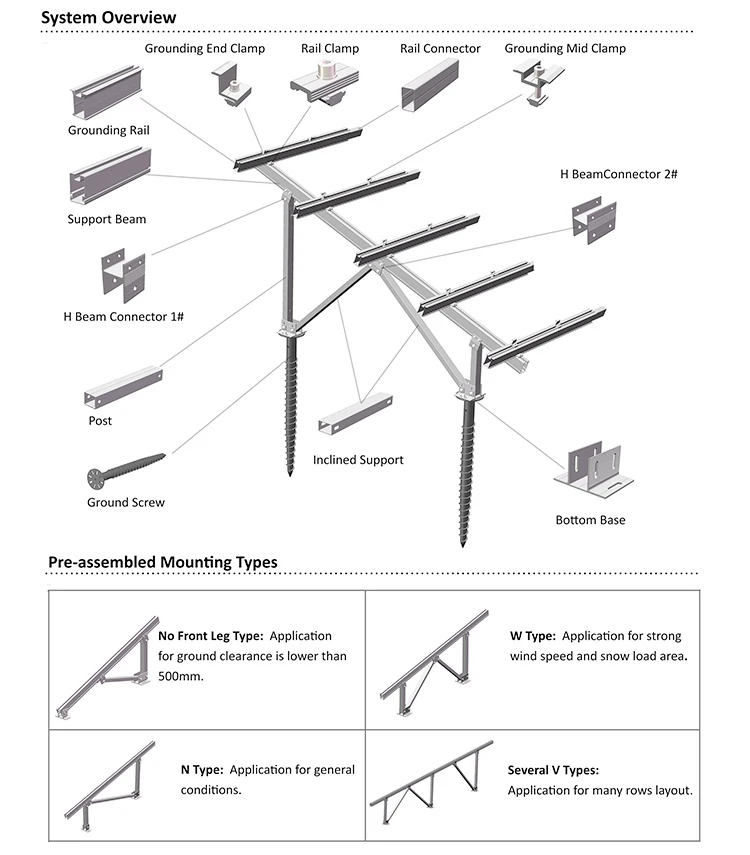

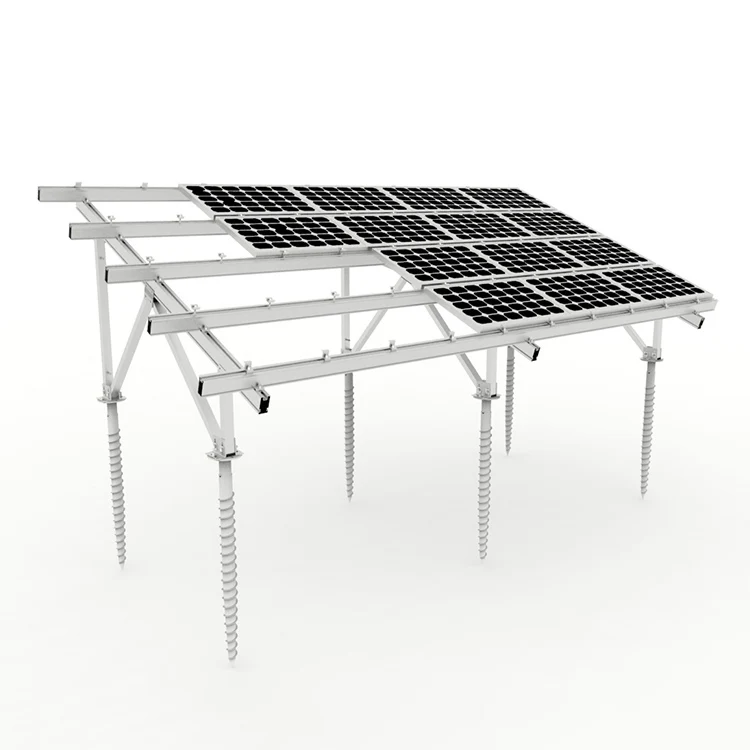

Aluminum Ground Mounting System
Most of the components are pre-assembled before shipment, there is no need to drilling,cutting and other operations on site, simply adjust locking to complete the installation.Ground screws and concrete foundations optional.Compatible with most modules and most wind loads.Smart design reduce the difficulty of the installation on the most condition.
Install Site | Open Terrain |
Tilt Angle | 5°~60° |
Snow Load | 1.5KN/m2 |
Module Orientation | Landscape or Portrait |
Foundation Type | Concrete Base or Screw Pile |
Material | Anodized Aluminum 6005-T5(AL6005-T5), Stainless Steel 304(SUS304) |
Design Standard | JIS C8955:2011 |
Warranty | 12 years quality guaranty |
Features
1. Products using aluminum alloy 6005-T5 (AL6005-T5) and stainless steel 304 (SUS304), high strength, corrosion resistance is good.
2.Most of the components are pre-assembled before shipment, there is no need to drilling,cutting and other operations on site,simply adjust locking to complete the installation.
3.Ground screws and concrete foundations optional.
4.Compatible with most modules and most wind loads.
5.Smart design reduce the difficulty of the installation on the most condition.
Certifications
Product packaging
Company Profile
Factory Overview
We have our own laboratory center, aluminum extrusions production plant, stainless steel production plant, oxidation production lines, spraying production line, casting line, full-automatic production line, mould plant, galvanizing plant, and so on.
We have 12 sets of punching machines, 3 sets of aluminum alloy cutting machines, 2 sets of automatic drilling, tapping machines and 3 roll forming production lines, and monthly productions of aluminum alloy solar mounting up to 30MW.
Exhibition
FAQ
Information we need to collect for solar ground mounting system:
1.Panel dimension: length, width and thickness?
2.Tilt angle?
3.Panel layout: how many panels in a column, how many panels in a row? How many solar panels in total?
4.Max wind speed on project site?
5.Max snow load on project site?
6. Ground clearance: the height from the bottom of solar panel to the ground?
7. Foundation: ground screw pile foundation or concrete foundation?
8. Material: Aluminum alloy or galvanized steel?
2.Tilt angle?
3.Panel layout: how many panels in a column, how many panels in a row? How many solar panels in total?
4.Max wind speed on project site?
5.Max snow load on project site?
6. Ground clearance: the height from the bottom of solar panel to the ground?
7. Foundation: ground screw pile foundation or concrete foundation?
8. Material: Aluminum alloy or galvanized steel?
