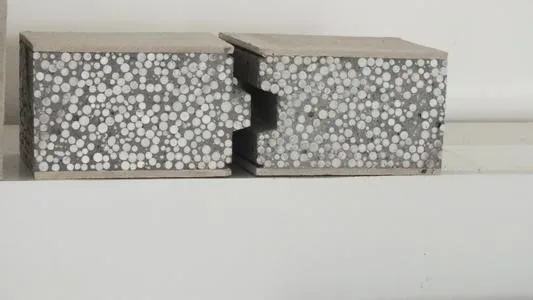

Prefabricated EPS forming wall panel equipment/Precast EPS Sandwich Concrete Manhole Machine For Making Wall Panel
- Category: >>>
- Supplier: Shandong Tianyi Machinery Co. Ltd.
Share on (1601127876578):
Product Overview
Description

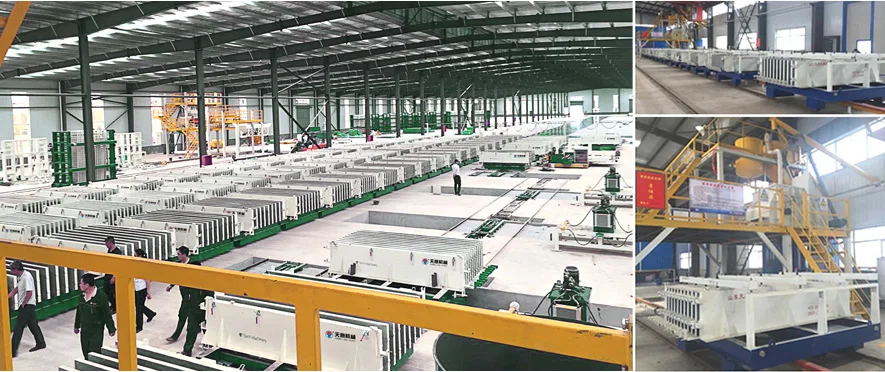

EPS cement wall panel production line is the new wall panel production line developed by our company according to domestic and foreign advanced technology and experience. The production line mainly consists of automatic batching system, mixing system, foaming system, power distribution system, wall panel molding system, slurry pumping system, EPS pre-expanding system, hydraulic circulation system, overall board drawing system, etc.
EPS wall panel production line parameter
Wall Panel Mixing Plant | ||
Power of spiral conveyer（kw） | 11kw×2 | |
Feeding capacity of mixer（L） | 3500 | |
Discharging capacity of mixer（L） | 2000 | |
Mixing speed（r/min) | 33.4 | |
Largest mixing aggregate particles(mm) | 8 | |
Maximum powder measurement (kg) | 800 | |
Number of mixing blade | 8 | |
Power of air compressor（kw） | 5.5 | |
Note: technical parameters for enlarged mixing plant | ||

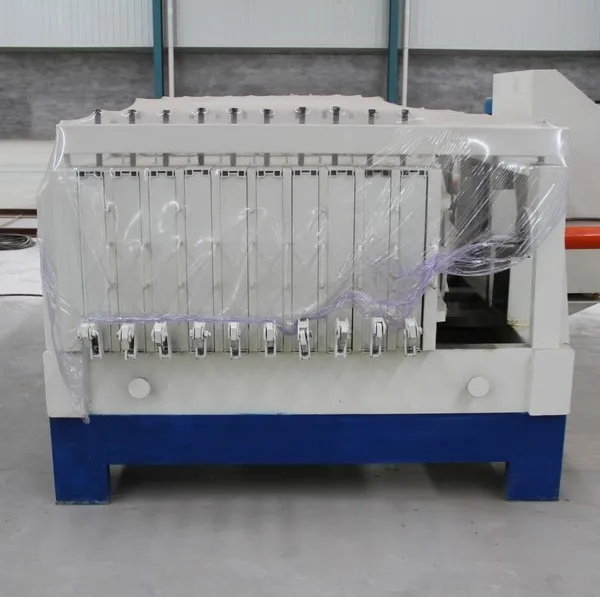

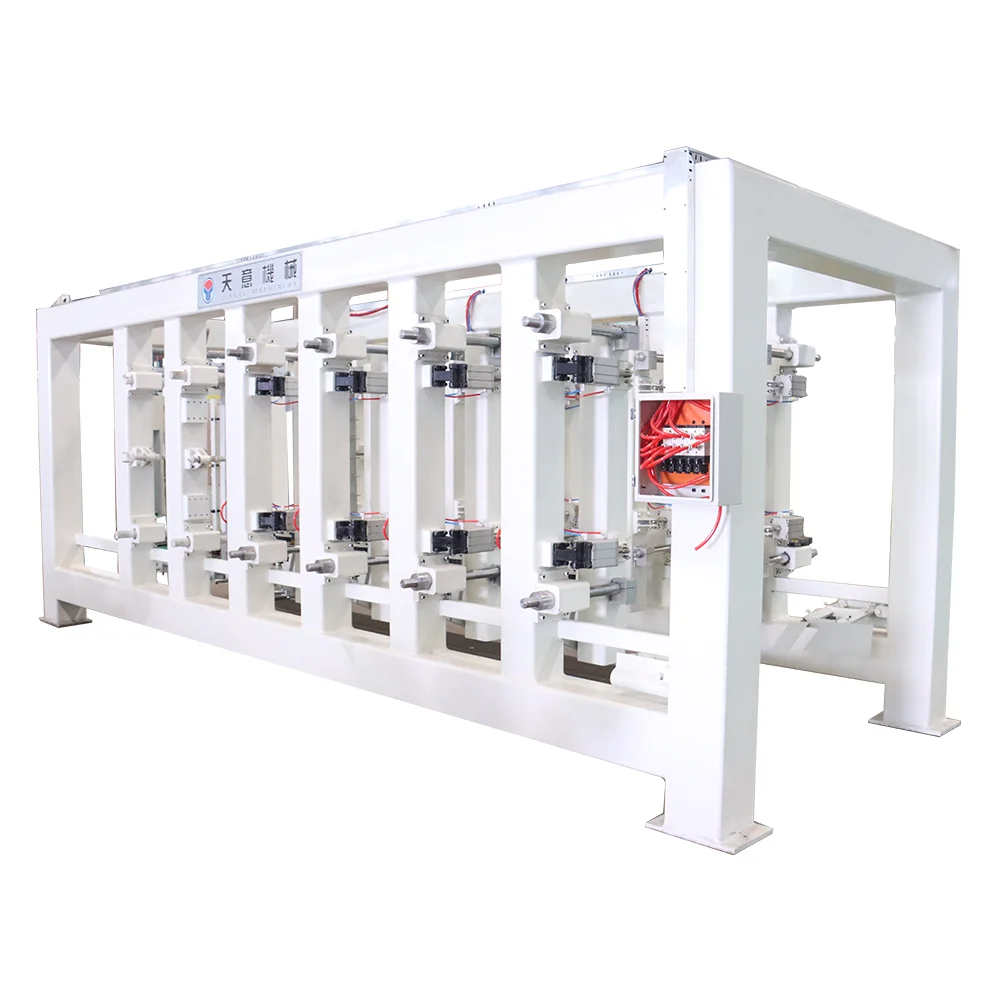

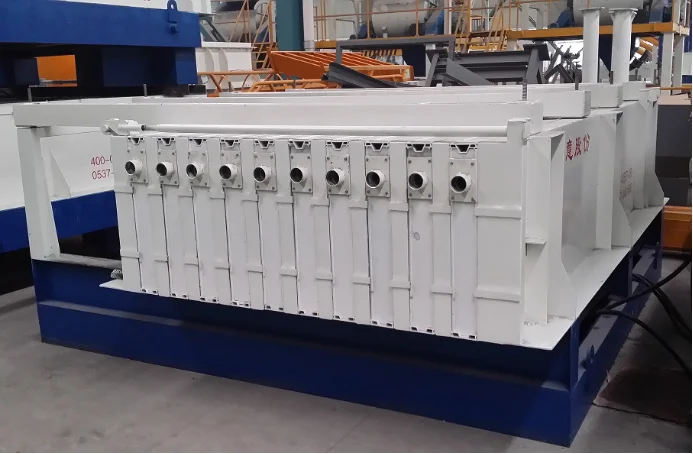

Wall Panel Molding Machine
Overall dimension L3030*W1190*H2500mm
Total power（kw）\t 23.75
Power of heating system（kw）\t 20
Power of vibration system（kw）\t 0.75
Power of hydraulic system（kw）\t 3
Hydraulic working pressure（Mpa） 8
Max hydraulic working pressure(Mpa) 16
Capacity of hydraulic tank（L）\t 70
Power of heating system（kw）\t 20
Power of vibration system（kw）\t 0.75
Power of hydraulic system（kw）\t 3
Hydraulic working pressure（Mpa） 8
Max hydraulic working pressure(Mpa) 16
Capacity of hydraulic tank（L）\t 70
Mobile Injecting Machine | ||||
Pumping Pressure in Theory | High pressure | 4.5 | ||
Low pressure | 2.3 | |||
Transport Capacity in Theory | High pressure | 5 | ||
Low pressure | 9.4 | |||
Max. Transport Distance | Horizontal | 300 | ||
Vertical | 120 | |||
Main Motor Power | 11 | |||
Hopper Volume | 0.1 | |||

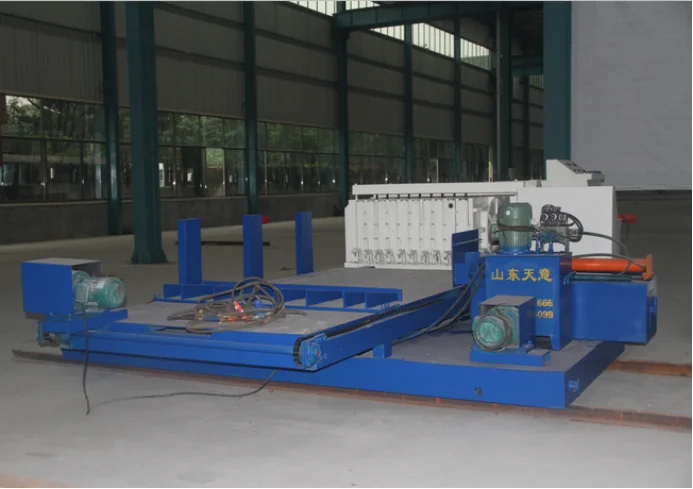

Mobile Automatic Stacker
Overall dimension L4500×W4600×H1050 mm
Total power（kw）\t 7
Demoulding motor power（kw）\t 1.5
Travel motor power（kw）\t 1.5
Hydraulic system motor power（kw）\t4
Hydraulic working pressure（Mpa）\t10
Maximum hydraulic working pressure\t16
Stacking platform (L×W) (mm)\t4500×2300
Total power（kw）\t 7
Demoulding motor power（kw）\t 1.5
Travel motor power（kw）\t 1.5
Hydraulic system motor power（kw）\t4
Hydraulic working pressure（Mpa）\t10
Maximum hydraulic working pressure\t16
Stacking platform (L×W) (mm)\t4500×2300
SIMILAR PRODUCTS
Company Profile

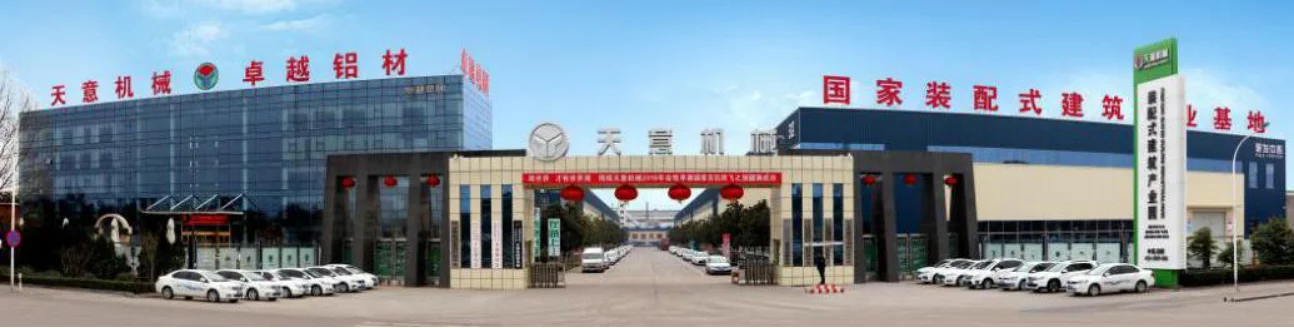

Tianyi Machinery Co., Ltd.
Tianyi was founded in 1998, covering an area of 660 acres, with 260,000 square meters of modern standard factory buildings, has developed into a comprehensive service enterprise integrating research and development design, equipment manufacturing, operation services. The company has obtained 156 technical patents and drafted and participated in 12 national and industry standards. The leading series of products are PC equipment, wall panel equipment, ALC production line, etc., some products have a domestic market share of more than 40%, and exported to India, Saudi Arabia, South Africa, Kazakhstan and other 86 countries and regions, there are more than 6,000 high-quality customers.
On June 6, 2018, Tianyi acquired BCDS, a German prefabricated construction equipment technology company with 36 years of history, and used German Industry 4.0 remote control technology to further improve the intelligent level of Tianyi machinery and equipment
Clients
FAQ
Q: What is the MOQ?
A: 1 sets.
Q: Can I mix different designs?
A: Sure!
Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with bigger quantity is negotiable.
Q: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change
Q: When you ship my order?
A: Normally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the quality guarantee period?
A: 1 years.
Q: How can you guarantee the production quality?
A: Our production quality follow China construction machinery standard.We have 29 years experience on producing the machines and will be inspected by QC team for shipment. And we have 4 times inspection for each finished product before package 3rd part inspection acceptable.
A: 1 sets.
Q: Can I mix different designs?
A: Sure!
Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with bigger quantity is negotiable.
Q: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change
Q: When you ship my order?
A: Normally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the quality guarantee period?
A: 1 years.
Q: How can you guarantee the production quality?
A: Our production quality follow China construction machinery standard.We have 29 years experience on producing the machines and will be inspected by QC team for shipment. And we have 4 times inspection for each finished product before package 3rd part inspection acceptable.
