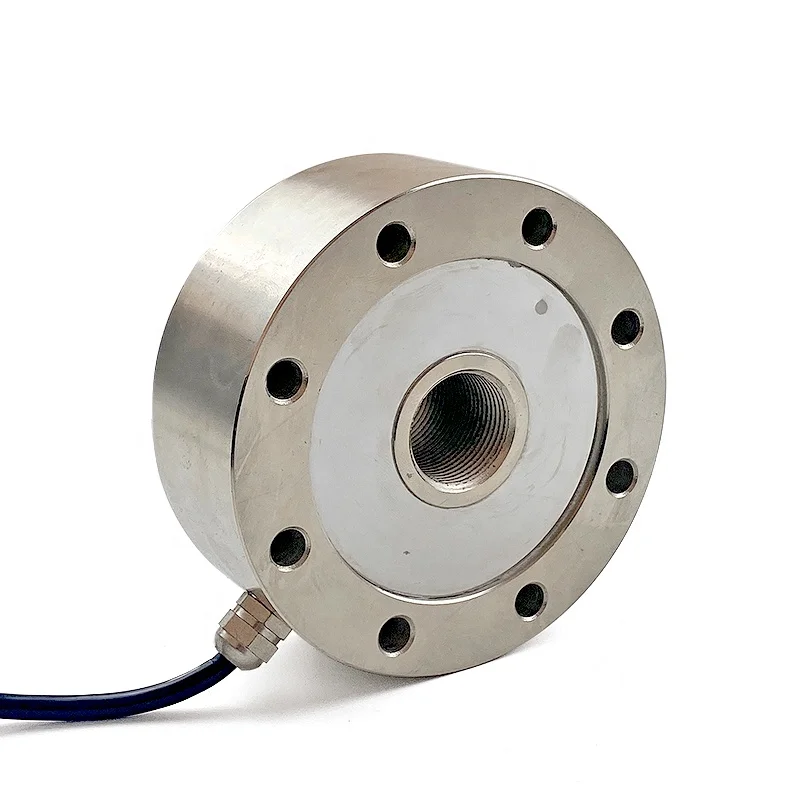

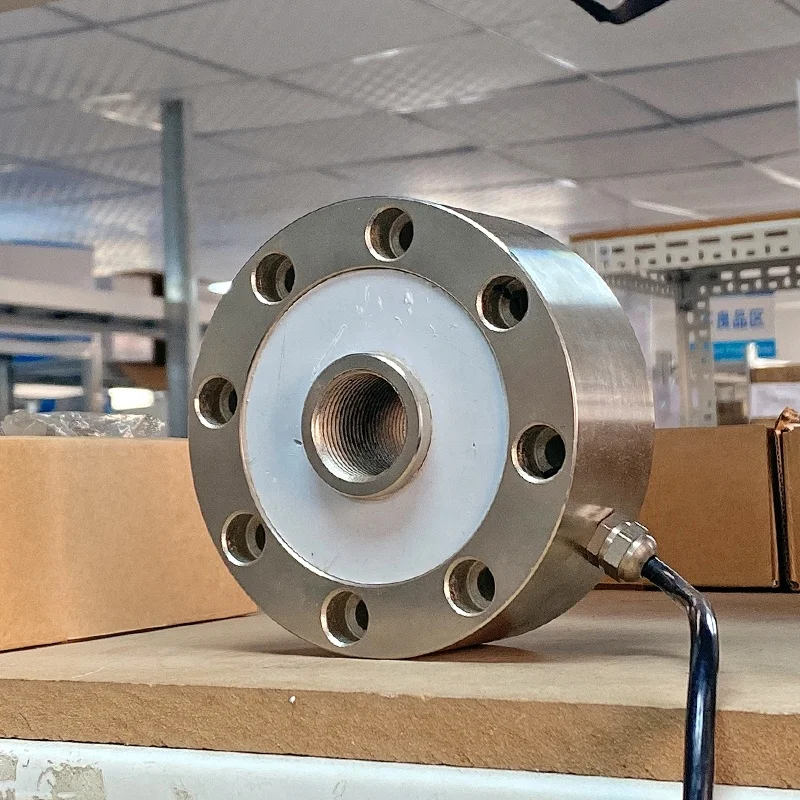

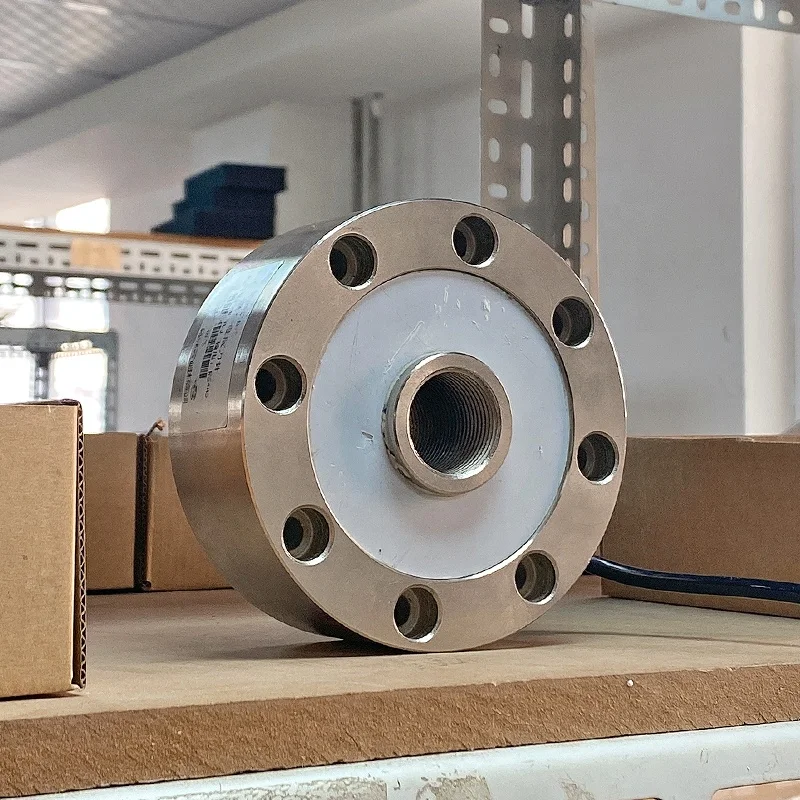

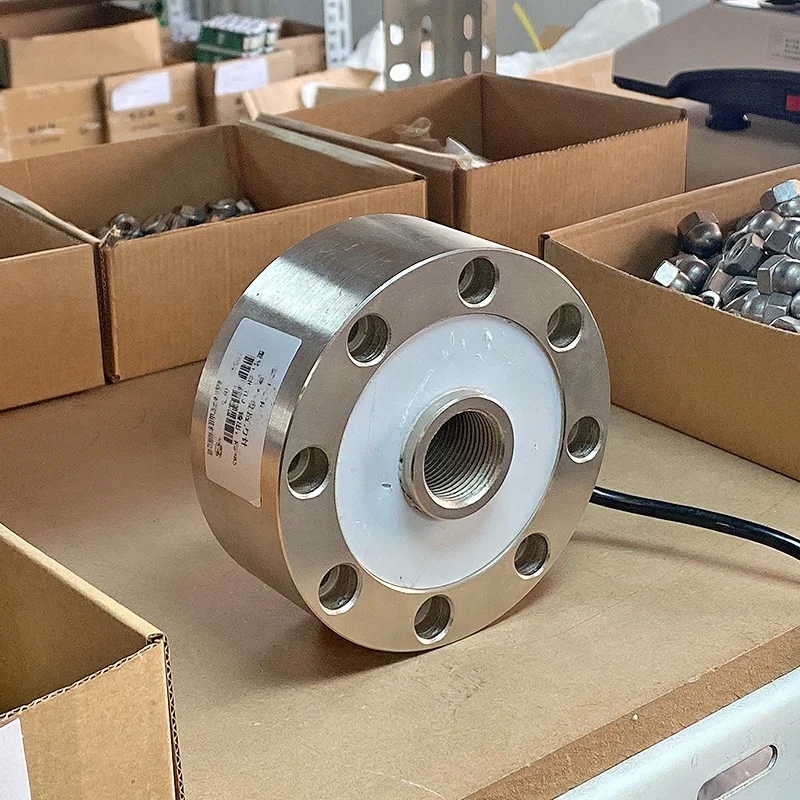

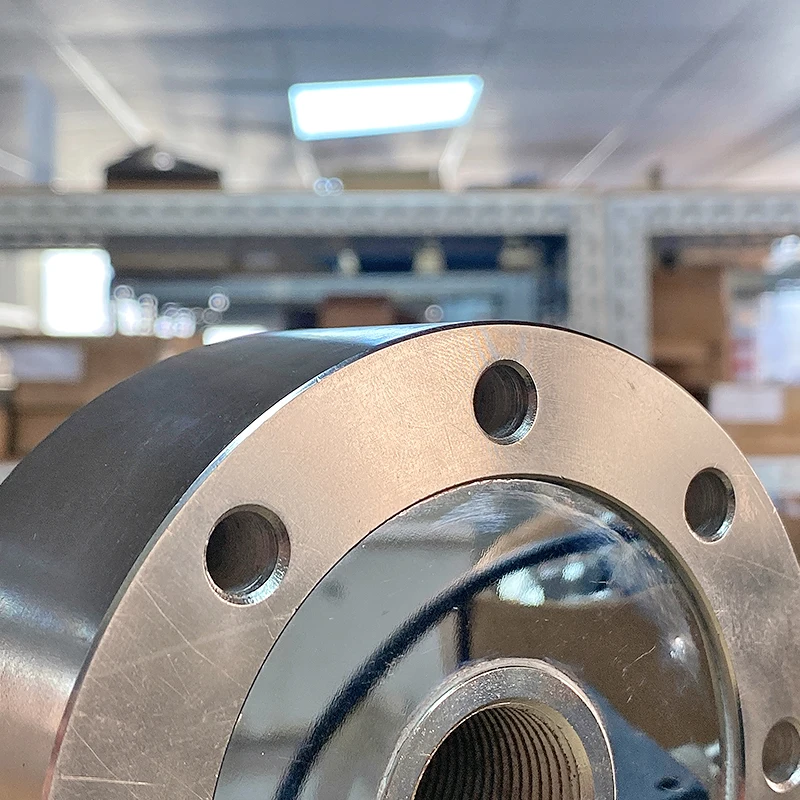

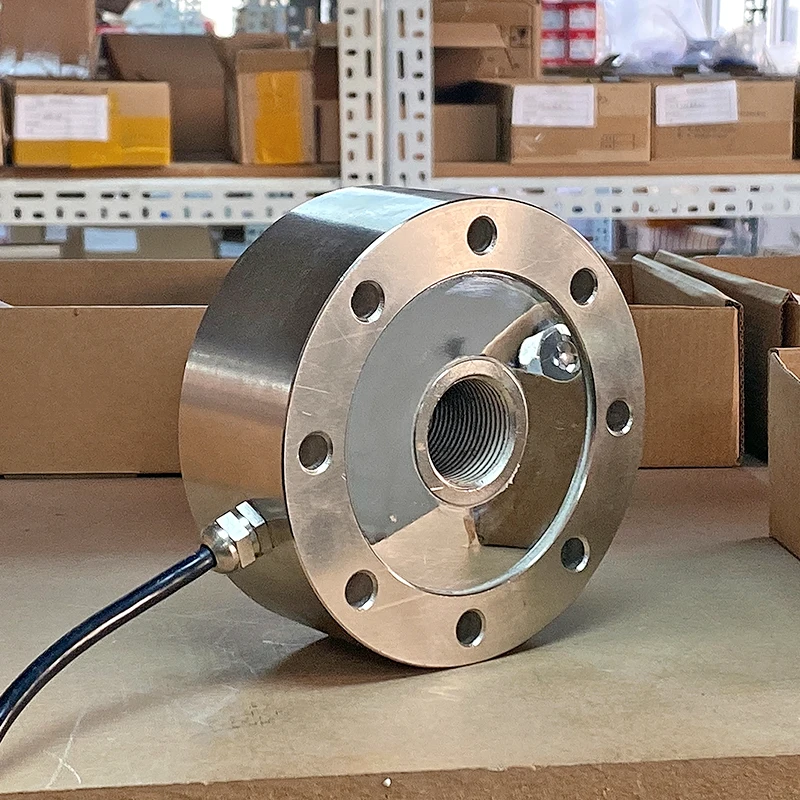

RS485 Strain gage anchor bolt load cell force sensor transducer loadcell for tension compression force measurement
- Category: >>>
- Supplier: Weihai Gemho Digital Mine Technology Co. Ltd.
Share on (1601127935892):
Product Overview
Description

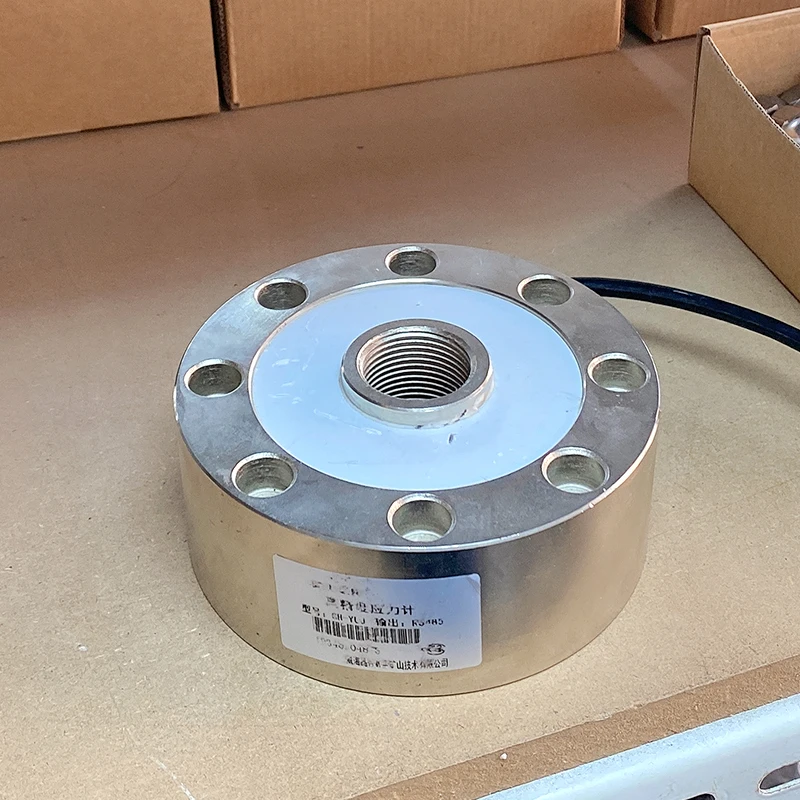

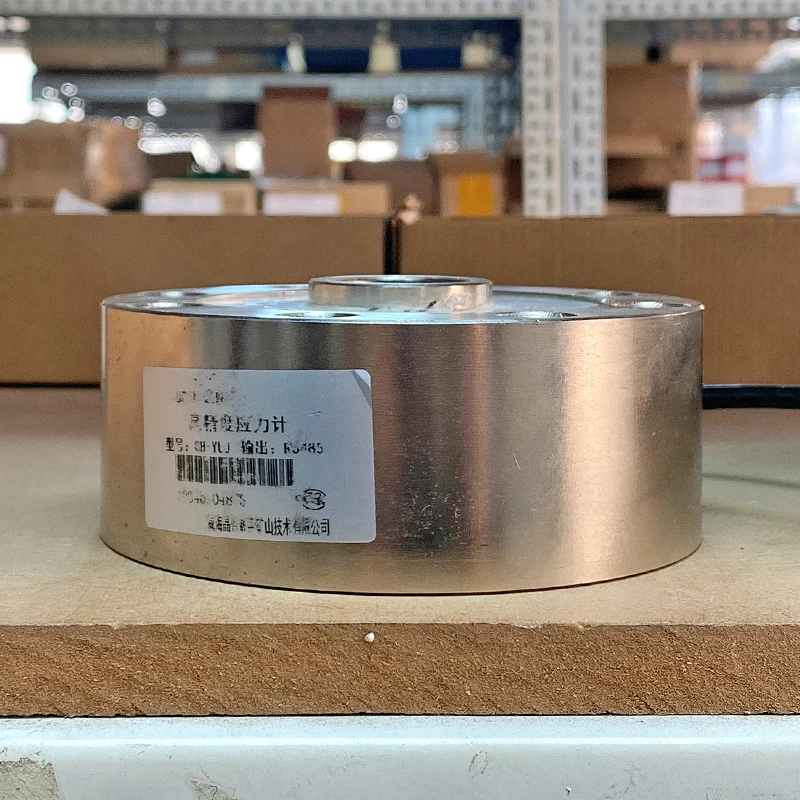

RS485 Strain gage anchor bolt load cell force sensor transducer loadcell for tension compression force measurement
Product Description
The main performance characteristics:
The Anchor Stress Gauge is a stress gauge developed by our company for geohazard safety monitoring, with the aid of one or more steel strands anchored in the borehole of the structure.
long-term monitoring of the one-way tensile stresses experienced by bedrock sections of structures and foundation pits, tunnels, slopes, etc.
It is an effective monitoring device to understand the deformation force felt in tension or compression in the measured bedrock area.
has the advantages of few accessories, easy installation, automatic collection of high-precision observation data and high reliability;
It is widely used for long-term monitoring of one-way tensile stresses in mines, buildings, impermeable walls, bridges, tunnels, concrete sidewalls, concrete footings and other structures.
long-term monitoring of the one-way tensile stresses experienced by bedrock sections of structures and foundation pits, tunnels, slopes, etc.
It is an effective monitoring device to understand the deformation force felt in tension or compression in the measured bedrock area.
has the advantages of few accessories, easy installation, automatic collection of high-precision observation data and high reliability;
It is widely used for long-term monitoring of one-way tensile stresses in mines, buildings, impermeable walls, bridges, tunnels, concrete sidewalls, concrete footings and other structures.
Product main technical specifications:
Product name | Anchor Stress Gauge | Creep | ±0.03%F.S/30min |
Accuracy | 0.05%F.S | Nonlinear | ±0.03%F.S |
measure range | 10,20,50,100,200,500kg | Hysteresis error | 0.03%F.S |
Sensitivity | 2.0±0.1mv/V | Repeatability error | ±0.03%F.S |
Zero point temperature coefficient | ±0.02%F.S/10℃ | Insulation barrier | ≥2000MΩ |
Detailed Images
Designed for ground hazard safety monitoring,
it intelligently captures stress changes occurring within a structure.
Stable and reliable
The internal workings of the structure are buried for long periods of time, eliminating fragile components such as the storage unit, internal battery and display unit, resulting in fewer accessories and easier installation for long-term monitoring.
The internal workings of the structure are buried for long periods of time, eliminating fragile components such as the storage unit, internal battery and display unit, resulting in fewer accessories and easier installation for long-term monitoring.
Measurement parameters

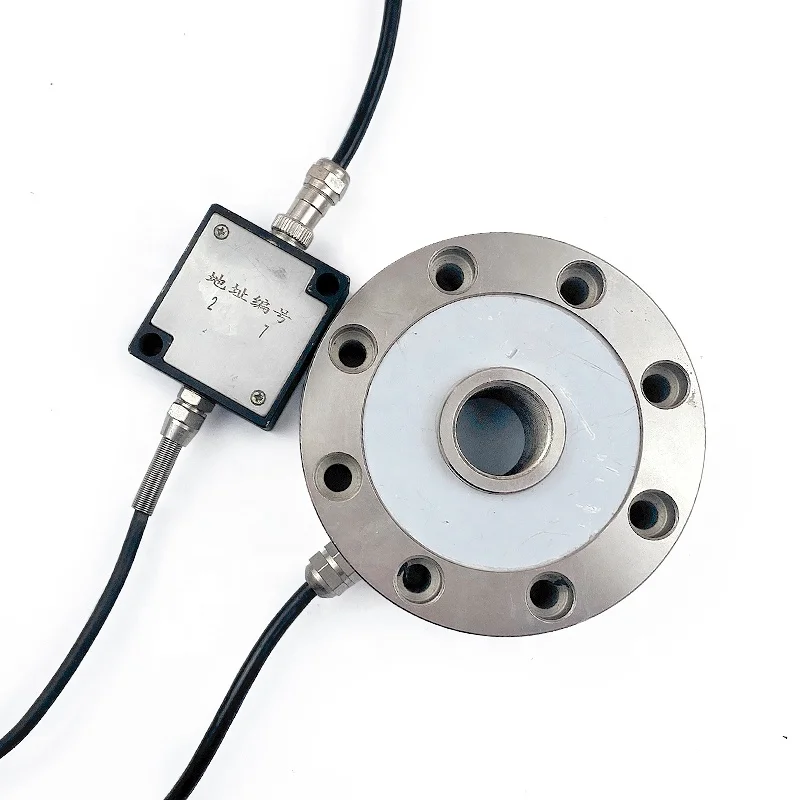

Accuracy up to 0.05% F.S, wide measuring range; output signal RS485 or 0-5V/0-10V/4-20mA.
Accuracy up to 0.05% F.S, wide measuring range; output signal RS485 or 0-5V/0-10V/4-20mA.
Overall made of alloy steel, industrial grade design, protection class IP66
