DIY 30 KM/H LCD Panel Thumb Throttle hub motor 48v 350w 8 inch electric scooter With EBS Thumb Brake
- Category: >>>
- Supplier: Yongkang Erwei Vehicle Co. Ltd.
Share on (1601127968237):
Product Overview
Description
Product Description
8 inch hub motor kit
This kit is for changing the kickscooter to be an electric scooter.Mounting this motor wheel on your scooter, you maybe need to expand your fork and drill the axle hole, please confirm this.

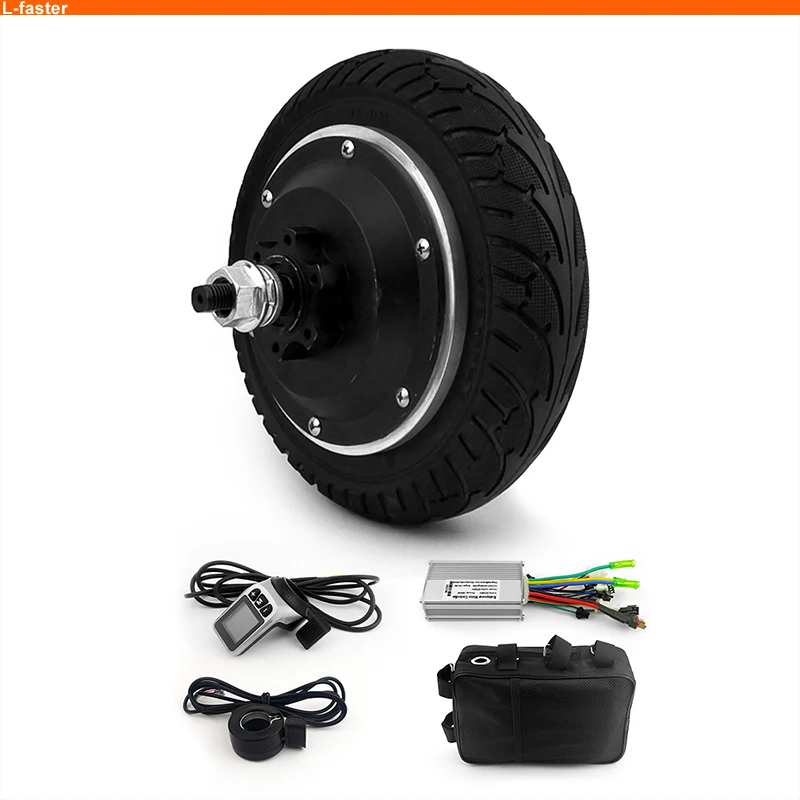

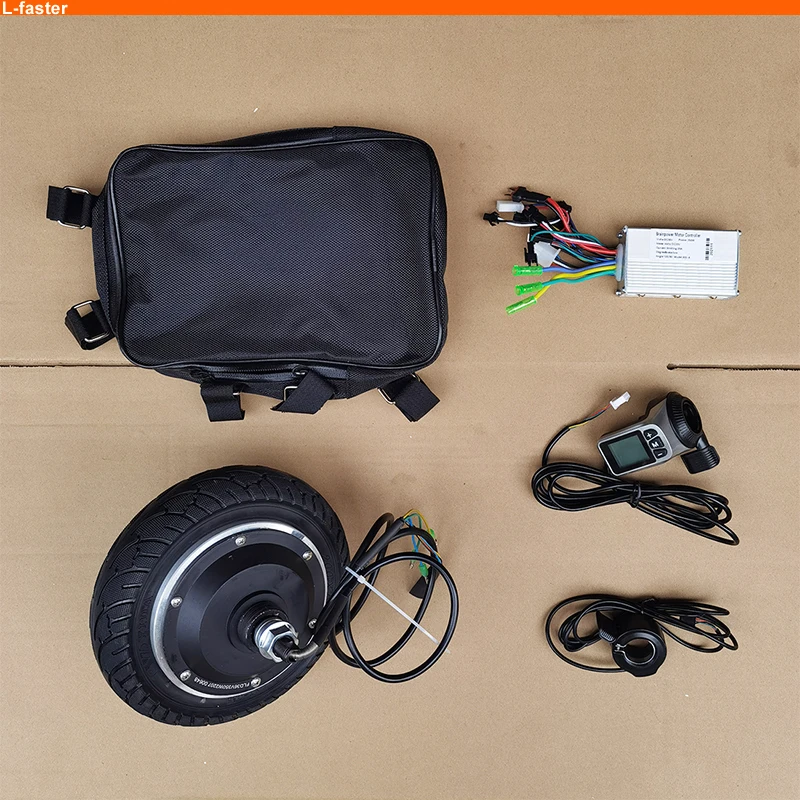

The kit include:

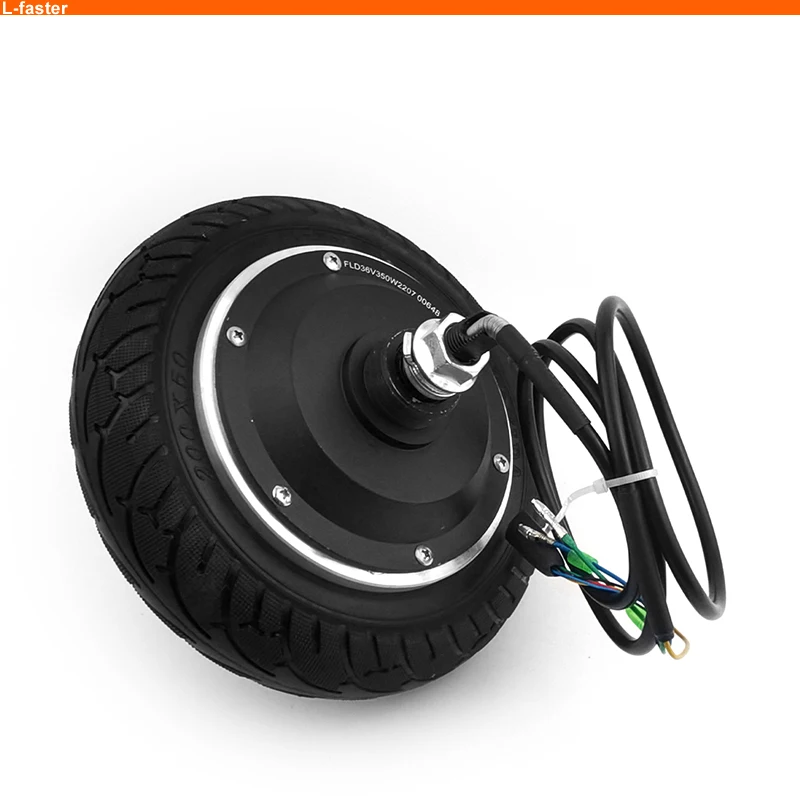

1). 1x 8 inch 350W motor wheel

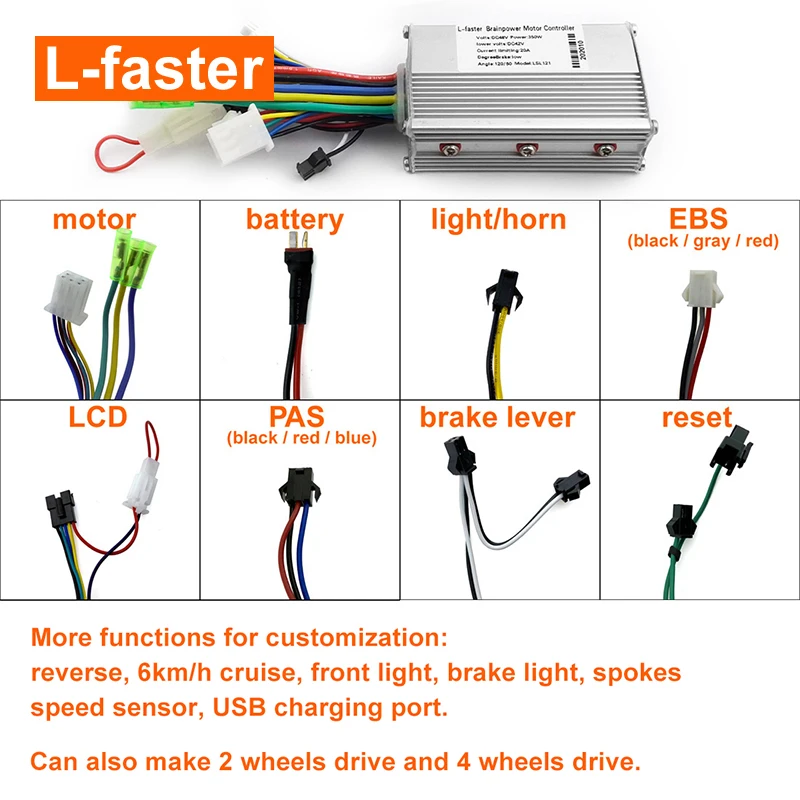

2). 1x Controller

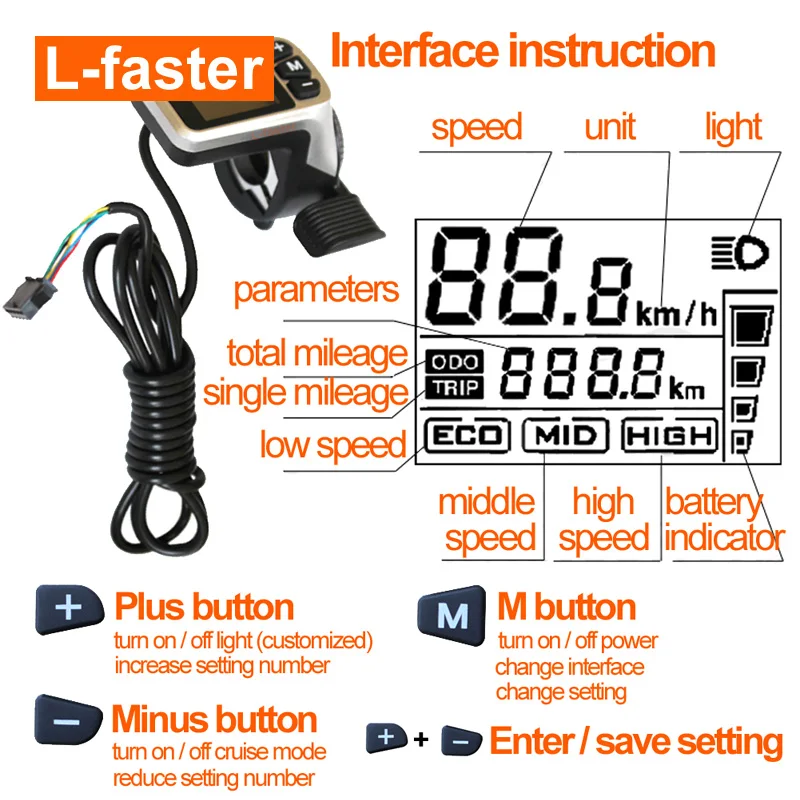

3). 1x Thumb throttle with LCD display
4). 1x Electric brake thumb throttle

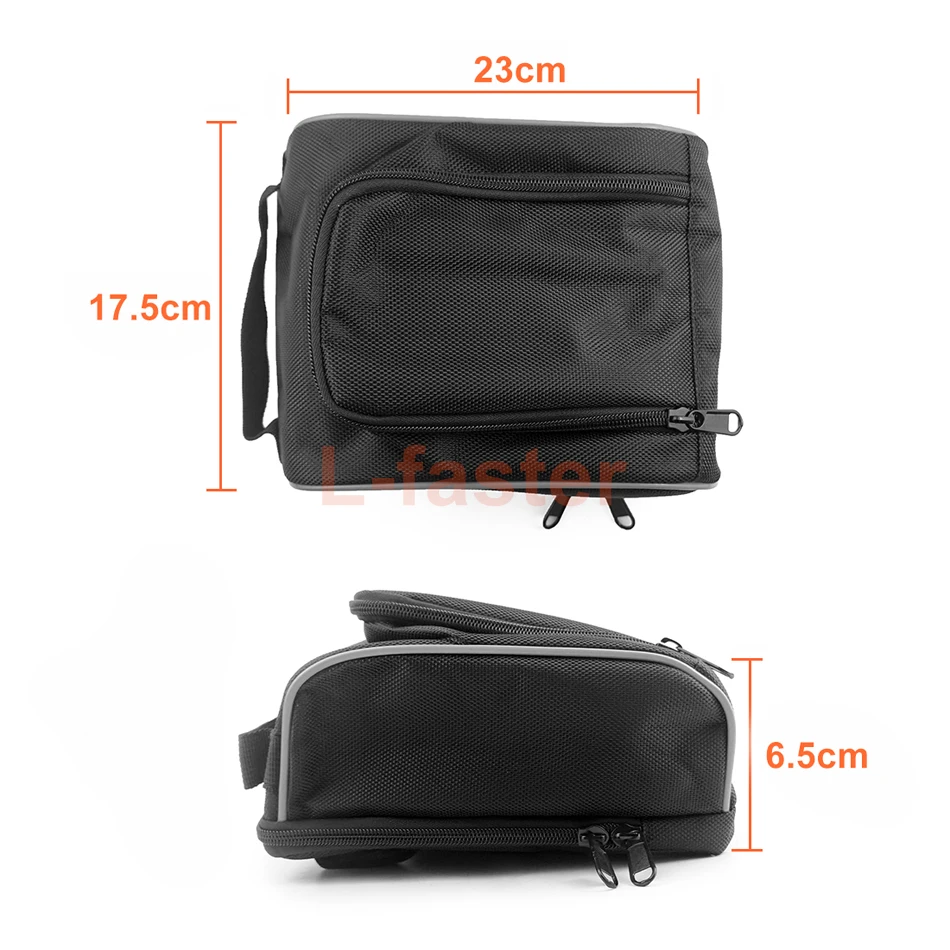

5). 1x Bag (no battery)
6). Some cable ties and pipe
This kit is for changing the kickscooter to be an electric scooter.Mounting this motor wheel on your scooter, you maybe need to expand your fork and drill the axle hole, please confirm this.
The kit include:
1). 1x 8 inch 350W motor wheel
2). 1x Controller
3). 1x Thumb throttle with LCD display
4). 1x Electric brake thumb throttle
5). 1x Bag (no battery)
6). Some cable ties and pipe
Please note:
1). This kit is for the low speed vehicle, the motor speed is low but its torque is big, so it does not good for high speed
project.
If you do not know what motor you need to use, please feel free to ask me.
----------

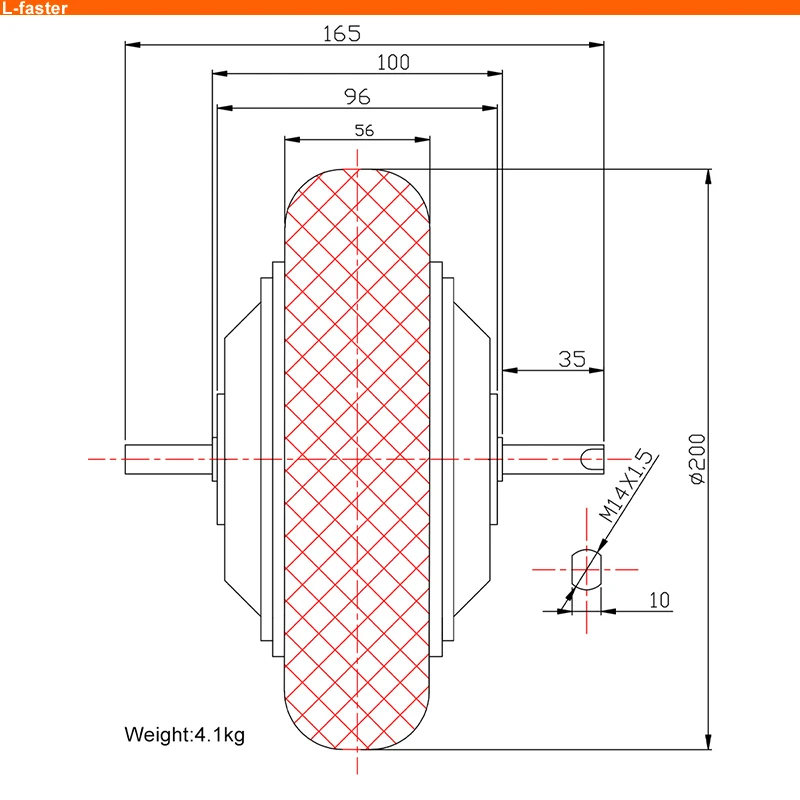

2). The motor hub width is about 100mm, so your vehicle fork inside width should more than 100mm, please confirm this.
----------
3). This motor can run fastest (about 20km/h) if the loading weight less than 100kg
----------
4). The difference between 24V, 36V, and 48V is the working current, if you want to ride longer, I recommend 36V and 48V kit.
----------
5). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are
all ok, and the battery capacity I recommend 24V 15Ah, 36V 12Ah, and 48V 10Ah.
----------
6). For installing this motor wheel to your scooter, maybe you need to expand the scooter fork and drill the axle hole of the
fork, please confirm you can do this.
1). This kit is for the low speed vehicle, the motor speed is low but its torque is big, so it does not good for high speed
project.
If you do not know what motor you need to use, please feel free to ask me.
----------
2). The motor hub width is about 100mm, so your vehicle fork inside width should more than 100mm, please confirm this.
----------
3). This motor can run fastest (about 20km/h) if the loading weight less than 100kg
----------
4). The difference between 24V, 36V, and 48V is the working current, if you want to ride longer, I recommend 36V and 48V kit.
----------
5). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are
all ok, and the battery capacity I recommend 24V 15Ah, 36V 12Ah, and 48V 10Ah.
----------
6). For installing this motor wheel to your scooter, maybe you need to expand the scooter fork and drill the axle hole of the
fork, please confirm you can do this.
Specification
item | value |
Color | Black |
Place of Origin | China |
Zhejiang | |
Brand Name | L-faster |
Model Number | FLD-8g |
Type | Scooter Motors |
Voltage | 36V |
Usage | Electric Scooters, Kick Scooters |
Power | 350w |
Voltage | 24V/36V48V |
Fit for | e-scooter |
Size | 8 inch |
Weight | 4.1kg |
Motor tyoe | brushless gear |
Speed | 20km/h |
Tire Type | Solid |
Open size | 100mm |
