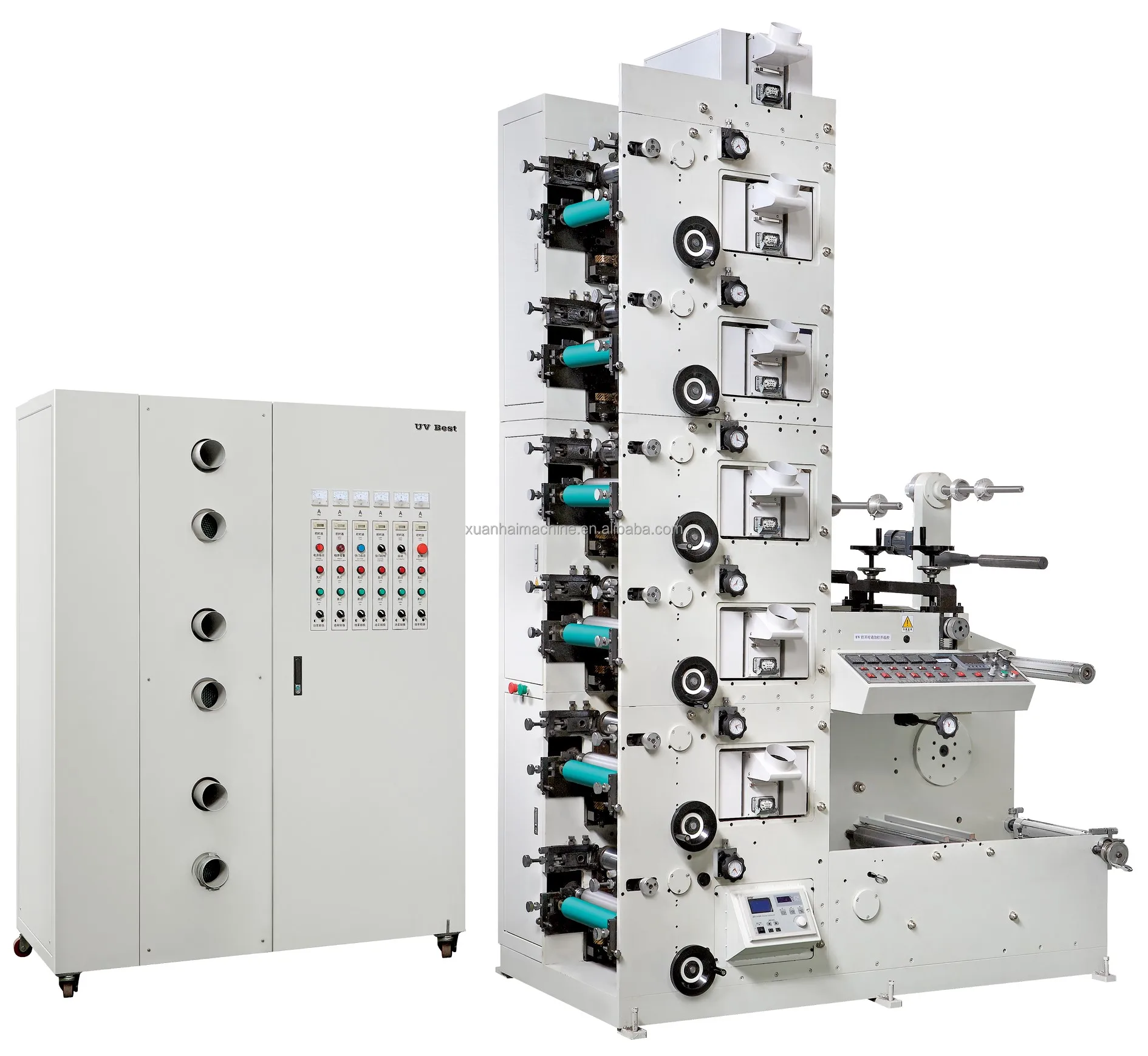

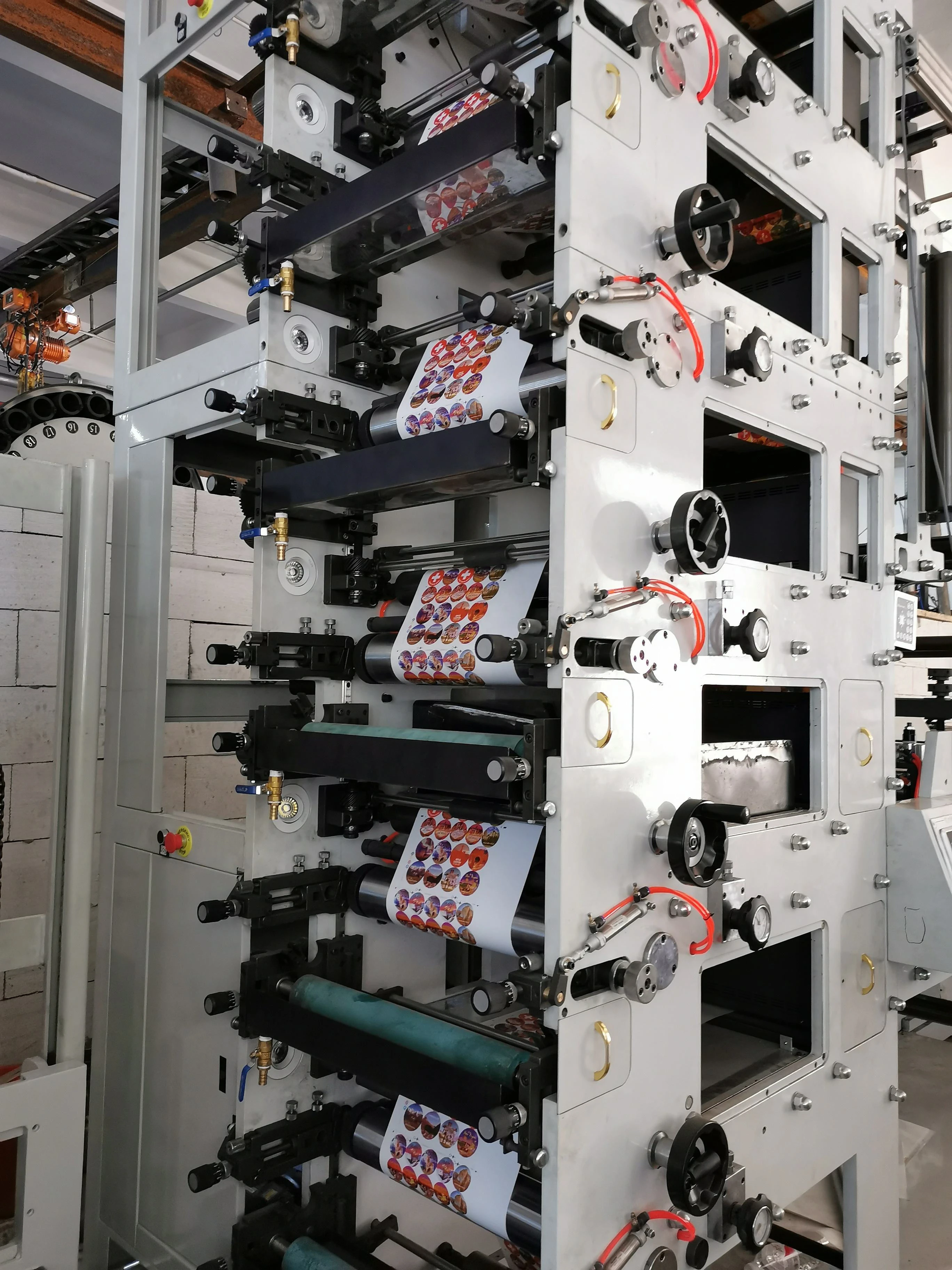

Adhesive Sticker Flexo Label Printing Machine 6 Colors Labels Paper Roll To Roll Die Cut Flexographic label making machine

Share on (1601128057134):


Price:

Quantity:


Product Overview

Description





WE HAVE ONE STOP MACHINES TO MAKE ALL KINDS OF LABELS.
YOU NEED PROFESSIONAL MANUFACTURER AS US






1. The flexo printing machine adopts the anilox rollers to spread

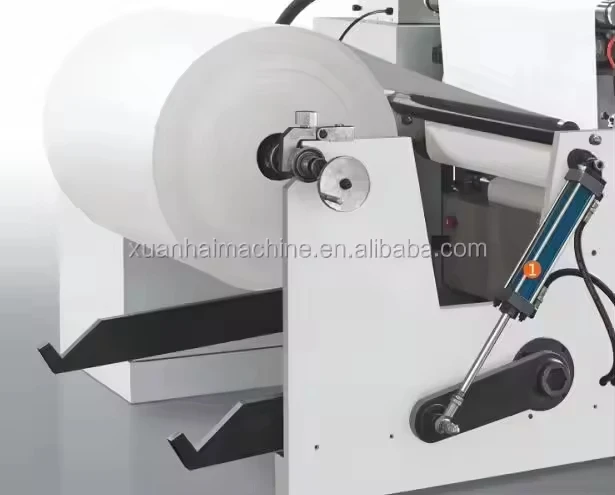

2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake, clutch.
3. Printing unit of the flexo printing machine adopt 360º to regulate for
4. Each printing unit of the flexo printing machine has one IR
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.



Model No.
RY-320
RY-450
RY-850
Colors
3-8colors
3-8colors
3-8colors
Web maximum width
320mm
450mm
850mm
Max printing width
310mm
440mm
840mm
Printing length
175-320mm
175-320mm
175-320mm
Thickness of printing plate
1.7mm
1.7mm
1.7mm
Double faced adhesive tape
0.38mm
0.38mm
0.38mm
Max printing speed
10-60m/ min
10-60m/ min
10-60m/min
Unwinder diameter
600mm
600mm
600mm
Rewinder diameter
550mm
550mm
550mm
Machine weight
2000kg
2300kg
3000kg
Machine dimension
3000x1500x3000mm
3000x1700x3000mm
3000*2100*3000mm

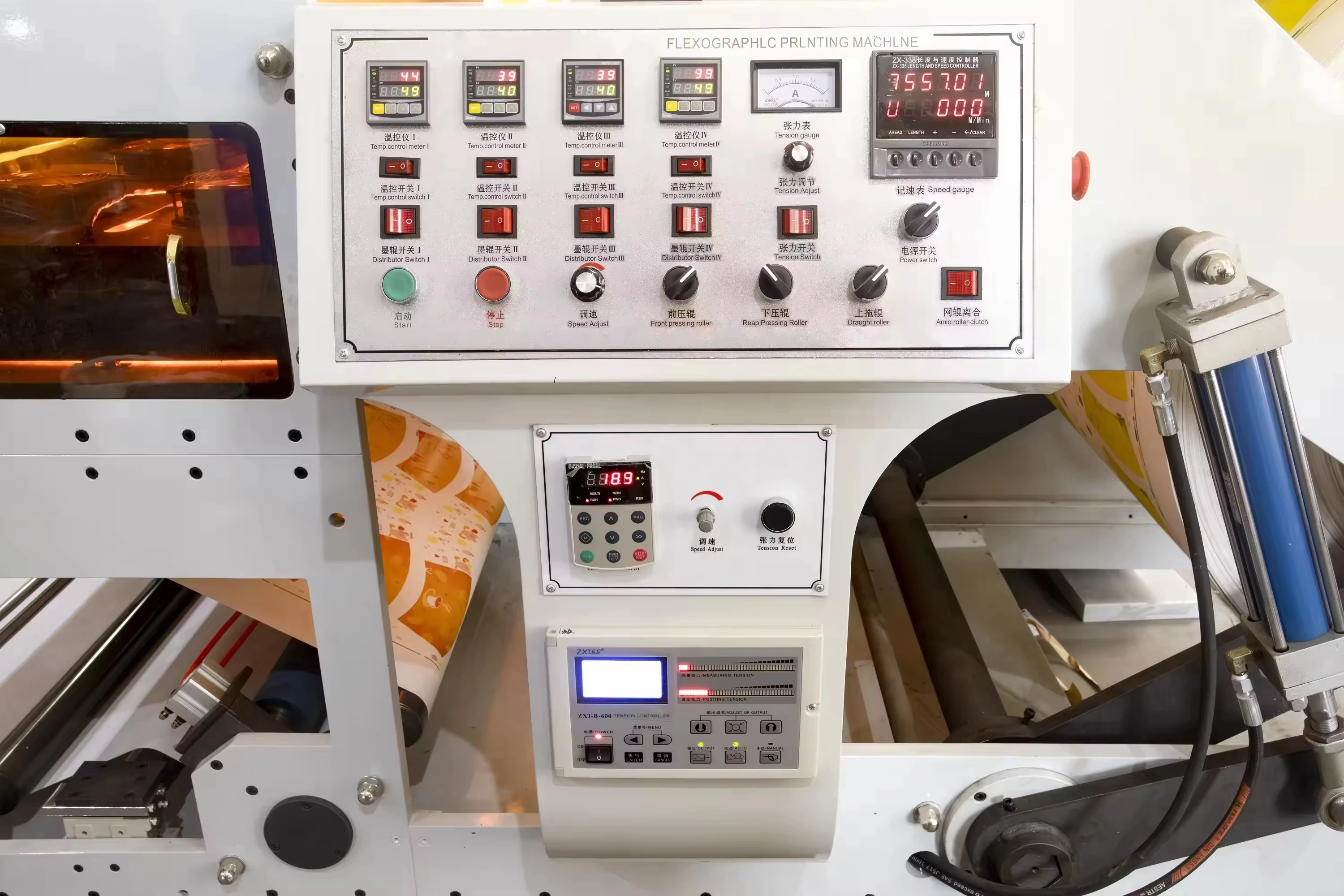

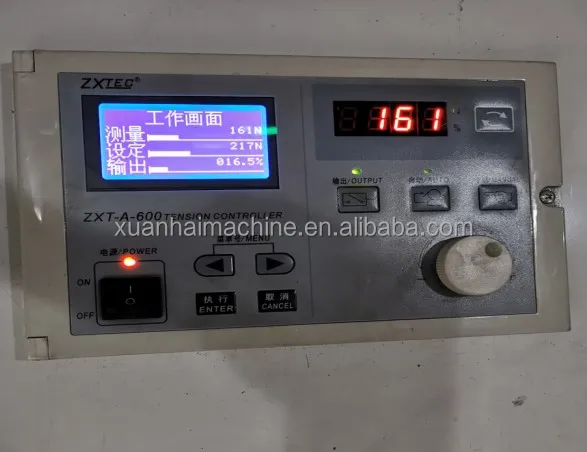

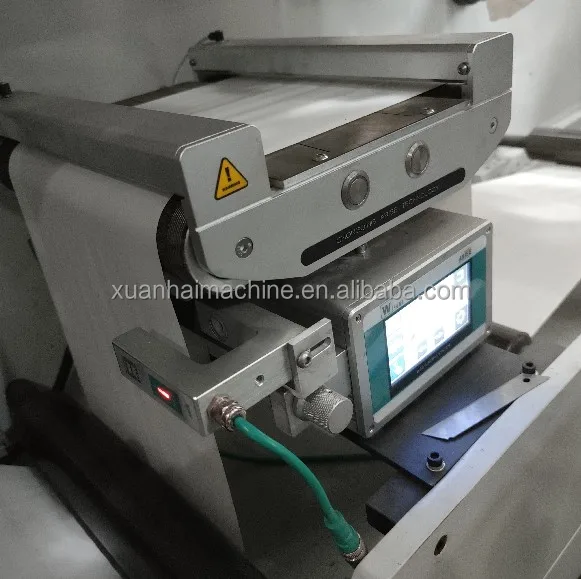

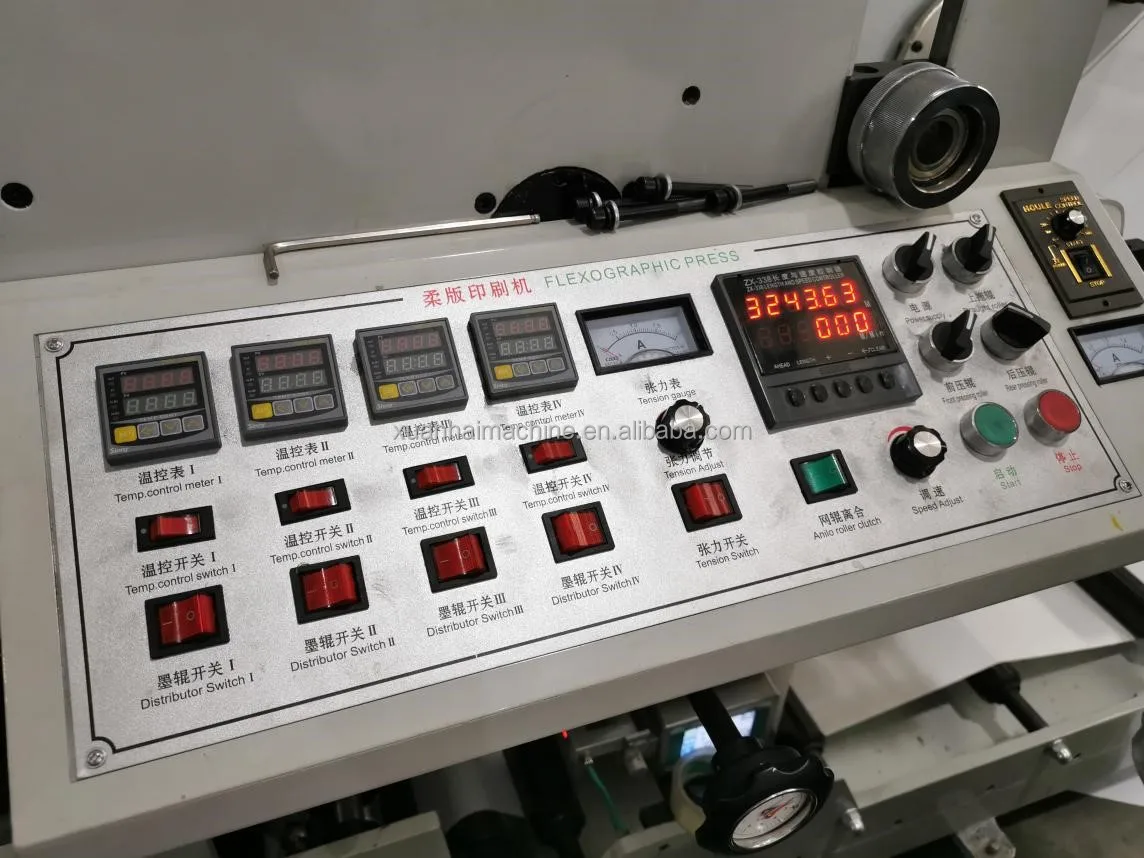

EASY OPERATION WORKING PANELS

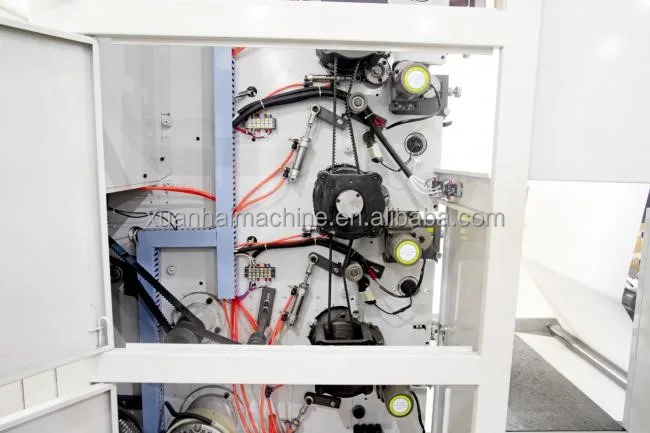

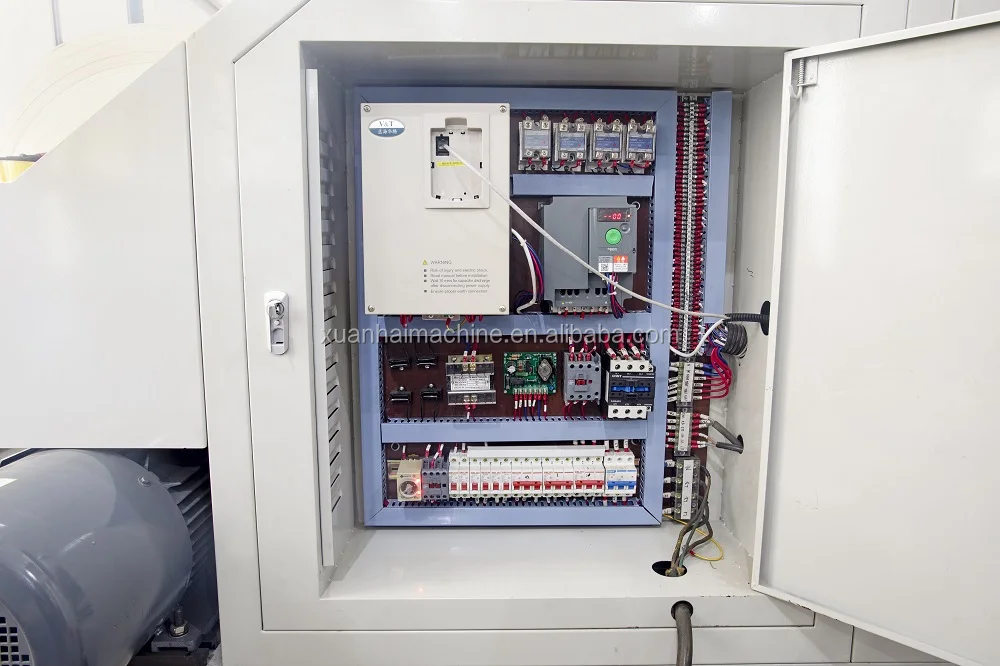

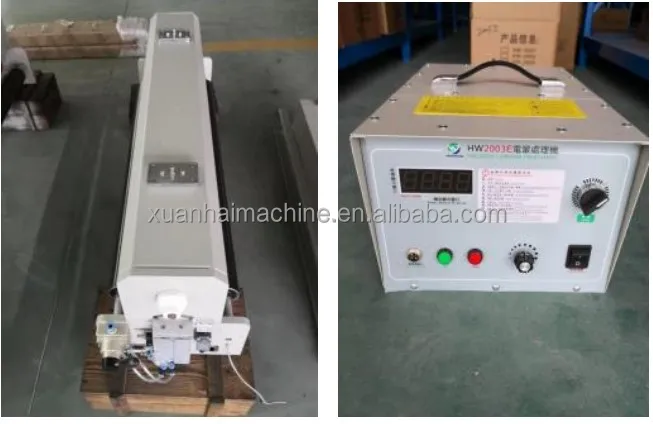

ELECTRICAL PARTS

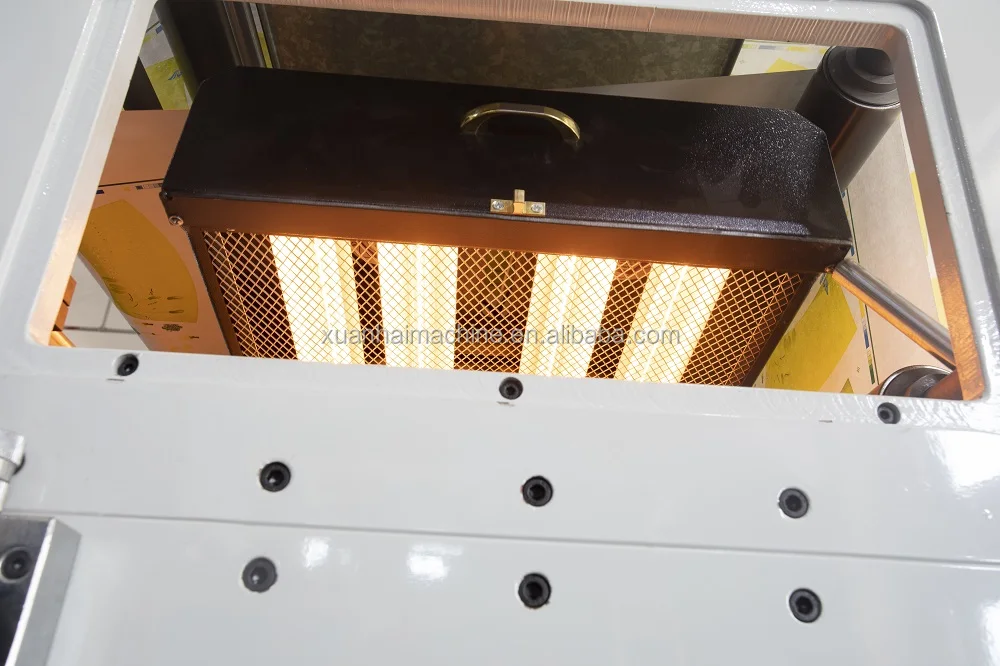

IR STATION

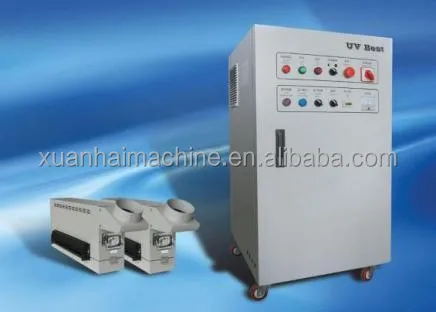

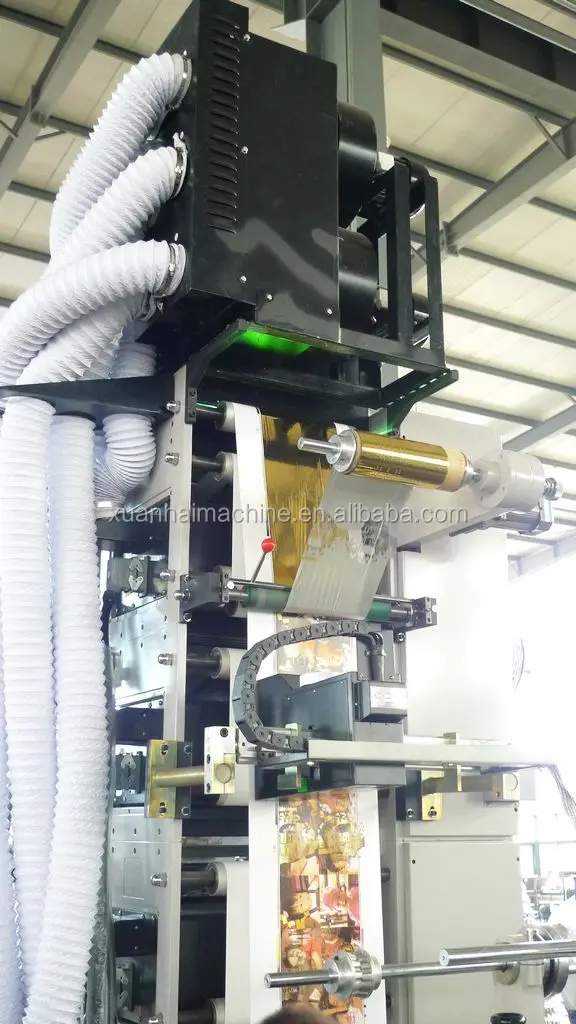

UV STATION




CAN DO ANY PRINTING WIDTH AS YOU WANT

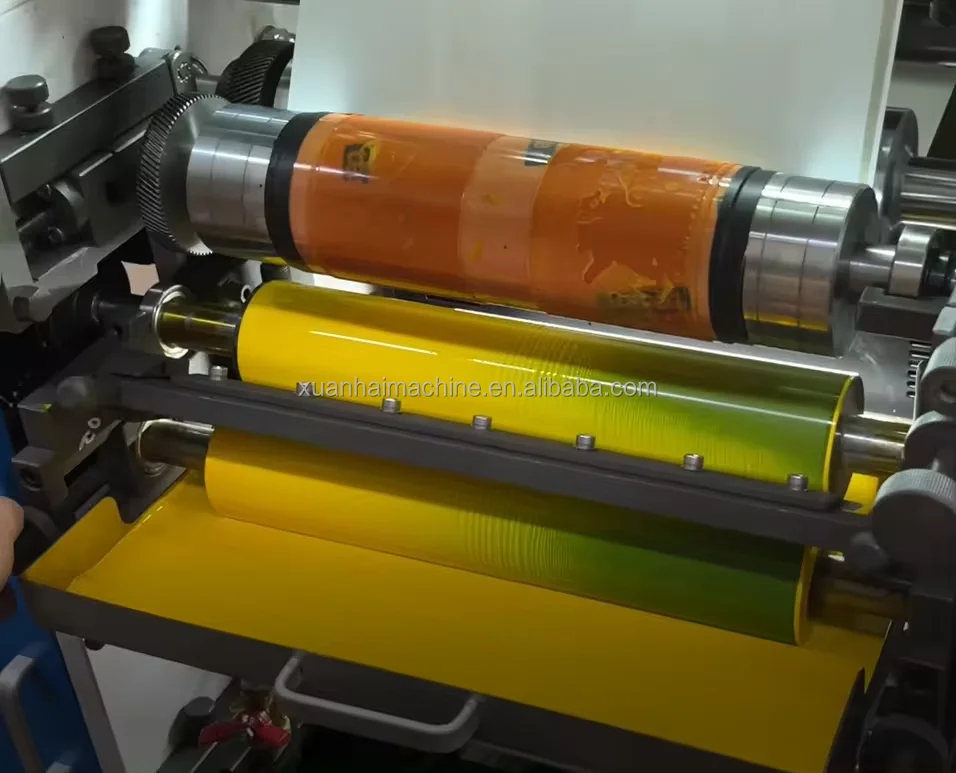

CERAMATIC ANILOX ROLLER
can make any dots as you want

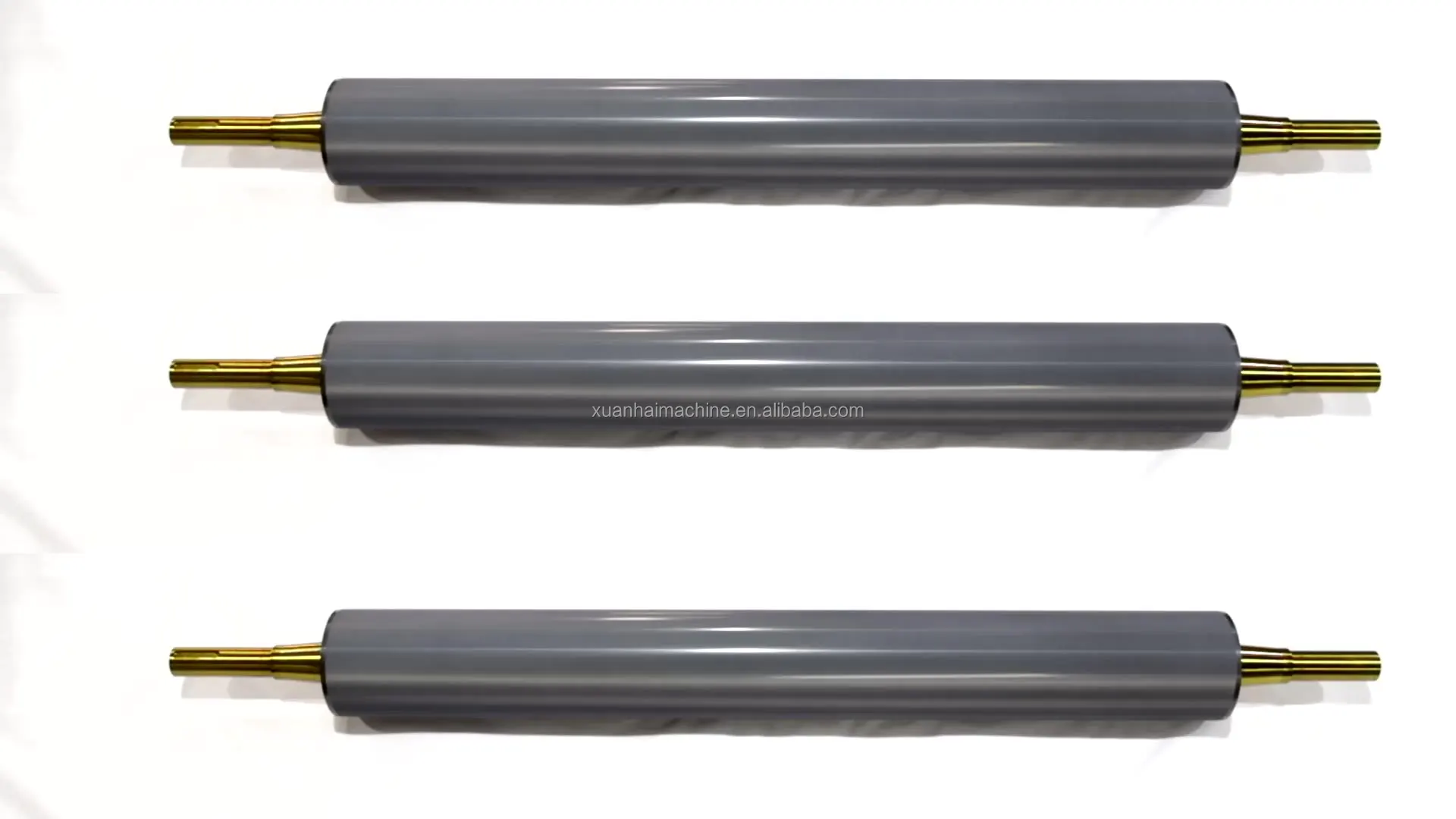

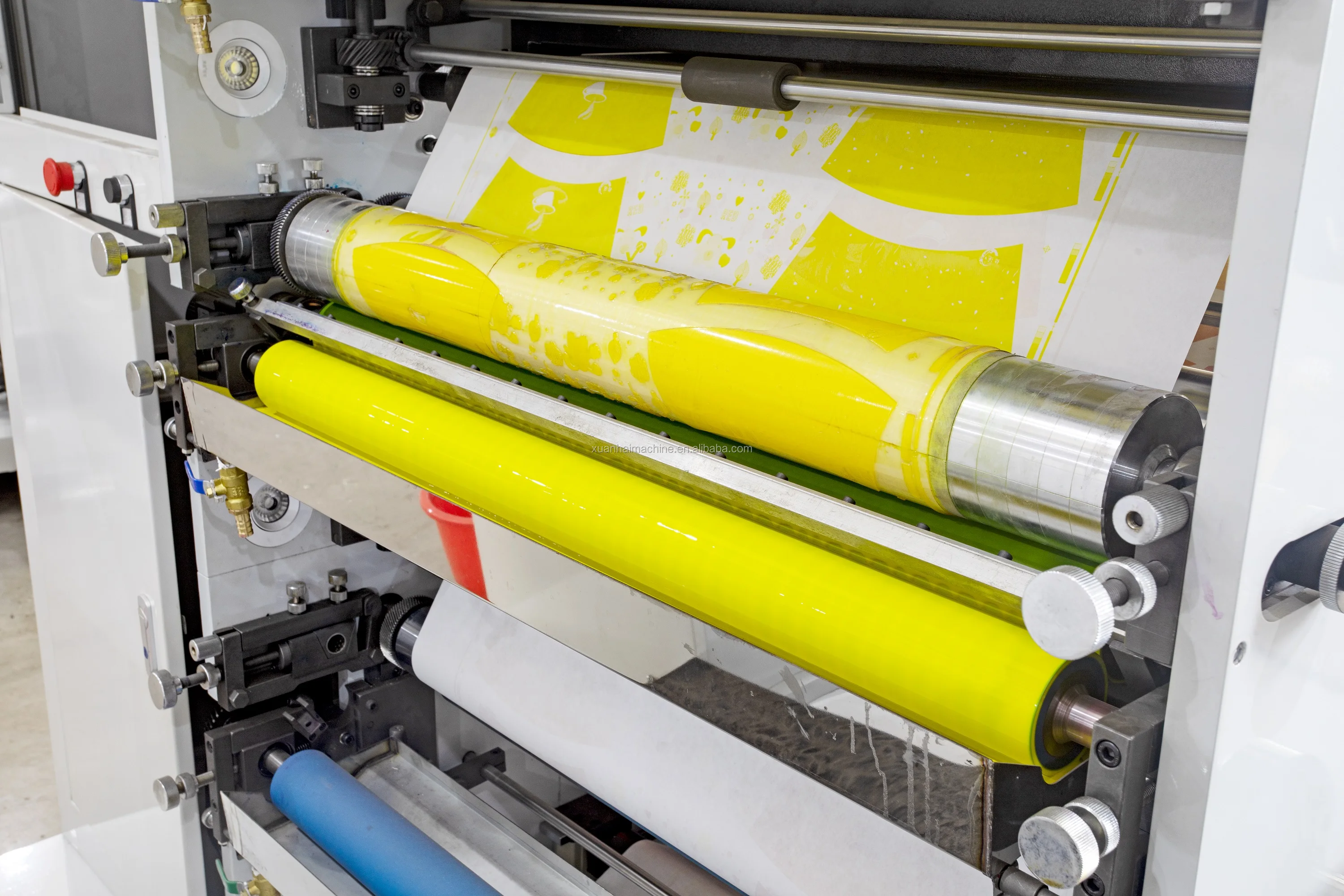

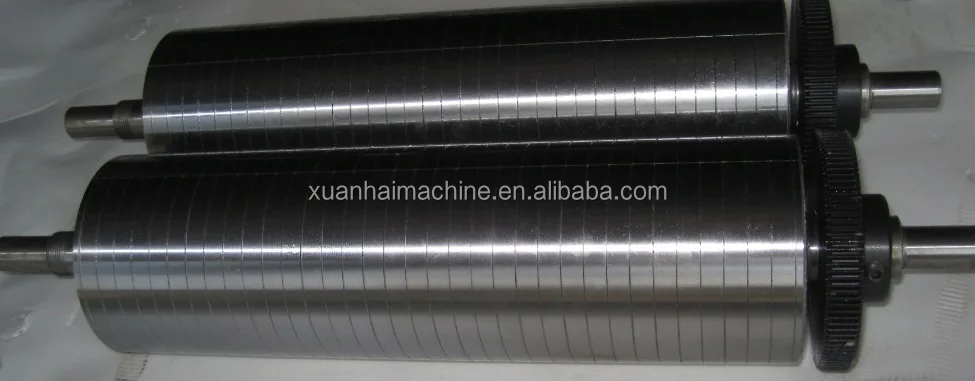

PRINTING CYLINDER
Can make any printing length as you want

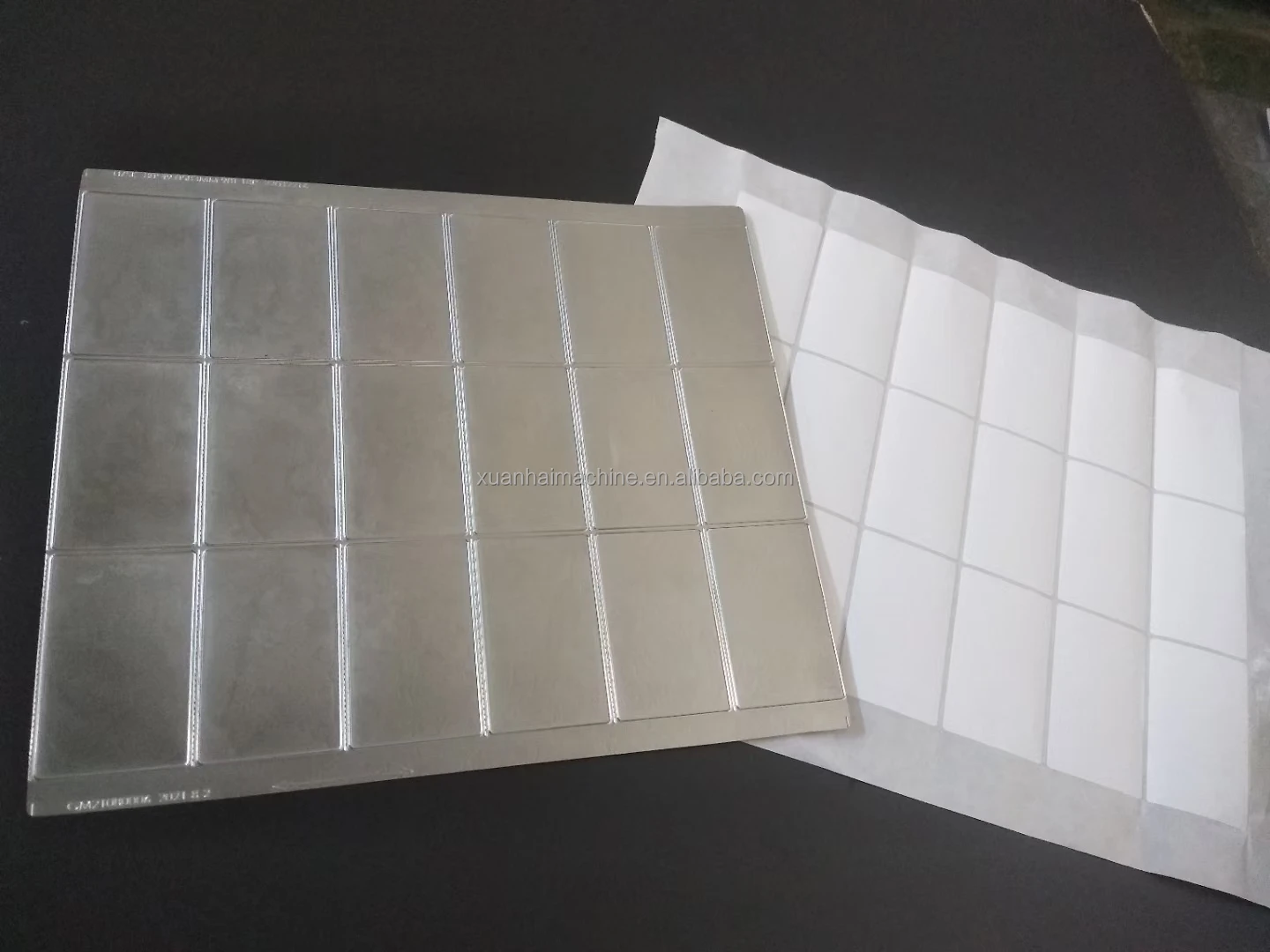

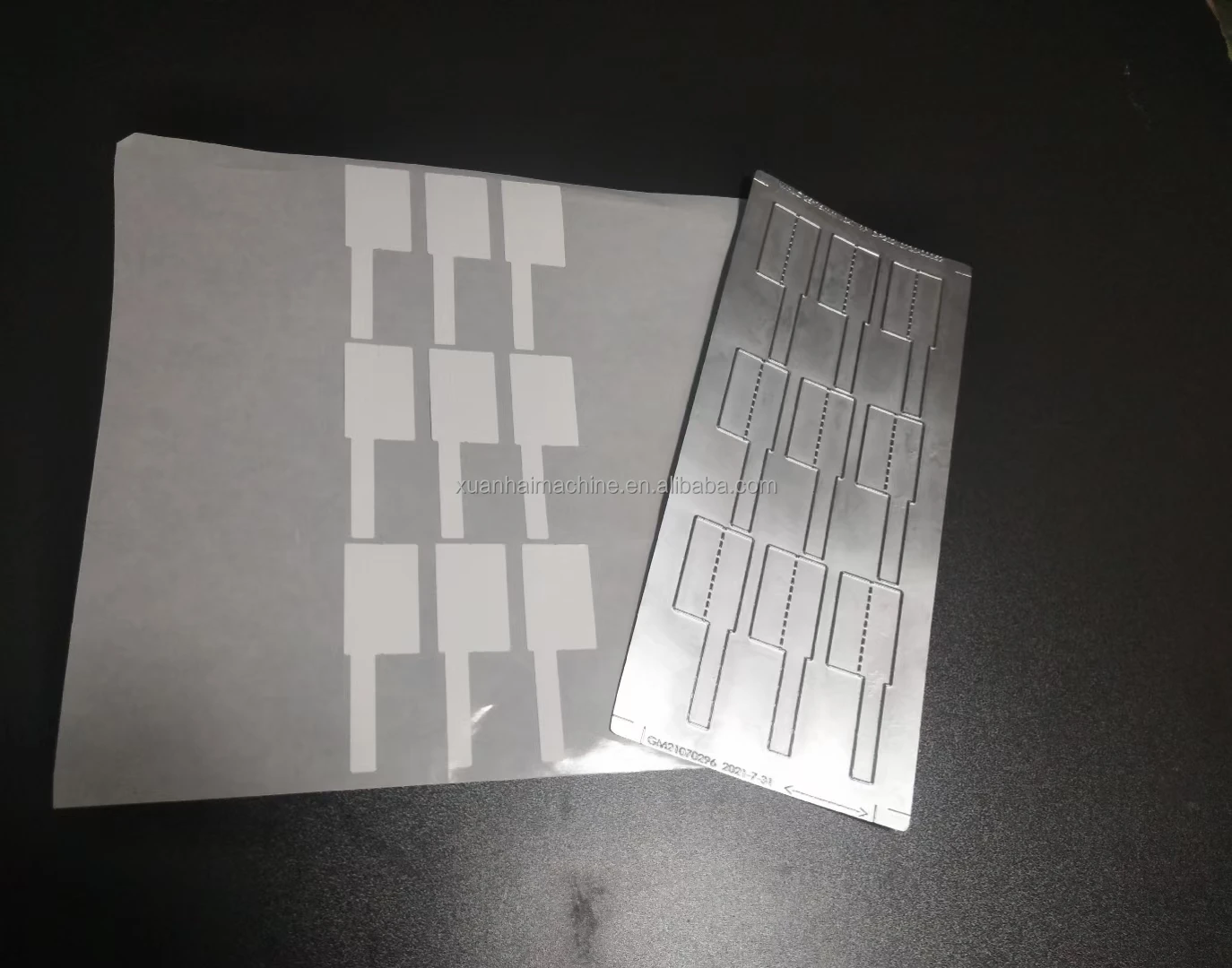

CAN DO ANY DIE CUTTING SHAPE LABELS AS YOU WANT

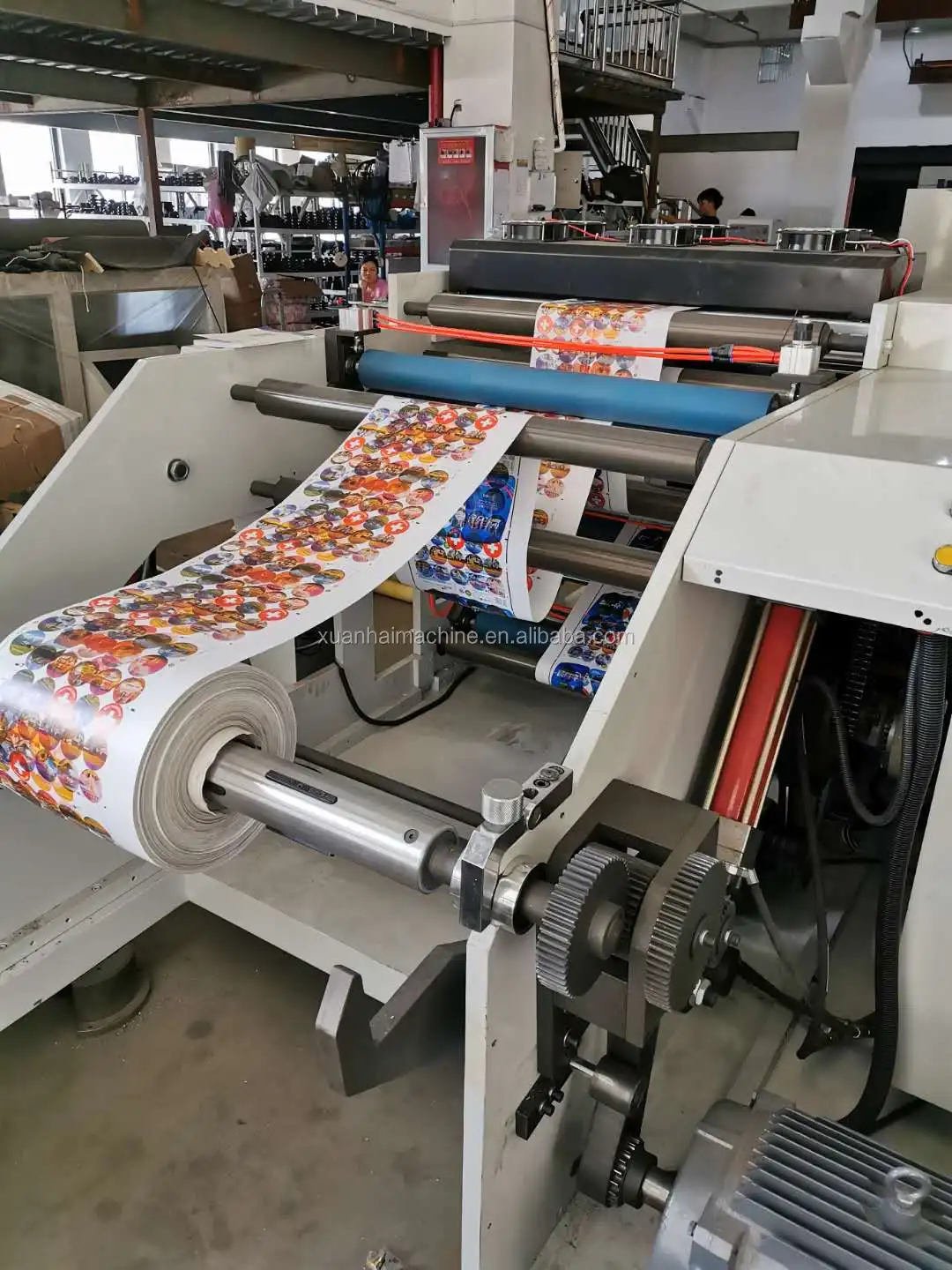

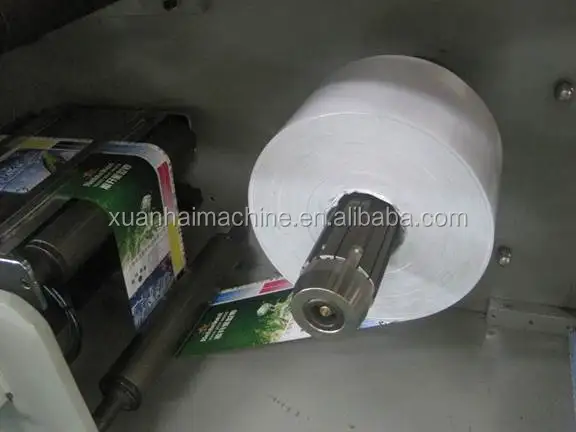

CAN DO ROLL TO ROLL PRINTING OR ROLL TO SHEET PRINTING
