10.36 inch HD Quad View system 4CH of car truck vehicle backup side motion detect alarm parking reverse camera monitor
- Category: >>>
- Supplier: Dongguan Forescene Information Technology Co. Ltd
Share on (1601128100273):
Product Overview
Description
Product Description
YDV05L10.36E-4701+4702 set include

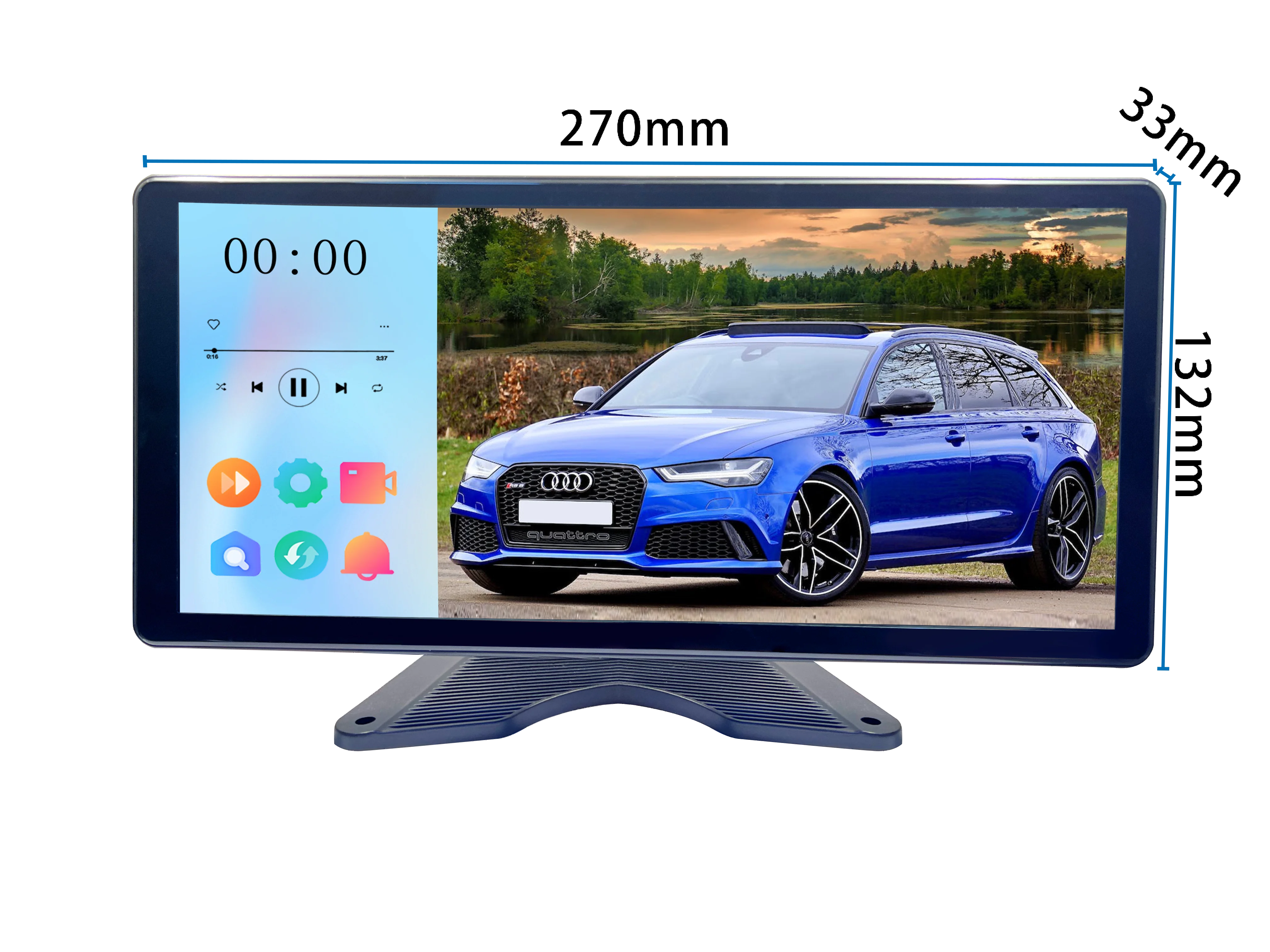

1) YDV05L10.36E monitor*1
2) YJ-4701 camera*2
3) YJ-4702 camera*2
4) 5m cable*2
5) 10 cable*2
6) 64G TF card*1

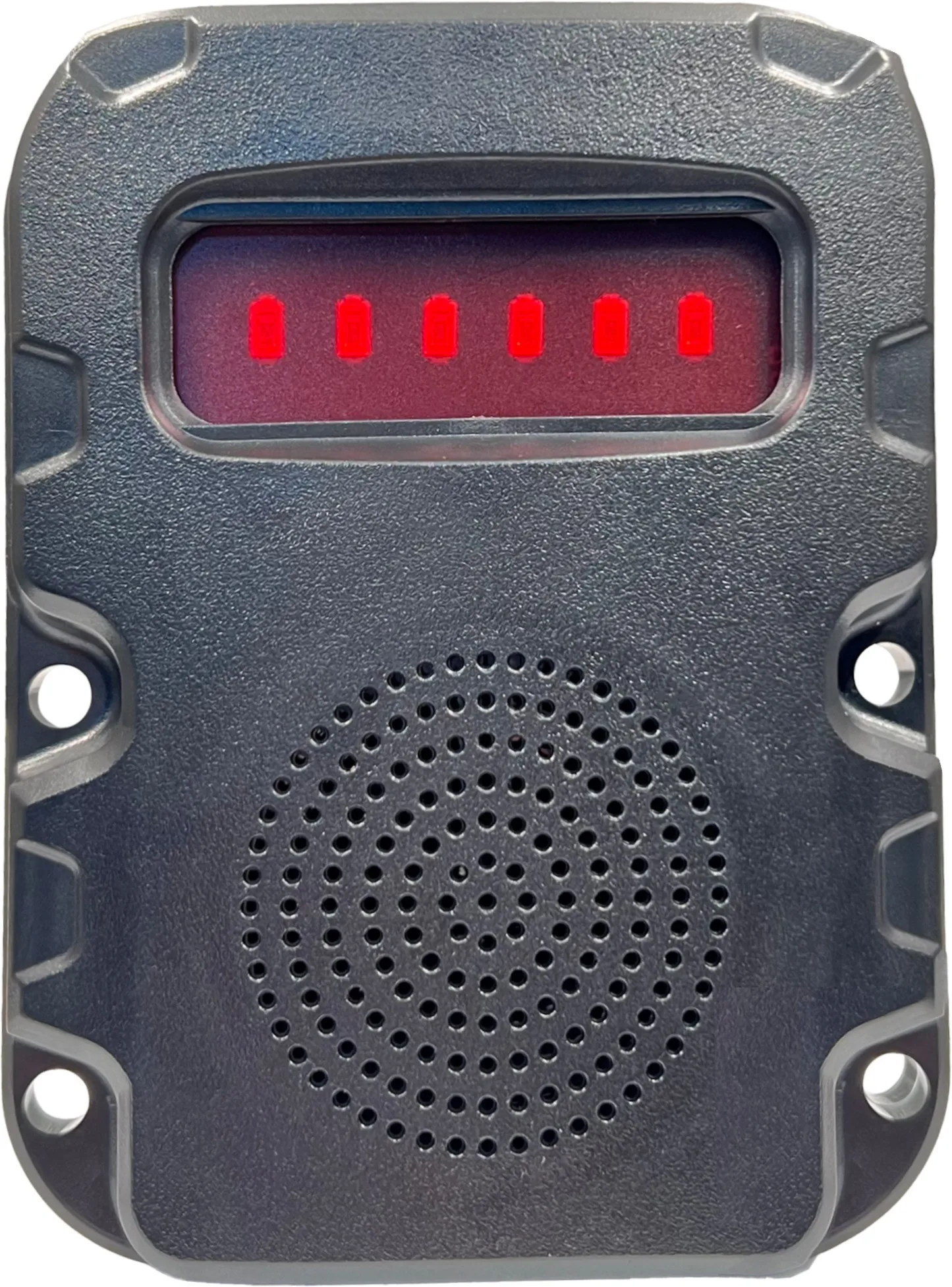

7) Sound and light alarm*1
Camera specifications

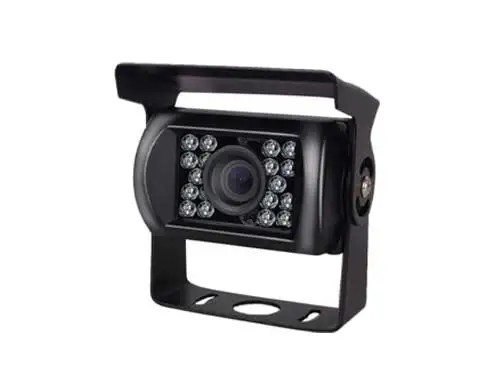

YJ4701
| item | part | specification |
| camera | cover material | aluminum alloy surface matte black |
| waterproof | over IP67 | |
| weight | 220g | |
| box size | 10*10*9cm | |
| PCB board | sensor/DSP | sensor:1/2.7 ISP:2MP |
| resolution | AHD720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F2.0(IR ON) | |
| signal to noise rate | more than 48DB | |
| wide dynamic | wide dynamic 82db | |
| synchronization method | inner synchronization | |
| video output | line by line AHD-720P | |
| gain control | Auto | |
| Power consumption | less than 120mA@DC12V (Infrared off) less than 300mA@DC12V (Infrared on) | |
| Environmental humidity | 30%-85% | |
| working temperature | -20℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| Lens | Focal length | 2.8mm |
| material | 4G glass | |
| aperture | F2.0 | |
| pixel | 2MP | |
| light board | LED | 18 pcs 850 IR,scattering 85° |
| Power consumption | 190ma(12V) |

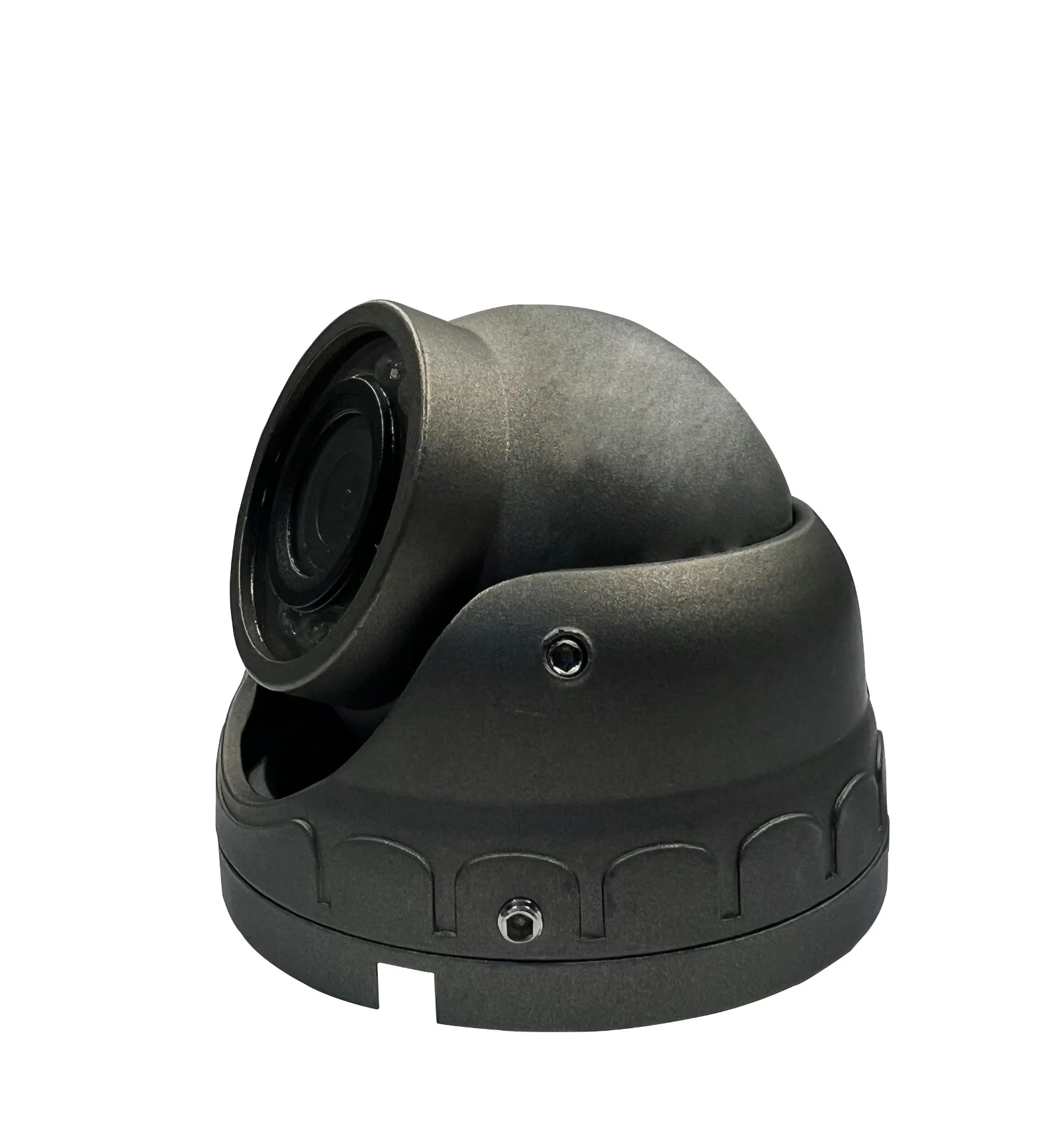

YJ4702
| item | part | specification |
| camera | cover material | Aluminum alloy military green, bottom diameter 70mm, height 65mm |
| waterproof | over IP67 | |
| weight | 220g | |
| box size | 10*10*9cm | |
| audio | with audio | |
| Power consumption | DC12V <150mA | |
| PCB board | sensor/DSP | 1/4" |
| resolution | AHD 720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F2.0(IR ON) | |
| backlight compensation | auto | |
| electronic shutter | 1/50(1/60)~1/100,000sec | |
| white balance | auto | |
| signal to noise rate | >48DB | |
| gamma correction | >0.45 | |
| synchronization method | inner synchronization | |
| gain control | auto | |
| working voltage | DC12V | |
| working temperature | -20℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| Lens | Focal length | 2.8mm |
| cover | 4G glass | |
| aperture | F2.0 | |
| pixel | 1MP | |
| light board | LED | 12 pcs 850 IR,scattering 85° |
| material | FR4 | |
| consumption | 190ma(12V) | |
| night vision distance | 8m |
