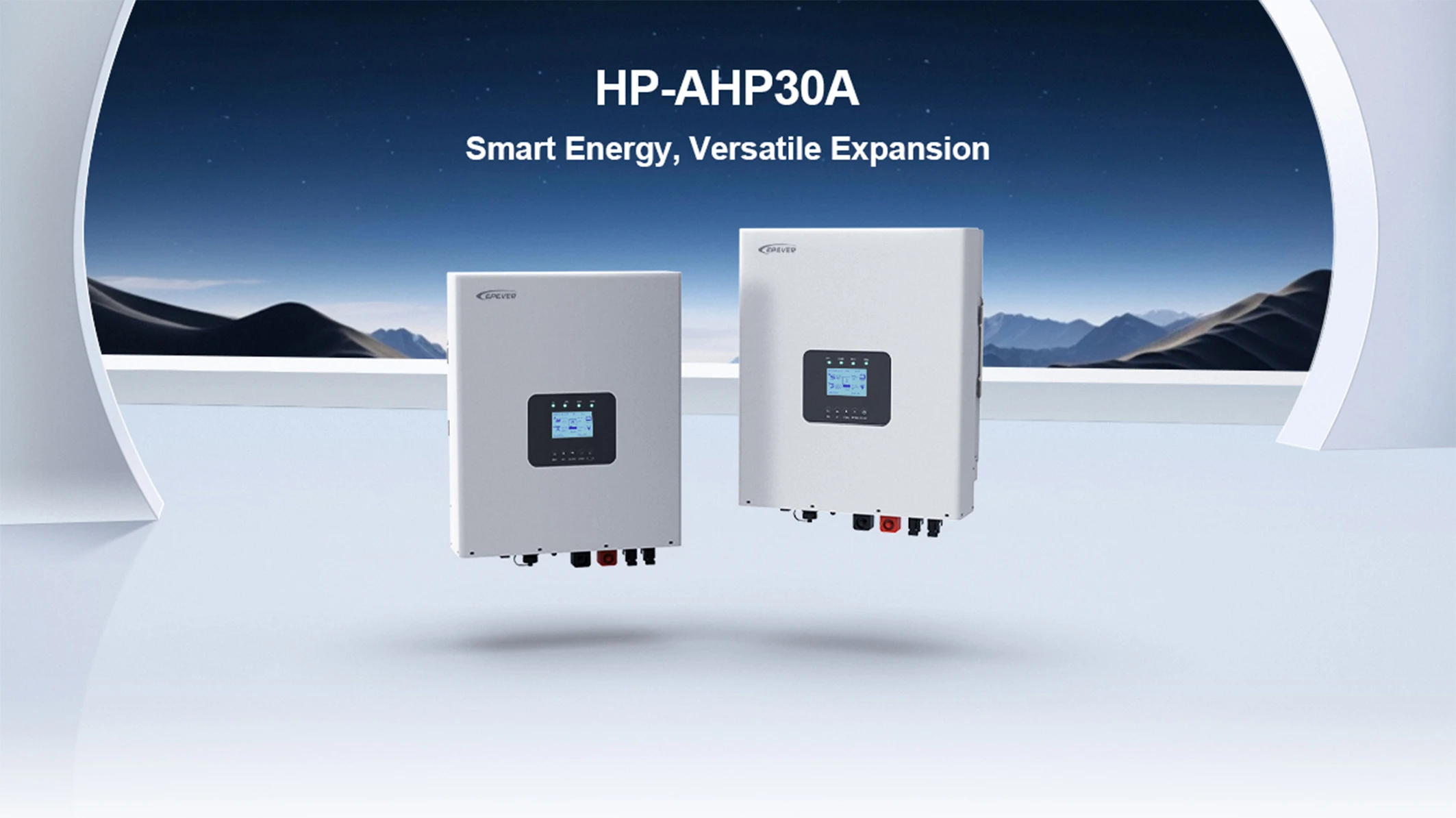

EPEVER HP-AHP30A Series 3500W 5500W 24V/48V 220V/230V
High Frequency Hybrid Solar Inverter With MPPT
The HP-AHP30A series is a high-frequency inverter charger that integrates grid power/oil generator with solar charging, grid bypass power supply, inverter output, and energy management. The AC output allows for easy parallel operation in single-phase or three-phase setups. The series adopts advanced DSP control technology, ensuring high quality, stability, and reliability. This product is suitable for solar, grid/oil generator hybrid power generation systems.
Technical Specifications
Model | HP3522-AH1250P30A | HP3542-AH0650P30A | HP5542-AH1050P30A | |||
Utility input | ||||||
Utility Input Voltage | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | |||||
Utility Input Frequency | 45Hz~65Hz | |||||
Maximum Utility Charging Current | 110A | 60A | 100A | |||
Switch Response Time | Switch Response Time – Inverter to Utility: 10ms | |||||
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms | ||||||
Inverter output | ||||||
Inverter Rated Power (@30℃) | 3500W | 3500W | 5500W | |||
3-second Transient Surge Output Power | 7000W | 7000W | 8500W | |||
Inverter Output Voltage | 220/230VAC±3% | |||||
Inverter Frequency | 50/60Hz±0.2% | |||||
Output Voltage Waveform | Pure Sine Wave | |||||
Load Power Factor | 0.2~1(VA ≤ Rated output power) | |||||
THDu (Total Harmonic Voltage Distortion) | ≤3% (24V resistive load) | ≤3% (48V resistive load) | ||||
Maximum Load Efficiency | 89% | 92% | 91% | |||
Maximum Inverter Efficiency | 93% | 94% | 94% | |||
Solar controller | ||||||
PV Maximum Open-circuit Voltage | 500V (At minimum operating environment temperature) | |||||
440V (At 25℃) | ||||||
MPPT Voltage Range | 85~400V | |||||
Number of MPPTs | 1 | 1 | 2 | |||
PV Maximum Input Current | One way, 20A/way | One way, 20A/way | Two ways, 2x15A | |||
PV Maximum Input Power | 4000W | 4000W | 2×3000W | |||
PV Maximum Charging Current | 120A | 60A | 100A | |||
MPPT Maximum efficiency | ≥99.0% | ≥99.5% | ||||
Battery | ||||||
Battery Rated Voltage | 24VDC | 48VDC | ||||
Battery Work Voltage Range | 21.6VDC~32.0VDC | 43.2VDC~64VDC | ||||
Battery Maximum Charging Current | 120A | 60A | 100A | |||
Others | ||||||
No-load Losses | <1.3A | <0.6A | <1.0 A | |||
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @24V input | Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input | |||||
Standby Current | <0.3A | <0.15A | ||||
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @24V input | Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input | |||||
Work Temperature Range | -20℃~+55℃ (When the environment temperature exceeds 35℃, the actual output power is reduced appropriately) | |||||
Storage Temperature Range | -25℃~+60℃ | |||||
Enclosure | IP30 | |||||
Relative Humidity | < 95% (N.C.) | |||||
Altitude | <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | |||||
Mechanical parameters | ||||||
Dimension (Length x Width x Height) | 541mm × 414mm × 228mm | 513mm × 414mm × 224mm | 541mm × 414mm × 228mm | |||
Mounting Size (Length x Width) | 340mm x 130mm | 340mm x 130mm | 340mm x 130mm | |||
Mounting Hole Size | Φ10mm | Φ10mm | Φ10mm | |||
Net Weight | 23.2kg | 20.4kg | 24.4kg | |||
Product Features:

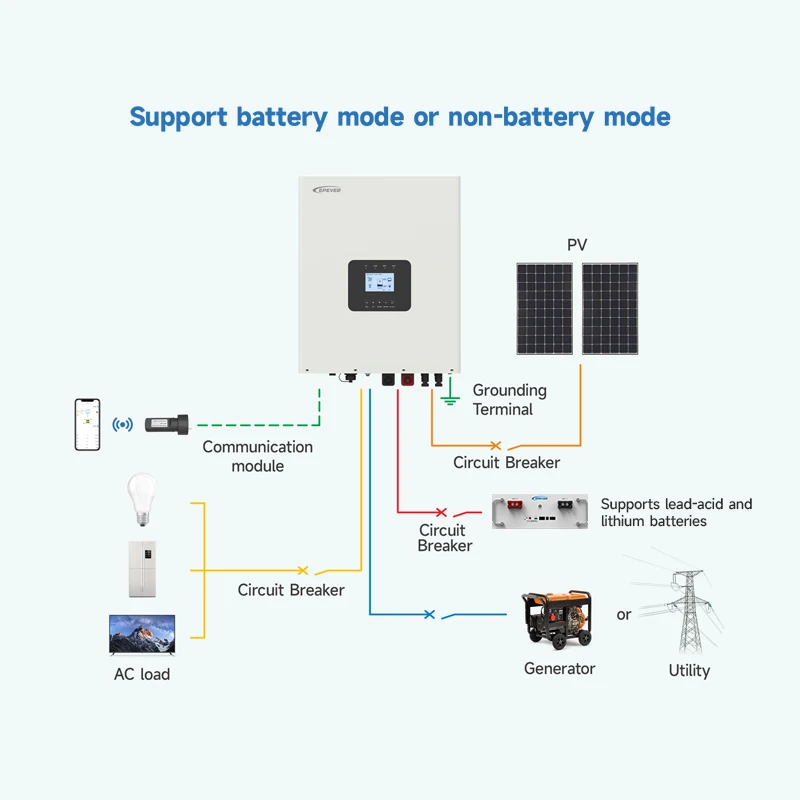

>Pure sine wave output.>Supports battery or non-battery modes.
>Compatible with various battery types: lithium, gel, sealed, etc.
>Equipped with BMS communication interface.
>Features a historical data recording function.
>Features a historical data recording function.
>PFC technology provides power factor, reducing grid capacity consumption.

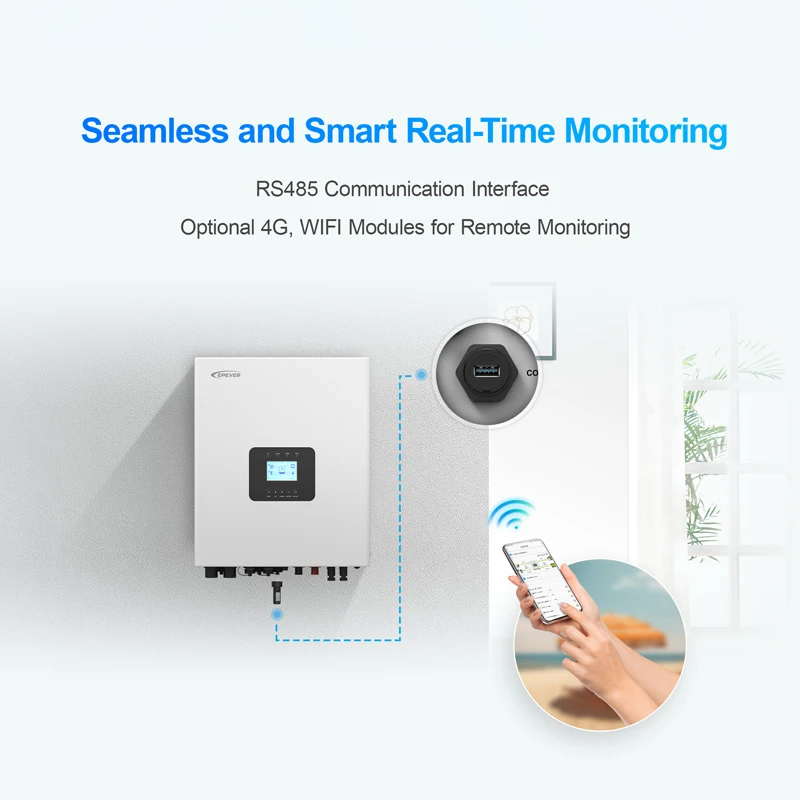

>RS485 communication interface, optional 4G, WIFI modules for remote monitoring.

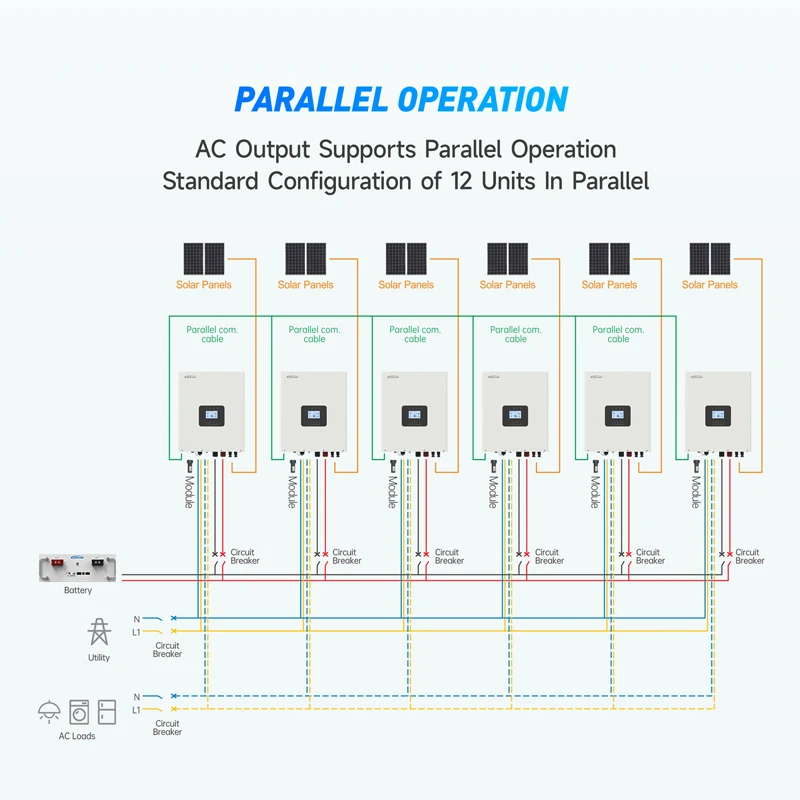

>AC output supports parallel operation of multiple units (configurable for single-phase or three-phase), expandable up to 12 times the system capacity.
>AC output supports parallel operation of multiple units (configurable for single-phase or three-phase), expandable up to 12 times the system capacity.
Product Description
Recommend Products
Application
Company Profile
BEIJING EPSOLAR TECHNOLOGY CO.,LTD.founded in 2007, is a research, development and manufacturing enterprise focusing on photovoltaic off-grid controller, inverter, control inverter, photovoltaic energy storage inverter and photovoltaic power generation solutions.And set up a branch office in Shenzhen.
In 2019 we established subsidiary.HUIZHOU EPEVER TECHNOLOGY CO., LTD.passed ISO9001: 2015, ISO14001:2015 and ISO45001:2018.It is a cross-industry fast growing enterprise of green energy, integrating product design, research and development,production, sales and service.Manufacture solar charge controllers, off-grid inverters, inverter chargers, solar power system and other solar power units.
Our products comply with international standards CGC-SOLAR, CE, ROHS, FCC,ETL, and UL certificates.

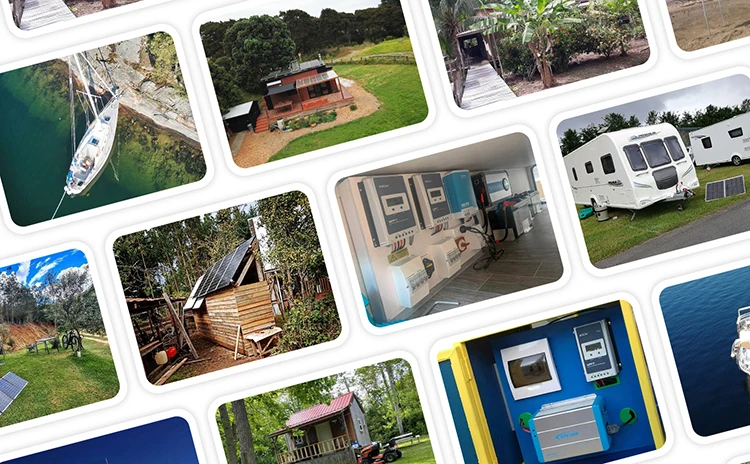

Widely used in solar power station system, communication power supply system, monitoring power supply system,off-grid hybrid power supply system, RV power supply system, street lamp power supply system and other application scenarios. It have been sold to more than 120 countries and regions around the world, and get the user's praise and recognition.
