PWM dimmable driver 0 10v dimming power supply flicker free 80w 2000mA 100 277v led driver with 12v auxiliary
- Category: >>>
- Supplier: Shenzhen Jusin Technology Co. Ltd.
Share on (1601128185048):
Product Overview
Description

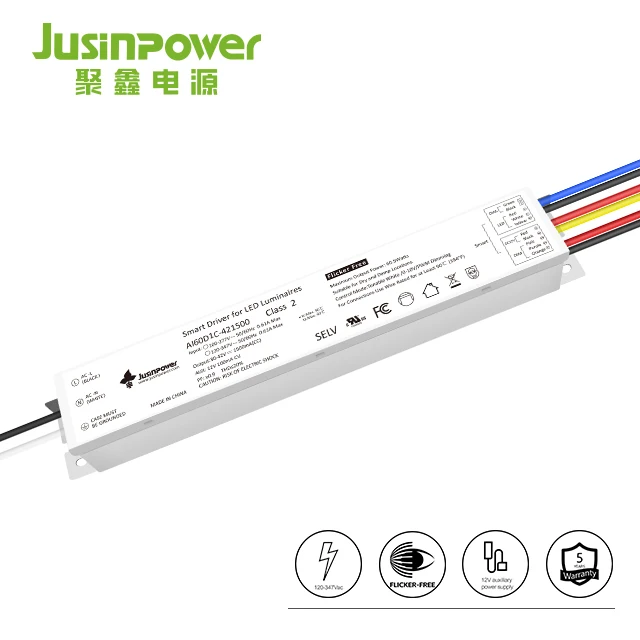

2 Channel constant current dimmable led driver 80W

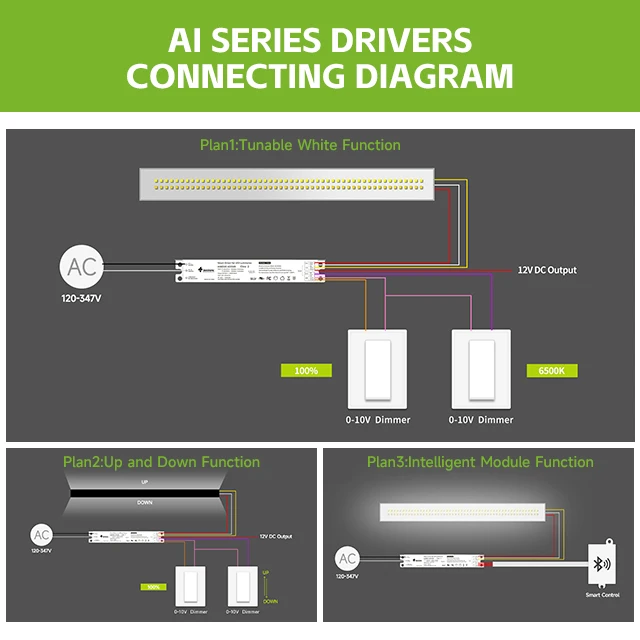

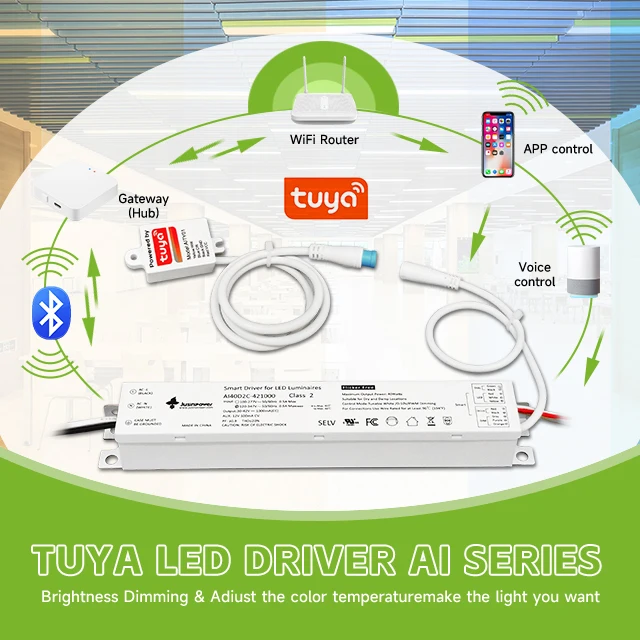

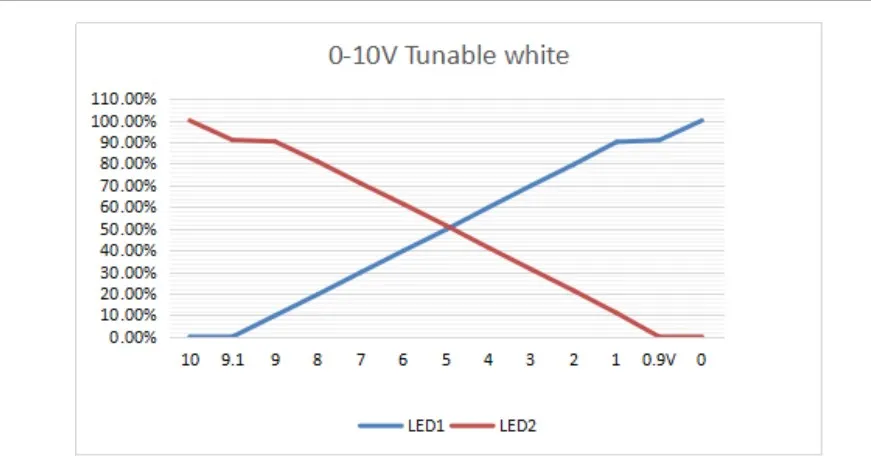

Tunable white series
Auxiliary power supply: 5/12v

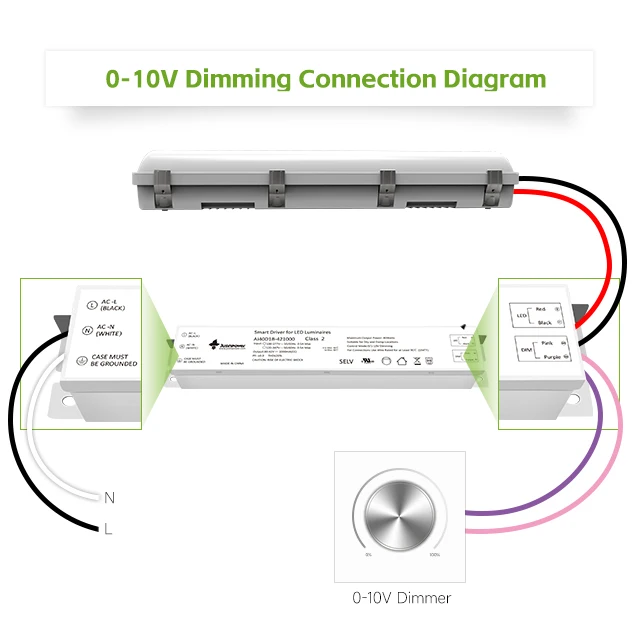

Isolated dimming signal
DIP switch to adjust the current
Specification
| Model No. | JX-AI80D2C |
| Type | Adjustable CCT and dimmable |
| Input Voltage | 120-277V |
| Max Power | 80W |
| Output Votlage | 30-42V |
| Output Current | 1900mA |
| High Efficiency | 85% |
| P.F | >0.90 |
| Storage temperature | -20-50C |
| THD | <20% |
| Flicker free | Yes |
| Surge Protection | 1KV |

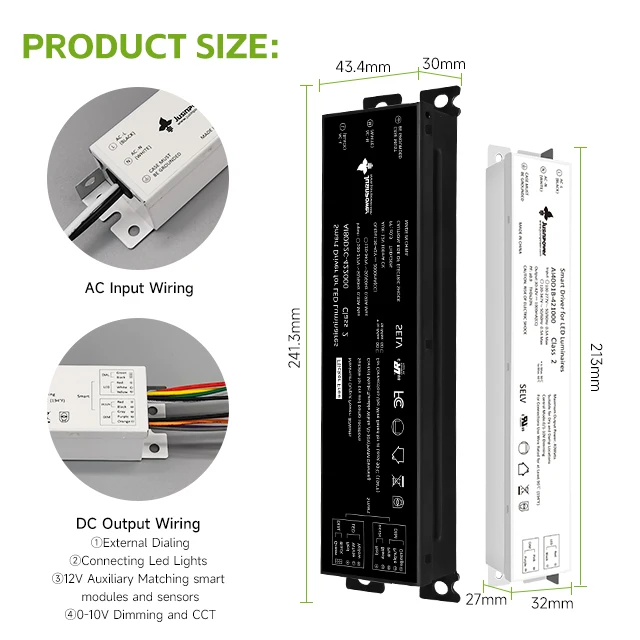

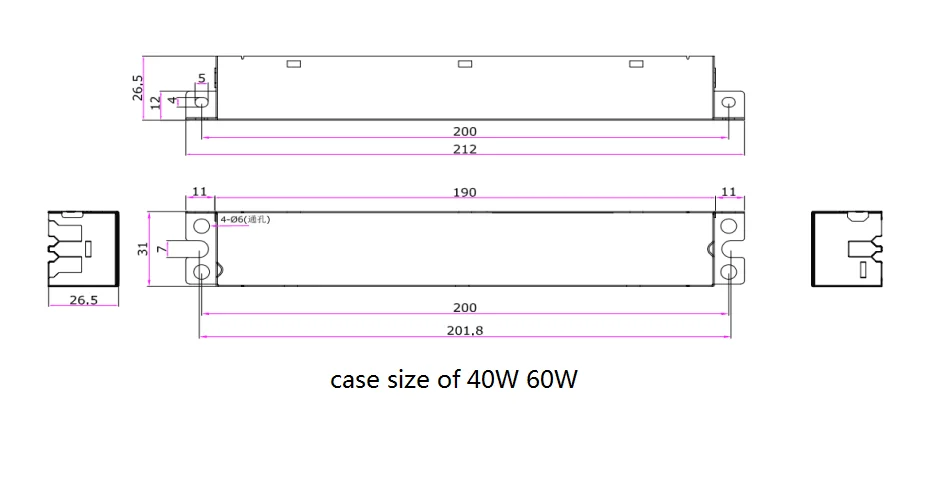

| Size | 182*45*32mm |
| Certificates | CUL /CE no, E484893 |
| Warranty | 5 years |
| Application | indoor lighting |

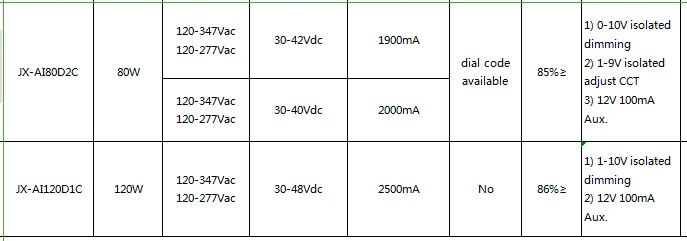

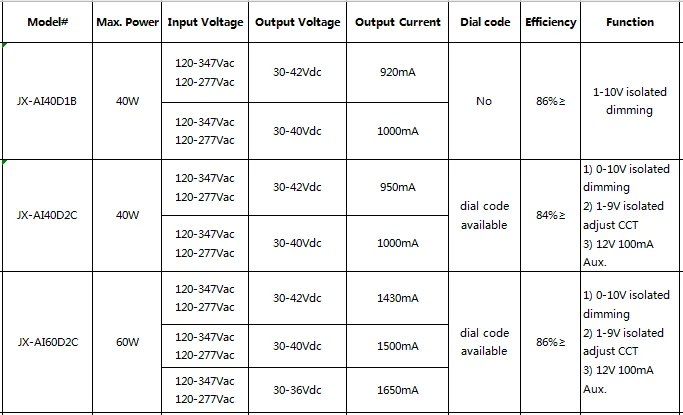

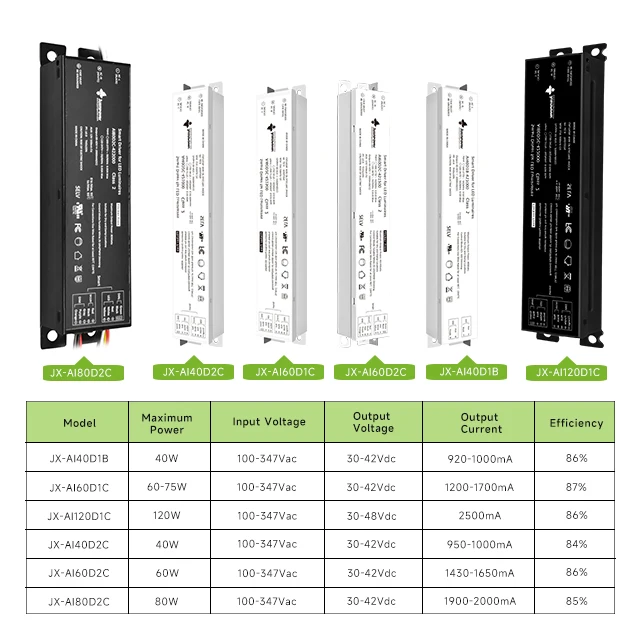

Range power 40-120W
Hot Products
Our Advantage
Company Profile

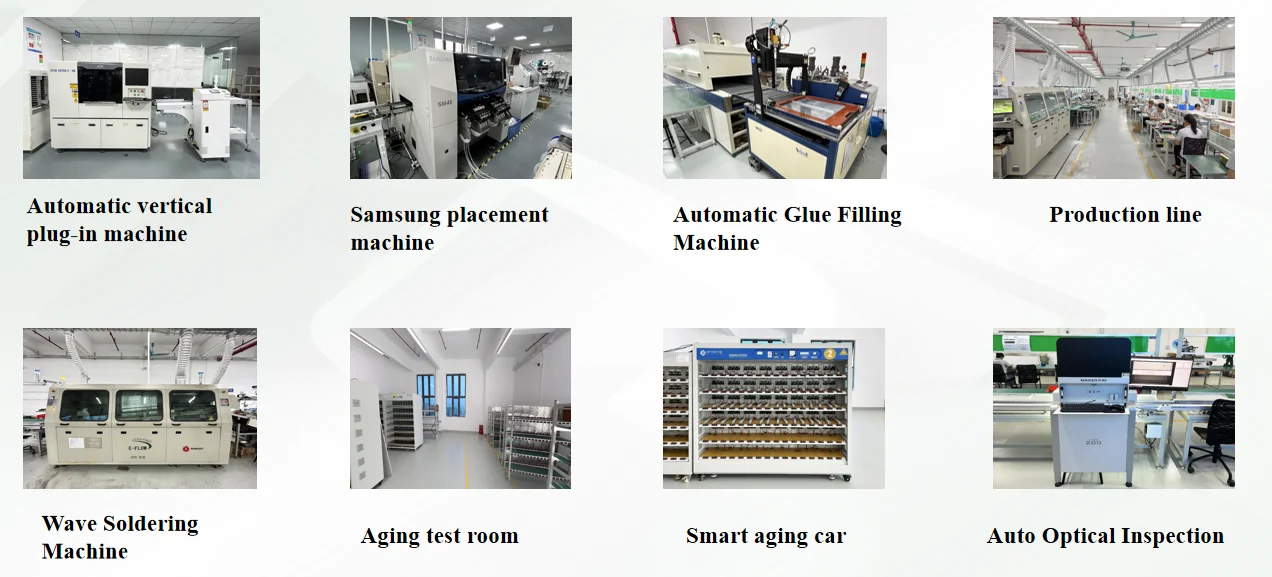

Production equipment
