Price:$0.40

Quantity:


Product Overview

Description



Product Description

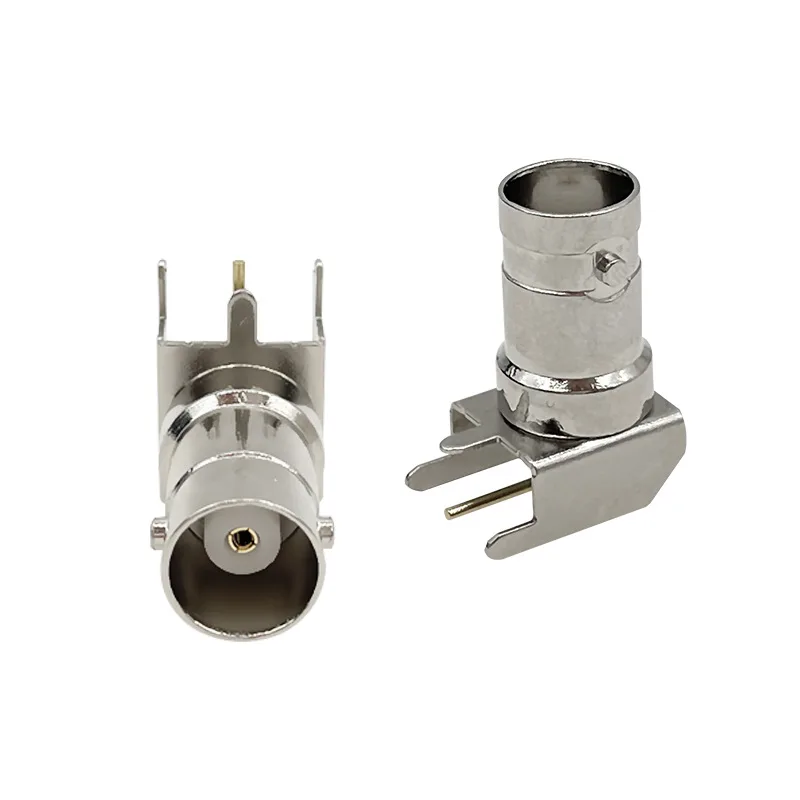

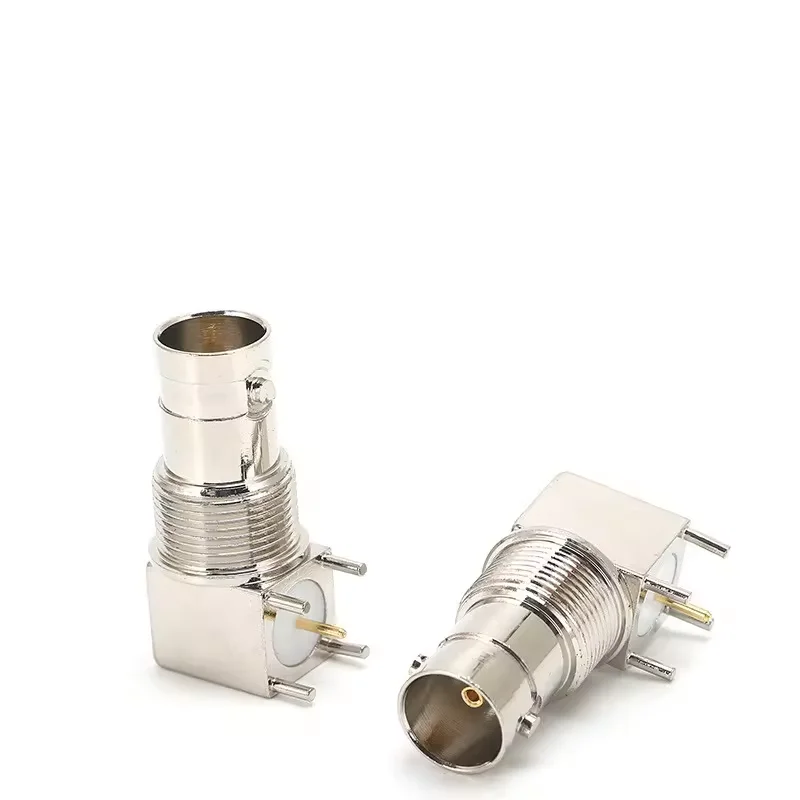

LOW MOQ Edge PCB Mount BNC male plug right angle Connector Bulkhead Straight Male Plug RF connector





Low PIM RF Connector & Cable Assemblies &Coax Cable

Low VSWR up to high frequency
Professional & Fast response
Passed ROHS and ISO9001
Excellent service
OEM, ODEM requirements welcomed





Temperature range
-65～+165°C (PE Cable -40～+85°C)
Vibration
100m/s2 (10~500Hz)
Impedance
50 OHM
Frequency Range
DC – 11GHz
Working Voltage
500V max
Break-down Voltage
1500V rms @ sea level
Contact resistance
≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contact
Average power
3KW max
Insulation resistance
≥ 5000 MΩ
VSWR
Straight ≤ 1.22 Right angle ≤ 1.30
Durability (mating)
≥500 cycles
