Product Overview

Description



Product Description


Name:
Introduction:
The wireless constant voltage dimmable LED Driver is a type of power supply device that can provide adjustable output voltage to meet the needs of dimming equipment. It adopts wireless communication technology to realize remote dimming control of lighting devices, allowing users to adjust the light brightness more conveniently. In practical applications, wireless constant voltage dimming power supplies usually support multiple wireless communication
protocols, such as Tuya Zigbee, Bluetooth,BLE+ WiFi,Matter Thread,Casambi etc. Different protocols have their own characteristics and application scenarios. For example, the Zigbee protocol is suitable for low-speed transmission and can connect a large number of control nodes in large-scale industrial, agricultural, educational, and home main networks; Bluetooth dimming has a moderate cost and has great advantages in indoor lighting in small-space homes, businesses, offices, etc.

Features:
1.Color Temperature and brightness:The color temperature of the light can be adjusted to achieve the switching of different light colors such as white light and warm light.
2.High frequency and low resistance: It has high working efficiency and a long service life.
3.Fine dimming: It can provide smooth light color adjustment to avoid discomfort to the human eyes caused by
sudden changes in light.
4.Small size and light weight: It is convenient for installation and use.
5.Compatible with smart home systems: It can be connected to various smart home systems to achieve intelligent control.
6.Flicker-free: It can effectively reduce flicker and provide a healthier and more comfortable visual experience. - 7.Equipped with multiple protection functions: Such as over-temperature protection, overload protection, short-circuit protection, over-voltage protection, etc.,

Common Technical Data:



Features
Constant Voltage LED Driver
Dimmable
Tuya/Matter/Casambi
Isolation SELV
IP 20
Class II (Suitable for class I / II / III light fixtures）
Input Voltage
220-240Vac/100-240Vac,50-60Hz
Outpu Voltage
24V/48V
Output
>0.9
Dimming Range
0~100%, down to 0.1%
Overheat Protection
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Overload Protection
Shut down the output when current load≥102%, and recover automatically
Short Circuit Protection
Enter hiccup mode if short circuit occurs, and recover automatically
Over Current Protection
When the current exceeds the no-load voltage, it will be protected and automatically recovered
Overvoltage Protection
When the voltage exceeds the no-load voltage, it will be protected and automatically recovered
Insulation voltage
I/P to O/P,3KVac/5mA/1min
Insulation resistance
resistance
>100M ohm @ 500VDC
Leakage current
current
I/P to O/P < 250μA
Ta/Operation Temperature
-25….+45℃
Ts/Storage Temperature
-40….+85℃
Tc/Enclosure Temperature
For Safety
85℃
Humidity
5%....85%RH
Connection Method
Push-in Terminal
Life-time
50,000hrs
Warranty
5 years
OEM
YES










Dimming Effect Show

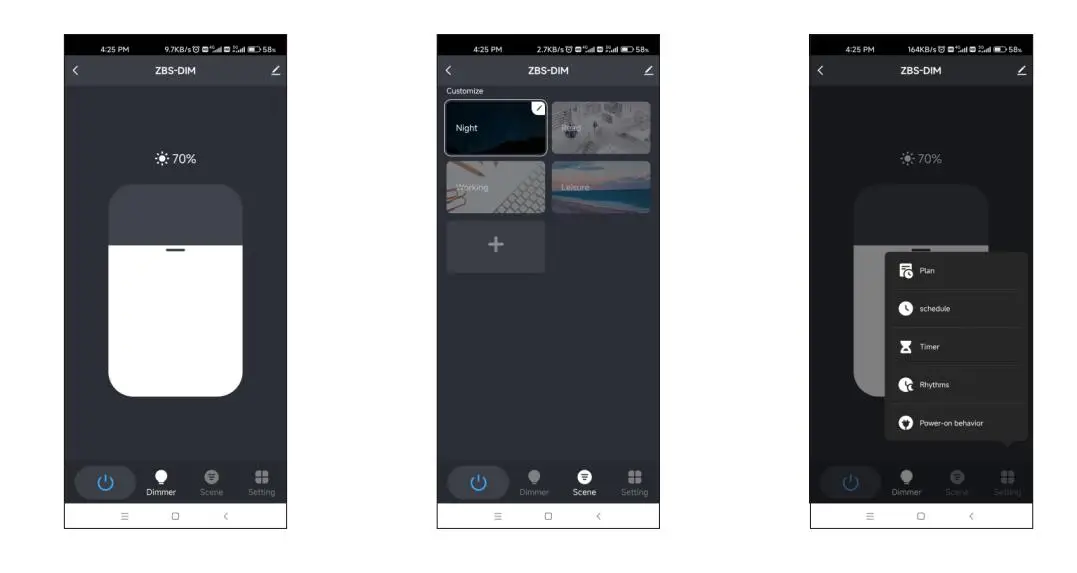

How to use in APP


App Operating Instructions
1. Network pairing

* Download the Tuya APP and register anaccount, search and add the Tuya Zigbee gateway device.
* Quickly press the "RESET" button five times or repeat power on and off five times to clear the previous network connection, enter pairing mode with the output light breathes blinking.
* Under the gateway, search and add new device. If the network connection is successful, you can find the devices in Tuya APP.
2. Lighting control settings

After pairing the light device, click the device and change brightness by touch brightness slide.
In “Scene”, there are 4 scene can be recalled or customized.
In “Setting”, there are Plan, Schedule, Timer, Rhythms, Power-on behavior functions.


Company Introduction




Packing&Shipping


Shipping way
You can choose DHL,Fedex,TNT,UPS,FEDEX,Sino-Russian dedicated courier service,Europe dedicated courier service,Sino-US dedicated courier service.


FAQ


1.What is the minimum order quantity ?
Answer: 5 pcs

2.What is the delivery time and transportation?
Answer: Delivery within 7days

3.What is the warranty?
Answer: 3 years

4.How to pay?
Answer: We accept, PayPal, bank transfers, Western union

5.Can i get a sample or OEM?
Answer:YES

6.What is the certificate?
Answer:CE

7.How many year of experience of you company?
Answer:15 years

8.What terms is it ?
Answer:FOB

9.How about the privacy policy ?
Answer:Prsonal information and transaction data are safeguarded.

10.How to get in touch with your company?
Answer:by wechat,email,skype,phone
