ATV Trailer with DXP aluminum Ramp
- Category: >>>
- Supplier: Yancheng Zhiming Light Alloy Technology Co. Ltd.
Share on (1601130176147):
Product Overview
Description
Specification

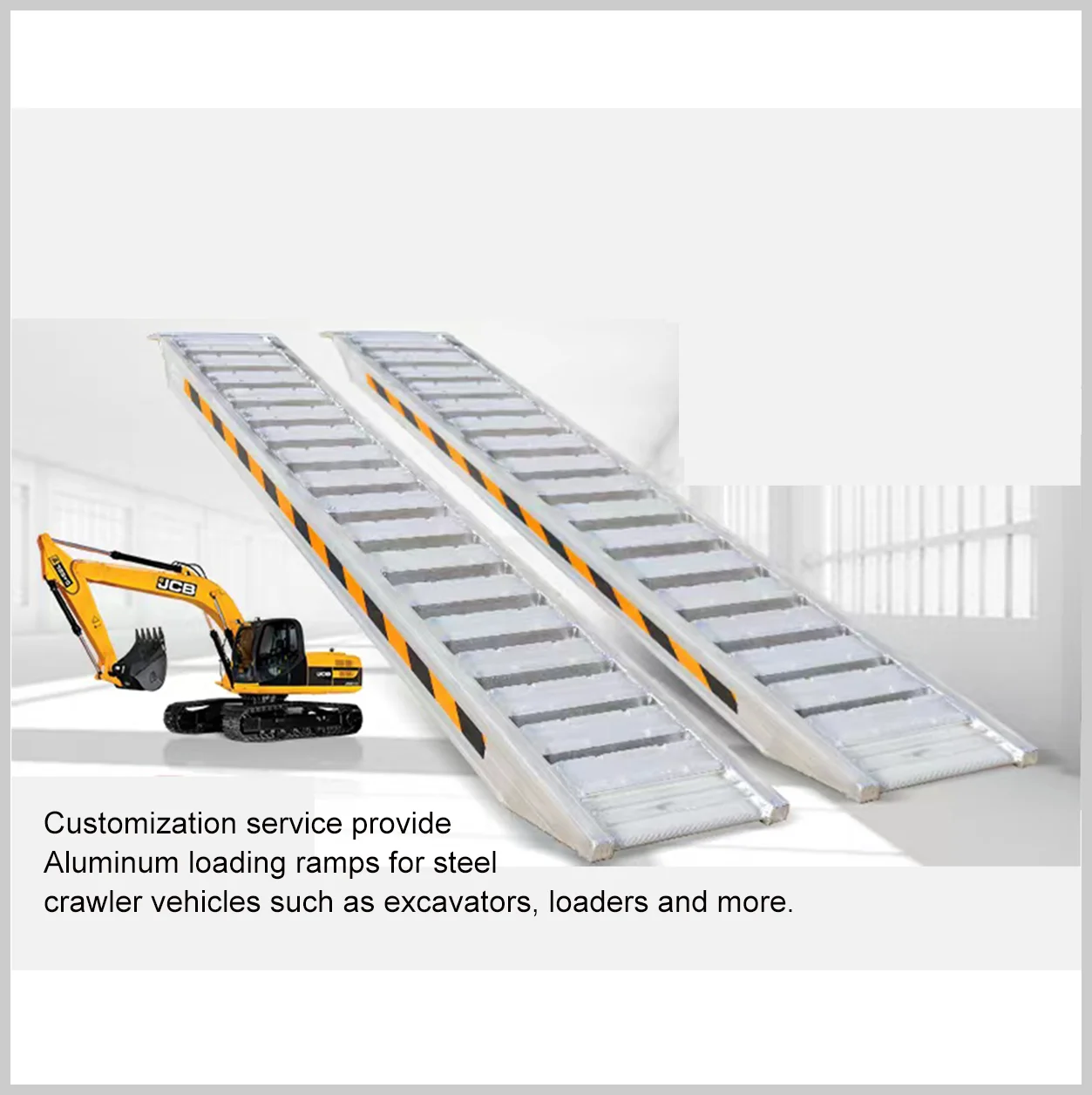

aluminum ramps for steel track wheeled vehicles | ||||||||
specification | length (mm/pcs) | width （mm/pcs） | height (mm/pcs) | loading capacity（kg/pair） | ||||
DXP22401101C | 2200 | 400 | 110 | 1000 | ||||
DXP23401101C | 2300 | 400 | 110 | 1000 | ||||
DXP25401101C | 2500 | 400 | 110 | 1000 | ||||
DXP27401101C | 2700 | 400 | 110 | 1000 | ||||
DXP29401101C | 2900 | 400 | 110 | 1000 | ||||
DXP30451101C | 3000 | 450 | 110 | 1000 | ||||
DXP32451401C | 3200 | 450 | 140 | 1000 | ||||
DXP35501401C | 3500 | 500 | 140 | 1000 | ||||
DXP38501501C | 3800 | 500 | 150 | 1000 | ||||
DXP40501501C | 4000 | 500 | 150 | 1000 | ||||
DXP42501501C | 4200 | 500 | 150 | 1000 | ||||
DXP45501501C | 4500 | 500 | 150 | 1000 | ||||
DXP48501501C | 4800 | 500 | 150 | 1000 | ||||
DXP50501501C | 5000 | 500 | 150 | 1000 | ||||
Customization service provide. All aluminum ramp size and weight error is subject to the actual | ||||||||
Product Description
Instructions
1. Ramps must be used with care,please carefully check the ramp before and after use, if you find an abnormal safety hazard such as a weld crack caused by improper use, please stop using it immediately and keep tires clean remove mud and stones.
2. Ensure that carrying vehicle will not move during loading.
3. The axle carrying the greatest mass must always be upper most.
4. Wheels must be central between channels,do not drive on flanges of channel.
5. It is the operators responsibility to ensure that the load does not exceed the rated capacity of the ramps.
6. Extra high strength alloy is used in this fabrication. Please do not arbitrarily drill and remodel.
Installation instructions
1.Ensure that machinery does not exceed the rated capacity of the ramps.
2.Ramps must be securely fixed to vehicle.
3.Please use below 16.5° Maximum slope 16.5° inclination maximale 16.5°
4.Grounding of the ramps: choose flat and solid ground. Please keep the two ramps parallel.
1. Ramps must be used with care,please carefully check the ramp before and after use, if you find an abnormal safety hazard such as a weld crack caused by improper use, please stop using it immediately and keep tires clean remove mud and stones.
2. Ensure that carrying vehicle will not move during loading.
3. The axle carrying the greatest mass must always be upper most.
4. Wheels must be central between channels,do not drive on flanges of channel.
5. It is the operators responsibility to ensure that the load does not exceed the rated capacity of the ramps.
6. Extra high strength alloy is used in this fabrication. Please do not arbitrarily drill and remodel.
Installation instructions
1.Ensure that machinery does not exceed the rated capacity of the ramps.
2.Ramps must be securely fixed to vehicle.
3.Please use below 16.5° Maximum slope 16.5° inclination maximale 16.5°
4.Grounding of the ramps: choose flat and solid ground. Please keep the two ramps parallel.
