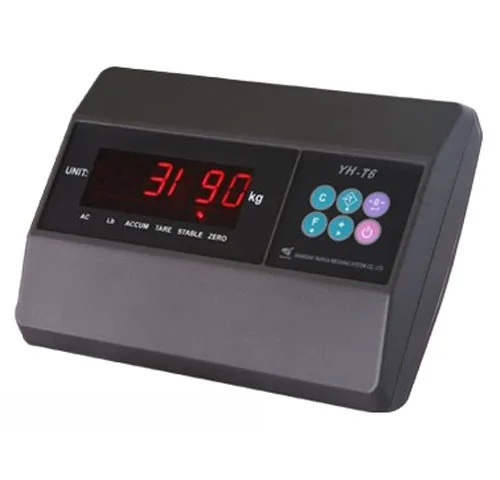

Yaohua T6 Led Analog Indicator for Digital Electronic terminal bench platform weighing scale
- Category: >>>
- Supplier: Ningbo Ane Eletric Co. Ltd.
Share on (1601131039976):
Product Overview
Description
BAMMA DESIGN
Product details
Description

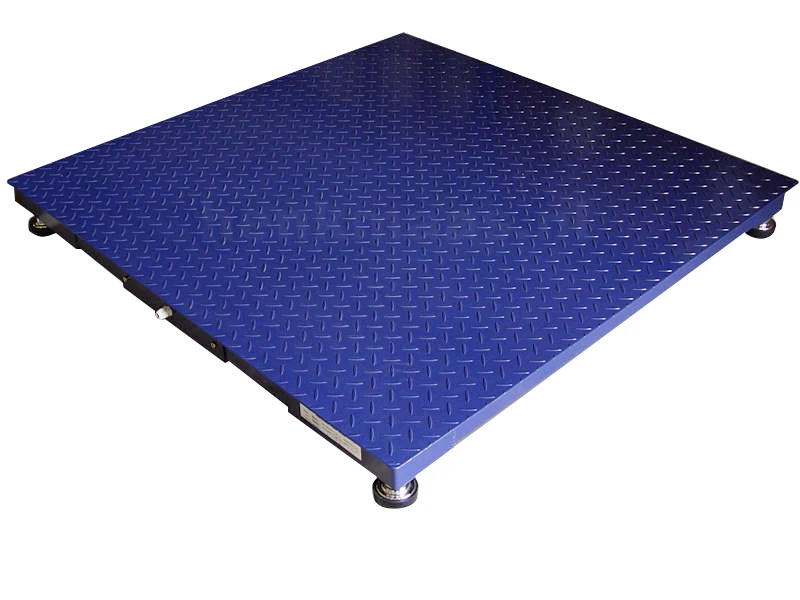

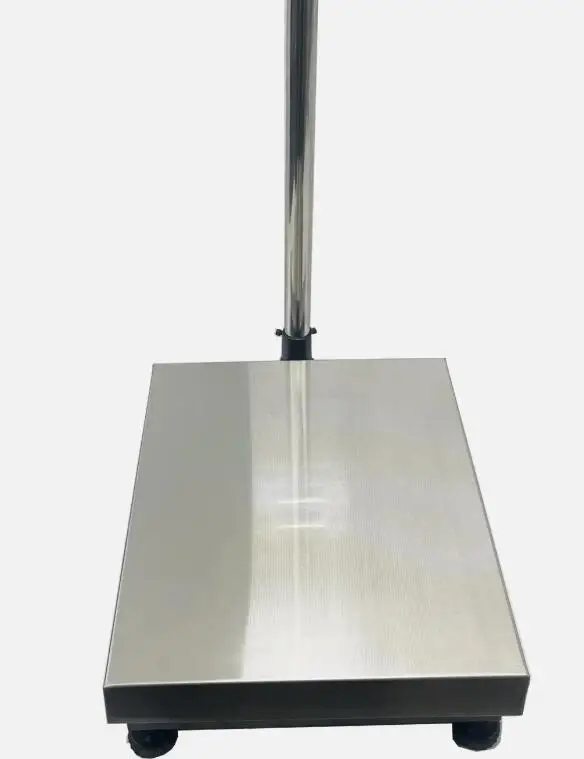

XK3190-T6 is widely applied in electronic platform scale, electronic floor scale and so on alike static weighing system equipped with 1~4 load cell.
Feature
Low energy consumption design,wide voltage input
High precision Σ-Δ conversion,high PPR
Typical function, easy operation
AC/DC(built in rechargeable battery 6V/4AH) power supply , Auto power off at low battery
Technical Specifications
Input signal range | -16mV~18mV |
Load cell excitation: | DC 3V |
Max. connection number of load cell: | 4 at 350 ohm |
Load cell connection mode: | 4 wire |
Verified counts: | 3000 |
Display: | 6 bits LED, 6 status indications |
Display range: | -99990~99990 |
Power supply: | AC 85-265V;50-60Hz; DC built-in rechargeable 4V/4.5Ah battery |
