Factory low price multiple modes medical equipment record X Ray machine system DR machine
- Category: >>>
- Supplier: Wuhan Union Bio-Medical Technology Co. Ltd.
Share on (1601132363505):
Product Overview
Description
Product Description

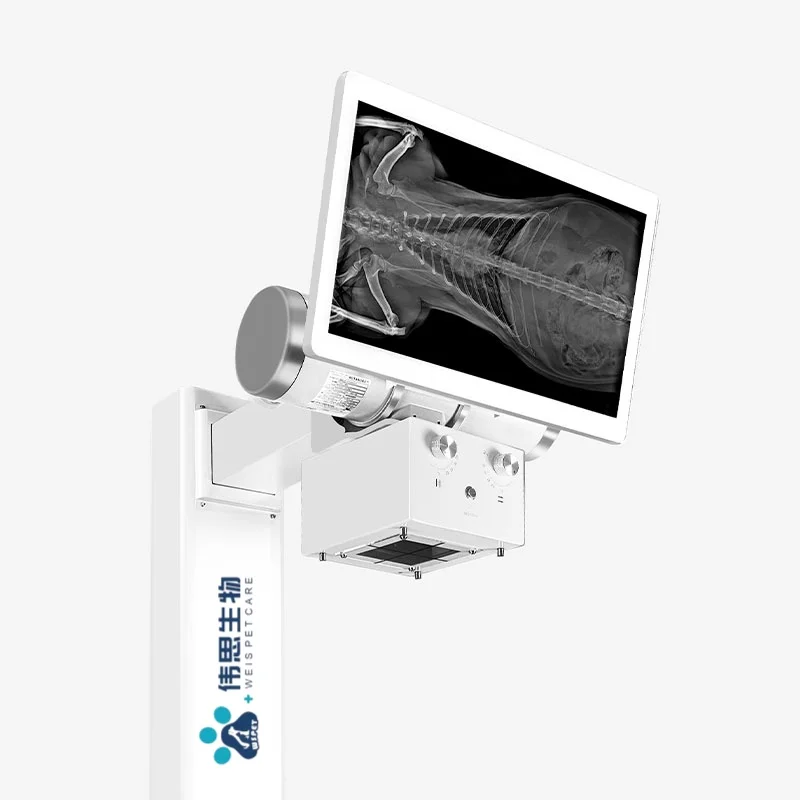

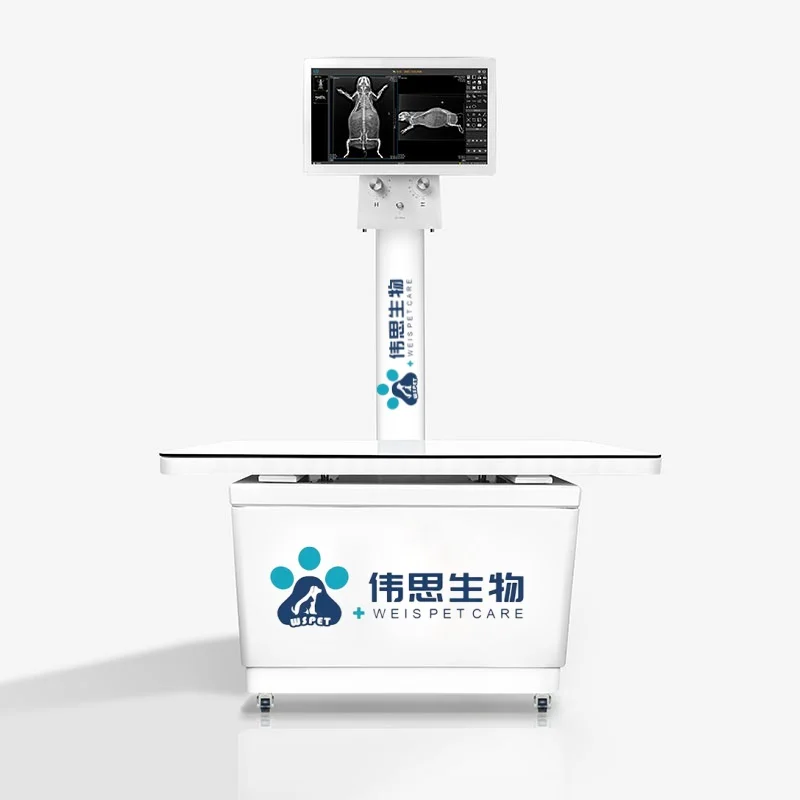

Digital X-Ray imaging system
Dynamic Digital X Ray imaging System(DR) converts digital information to imaging,video information.Meet all the functions of
static DR:high-definition still images,advanced measurement functions.
Dynamic observation:motor organs(esophagus,lungs,diaphragm,intestine,trachea),orthopedic surgery(joint placement
change,nail),positioning(foreign body,orthopedic positioning),etc,the use of a wider range of scenarios.
Low dose radiation,suitable for pet pregnancy inspection.
static DR:high-definition still images,advanced measurement functions.
Dynamic observation:motor organs(esophagus,lungs,diaphragm,intestine,trachea),orthopedic surgery(joint placement
change,nail),positioning(foreign body,orthopedic positioning),etc,the use of a wider range of scenarios.
Low dose radiation,suitable for pet pregnancy inspection.
Installation Instructions
16 inches HD touch screen
*Automatic selection of exposure parameters and software operation .
*Images effect are clearly visible. Parameters using and adjustment when the radiography imaging.
*To meet the veterinary clinical application and characteristics.
*Images effect are clearly visible. Parameters using and adjustment when the radiography imaging.
*To meet the veterinary clinical application and characteristics.
0.5mm small focus spot
*Small focus and high resolution imaging ,suitable for cat/dogs and other pet.
*Shortest exposure time 1.2 ms/per time.
*Reduce misdiagnosis dueto shortness of breath, nervousness, and tremors.
*Shortest exposure time 1.2 ms/per time.
*Reduce misdiagnosis dueto shortness of breath, nervousness, and tremors.

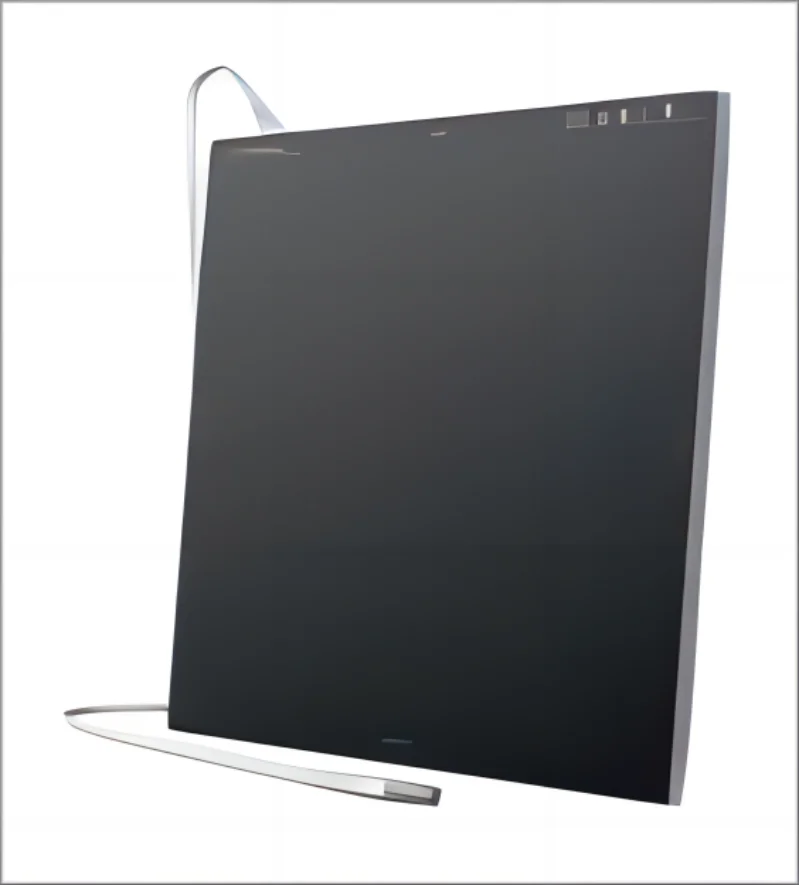

17*17 inches Flat Panel Detector
*Cesium iodide evaporation technology ,low radiation ,High DQE 3.6Lp/mm limiting resolution
*DAEC tech parameters adjustment automatically
*DAEC tech parameters adjustment automatically

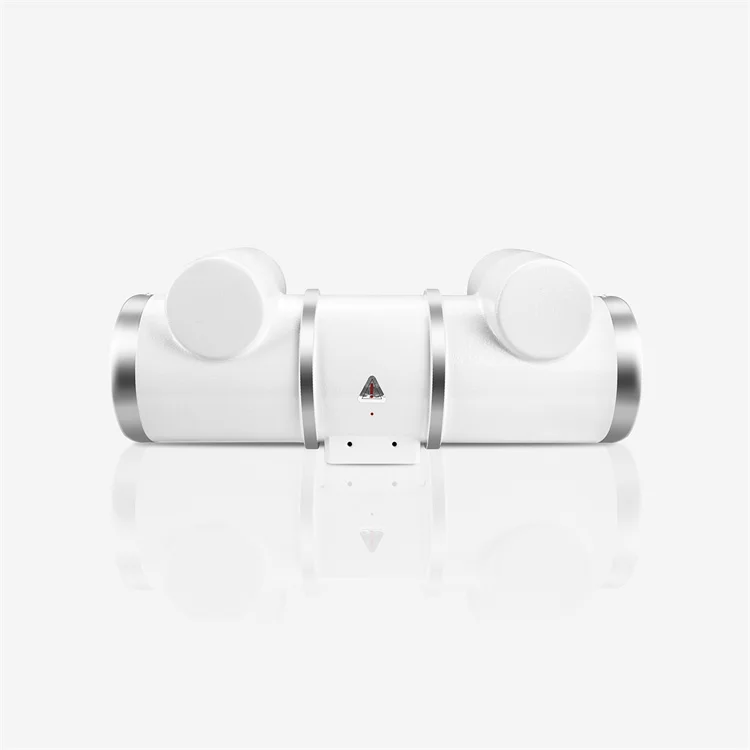

High Generator
32 kw high power generator with a nominal current of 400 MA for perfect images for both large and small pets.
Details Images
Specification
DROV SOFTWARE |
Capture patient images through DICOM Worklist,BDT/GDT,HL7 or other protocol data can also be manually acquired. |
Infinite zoom,(measurement) lens,rotation,mirroring,etc. |
Quick and secure registration of emergency patients,and quick access to patient or research data. |
Archive all research results and preserve search preferences. |
Adjust window/level options/gamma correction/filter sharpening/noise reduction. |
Measurement function:TPLO,TTA,HD,etc. |
Images can be exported to PNG,TIFF,BMP and DICOM formats. |
More than 400 preset programs and countless adjustment methods to freely combine various parts of the body. |
Can be connected with Image Management Software(PACS). |
X Ray Genertor | Power supply voltage:single-phase three-wire |
system 220V ± 22V Power frequency:50Hz ±1Hz | |
Nominal current:400ma | |
Maximum output power:32kW | |
Working frequency ≥300kHz | |
Maximum peak tube voltage:125kV | |
DR Detector Panel | Detector:Care Ray 1800Le |
Sensor/Scintillator:Silicon/Cesium | |
Iodide Dimensions:460*460*15mm | |
Spatial resolution:3.6lp/mm | |
A/D conversion:16 bits | |
Pixel size:140um | |
Effective area:17*17 inches |
Company Profile
We focus on Vital sign parameter modules: ECG module, SPO2 Module, NIBP Module, IBP Module, Six-parameter Module, Multigas Module etc.
We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse
oximeters,ETCO2 monitors/Capnometer/Capnograph, Anesthesia Multigas monitors etc.
All our solutions/products are for improving the industry of human health.
We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse
oximeters,ETCO2 monitors/Capnometer/Capnograph, Anesthesia Multigas monitors etc.
All our solutions/products are for improving the industry of human health.
Certifications
Exhibition
FAQ
1.who are we?
We are based in Hubei, China, start from 2014,sell to Northern Europe(50.00%),North America(10.00%),South America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Veterinary ECG Machine; Veterinary Patient Monitor; Veterinary Pulse Oximeter; Veterinary Vital Sign Monitor; Veterinary Blood Pressure Monitor
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Italian
We are based in Hubei, China, start from 2014,sell to Northern Europe(50.00%),North America(10.00%),South America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Veterinary ECG Machine; Veterinary Patient Monitor; Veterinary Pulse Oximeter; Veterinary Vital Sign Monitor; Veterinary Blood Pressure Monitor
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Italian
