Good Price Traditional Design Style Reinforcing Steel Bar Thread Rolling Rebar Upsetting Forged Rebar Coupler
- Category: >>>
- Supplier: Baoding Jindi Machinery Co. Ltd.
Share on (1601132440137):
Product Overview
Description
Product Description

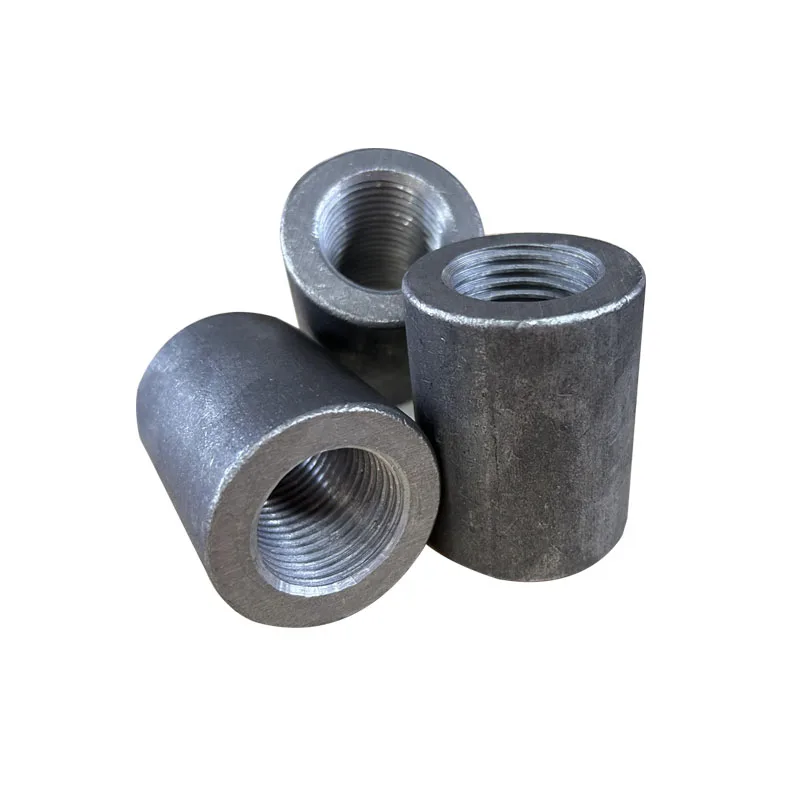

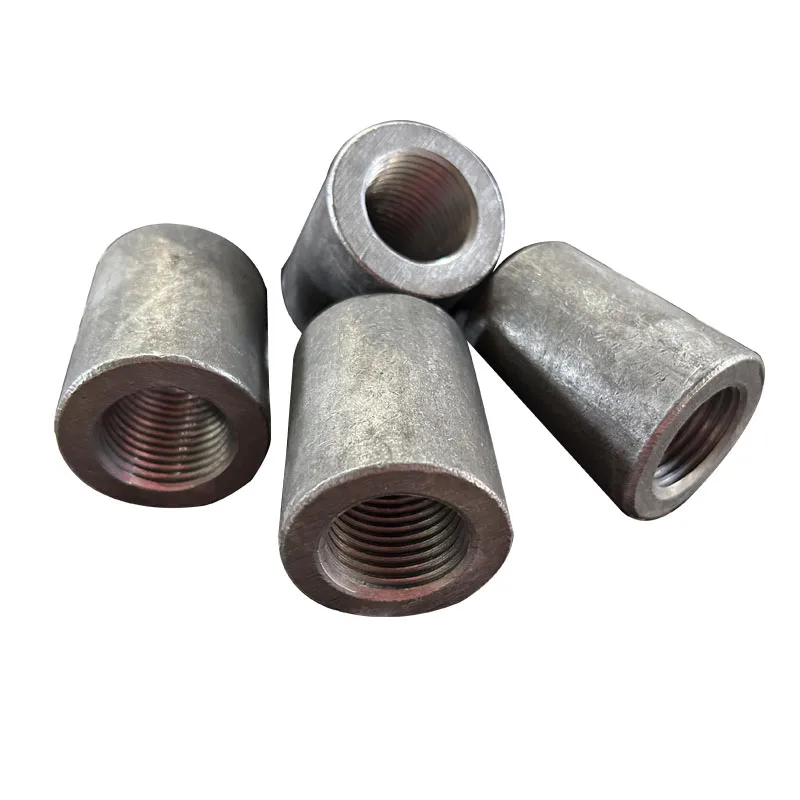

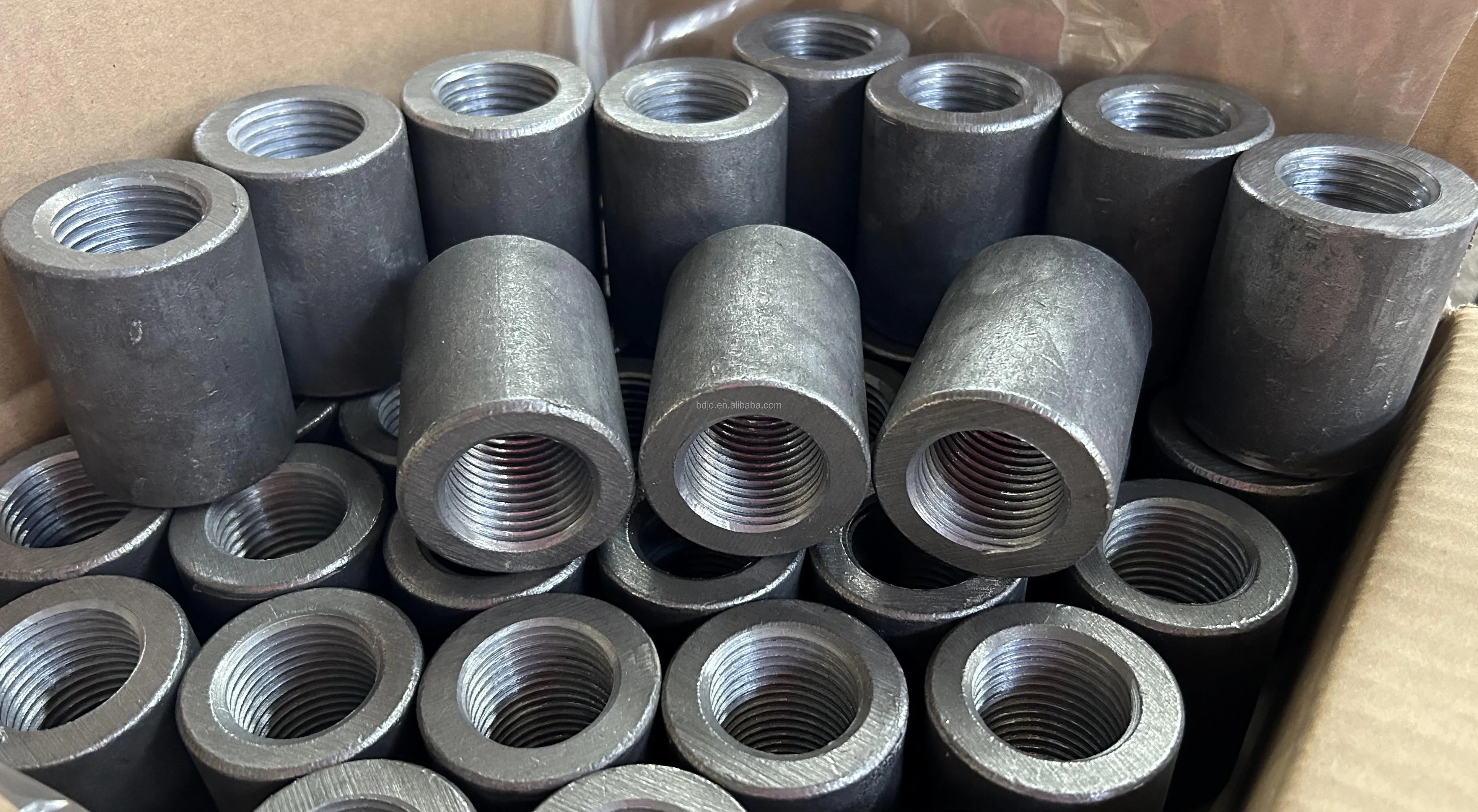

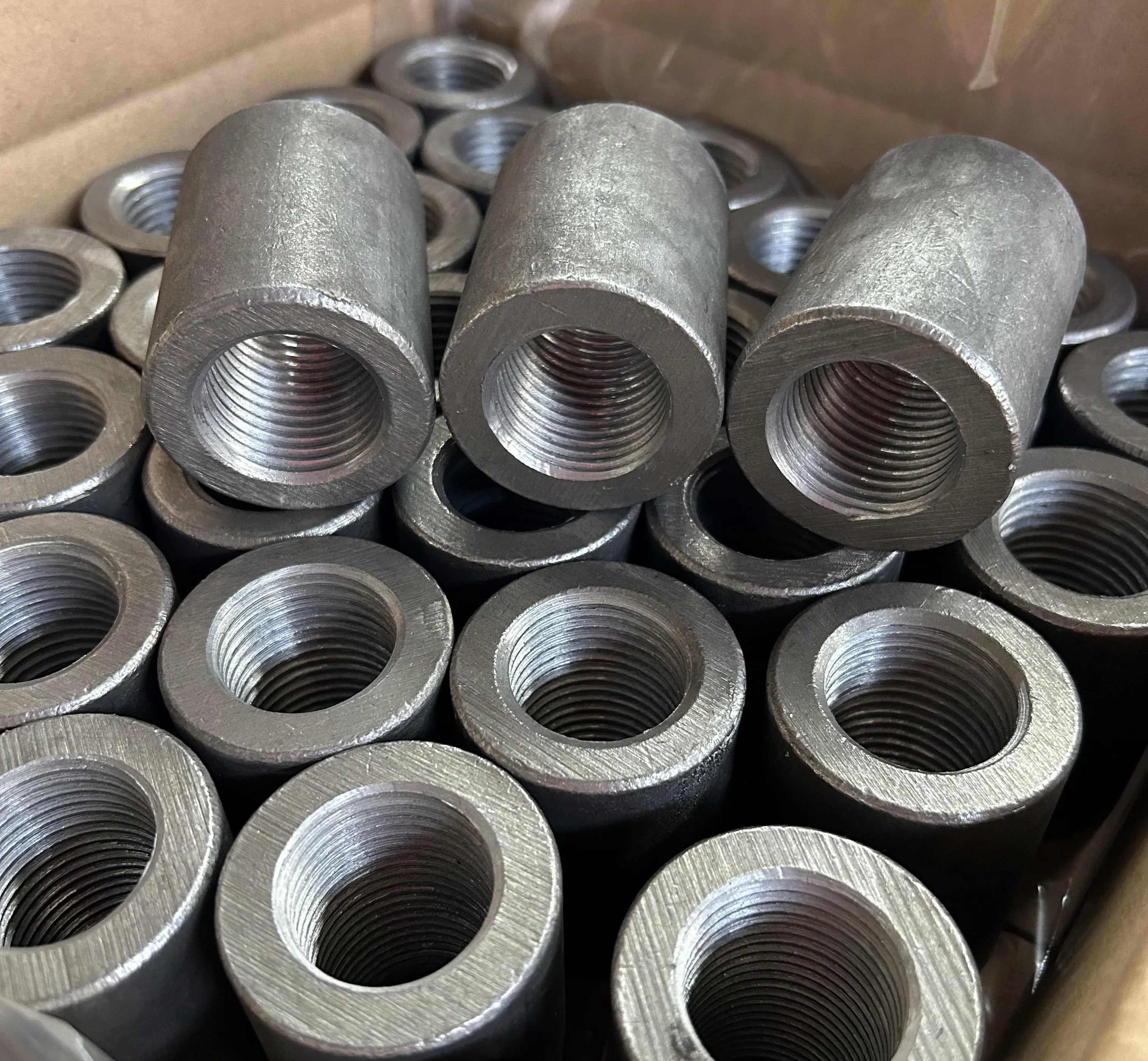

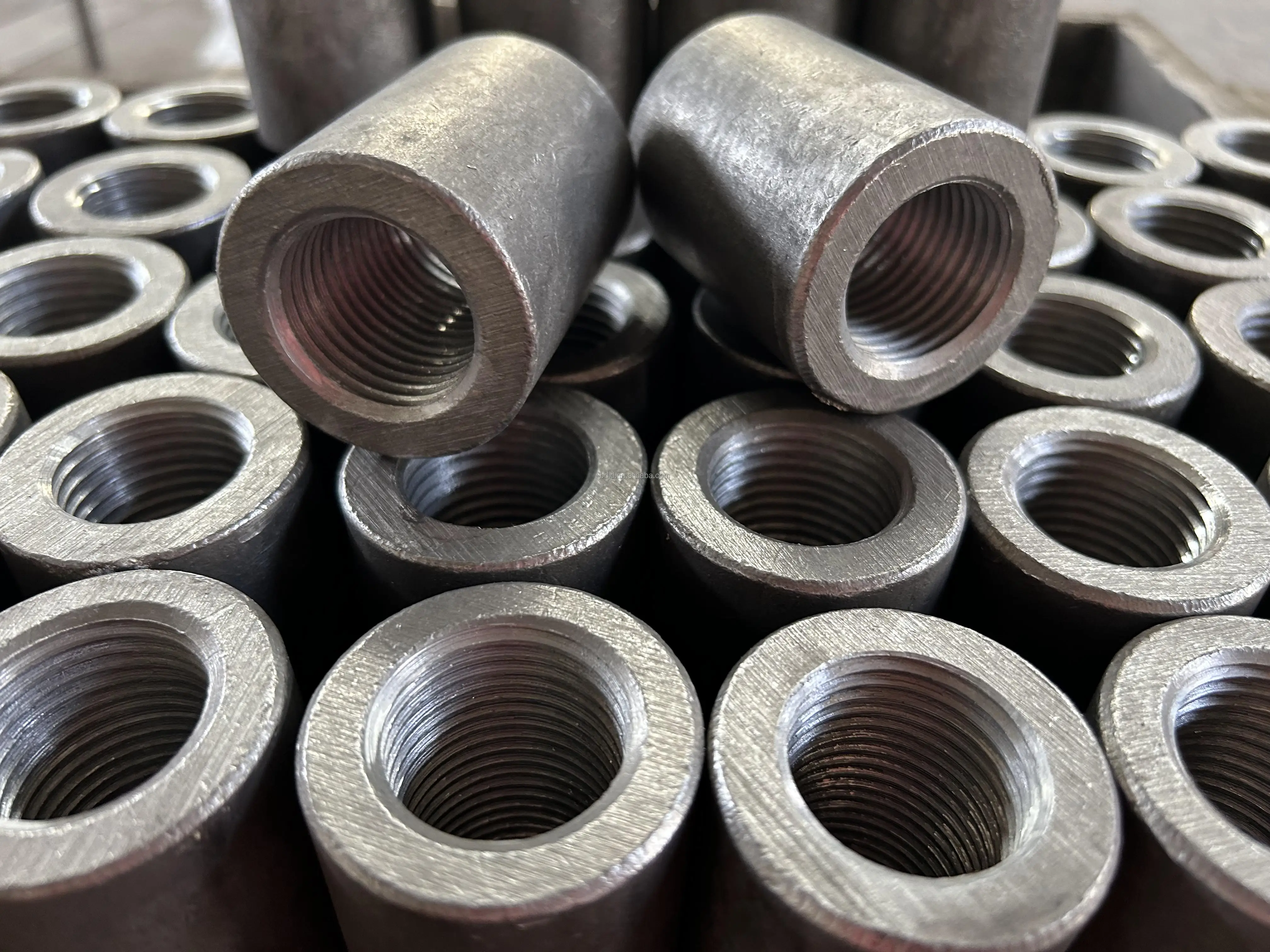

Upsetting Rebar Splicing Coupler Metal Building Materials Convenient Connector for Rebar Upsetting
An upsetting rebar coupler is a mechanical device used to connect two reinforcing bars (rebars) in construction projects. It is designed to provide a strong and reliable connection between two rebars, ensuring structural integrity and stability in concrete structures.
The upsetting rebar coupler works by threading the ends of the rebars and then joining them together using the coupler. This eliminates the need for time-consuming and labor-intensive methods such as welding or lapping, making it a more efficient and cost-effective solution for connecting rebars.
Overall, upsetting rebar couplers play a crucial role in reinforcing concrete structures, offering a reliable and efficient method for connecting rebars and ensuring the structural integrity of buildings and infrastructure.
The upsetting rebar coupler works by threading the ends of the rebars and then joining them together using the coupler. This eliminates the need for time-consuming and labor-intensive methods such as welding or lapping, making it a more efficient and cost-effective solution for connecting rebars.
Overall, upsetting rebar couplers play a crucial role in reinforcing concrete structures, offering a reliable and efficient method for connecting rebars and ensuring the structural integrity of buildings and infrastructure.
Specification
Size | Outer Diameter(mm) | Length(mm) | Thread Size | Thread Angle |
16 | 25 | 32 | M18*2.0 | 60° |
18 | 28 | 36 | M22*2.5 | 60° |
20 | 31 | 40 | M24*3.0 | 60° |
22 | 34 | 44 | M25*2.5 | 60° |
25 | 38.5 | 50 | M29*3.0 | 60° |
28 | 43 | 56 | M32*3.0 | 60° |
32 | 48.5 | 64 | M36*3.0 | 60° |
36 | 54 | 72 | M40*3.5 | 60° |
40 | 60 | 80 | M45*3.5 | 60° |
Size | Outer Diameter(mm) | Length (mm） | Thread size | Thread angle |
16 | 26.5 | 37 | M18*2.0 | 60° |
18 | 29.5 | 41 | M22*2.5 | 60° |
20 | 32.5 | 45 | M24*3.0 | 60° |
22 | 36 | 49 | M25*2.5 | 60° |
25 | 41 | 56 | M29*3.0 | 60° |
28 | 45.5 | 62 | M32*3.0 | 60° |
32 | 51.5 | 70 | M36*3.0 | 60° |
36 | 57.5 | 80 | M40*3.5 | 60° |
40 | 63.5 | 88 | M45*3.5 | 60° |
Product Process

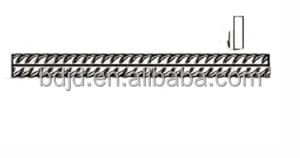

1.Cutting Rebar
Cutting rebar by "Cutting machine for rebar
splicing". Surface is plain and round.

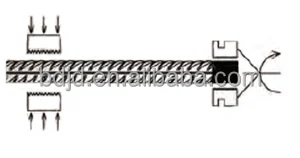

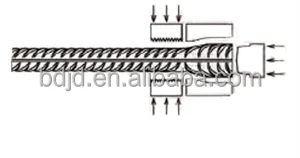

2.Upsetting Rebar End
Enlarge the end of rebar by upsetting die.
3.Threading
Cut parallel thread on the enlarged end of rebar by
rotating chaser.

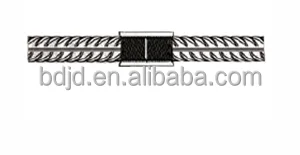

4.Installation
Connect the two threaded bar with
coupler.
Packing & Delivery
Packaging with cartons and wooden pallets. Such packing is convenient for transportation. Suitable for air and sea transport.
Certifications
Company Profile
FAQ
FAQ
1.If the customer provides parameters or drawings, we can also customize the sleeve according to the requirements.
2.If you have no parameters, you can tell us your steel bar grade, tensile strength, and yield strength. We recommend suitable rebar coupler
3.We can accept OEM
4.MOQ:1000PCS
5.The packaging of our products is woven bag and carton. They are all packed on wooden pallets.
6. The goods can be transported by sea, and both FCL and LCL are accepted. From Tianjin ,Qingdao ,Shanghai ,Guangzhou any port of China.
7.The goods can be transported by air. From Beijing, Shanghai,Guangzhou...any airport of China.
1.If the customer provides parameters or drawings, we can also customize the sleeve according to the requirements.
2.If you have no parameters, you can tell us your steel bar grade, tensile strength, and yield strength. We recommend suitable rebar coupler
3.We can accept OEM
4.MOQ:1000PCS
5.The packaging of our products is woven bag and carton. They are all packed on wooden pallets.
6. The goods can be transported by sea, and both FCL and LCL are accepted. From Tianjin ,Qingdao ,Shanghai ,Guangzhou any port of China.
7.The goods can be transported by air. From Beijing, Shanghai,Guangzhou...any airport of China.
