Product Overview
Description
Product Description

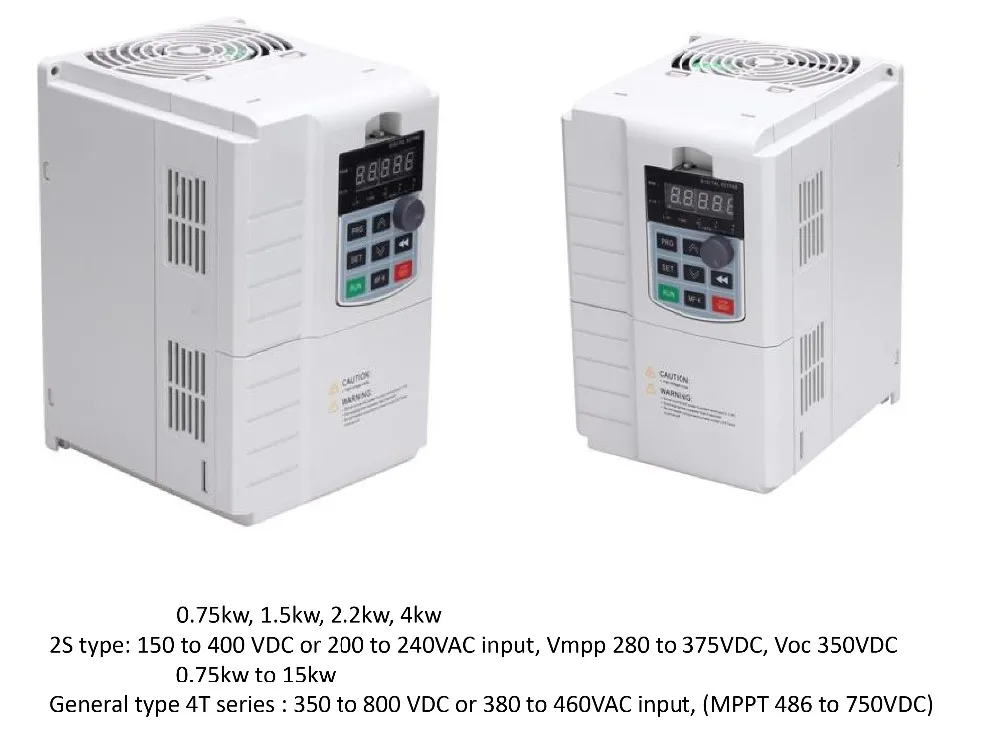

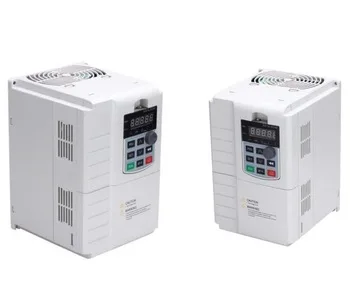

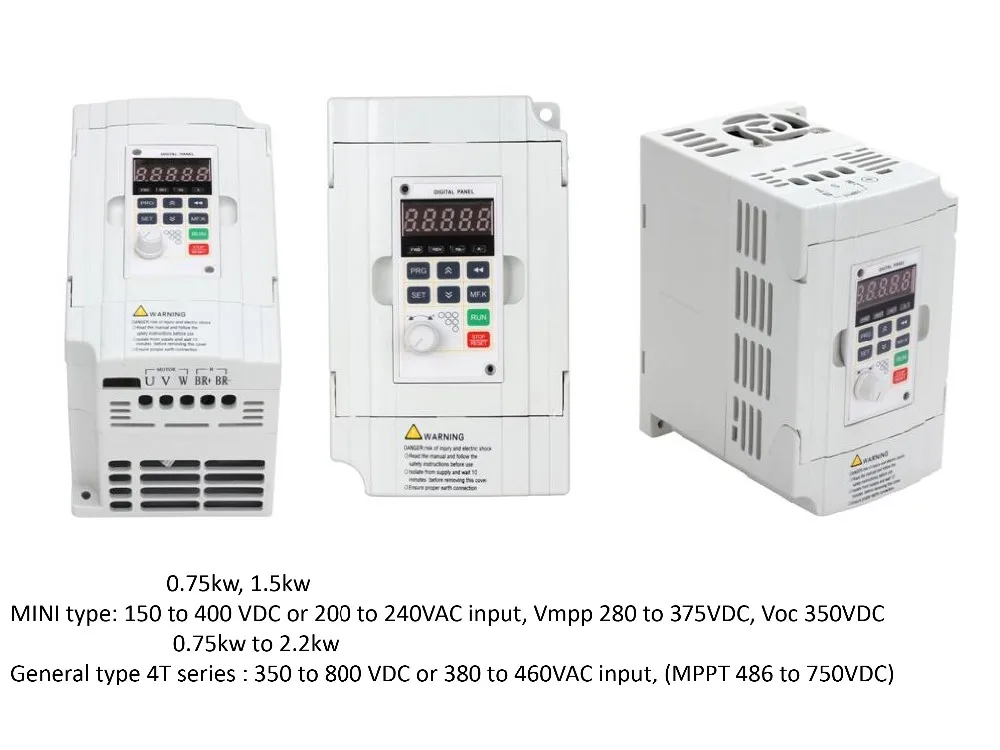

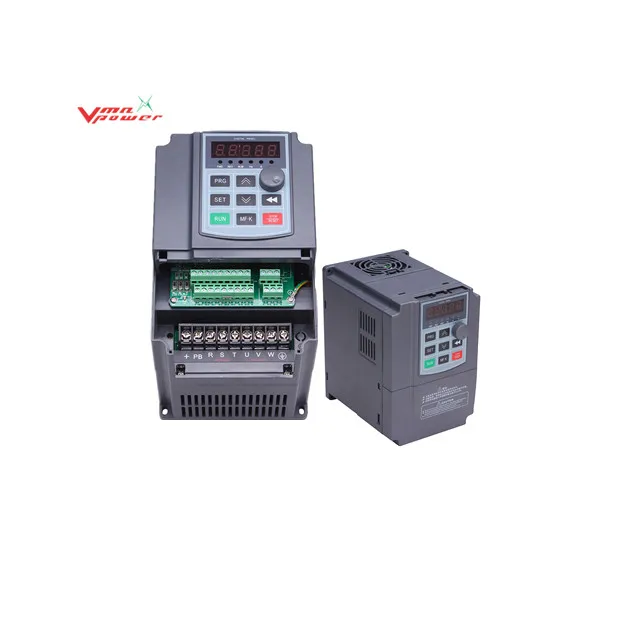

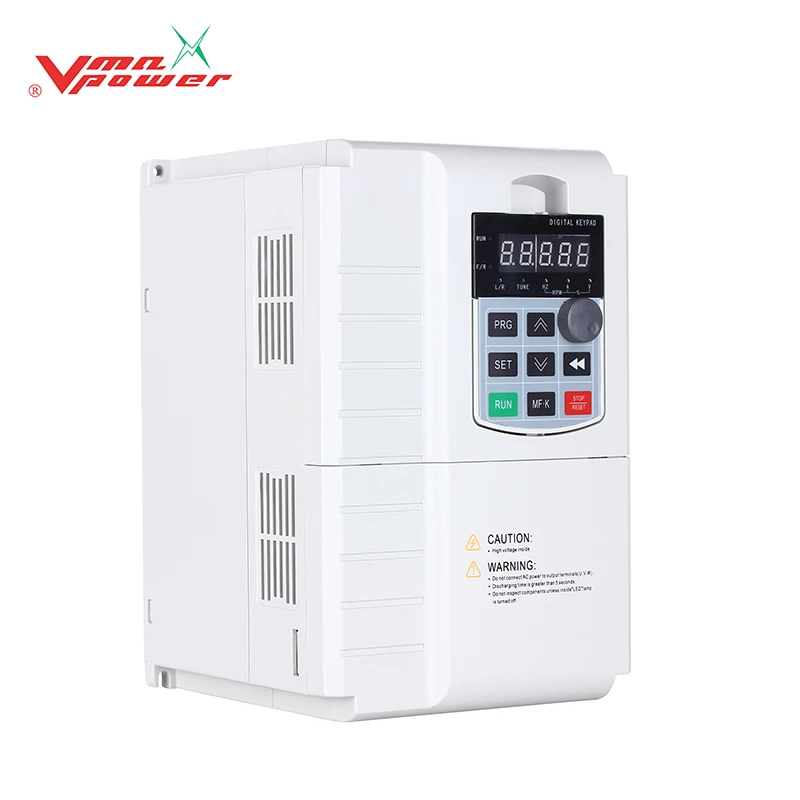

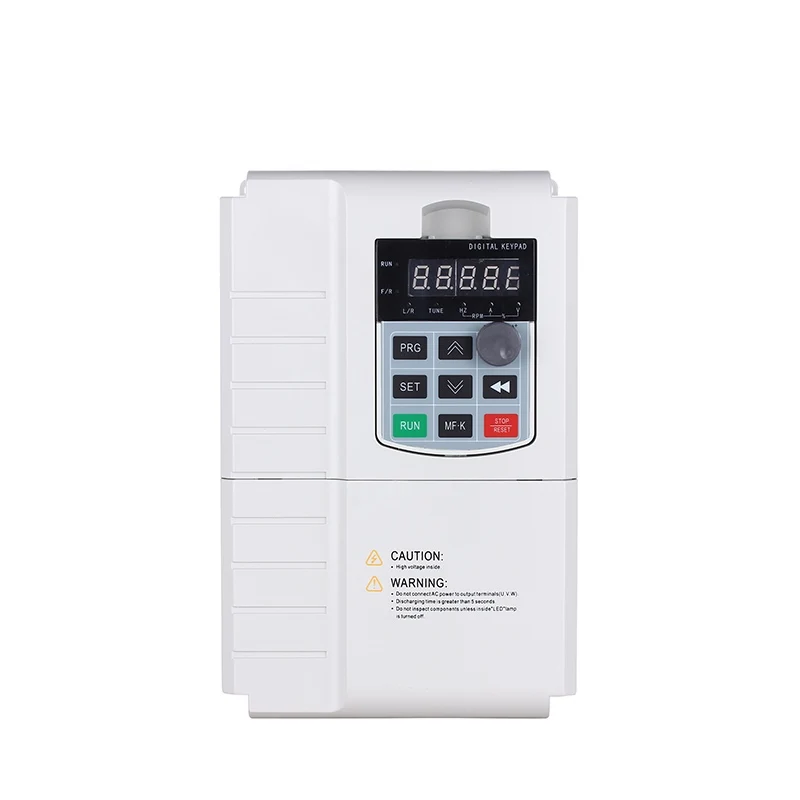

Solar pumping inverter
* Applied for all forms of daily use including water pumping for drinking water supply for remote villages and farms without
connection to the water grid.
* Using it is the perfect solution to power shortage occasions pumping needs.

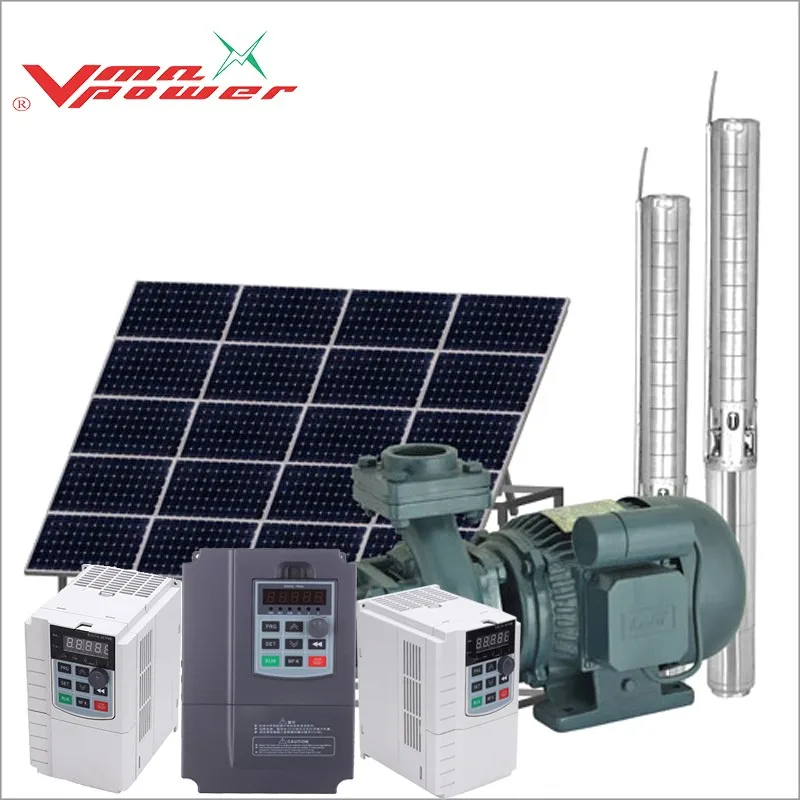

* Consists of aPV array, inverter, pumps and other components.
* Effectively reduce the system cost, reduce environmental pollution.
* Run automatically, without human duty, saving a lot of manpower.
* System modular design, stable operation, high reliability and safty, installation and maintenance is very convenient.
* The perfect solution to power shortage occasions pumping needs.
* Consists of aPV array, inverter, pumps and other components, to save the battery
energy storage device
* Effectively reduce the system cost, reduce environmental pollution.
* Run automatically, without human duty, saving a lot of manpower.
* System modular design, stable operation, high reliability and safty, installation and maintenance is very convenient.
* Consists of aPV array, inverter, pumps and other components, to save the battery
energy storage device
* Effectively reduce the system cost, reduce environmental pollution.
* Run automatically, without human duty, saving a lot of manpower.
* System modular design, stable operation, high reliability and safty, installation and maintenance is very convenient.
Product Details
Main features of solar pump system
Low carbon economy.In-built MPPT with high efficiency.
Pump specific protection.Remote monitoring best off gridv solution.Perfect stable frenquency output.
Low carbon economy.In-built MPPT with high efficiency.
Pump specific protection.Remote monitoring best off gridv solution.Perfect stable frenquency output.

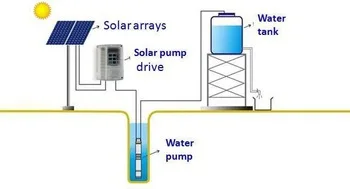

* Composed of a PV generator, ump and a solar pump drive.
* Based on the design philosopthat it is more efficient to
* Store water rather than electricity
* No energy storing such as storage battery in the system.
* Prepared to be combined with a elevated water storage.
Product Name | Pump Inverter | ||||||||
Module | Rate Power | Nominant Current | MPPT Working Voltage | Max Imput Voltage | MPPT Recommend Working Voltage | ||||
MTLS-1K5KWP-4T | 1.5KW | 3.7A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-2K2KWP-4T | 2.2KW | 5A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-4K0KWP-4T | 4.0KW | 10A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-5K5KWP-4T | 5.5KW | 13A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-7K5KWP-4T | 7.5KW | 17A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS320-011KWP-4T | 11KW | 22A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS320-015KWP-4T | 15KW | 30A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-018KWP-4T | 18KW | 37A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-022KWP-4T | 22KW | 45A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-030KWP-4T | 30KW | 60A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-037KWP-4T | 37KW | 75A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-045KWP-4T | 45KW | 90A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-055KWP-4T | 55KW | 110A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-075KWP-4T | 75KW | 150A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-090KWP-4T | 90KW | 180A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-110KWP-4T | 110KW | 220A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-132KWP-4T | 132KW | 260A | 500-650V DC | 800V DC | 500-650V DC | ||||
MTLS-160KWP-4T | 160KW | 310A | 500-650V DC | 800V DC | 500-650V DC | ||||

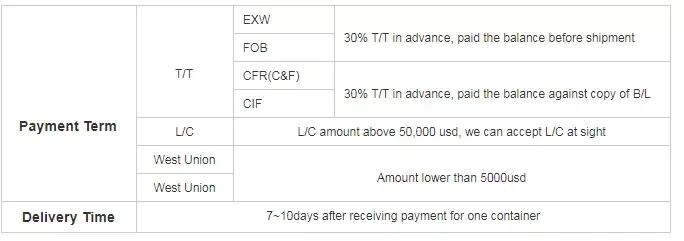

Payment Terms
