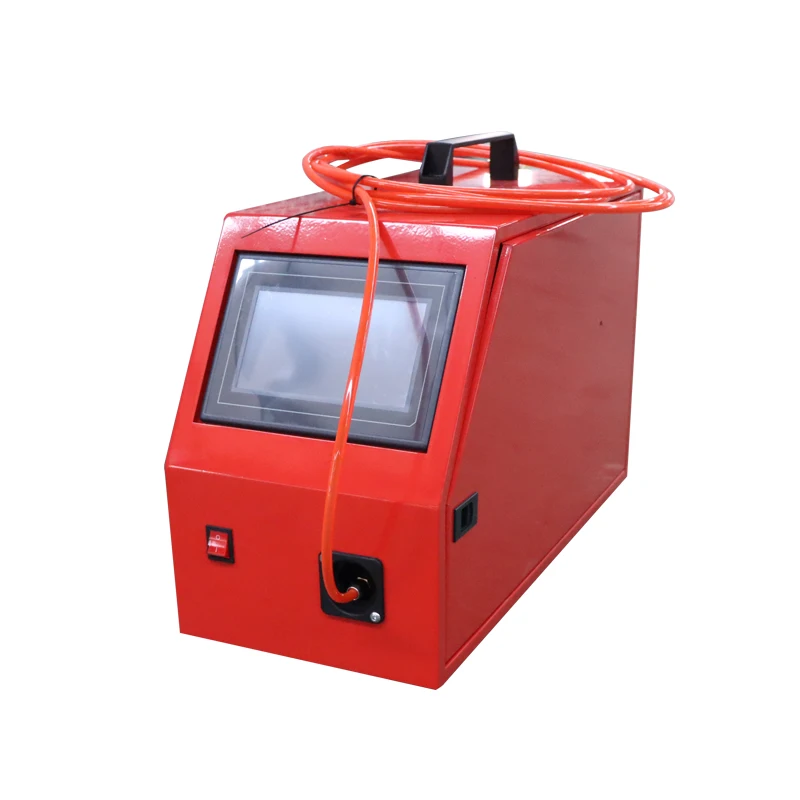

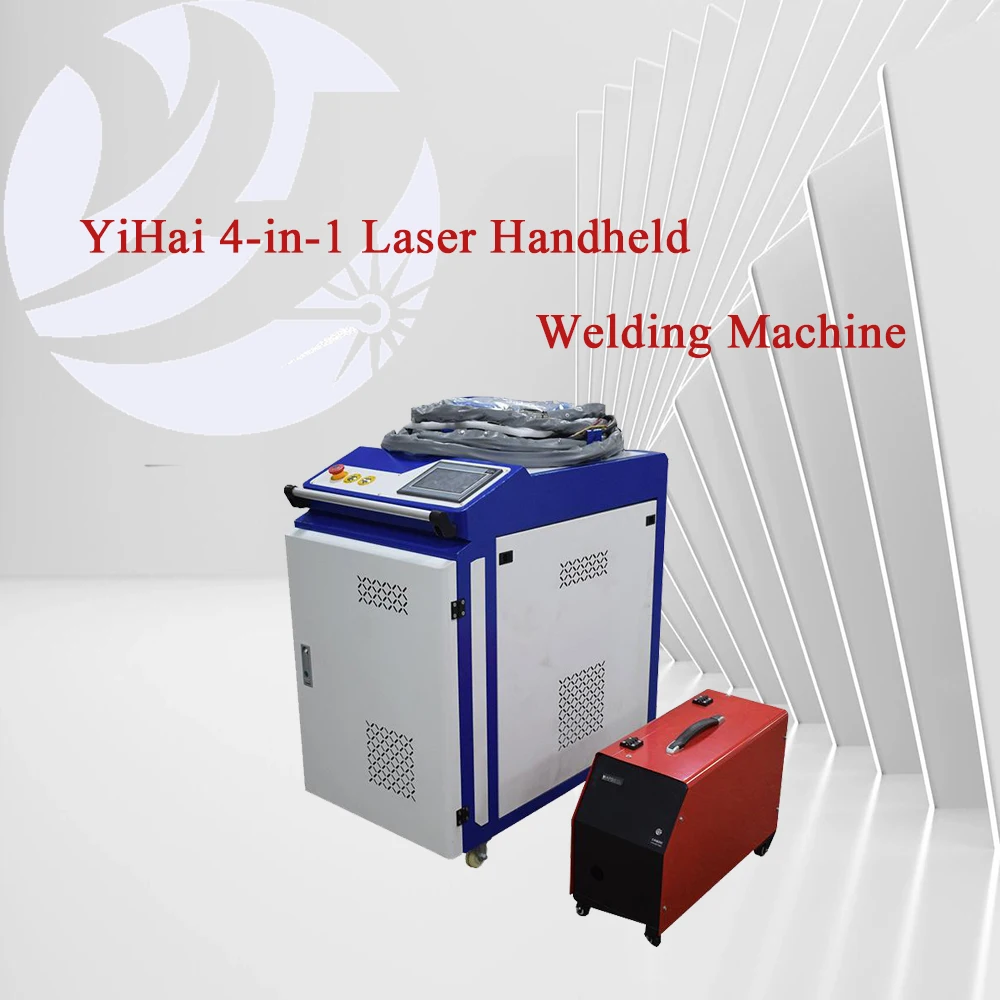

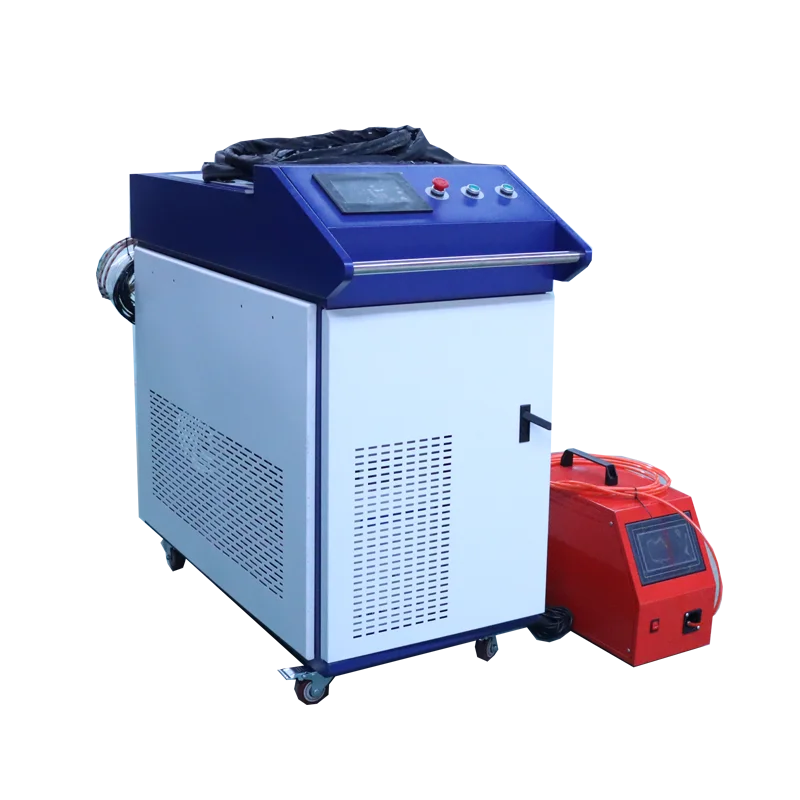

Top Fashion 1000w 1500w 2000w 3000W 4 in 1 handheld fiber laser welding machine for steel and metal with Popular Discount
- Category: >>>
- Supplier: Jinan Yihai Laser Technology Co. Ltd.Jinan Ltd.
Share on (1601132616216):
Product Overview
Description
Product Overview
Product Introduction

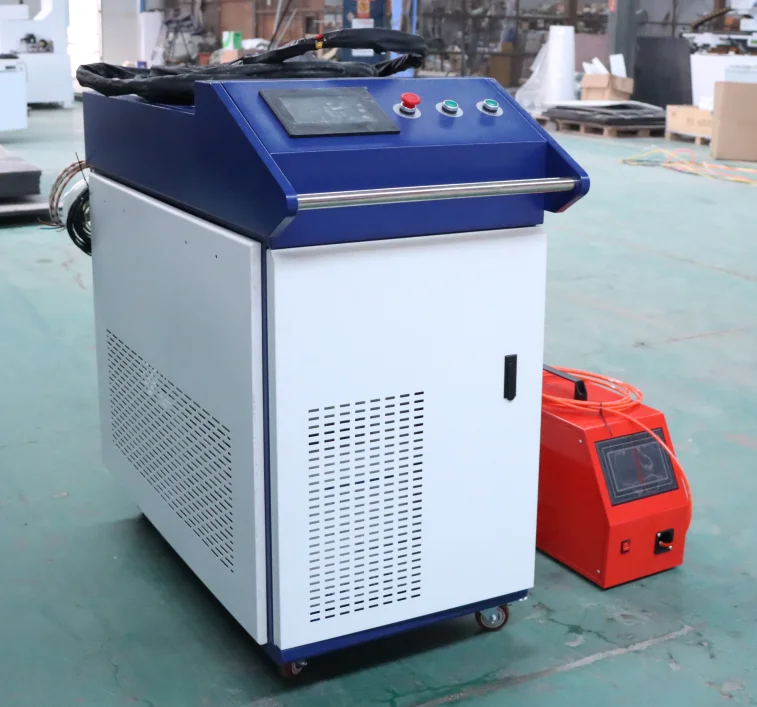

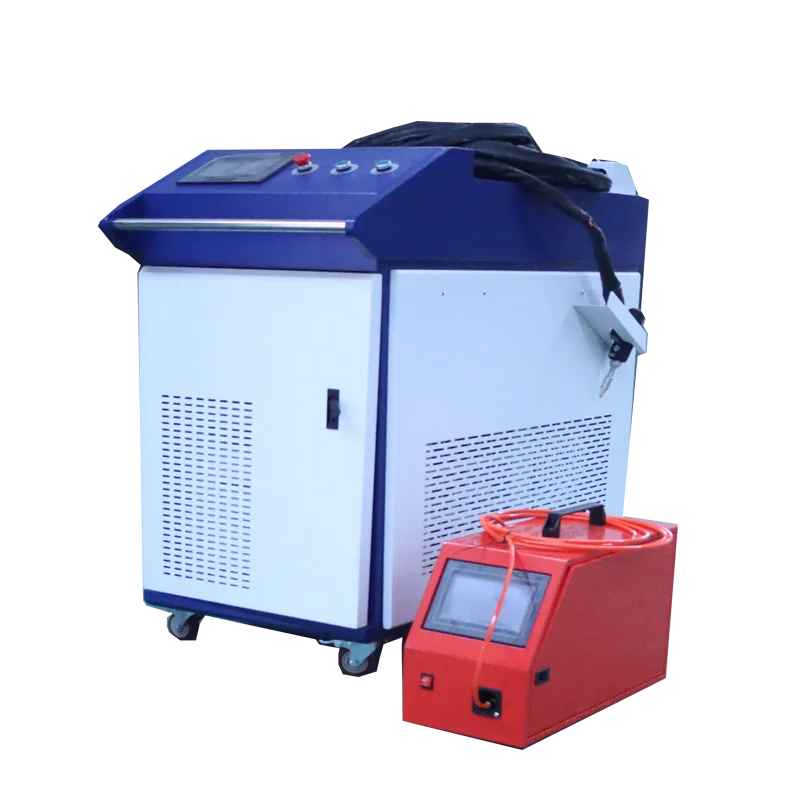

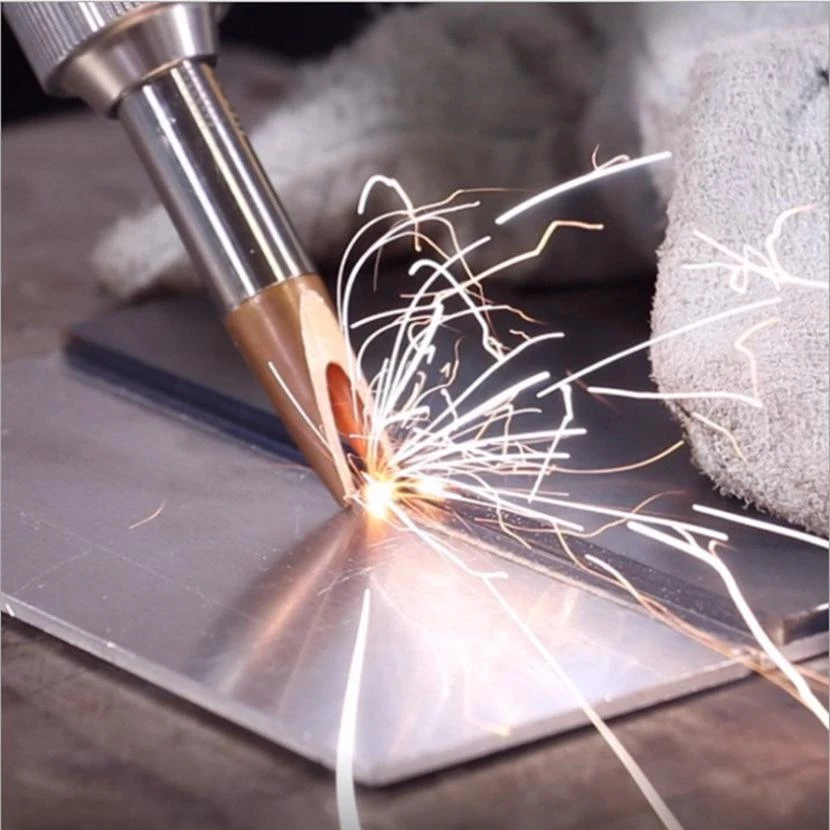

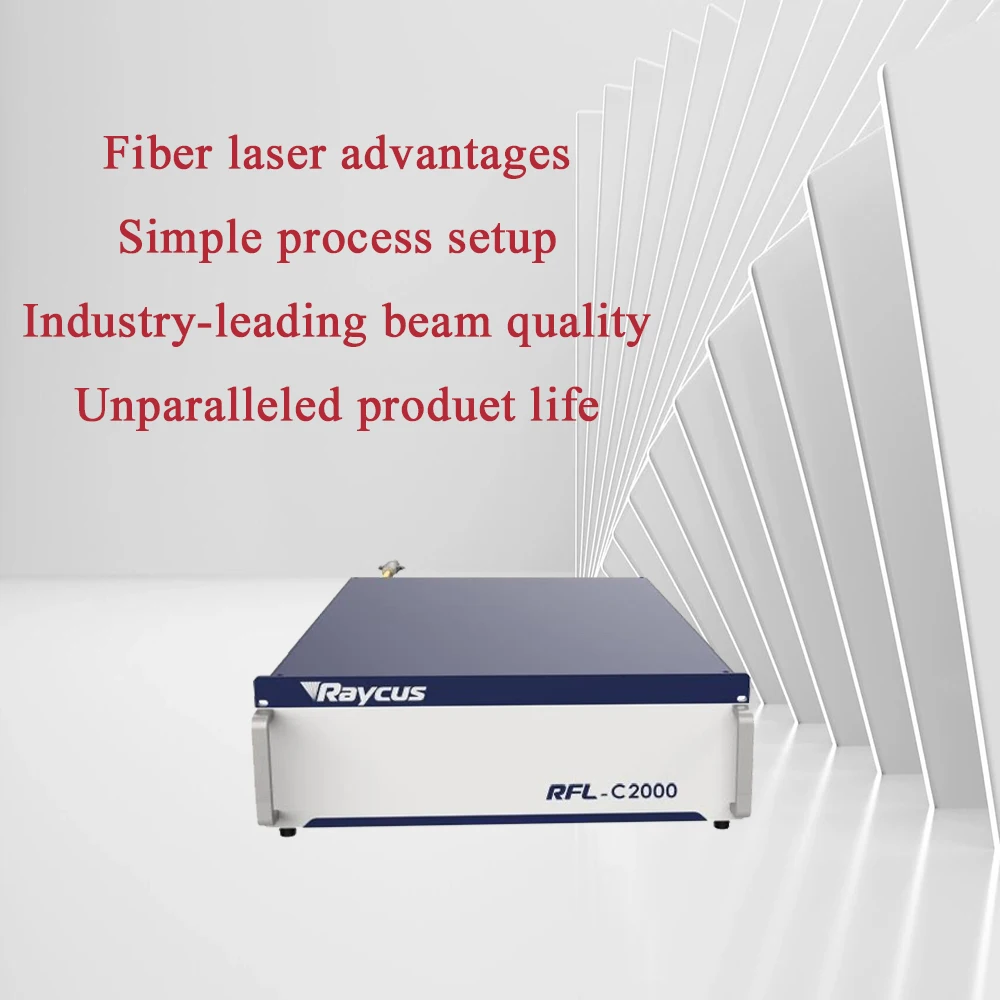

4 in 1 hand-held laser welding machine adopts the latest generation of fiber laser and is equipped with a double-swing hand-held laser welding head. It has the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables.
Welding of metal materials can perfectly replace traditional argon arc welding and electric welding processes. The working mode of hand-held fiber laser welding machine, hand-held welding, flexible and convenient, longer welding distance. Replace the previously fixed light path with a hand-held welding gun. The hand-held fiber laser welding machine is mainly used for laser welding of long-distance and large workpieces. The heat-affected area is small during welding, which will not cause work deformation, blackening, and traces on the back. The welding depth is large, the welding is firm, and the melting is sufficient.
Welding of metal materials can perfectly replace traditional argon arc welding and electric welding processes. The working mode of hand-held fiber laser welding machine, hand-held welding, flexible and convenient, longer welding distance. Replace the previously fixed light path with a hand-held welding gun. The hand-held fiber laser welding machine is mainly used for laser welding of long-distance and large workpieces. The heat-affected area is small during welding, which will not cause work deformation, blackening, and traces on the back. The welding depth is large, the welding is firm, and the melting is sufficient.
Product Parameters
Name | Handheld Fiber Laser Welding Machine |
Laser power | MAX 1000W/1500W/2000W/3000W |
Laser wavelength | 1070-1090NM |
Cable length | 10M |
Way of working | Continuous / modulation |
Welder speed range | 400-500mm/s |

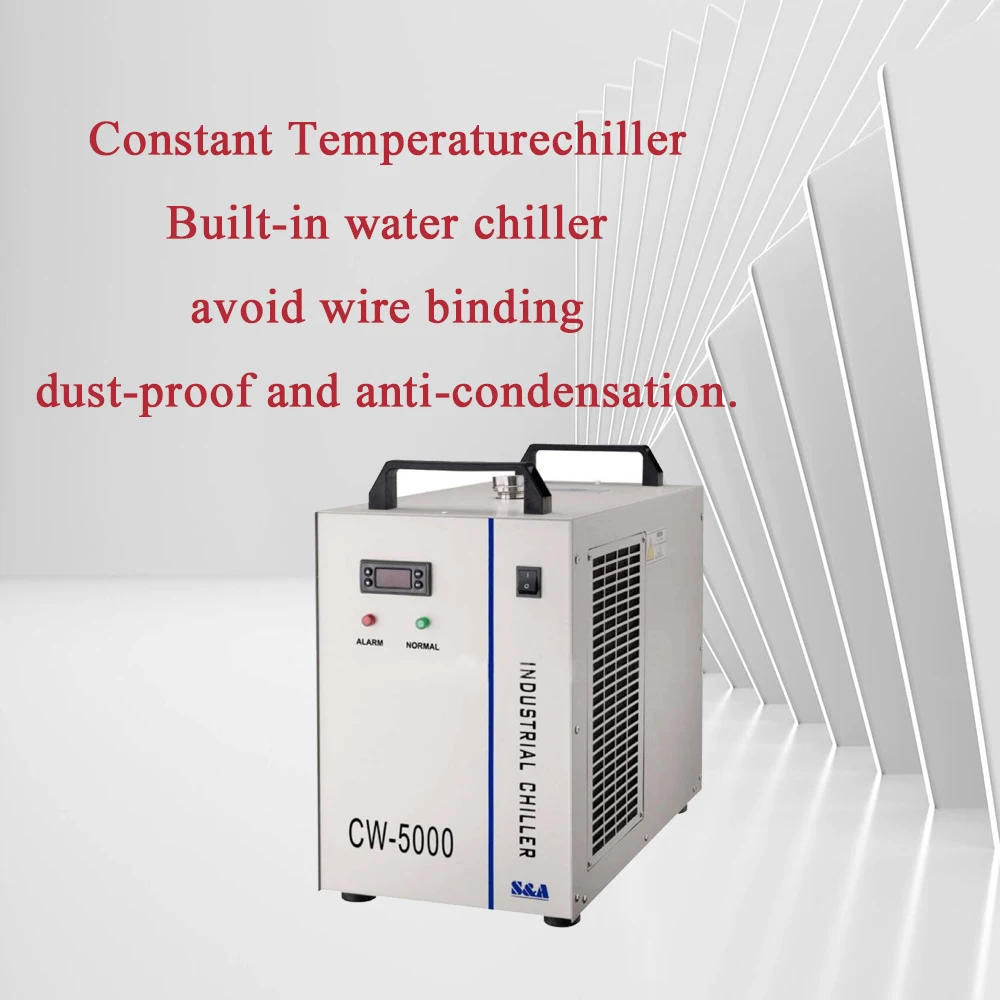

Cooling water machine | Industrial constant temperature water tank, with over temperature, flow, water level and other alarm functions |
Working ambient temperature range | 0~45℃ |
Working environment humidity range | <70%no condensation |
Weld Thickness Recommendations | 0.3-8mm |
Weld Gap Recommendations | ≤1.5mm |
Voltage | 220V |
Handheld laser welding head weight | ≤1kg |
Laser source life | 100000 hours |
aiming and positioning | Red light pointer |
Self-locking function | Automatic light lock to ensure operator safety |
Weld joint form | Butt, lap and fillet joints |
Spot width adjustable range | 0.2-5MM |
Weld quality | Weld penetration, small deformation of the workpiece, beautiful weld, no welding slag, no welding defects, no back penetration phenomenon in 2mm stainless steel plate welding (no burn and discoloration on the back of the weld, consistent with the color of the base metal) |

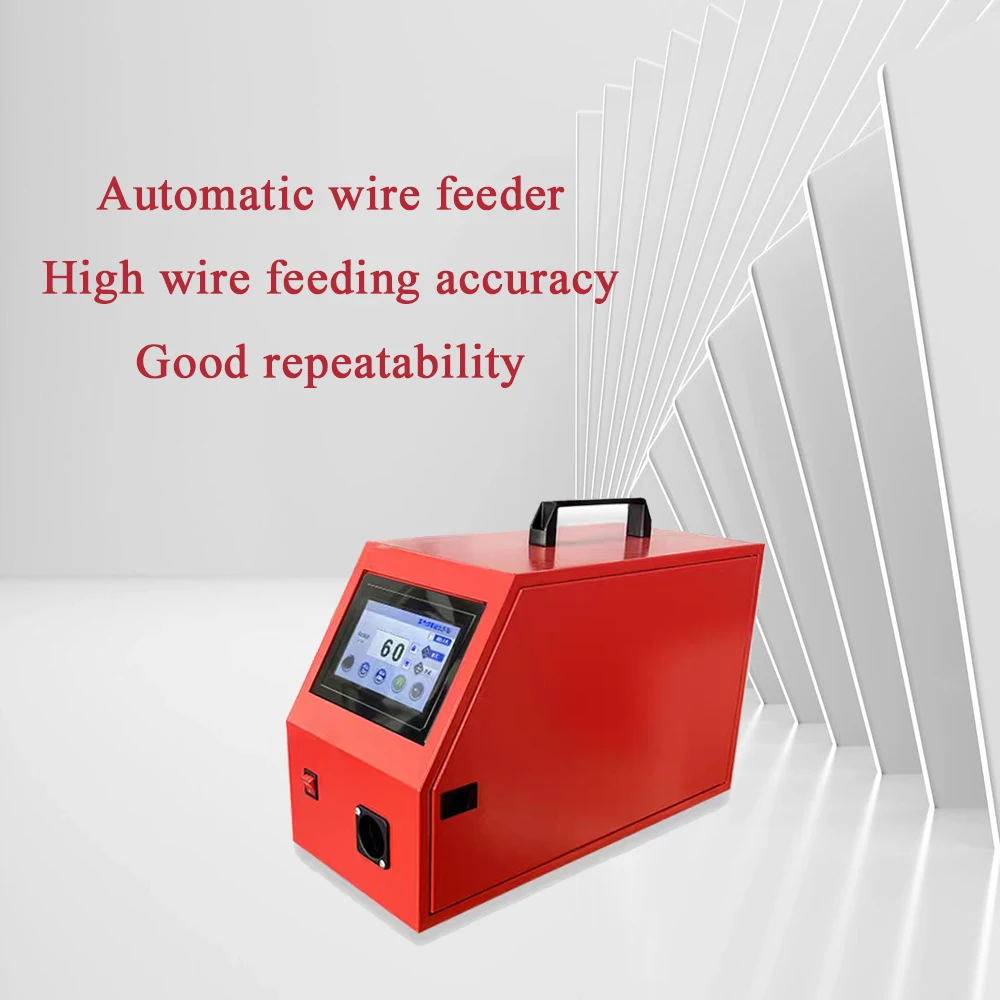

Automatic wire filling function (optional) | Automatic wire feeder with independent control to match the speed of hand-held laser welding: wire diameter specification: 0.8MM， 1.0MM，1.2MM，1.6MM |

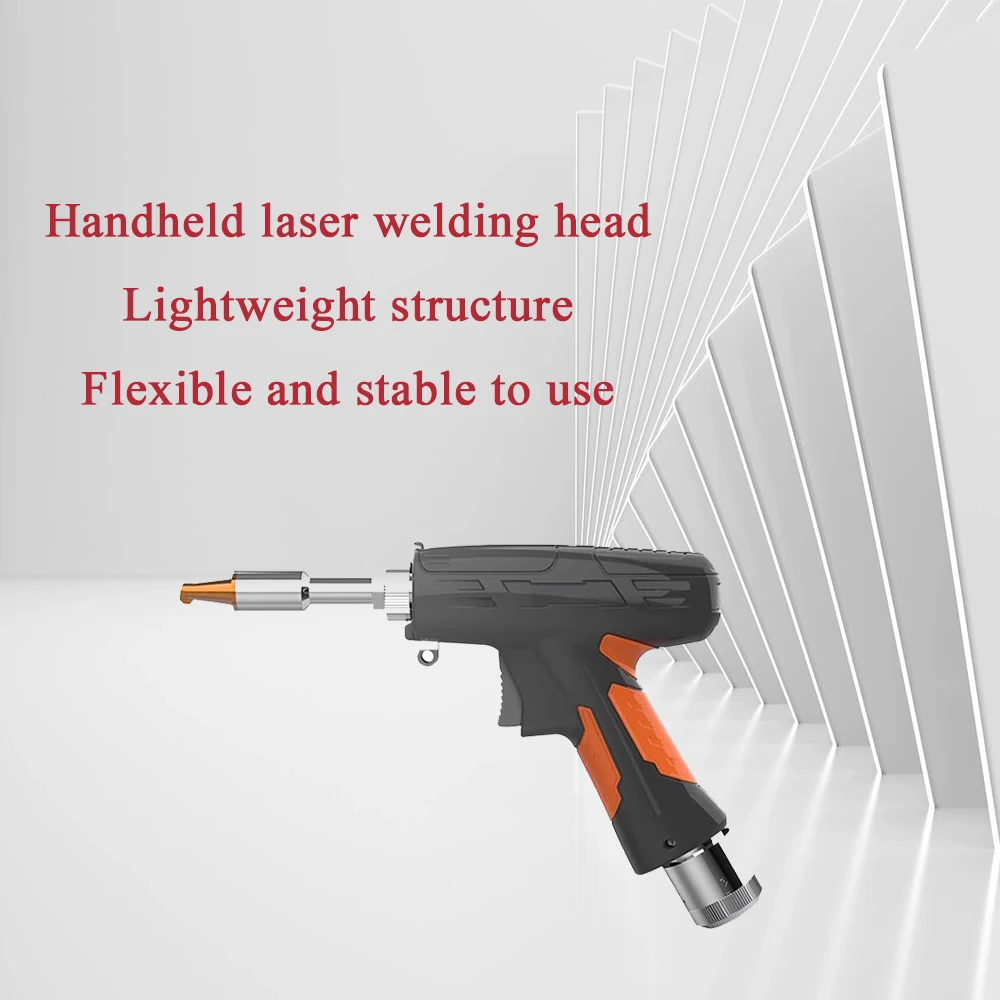

Laser welding head type | Shake the dual galvo mirror left and right |
Features and Advantages
Advantages
Welding speed : The welding speed of laser welding machine is much higher than that of ordinary welding machine, which greatly improves production efficiency.
Welding quality : The heat-affected zone during the welding process of the laser welding machine is
small, the welds are beautiful and smooth, the welding deformation is small, and the quality is stable and reliable.
small, the welds are beautiful and smooth, the welding deformation is small, and the quality is stable and reliable.
Welding accuracy : Laser welding machines can achieve micron-level welding accuracy to meet high-precision welding requirements.
Adaptability : Laser welding machines are suitable for welding various materials, including metals, non-metals, etc., and have a wide range of applications.
Adaptability : Laser welding machines are suitable for welding various materials, including metals, non-metals, etc., and have a wide range of applications.

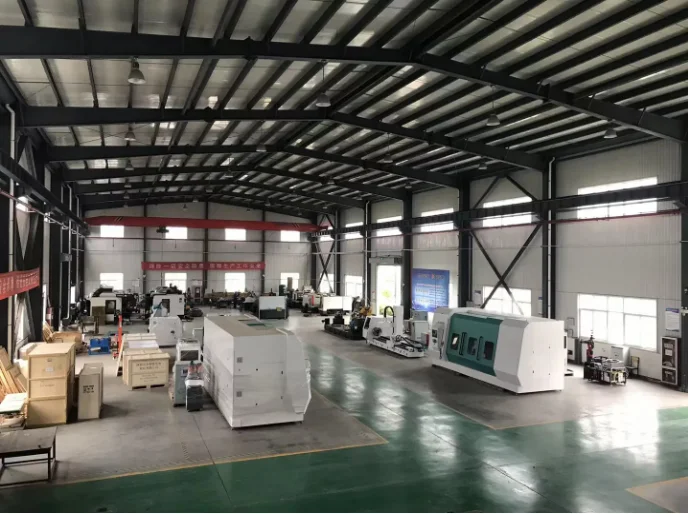

Company Introduction
YH Laser trustworthy to win the market with quality, higher than the international and industry standards Establish quality assurance system, implement comprehensive quality management, and carry out all aspects of production Strict quality control, excellence, continuous improvement of process control and management capability, Ensure the accuracy and performance of the equipment. The whole series of products of Jinan YH Laser have CE certificate and passed the FDA registration.

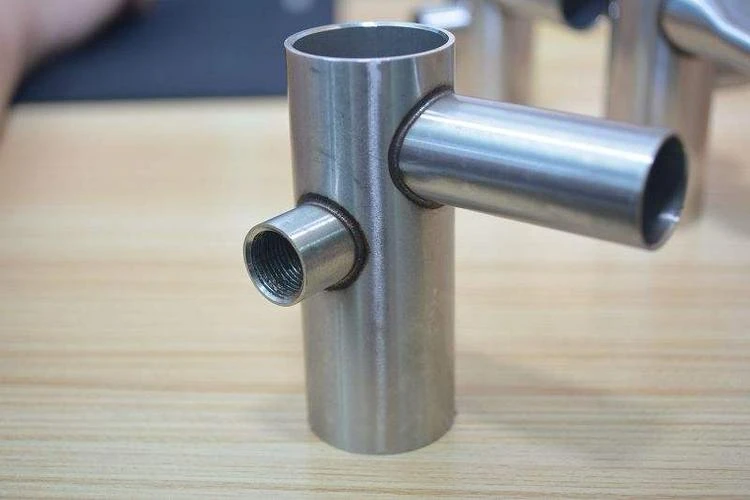

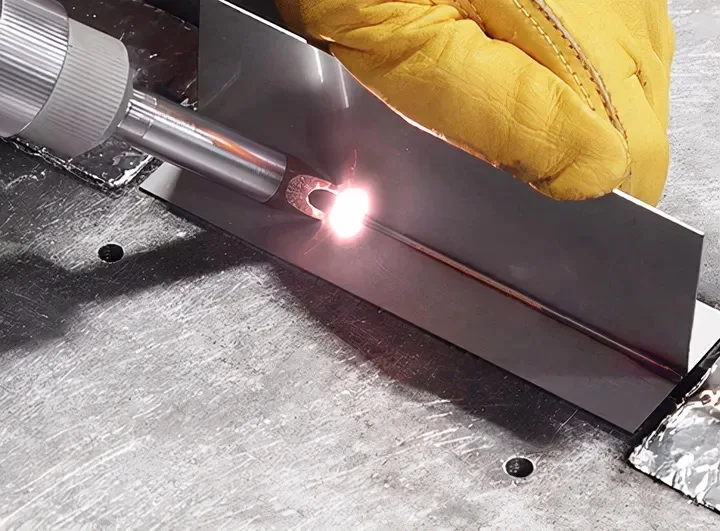

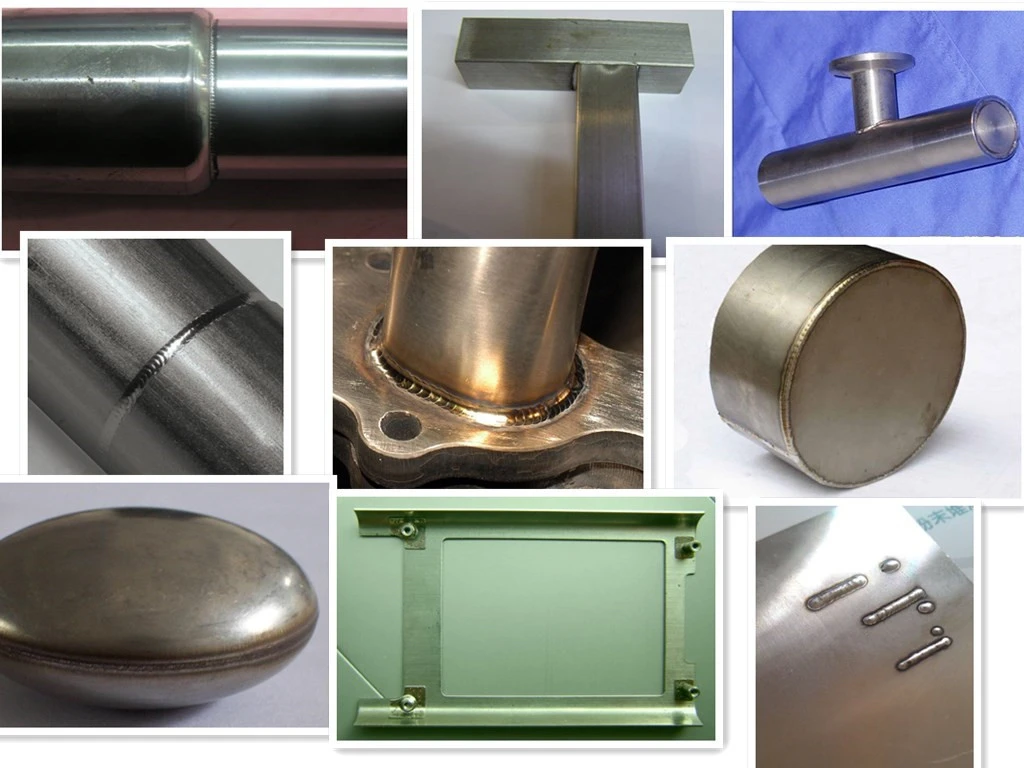

Sample Display

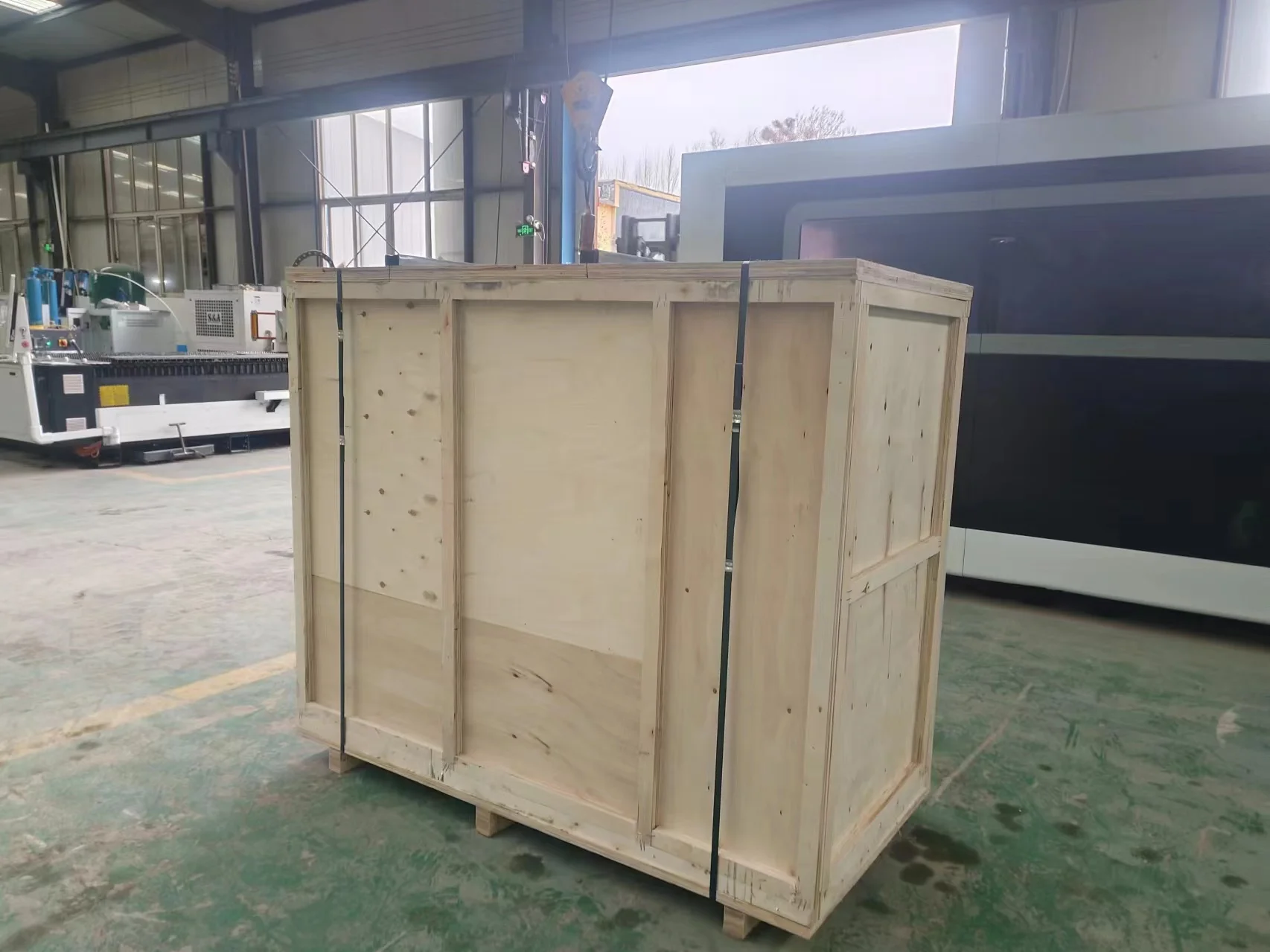

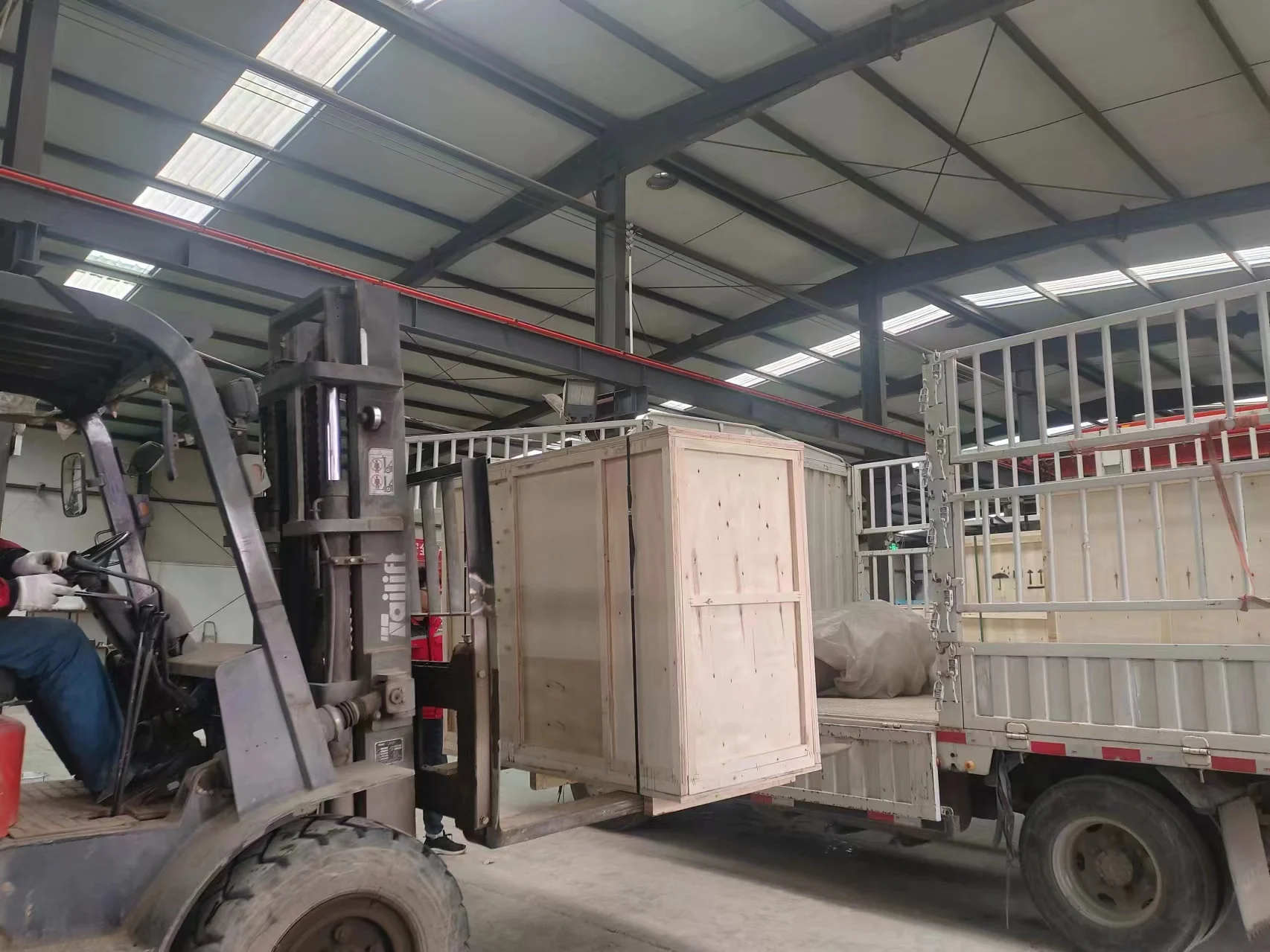

Packing&Shipping
Packaging:
1. The interior is packed with plastic film to prevent the machine from being damaged by moisture and rust during long-term shipping.
2. The external packaging uses wooden boxes to prevent bumps during transportation.
1. The interior is packed with plastic film to prevent the machine from being damaged by moisture and rust during long-term shipping.
2. The external packaging uses wooden boxes to prevent bumps during transportation.

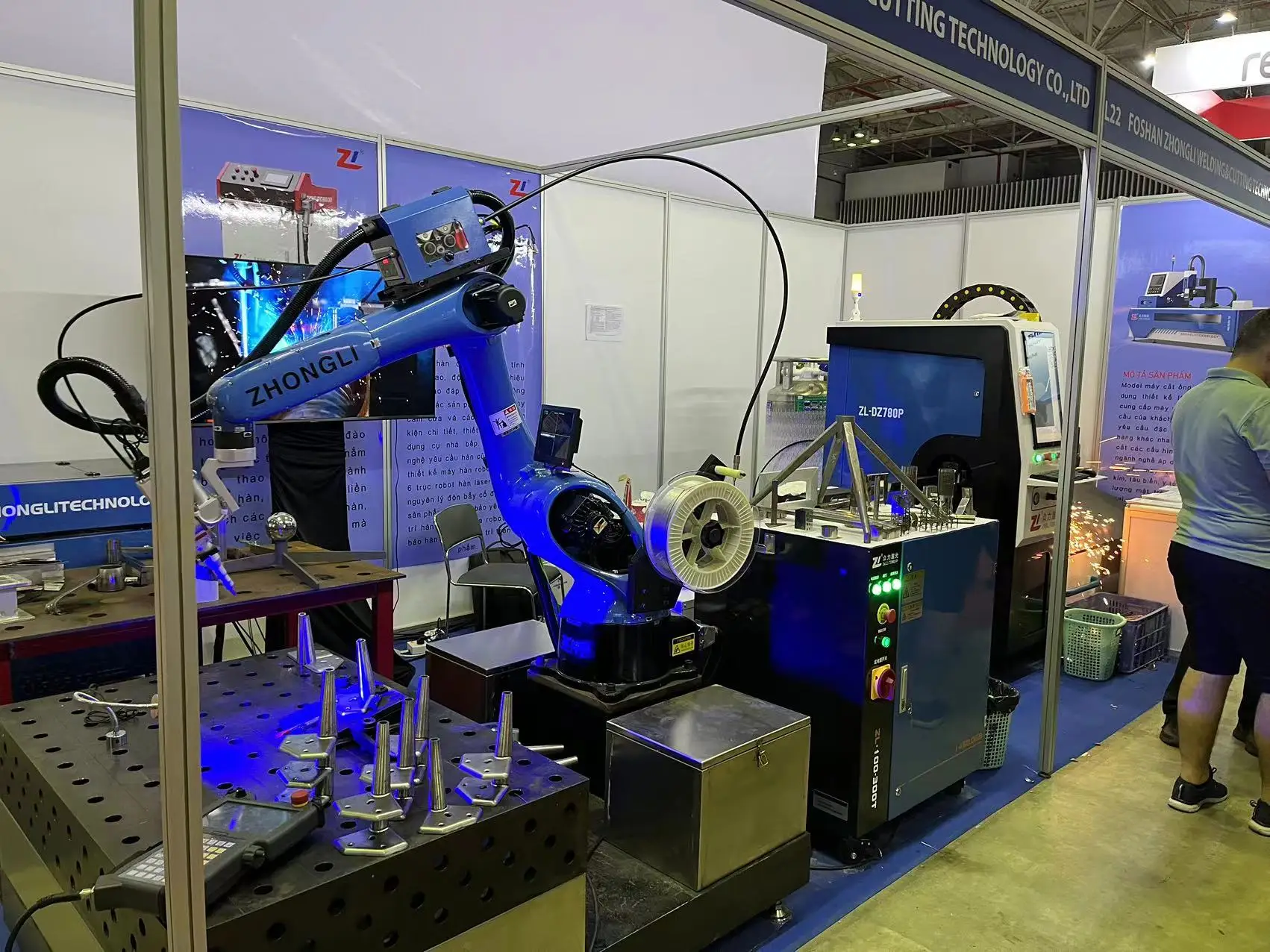

Exhibition show
FAQ
Q1: Our workers can't operate the machine, how to train the staff?
Q2: I don’t know which one is suitable for me?
A:Please tell me your 1) Your materials 2) Max size of your material 3) Max cut thickness 4) Popular cut thickness.
Q3: It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work.
Q4: Do you have CE document and other documents for customs clearance?
A:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5: I don’t know how to use after I receive Or I have problem during use,how to do?
A:1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine. 2) If have any problem during use, you need our technician to judge the problem elsewhere will be solved by us. Our sales sunny and after-sales technician can provide team viewer/Whatsapp/Email/Phone/Skype with camera till all of your problems finished.We can also provide Door service if you need.
Q6: Why does the machine price not include fiber sources and tube components?
A:Because you can customize the generator, rotary and other configurations, the price is the base bed price.
A:We will send you the teaching video of the machine and 24-hour online service,we also support free training service engineers can train your workers for free in our factory for 1-3 days,if you want door-to-door service,We can arrange local service in 48 hours.
Q2: I don’t know which one is suitable for me?
A:Please tell me your 1) Your materials 2) Max size of your material 3) Max cut thickness 4) Popular cut thickness.
Q3: It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work.
Q4: Do you have CE document and other documents for customs clearance?
A:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5: I don’t know how to use after I receive Or I have problem during use,how to do?
A:1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine. 2) If have any problem during use, you need our technician to judge the problem elsewhere will be solved by us. Our sales sunny and after-sales technician can provide team viewer/Whatsapp/Email/Phone/Skype with camera till all of your problems finished.We can also provide Door service if you need.
Q6: Why does the machine price not include fiber sources and tube components?
A:Because you can customize the generator, rotary and other configurations, the price is the base bed price.
