150 kg 300kg 600kg per hour fully Automatic vitamin gummy candy sweet bear mould filling stuffer machine
- Category: >>>
- Supplier: Luohe Orange Mechanical Equipment Co. Ltd.Luohe Ltd.
Share on (1601132751903):
Product Overview
Description
Product Overview
150-600kg/h Fully Automatic Gummy Making Machine Jelly Gummy candy Depositing Line Gummy Bear Machine with Best Price soft sweet machine good price jelly gummy candy making machines / epositing line Equipment Pectin soft Jelly gummy bear candy making machine
gummy candy line General Introduction:
OR150/300/450/600/750/1000/1200/1500/2000 series Jelly (Gummy/gelatin/pectin/carrageenan candy depositing line is not only an ideal equipment which can produce products of good quality ,but also an advantage for the candy manufacturer.

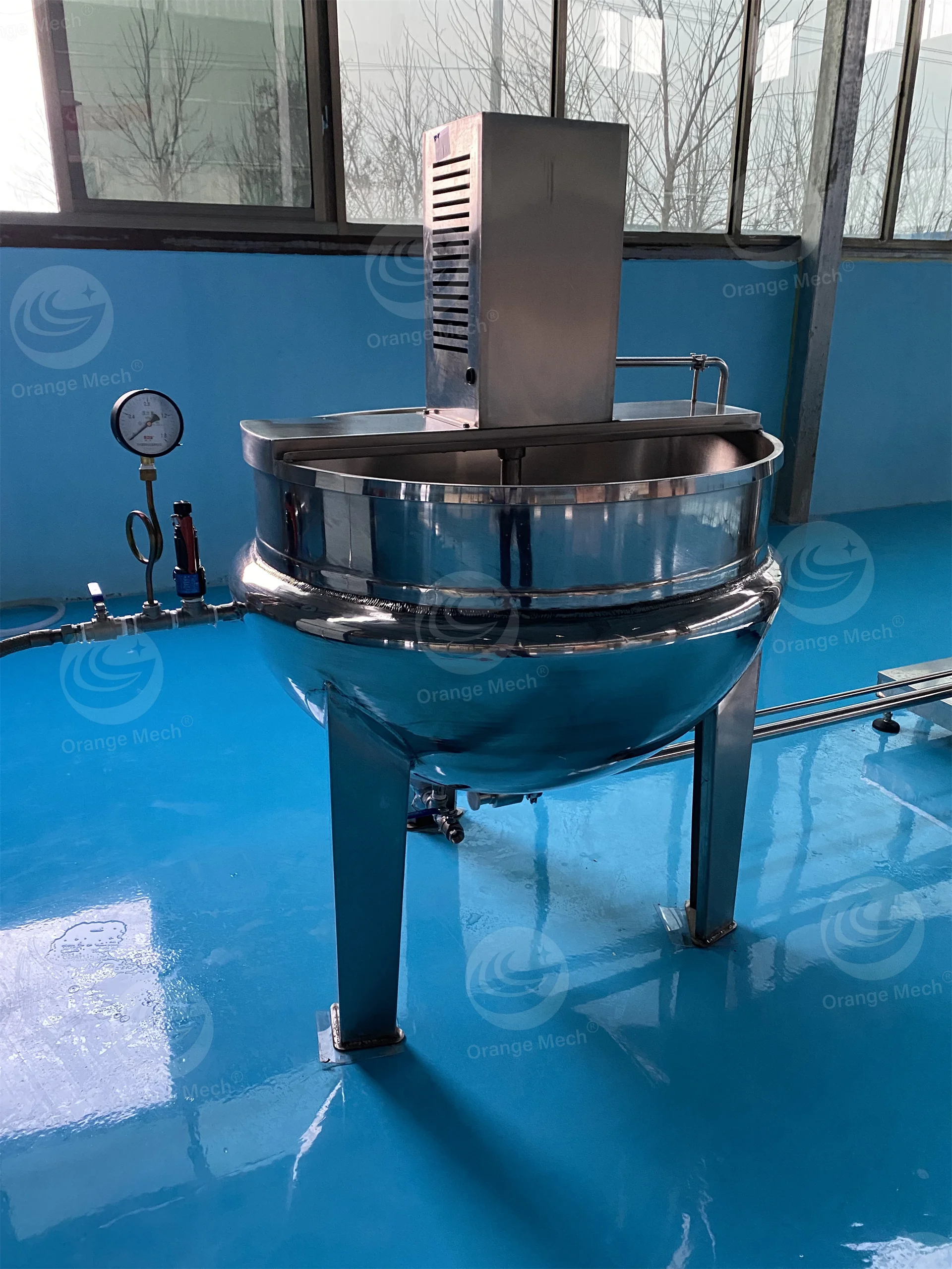

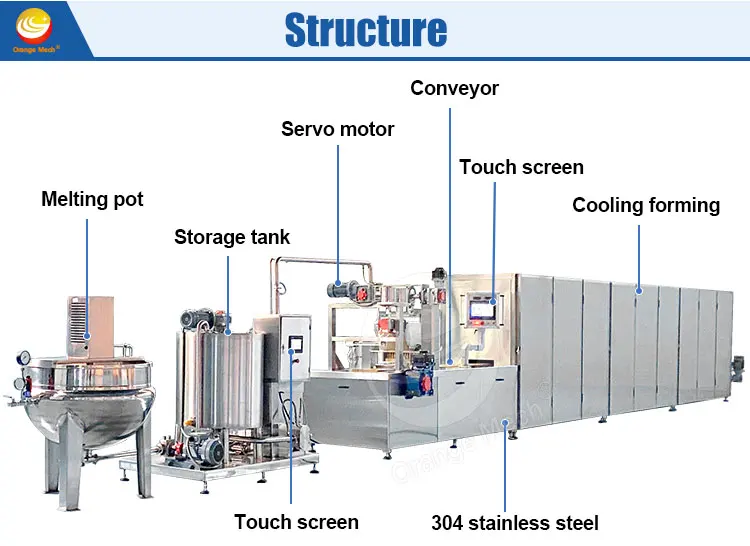

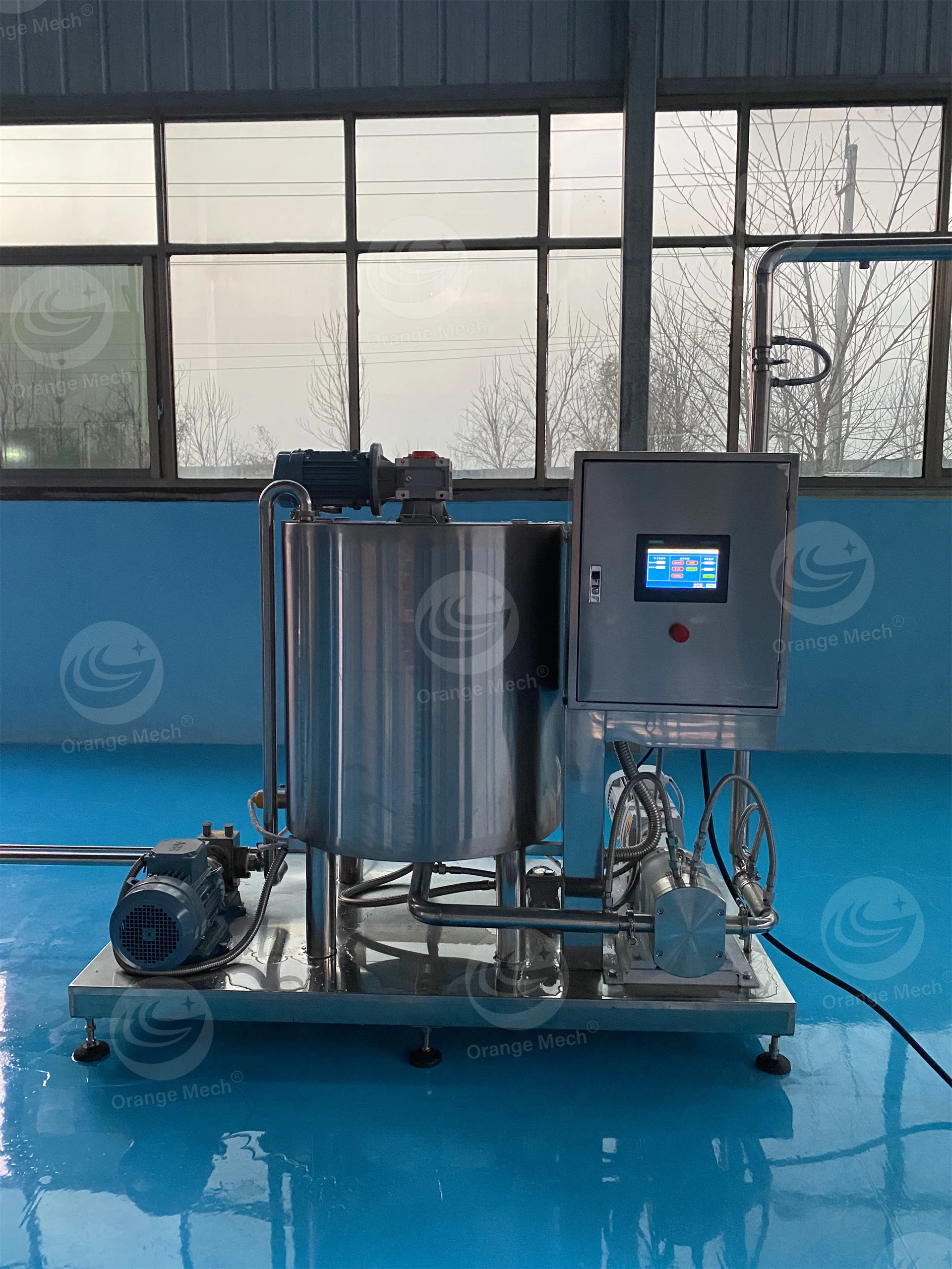

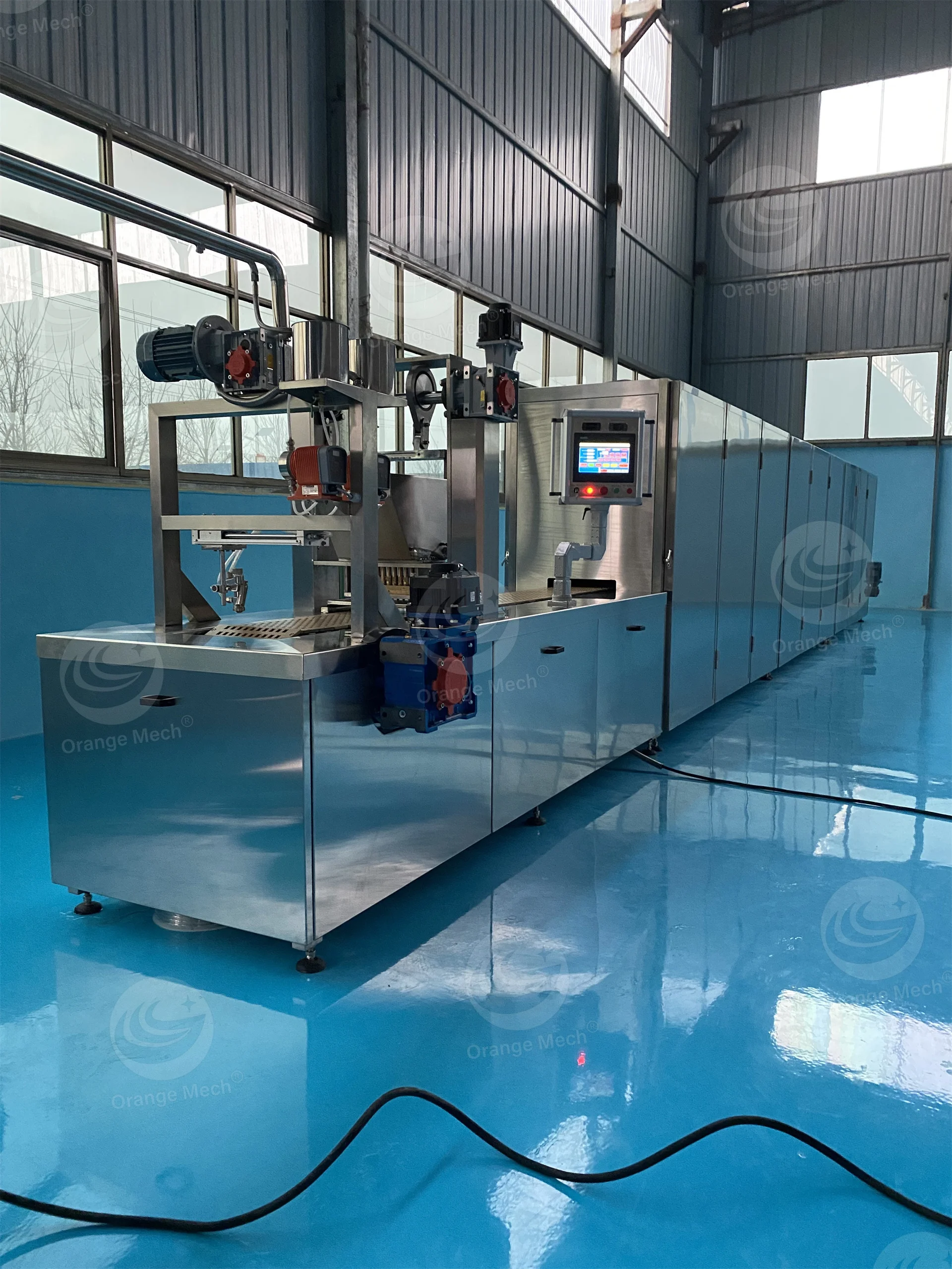

This line mainly consists of Jacket cooker, storage tank,weighing and mixing system,depositor and cooling machine and adopt the advanced servo system to control.
gummy candy line Features:
The gummy candy line was specially innovated by our technical team according to the market, which can produce gummywith multiple shapes and variety colors on base of advanced technology process. It is an ideal machine to produce superiorquality gummy candy of single color and double color; By change-over molds or depositors, different color and different shape of gummy can be also produced. The on-line mixer achieves the quantitative dosing and mixing of the flavor, color and acid. High degree of automation can produce super quality of gummy, at the same time it saves the manpower and the space occupation.
Flow chart:
Raw material dissolving→Transporting→Storage→Dosing→Pre-heating→Cooking→Discharging→Mixing with flavor and
color→Depositing→Cooling→Demoulding→Conveying→Packing→Final product
color→Depositing→Cooling→Demoulding→Conveying→Packing→Final product
PRODUCT SPECIFICATIONS
Model | OR150 | OR300 | OR450 | OR600 | |||
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h | |||
Candy weight | As per the candy size(1-20g in normal) | ||||||
Depositing speed | 25-45n/min | ||||||
Steam requirement | 100kg/h 0.2-0.6MPa | 200kg/h 0.2-0.6MPa | 300kg/h 0.2-0.6MPa | 400kg/h 0.2-0.6MPa | |||
Compressed air requirement | 0.6m³/min 0.4-0.6MPa | ||||||
Working condition | Temp:20-25C° Humidity:55% | ||||||
Total power | 18KW/380V | 20KW/380V | 22KW/380V | 25KW/380V | |||
Total length | 13.5m | 14m | 15m | 17m | |||
Gross weight | 3500kg | 4000kg | 4500kg | 5000kg | |||
Scope of use:
Suitable for pouring soft (hard) sugars and lollipops of different shapes.

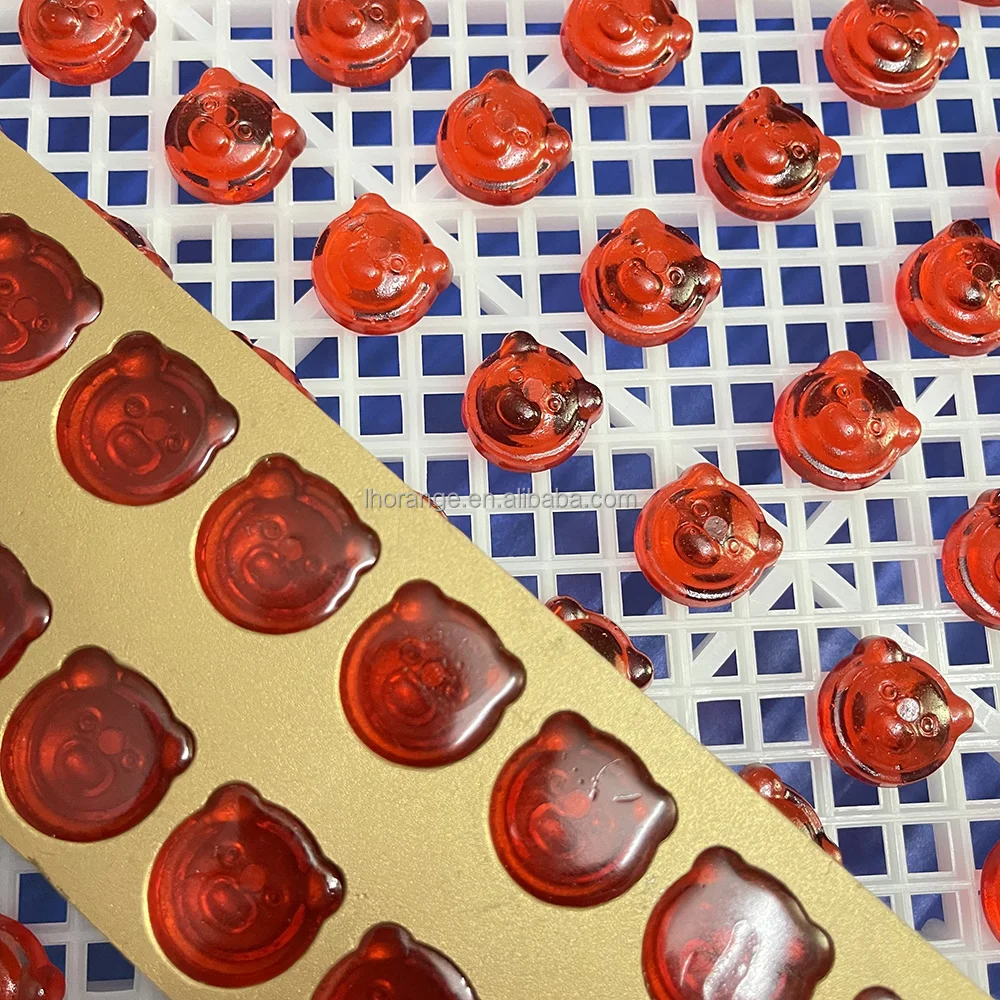

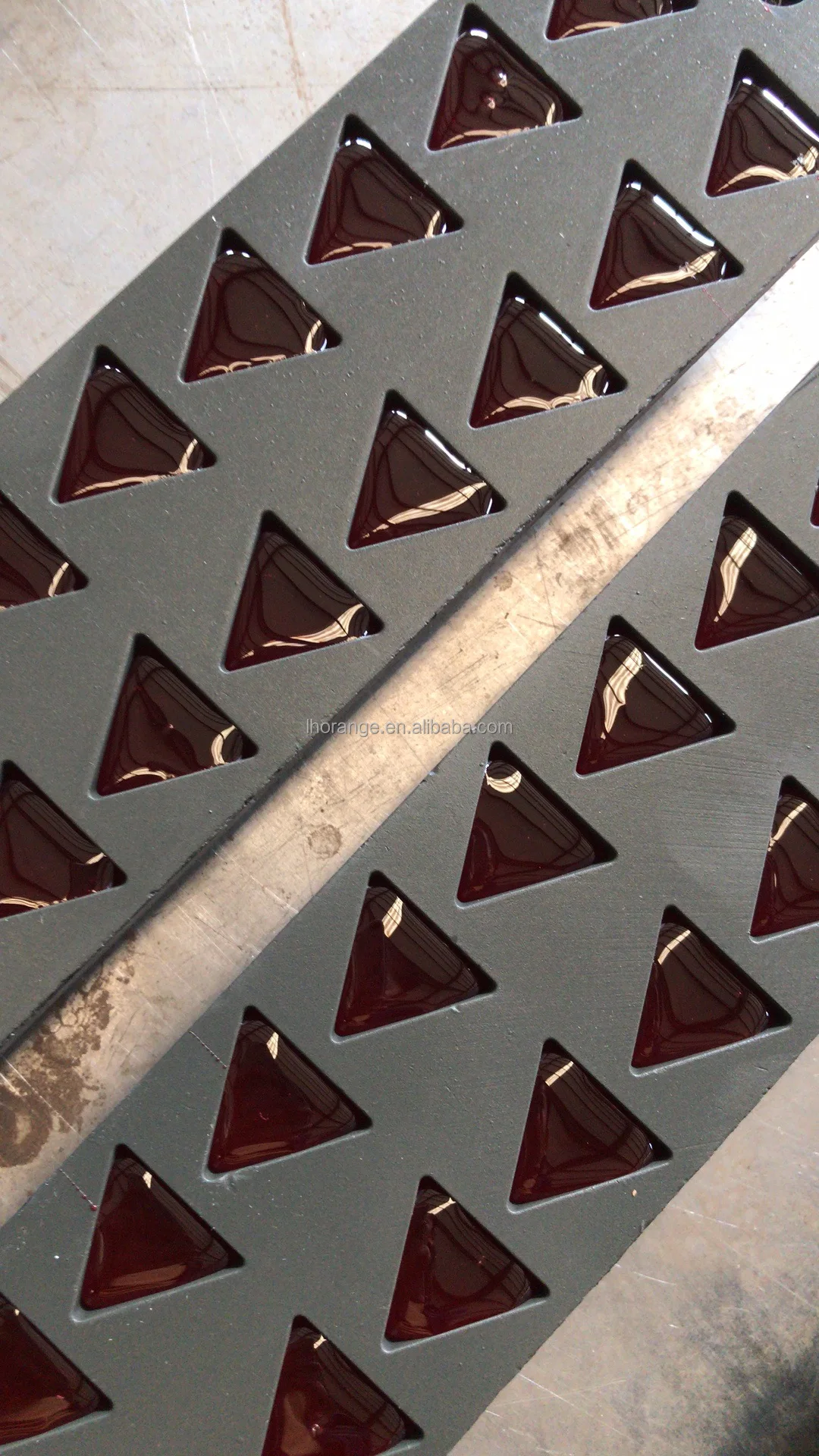

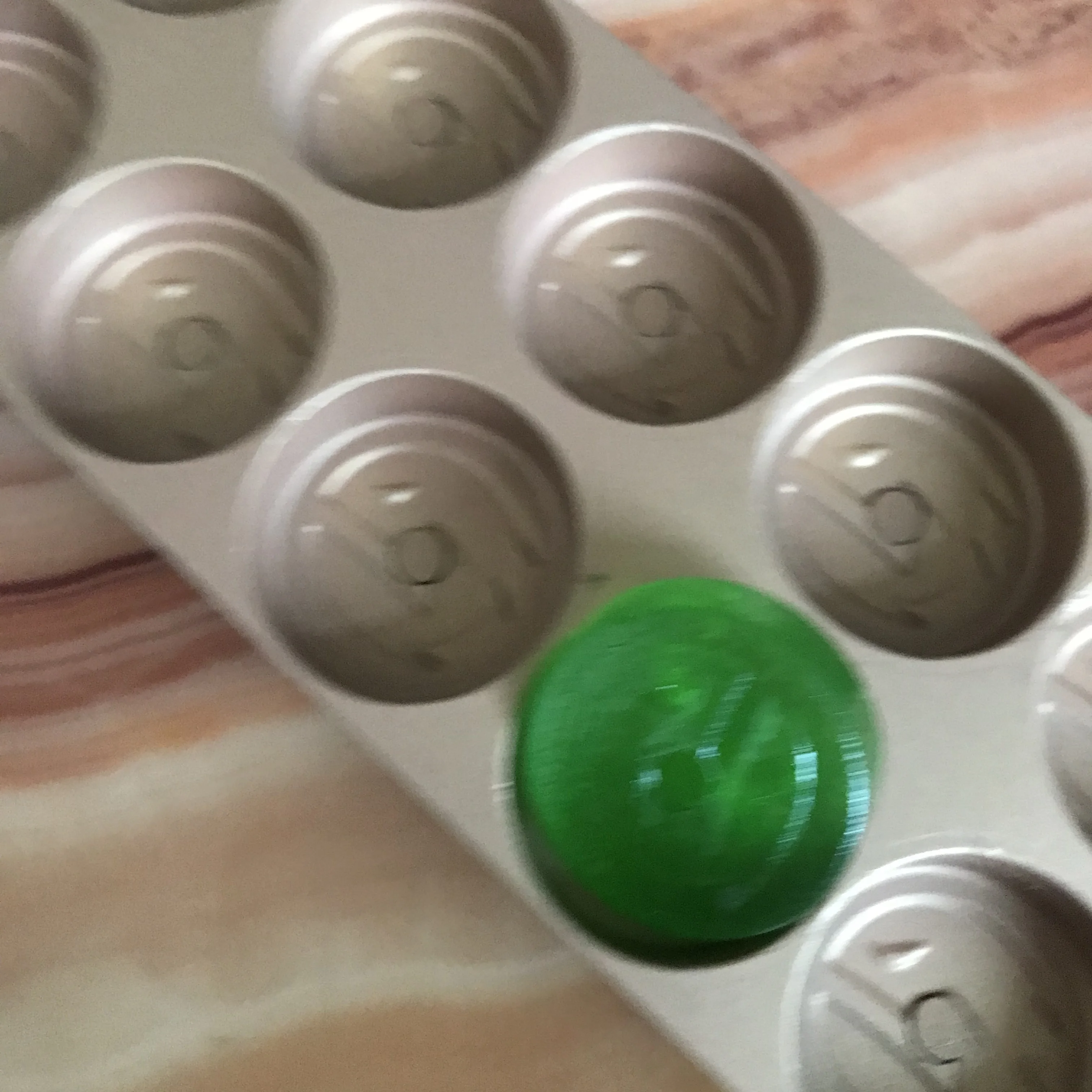

Final Product:
