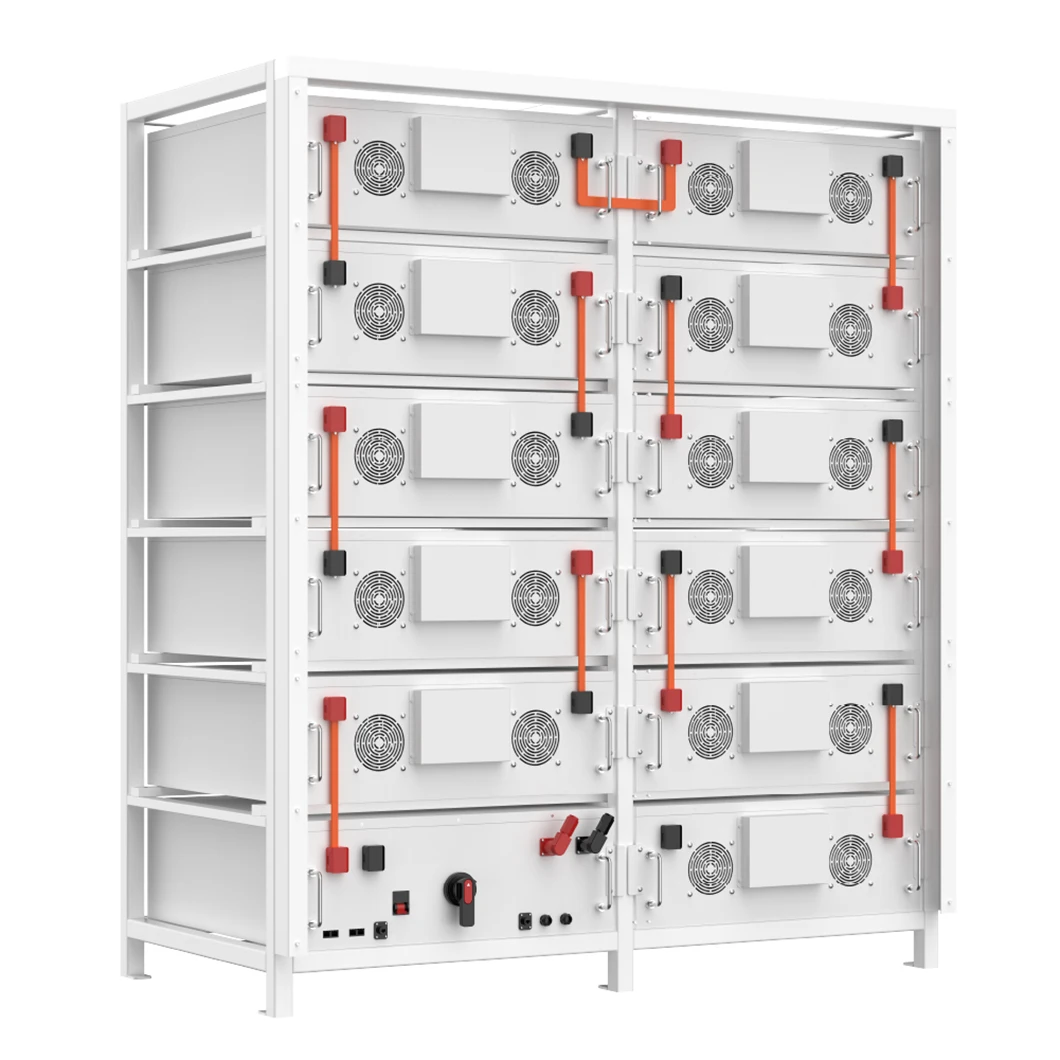

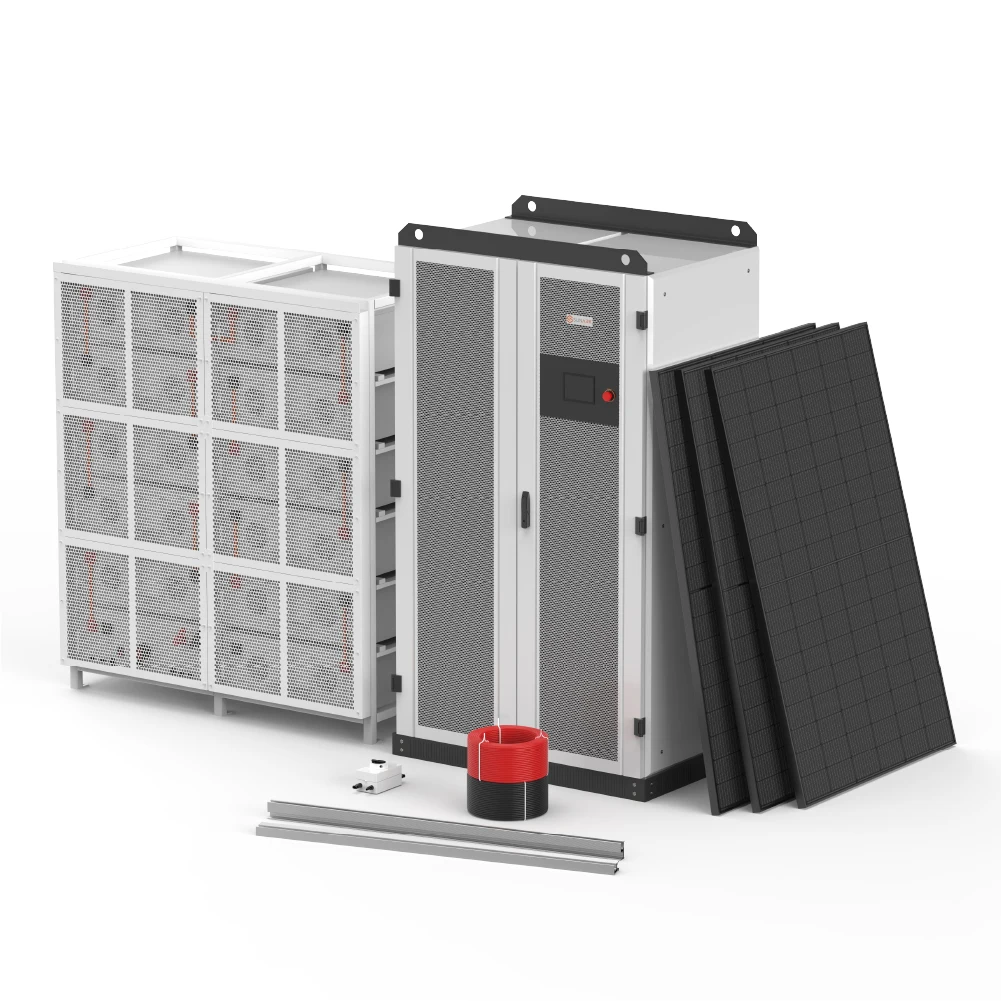

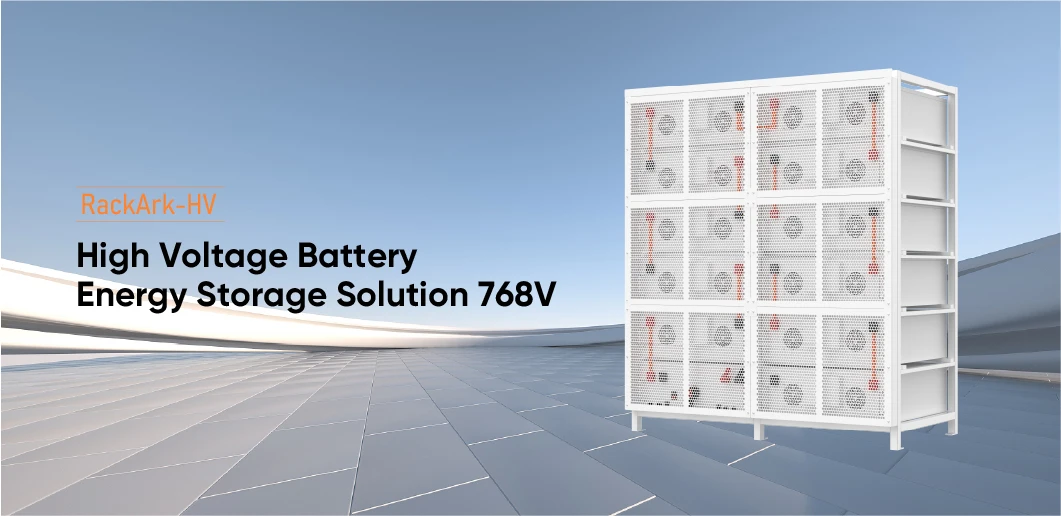

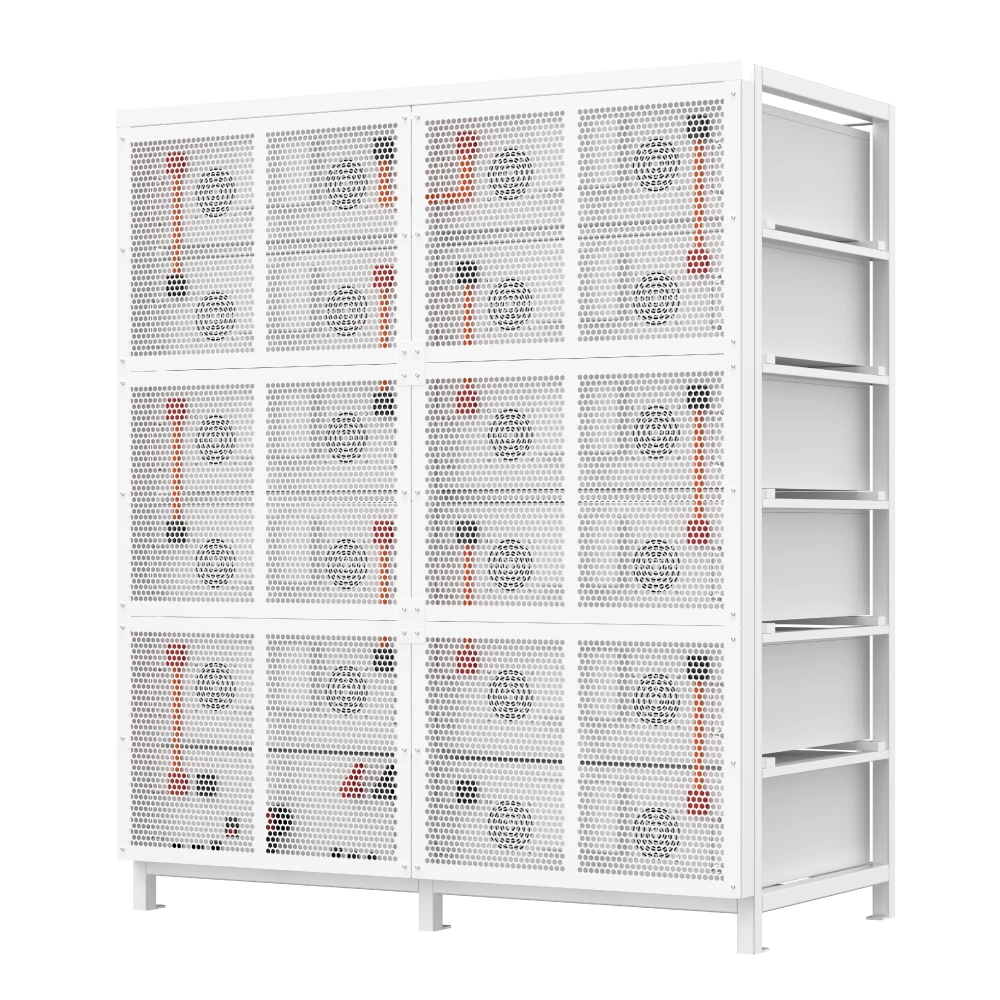

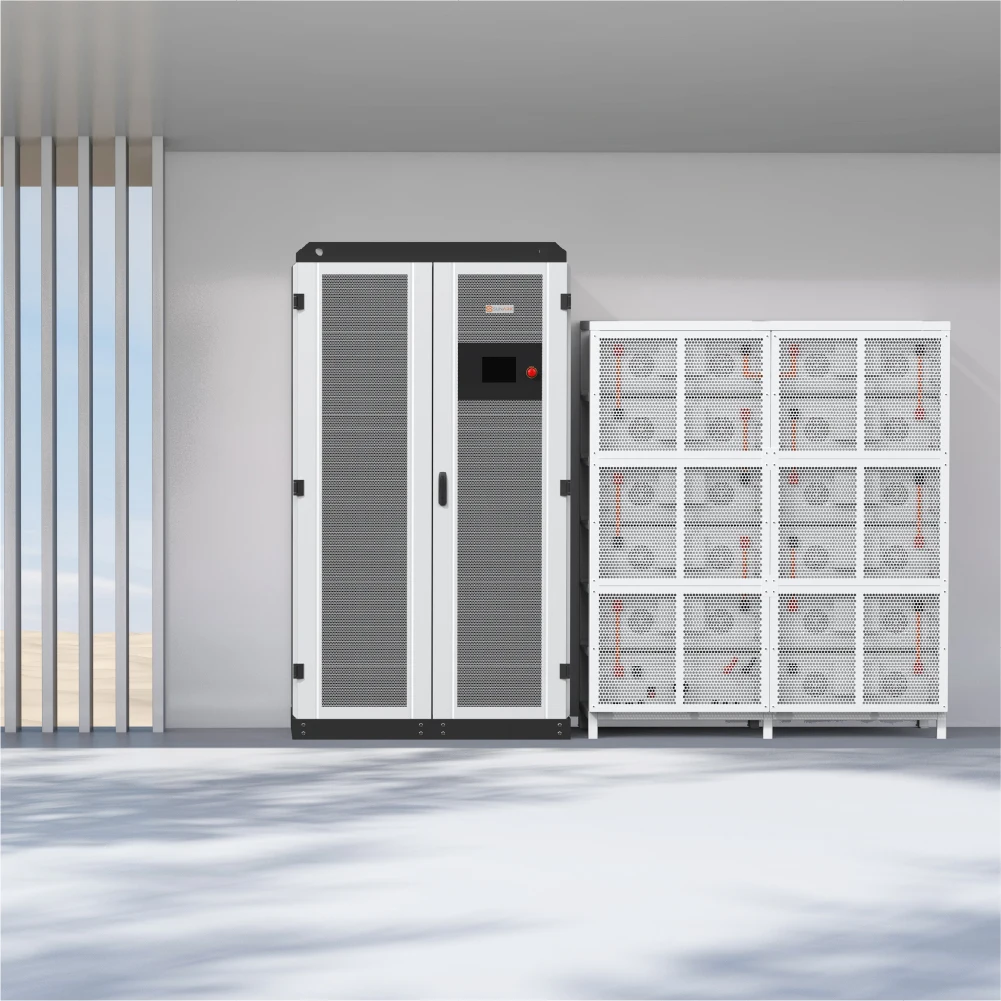

Sunark 280Ah Lifepo4 Batteries Bess Container 768V 215Kwh High Voltage Energy Storage Container Battery With Bms
- Category: >>>
- Supplier: SunArk Power Co. Ltd.SunArk Ltd.
Share on (1601132899461):
Product Overview
Description
Products Description
Rated voltage | 384V | 460.8V | 614.4V | 768V | |||||||||||||
Rated capacity | 100Ah(0.5C) | 280Ah(0.5C) | |||||||||||||||
Rated energy | 38.4KWH | 46KWH | 61.4KWH | 215.04KWH | |||||||||||||
Configuration | 120S1P | 144S1P | 192S1P | 240S1P | |||||||||||||
Charge voltage | 432VDC | 518VDC | 691VDC | 864VDC | |||||||||||||
Discharge voltage | 336VDC | 403VDC | 537VDC | 672VDC | |||||||||||||
Rated working current | 50A(0.5C) | 140A(0.5C) | |||||||||||||||
Max.working current | 100A | 140A | |||||||||||||||
Rated power | 19.2KW | 23kW | 30kW | 107kW | |||||||||||||
Max.output power | 38.4KW(adjustable) | 46KW(adjustable) | 61KW(adjustable) | 107KW(adjustable) | |||||||||||||
Recommended DoD | 90% | ||||||||||||||||
Range of working temp | -10~50 °C | ||||||||||||||||
Working humidity range | 5-85% RH | ||||||||||||||||
Communication method | CAN2.0/RS485 | ||||||||||||||||
Compatible inverter brands | DEYE, Solis, Growatt,ATESS, Goodwe, Hoymiles, Afore, Megarevo, Invt, Pylontech, ThinkPower, Inhenergy | ||||||||||||||||
Working indicator | Blue:Power; Green:Run; Red:Alarm | ||||||||||||||||
Cycle life | 25±2°C, 0.2C/0.2C, EOL70%≥6000 | ||||||||||||||||
Display method | 10 inch(LCD)/PC Software | ||||||||||||||||
Protection Voltage protection | Over charge and over discharge | ||||||||||||||||
Protection Temp.protection | Over temperature range protection | ||||||||||||||||
Protection Current protection | YES | ||||||||||||||||
Protection Leakage protection | YES | ||||||||||||||||
Dielectric withstand voltage | 1000VDC (not less than 2GΩ) | 1000VDC (not less than 2GΩ) | 2500VDC (not less than 2GΩ) | 2500VDC (not less than 2GΩ) | |||||||||||||
Dimension | 776*600*1250M | 776*600*1400MM | 776*600*1800MM | 1545*800*1800MM | |||||||||||||
Weight | 400-500KG | 450-550KG | 600-700KG | 2.2-2.4T | |||||||||||||
Protection level | IP20 | ||||||||||||||||
Pictures

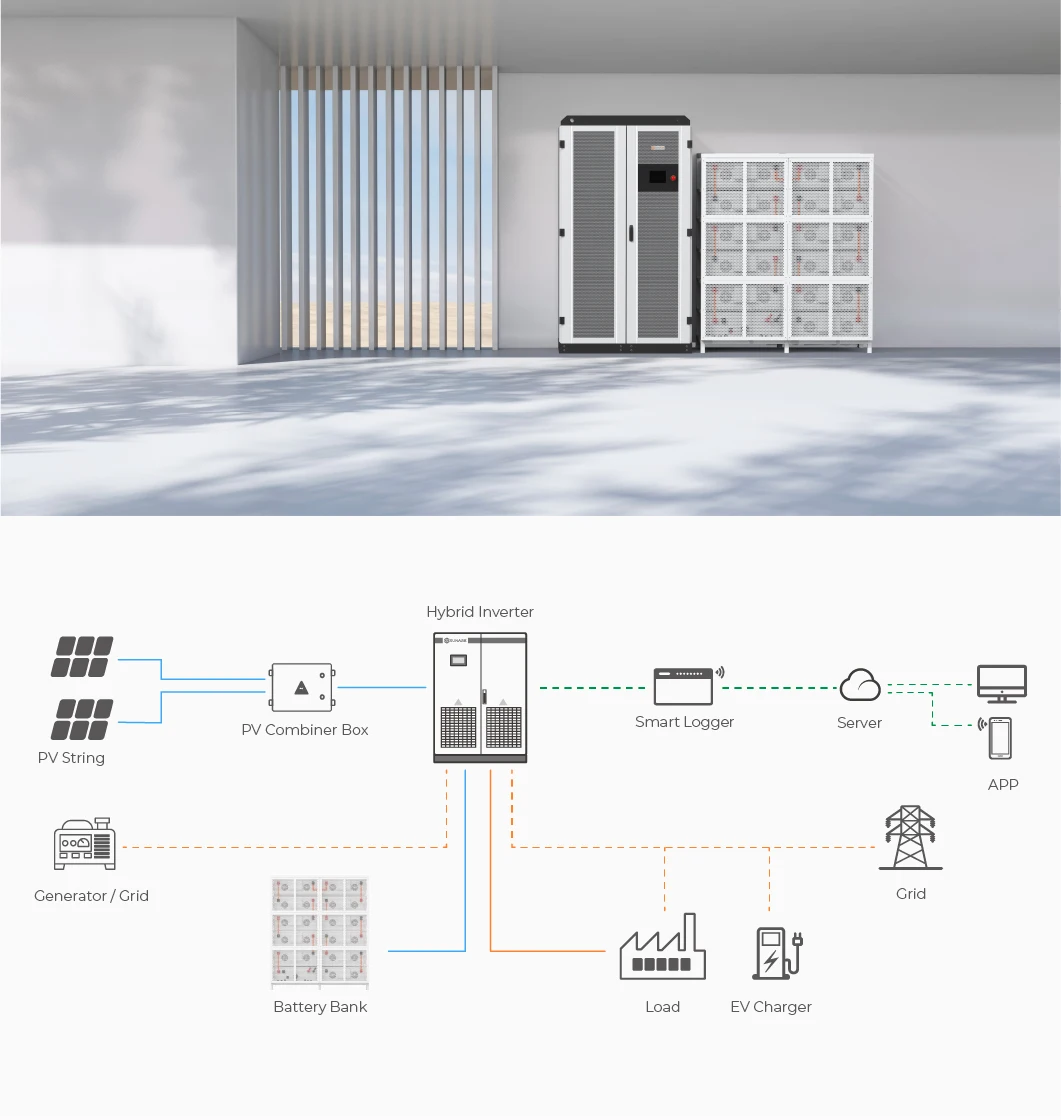

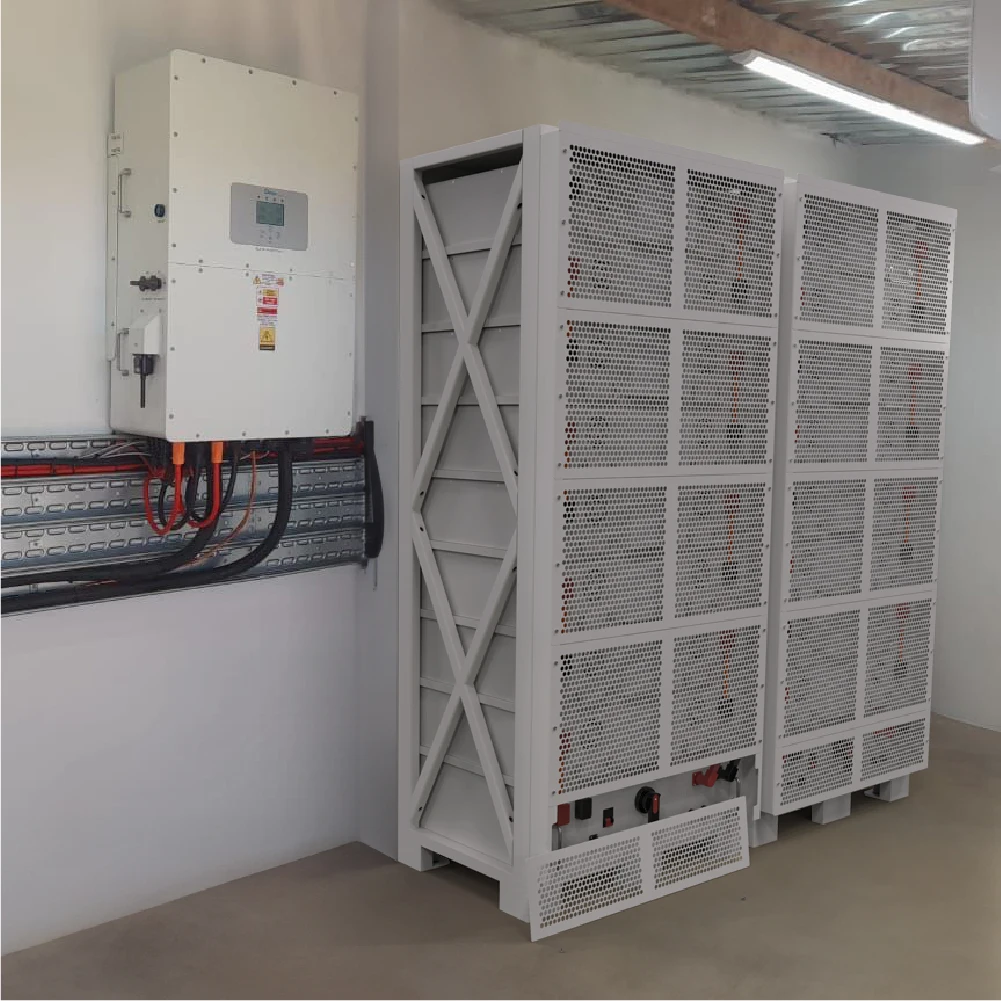

Applications

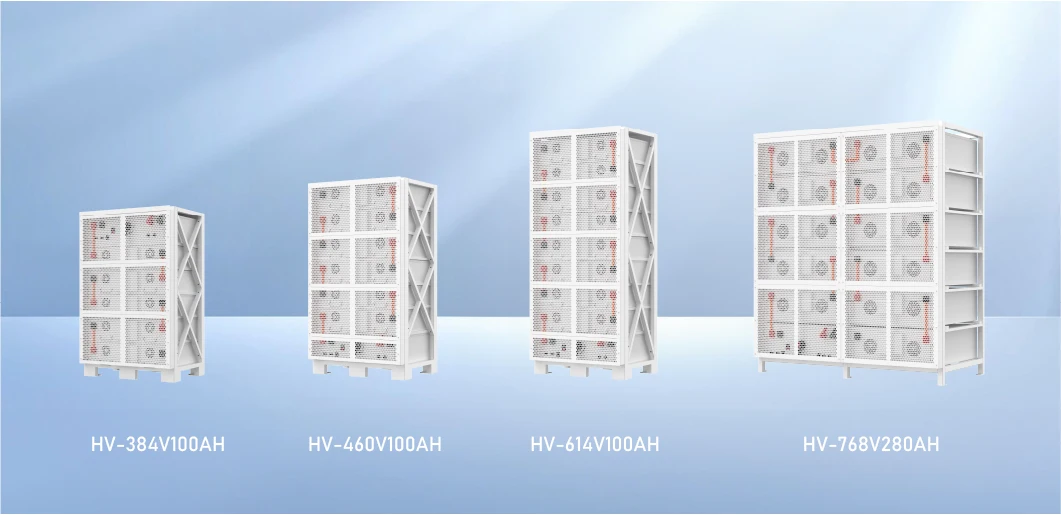

Products Series
Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Stackable Low Voltage & High Voltage PackVoltage: 51.2V/129.6-561.6V
Capacity: 5kWh~30kWh
Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50/100/150/200Ah
All In One Energy Storage System
Power: 3-12kW
Battery Capacity: 5-45kWh
Power: 3-12kW
Battery Capacity: 5-45kWh
Portable Power Station
Power: 200-3000W
Battery Capacity: 200-3000Wh
Battery Capacity: 200-3000Wh
Lead Acid Replacement Solution
Voltage: 12V/24V/48V
Battery Capacity: 5-400Ah
Battery Capacity: 5-400Ah
Rack Mount High Voltage Pack
Voltage: 614.6-1305.6V
Capacity: 72-320kWh
Capacity: 72-320kWh
CubeArk Series
Energy Storage Container
Power: 50-1200kW
Battery Capacity: 64kWh~2064kWh
Power: 50-1200kW
Battery Capacity: 64kWh~2064kWh
About Us

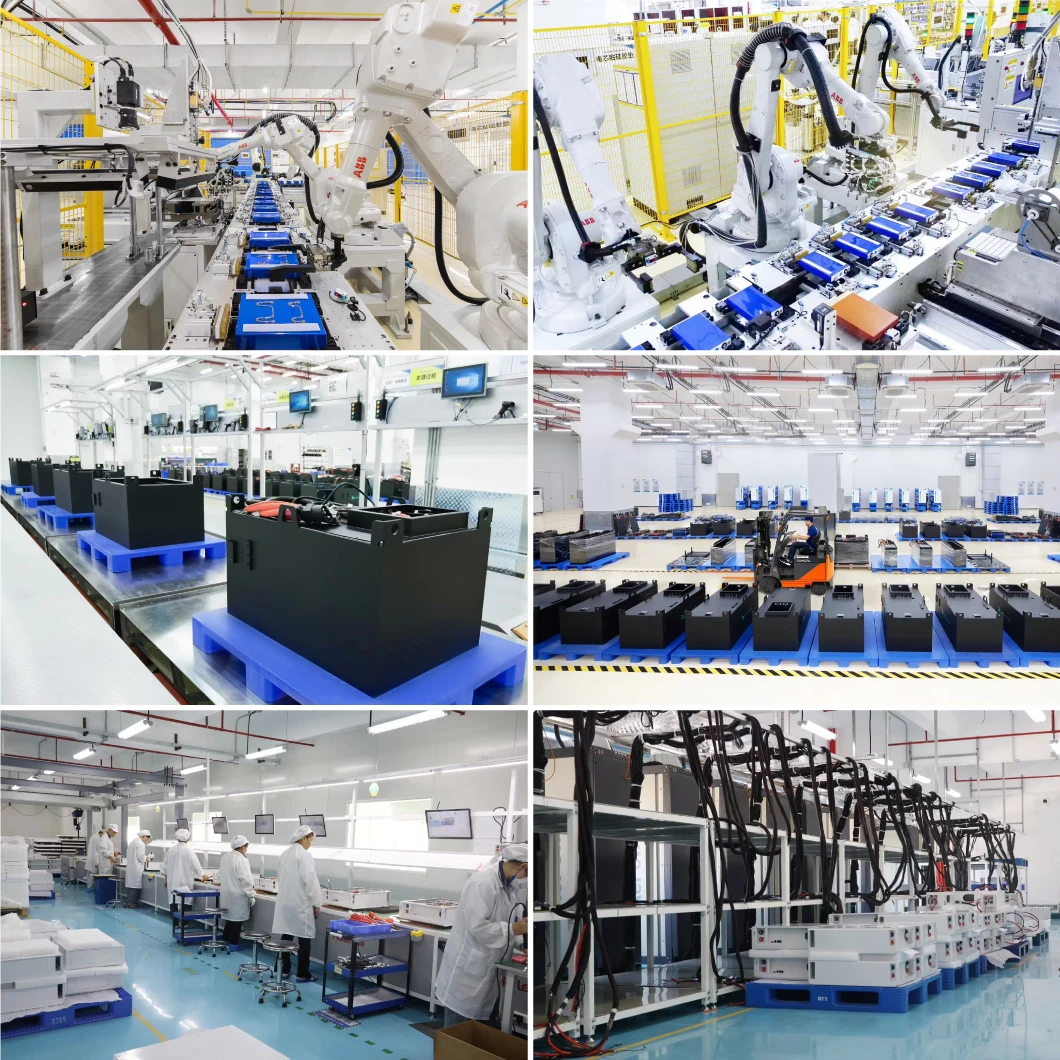

Our Factory
SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
