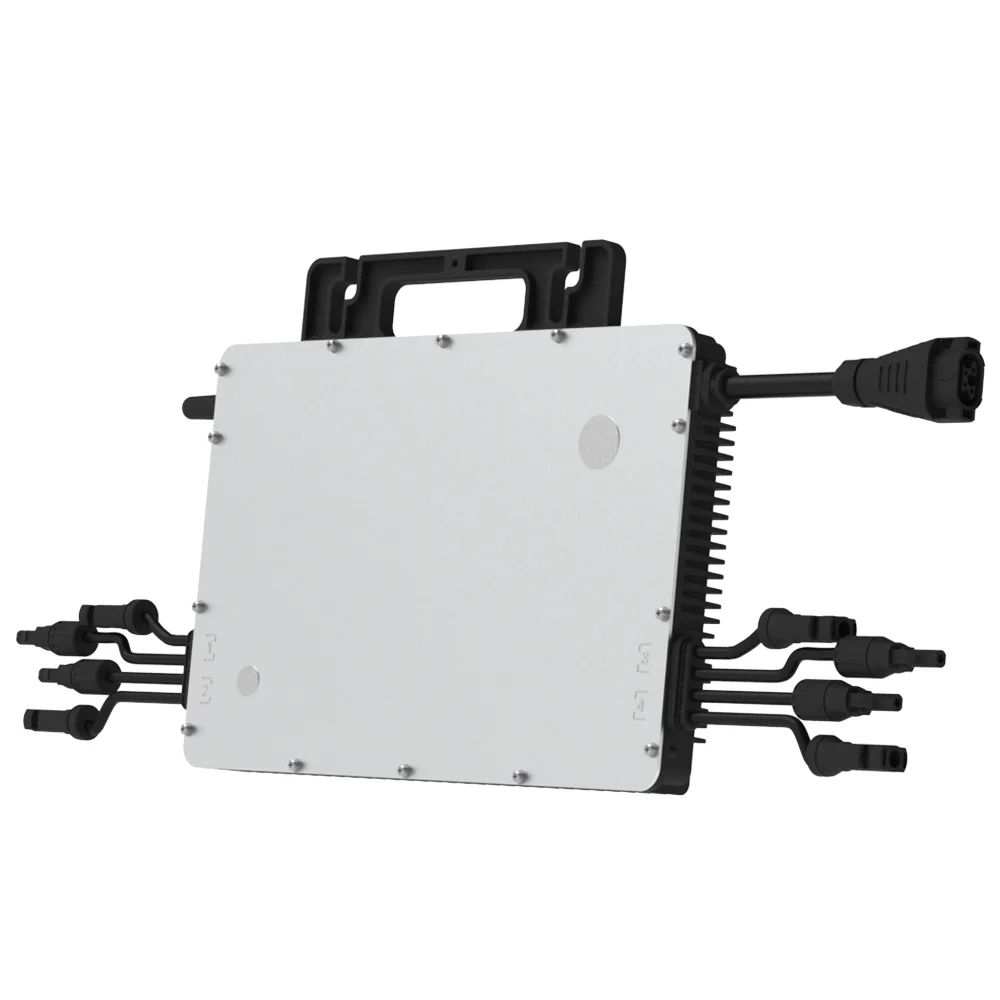

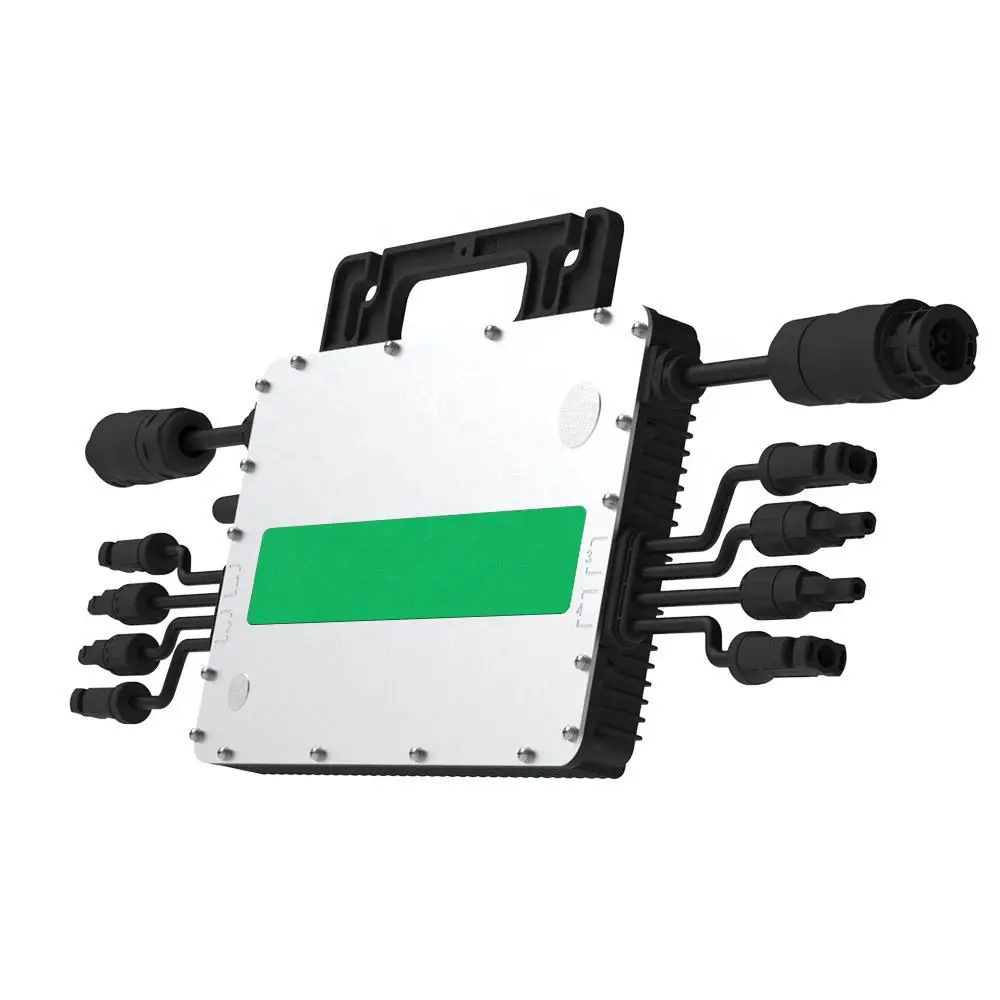

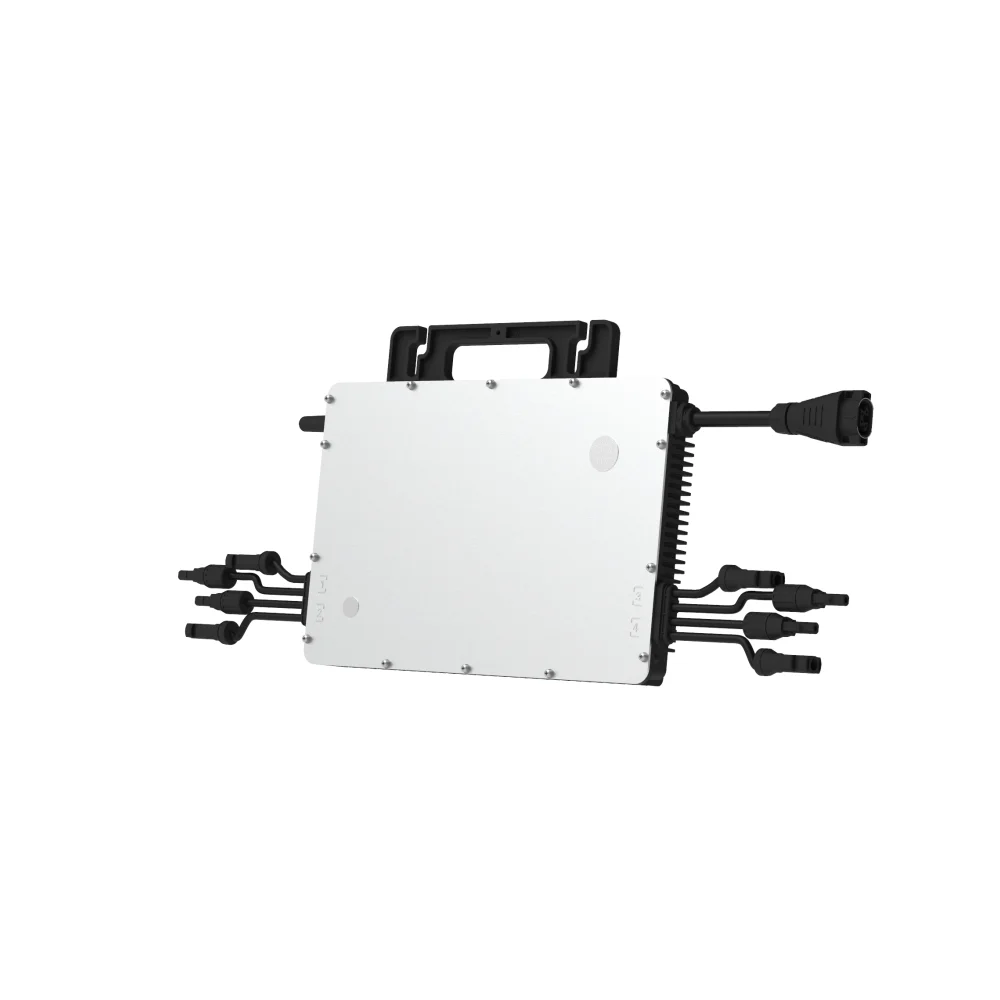

Mppt Smart On Grid Tie Micro Inverter 500W 1500W 1200W 2000W Inverters For Residential Application
- Category: >>>
- Supplier: Reza Energy Technology (wuxi) Co. Ltd.Reza Ltd.
Share on (1601134741524):
Product Overview
Description
Specification
Model | HM-1200 | HM-1500 | ||||
Input Data (DC) | ||||||
Commonly used module power (W) | 240 to 405+ | 300–505+ | ||||
Maximum input voltage (V) | 60 | |||||
MPPT voltage range (V) | 16–60 | |||||
Start-up voltage (V) | 22 | |||||
Maximum input current (A) | 4 × 11.5 | |||||
Maximum input short circuit current (A) | 4 × 15 | |||||
Number of MPPTs | 2 | |||||
Number of inputs per MPPT | 2 | |||||
Output Data (AC) | ||||||
Rated output power (VA) | 1200 | 1500 | ||||
Rated output current (A) | 5.22 | 6.52 | ||||
Nominal output voltage/range (V) | 230/180-275 | |||||
Nominal frequency/range (Hz) | 50/45–55 | |||||
Power factor (adjustable) | > 0.99 default 0.8 leading…0.8 lagging | |||||
Total harmonic distortion | < 3% | |||||
Maximum units per branch | 4 | 3 | ||||
Efficiency | ||||||
CEC peak efficiency | 96.70% | |||||
CEC weighted efficiency | 96.50% | |||||
Nominal MPPT efficiency | 99.80% | |||||
Nighttime power consumption(mW) | < 50 | |||||
Mechanical Data | ||||||
Ambient temperature range (°C) | -40 to +65 | |||||
Dimensions (W × H × D mm) | 280 × 176 × 33 | |||||
Weight (kg) | 3.75 | |||||
Enclosure rating | Outdoor IP67 (NEMA 6) | |||||
Cooling | Natural convection (no fans) | |||||

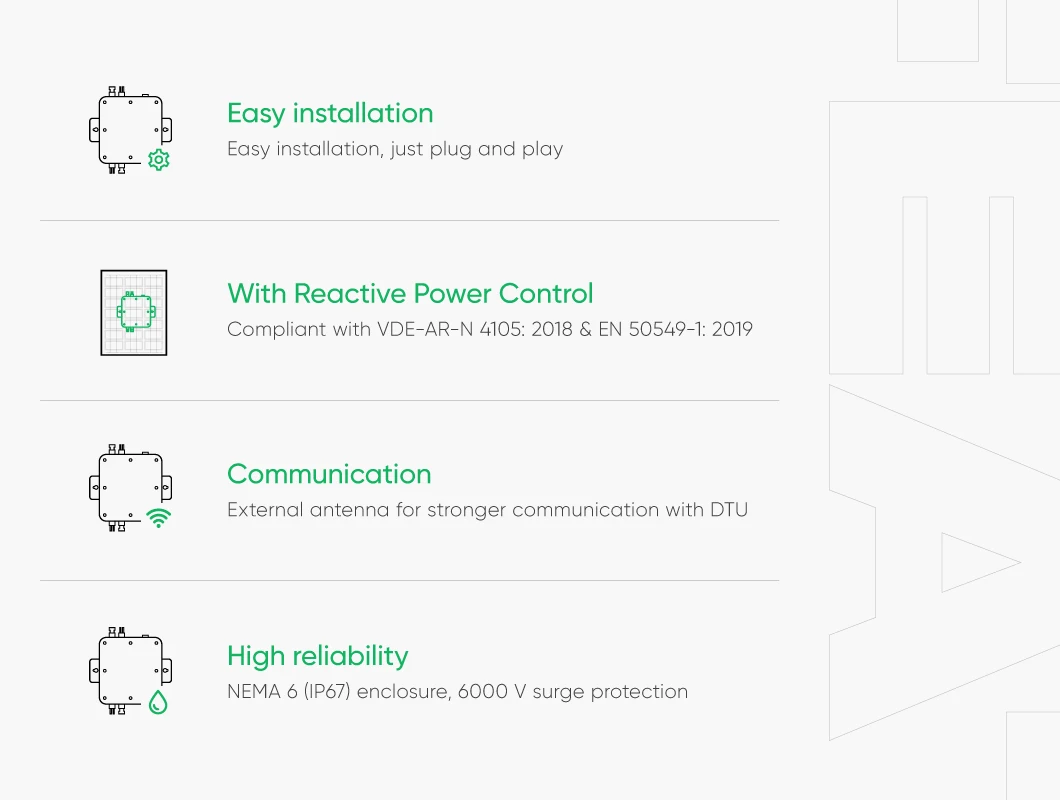

Features | ||||||
Communication | 2.4 GHz Proprietary RF (Nordic) | |||||
Type of isolation | Galvanically Isolated HF Transformer | |||||
Monitoring | S-Miles Cloud | |||||
Compliance | VDE-AR-N 4105: 2018, EN 50549-1: 2019, VFR 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 | |||||

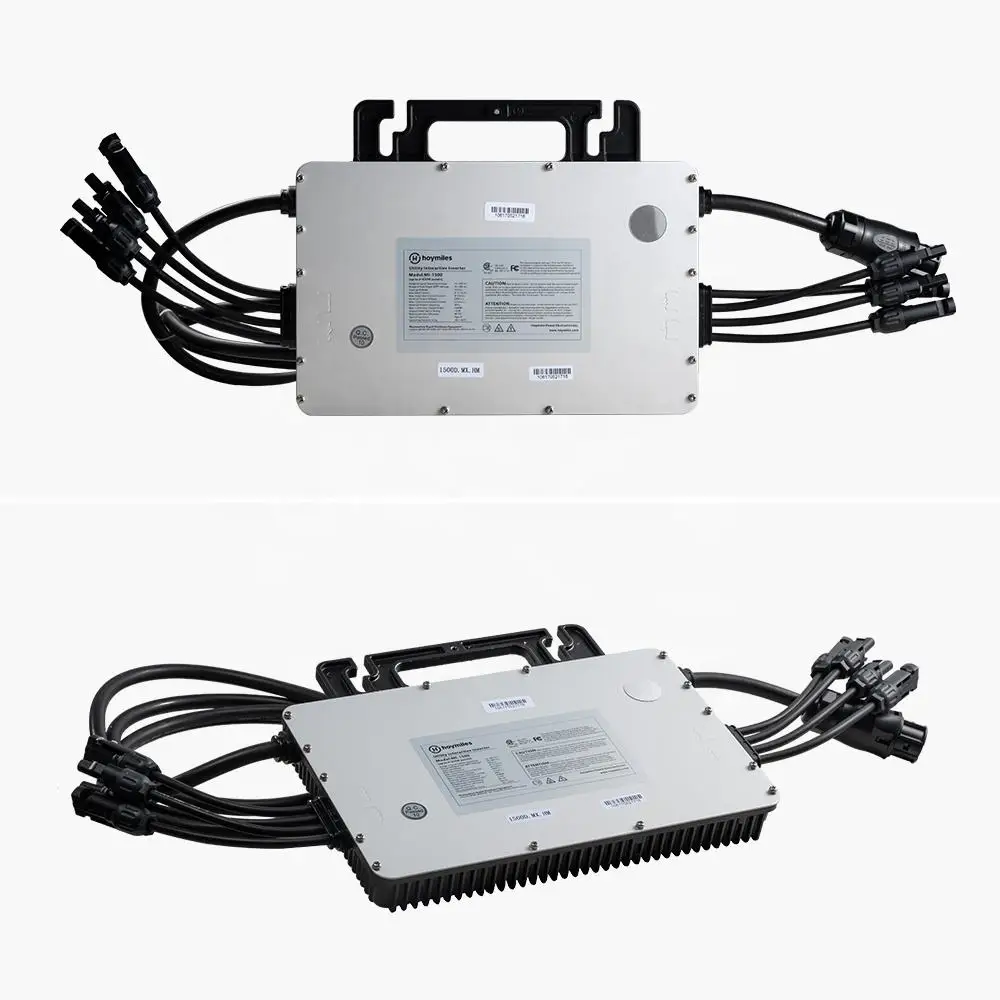

Product Description

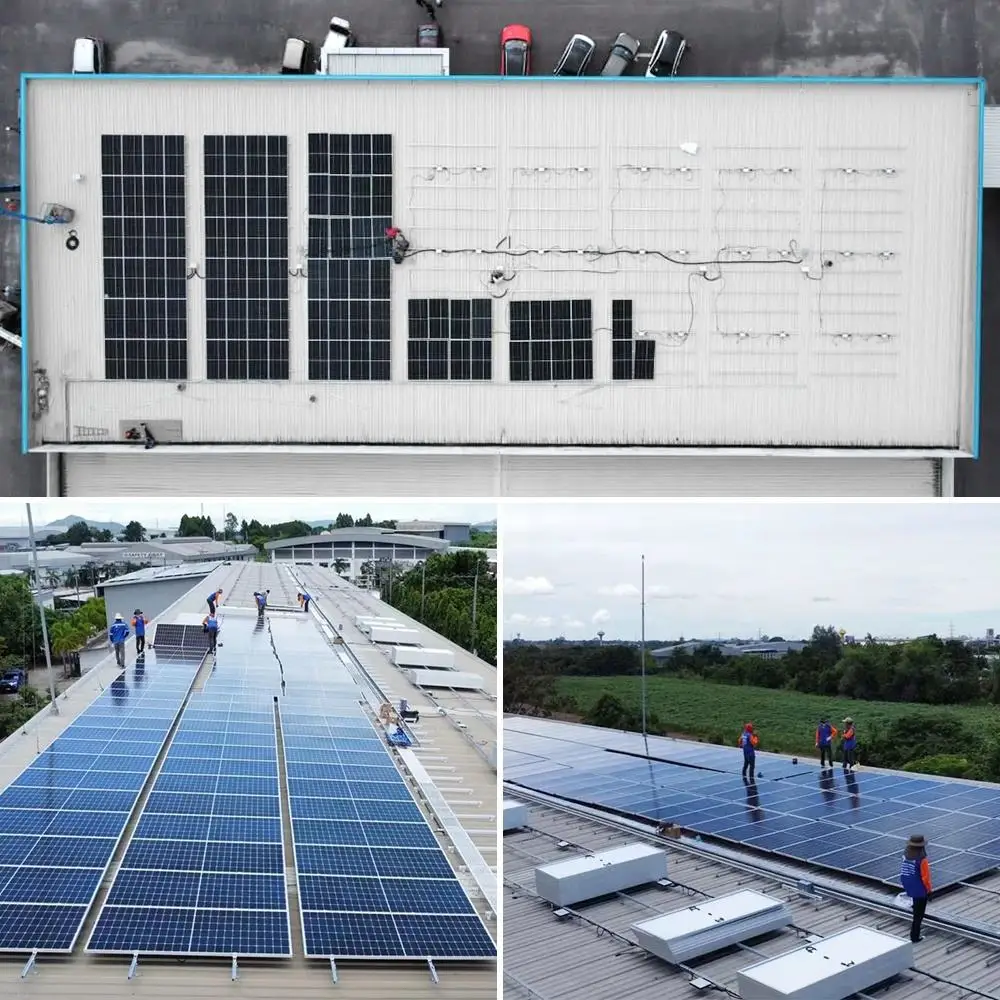

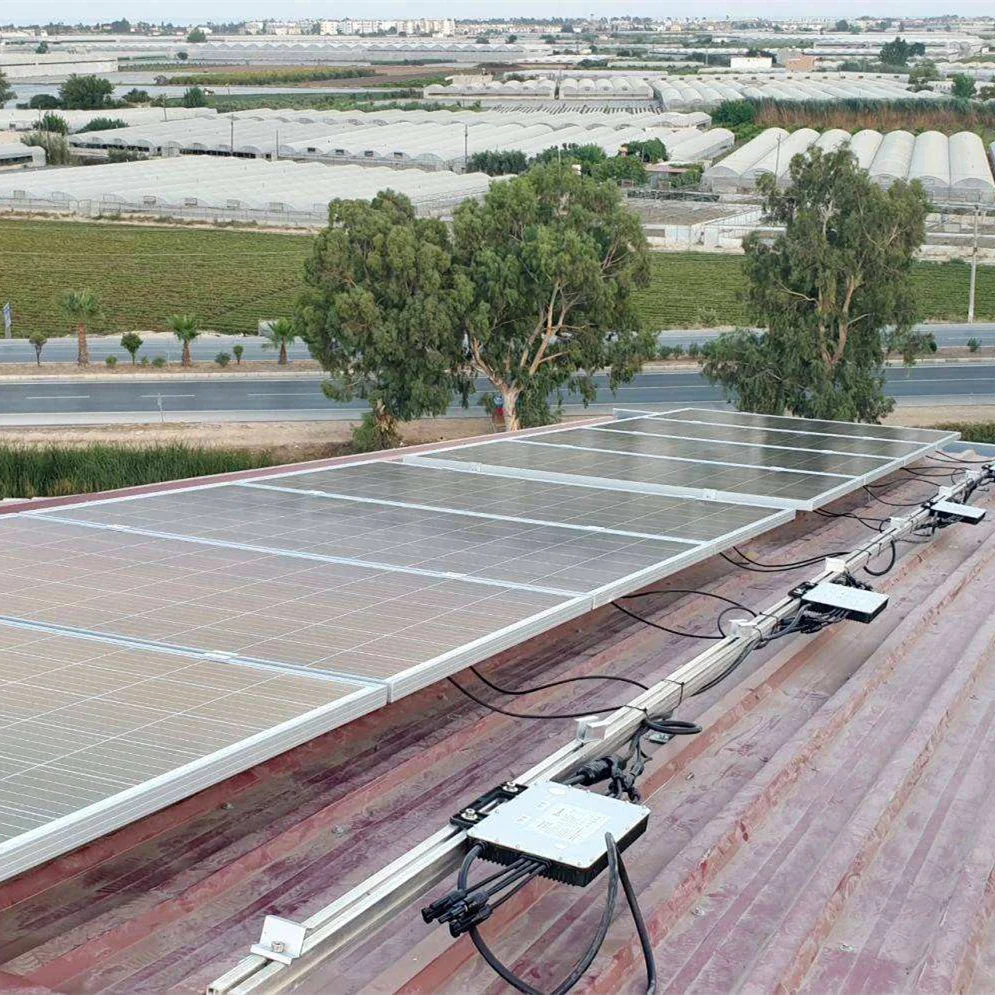

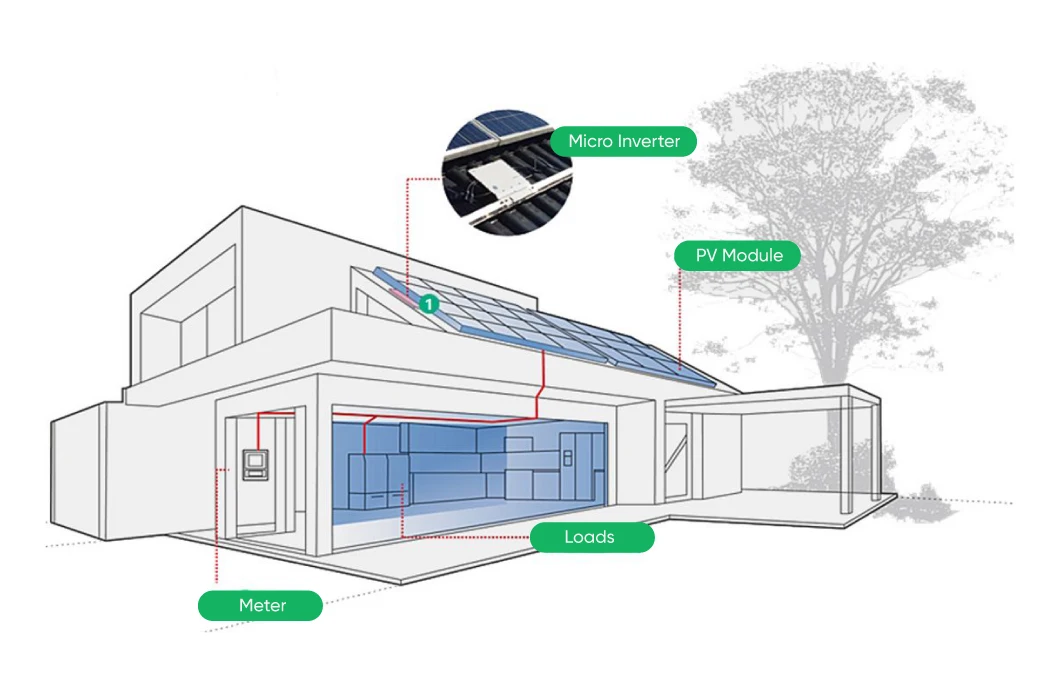

Our Projects
Factory
Packing & Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Company Profile
Reza Energy Technology (wuxi) Co.,Ltd.
Reza Energy Technology (wuxi) Co.,Ltd.established in 2010, is a photovoltaic company focusing on sales of solar modules and solar power system.
Our products include solar modules, solar inverters, solar controllers, solar systems, energy storage batteries,andother solar related products.
We are located in Wuxi City,near Shanghai.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
All products have reached the industrial standard level.
We are located in Wuxi City,near Shanghai.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
All products have reached the industrial standard level.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2023,sell to Western Europe(20.00%),Southeast Asia(15.00%),Domestic Market(15.00%),North America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),Southern Europe(10.00%),Africa(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel,Solar Inverter,Storage Battery,Solar System,Solar Accessories
4. why should you buy from us not from other suppliers?
Reza Energy Tecnology(Wuxi).,Ltd is established in 2023, is a photovoltaic company focusing on sales of solar modules and solar power system. Our products include solar modules, solar inverters, solar controllers, solar systems, energy storage batterie
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese,Spanish,German
We are based in Jiangsu, China, start from 2023,sell to Western Europe(20.00%),Southeast Asia(15.00%),Domestic Market(15.00%),North America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),Southern Europe(10.00%),Africa(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel,Solar Inverter,Storage Battery,Solar System,Solar Accessories
4. why should you buy from us not from other suppliers?
Reza Energy Tecnology(Wuxi).,Ltd is established in 2023, is a photovoltaic company focusing on sales of solar modules and solar power system. Our products include solar modules, solar inverters, solar controllers, solar systems, energy storage batterie
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese,Spanish,German
