Customized Small Water francis hydro turbine
- Category: >>>
- Supplier: Hongya Power Generating Equipment To Utilities LimitedHongya Limited
Share on (1601134766517):
Product Overview
Description

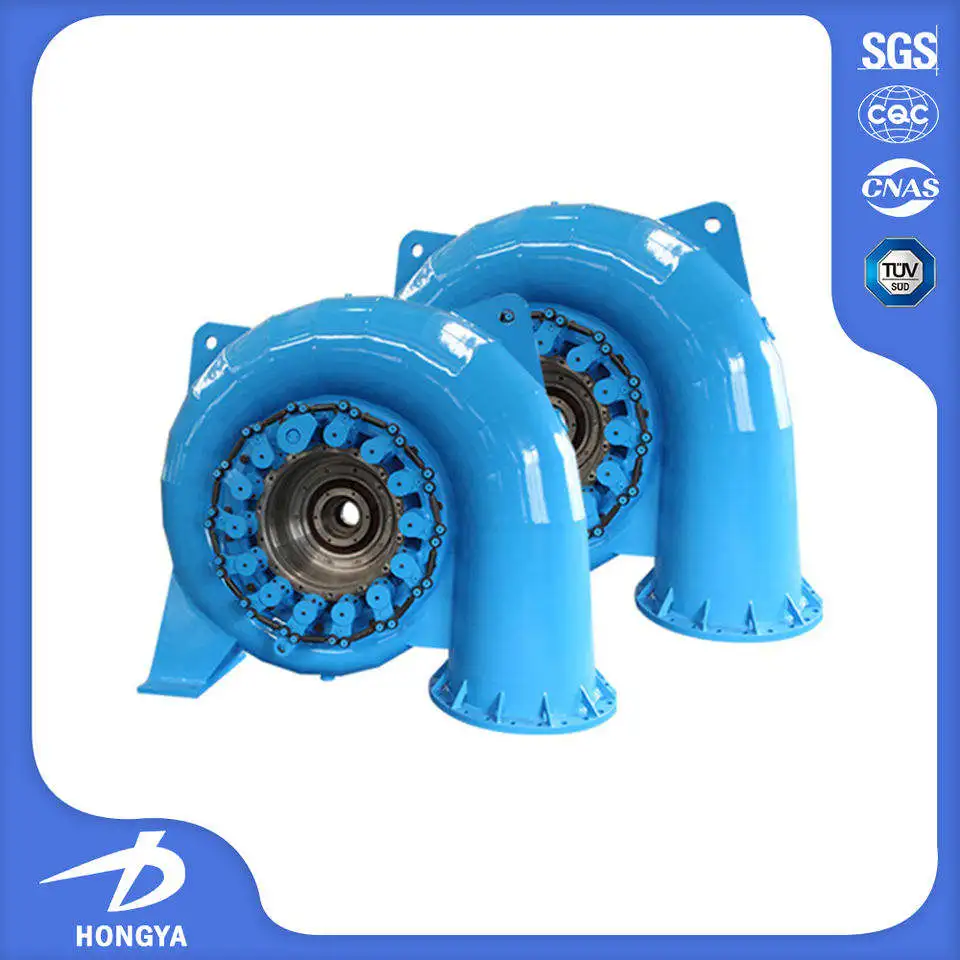

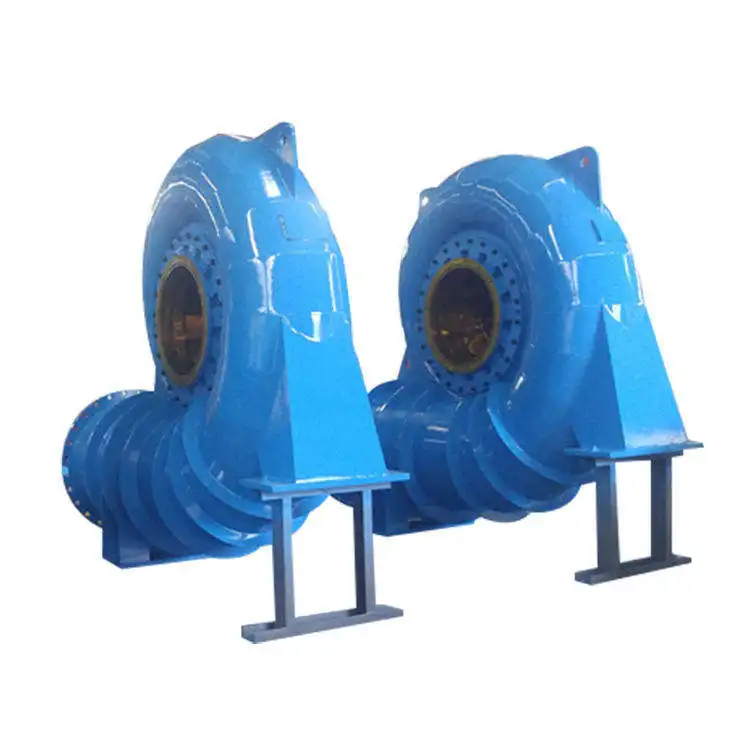

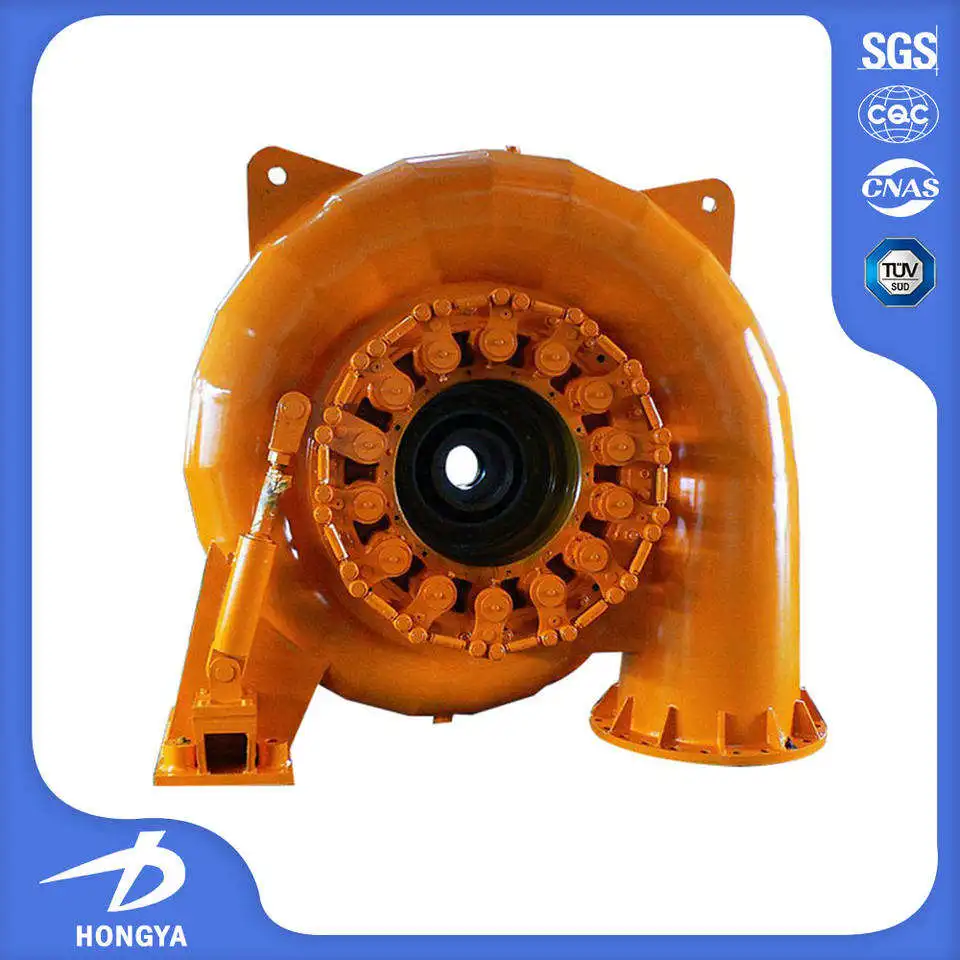

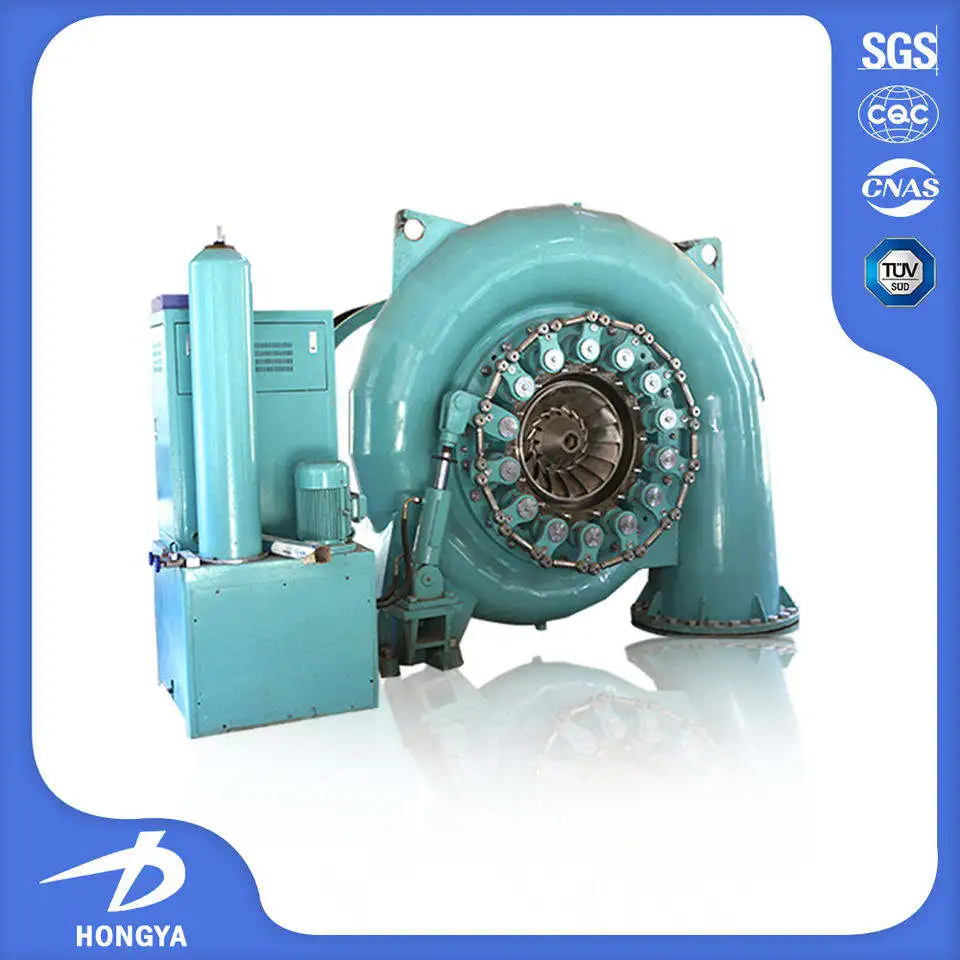

Customized Small Water francis hydro turbine
Product Description
The Francis turbine fills a large gap between the Pelton and Kaplan and it is widely used. They operate in water head from 10 to 600 meters, and are primarily used for electric power generation. Their power output can be calculated from the water head and flow rate and typically range from 10 to more than 700 megawatts. One of the distinct advantages of the Francis turbine with respect to other water turbines is that they can also be used as water pump. This makes them ideal for a pumped storage systems.
Francis turbines may be designed for a wide range of heads and flows. This, along with their high efficiency, has made them the most widely used turbine in the world. In contrast to the Pelton turbine, the Francis turbine operates at its best completely filled with water at all times. The turbine and the outlet channel may be placed lower than the lake or sea level outside, reducing the tendency for cavitation.
In addition to electrical production, they may also be used for pumped storage, where a reservoir is filled by the turbine (acting as a pump) driven by the generator acting as a large electrical motor during periods of low power demand, and then reversed and used to generate power during peak demand. These pump storage reservoirs act as large energy storage sources to store "excess" electrical energy in the form of water in elevated reservoirs.
| Material | Steel plate/Stainless steel |
| Shaft type | Vertical/Horizontal |
| Power range | 50KW-20MW |
| Speed range | 150RPM-1000RPM |
| Inlet direction | Vertical/Horizontal |
| Frequency | 50hz/60hz |
| Efficiency | 85%-93% |
| Runner range | 30cm-200cm |
| Guide vane | Counter Weight |
| Application | On-grid/Off-grid |
Other Product
Why choose us?
1.More than 30 years of industry experience, install commissioning more than 150 equipment each year
2.Provide complete proposal for hydro power plant from water to wire
3.Abundant foreign power plant project implementation experience
4.Design and manufacture of hydro power generator with voltage 400V

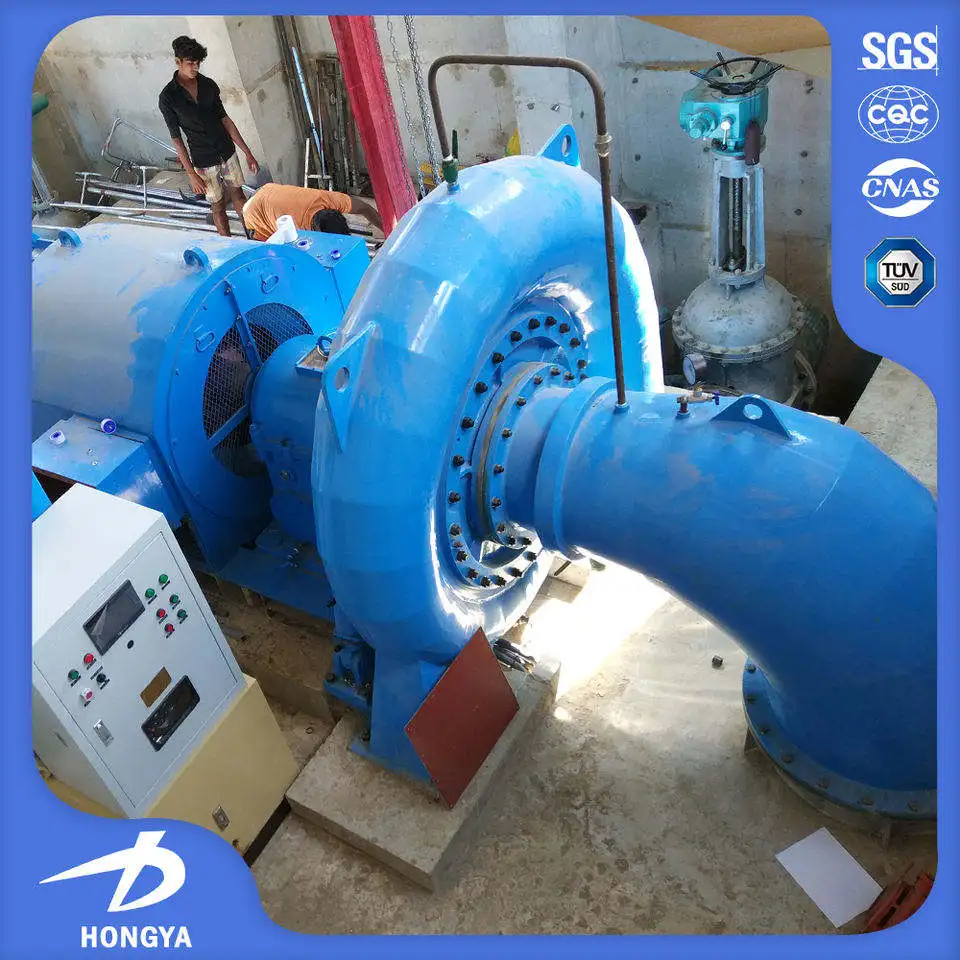

Case & Exhibition
Company and Factory
Hongya Power Generating Equipment To Utilities Limited(HPGE), is a professional manufacturer with 16 years experience of mini hydraulic generator generator set.HPGE have 200 workers, which the R&D part is 25%.
We have the equipment inclueded: Francis, pelton, turgo, Kaplan turbine, synchronous generator, speed governor, brushless excitor, hydraulic hardware etc with unit turbine generator set capacity under 20mw.HPGE offer a comprehensive range of hydroelectric power plant service such as: Project consultant of mini Hpp; Site management studies; equipment Design; Hydroelectric equipment Manufacture; Project management; Installation guidance; Commission and start operation; Operation guidance; Hydroelectric equipment maintenance etc.
We cooperate with more than 300 hydro power plants with more than 600 turbine generators sets, areas covering more than 20 provinces of China and also international markets such as Russia, Belarus, Turkey, Albania,Vietnam Indonesia, Nepal, Laos, Sri Lanka, Cuba and Brazil etc.
Certification
Packaging & Shipping
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 15 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
4: what the packing of the equipment?
We will use wooden box to protect product
