  • High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector
High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector
High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector
High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector
High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector
High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector
High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector
High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector

High Stability Compact Adjustable Focusing D16mm 635nm 10mw TTL PWM Powell Lens Red Line Laser Module With M12 thread connector

Share on (1601134802805):


Price:

Quantity:

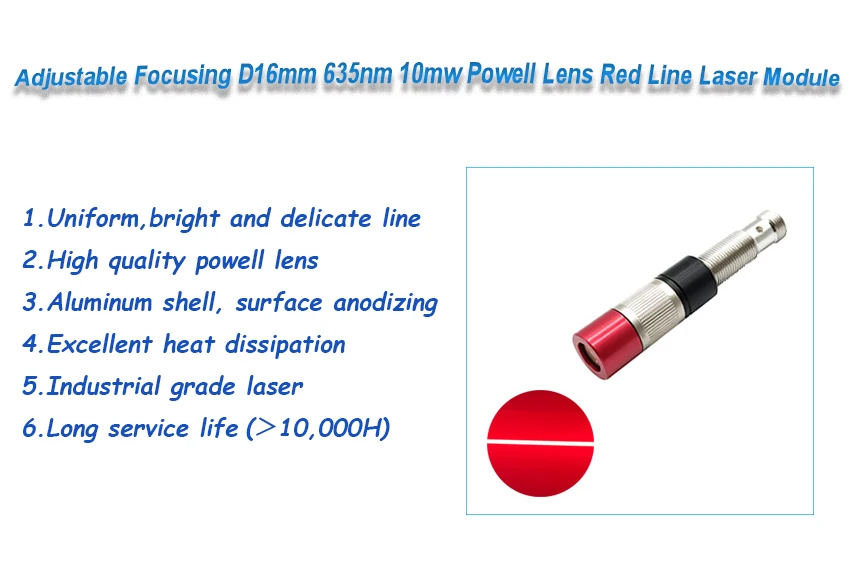

Product Overview

Description





Products Description

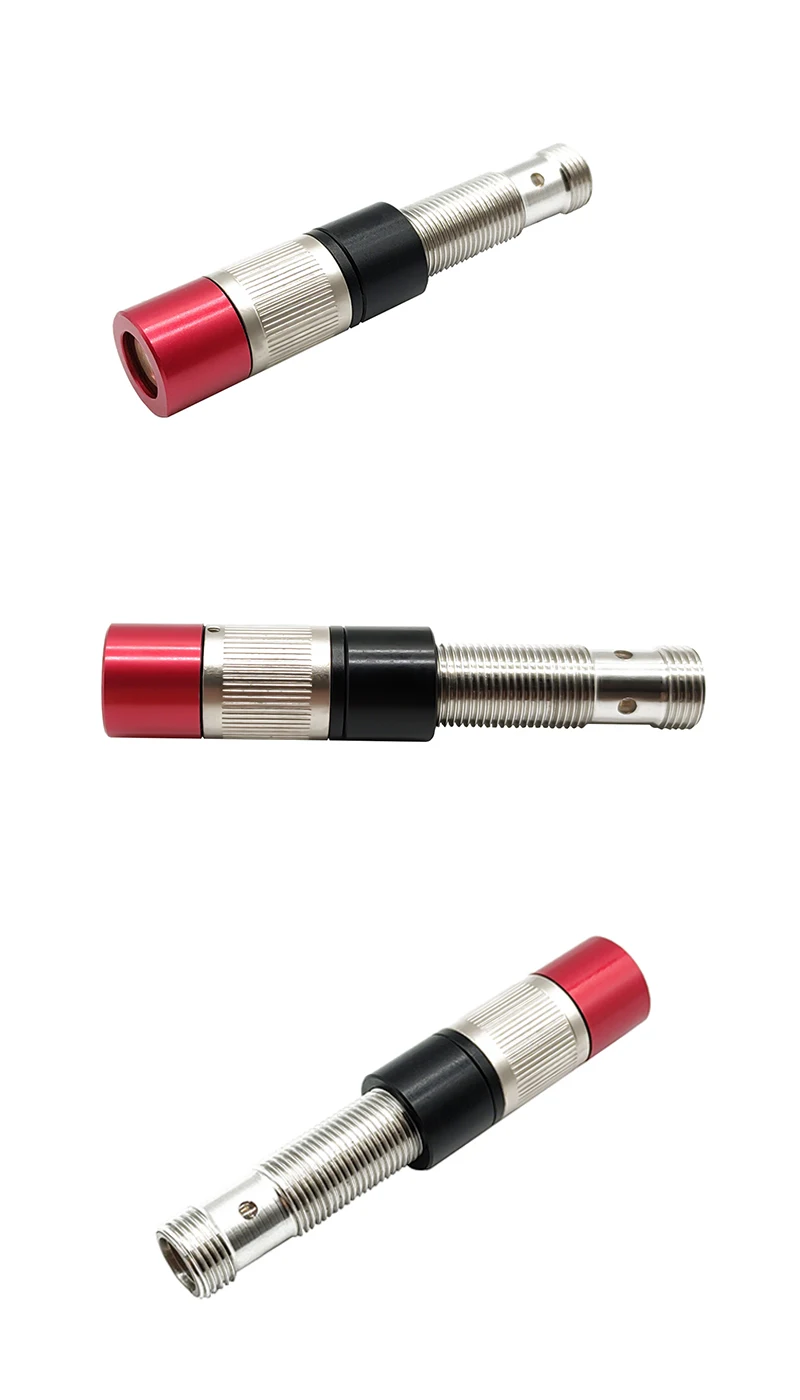

Laser Module
Specifications(T=25℃)
Model
AJPWHE563510LXX-TTL
                                                                               Shape Parameter
Shell Material
Aluminium
Overall Dimensions
D16x81mm
Lead Length
1M (can be customized)
                                                                              Optical Parameters
Wavelength
635nm
Line Width
Adjustable
Divergence Angle
﹤10/20/30/45/60/90deg
Lens material
Powell lens
Output Power
﹤10mw
Laser Safety
Class 3B
                                                                      Environmental parameters
Operating Temperature
-20℃~ +50℃
Storage Temperature
-40℃~ +80℃
Power Stability
＞95%
Wavelength Drift(nm/ºC）
0.25nm
                                                                      Electronic parameters
Circuit Model
TTL/PWM
Operating Voltage
5V
Operating Current
﹤60MA
Drive Type
APC
Service Life
﹥10,000H

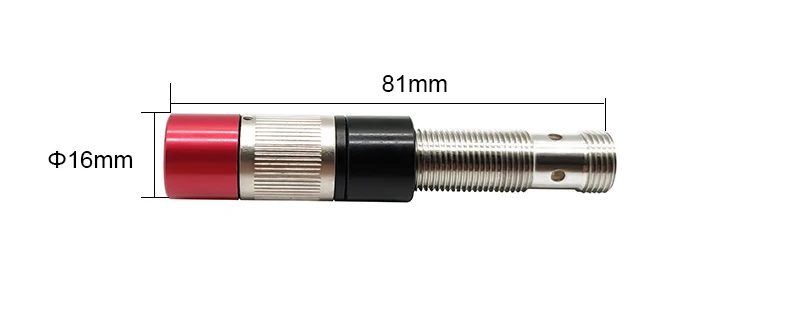

Mechanical Dimension

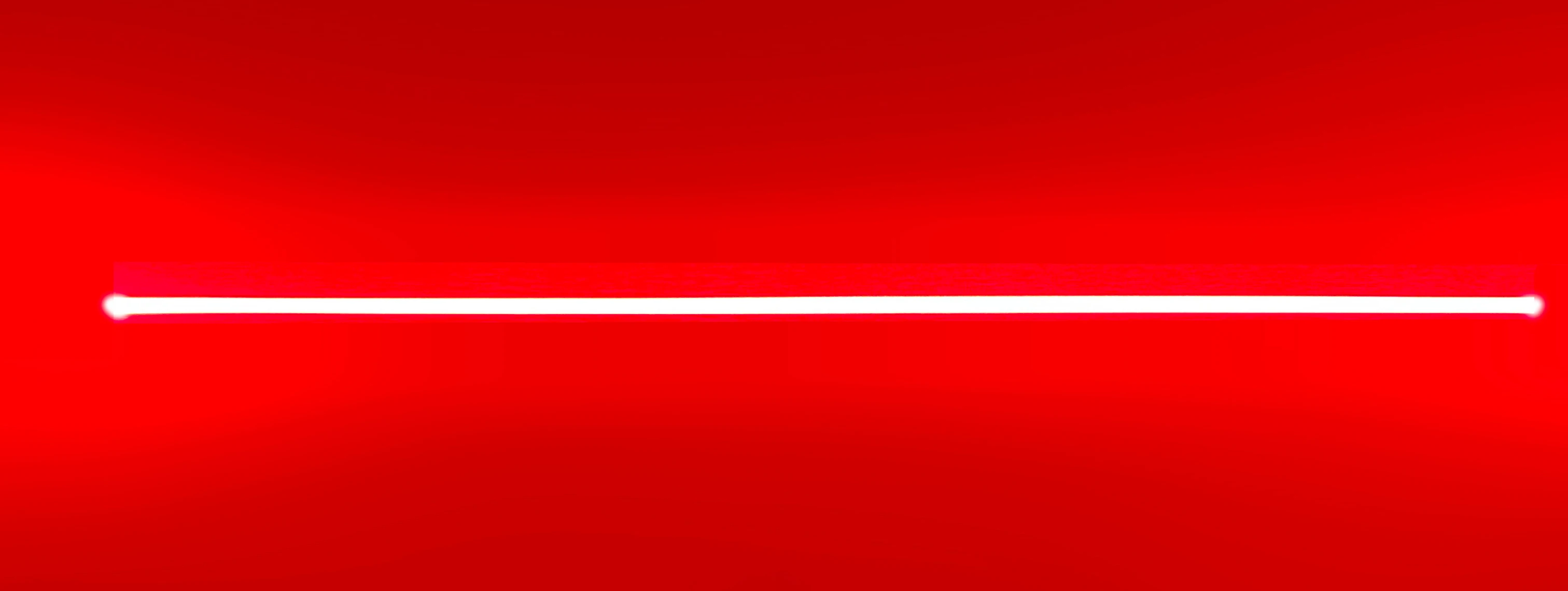

Pattern






Applications

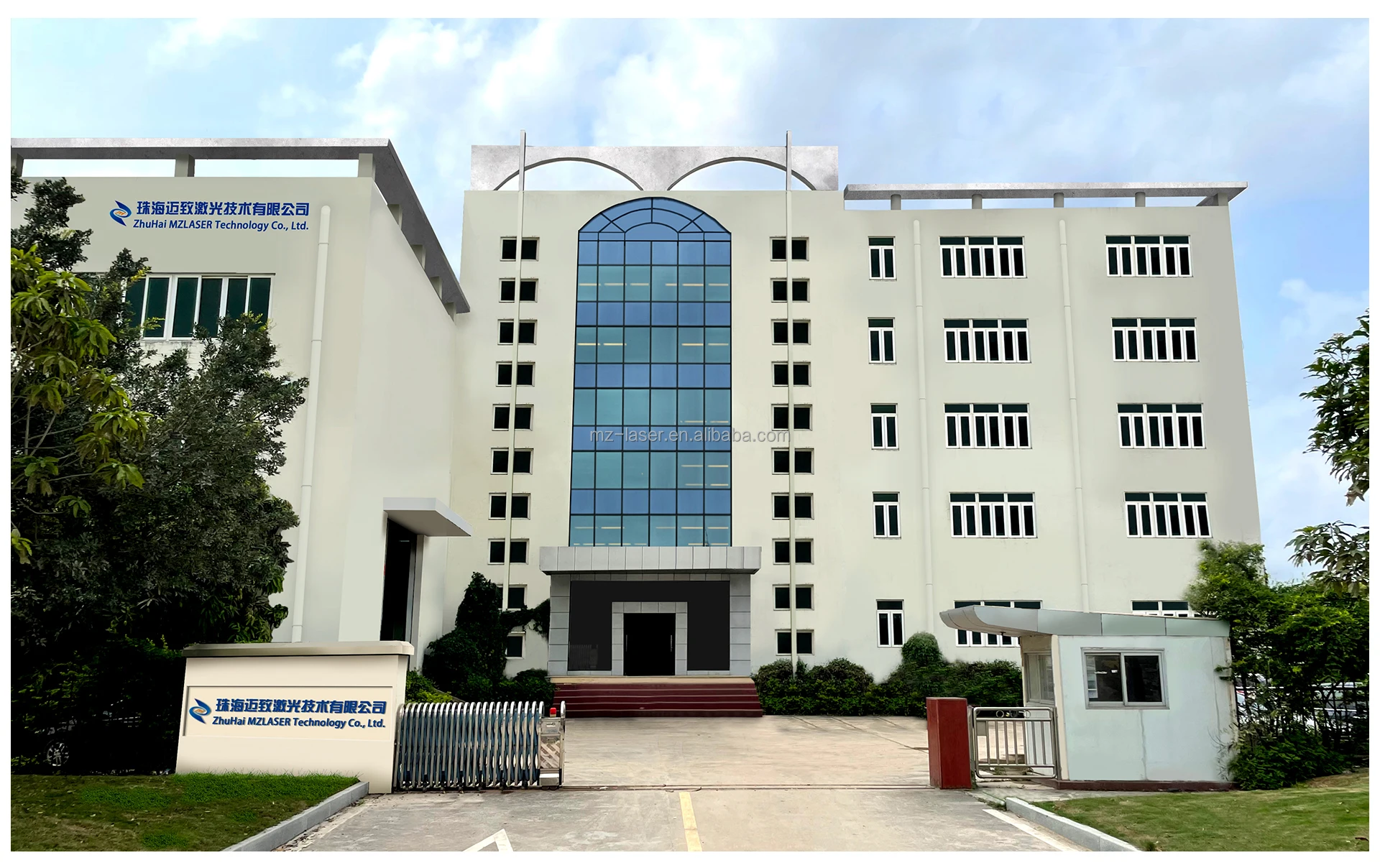

Company Profile




ZhuHai MZLASER Technology Co., Ltd. was founded in 2016.
It is a focusing on semiconductor laser products research and development and manufacturing enterprises.
The company always adhere to carry forward integrity, innovation, communication for the enterprise purpose, technology and service, our company mainly serves the high-tech industry as medical, biological engineering, industrial equipment, 3D printing equipment, 3D scanning equipment, gun aiming and other high-tech industries, to provide customers with high quality and stable products. And passed the ISO9001:2015 quality system management system.


Certifications




Customized services




Shipping & Delivery




FAQ

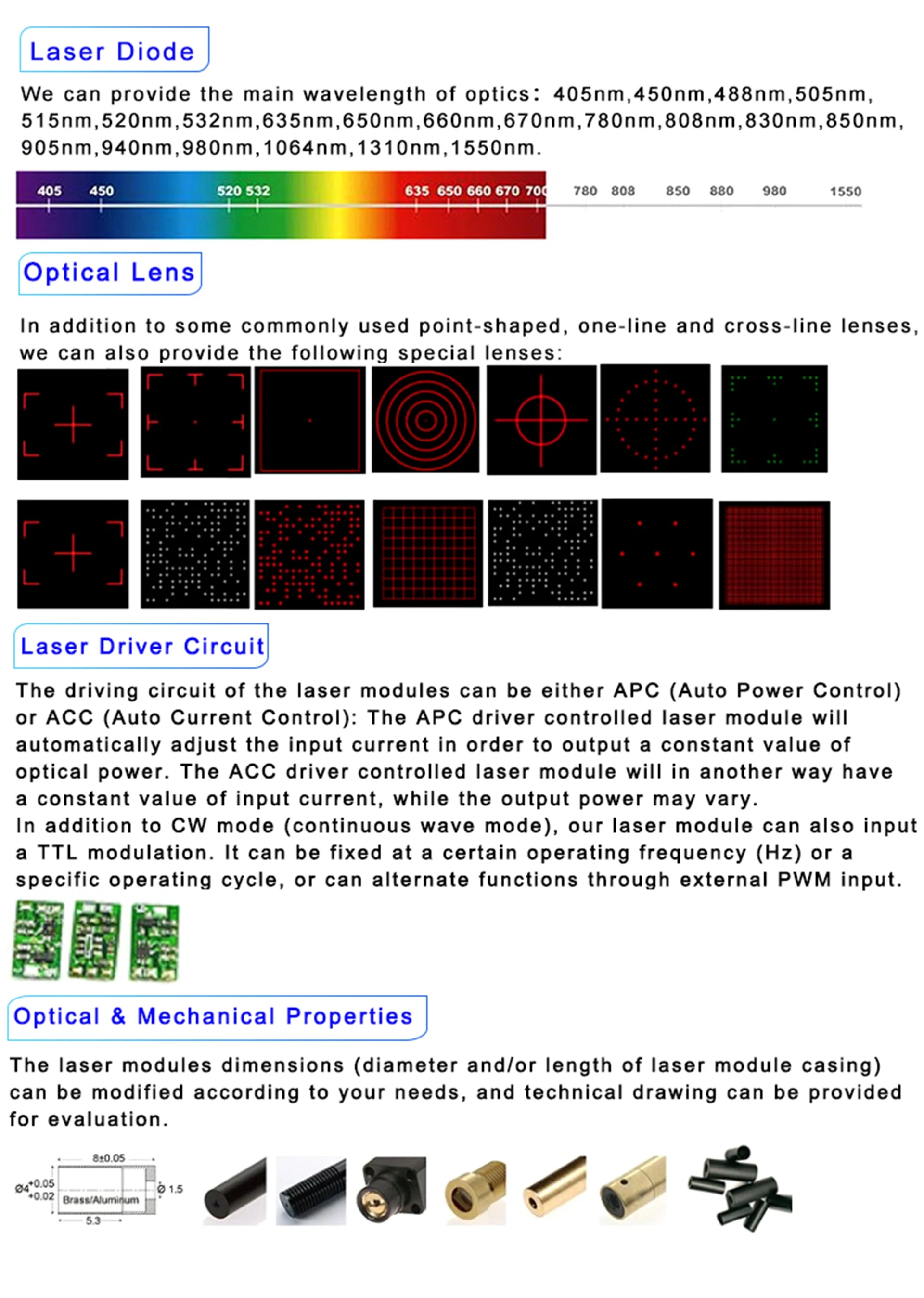

Q: What is different between APC and ACC driving ?
R: APC(Auto Power Control): automatically adjust the input current in order to output a constant value of optical power
ACC(Auto Current Control):a way have a constant value of input current, while the output power may vary. Of course, what drives depends on your application needs.

Q:What is the CW mode or PWM mode ?
R:CW (continuous wave mode): A conventional control method, continued to light up the work
PWM (Pulse Width Modulation):Direct Drive PWM laser is available with a TTL driver board that allows the unit to be gated on and off.

Q: What is the Operating Voltage ?
R: 3V/5V DC are standard laser operating voltage,we also can supply such as 12V DC or 24V DC if needed.
MZLASER can be supplied with a mains adapter which runs on 110-240V AC input and has one output to power the laser,If you require a custom lead length please contact us.

Q: What are the angles of laser lenses?
R: Laser lenses generally have these angles to choose: 5degrees, 10degrees, 15degrees, 20degrees, 30degrees, 45degrees, 60degrees, 90degrees, 110degrees.
