JAC 4X2 10m3 Sewage cleaning truck manufacturer

Product Overview

Description

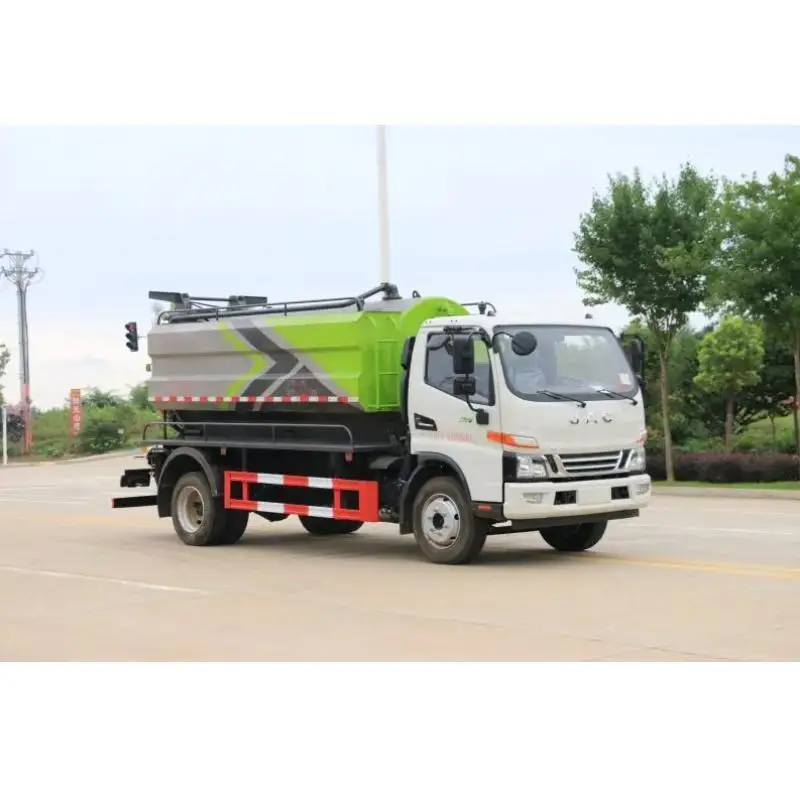

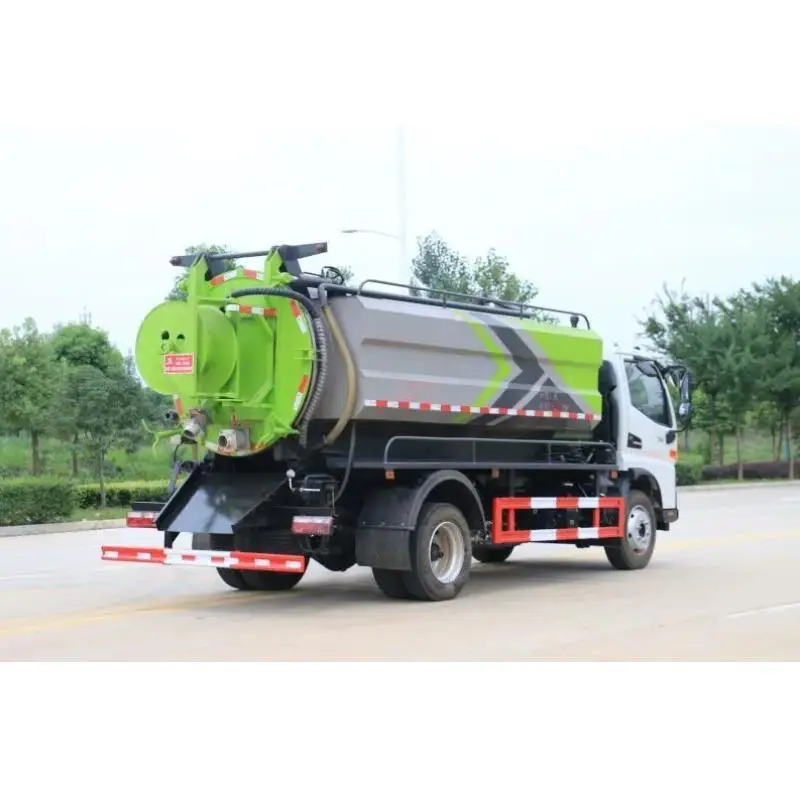

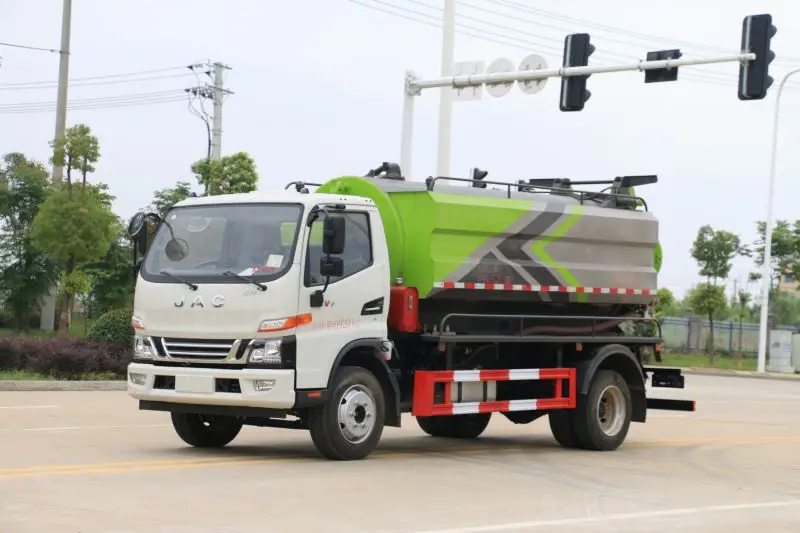

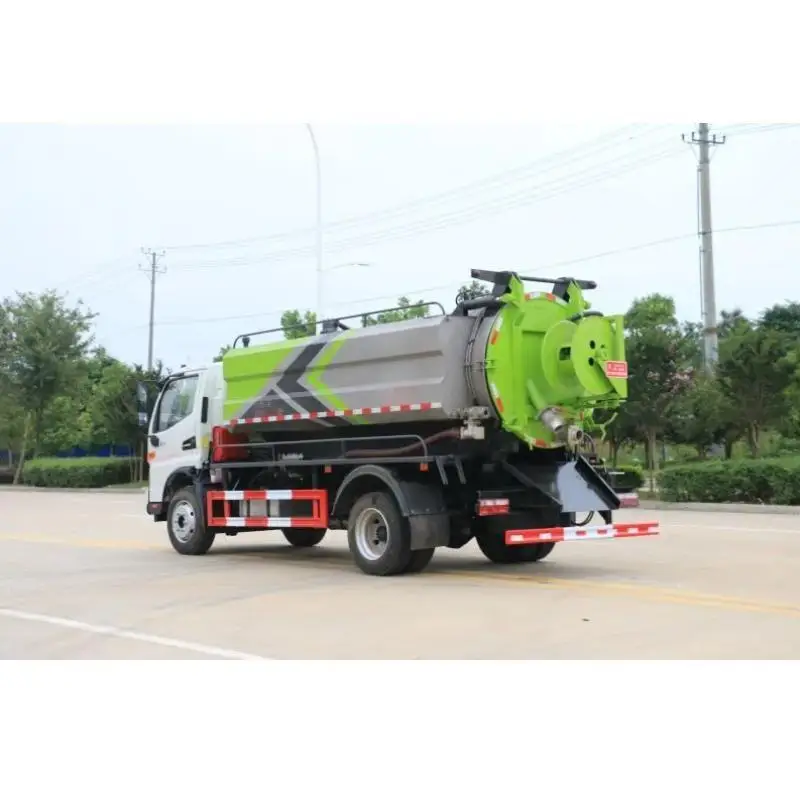

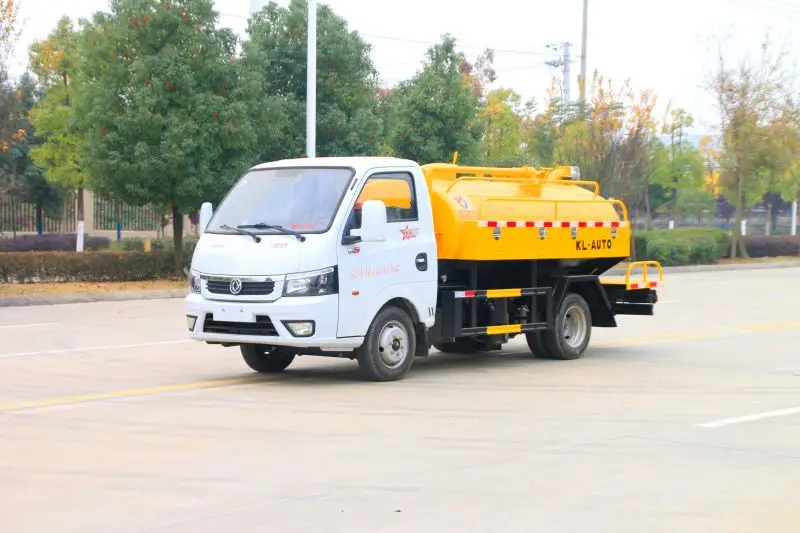

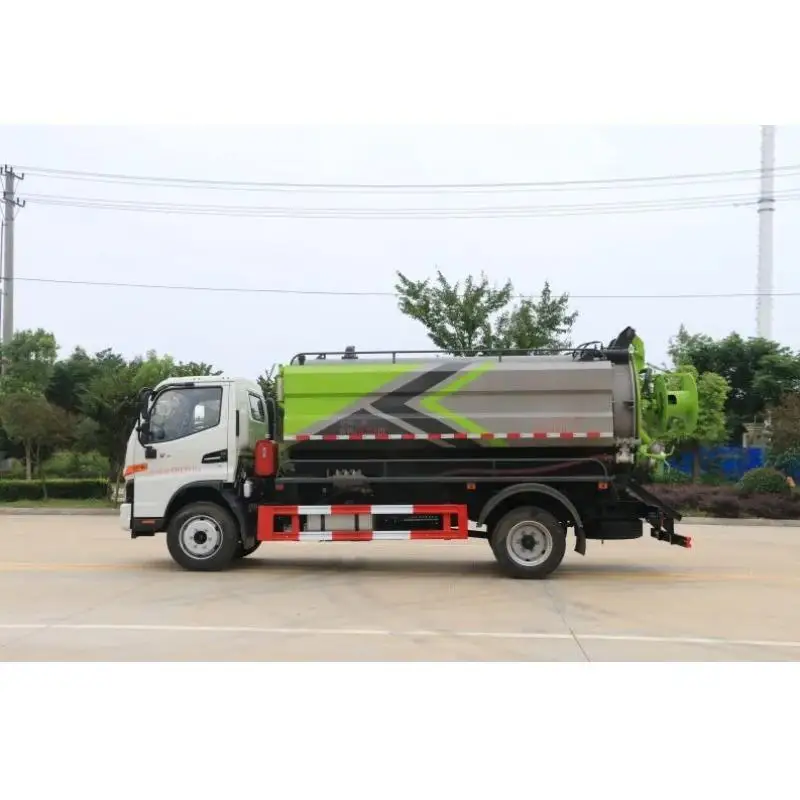

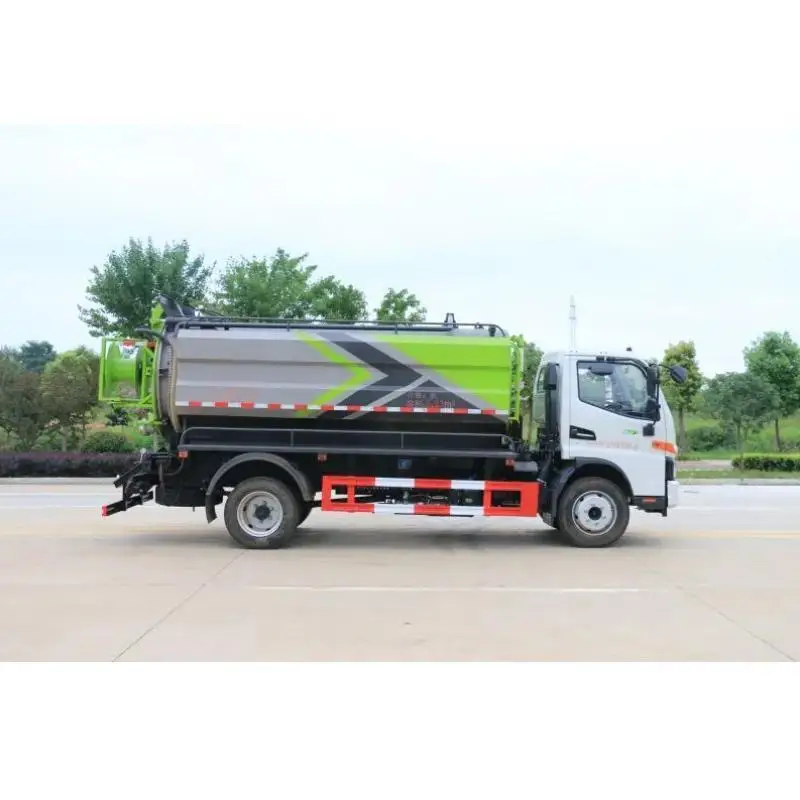

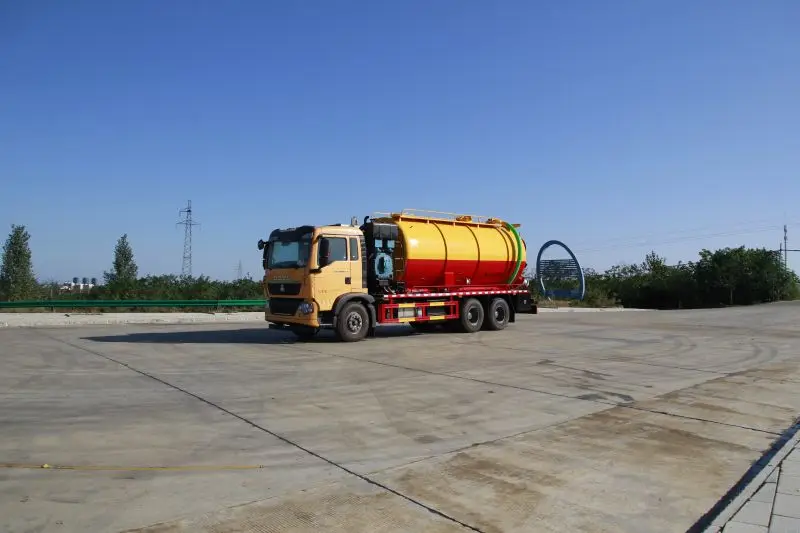

The cleaning and suction vehicle, also known as the joint dredging vehicle, is a new type of environmental sanitation special vehicle that combines the functions of high-pressure cleaning and suction vehicles. The highlight of this vehicle is the dredging of sewage blockage areas that cannot be reached by human labor, so it is called the joint dredging vehicle. The other functions of the car include floor flushing, suction and drainage, landscaping, etc

 The cleaning and suction vehicle integrates functions of washing, dredging, suction, and reverse discharge. It is used for the suction, transportation, and discharge of various liquid and semi liquid forms, as well as various media such as sludge, feces, wastewater, suspended debris sludge, small bricks, and crushed stones under various ditches. It can also be used for emergency treatment of sudden environmental pollution accidents. This will greatly improve the efficiency of cleaning and suction vehicles, and enhance their operational capabilities. Breaking through the past, the cleaning and suction vehicle products adopt advanced technology from domestic and foreign enterprises. After digestion and absorption, vacuum technology is fully utilized, and the dual anti overflow pump device can better avoid tank overflow and extend the service life of the vacuum pump. The vehicle is designed with a reasonable structure, excellent performance, and flexible and easy operation. And on the basis of the suction vehicle, a high-pressure cleaning vehicle function has been added, which can be used for both vehicles and saves money
Strength is cost-effective.

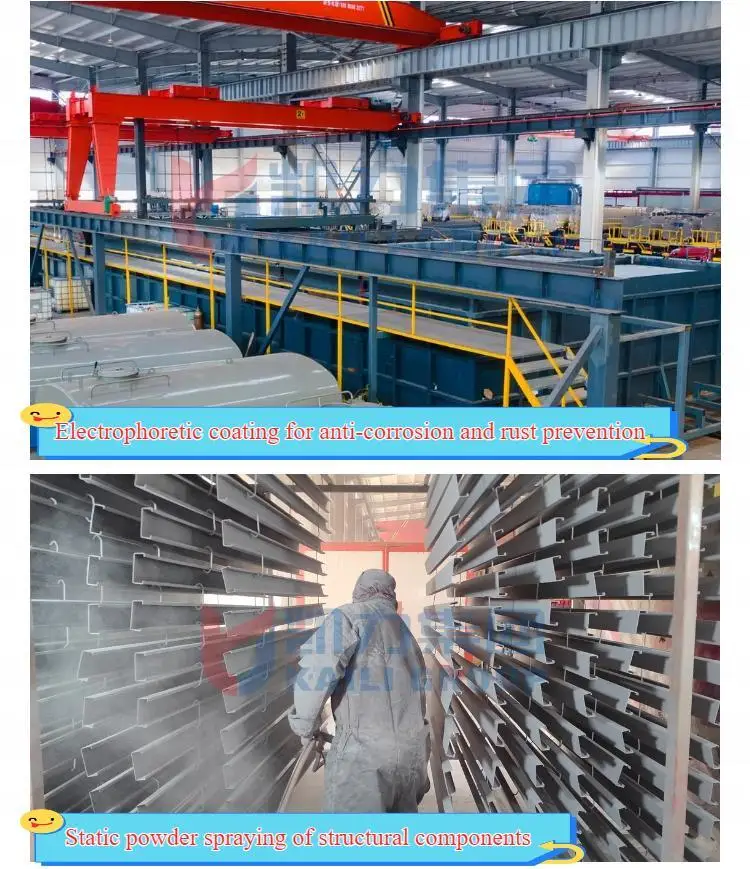

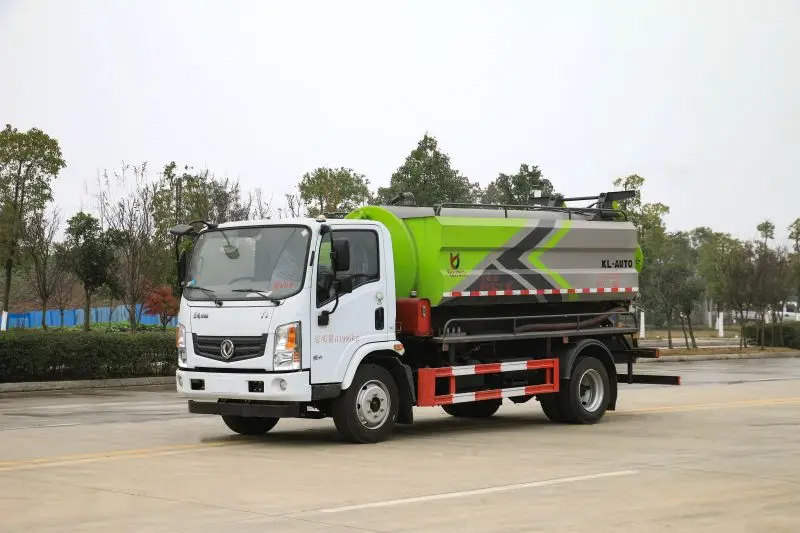

The entire vehicle tank and metal accessories have been sprayed with polymer anti-corrosion primer and metal topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and improved aesthetics. It can withstand adverse environments such as humidity, dust, and salt spray for long-term use without cracking, peeling, fading, and other problems. This not only improves the aesthetics of the product, but also effectively prevents rust.

Suction part:
function
The dedicated part of the suction truck consists of a power take-off, transmission shaft, vacuum suction pump, pressure tank, hydraulic part, pipeline system, vacuum pressure gauge, fecal viewing window, hand washing device, etc. It is equipped with a high-power vacuum suction pump and a high-quality hydraulic system along with the vehicle. The tank head is formed by one-time die casting, the tank body can be opened backwards, and the double top is self dumping. The dirt inside the tank can be directly dumped through the back cover, which has the characteristics of high vacuum degree (greater suction than a suction truck), large tonnage, high efficiency, and wider use.

operational principle
The vehicle starts, attaches a power take-off, drives the suction pump, and the suction pump operates to extract air from the tank. As the suction hose is always submerged in the liquid level, the air in the tank becomes thinner and thinner after being sucked, causing the pressure inside the tank to be lower than atmospheric pressure. The sewage enters the tank through the suction hose under atmospheric pressure

High pressure cleaning section:
function
The strong pressure generated by high-pressure water flow rushes open the blocked pipeline. The main components include the tank body, high-pressure pump, hydraulic system, etc. High pressure cleaning vehicles are mainly used to clean sediment in urban sewers and pipelines, as well as to clear dead corners and mud ditches. They can also be used to clean industrial drainage pipes, walls, etc., and to clean roads and square floors

Technical parameters of the entire vehicle



Vehicle model	KLF5120GXWE6
Wheelbase (mm)	3308
Engine power (kw)	121,96,125,
Dimensions(mm)	6860,6910,7047,7040X2220,240 0X3050,3170,2900,2850
Curb weight (kg)	5385,5600
Total mass (kg)	11995
Working speed (km/h)	Working in situ and in idle
Effective volume of the box (m3)	8
Hydraulic system pressure (MP)	18
operating mode	hand movement

operational principle
The vehicle starts, attaches a sandwich power take-off, drives a high-pressure pump, pressurizes the water to hundreds of atmospheres or above through a high-pressure water generation device, and then converts it into high-speed micro jet water through a small aperture spraying device. This type of shooting water has a tremendous impact energy and can complete different types of tasks. The technology of using this highly concentrated water jet to complete various pipeline dredging and dredging operations is called "high-pressure pipeline dredging"

matters needing attention

1. Maintain the appropriate rotation speed of the oil pump vacuum pump; The rotation speed of the vacuum pump is too high, which intensifies the heating of the rotor; If the speed is too low, it will cause additional impacts on the shipping machine and components, affecting their lifespan. To achieve the appropriate working speed, please adjust the optimal position of the hand throttle according to the pump type in advance.
2. Dump and flip the tank on a flat surface; Dumping cans on sloping roads can cause distortion and deformation of various components,Causing malfunction and potentially causing a rollover accident.
3. When dumping and flipping the tank, first open the tank body and then the tank door; Before unloading the mud from a self dumping tank, the locking bolt should be loosened first, and the rear tank door should be raised to the required angle. When the tank is fully loaded, it is prohibited to lift the tank when the rear tank door is closed, otherwise there is a risk of overturning.
4. When taking power from the oil pump and vacuum pump, idle the engine and fully press the clutch pedal to open the power take-off
5.Slowly release the clutch pedal after closing.
When the car is driving, the high-pressure pump and oil pump are in a stopped working state.
6. The vehicle is not allowed to inhale materials larger than the diameter of the rubber hose and transport waste oil and hazardous materials.
When entering the bottom of the self dumping and flipping tank for lifting or maintenance, support rods and safety blocks must be used.
